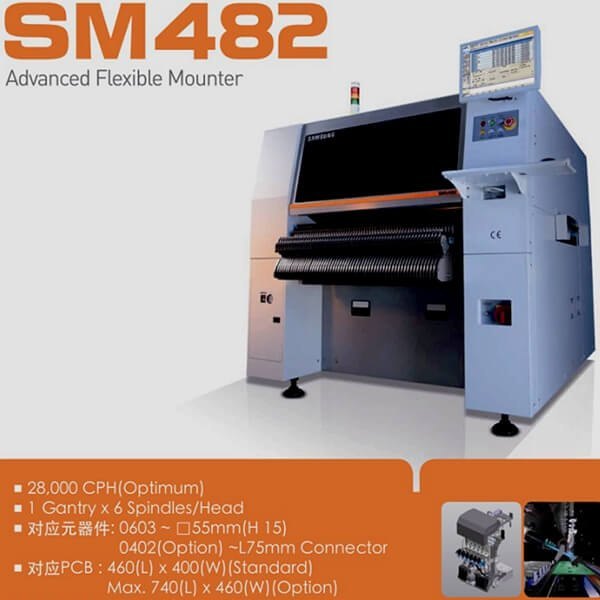

Advanced Flexible Mounter SM482 Part

Feeder Base Ass’y- ST

FC07-000033B VERTICAL_PLATE 1

 J70570262C M_90_CAP_TOP_PLATE 5

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 FC05-000122A FEEDER_BASE_BODY 1

 J7057213A SIDE CABLE COVER-FB[J7057213A] 2

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A F_BASE_LEFT_BOARD 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000693A F_BASE_RIGHT_BOARD 1

Feeder Base Ass’y- DC

J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060354A

 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1 J9060353A

 J6711256A COUPLER[KD-M5-SA34697KR] 56

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 AM03-000696A ASSY,BOARD-FBLD 1 J9060349D

 AM03-000695A ASSY,BOARD-FBRD 1 J9060350D

 FC30-001081A TOP PLATE S DCN 1

 J90571009A DC-FEEDER_BASE_MODULE 1

 FC09-002060A SME DC BKT 1

 FC30-001080A TOP PLATE B DCN 1

J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6711001A ELBOW FITTING 1

 J67110119B UNION Y FITTING [KQ2U04-06] 1

 J67050004B SILENCER AN101-01 2

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

 FC09-002061A DC SME SENSOR BKT 1

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J91741070A FEEDER_IO_BOARD VER 1.2 1

 FC09-000977A FRONT SENSOR BKT2 1 J70540267B

 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C

 J1300101 DRAWER PULL [HD-108] 2

 J70540268C REAR SENSOR BKT1 1

 J70540269B REAR SENSOR BKT2 1

J6712008A PLUG 2

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711009A ELBOW FITTING [KQ2L06-M5] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6712008A PLUG [PT 1/8] 3

 J67110119B UNION Y FITTING [KQ2U04-06] 1

 J6703037A CHECK VALVE[AKH06-00] 1

 J1300284 FITTING [KQ2U06-00/PY6M] 5

 J1300276 FITTING [KQ2L06-01/PL6-01] 5

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

Backup Table Ass’y

J9053342A BACK UP TABLE ASSY[J9053342A] 1

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN[J7053792A] 4

 J7053793A LOWER LINK PIN[J7053793A] 2

 J7053796A LOWER LINK SHAFT[J7053796A] 1

 J71530419B UPPER DRIVING LINK[J7153419A] 1

 J90531008A LINK_END_ASSY 2

 J70530797B LOWER LINK END 1 J7053797A

 J6601005A BALL BEARING 1

 J90531004A FREE_LINK_ASSY 2

 J71530418B UPPER FREE LINK 1 J7153418A

 J70530799C UPPER PLATE 1

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN[J7053794A] 2

J7053795A RING FIXER[J7053795A] 3

 J6619062A CYLINDER JOINT[Y-032B] 1

 J67010088B CYLINDER CM2C32-50-XC3BB 1

 J6711028A ELBOW FITTING [KQ2L04-01] 2

 J70530800C LOWER PLATE 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER[J7053790A] 1

 J70530801D BACK UP PLATE 1 J70530801C

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER[J7053791A] 1

 J6308003A URETHAN CUSHION[AXNSK15-40] 2

 J7053803A UP SENSOR DOG[J7053803A] 1

 J6107047A SPRING[SWU26-70] 1

J6015064000 SHOULDER SCREW[MSB6-40] 2

 J3212002A PHOTO SENSOR 1

 J7053802A UP SENSOR BRACKET[J7053802A] 1

 J9053343A BACK UP TABLE ASSY(LARGE)[J9053343A] 1

 J90531035A BACK_UP_TABLE_ASSY-EXL J90531035A 1

Stage CAM Ass’y

J70590095C CAMERA BOARD COVER 1

 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1

 FC15-001295A LIGHT_COVER 1

 FC09-002220A LIGHT_G_1 1

 J90600075B STAGE SIDE ?? BOARD ASSY 1

 J90600074B STAGE OUTER ?? BOARD ASSY 1

 FC09-002219A LIGHT_G_2 1

 EP15-000010A REFLECT_SHEET 4

 FC09-002223A LIGHT GUIDE 4

 FC15-001294A PROFILE_2 1

 FC09-002218A GLASS_STOP 2

 EP12-000044A GLASS 1

 PT02-000048A DIFFUSER 1

 J6103003A HEX SUPPORT 4

 J90600073C LED98-9 BOARD ASSY STAGE INNER 1

 FC09-002222A PCB_BASE_2 1

 FC09-002221A PCB_BASE_1 1

 FC05-000225A BASE 1

 FC15-001293A PROFILE_1 1

 AM03-007709A F45-60-ASSY 45MM MEGA 1

 J67510015B CCD CAMERA 1

 FC15-001290A COVER_1 1

 FC15-001292A COVER_COMP 1

 J7066008D LINK_SHAFT_1 1

 FC15-001291A COVER_2 1

 J7153373A FIDUCIAL_DISK 1

Cover Ass’y

FC15-001006A CONVEYOR_COVER 2

 FC15-000959A TOP_SIDE_L 1

 FC15-000956B COVER_FRAME_FRONT-L 1 FC15-000956A

 FC39-000757B COVER_FRAME_REAR-R 1 FC39-000757A

 J47131010A TOWER_LANP 1

 J73520001B DOOR CUSHION 4

 FC15-000946B UPPER_FL 1 FC15-000946A

 J64091005A MAGNETIC 4

FC09-000693B BARCODE_HANGER3 1

 FC15-000955A TOP_CENTER 1

 J70521087A WINDOW_HINGE 2

 FC15-000953A UPPER_SIDE_R 2

 FC09-001707A SM471_WINDOWS_SIDE_GUIDE_L 1

 FC09-001711A SM471_WINDOWS_SIDE_CLAMP 4

 FC30-000881A SM471_PC_FIXED_PLATE 1

 FC09-001706A SM471_WINDOWS_SIDE_GUIDE_R 1

 FC18-001043 FRSNUT_M4 15

 FC30-000908A SM471_MAGNETIC_PLATE 2

 FC09-001709A SM471_HANDLE_PLATE 1

 FC09-001708A SM471_COVER_HANDLE_C 1

 J70521081A GAS_SPING_BRACKET2 2

 FC15-001006A CONVEYOR_COVER 2

 J6404001A DOOR KEY 1

 FC15-001031A SM471_WINDOW_MAIN_PLATE 1

 CM01-000057B SM471_PC_COVER_ESD 1

 J3212049A AREA_SENSOR_BWP20-12 2 OPTION

 FC15-000947B UPPER_RL 1 FC15-000947A

J70521075D GAS_SPRING_BRACKET1 4

 FC38-000079 GAS_SPRING_KS2-300-PS1-032 8

 J34091002A DOOR_SWITCH 2

 FC09-001727A DOOR_SENSOR_BKT3 2

 FC09-001726A DOOR_SWITCH_BKT3 2

 FC15-000998A HINGE_PLT 2

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 1

 FC15-000505B COVER-MONITOR_GUIDE_PL;SPCC,WHITE 2 FC30-000844A

 J7252061A PAD_BRACKET 4

 FC15-000997A LCD_BKT 2

 J6739088A SWITCH_1B_LED_RED 2

 J6739089A SWITCH_1B_LED_YELLOW 2

 J6739090A SWITCH_1B_LED_GREEN 2

 J3403047A SWITCH_2B_LED_WHITE 2

 J6739087A SWITCH_1B_LED_WHITE 2

 J3403082A EMS SW 2

 FC30-000829A OP_PANEL 1

 FC15-001005A KEYBOARD_BASE 1

 FC15-000957B KEYBOARD_BASE_BKT 2 FC15-000957A

J31091015A FAN_FILTER 2

 J3105010A FAN_4715MS-SST-B50 4

 FC15-000943B LOWER_SIDE_2_L 1 FC15-000943A

 FC15-000952A LOWER_SIDE_1_COVER 2

 FC15-000949B LOWER_FL 1 FC15-000949A

 J64091022A SLIDE_LATCH 1

 FC15-000960A LOWER_OPEN_DOOR-A 1

 J1300101 DRAWER_PULL_HD 4

 FC15-001138A MT481P-CV002A-COVER_LFM_DC 2

 FC15-001341A FB SIDE COVER FL 4

 FC15-001344A FB COVER FRONT 2

 HP04-000075 FAN FILTER METAL 120MM 2

 FC15-000948B LOWER_FR 1 FC15-000948A

 J64091022A SLIDE_LATCH 1

 J70511018B cable_duct_s-v 6

 J70521049A side_cover_support 1

 FC15-000944B LOWER_SIDE_2_R 1 FC15-000944A

 FC15-000949B LOWER_FL 1 FC15-000949A

 FC15-000961A LOWER_OPEN_DOOR-B 1

 J64091022A SLIDE_LATCH 1

 FC15-000961A LOWER_OPEN_DOOR-B 1

 J64091022A SLIDE_LATCH 1

 FC15-000951B LOWER_RR_COVER 1 FC15-000951A

 FC15-001340A FB SIDE COVER FR 1

 FC15-001342A FB SIDE COVER RR 1

 FC15-001345A FB COVER REAR 1

 FC15-001343A FB SIDE COVER RL 1

FC15-001297A MT481P-CV002A-COVER_LFM_DC 2

Control Rack Ass’y

J48091106A PCIE_HOST_ADAPTER_JMI PCIE_HOST_CARD 2

 CD05-000030 MOTHERBOARD,CPU-NuPRO-E340;SBC,Q67 1

 CD05-000028 CPU-I5-2400;Quad Core,3.1HGz 1

 J9060364A IT FEEDER MASTER BOARD ASSY[J9060364A] 1

 J91741002B SAMC-ME 6CH 2

 CD05-000031 MODULE,MEMORY-DDR3 4G PC3-10600;Dimm 1

 CD03-000036 HARD DRIVE-OCZ AGILITY 3 SSD;60GB 1 J51011017A

 J6102017A PC SLIDE RAIL[3832B-18] 2

 FC15-000076A AP5_PC_STOPER 2

 FC09-001665B BKT RIGHT BASE 1

 FC09-001669A SUB BRACKET B 1

 FC09-001667A POWER S HANGER 1

 AM03-006323A IPC_RACK-SM471 CASE 1

 FC09-001664B BKT LEFT BASE 1

 FC09-001668A SUB BRACKET 1

 EP10-001018 PCIE_BACKPLANE 1 J48091108A

 FC09-001666B POWER S DUCT 1

 J44021015A SMPS 3

 FC09-001670A POWER S BKT 3

 J44021043A PWR_SUPPLY 1

 J31051024A FAN 4710KL-04W-B49 2

 FC15-001085A COVER P SUPPLY 1

 FC29-000042 CAP-DUST CAP;PA10:rubber 3

 EP10-000749 MR-100 2

 CD05-000029 COOLER,CENTRAL PROCESSING-DP6-9EDSA-0L- 1

 FC15-001085A COVER P SUPPLY 1

Base Frame Ass’y

FC15-000983A COVER BOTTOM FR 2

 FC15-000985A COVER BOTTOM RR 1

 FC15-000986A COVER BOTTOM RL 1

 J7051010D HOUSING-FOOT 4

 J2100018 NUT-FOOT 4

 J70511014A BOLT_FOOT 4

 J7051008C BASE-FOOT 4

 J7351001A CUSHION FOOT 4

X-Y Frame Ass’y

J70541124A CABLE_SPACER 1

 J7054260A CABLE_FIXER 1

 J7354023A CABLE_CUSHION_X 3

 J7054255A CUSHION_BRACKET_X 3

 J7354024A CABLE CUSHION Y 1

 J7054256A CUSHION BRACKET Y 1

 J70541116A COVER_Y_CABLE_DUCT_BRK 1

 FC30-000540A K_DUCT_SPACER 2

 J3212022 LIMIT SENSOR 3

 J7154268A HEAD BASE 1

 J70541038A SENSOR DOG-X 2

 J70541129B SENSOR DOG-Y 1

 J70541126A CONNECTOR BKT 1

 J31081055A SERVO_MOTOR 1

J73541001A CUSHION_X_REAR J72541011A 1

 J71541010A BRG_HOUSING-X J71541010A 1

 J71541009A BRG_SUPPORT-X J71541009A 1

 J66061014B X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1

 J6601138A SUPPORT_UNIT FK12-MP5 1

 J6601008A BALL BEARING 1

 J1300517 C-RING [10mm (SHAFT)] 1

 J1300502 PIN DOWEL [MS5-10] 4

 J6612035A COUPLING 1

 J31081055A SERVO_MOTOR MHMD082G1A 1

 J73541002A CUSHION_X_FRONT J72541003A 1

J6606036A Y SCREW 1

 EP08-111039A SERVO MOTOR 1

 J6612036A COUPLING[SFC 050DA 12B-19B(TYPE A)] 1

 J70541031A COVER Y MOTOR 1

 J70541005A Y MOTOR BLOCK 1

 J6601124A SUPPORT UNIT 1

 J73541004A Y STOPPER2 CUSHION F 1

 J72541012A STOPPER Y BALL SCREW 1

 J70541120C BS REAR SUPPORT 1

 J70541121B BRG INNER SPACER 3

 J66011036A ANGULAR_CONTACT_BALL_BEARING 2

 J70541119B BRG_SUPPORT_X 1

 J70541122B BRG OUTER SPACER 1

 J6608003 BEARING NUT 1

 J70541123C BEARING COVER Y 1

 J3212022A LIMIT SENSOR 3

 J6607077A LM GUIDE 1

 J70541115A COVER BKT 2

J70541115A COVER BKT 2

 FC09-000980B Y CABLE DUCT BRK 2

 FC09-001880A BRACKET-SM421_Y_CABLE_DUCT 1

 J7354024A CABLE CUSHION Y 1

 J7054256A CUSHION BRACKET Y 1

 FC09-000671A MT-411P-XY001A-CON_PANEL-Y 1

 HP09-000148 MANIFOLD_AIR_KM11 1

 FC15-001496A COVER-Z_AMP_482 1 FC15-001283A

 J1300191 SEMUS NABE SCREW 6

 AM03-005372A ASSY,ELECTRIC-HEAD_Z_MOTOR_DRIVER_ASSY 3

 AM03-006409A SM471_PW02_CABLE_ASSY 1

 FC09-002205B BRACKET-Z_MOTOR_DRIVER_82 1 FC09-002205A

ANC Ass’y

FC05-000212A TOP_COVER 1

 FC18-000621A COVER_SPACE 9

 FC09-002208A TOP_COVER_L 1

 FC29-001527A SHUTTER 1

 J6703029A SPEED_CONTOL_VALVE 2

 HP03-000083 CYLINDER 1

 FC09-002171A SHUTTER_BKT 1

 FC05-000215A ANC_BASE 1

 FC38-000093A SPRING 1

 FC18-000619A SPACE_PIN 1

 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2

 J7153373A FIDUCIAL_DISK 2

 FC09-002173A REF_SHAFT 2

 FC09-002172A FID_SHAFT 2

 FC05-000214A ANC_PLATE 1

Conveyor Ass’y

J70530785B PCB GUIDE-FC 1

 J71531048B PCB_GUIDE_END 2

 J7253007A IDLER 2 8

 J7053047A IDLER SPACER-S 9

 J7053009A IDLER SHAFT-S2 9

 J3211048A PHOTO SENSOR 3

 J70531088B WORK_SENSOR_BRACKET 2

 J7053184A SQUARE NUT 19

 J7253006A IDLER 1 4

 J31041014A STEP_MOTOR 3

 J70531106A BRACKET_BELT_MOTOR_S 2

 J7153111A STEP_MOTOR_PULLEY 3

 J70531084A BRACKET_BELT_MOTOR_B 1

 J70531083A ALT_MOTOR_SUPPORT 4

 J7053689A SENSOR_KNOB 1

 FC09-002034A Q_SENSOR_BKT_BYD 1

 J7153331A RAIL_SENSOR 1

 J70531086A BRACKET_RAIL 2

 J66021017A BELT_410_1 2

 J66021018A BELT_410_F 1

 J71530399C CLAMP FRONT FRAME 1

 J90831401C CONVEYOR_PCB_SENSOR_ASSY 1

 FC09-002808A BRACKET-CON_STOP_CYLINDER_SMC 1 J70531089A

 J6711001A ELBOW FITTING 1

 J6703007A THROTTLE VALVE(ELBOW) 1

 FC30-001359A PLATE-STOPPER_TOP_SMC-CYL 1 J70531050A

 J70531029B STOPPER_POST 1

J7053770A IDLER SHAFT-M 4

 J7053048A IDLER SPACER-M 4

 J6607016A LM SLIDE 2

 J7253009B STOPPER 2 2

 J7153036A SLIDE GUIDE 1

 J7253008A STOPPER 2

 J7153010B ADJUST SHAFT 2

 J7153034A CLAMP SHAFT 2

 J6073010136H C-RING 2

 J66011035A BALL_BUSH 2

 J7153033A BUSH SPACER 2

 J66011035A BALL_BUSH 2

 J70531100B BRACKET_SENSOR_IN 1

 FC09-002127A BRACKET-SENSOR_OUT_P 1

 FC39-000975A FRAME-CONV_FRONT_P 1

 J3211032A PHOTOELECTRIC SENSOR 1

FC30-001116A PLATE-PCB_GUIDE_RC_P 1

 J71531048B PCB_GUIDE_END 2

 J7253009B STOPPER 2 2

 FC39-000970A FRAME-CONV_REAR_P 1

 J7253007A IDLER 2 8

 J7053047A IDLER SPACER-S 9

 J7253006A IDLER 1 4

J7053184A SQUARE NUT 8

 J31041014A STEP_MOTOR 3

 J70531106A BRACKET_BELT_MOTOR_S 2

 J7153111A STEP_MOTOR_PULLEY 3

 J7253008A STOPPER 2

 J7153010B ADJUST SHAFT 2

 J7153034A CLAMP SHAFT 2

 J6073010136H C-RING 2

 J66011035A BALL_BUSH 2

 J7153033A BUSH SPACER 2

 J66011035A BALL_BUSH 2

 J7053763A IDLER SPACER-M 3

 J66021017A BELT_410_1 2

 J66021019A BELT_410_R 1

 J71530400C CLAMP REAR FRAME 1

 J70531085A BRACKET_BELT_MOTOR_M 1

 J7053009A IDLER SHAFT-S2 9

 J7053770A IDLER SHAFT-M 3

J6609012A PULLEY-WIDTH 1

 J1300509 BALL BEARING 2

 MC13-000042A SCREW,LEAD-SM421_P 1

 J7053194A BEARING NUT 1

 J7153330A PULLEY SHAFT 1

 J6602030A TIMING BELT 1

 J6609015B PULLEY-MOTOR 1

 FC09-002134A BRACKET-SERVO_MOTOR_P 1

 J3108062A SERVO MOTOR 1

 FC09-002125A BRACKET-SCREW_STAND_P 1

 FC09-002126A BRACKET-MOVE_STAND_P 1

 J6607083A LM GUIDE 1

 J6502008A LOW PROFILE MOUNTS 2

FC05-000207A BASE-WIDE_ADJUST_SM421_P 1

 FC09-002124A BRACKET-FIX_STAND_P 1

Head Ass’y

J71541079A HEAD TOP COVER 1

 J70541125A HEAD COVER SUPPORT 2

 AM03-006867A HEAD IF BOARD 1

 J70541124A CABLE_SPACER 1

 J71541016B HARNESS SUPPORT 2

 J71541019A HEAD CBOARD BRACKET 1

 J71541018B CABLEVEYOR_BRACKET 1

 J70541015B CONNECTOR_PANEL 1

 J6119056A HANDLE BG-10 1

 FC09-002283A HARNESS PLATE 1

 J67111169A FITTING 1

 J67021055A SOLENOID VALVE 1

 HP06-000084 SPEED CONTROL VALVE 2

 J67111169A SILENCER 2

J3108060A Z MOTOR 6

 J7055656A Z TENSION BRACKET 6

 J3212048A SENSOR PM 6

 J67031006A SPEED CONTROLLER 1

 J715555A MIRROR COVER L 1

 J7055566A SUPPORT 2

 J7055657A MIRROR COVER BKT 1

 J7155553A MIRROR COVER R 1

 AN06-000358A ASSY.PCB SMD-SM400_CAMERA_IO_BD 1

 J6751009A CCD CAMERA 1

 J7055568A CAMERA CABLE HOLDER 1

 J7155516A FIDUCIAL CAMERA BKT 1

 J9059139A R MOVING LENS ASSY 1

 J7155517A FUDUCIAL CAMERA CLAMP 1

 J71550560C LED HOUSING-F 1

 J7155534A FLY CAMERA BKT 1

 J9059010A LENS ASSY 6

 J7155269A COUPLET 6

 J6751009A CCD CAMERA 6

 J7155535A CAMERA HOLDER 6

 FC15-000445A CAMERA-COVER 1

FC09-002274A OUT ILL BKT 2

 AM03-007104A ASSY,BOARD-SM482 VACCUM SENSOR 1

 FC09-002281A BKT_AIR_L 1

 J67081017A SUCTION FILTER 6

 J9060357B HEAD OUTER LED BOARD ASSY 1

 HP06-000074 STRAIGHT FITTING 6

 FC07-000535A SM482_AIR_MODULE_MANIFOLD 1

 FC14-000381A PLUG 6

 HP14-000206 SOLENOID VALVE 6

 HP14-000163 SOLENOID VALVE 6

 J67111169A FITTING_ELBOW 1

 FC09-002282A BKT_AIR_R 1

 FC07-000534A OUTER ILL BLOCK 1

J7055143B CAM 1

 J7155522A PULLEY S AXIS 1

 J6602078A S BELT 243 GT 1

 J7055557A BEARING HOUSING 1

 J7155523A PULLEY S AXIS 1

 J7155524A MIRROR MOTOR BKT 1

 J7255081A MIRROR MOTOR ISOLATOR 1

 J3108061A S MOTOR 1

 J7055561A SPRING 2

 J7455026A SPRING BUSH 4

 J7055558A MIRROR PIN 2

 J7055560A MIRROR SPRING BRACKET 2

 J7155526A MIRROR ARM LEFT 1

 J6601081A CAM FOLLOWER 1

 J70552024A ARM JOINT 1

 J6601080A BALL BEARING 2

 J7055205A MIRROR JOINT-LEFT 1

 J7055153A MIRROR SCREW 1

 J6601079A BALL BEARING 2

 J7055207B MIRROR SHAFT 1

 J7055163A BEARING HOUSING 1

 J3212027A SENSOR PM 1

 J7055556A MIRROR SENSOR BRACKET 1

 J7055559A MIRROR PIN 2

 J7155197A MIRROR FIXED PLATE 2

 J6755002A FOLDING MIRROR 1

 J7155530A MIRROR SUPPORT 1

J7155527A MIRROR ARM RIGHT 1

 J7155525A MIRROR SENSOR DOG 1

 J9060404A HEAD SIDE LED ASSY 1

 J7255085A SIDE ILLUM ISOLATOR 1

 FC09-002279A SIDE_SNS_DOG 1

 J72550084B SIDE REFLECTOR 6

 J71550570B SIDE ILLUM BODY 1

J9081010B R56_MOTOR_CABLE_ASSY 1

 J7255083A THETA MOTOR ISOLATOR 3

 J7155531A THETA MOTOR PLATE 3

 J7055659A BEARING PLATE 1

 J7055663A SENSOR BRACKET 1

 J6602077A R BELT 2

 J3212027A SENSOR 1

 JS755030B PULLEY R AXIS 3

 J7155521A PULLEY R AXIS 1

 J7155518A PULLEY Z AXIS 1

 J6602076A Z BELT 1

 J6607055A LM GUIDE 1

 J7055552A SENSOR BRACKET R 3

 J7055658A PULLEY PIN 3

 J7155565A PULLEY Z AXIS 1

 J6601140A BALL BEARING 1

 AM03-007198A R_JOINT 1

 J6601088A Z UP BEARING 2

 J7055562A SPRING SPACER 1

 J7055554A SPACER 1

 FC09-002273A SLIDE ALIGNER CAP 1

 J7055545A SPLINE ALIGNER 1

 J7155508A SPLIDE BODY 1

 J70550548B Z SPRING 1

 J7055664A BELT CLAMP 1 1

 J7055665A BELT CLAMP 2 1

 J7155541A PIN Z 1

J7155512A SENSOR DOG 1

 FC09-002280A BALL SPLINE 1

 J7155513A SENSOR DOG R 3

 J7055543A SPLINE HOUSING 1

J9055209A COMMON NOZZLE HOLDER 1

 FC09-002280A SPINDLE HOUSING 1

 J131687 BEARING 6803ZZ 2

 J7055544A BEARING COLLAR 1

 J7055555A BEARING NUT 1

 J90830190B R12_MOTOR_CABLE_ASSY 1

 J90831009B R34_MOTOR_CABLE_ASSY 1

Electric Panel Ass’y

J3153054A SM_DIRIVER_50W 2

 J3153056A SM_DIRIVER_750W 1

 J3153057A SM_DIRIVER_1KW 2

 FC09-002142A CONNECTER_BKT_R 1

 FC09-002147A DRIVER_BRACKET-LOWER 1

 FC09-002146A DRIVER_BRACKET-UPPER 1

 FC09-002143A DRIVER BRACKET-SIDE_SM482 2

 J3105010A COOLING FAN 1

 FC09-002141A CONNECTER_BKT_L 1

 J2029010A REGENERATIVE_RESISTOR 3

 J70511021A RESISOTR_BRACKET 1

 FC09-002144A SM482_AXIS_BD_BKT 1

 FC09-002140A AXIS_BD_SUB_BKT 1

 AM03-007102A FIX_ILL_BORAD 1

 AM06-000943A 16AXIX_BORARD 1

 FC09-002139A AXIS_BD_COVER 1

 J251007A BD_COVER 1

 J9060342B SAFTY_CONTROL_BD 1

 AM03-006976A REAR_TERMINAL_BLOCK 1

Electric Device Ass’y

J67091014A REGULATOR AR08-T2-D0M0-J346A 1

 J6712008A PLUG [PT 1/8] 1

 AM03-007638A AIR_INDICATOR_CABLE_ASSY 1

 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 FC09-001465A BRACKET-AIR F SMU 1

 J67111183A ELBOW_MINI_FITTING SCL04-01 1

 J61191172A METER GZ46-K-01-C1 1

 J61191167A JOINT KQ2F04-01 1

 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 2

 J67090012B REGULATOR 1

 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY 1

 J90831059C KEY_SWITCH 1

 FC09-001672A BRACKET-BKT F POWER 1

 J6309025 FAN[PFC120(FOR 120? FAN)] 2

 FC15-000943B COVER-LOWER_SIDE_2_B 1 FC15-000943A

 J3105010A COOLING FAN[4715MS-22T-B50] 2

AM03-003542A CABLE ASSY INLINE_IN_OUT 1

 J36031004A MAIN_SW_CANCLE 1

 J3716070A GV2_AF 1

 J70521076B POWER_PANEL 1

 AM03-003573A LAN_PORT 1

 J7152027A GROUND TERMINAL [J7152027A] 1

 J52011002A MINI_KEYBOARD 5510UH 2

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2

 J52021011A OPTICAL_MOUSE 2

 J90601023B TEACHING_BOX 1

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 J53011032A

 AM03-000900A CAN_CONVEYOR_BOARD 1

 J91741076A CONV_SUB_IF_BOARD 1

 AM03-000900A CAN_CONVEYOR_BOARD 1

 J26051012A TRANSFORMER 3PHASE, 5.5KVA 1

 J91741042A SM421_AXIS_SENSOR_BOARD_ASSY VER1.0 1

 J80001112A MONITOR_DISTRIBUTOR NM-V21 1

 AM06-00359A VISION IF BD 1

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J90601030B FR_OPERATE_BOARD 1

 FC09-002234A VAC_GEN_BKT 1

 HP11-000074 PUMP 1

 J61191164A FITTING KQ2L04-01S 1

 J67111203A FITTING 1

 J1301213 PLUG 1

 J67021025A AIR-VALVE 1

 J6712008A PLUG 1

 HP06-000277 FITTING KQ2L12-04S 1

 FC15-000967A COVER PUMP 1 OPTION

 HP11-000059 VACUUM_PUMP KHA400A-301-G1 1 OPTION

 FC28-000105 STRAIGHT NIPPLE 1 OPTION

 J61191171A FITTING KQ2R04-08 1 OPTION

 HP06-000250 FITTING KQ2VT12-03S 1 OPTION

 HP06-000234 FITTING KQ2R08-12 1 OPTION

AM03-006356A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1

 EP06-000219 SERVO CONTROL-DRIVE-STEP_MOTOR_DRIVER_4A 2 EP06-000219

 J91741023A SM411_CONVEYOR_PWR_BOARD 1

Air Ass’y

J67081006A MIST_SEPARATOR_ASSY TAC4020-04D-R3643 1

 J67111032A MIST_FITTING SQV12-04S 2

 J6711183A STRAIGHT FITTING [KQ2R06-08] 4

 J67121009A PLUG KQ2P-08 5

 HP06-000226 FITTING-KQ2R10-12;STRAIGHT 1

 J67121002A PLUG KQ2P10 1

 J67021025A AIR-VALVE VP544-5D-03-A 1

 J6712014A PLUG PT 3/8 (SUS) 1

 J67111203A FITTING SQL10-03S(WHITE) 1

 HP11-000074 INJECTOR-P5010.00.AJ.01. (Pi48-3) 1

J6712008A PLUG [PT 1/8] 1

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 2

 J6703037A CHECK VALVE[AKH06-00] 1

 J6711168A UNION Y FITTING [BUYD06-04] 1

 J6705004A SILENCER [AN101-01] 1

 J6711009A ELBOW FITTING [KQ2L06-M5] 1

 J1300276 FITTING [KQ2L06-01/PL6-01] 5

 J1300284 FITTING [KQ2U06-00/PY6M] 5

 J6711019A UNION Y FITTING[PU6M] 1

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711257A PLUG[KS-4-M5-SA34698KR] 2

 FC28-000105 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1

 HP13-000037A TUBE-M-TUBE UML-412 3.7M;12x4 1

 HP13-000042 TUBE-NYLON TUBE N2-4-12x9-MW;12,OD12/ID9 1

 HP11-000059 PUMP-PUMP KHA400A-301-G1 1

 HP06-000250 FITTING-FITTING KQ2VT12-03S;ELBOW 1

 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1

 J61191171A JOINT KQ2R04-08 1

 HP06-000235 FITTING-KQ2U12-00;Y-SHAPE,ONETOUCH 1

 HP09-000148 MANIFOLD-AIR_KM11;PC 1

 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1

J61191167A JOINT KQ2F04-01 1

 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N-K1- 1

 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 J61191172A METER GZ46-K-01-C1 1

 J6711028A ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 2

 J6709012A REGULATOR [TAR4000-04] 1

 J67091014A REGULATOR AR08-T2-D0M0-J346A 1

 J6711168A UNION Y FITTING [BUYD06-04] 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

J6701088A CYLINDER[CM2C32-50] 1

 J6711028A ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

 J6703028A SPEED CONTROLLER [SS4-M5MA] 2

 HP03-000096 CYLINDER-CXSJM10-40-A93 1 J6701018B

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

J1301354 THROTTLE VALVE STRAIGHT [AS1201F-M5-04- 1

 J9080778B ANC SENSOR CABLE ASSY[SM-CV010] 1

 HP14-000398 VALVE,THROTTLE-GRLA-E-M5-QS-4C 1

 HP06-000275 FITTING-DIN 908-G1/8-ST;Plug,Thread 3

 J67031002A DOUBLE_SPEED_CONTROLLER ASD230F-M5-04 1

 HP14-000397 VALVE,SOLENOID-VUVG-S10-M52-RT-M5-1H2L 1

 HP15-000010 ACCESSORY,VALVE-VABB-L1-10-S 1

 HP09-000164 SILENCER-U-E-1/8-S 2

 HP09-000156 ACCESSORY,PNEUMATICS-B-M5-B 1

 AM03-007338A ASSY,AIR-SOL_VALVE_EDGE_FIX-OPTION 1

AXIO B/D#1 Slave

AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-006924A CABLE ASSY-HD_VAC-BLOW 1 SM482_VI006

 AM03-006874A CABLE ASSY-AXIS1_FIX_ILL_CAN 1 SM48_CA001

 AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-006921A CABLE ASSY-AXIO_CN7_9 1 SM482_AX006

AM03-006907A CABLE ASSY-Y1-Y2_DRV_CMD_AXIO 1 SM48_VM003

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48_PW020

 AM03-006944A CABLE ASSY-Y1_MOTOR_POWER 1 SM48_MD005

 AM03-006945A CABLE ASSY-FY1_MOTOR_ENC 1 SM471_MD106

 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1 SM48_MD036

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48_PW019

 AM03-006946A CABLE ASSY-Y2_MOTOR_POWER 1 SM48_MD007

 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 1 SM48_MD037

 AM03-006947A CABLE ASSY-Y2_MOTOR_ENC 1 SM48_MD008

AM03-006908A CABLE ASSY-X-S_DRV_CMD_AXIO 1 SM482_VM004

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48_PW019

 AM03-006948A CABLE ASSY-X_MOTOR_POWER 1 SM48_MD009

 AM03-006949A CABLE ASSY-X_MOTOR_ENC 1 SM48-MD010

 AM03-007205A CABLE ASSY-X_REGEN_RESISTOR 1 SM48_MD038

 AM03-006959A CABLE ASSY-SW_WD_SERVO_POWER 1 SM48_018

 AM03-006950A CABLE ASSY-SW_MOTOR_POWER 1 SM48_MD020

 AM03-006951A CABLE ASSY-SW_MOTOR_ENC 1 SM48_MD021

 J90831433A SW_MOTOR_ASSY SM41-MD032 1 SM41_MD032

AM03-006909A CABLE ASSY-WD_DRV_CMD_AXIO 1 SM482_VM005

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48_PW019

 AM03-006952A CABLE ASSY-WD_MOTOR_POWER 1 SM48_MD022

 AM03-006953A CABLE ASSY-WD_MOTOR_ENC 1 SM48_MD023

AM03-005569B CABLE ASSY-R1_R2_R3 DRV COMMAND 1 SM471_VM011

 AM03-006940A CABLE ASSY-R_STEP_MOT_PW_DRV 1 SM482_MD012

 J90831437C R_STEP_MOTOR_PWR_CABLE_ASSY 1 SM41_MD011

 J90830190B R12_MOTOR_CABLE_ASSY 1 SM21_MD038

 J90831009B R34_MOTOR_CABLE_ASSY 1 SM21_MD039

 J90831010B R56_MOTOR_CABLE_ASSY 1 SM21_MD040

AM03-006911A CABLE ASSY-Z12_DRV_COMD_AXIO 1 SM48_VM007-1

 J90831390B Z1_MOTOR_ASSY 1 SM41_MD026

 J90831391B Z2_MOTOR_ASSY 1 SM41_MD027

 AM03-006896A CABLE ASSY-Z_DRV_PW 1 SM48_PW027

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-006912A CABLE ASSY-Z34_DRV_COMD_AXIO 1 SM48_VM007-2

 J90831392B Z3_MOTOR_ASSY 1 SM41_MD028

 J90831393B Z4_MOTOR_ASSY 1 SM41_MD029

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-006913A CABLE ASSY-Z56_DRV_COMD_AXIO 1 SM48_VM007-3

 J90831394B Z5_MOTOR_ASSY 1 SM41_MD030

 J90831395B Z6_MOTOR_ASSY 1 SM41_MD031

 A AM03-006914A CABLE ASSY-BS12_BW12_CMD_AXIO 1 SM48_VM008

 AM03-006915A CABLE ASSY-BS34_CMD_AXIO 1 SM48_VM009

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC012

 AM03-003578A CABLE ASSY-CONV_BELT1_MOTOR_PW 1 SM421_MD108

 AM03-003579A CABLE ASSY-CV_BELT1_MOTOR_PW_EXT 1 SM421_MD108-1

 AM03-003904A CABLE ASSY-CONV_BELT2_MOTOR_PW 1 SM421_MD208

 AM03-003905A CABLE ASSY-CV_BELT2_MOTOR_PW_EXT 1 SM421_MD208-1

 AM03-003582A CABLE ASSY-WORK_BELT1_MOT_PW 1 SM421_MD110

 AM03-003583A CABLE ASSY-WORK_BELT1_MOT_PW_EXT 1 SM421_MD110-1

 AM03-003908A CABLE ASSY-WORK_BELT2_MOT_PW 1 SM421_MD210

 AM03-003909A CABLE ASSY-WORK_BELT2_MOT_PW_EXT 1 SM421_MD210-1

 AM03-003580A CABLE ASSY-CV_BELT3_MOT_PW 1 SM421_MD109

 AM03-003581A CABLE ASSY-CV_BELT3_MOT_PW_EXT 1 SM421_MD109-1M03-006896A CABLE ASSY-Z_DRV_PW 1 SM48_PW027

Axis Sensor IF

J90831423C AXIS_SENSOR_BD_PW_CABLE_ASSY 1 SM41_AX001

 AM03-003994A CABLE ASSY-Y_AXIS_SENSOR 1 SM421_AX103

 AM03-003576A CABLE ASSY-WD_AXIS_SENSOR 1 SM421_AX104

 AM03-003577A CABLE ASSY-WD_AXIS_SENSOR_EXT 1 SM421_AX104-1

 J90831428C CONVEYOR_SENSOR_IF_CABLE_ASSY 1 SM41_AX006

 AM03-003544A CABLE ASSY-SERIAL_COMM_RACK 1 SM421_CV121

AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-006921A CABLE ASSY-AXIO_CN7_9 1 SM482_AX006

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-007444A CABLE ASSY-FEEDER_UNLOCK_SENSOR 1 SM48_CV140

Camera IO B/D

AM03-005549A CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471_VIS007

 J90831376B FLY_CAM_PW_SYNC_EXT_CABLE_ASSY 1 SM41_VIS006

 AM03-005552A CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471_VIS010

 AM03-006925A CABLE ASSY-FLY CAM SIG EXT 1 SM482_VIS009

Conveyor Sub IF B/D

J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

 AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003901A CABLE ASSY-FRONT_OP_SW 1 SM421_OP103

 AM03-003902A CABLE ASSY-REAR_OP_SW 1 SM421_OP104

 AM03-007055A CABLE ASSY-CONV_SUB_IF 1 SM48_SC105

 AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 SM48_SC105-1

 AM03-006879A CABLE ASSY-AIR_INDICATOR 1 SM48_CV026

 AM03-005449A CABLE ASSY-AIR_INDICATOR_11R 1 SM471_CV126-1

Conveyor IF B/D

AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1 SM48_CA104

 AM03-006943A CABLE ASSY-CVIF_FFD_CAN-EXT 1 SM48_CA104-1

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM41_CA003

 AM03-006882A CABLE ASSY-CONV_IF_R_FDR_PWR_J1R 1 SM48_CV101

 AM03-006967A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM48_SC201

 J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2

 AM03-006878A CABLE ASSY-TOWER LAMP EXT 1 SM48_CV004

 AM03-007691A CABLE ASSY-CONV_SOL 1 SM48_CV102

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV028

 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV029

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

 AM03-003871A CABLE ASSY-PLACE STOPPER SENSOR 1 SM421_CV151

 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1 SM421_CV151-1

AM03-005427A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1 SM421_CV150

 AM03-005430A CABLE ASSY-AX_X2_F_AREA_SNS_J5R-J10L 1 SM421_CV150-1

 AM03-005429A CABLE ASSY-AX_BD_X2_MOT_SNS_J10L 1 SM48_PW147

 J90831154D X_AXIS_SENSOR_CABLE_ASSY 1 SM421_CV109

 AM03-005416A CABLE ASSY-AXIS_SNS_BD_CN7-8-EXT 1 SM48_CV010-1

 AM03-005415A CABLE ASSY-AXIS_SNS_BD_CN7-8 1 SM48_CV010

AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2

AM03-003597A CABLE ASSY-FRONT_AREA_SENSOR_EXT 1 SM421_CV115

 AM03-003598A CABLE ASSY-REAR_AREA_SENSOR_EXT 1 SM421_CV117

 J90831142A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019 1 SM33_CV019

 J90831143A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1 SM33_CV020

 AM03-006883A CABLE ASSY-T_BOX_HOST_J1R 1 SM48_CV132

 AM03-006967A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM48_SC201

 AM03-005705A CABLE ASSY-RS232_SERIAL-EXT 1 SM471_PC003-1

 AM03-005704A CABLE ASSY-RS232_SERIAL 1 SM471_PC003

Fix ILL B/D

AM03-006923A CABLE ASSY-FIX_ILL_POWER 1 SM48_SC008

 AM03-006874A CABLE ASSY-AXIS1_FIX_ILL_CAN 1 SM48_CA001

 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA00102-1

 AM03-006876A CABLE ASSY-FIX_ILL_RFD_CAN 1 SM48_CA102

 AM03-006994A CABLE ASSY-FIX_ILL_IF_EXT 1 SM48_VI102-1

Front Feeder IF B/D

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41_FD005

 AM03-007453A CABLE ASSY-FFD_HDIF_CAN 1 SM48_CA105

 AM03-006943A CABLE ASSY-CVIF_FFD_CAN-EXT 1 SM48_CA104-1

 AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1 SM48_CA104

 AM03-006891A CABLE ASSY-FRONT FDR CTRL PWR 1 SM48_FD101

 AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1 SM_FD006

 AM03-006889A CABLE ASSY-R RIGHT FEEDER BASE PWR 1 SM48_FD007

AM03-005575A CABLE ASSY-WS2_WW2_DRV_COMMAND 1 SM_FD003

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1 SM411N_FD001

 AM03-004380A CABLE ASSY-WS2_MOTOR_ENC_EXT 1 SM48_FD002

Head IF

AM03-006928A CABLE ASSY-FLAT 1 SM482_FL001

 AM03-006930A CABLE ASSY-SIDE ILL UP_DN SOL 1 SM482_HD002

 AM03-006931A CABLE ASSY-R-AUX-SENSOR 1 SM482_HD005

 AM03-006933A CABLE ASSY-SIDE ILL UP_DN_SENSOR 1 SM482_HD007

 AM03-006934A CABLE ASSY-Z_HOME_SENSOR 1 SM482_HD008

 AM03-006937A CABLE ASSY-R_HOME_SENSOR 1 SM482_HD013

 AM03-006938A CABLE ASSY-SW_HOME_SENSOR 1 SM482_HD014

AM03-006932A CABLE ASSY-HEAD-VAC-SENSOR 1 SM482_HD006

 AM03-006928A CABLE ASSY-FLAT 1 SM482_FL001

 AM03-006935A CABLE ASSY-HEAD VACUUM SOL 1 SM482_HD011

 AM03-006936A CABLE ASSY-HEAD BLOW SOL 1 SM482_HD012

AM03-006929A CABLE ASSY-HEAD OUTER ILL 1 SM482_HD001

 AM03-006939A CABLE ASSY-HEAD SIDE LED 1 SM482-HEAD-SIDE

 AM03-006927A FIDUCIAL OUTER LED 1 SM482_FID-OUTER

 AM03-006926A CABLE ASSY-FIDUCIAL INNER LED 1 SM482_FID-INNER

Power Block Diagram

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1 SM33_PW001

 J90831253C MCCB_NF1_EARTH_CABLE_ASSY 1 SM411_PW003-2

 J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1 SM411_PW004

 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY 1 SM33_PW005

 AM03-006872A CABLE ASSY-CP1_TB1 1 SM48_PW007

 AM03-003859A CABLE ASSY-TRANS_CP1_2 1 SM421_PW106

 AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

AM03-006903A CABLE ASSY-CONTROL_RACK_PWR 1 SM48_PW145

 AM03-006904A CABLE ASSY-CONTROL_RACK_PWR-EXT 1 SM48_PW145-1

 AM03-006894A CABLE ASSY-FRONT_MONITOR_PW 1 SM48_PW021

 AM03-006895A CABLE ASSY-REAR_MONITOR_PW 1 SM48_PW022

 AM03-005488A CABLE ASSY-FAN_POWER 1 SM471_PW112

 AM03-006900A CABLE ASSY-SERVO_FAN_POWER 1 SM48_PW113

AM03-007057A CABLE ASSY-TB1_FS1_FS2 1 SM48_PW111-2

 AM03-006954A CABLE ASSY-AC_RELAY_ POWER 1 SM48N_PW005

 AM03-005702A CABLE ASSY-MON_DISTRIB_ADAPTOR 1 SM471_PW068

 AM03-005519A CABLE ASSY-USB_HUB_ADAPTOR 1 SM471_PW067

 AM03-006899A CABLE ASSY-PS1_2_AC_POWER_T1L 1 SM48_PW111

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006955A CABLE ASSY-PS3_4_AC_POWER_T2L 1 SM48N_PW112

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006901A CABLE ASSY-PS1_2_DC_POWER_T1L 1 SM48_PW120

 AM03-006896A CABLE ASSY-Z_DRV_PW 1 SM48_PW027

 AM03-006902A CABLE ASSY-PS3_4_DC_POWER_T2L 1 SM48N_PW103

AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

 AM03-006958A CABLE ASSY-MC1_TB1 1 SM48_PW009

 AM03-006959A CABLE ASSY-SW_WD_SERVO_POWER 1 SM48_PW018

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48-PW019

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48_PW020

AM03-006962A CABLE ASSY-MC_INPUT_220V 1 SM48_PW040

 AM03-005701A CABLE ASSY-PUMP_PWR_ALARM-EXT 1 SM471_PW147-1

 AM03-005698A CABLE ASSY-VACUUM_PWR 1 SM471_PW146

 AM03-005510A CABLE ASSY-SK 1 SM471-PW041

 AM03-005767A CABLE ASSY-VACUUM PUMP PWR EXT 1 SM471_PW42-1

 AM03-005511A CABLE ASSY-VACUUM_PUMP_220V 1 SM471_PW42

 AM03-006964A CABLE ASSY-PUMP_PWR_ALARM 1 SM471_PW147

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

AM03-006954A CABLE ASSY-AC_RELAY_ POWER 1 SM48N_PW005

 AM03-006889A CABLE ASSY-R RIGHT FEEDER BASE PWR 1 SM48_FD007

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006888A CABLE ASSY-R LEFT FEEDER BASE PWR 1 SM48_FD006

 AM03-006887A CABLE ASSY-F RIGHT FEEDER BASE PWR 1 SM48_FD005

 AM03-006886A CABLE ASSY-F LEFT FEEDER BASE PWR 1 SM48_FD004

 AM03-006893A CABLE ASSY-AC RELAY JUMPER 1 SM48_PW006

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006884A CABLE ASSY-F FDR PWR RELAY 1 SM48_FD002

 AM03-006905A CABLE ASSY-RELAY_PW_SUPPLY 1 SM48_PW135

 J90834654A RELAY_CONNECT_CABLE_ASSY SM41-PW034 1 SM41_PW034

 AM03-006890A CABLE ASSY-24V POWER EXT 1 SM48_FD008

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

 AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

Rear Feeder IF B/D

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41-FD005

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM41_CA003

 AM03-006876A CABLE ASSY-FIX_ILL_RFD_CAN 1 SM48_CA102

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM48_CA102-1

 AM03-006882A CABLE ASSY-CONV_IF_R_FDR_PWR_J1R 1 SM48_CV101

AM03-006967A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM48_SC201

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1 SM_FD006

 AM03-006889A CABLE ASSY-R RIGHT FEEDER BASE PWR 1 SM48_FD007

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

Safety Control B/D

AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006901A CABLE ASSY-PS1_2_DC_POWER_T1L 1 SM48_PW120

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

 AM03-006965A CABLE ASSY-F_OP_PANEL_IF 1 SM48_SC001

 AM03-006966A CABLE ASSY-R_OP_PANEL_IF 1 SM48_SC002

AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 AM03-006882A CABLE ASSY-CONV_IF_R_FDR_PWR_J1R 1 SM48_CV101

 AM03-006883A CABLE ASSY-T_BOX_HOST_J1R 1 SM48_CV132

 J90831060E F_OVERRIDE_KEY_EXT_CABLE_ASSY 1 SM411_SC009

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 SM411_SC008

 AM03-006407A CABLE ASSY-LEFT_REAR_FAN_PW 1 SM471_PW020

 J90831340B R-STEP-DRIVER_POWER_CABLE-ASSY 1 SM41_SC011

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC012

 AM03-003686A CABLE ASSY-1_TRAY_FEEDER_EXT 1 SM421_VM101-1

J90831060E F_OVERRIDE_KEY_EXT_CABLE_ASSY 1 SM411_SC009

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 SM411_SC008

 J90831340B R-STEP-DRIVER_POWER_CABLE-ASSY 1 SM41_SC011

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC012

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC006

AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

 AM03-006891A CABLE ASSY-FRONT FDR CTRL PWR 1 SM48_FD101

 J90831423C AXIS_SENSOR_BD_PW_CABLE_ASSY 1 SM41_AX001

 AM03-006963A CABLE ASSY-SACO_+24V_RELAY 1 SM48_PW044

 J90833703A PCB_BARCODE_SCANNER_CABLE_ASSY SM411_IT0 1 SM411_IT003

 AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006923A CABLE ASSY-FIX_ILL_POWER 1 SM48_SC008

 AM03-006880A CABLE ASSY-SACO_F_TBOX 1 SM48_CV034

 J90831261D FRONT_TEACHING_BOX_EXT_CABLE 1 SM33_CV023-4

 AM03-006881A CABLE ASSY-SACO_R_TBOX 1 SM48_CV035

 J90831262D REAR_TEACHING_BOX_EXT_CABLE_ASSY 1 SM33_CV023-5

AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 SM48_SC105-1

 AM03-007055A CABLE ASSY-CONV_SUB_IF 1 SM48_SC105

 J90831335C MC1-ENABLE-CABLE-ASSY 1 SM41_SC006

Vision IF B/D

AM03-005545A CABLE ASSY-HEAD2 FIDUCIAL CAMERA1 1 SM471_VIS003-1

 AM03-005543A CABLE ASSY-FLAT_FID_CAMERA_1 1 SM471_VIS002-1

 AM03-006968A CABLE ASSY-FIX1-2_CAMERA 1 SM48_VIS002

 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471_VIS000

 AM03-006985A CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 SM48_VIS012-1

AM03-005549A CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471_VIS007

 J90831376B FLY_CAM_PW_SYNC_EXT_CABLE_ASSY 1 SM41_VIS006

 AM03-005552A CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471_VIS010

 AM03-006925A CABLE ASSY-FLY CAM SIG EXT 1 SM482_VIS009

Articles of Consumption

J9055354A NOZZLE ASSY[J9055354A] 1

 J9055134C NOZZLE CN040 ASSY[J9055134C] 6 Only Indication

 J9055136C NOZZLE CN065 ASSY[J9055136C] 6 Only Indication

 J9055256A NOZZLE CN140 ASSY[J9055256A] 2 Only Indication

 J9055351A NOZZLE CN220 ASSY(CERAMIC)[J9055351A] 2 J9055257A Only Indication

 J9068024A CALIBRATION PLATE[J9068024A] 1 Only Indication

 J90641038A SM421_PACKING_BOX_ASSY J90641038A 1 Only Indication

 J3601018A FUSE[250V 5A] 2 Only Indication

 J3601019A FUSE[250V 10A] 2 Only Indication

 J7055140A STEEL BALL [DIA2, SUS304] 20 Only Indication

 J72550021C SILICON TUBE(BLACK) J72550021C 6 J7255076A /J7255021B Consumables (Replacement: 6 months)

 J67081017A SUCTION_FILTER VYF44-M-50M 6 Only Indication

 J7500003B BACK UP PIN[J7500003B] 6 Only Indication

 J8001072A STICKER REMOVER SPRAY [450ML] 1 Only Indication

 J8001073A TRI-FLOW [59ML] 1 Only Indication

 J81000118C CLEANING KIT 1 Only Indication

 J9064035B TOOL SET [J9064035B] 1 Only Indication

 J8001065A DRIVER (+,-) [KL 207(6), 150mm] 1 Only Indication

 J5104001A CD-R (RECORDABLE) [MMI BACKUP CD] 1 Only Indication

 J9055249A LIGHT MAPPING TOOL ASSY[J9055249A] 1 Only Indication

 J9055250A LIGHT MAPPING TOOL ASSY[J9055250A] 1 Only Indication

 J67020048B SOLENOID VALVE VA01PEP34A-1U-F 6 J6702048A Consumables (Replacement: 2 years)

 J6702049A SOLENOID VALVE[RCS242-M3-D24NP] 1 Consumables (Replacement: 2 years)

 J7459062A CALIBRATION NOZZLE[J7459062A]
