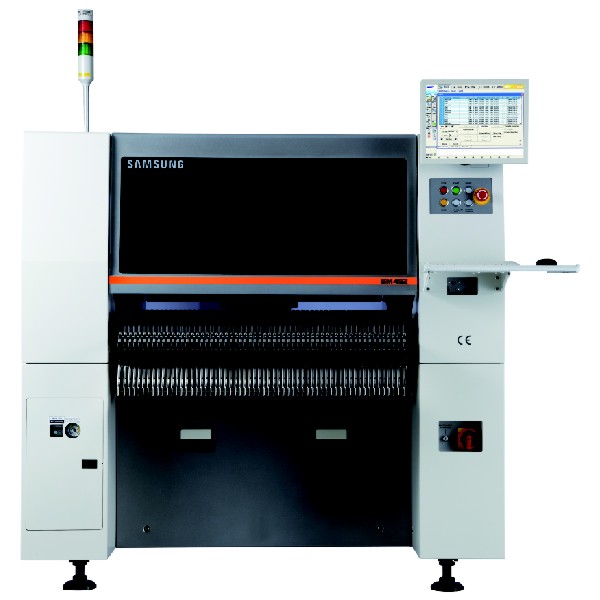

Fast Flexible Placer SM481 Plus Part

Fast Flexible Placer SM481 Plus Part

Feeder Base Ass’y- ST

J90571018A FEEDER_BASE_ST J90571018A 1

 FC07-000033B BLOCK-VERTICAL LOCATOR;ME1:Steel 1

 J70570262C CAP-TOP PLATE 5

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 FC05-000122A BASE-SM411_FEEDER_BASE_BODY2;GCD 450-10 1

 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A ASSY,BOARD-FBLN 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000693A ASSY,BOARD-FBRN 1

 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 32

 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 32

 FC14-000876 COUPLER 60 HP06-900169

 FC18-902787 SOCKET HEAD CAP SCREW M8*20 (NI/ZN) 7

 FC09-000901A BRACKET-Top_Plate_S 1

 FC09-001200A BRACKET-TOP-PLATE-BACK-HOLE 1

Feeder Base Ass’y- DC

J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB 1 J9060354A

 J90600353B FEEDERBASE_LEFT_COVER_PCB 1 J9060353A

 HP06-900299 COUPLER[KD-M5-SA34697KR] 56

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 AM03-000696A ASSY,BOARD-FBLD 1 J9060349D

 AM03-000695A ASSY,BOARD-FBRD 1 J9060350D

 FC09-000901C BRACKET-Top_Plate_S 1 FC09-000901A

 J90571009A FEEDER_BASE_MODULE J90571009A 1

 FC09-002060A BRACKET-SME_DC_BKT 1

 FC09-001200C BRACKET-TOP-PLATE-BACK-HOLE 1 FC09-001200A

 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 28

 J7057239B CABLE HOLDER[J7057239B] 2

 J7057238B ANTI-PITCH PIN[J7057238B] 2

 J7057237C ANTI-PITCH ARM[J7057237C] 16

 AM03-001738C CABLE ASSY-D-CART INNER IF 1

 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2

 J7257013A CUSHION-LOCATION PIN[J7257013A] 2

HP15-900008 BALL PLUNGERS[BSX12] 2

FC29-900535 URETHANS[AZXS 20-23-M5-7] 2

 MC14-900015 URETAN WHEEL[TP8015-PLY] 2

AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1

 HP06-900093 STRAIGHT FITTING[KQ2H04-00/PU4] 1

 HP06-900299 COUPLER[KD-M5-SA34697KR] 1

 HP14-900089 SPEED CON[AS2201F-01-06S] 1

 HP14-900090 SPEED CON[ASP330F-01-06S] 1

 HP06-900293 ELBOW FITTING[PT18EF] 2

 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 2

 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 HP06-900050 UNION Y FITTING [KQ2U04-06] 1

 HP09-900162 SILENCER AN101-01 2

 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1

 FC09-002061A DC SME SENSOR BKT 1

 J71570100C GUIDE BLOCK 2

 J7057247A POSITIONNING GUIDE[J7057247A]

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 AM03-015857C ASSY,BOARD-FEEDER IO VER 2.0 1 AM03-015857B

 FC09-000977A FRONT SENSOR BKT2 1 J70540267B

 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C

 FC29-900144 DRAWER PULL [HD-108] 2

 FC15-001297A COVER-COVER LFM DC SM481 1

FC14-900724 PLUG [PT 1/8] 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 HP06-900299 COUPLER[KD-M5-SA34697KR] 1

 HP14-900090 SPEED CON[ASP330F-01-06S] 1

 HP06-900048 ELBOW FITTING [KQ2L06-M5] 1

 HP06-900293 ELBOW FITTING[PT18EF] 2

 FC14-900724 PLUG [PT 1/8] 3

 HP06-900199 UNION Y FITTING [KQ2U04-06] 1

 HP14-900092 CHECK VALVE[AKH06-00] 1

 HP06-900018 FITTING [KQ2U06-00/PY6M] 5

 HP06-900014 FITTING [KQ2L06-01/PL6-01] 5

 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1

AM03-006535B CABLE ASSY-ND-CART DSUB EXT CABLE ASSY 1

Backup Table Ass’y

J9053342A BACK UP TABLE ASSY[J9053342A] 1

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN[J7053792A] 6

 J7053793A LOWER LINK PIN[J7053793A] 2

 J7053796A LOWER LINK SHAFT[J7053796A] 1

 J71530419B UPPER DRIVING LINK[J7153419A] 1

 J90531008A LINK_END_ASSY 2

 J70530797B LOWER LINK END 1 J7053797A

 MC03-900098 BALL_BEARING 688ZZ 1

 J90531004A FREE_LINK_ASSY 2

 J71530418B UPPER FREE LINK 1 J7153418A

 J70530799C UPPER PLATE 1

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN[J7053794A] 2

 J7053795A RING FIXER[J7053795A] 3

 FC14-900506 CYLINDER JOINT[Y-032B] 1

 HP03-900013 CYLINDER CM2C32-50-XC3BB 1

 HP06-900056 ELBOW FITTING [KQ2L04-01] 2

 J70530800C LOWER PLATE 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER[J7053790A] 1

 J70530801D BACK UP PLATE 1 J70530801C

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER[J7053791A] 1

 FC29-900536 URETHAN CUSHION[AXNSK15-40] 2

 J7053803A UP SENSOR DOG[J7053803A] 1

 FC38-900013 SPRING[SWU26-70] 1

FC18-901994 SHOULDER SCREW[MSB6-40] 2

 EP19-900108 PHOTO SENSOR 1

 J7053802A UP SENSOR BRACKET[J7053802A] 1

 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 32

 FC18-902756 SOCKET HEAD CAP SCREW M5*12 (NI/ZN) 2

 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 4

 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 8

 J9053343A BACK UP TABLE ASSY(LARGE)[J9053343A] 1

 J90531035A BACK_UP_TABLE_ASSY-EXL J90531035A 1

Stage CAM Ass’y

J70590095C CAMERA BOARD COVER 2

 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 2

 FC15-001295A LIGHT_COVER 1

 FC09-002220A MT82P-OP102A-LIGHT_G_1 1

 J90600075B STAGE SIDE LIGHT BOARD ASSY STAGE SIDE LIGHT 1

 J90600074B STAGE OUTER LIGHT BOARD ASSY STAGE OUTER LIGHT

 FC09-002219A BRACKET-LIGHT_G_2 1

 FC15-001491A COVER-LIGHT COVER 1

 FC29-900611 HEX SUPPORT 8

 FC15-001294A MT82P-OP111A-PROFILE_2 1

 FC09-002218A BRACKET-GLASS_STOP 2

 EP12-000044A GLASS,OPTICS-GLASS 1

 PT02-000048A DIFFUSER,OPTIC-DIFFUSER 1

 FC29-900610 HEX SUPPORT 4

 J90600073C LED98-9 BOARD ASSY STAGE INNER LIGHT 1

 FC09-002222A MT82P-OP105A-PCB_BASE_2 1

 FC09-002221A BRACKET-PCB_BASE_1 1

 FC05-000225A MT82P-OP101A-BASE 1

 FC15-001293A COVER-PROFILE_1 1

 J9059118A UP-FOV4560 LENS ASSY 1

 PT02-900001 CCD CAMERA 1

 FC15-001290A COVER-COVER_1 1

 FC15-001292A COVER-COVER_COMP 1

 J7066008D LINK_SHAFT_1 1

 FC15-001291A COVER_2 1

 FC18-902837 SEMUS NABE SCREW 8

AM03-015218A ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-007707B

AM03-015217A ASSY,OPTICS-SM482_STAGE_MEGA_45_ASSY 1 AM03-007727B

 FC29-900611 HEX SUPPORT 8

 FC18-902837 SEMUS NABE SCREW 8

Cover Ass’y

FC15-000945B UPPER_FR_RR 1

 AM03-007149A ASSY,COVER=ACRYL DOOR C SM400 2

J70521075D GAS_SPRING_BRACKET1 8

 FC38-001011 GAS SPRING-YQ07-360N;YQ07-360N 4 FC38-000079/ FC38-000220

FC09-001727A SENSOR_BKT3 2

 FC09-001726A DOOR_SWITCH_BKT3 2

 EP20-900137 DOOR_SWITCH 2

 FC15-000998A COVER-LCD_HINGE_PLT 2

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 1

 FC15-000505B COVER-MONITOR_GUIDE_PL;SPCC,WHITE 2 FC30-000844A

 J7252061A PAD_BRACKET 4

FC15-000997A LCD_BKT 2

 FC18-900485 HEX CAP SCREW[M8 X 55L] 1

 FC18-903482 FLAT WASHER [M8] 2

 FC18-903497 SPRING WASHER[M8 (SUS)] 2

 FC18-901051 NYLON NUT 1

 EP20-000167 SWITCH-LW6ML-M1C14R-STOP 1

 EP20-000127 SWITCH-LW6ML-M1C14S 1

 EP20-000116 SWITCH-LW6ML-M1C24G_SWITCH_2b_LED_GRE 1

 EP20-000115 SWITCH-LW6ML-M1C24W_SWITCH_2B_LED_WHI 2

 EP20-900002 LENS PLASTIC,CLEAR[61-9646.7] 1 EP20-000114

 EP20-900042 EMERGENCY SWITCH ASSY 1

 FC30-000829B OP_PANEL 1 FC30-000829A

 AM03-005237A ASSY,COVER-KEYBOARD_ASSY 1

CD04-001004 COMPUTER MOUSE-20-1EI06S502;OPTICAL MOUS

 CD04-000013

 FC15-001005B COVER-KEYBOARD_BASE 1 FC15-001005A

 FC15-000957A COVER-KEYBOARD_BASE_BKT 2

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 1

EP07-901528 FAN_FILTER 120MM(NMB) 2

 J90833316A FAN_CABLE_ASSY SM-FAN00 4

 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A

 FC15-000952A COVER-LOWER_SIDE_1 1

 FC15-000949B COVER-LOWER FL 1 FC15-000949A

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 FC15-000960A LOWER_OPEN_DOOR-A 1

 FC29-900144 DRAWER PULL [HD-108] 2

 FC15-001138A COVER-COVER_LFM 2

 FC15-001341A COVER-FB SIDE COVER FL 1

 FC15-001344A COVER-FB COVER FRONT 1

 HP04-000075 FILTER,AIR-fan filter_ metal_120mm 2

 FC15-000948B COVER-LOWER FR 1 FC15-000948A

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 J70511018B CABLE_DUCT_S-V 2

 J70521049A SIDE_COVER_SUPPORT 1

 FC15-000944B LOWER_SIDE_2_R 1 FC15-000944A

 FC15-000949B COVER-LOWER FL 1 FC15-000949A

 FC15-000961A COVER-OPEN_DOOR_B 1

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 FC15-000961A COVER-OPEN_DOOR_B 1

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 FC15-000951B COVER-LOWER RR 1 FC15-000951A

 FC15-001340A COVER-FB SIDE COVER FR 1

 FC15-001342A COVER-FB SIDE COVER RR 1

 FC15-001345A COVER-FB COVER REAR 1

 FC15-001343A COVER-FB SIDE COVER RL 1

FC15-001297A COVER-COVER LFM DC SM481 2 OPTION

 FC15-001744A COVER-LOWER_SIDE_R2;SPCC 1

Control Rack Ass’y

EP06-901011 SM411F_POWER_SUPPLY_STW400-S STW400-S 4 400W

EP06-901039 SMPS_800W_DC24V US800D24 2 800W

 EP06-000384 SUPPLY,POWER,AC-DC-STW350-ABDDATX 1

 CD05-001002 MOTHERBOARD,CPU-ADLINK;CPCI,6626 I3 1 CD05-000059

CD03-000060 HARD DRIVE-TS64GSSD630 1

 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A / AM03-011927C

 AM03-017389A PROCESSOR BOARD-NT-A8 2 EP06-000338

 EP10-001013A BOARD,ETC-LKCB-53L32-ST 1 AM03-014089A/ EP10-001534

 AM03-014333A CABLE ASSY-CPU-BOX FAN 1

 AM06-000359C ASSY,PCB SMD-SM400_VISION_IF BD 1 AM06-000359A

AM03-000054 CABLE ASSY-PCIE_CABLE_3M CB-CE-3

Base Frame Ass’y

FC05-000218G BASE-FRAME_SM482 1 FC05-000218F

 FC15-000983A COVER BOTTOM FR 1

 FC15-000984A COVER BOTTOM FL 1

 FC15-000985A COVER BOTTOM RR 1

 FC15-000986A COVER-BOTTOM RL 1

 J7051010D HOUSING-FOOT[J7051010D] 4

 FC28-000176 ASSY,MAIN FRAME-MFUR-98(M30-2.0P) 4 AM03-000098

X-Y Frame Ass’y

FC09-001577A MTSMUP-HD-FLAT_CABLE_CLAMP 1

 FC09-001648A BRACKET-CABLE FIXER 1

 PM02-000794A CUSHION-CABLE X 411PS 2

 FC09-001481B BRACKET-CUSHION X 2 FC09-001481A

 FC09-001662B BRACKET-BKT CABLE X 2 FC09-001662A

 FC15-001260A COVER-COVER CHAIN Y SM481 1

 FC09-001771B BRACKET-BKT CABLE CHAIN X 1 FC09-001771A

 PM02-000795A CUSHION-CABLE Y 411PS 1

 FC09-001485A BRACKET-CUSHION Y 411PS 1

 EP19-900114 LIMIT SENSOR [EE-SX674] 2

 MC13-900010 LM_GUIDE [SSR15X2W2UUC1+940LHY-II] 2

 FC29-001532A DOG-SNS DOG X 2

 FC05-000148E BASE-HEAD SM471;AC4C-T6 1 FC05-000148B/ FC05-000148D

 FC29-001531A DOG-SNS_DOG_Y 1

 FC09-007486A BRACKET-SERVO CONNECTOR BKT A6 1

 EP08-001066 MOTOR,SERVO-MHMF082L1A2 1 EP08-900157

MC13-000125 WGF1530S-3GT+921.2LC5 1

 FC29-003411A SUPPORT-B SCREW X 411PS 1 FC29-001079A

 MC04-000039A BRG_HOUSING-X J71541010A 1 J71541010A

 FC18-901667 C-RING [10mm (SHAFT)] 1

 MC03-900008 BALL BEARING [6000ZZ] 1

 FC10-000055A CUSHION,RUBBER-CUSHION X REAR 1

 FC29-004428A CUSHION_X_FRONT 1 J72541003A

 FC29-007010A SUPPORT-FK12-P5 1 MC04-900012

 MC22-001015A COUPLING-SDWA-47C4 1 FC14-900236

 FC15-001259A COVER-COVER CABLE X 1

FC09-003108A BRACKET-SIDE_COVER_482;SS400 1 J70541115A

 FC09-002206A BRACKET-SIDE BKT 1 SM481 1

 MC13-900173 BALL_SCREW SBK2030ZS-3.4GT+1230LC5 1

 EP08-900158 SERVO_MOTOR MSMA102G2C 1 EP08-000139

 MC22-001016A COUPLING-SDWA-54C6 1 FC14-900237

 J70541005C Y_MOTOR_BLOCK 1 FC07-000386A

 FC29-007011A SUPPORT-FK15-P5 1 MC04-900028

 FC29-004431A STOPPER-STOPPER Y BS F 1 J72541006A

FC29-001076B STOPPER-STOPPER Y BS R 1 FC29-001076A

 FC29-004432A STOPPER_Y_BALL_SCREW 1 J72541012A

 FC07-000528B BLOCK-BLOCK Y BS EXT 1 FC07-000528A

 MC04-000035A STOPPER_EXT_Y_BALL_SCREW 1 J71541087B

 FC29-007074A SUPPORT-SP-ST-SUPPORT;FK15STWH 1

FC15-000922A COVER-COVER DRIVER Y 1

 FC09-001485A BRACKET-CUSHION Y 411PS 2

 PM02-000795A CUSHION-CABLE Y 411PS 2

 FC29-007969A SUPPORT-Y CABLE DUCT 1 FC29-001084B

 HP06-000457 FITTING 1

 HP09-000127 MANIFOLD-MANIFOLD KM11-04-08-10 1

 FC29-900610 HEX SUPPORT 26 FC29-900611

 FC09-001511A BRACKET-PANEL CON Y 1

 AM03-007103B AP5_AXIS_IO_BOARD 1 J91741337A/ AM03-007103A

 AM03-010695B ASSY,BOARD-SM511_HDUB_PANA_ASSY_B 5 AM03-004982E

 FC09-001509D BRACKET-BKT AXIS BOARD D 1 FC09-001509B

 FC09-001486A BRACKET-DIRVER T 1

 FC09-001663A BRACKET-BKT CABLE R 1

 EP06-000374 SERVO CONTROL-DRIVE 5 EP06-000182

 FC09-001647A BRACKET-BKT SIDE SUB 1

 FC18-902639 SEMUS NABE SCREW [M4*16] 10

 FC05-000149A BASE-DRIVER Y DUCT 1

 FC09-001984A BRACKET-BKT FAN SUB SM471 1

 FC09-001983A BRACKET-BKT FAN SM471 1

 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 1

 FC09-002206A BRACKET-SIDE BKT 1 SM481 1

 FC09-003108A BRACKET-SIDE_COVER_482;SS400 1 J70541115A

 J60990002 CAPTIVE_FASTENERS_M34 M34-15S1N-18 4

 FC18-902838 SEMUS NABE SCREW 14

 FC18-902749 SOCKET HEAD CAP SCREW M4*25 (NI/ZN) 4

 FC18-90321938 FLAT WASHER [M4 (BL/ZN)] 4

 FC18-902856 TRUSS SCREW 4

TO03-001042A GRIPPER-40P_CONNECTOR_CLIP 5

 FC09-006580B BRACKET-AXIO BOARD CONNECTOR PROTECT B 1

 FC09-007265A BRACKET-AXIS B PROTECT UPPER BKT 1

ANC Ass’y

FC05-000212A MT82P-NC101A-TOP_COVER 1

 FC18-000621A MT82P-NC101A-COVER_SPACE 9

 FC09-002208A MT82P-NC101A-TOP_COVER_L 1

 FC29-001527A MT82P-NC102A-SHUTTER 1

 HP14-900087 SPEED CONTROLLER(STRAIGHT)[AS1211F-M3-04 2

 AM03-004198A ANC SENSOR CABLE ASSY[SM-CV010] 1

 FC09-002171A MT82P-NC103A-SHUTTER_BKT 1

 FC05-000215A BASE-ANC_BASE 1

 FC38-000093A SPRING,COM-SPRING;SWP-B,0.6,5,15 1

 FC18-000619A MT82P-NC110A-SPACE_PIN 1

 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2

 J7153373A FIDUCIAL DISK[J7153373A] 2

 FC09-002173A MT82P-NC201A-REF_SHAFT 2

 FC09-002172A MT82P-NC108A-FID_SHAFT 2

 FC05-000214A MT82P-NC104A-PLATE 1

 FC15-002505A COVER-ANC COVER 37HOLE 1

 FC15-002506A COVER-SHUTTER 37HOLE 1

 HP03-000083 CYLINDER 1

 FC05-000306A BASE-SHUTTER_SPT 1

 FC18-000894A PIN-SPACE_PIN 1

 J3212027A MICRO PHOTO SENSOR[PM-L24] 2

 FC30-001554B PLATE-SM168 ANC_SNS_PLATE 2

 FC30-002050B PLATE-ANC_PLATE_37HOLE 1

 FC05-000518A BASE-37HOLE_ANC_BASE 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 FC05-000307A BASE-TOOL_BASE 1

Long Conveyor Ass’y 1500mm

J70531076B BRACKET_BD_OUT_SENSOR 1 S1

 EP19-900101 PHOTOELECTRIC_SENSOR BYD30-DDT-S 2 S2

 J70531607A BD_OUT_SENSOR_GUIDE J70531607A 2 S2

 FC39-001987A FRAME-EXTEND_R_325 1

 J7053047A IDLER_SPACER_S 9

 J7253007A IDLER 2 8

 J7053009A IDLER-SHAFT-S2 7

 FC09-004555A BRACKET-STOPPER 2 S3

 FC09-004556A BRACKET-SENSOR 3 S4, S5

 HP03-000118 CYLINDER 2

 HP06-900010 ELBOW FITTING [M-5HLH-4] 3

 HP06-900263 HOSE NIPPLE 2

 EP19-900099 PHOTO SENSOR[E3S-LS3N] 4 S5 E3S-LS3N (OMRON)

EP19-001025 SENSOR,OPTIC-[CX-461],1,MIGRATION 4 S5 CX-461A-C05 (PANASONIC)

 J70531090A PLATE_LONG_IN J70531090A 2 S1

 J70531091A PLATE_LONG_OUT J70531091A 2 S1

 FC29-004141A GUIDE-PCB_EX_F_325 1 S5

 J71531271A PCB_GUIDE_END_2 1 S5

 J7153111A TEP MOTOR PULLEY [J7153111A] 3

 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2 S7

 J7053184A SQUARE NUT M4 7

 J7253006A IDLER 1 4

 J70531763A BRACKET_BELT_MOTOR_B J70531763A 1 S7

 J70531083A ALT_MOTOR_SUPPORT J70531083A 4

 J70531761A PCB_GUIDE_FC_S J70531761A 2 S9

J7053048A IDLER SPACER-M 3

 J7053770A IDLER SHAFT-M[J7053770A] 3

J70531764B STOPPER_CYLINDER_BKT 1 S6

J70531643A H30_STOPPER_BAR J70531643A 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP03-900036 AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1 S2

 J70531765A WORK_SENSOR_BKT J70531765A 1 S4 E3S-LS3N (OMRON)

FC09-006780A BRACKETWORK_SENSOR_BKT_SM482;SPCC,2.0

 S4 CX-461A-C05 (PANASONIC)

 J7153036A SLIDE GUIDE 1 S10

 MC13-900013 LM SLIDE 2 S10

 J7253009B STOPPER 2 [J7253009B] 2

 FC39-002003A FRAME-CONVEYOR_FRONT_740 1

 J70531210A PCB_GUIDE_FC J70531210A 1 S9

 J71531268A CLAMP_FRONT_FRAME J71531268A 1 S10

 J7153373A FIDUCIAL DISK[J7153373A] 3

 J71531270A PCB GUIDE END 1 1 S5

 FC29-004142A GUIDE-PCB_EX_R_325 1 S5

 FC39-001986A FRAME-EXTEND_F_325 1

 MC05-000276 BELT-MAM-5P-1738-7W 2

 MC05-900130 FLAT_BELT_WORK_MOVE_750 MAM-5P 1

 J70531100B BRACKET_SENSOR_IN 1 S3, S5

 J7153034A CLAMP SHAFT 2 S11

 MC06-900006 BALL_BUSH LMU5 4

 J7153033A BUSH SPACER 2

 J7153010B ADJUST SHAFT [J7153010B] 2

 J7253008A STOPPER 2

S1 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN)

FC18-902732 SOCKET HEAD CAP SCREW M3*18 (NI/ZN)

S3 FC18-902740 SOCKET HEAD CAP SCREW M4*8 (NI/ZN)

S4 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN)

S5 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN)

S6 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN)

S7 FC18-901866 SOCKET HEAD CAP SCREW

S8 FC18-902743 SOCKET HEAD CAP SCREW M4*12 (NI/ZN)

S9 FC18-902733 SOCKET HEAD CAP SCREW M3*20 (NI/ZN)

S10 FC18-902708 SOCKET HEAD CAP SCREW M2.5*4 (NI/ZN)

S11 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN)

J7053194A BEARING NUT [J7053194A] 2

 MC03-900008 BALL BEARING [6000ZZ] 4

 J7053726A SCREW STAND[J7053726A] 2 S1, S2

 MC13-900029 LM GUIDE[SBG20-SL-1-575-N] 2 S3

 J7053677A MOVE STAND[J7053677A] 2 S1, S2

 J7053216B DOG-SENSOR [J7053216B] 1 S4

 J7053695B STOPPER[J7053695B] 1 S5

 EP19-900109 PHOTO SENSOR 1 S4

 J70530749B DOG ADJUST J70530749B 1 S3

 J7053725A SUPPORT-WIDE ADJUST[J7053725A] 2

 J71530404B FIX STAND J71530404B 2 S1

 J7153326A WIDTH PULLEY COLLAR[J7153326A] 2

 MC19-900014 PULLEY-WIDTH [20-XL-025 2

 MC05-900044 TIMING BELT[025-XL-396-AJ] 1

 J7053662A TENSION BEARING PIN[J7053662A] 2

 MC03-900121 BALL BEARING[F608ZZ] 2

 MC03-900080 BALL BEARING[608ZZ] 2

 J7053661B WIDTH TENSION SPACER[J7053661B] 2

 J7053660A TENSION BKT[J7053660A] 2 S1

 J70531109A MANUAL_HANDLE J70531109A 1

 J72531022A STOPPER_FRONT J72531022A 1 S6

 MC13-900225 LEAD SCREW[DCM16 +648.5L 2 S5

 J7053128A SPACER NUT 8

 EP08-900160 SERVO_MOTOR_A5 MSMD012G1A 1 S7

 J7053780A BRACKET-SERVO MOTOR[J7053780A] 1 S5

 MC19-900015 PULLEY-MOTOR [P32-3M-9 1

 J7153330A PULLEY SHAFT[J7153330A] 1

MC05-900026 TIMING BELT [258-3M-9] 1

S1 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN)

S2 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN)

S3 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN)

S4 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN)

S5 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN)

S6 FC18-902751 SOCKET HEAD CAP SCREW M4*35 (NI/ZN)

S7 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN)

Head Ass’y

FC15-000963A HEAD_TOP_COVER 1

 AM03-005337C ASSY,BOARD-SM471 HEAD IF BOARD VER1.0 1 AM03-005337A / AM03-005337B

 FC36-000186A PLATE-IO_BOARD_SHEET 1 FC30-000990A

 FC29-900610 HEX SUPPORT 8

 FC09-001574B BRACKET-HEAD_BOARD_BRACKET 1 FC09-001574A

 FC09-002301A BRACKET-481_HEAD_BKT_PANEL 1

 FC09-001568A BRACKET-FLAT_CABLE_BKT 1

 FC09-001847A BRACKET-FITTING_BKT 1

 J1301070 STRAIGHT_CONNETOR_FITTING 6

 AM03-005341B ASSY,BOARD-SM471 MOTOR IF BOARD VER1.0 1 AM03-005341A

 FC36-000187A PLATE-MOTOR_IF_BOARD_SHEET 1 FC30-000991A

 FC09-001576A BRACKET-IF_BOARD_BKT 2

 FC29-900148 HANDLE BG-10 1

 FC09-001690A BRACKET-HEAD_BKT_FIX 1

 FC30-001147A PLATE-SM481_REF_PLATE 1

 J71541016A HARNESS_SUPPORT J71541016A 2

AM16-001459A ASSY,CABLE-Z AXIS MOTOR CABLE ASSY 10

FC09-004707A BRACKET-Z_SPRING_BKT 1 FC09-001505A

 J71551021A TIE_MOUNT_2 J71551021A 2

 FC09-002295A BRACKET-481_TIE_MOUNT_1 2

 AM08-004291A ASSY-FID7_LENS_ASSY 2 J91851019A

 FC09-004160A BRACKET-FID_BRACKET_2 1 FC09-001554A

 FC09-001565B BS_CLAMP 2 FC09-001565A

 FC09-004159A BRACKET-FID_BRACKET_1 1 FC09-001555A

 FC09-001562A BRACKET-FLY_IO_TOP_COVER 1

 FC09-001561C BRACKET-FLY_CAM_COVER 1 FC09-001561A/ FC09-001561B

 FC09-001563B BRACKET-FLY_IO_BOTTOM_COVER 1 FC09-001563A

 FC29-900610 HEX SUPPORT 10

 AM06-000358B ASSY,PCB SMD-SM400_CAMERA_IO_BD 1 AM06-000358A

 FC30-000971A PLATE-COAXIAL_COVER 1

 FC15-001311A COVER-LIGHT_COVER 1

 RM01-003676A BEAM-SPLITTER 1 EP12-000029A / EP12-000029B

 RM03-000022A PLASTICS-SM411_PLUS_COAXIAL_DIFFUSEER 1

 AM03-005100B ASSY,OPTICS-SM411_PLUS__FLY_COAXIAL_PCB_ 1 AM03-005100A

 FC09-001849A BRACKET-COAXIAL_SPACE 4

 FC09-001848A BRACKET-COAXIAL_PLATE 1

 FC09-001565B BRACKET-BS_CLAMP 2 FC09-001565A

 FC09-001559A BRACKET-FLY_SIDE_PLATE1 1

 FC09-002296A BRACKET-481_FLY_SIDE_COVER 2

 FC30-000976A PLATE-FID_CAM1_COVER 1

 FC09-001560A BRACKET-FLY_SIDE_PLATE2 1

 FC30-000975A PLATE-FID_CAM2_COVER 1

AM03-005088A ASSY,OPTICS-SM411_PLUS_FLY_OUTER_B_ASSY 1

 AM03-005101A ASSY,OPTICS-SM411_PLUS_FLY_OUTER_A_ASSY 1

 FC09-001516A BRACKET-SM411_PLUS_FLY_OUTER_BRACKET_B 1

 FC09-002300A BRACKET-FLY_OUTER_BRACKET_A 1

 AM03-007781A ASSY,HEAD-SM481_FLY_OUTER_ASSY 1

 AM03-014949A ASSY,BOARD-SM471 HOME SENSOR 1

AM03-015112A CABLE ASSY-HEAD_HOME_SENSOR 1

FC36-001010A SHEET-Z_SENSOR_BOARD_SHEET,0.2 1

 FC29-900614 HEX SUPPORT [M3*20 (BOLT-NUT)] 2

 AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 1

 FC36-001069A SHEET-FLY_IO_BOTTOM_COVER 1

 FC36-001068A SHEET-FLY_IO_TOP_COVER 5

AM03-005340A ASSY,BOARD-SM471 VACUUM SENSOR BD VER1.0 1

 HP04-900036 SUCTION_FILTER VYF44-M-50M 10

 HP06-000074 FITTING-STRAIGHT FITTING;KQ2S04-M5N 10

 HP09-000328A MANIFOLD-P_SENSOR_BLOCK 1

 HP06-900059 BOB ELBOW FITTING M-5ALU-4 12

 FC09-001523A BRACKET-MANIFOLD_PLATE_2 1

 FC18-902705 SOCKET HEAD CAP SCREW M2*6 (NI/ZN) 2

 FC09-001522A BRACKET-MANIFOLD_PLATE_1 1

 HP14-000344 VALVE-OVER_BLOW_VALVE 1

 FC14-900638 PLUG FITTING[M-5P] 1

 HP06-900194 ELBOW_FITTING SQL04-M5A-W 1

 FC18-902704 SOCKET HEAD CAP SCREW [M2*5 (BL/ZN)] 16

 HP09-000129 MANIFOLD-SM411+ HEAD_AIR_MODULE 1

 HP06-900021 BOB FITTING [M-5ALU-4] 11

 FC14-900638 DUMY PLUG 1

 HP14-000173 VALVE,SOLENOID-SOLENOID_VALVE 10

 HP14-000206 VALVE-BLOW_VALVE 10

 FC38-000072A SPRING-Z_SPRING 10

AM03-020421A ASSY,OPTICS-FLYING_CAMERA_ONE KIT_SM471 5

 AM03-015237A CABLE ASSY-SWING MOTOR 1

 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1

 FC30-000805A PLATE-MIRROR_MOTOR_BKT 1

 FC09-001553B BRACKET-MIRROR_PIN_3 1 FC09-001553A

 FC09-002292A BRACKET-MIRROR_SPRING_BRACKET 2

 7055163A BEARING HOUSING [J7055163A] 1

 J7055204A ARM JOINT [J7055204A] 2

 J7055205A MIRROR JOINT-LEFT [J7055205A] 2

 MC03-900034 BALL BEARING [MR148ZZ] 4

 FC18-001484A MIRROR SCREW 2 J7055153A

 MC19-000345A HEAD,SPINDLE-MIRROR_SHAFT 1

 MC03-900033 BALL BEARING [695ZZ] 4

 FC38-900011 SPRING[AWY 6-50] 2

 MC11-900055 CAM FOLLOWER [CF3UU-A] 2

 FC30-001142A PLATE-MIRROR_LINK_LEFT 2

 FC15-001001A COVER-MIRROR_COVER 1

 FC09-001517A BRACKET-MIRROR_PLATE 1

 EP12-000030A MIRROR,OPTICS-MTSMUP-HD022AFOLDING_MIRR

 FC09-001521A BRACKET-MIRROR_CUSHION 2

 FC09-001519A BRACKET-MIRROR_CLAMP_2 1

 FC09-001518A BRACKET-MIRROR_CLAMP_1 1

 FC09-001557A BRACKET-S_SENSOR_BKT 1

 AM03-015567A CABLE ASSY-CABLE ASSY-SW_HOME_SENSOR 1

 FC30-001141A PLATE-MIRROR_LINK_RIGHT 1

FC29-004275A SPRING_POST-MOVING 3 J70551042A

 J7455026A SPRING BUSH[J7455026A] 4

J7055557A BEARING HOUSING[J7055557A] 1

 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1

 J71551026A PULLEY-S_AXIS1 J71551026A 1

 MC05-900048 TIMING BELT[255-3GT-6] 1

 MC11-000434A SM411PLUS_CAM 2

 FC30-001164A PLATE-481_S_SENSOR_DOG 1

 FC18-901347 E-RING[DIA1.5(SUS)] 2

 FC18-901044 HEX NUT [M3 (BL/ZN)] 2

 FC18-902841 SOCKET SET SCREW [M3*4 (BL/ZN)] 2

 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 4

 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 6

 FC18-902711 SOCKET HEAD CAP SCREW M2.5*8 (NI/ZN) 4

 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 5 AM03-005553A

AM03-008031A CABLE ASSY-R1_MOTOR SM471_MD038 5

 FC09-001513A SM411_PLUS_FLY_SIDE_BRACKET 2

 FC09-002294B BRACKET-MIRROR_SPRING_BRACKET 2 FC09-002294A

 FC30-001147A PLATE-SM481_REF_PLATE 1

 AM03-007591A ASSY,HEAD-481_SIDE_ILL_ASSY 2

 FC30-000797A PLATE-INSULATION_PLATE 1

 FC30-000798A PLATE-STEP_MOTOR_PLATE 1

 EP19-900134 MICRO_PHOTO_SENSOR PM-F24 1

 FC09-001501A BRACKET-T_M_PULLEY_CLAMP 1

 MC13-000268 LM GUIDE-SEBS5BYUU1-115P;115,12,1,P 1 MC13-000116

 FC29-004278A PIN 1 J7155541A

 FC09-001881A BRACKET-Z_CAP 1

 HP06-900059 BOB ELBOW FITTING M-5ALU-4 1

 FC29-001047C HOUSING-Z_ROD_HOUSING 1 FC29-001047B

FC09-001492B BRACKET-Z_BELT_CLAMP;STS304 1

 MC05-000117 TIMING BELT-MC05-000117;1.5GT,360,1.5,6 5 SPINDLE 2, 4, 6, 8, 10

MC05-000119 TIMING BELT;1.5GT,324,1.5,6,1,216,0.56 5 SPINDLE 1, 3, 5, 7, 9

 FC09-001502B BRACKET-Z_IDLE_BODY 1

 J66011095A MINIATURE_BEARING 2

 J71551848A Z_IDLER_PULLEY J71551848A 1

 J70551874A Z_IDLE_SHAFT J70551874A 1

 HP07-000094A Y_PACKING 1

 FC09-001490A BRACKET-LOCK_NUT_Z 1

 FC18-001724A WASHER,WAVE-WAVE_WASHER;10,6 1 FC18-000960

 MC03-900127 BALL BEARING[684ZZ] 2

 FC09-001489A BRACKET-Z_TOP_HOUSING 1

 MC13-000124 SPLINE,BALL-SM411+ BALL SPLINE 1

FC30-000927A PLATE-BEARING_P_PLATE;SPCC 1

 FC09-001494A S_PULLEY_CLAMP 1

 FC18-000967 SCREW-T_SPINDLE_SCREW 1

 MC19-000339A PULLEY-SPINDLE_PULLEY 1

 MC05-000120 TIMING BELT;1.5GT,160.5,1.5,4,1,107,0.56 5

 J90551225A NOZZLE_HOLDER_ASSY 1

 FC09-001493A BRACKET-Z_SENSOR_DOG 10

 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 3

 FC18-902001 PRECISION_S_PLUS_BOLT_M2X6 KN219-M2X6 6

 FC18-902708 SOCKET HEAD CAP SCREW M2.5*4 (NI/ZN) 2

Electric Panel Ass’y

EP06-000492 SERVO CONTROL-DRIVE-MBDJT2205-LIQI;100W 2 EP06-900172 / EP06-000445

 EP06-001076 SERVO CONTROL-DRIVE-MCDLN35SE 1 EP06-900170 / EP06-000389

 EP06-000393 SERVO_MOTOR_DRIVER_A5E MDDHT5540E 2 EP06-900171

 FC09-002147A BRACKET-DRIVER_BRACKET-LOWER;SPCC,t2 1

 FC09-002146A BRACKET-DRIVER_BRACKET-UPPER;SPCC,T2 1

 FC09-002143A BRACKET-DRIVER BRACKET-SIDE_SM482;SPCC 2

 J90831356C SERVO_FAN_FG_CABLE_ASSY 1

 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 3

FC09-002148A BRACKET-SM482_RESISTOR_BKT;SPCC,t2 1

 FC09-002144A BRACKET-SM482_AXIS_BD_BKT;SPCC,T2 1

 FC09-002140A BRACKET-AXIS_BD_SUB_BKT;SPCC,t1 1

 AM03-015154C ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL) 1 AM03-007102B / AM03-015154B

 AM06-000943D ASSY,PCB-AP5_AXIS_IO_BOARD 1 AM06-000943A/ AM06-000943B /AM06-000943C

 FC09-002139A BRACKET-AXIS_BD_COVER;SPCC,t1.6 1

 J7251007A BOARD COVER[J7251007A] 1

 AM03-001814C ASSY,BOARD-SAFETY_FROP_REV_3.0 1 AM03-001814A / AM03-001814B

 AM03-014859B ASSY,ELECTRIC-TERMINAL_BLOCK_SM48C 1 AM03-006976B / AM03-014859A

EP21-001031 BLOCK,TERMINAL-2.5_QUATTRO_3209578;5.2/7 10

EP21-001033 ACCESSORY,TERMINAL BLOCK-FBS 5-5 2

EP21-001045 BLOCK,TERMINAL-FBS 2-5 (3030161);2-POSIT 5

EP21-001055 ACCESSORY,TERMINAL BLOCK-D-ST 2,5-QUATTR

EP21-001056 BLOCK,TERMINAL-PT 4-HESI (5X20)_3211861; 3

EP21-001058 ACCESSORY,TERMINAL BLOCK-CLIPFIX 35-5_30 2

EP21-001071 BLOCK,TERMINAL-PT 2.5-QUATTRO-TGB;5.2*92 2

EP21-001072 BLOCK,TERMINAL-P-FU 5X20-5;5.2*23.5 2

EP21-001073 BLOCK,TERMINAL-PTTB 2,5;5.2*68*47.5 2

EP21-001074 BLOCK,TERMINAL-D-PT 2,5-QUATTRO-MTB;2.2* 1

EP21-001075 BLOCK,TERMINAL-D-PTTB 2,5;2.2*68*47.5 1

EP21-001076 BLOCK,TERMINAL-PT 2,5-TWIN;5.2*60.5*35.2 10

EP21-001077 BLOCK,TERMINAL-D-ST 2,5-TWIN;2.2*60.5*29 2

EP21-001078 BLOCK,TERMINAL-PT 2,5;5.2*48.5.35.3 2

EP21-001079 BLOCK,TERMINAL-D-ST 2,5;2.2*48.6*29.1 1

EP21-001081 ACCESSORY,TERMINAL BLOCK-NS 35/ 7,5 PERF 1

 AM03-007204A AM03-007204A_SM48_MD037 12

 AM03-007205B CABLE ASSY-X_REGEN_RESISTOR 1

 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1

 J91741357A BOARD ASSY- AP5 AXIS SLAVE BOARD 1

 J7251012A WIRING DUCT-5[J7251012A] 1

 FC29-900555 HEX SUPPORT[M3*50 (BOLT-NUT)] 4

 FC29-900612 HEX SUPPORT 4

 J7251013A WIRING DUCT-6[J7251013A] 2

 EP03-000083 DUCT,CABLE-WIRING DUCT_60x60x910 1

 J7251015A WIRING DUCT-8[J7251015A] 1

 FC09-002145A SM482_DRIVER_BASE_BRACKET;SPCC

Electric Device Ass’y

AM03-019753A ASSY,AIR-SM471_FRONT AIR PANEL 1

 HP06-900043 JOINT KQ2F04-01 1

 TE07-900096 METER GZ46-K-01-C1 1

 FC09-006405A BRACKET-BKT AIR F 1

 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N 1

 HP04-001016 FILTER,AIR-AC30-03D-CJSZ2045 1

 HP09-001019 REGULATOR-ARP20-02BG-CJSZ1406;AIR,1.0MPA 1

AM03-007638A CABLE ASSY-AIR INDICATOR 1

EP05-900741 CONNECTOR[DF1B-3ES-2.5RC] 1

EP21-900127 TERMINAL[DF1B-2428SCF] 1

AM03-018437A ASSY,AIR-GAUGE-PANEL_NEW_SUB 1

HP06-900195 UNION_Y_FITTING SQU06-00-W 1

 EP20-001028 SWITCH,ROTARY-MAIN_SWITCH[KG20B-T203] 1 AM03-900132/ AM03-013512A/ EP20-

900105

 AM03-010079B SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 J90831059C/ AM03-010079A

 FC09-001672B BRACKET-BKT F POWER 1 FC09-001672A

 J6309025 FAN 2

 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A

 EP07-901508 COOLING FAN[4715MS-22T-B50] 2

AM03-003542A CABLE ASSY INLINE_IN_OUT 1

 EP07-900028 MAIN CIRCUIT BREAKER[GV2-ME20] 1

 EP21-900008 PANEL_GV2_AF 1

 J70521076B POWER_PANEL_R J70521076B 1

 AM03-003573A CABLE ASSY-LAN_EXT 1

 FC30-002551A GROUND TERMINAL [J7152027A] 1 J7152027A

 CD04-900026 MINI_KEYBOARD 5510UH 2

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2

 CD04-900012 OPTICAL_MOUSE 2

 AM03-005366A ASSY,CONTROLLER-TEACHING BOX ASSY 1

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 CD05-900126

J91741042A SM421_AXIS_SENSOR_BOARD_ASSY VER1.0 1

 J91741076A CONV_SUB_IF_BOARD VER 1.0 1

 AM03-019057A CABLE ASSY-SM471_NOISE_FILTER_MODULE 1 EP07-901542 / J91671267A

 EP23-000028A TRANSFORMER-3PHASE, 3.5KVA 1 EP23-900012 /EP23-000012A

 AM03-005338A SM471 AXIS SENSOR BD VER1.0 1

 EP06-901169 MONITOR_DISTRIBUTOR NM-V21 1

 AM06-000359B ASSY,PCB SMD-SM400_VISION_IF_BD 1 AM06-000359A

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J90601030B FR_OPERATE_BOARD 1

 FC09-001657B BRACKET-BKT VAC_GEN 1

 HP11-000058 P6010-AK-01-LA52SG 1

 HP06-900204 FITTING SQL10-02S(WHITE) 1

 HP14-000978 SOL-VAVLE 1 HP14-900045

 HP09-900158 SILENCER [AN101-01] 1

 HP04-900011 COVER-COVER PUMP 1 OPTION

 HP11-001019 PUMP-PUMP KHA400A-301-G1 1 HP11-000059 OPTION

 HP06-900104 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1 FC28-000105 OPTION

 HP06-900046 JOINT KQ2R04-08 1 OPTION

 HP06-001070 FITTING-FITTING KQ2VT12-03S;ELBOW 1 HP06-000250 OPTION

 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1 OPTION

 HP11-000058 P6010-AK-01-LA52SG 1

 FC28-000103 ADAPTER M3/4 F3/8 1

 EP07-901508 COOLING FAN 1 OPTION

AM03-006356A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1

 EP06-000219 SERVO CONTROL-DRIVESTEP_MOTOR_DRIVER_4A

 EP06-000219

 J91741023A SM411_CONVEYOR_PWR_BOARD 1

 J70521023B MIST_PANEL 1

 AM03-014556A MIST_SEPARATOR_ASSY TAC4020-04D-R3643 1 J90581007B

 HP04-900020 FILTER ELEMENT[AF40P-060S] 1

 HP04-900031 FILTER_ELEMENT AFM40P-060AS 1

 AM03-018434A ASSY,AIR-GAUGE-PANEL_NEW Integration options

(filter + regulator)

 FC18-902838 SEMUS NABE SCREW

 AM03-007638A CABLE ASSY-AIR INDICATOR

 EP05-900741 CONNECTOR[DF1B-3ES-2.5RC]

 EP21-900127 TERMINAL[DF1B-2428SCF]

 HP09-000150 COMPONENTS,ELECTRIC-SPABT

 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W

 AM03-018437A ASSY,AIR-GAUGE-PANEL_NEW_SUB

 FC09-006405A BRACKET-BKT AIR F

 HP09-001019 REGULATOR-ARP20-02BG-CJSZ1406;AIR,1.0MPA

 TE07-900096 METER GZ46-K-01-C1

 HP06-900043 JOINT KQ2F04-01

 HP04-001016 FILTER,AIR-AC30-03D-CJSZ2045

 FC18-902861 TRUSS SCREW

 FC18-903481 FLAT WASHER [M6 (BL/ZN)]

 FC18-902772 SOCKET HEAD CAP SCREW M6*12 (NI/ZN)

AIR Ass’y

HP03-900013 CYLINDER CM2C32-50-XC3BB 1

 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 HP06-000074 FITTING-STRAIGHT FITTING;KQ2S04-M5N,ONET 1

 HP03-900054 AIR_CYLINDER 1

 HP14-900088 SPEED CONTROLLER[AS1211F-M5-04] 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP06-900072 UNION Y FITTING PY4M 1

 HP14-900087 SPEED CONTROLLER(STRAIGHT)[AS1211F-M3-04 2

 HP06-900047 ELBOW FITTING 1

 HP03-000096 CYLINDER-CXSJM10-40-A93;CYLINDER,0.7MPA, 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 EP07-000858 SOLENOID-VUVG-S10-M52-RT-Q4(BM5)-1H2L 1

 HP03-900039 EDGE CYLINDER[CQ2B6-CJJC2948] 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 3

 HP09-900109 REGULATOR 1

 AM03-007338A ASSY,AIR-SOL_VALVE_EDGE_FIX-OPTION 1

 AM03-007232A ASSY,AIR-SM482_SOL_VALVE_MODULE 1

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 HP03-000118 CYLINDER-AQ2A12-35D-XST44;AIR CYLINDER,0 2

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C?) 1

 HP06-900010 ELBOW FITTING [M-5HLH-4] 2

 HP06-000278 FITTING-QS-E-M5-4-I-C;Straight Fitting 4

 HP06-000279 FITTING-QS-E-1./8-8-C;STRAIGHT FITTING 1

 HP09-000164 SILENCER-U-E-1/8-S 2

 HP09-000157 MANIFOLD-VABM-L1-10S-G18-4 1

 AM03-000330 ASSY,AIR-SOL_VALVE_481L 1

HP14-000431 VALVE,THROTTLE-GRLZ-M5-QS-4-D 2

 HP06-000278 FITTING-QS-E-M5-4-I-C;Straight Fitting 4

 HP14-000397 VALVE,SOLENOID-VUVG-L10-M52-RT-M5-1H2L 3

 HP15-000010 ACCESSORY,VALVE-HAND-WHEEL_300D 1

 HP06-000279 FITTING-QS-E-1./8-8-C;STRAIGHT FITTING 1

 HP09-000164 SILENCER-U-E-1/8-S 2

 HP09-000157 MANIFOLD-VABM-L1-10S-G18-4 1

 HP06-000275 FITTING-DIN 908-G1/8-ST;Plug,Thread 3

FC14-900644 PLUG KQ2P-08 5

 HP09-000007 MANIFOLD;ET1:ETC. 1

 HP06-900282 STRAIGHT FITTING [KQ2R06-08] 3

 HP06-000226 FITTING-KQ2R10-12;STRAIGHT 1

 FC14-900641 PLUG KQ2P10 1

 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N-K1- 1

 HP06-900043 JOINT KQ2F04-01 1

 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 TE07-900096 METER GZ46-K-01-C1 1

 HP09-001019 REGULATOR-ARP20-02BG-CJSZ1406;AIR,1.0MPA 1

 HP04-001016 FILTER,AIR-AC30-03D-CJSZ2045 1

 HP06-900050 UNION Y FITTING 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

HP14-000978 VALVE,SOLENOID-VUVG_L18_M52 1

HP06-900204 FITTING SQL10-02S(WHITE) 1

 HP11-000075 PUMP-P6010-AJ-01-LA52SG 1

 HP06-900104 FITTING KQ2L06-02S 1

 HP11-001019 PUMP-KHB200A-304A-G1;200W 1

 HP06-001070 FITTING-[KQ2VD12-02AS];ELBOW 1

 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1

 HP06-900046 JOINT KQ2R04-08 1

 AM03-007414A ASSY,AIR-VACUUM ASSY SM481 1

FC14-900724 PLUG [PT 1/8] 3

 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 2

 HP14-900092 CHECK VALVE[AKH06-00] 1

 HP06-900050 UNION Y FITTING 1

 HP06-900014 FITTING [KQ2L06-01/PL6-01] 5

 HP06-900018 FITTING [KQ2U06-00/PY6M] 1

 HP09-900162 SILENCER AN101-01 2

 HP06-900018 FITTING [KQ2U06-00/PY6M] 4

 HP03-900011 AIR CYLINDER 3

 HP06-900047 ELBOW FITTING 2

 HP06-900299 COUPLER[KD-M5-SA34697KR] 2

 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 HP04-900036 SUCTION_FILTER VYF44-M-50M 10

 HP06-000457 FITTING-QSY_12_8;Y_FITTING,12-8,12-8 1

 HP09-000127 MANIFOLD-MANIFOLD KM11-04-08-10 1

 HP13-000037A TUBE,PNEUMATIC-M-TUBE UML-412 3.7M;MM,ST 1

 J1301070 STRAIGHT_CONNETOR_FITTING 6

 HP14-002040 VALVE,SOLENOID-VQZ115R-5LO1-C1-PR 1

 HP09-000129 MANIFOLD-SM411+ HEAD_AIR_MODULE 1

 HP06-000074 FITTING-STRAIGHT FITTING;KQ2S04-M5N,ONET 10

 HP06-900059 BOB ELBOW FITTING M-5ALU-4 10

AXIO BD#1

AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150C / AM03-021133A SM481_FL001

 AM03-007484A CABLE ASSY-CABLE ASSY-HD_VAC-BLOW_H3-H101 SM481_VI006

 AM03-007482B CABLE ASSY-CABLE ASSY-HD_VAC-BLOW_CTRL 1 AM03-007482A SM481_AX008-1

 AM03-007047B CABLE ASSY-CABLE_ASSY-AXIO_CN5 1 AM03-007047A SM481_AX008

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481 FL002

 AM03-007046A CABLE ASSY-CABLE_ASSY-AXIO_CN7_9 1 SM481_AX006

 AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-007080B CABLE ASSY-CABLE_ASSY-X_LIMIT_& HD_PWR 1 AM03-007080A SM481_AX006-1

 AM03-015580A CABLE ASSY-X AXIS SENSOR CABLE ASSY 1 AM03-007483A SM481_AX002

AM03-006907B CABLE ASSY-Y1-Y2_DRV_CMD_AXIO 1 AM03-006907A SM48_VM003

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48-PW020

 AM03-020612A CABLE ASSY-Y1 MOTOR PWR_90 1 AM03-006944A SM48-MD005

 AM03-020615A CABLE ASSY-Y1 MOTOR ENC_90 1 AM03-006945B / AM03-014703A SM48-MD006

 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1 SM48_MD036

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48-PW019

 AM03-020611A CABLE ASSY-Y2 MOTOR PWR_90 1 AM03-006946A SM48-MD007

 AM03-020610A CABLE ASSY-Y2 MOTOR ENC_90 1 AM03-006947B / AM03-014704A SM48-MD008

 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 1 SM48_MD037

AM03-007049B CABLE ASSY-CABLE_ASSY-X_W_DRV_CMD_AXIO 1 AM03-007049A SM481_VM004

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48-PW019

 AM03-007809A CABLE ASSY-X_MOTOR_POWER 1 SM48-MD009

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-007810B CABLE ASSY-X_MOTOR_ENC 1 AM03-007810A SM48-MD010

 AM03-007205A CABLE ASSY-X_REGEN_RESISTOR 1 SM48_MD038

 AM03-006959A CABLE ASSY-SW_WD_SERVO_POWER 1 SM48-PW018

 AM03-006952A CABLE ASSY-WD_MOTOR_POWER 1 SM48-MD022

 AM03-006953B CABLE ASSY-WD_MOTOR_ENC 1 AM03-006953A SM48-MD023

AM03-007050A CABLE ASSY-CABLE_ASSYCB12_BW12_CMD_AXIO

 SM481_VM008

 AM03-009943A CONV-BELT-STEP-POWER-CABLE-ASSY 1 J90831341E SM41_SC012

 AM03-003578B CABLE ASSY-CONV_BELT1_MOTOR_PW 1 SM421_MD108

 AM03-003579A CABLE ASSY-CV_BELT1_MOTOR_PW_EXT 1 SM421_MD108-1

 J90831439B CONV_BELT1_STEP_MOTOR_ASSY 1 SM41_MD013

 AM03-003904B CABLE ASSY-CONV_BELT2_MOTOR_PW 1 SM421_MD208

 AM03-003905C CABLE ASSY-CV_BELT2_MOTOR_PW_EXT 1 AM03-003905A SM421_MD208-1

 J90831440B CONV_BELT2_STEP_MOTOR_ASSY 1 SM41_MD014

 AM03-003582B CABLE ASSY-WORK_BELT1_MOT_PW 1 SM421_MD110

 AM03-003583A CABLE ASSY-WORK_BELT1_MOT_PW_EXT 1 SM421_MD110-1

 J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1 SM41_MD017

 AM03-003908B CABLE ASSY-WORK_BELT2_MOT_PW 1 SM421_MD210

 AM03-003909C CABLE ASSY-WORK_BELT2_MOT_PW_EXT 1 AM03-003909A SM421_MD210-1

 J90831441B WORK_BELT2_STEP_MOTOR_ASSY 1 SM41_MD018

 AM03-007051A CABLE_ASSY-CB34_CMD_AXIO 1 SM481_VM009

 AM03-003580B CABLE ASSY-CV_BELT3_MOT_PW 1 SM421_MD109

 AM03-003581A CABLE ASSY-CV_BELT3_MOT_PW_EXT 1 SM421_MD109-1

 J90831430B CONV_BELT3_STEP_MOTOR_ASSY 1 SM41_MD015

 J90831431B CONV_BELT4_STEP_MOTOR_ASSY 1 SM41_MD016

AXIO BD#2

AM03-007045A CABLE_ASSY-AXIO_BD_2_PWR 1 SM481_SC009

 AM03-007526A CABLE ASSY-Z10/Z9_DRV_COMMAND 1 SM481_VM009-1

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-007527A CABLE ASSY-Z8/Z7_DRV_COMMAND 1 SM481_VM009-2

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-005503A CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471_PW124-1

 AM03-007054A CABLE_ASSY-Z_DRV_PW 1 SM481_PW027

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

 AM03-007528A CABLE ASSY-Z6/Z5_DRV_COMMAND 1 SM481_VM009-3

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-007529A CABLE ASSY-Z4/Z3_DRV_COMMAND 1 SM481_VM009-4

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

 AM03-007530A CABLE ASSY-Z2/Z1_DRV_COMMAND 1 SM481_VM009-5

 AM03-007151A CABLE ASSY-FLAT CABLE 2 1 SM481_FL002

 AM03-005503A CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471_PW124-1

 AM03-007054A CABLE_ASSY-Z_DRV_PW 1 SM481_PW027

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-007484A CABLE ASSY-HD_VAC-BLOW_H3-H10 1 SM481_VI006

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

AM03-007531A CABLE ASSY-R5/R4/R3 DRV COMMAN 1 SM481_VM011

 AM03-007532A CABLE ASSY-R2/R1 DRV COMMAND 1 SM481_VM011-1

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

AM03-007052B CABLE_ASSY-SW_DRV_CMD 1 AM03-007052A SM481_VM106

 AM03-007811A CABLE ASSY-SW_MOTOR_POWER 1 SM48_MD020

 AM03-007812C CABLE ASSY-SW_MOTOR_ENC 1 AM03-007812A /AM03-007812B SM48_MD021

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

 AM03-005611B CABLE ASSY-SWING MOTOR 1 AM03-005611A SM471_MD025

Axis Sensor BD

J90831423C AXIS_SENSOR_BD_PW_CABLE_ASSY 1 SM41_AX001

 AM03-015578A CABLE ASSY-Y_AXIS_SENSOR 1 AM03-003994A SM421_AX103

 AM03-003576A CABLE ASSY-WD_AXIS_SENSOR 1 SM421_AX104

 AM03-003577B CABLE ASSY-WD_AXIS_SENSOR_EXT 1 AM03-003577A SM421_AX104-1

 AM03-010660A CONVEYOR_SENSOR_IF_CABLE_ASSY 1 J90831428C SM41_AX006

 AM03-007165C CABLE ASSY-SM48_CON_PCB_SENSOR_N_L 1 AM03-007165B SM41_CV007

AM03-007046A CABLE_ASSY-AXIO_CN7_9 1 SM481_AX006

 AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-007444B CABLE ASSY-FEEDER_UNLOCK_SENSOR 1 AM03-007444A SM48-CV140

 J91672425A FDR_UNLOCK_FRONT_CABLE_ASSY SM41_CV043 1 SM41_CV043

 J91672426A FDR_UNLOCK_REAR_CABLE_ASSY 1 SM41_CV044

Conveyor Sub IF B/D

 J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

 AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003901B CABLE ASSY-FRONT_OP_SW;B 1 AM03-003901A SM421_OP103

 AM03-003902B CABLE ASSY-REAR_OP_SW;B 1 AM03-003902A SM421_OP104

 AM03-007055C CABLE ASSY-CONV_SUB_IF 1 AM03-007055A / AM03-007055B SM48_SC105

 AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 SM48_SC105-1

 AM03-006879B CABLE ASSY-AIR_INDICATOR 1 AM03-006879A SM48_CV026

 AM03-007638A CABLE ASSY-AIR INDICATOR 1 SM48-CV026-1

Conveyor IF B/D

AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1 SM48_CA104

 AM03-006943C CABLE ASSY-CVIF_FFD_CAN-EXT 1 AM03-006943A / AM03-006943B SM48_CA104-1

 AM03-010656A RFDR_CVIF_CAN_CABLE_ASSY 1 J90831326B SM41_CA003

 AM03-014614B CABLE ASSY-BD_PW_SC_T-BOX_EXT;B 1 AM03-006882A / AM03-014614A SM48_CV101

 AM03-014613A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 AM03-006967A SM48_SC201

 J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421-CV106-2

 AM03-006878B CABLE ASSY-TOWER LAMP EXT;B 1 AM03-006878A SM48_CV004

 AM03-007691A CABLE ASSY-CONV_SOL 1 AM03-003903A SM421_CV102

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV028

 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV029

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

 AM03-003871B CABLE ASSY-PLACE STOPPER SENSOR 1 AM03-003871A SM421_CV151

 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1 SM421_CV151-1

AM03-006964A CABLE ASSY-PUMP_PWR_ALARM 1 SM48_PW147

 AM03-003870B CABLE ASSY-BUT SENSOR EXT 1 SM421_CV150-1

 AM03-005701A CABLE ASSY-PUMP_PWR_ALARM-EXT 1 SM471_PW147-1

 AM03-014726B CABLE ASSY-ANC SNS_RACK FAN EX 1 AM03-003595A / AM03-014726A SM48C_CV109

 J9080778B ANC SENSOR CABLE ASSY[SM-CV010] 1 SM-CV010

AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2

AM03-003597A CABLE ASSY-FRONT_AREA_SENSOR_EXT 1 SM421_CV115

 AM03-003598A CABLE ASSY-REAR_AREA_SENSOR_EXT 1 SM421_CV117

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1 SM33_CV016

 J90831759A REAR_AREA_SENSOR_CABLE_ASSY SM421-CV018 1 SM421_CV018

 AM03-006703A CABLE ASSY-F DOCKING CART SNS 1 SM471_CV019

 AM03-006704A CABLE ASSY-R DOCKING CART SNS 1 SM471-CV020

 AM03-014614B CABLE ASSY-BD_PW_SC_T-BOX_EXT;B 1 AM03-006882A / AM03-014614A SM48_CV132

 AM03-014613A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 AM03-006967A SM48_SC201

 AM03-014715B CABLE ASSY-RS232_SERIAL-EXT;B 1 AM03-005705A / AM03-014715A SM471_PC003-1

 AM03-005704B CABLE ASSY-RS232_SERIAL 1 SM471-PC003

Front Feeder IF B/D

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41_FD005

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1 SM_FD006

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1 SM_FD007

 AM03-007053A CABLE ASSY-CABLE_ASSY-FFD_HD_CAN 1 SM481_CA104

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

 AM03-006874A CABLE ASSY-AXIS1_FIX_ILL_CAN 1 SM48_CA102

 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA102-1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

 AM03-006891C CABLE ASSY-FRONT FDR CTRL PWR 1 AM03-006891A SM48_FD101

 AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A HARNESS,WIRING-FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006884A CABLE ASSY-F FDR PWR RELAY 1 SM48_FD002

Head IF B/D

AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-007080B CABLE ASSY-CABLE_ASSY-X_LIMIT_& HD_PWR 1 AM03-007080A SM481_AX006-1

 AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

 AM03-007053A CABLE ASSY-CABLE_ASSY-FFD_HD_CAN 1 SM481_CA104

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

AM03-005590B CABLE ASSY-481_FLY_SIDE_CABLE_ASSY 1 AM03-007636A /AM03-05590B SM481_HD010-3

 AM03-005593D CABLE ASSY-481_CABLE ASSY-FLY_OUT 1 AM03-005593B /AM03-005593C SM481_HD010-6

AM03-007500A CABLE ASSY-FID2_COAX 1 SM481_HD010-1

 AM03-015718A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1 AM03-007499A /AM03-007499B / AM03-007499C SM481_HD007

 AM03-007498A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM481_HD003-1

 AM03-007497A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM481_HD003

 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009

 AM03-007496A CABLE ASSY-HEAD_BLOW_SOL 1 SM481_HD006

 AM03-007495A CABLE ASSY-HEAD_VACUUM_SOL 1 SM481_HD005

 AM03-007503A CABLE ASSY-HEAD_VAC_SENSOR 1 SM481_HD004

 AM03-007501A CABLE ASSY-FID1_COAX 1 SM481_HD010-2

 AM03-007502B CABLE ASSY-FLY_COAXIAL 1 AM03-007502A SM481_HD010-11

Motor IF B/D

AM03-007485A CABLE ASSY-Z1_MOTOR_SYRO 1 SM481_MD019_SYRO

 AM03-007486A CABLE ASSY-Z2_MOTOR_SYRO 1 SM481_MD020_SYRO

 AM03-007487A CABLE ASSY-Z3_MOTOR_SYRO 1 SM481_MD021_SYRO

 AM03-007488A CABLE ASSY-Z4_MOTOR_SYRO 1 SM481_MD022_SYRO

 AM03-007489A CABLE ASSY-Z5_MOTOR_SYRO 1 SM481_MD023_SYRO

 AM03-007490A CABLE ASSY-Z6_MOTOR_SYRO 1 SM481_MD024_SYRO

 AM03-007491A CABLE ASSY-Z7_MOTOR_SYRO 1 SM481_MD024-1_SYRO

 AM03-007492A CABLE ASSY-Z8_MOTOR_SYRO 1 SM481_MD024-2_SYRO

 AM03-007493A CABLE ASSY-Z9_MOTOR_SYRO 1 SM481_MD024-3_SYRO

 AM03-007494B CABLE ASSY-Z10_MOTOR_SYRO 1 AM03-007494A SM481_MD024-4_SYRO

AM03-007533B CABLE ASSY-R1_MOTOR 1 AM03-007533A SM481_MD038

 AM03-007534A CABLE ASSY-R2_MOTOR 1 SM481_MD039

 AM03-007535A CABLE ASSY-R3_MOTOR 1 SM481_MD040

 AM03-007536A CABLE ASSY-R4_MOTOR 1 SM481_MD040-1

 AM03-007537A CABLE ASSY-R5_MOTOR 1 SM481_MD040-2

 AM03-007151D CABLE ASSY-FLAT CABLE 2 2 AM03-007151A / AM03-007151C SM481 FL002

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481 FL001

AM03-021133A CABLE ASSY-FLAT CABLE 1 3 AM03-007150B / AM03-007150C SM481 FL001

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481 FL002

Power Block Diagram

AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

 AM03-006959A CABLE ASSY-SW_WD_SERVO_POWER 1 SM48_PW018

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48_PW019

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48_PW020

AM03-014909A CABLE ASSY-MC_INPUT_220V 1 AM03-006962A / AM03-014909A SM48_PW040

 AM03-014851A CABLE ASSY-SK 1 AM03-005510A SM471-PW041

 AM03-014906B CABLE ASSY-VACUUM_PUMP_PWR_EXT 1 AM03-005767A / AM03-014906A SM471_PW042-1

 AM03-014905A CABLE ASSY-VACUUM_PUMP_220V 1 AM03-005511A/ AM03-005511B SM471_PW042

 AM03-014907B CABLE ASSY-PUMP_PWR_ALARM-EXT 1 AM03-005701A / AM03-014907A SM471_PW147-1

 AM03-005698A CABLE ASSY-VACUUM_PWR 1 SM471_PW146

 AM03-006964A CABLE ASSY-PUMP_PWR_ALARM 1 SM48_PW147

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

AM03-006954A CABLE ASSY-AC_RELAY_ POWER 1 SM48N_PW005

 AM03-014489B CABLE ASSY-R_RIGHT_FEEDER_BASE_PWR 1 AM03-006889A SM48_FD007

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-014485B CABLE ASSY-R_LEFT_FEEDER_BASE_PWR 1 AM03-006888A SM48_FD006

 AM03-014484B CABLE ASSY-F RIGHT FEEDER BASE PWR 1 AM03-006887A SM48_FD005

 AM03-014482B CABLE ASSY-F_LEFT_FEEDER_BASE_PWR 1 AM03-006886A SM48_FD004

 AM03-006893A CABLE ASSY-AC RELAY JUMPER 1 SM482_PW006

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

 EP02-000588A HARNESS,WIRING-FEEDER CN7 EXT CABLE

ASSY

 SM411N_FD001

 AM03-006884A CABLE ASSY-F FDR PWR RELAY 1 SM48_FD002

 AM03-006905A CABLE ASSY-RELAY_PW_SUPPLY 1 SM48_PW135

 AM03-900148 RELAY_CONNECT_CABLE_ASSY SM41-PW034 1 SM41_PW034

 AM03-006890A CABLE ASSY-24V POWER EXT 1 SM48_FD008

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1 SM41_PW001

 J90831253C MCCB_NF1_EARTH_CABLE_ASSY 1 SM411-PW003-2

 J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1 SM411-PW004

 AM03-013512C CABLE ASSY-MAIN SWITCH_TRANS 1 AM03-900132 / AM03-013512A SM33_PW005

 AM03-006872A CABLE ASSY-CP1_TB1 1 SM482_PW007

 AM03-003859A CABLE ASSY-TRANS_CP1_2 1 SM421_PW106

 AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

AM03-006903A CABLE ASSY-CONTROL_RACK_PWR 1 SM48_PW145

 AM03-006963A CABLE ASSY-SACO_+24V_RELAY 1 SM48_PW044

 AM03-006904A CABLE ASSY-CONTROL_RACK_PWR-EXT 1 SM48_PW145-1

 AM03-017244B CABLE ASSY-FRONT_MONITOR_PW_12V 1 AM03-006894A / AM03-017244A SM48_PW021

 AM03-017245B CABLE ASSY-REAR_MONITOR_PW_12V;B 1 AM03-006895A / AM03-017245A SM48_PW022

 AM03-005488A CABLE ASSY-FAN_POWER 1 SM471_PW112

 AM03-006900A CABLE ASSY-SERVO_FAN_POWER 1 SM48_PW113

AM03-007057A CABLE ASSY-TB1_FS1_FS2 1 SM48_PW111-2

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006899A CABLE ASSY-PS1_2_AC_POWER_T1L 1 SM48_PW111

 AM03-014497B CABLE ASSY-PS_DC_POWER_T2L_EXT 1 SM48_PW120

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-007054A CABLE_ASSY-Z_DRV_PW 1 SM481_PW027

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006955A CABLE ASSY-PS3_4_AC_POWER_T2L 1 SM48_PW112

 AM03-006902A CABLE ASSY-PS3_4_DC_POWER_T2L 1 SM48N_PW103

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006954A CABLE ASSY-AC_RELAY_ POWER 1 SM48N_PW005

 AM03-005702A CABLE ASSY-MON_DISTRIB_ADAPTOR 1 SM471_PW068

 AM03-005519A CABLE ASSY-USB_HUB_ADAPTOR 1 SM471_PW067

Rear Feeder IF B/D

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41_FD005

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM41_CA003

 AM03-006876B CABLE ASSY-FIX_ILL_RFD_CAN 1 AM03-006876A SM48_CA102

 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA102-1

 AM03-014614B CABLE ASSY-BD_PW_SC_T-BOX_EXT;B 1 AM03-006882A / AM03-014614A SM48_CV101

 AM03-014613A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 AM03-006967A SM48_SC201

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SMS11N_FD001

 J90800841C LEFT FDR SENSOR INPUT CABLE ASSY 1 SM_FD006

 J90800842C RIGHT FDR SENSOR INPUT CABLE ASSY 1 SM_FD007

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A HARNESS,WIRING-FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

Safety Control B/D

AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

 AM03-006965A CABLE ASSY-F_OP_PANEL_IF 1 SM48_SC001

 AM03-006966A CABLE ASSY-R_OP_PANEL_IF SM482_SC002

AM03-014613A CABLE ASSY-1_TRAY_FEEDER_EXT 1 AM03-006967A SM48_SC201

AM03-014614B CABLE ASSY-BD_PW_SC_T-BOX_EXT;B 1 AM03-006882A / AM03-014614A SM48_CV101

 AM03-014614B CABLE ASSY-BD_PW_SC_T-BOX_EXT;B 1 AM03-006883A / AM03-014614A SM48_CV132

 AM03-009943A F_OVERRIDE_KEY_EXT_CABLE_ASSY 1 J90831060E /AM03-010659A SM33_SC009

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 SM33_SC008

 AM03-006407A CABLE ASSY-LEFT_REAR_FAN_PW 1 SM471_PW020

 AM03-006409A CABLE ASSY-LR_ZR_DRV_FAN 1 SM471_PW022

 AM03-007044A CABLE_ASSY-R_STEP_DRV_PWR 1 SM481_SC011

 AM03-010657A CONV-BELT-STEP-POWER-CABLE-ASSY 1 J90831341E SM41_SC012

 AM03-003686B CABLE ASSY-1_TRAY_FEEDER_EXT 1 AM03-003686A SM421_VM101-1

 AM03-003689B CABLE ASSY-2_TRAY_FEEDER_EXT 1 AM03-003689A SM421_VM102-1

AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

 AM03-006891C CABLE ASSY-FRONT FDR CTRL PWR 1 AM03-006891A SM48_FD101

 AM03-010659A AXIS_SENSOR_BD_PW_CABLE_ASSY 1 J90831423C SM41_AX001

 AM03-006963A CABLE ASSY-SACO_+24V_RELAY 1 SM48_PW044

 AM03-012662A SCANNER_CABLE_ASSY SM421_IT003 1 J90833704A/ AM03-010663A SM421_IT003

 AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006923A CABLE ASSY-FIX_ILL_POWER 1 SM48_SC008

 AM03-007046A CABLE_ASSY-AXIO_CN7_9 1 SM481_AX006

 AM03-006880A CABLE ASSY-SACO_F_TBOX 1 SM48_CV034

 AM03-010655B CABLE ASSY-REAR-TEACHING_BOX_EXT 1 AM03-010655A SM33_CV023-4

 AM03-006881A CABLE ASSY-SACO_R_TBOX 1 SM48_CV035

 AM03-010654B CABLE ASSY-FRONT-TEACHING_BOX_EXT 1 AM03-010654A SM33_CV023-5

 AM03-007045A CABLE_ASSY-AXIO_BD_2_PWR 1 SM481_SC009

AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 X SM48_SC105-1

 AM03-007055C CABLE ASSY-CONV_SUB_IF 1 AM03-007055A / AM03-007055B SM48_SC105

 J90831335C MC1-ENABLE-CABLE-ASSY 1 SM41_SC006

Vision IF B/D

AM03-007048B CABLE ASSY-CABLE_ASSY-HD_FID_CAMERA 1 AM03-007048A SM481_VIS001

 AM03-010263B CABLE ASSY-SM481_VIS002-1 1 AM03-005543A /AM03-010263A SM471_VIS002-1

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-010262B CABLE ASSY-SM481_VIS002-2 1 AM03-005544A /AM03-010262A SM471_VIS002-2

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

 AM03-006968B CABLE ASSY-FIX1-2_CAMERA 1 AM03-006968A SM48_VIS002

 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471_VIS000

 AM03-006985A CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 SM48_VIS012-1

AM03-015495B CABLE ASSY-HEAD2_FLY_CAM_PWR/SYNC 1 AM03-005549B / AM03-015495A SM471_VIS007

 AM03-007151D CABLE ASSY-FLAT CABLE 2 1 AM03-007151A / AM03-007151C SM481_FL002

 AM03-005548D CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A/ AM03-005548B/ AM03-005548C SM471_VIS006

 AM03-015496B CABLE ASSY-HEAD2_FLY_CAM_SIG 1 AM03-005552B / AM03-015496A SM471_VIS010

 AM03-021133A CABLE ASSY-FLAT CABLE 1 1 AM03-007150B / AM03-007150C SM481_FL001

 AM03-005551B CABLE ASSY-FLY CAM SIG EXT 1 AM03-005551A SM471_VIS009

 AM03-007048B CABLE_ASSY-HD_FID_CAM 1 AM03-007048A SM481_VIS001

Articles of Cónumption

MC05-000276 BELT-MAM-5P-1738-7W;MAM-5P,1738,7,1.2

 MC05-900068 BELT_410_1

 MC05-900069 BELT_410_F MAM-5P-1517-7W

 MC05-900070 BELT_410_R

 MC05-900071 BELT_410_1_LONG

 MC05-900121 FLAT_BELT-END_ZONE MAM-5P-1641, 7W

 MC05-900122 FLAT_BELT-F_WORK_ZONE MAM-5P-1617-7W

 MC05-900123 FLAT_BELT-R_WORK_ZONE MAM-5P-1575-7W

 MC05-900129 FLAT_BELT_WORK_FIX_750 MAM-5P

 MC05-900130 FLAT_BELT_WORK_MOVE_750 MAM-5P

 MC05-900131 FLAT_BELT_END_750 MAM-5P

 HP04-001258A FILTER,AIR-ELENMENT[AF30P-060S]

 HP04-001259A FILTER,OIL-ELENMENT[AFM30P-060S]

 HP04-900036 SUCTION_FILTER VYF44-M-50M

 EP10-900438 FUSE[250V 5A]

 EP10-900439 FUSE[250V 10A]

 CM02-000059 GREASE-GADUS_S2 V220 2

 CM02-000083 GREASE-GREASE_AFE-CA+70_THK;SYNTHETIC,OL

 CM02-000092 GREASE-FLOIL G-146K

 J9099107A GREASE GUN

 J7069038A NIPPLE TIP(CP60L X-FRAME)[J7069038A]

 HP09-000258 SUPPLY,OIL-GREASE-GUN_MG70_THK

 CM01-900473 TRI-FLOW [59ML]

 J90551072A NOZZLE_CN400_ASSY J90551072A

 J9055134C NOZZLE CN040 ASSY[J9055134C]

 AM03-900053 CLEANING KIT
