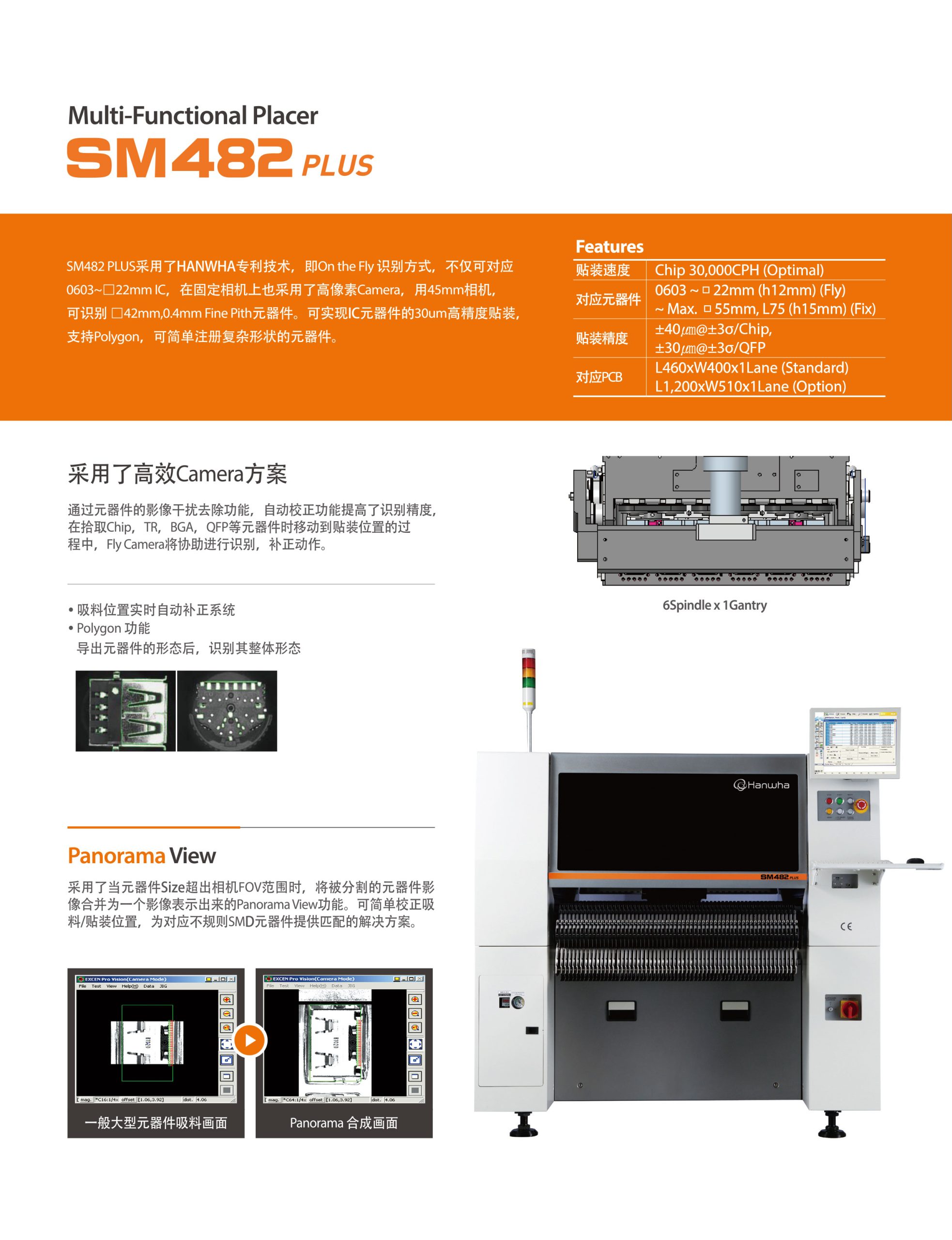

Multi-Functional Placer SM482 Plus Part

Multi-Functional Placer SM482 Plus Part

Feeder Base Ass’y

FC07-000033B BLOCK-VERTICAL LOCATOR;ME1:Steel 1

 J70570262C CAP-TOP PLATE 5

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 FC05-000122A BASE-SM411_FEEDER_BASE_BODY2;GCD 450-10 1

 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A ASSY,BOARD-FBLN 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000693A ASSY,BOARD-FBRN 1

 FC18-901830 BUTTON HEAD SOCKET SCREW M3*6 (SUS) 6

 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 32

 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 32

 FC14-000876 COUPLER 60 HP06-900169

 FC18-902787 SOCKET HEAD CAP SCREW M8*20 (NI/ZN) 7

Docking Cart

AM03-006344A ASSY,FEEDER BASE-SM421N_NEW_DOCKING_CART 1

 FC30-001080A PLATE-TOP PLATE B DCN;SPCC 1

 PT03-900217A HANDLE_NUMBER_STICKER J68081070A 1

 FC30-001081A PLATE-TOP PLATE S DCN 1

 J7257009A CUSHION-Y[J7257009A] 2

 CM03-001014A POLYURETHANE-URETHAN 2

 J70570262C CAP-TOP PLATE 5

 FC09-002060A BRACKET-SME_DC_BKT 1

 HP15-900008 BALL PLUNGERS[BSX12] 2

 J7057237C ANTI-PITCH ARM[J7057237C] 2

 J7057238B ANTI-PITCH PIN[J7057238B] 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 J7057239B CABLE HOLDER[J7057239B] 2

 J90600353B FEEDERBASE_LEFT_COVER_PCB 1

 J90571009A FEEDER_BASE_MODULE J90571009A 1

 FC14-002115 COUPLER-COUPLER_FEEDER BASE 60

 AM03-006346A ASSY,BOARD-SM421N_FBRD 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB 1

 AM03-006345A ASSY,BOARD-SM421N_FBLD 1

J70571021A NEW_BOARD_COVER J70571021A 1

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J74601002A FEEDER_IO_EXT_INSULATION_PCB J74601002A 1

 FC29-900616 HEX_SUPPORT 10

 AM03-000819E ASSY,BOARD-FEEDER IO BOARD ASSY VER 1.6 1

 J74601001A FEEDER_IO_INSULATION_PCB J74601001A 1

 MC14-900027 SWIVEL_CASTER-CMGNS100-N-MISUMI CMGNS100 2

 J70691413B D_CART_LOWER_FRAME-2 1

 FC15-001209A COVER-LOWER COVER DCN 2

 J70571019B CASTER_HOUSING_PL 2

 MC14-900015 URETAN WHEEL[TP8015-PLY] 8

 FC18-004383A PIN,HINGE-HINGE_PIN;8,-0.01~-0.1,36 8

 MC14-900026 SWIVEL_CASTER-CNGJ75-U-MISUMI CNGJ75-U 2

 J7057255A SIDE CABLE COVER-R[J7057255A] 1

 J7157099B ARM-TO-ARM BAR[J7157099B] 1

 J37041001A RELAY_SOCKET PTF08A 2

 EP18-000038 RELAY,DC-LY2N-D2;24VDC,36.9MA,110VAC/24V 2

 J7057256A SIDE CABLE COVER-L[J7057256A] 1

 J70571022A NEW_CROSS-FRAME J70571022A 1

 FC30-005434A PLATE-SUPPORT_ARM-L 1 LEFT

FC30-005433A PLATE-SUPPORT_ARM-R 1 RIGHT

 J7057229A CABLE CLIP[J7057229A] 2

 FC29-001286 GUIDE-D-CART_VERTICAL_GUIDE 2

 J7057226A ADJUST WHEEL[J7057226A] 2

 FC38-900012 COIL SPRING[SWU 26-50] 2

 J7057227B Z-STOPPER[J7057227B] 2

 J7257008B CUSHION-Z[J7257008B] 2

 J7057224B ADJUST SCREW[J7057224B] 2

 FC18-004380A NUT-V-LOCK-ADJUST_NUT;.,2.5,.,. 2

 J7057223B ADJUST BLOCK[J7057223B] 2

 FC39-000945B FRAME-SIDE FRAME DCN 2

J70570252C CART GRIP 2

 PT03-002476A STICKER-DC_SOL_VALVE;KEC 1

 EP18-900015 RELAY[MY4N-D2 24VDC] 1

 EP18-900002 RELAY SOCKET[PYF14A] 1

 FC05-000206B BASE-BOARD PLANE DCN;SPCC 1

 FC29-001128 COLLAR-FNCLSS-V3-D6-L18;STD,18 1

AM03-001738E CABLE ASSY-D-CART INNER IF CABLE ASSY 1

AM03-006535B CABLE ASSY-ND-CART DSUB EXT CABLE ASSY 1 AM03-006535A

AM03-006455B CABLE ASSY-ND_CART RY1 EXT CABLE ASSY 1

AM03-003463B CABLE ASSY-FEEDER DC RELAY CABLE ASSY 1

AM03-001740B CABLE ASSY-RELAY PWR CABLE ASSY 1

AM03-001745C CABLE ASSY-D-CART PWR_CAN CABLE ASSY 1

AM03-001748D CABLE ASSY-D-CART DEVICENET CABLE ASSY 1

J37041002A RELAY_HOLD_DOWN_CLIPS PYC-A1 3

AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1

 HP06-900049 STRAIGHT FITTING 1

 HP06-900299 COUPLER[KD-M5-SA34697KR] 1

 HP14-900089 SPEED CON[AS2201F-01-06S] 1

 HP14-900090 SPEED CON[ASP330F-01-06S] 1

 HP06-900293 ELBOW FITTING[PT18EF] 2

 EP19-900112 PHOTO SENSOR[EE-SY672] 1

 J7066025A COUPLER BKT2[SM1-MF08-091] 1

 J70570241C DOCKING BLOCK-RL 1

 J7057244B SENSOR BRACKET[J7057244B] 1

 J70570250B BALL RAIL 1

 J7057240C DOCKING BLOCK-RU[J7057240C] 1

 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1

 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1

 J71570100C GUIDE BLOCK 2

 J7057247A POSITIONNING GUIDE[J7057247A] 2

 J70570243C DOCKING BLOCK-LL 1

 J7057242C DOCKING BLOCK-LU[J7057242C] 1

 J7257011A PIN CABLE CAP[J7257011A] 1

 J7057251A PIN CABLE RETAINER[J7057251A] 1

 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1

 FC18-901233 LOCATION PIN[CFPQA12-16-L19-B3.5] 1

 J7057246B COUPLER HOLDER MOUNT[J7057246B] 1

 HP03-900011 AIR CYLINDER 1

 J7257010B CUSHION-X[J7257010B] 2

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 Version 1.1

 AM03-015857E ASSY,BOARD-FEEDER IO VER 2.0 1 (AM03-000819A / AM03-000819B/

AM03-000819C/ AM03-000819C/ AM03-000819E: ~#2292)

Old: Version 1.6

New: Version 2.0 (#2293~)

 J91672425A FDR_UNLOCK_FRONT_CABLE_ASSY SM41_CV043 1

 J91672426A FDR_UNLOCK_REAR_CABLE_ASSY 1

FC14-900724 PLUG 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 HP06-900299 COUPLER[KD-M5-SA34697KR] 1

 HP14-900090 SPEED CON[ASP330F-01-06S] 1

 HP06-900048 ELBOW FITTING [KQ2L06-M5] 1

 HP06-900293 ELBOW FITTING[PT18EF] 2

 FC14-900724 PLUG [PT 1/8] 3

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1

 HP14-900092 CHECK VALVE[AKH06-00] 1

 HP06-900018 FITTING [KQ2U06-00/PY6M] 5

 HP06-900014 FITTING [KQ2L06-01/PL6-01] 5

AM03-001729A CABLE ASSY-FRONT D-CART PWR CABLE ASSY 1

J9080852D LEFT FDR SOL OUTPUT CABLE ASSY, D-CART[S 1

J9080853B RIGHT FDR SOL OUTPUT CABLE ASSY, D-CART[ 1

J9080854C LEFT FDR SENOR INPUT CABLE ASSY, D-CART[ 1

J9080855B RIGHT FDR SENOR INPUT CABLE ASSY, D-CART 1

J9080857B FDR INPUT EXT CABLE ASSY, D-CART[SM_FD01 1

AM03-001739A CABLE ASSY-FEEDER CN7 EXT CABLE ASSY 1

AM03-013728A CABLE ASSY-ND-CART RY1 EXT 2 1

AM03-001730A CABLE ASSY-REAR D-CART PWR CABLE ASSY 1

Backup Table Ass’y

AM03-014979A ASSY,BUT-SM482-400_N 1 J9053342A

 AM03-020901A ASSY,BUT-SM485_W340 1

 AM03-019772A ASSY,ETC,IMS-V_BACK_UP_PIN 1

 J70621008A BUT_HOLD_PLATE1 J70621008A 2

 FC30-002621A PLATE-BACK_UP_482_400N;SS400 1

 FC30-004817A PLATE-BACK_UP_W340 1

 MC19-001123A SHAFT-LOWER_LINK_BUT;A6061BE-T6 1

 FC30-002536A PLATE-UPPER_FREE_LINK;A6063-T6 1 J7053797A

 FC29-000414 CAP-PACK-SGLC6 4

 FC29-004515A DOG-BUT_SM482_UP_SENSOR;TS304_CP 1

 FC09-004951A BRACKET-TOP SPACER 4 J7153418A

 FC09-004804A BRACKET-BUT_SM482_UP_SENSOR;STS304_CP 1

 EP19-900108 PHOTO SENSOR [EE-SX670A] 1

 AM03-014987A ASSY,BUT-SM482_UPPER_BEARING 2

 J61071108A BUT_SPRING J61071108A 1

 FC29-004429A STOPPER-URETHAN_CUSHION 1

 FC30-002620A PLATE-LOWER_SM482_BUT;SS400 1

 FC30-002532A PLATE-UPPER_DRIVING_LINK;A6063-T6 1

 FC14-900506 CYLINDER JOINT[Y-032B] 1

 HP03-900013 CYLINDER CM2C32-50-XC3BB 1

 HP13-900088 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(YELLOW 1.45 J70530801C

 HP13-900081 AIR TUBE (POLYURETHANE) 1.55

 AM03-014986A ASSY,BUT-SM482_LOWER_BEARING 8

 AM03-014985A ASSY,BUT-SM482_LINK_END 2

 AM03-014988A ASSY,BUT-SM482_CYLINDER_15X50 1

Stage CAM Ass’y

J70590095C BOARD COVER 1

 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1

 FC15-001295B LIGHT_COVER 1 FC15-001295A

 FC09-002220B BRACKET-LIGHT_G_1 1 FC09-002220A

 J90600075B STAGE SIDE LIGHT BOARD ASSY STAGE SIDE LIGHT 1

 J90600074B STAGE OUTER LIGHT BOARD ASSY STAGE OUTER LIGHT 1

 FC09-002219A BRACKET-LIGHT_G_2 1

 FC15-001491A COVER-LIGHT COVER 1

 FC29-900611 HEX SUPPORT 8

 FC15-001294B COVER-PROFILE_2 1 FC15-001294A

 FC09-002218A BRACKET-GLASS_STOP 2

 EP12-000044A GLASS,OPTICS-GLASS 1

 PT02-000048A DIFFUSER,OPTIC-DIFFUSER 1

 FC29-900610 HEX SUPPORT 4

 J90600073C LED98-9 BOARD ASSY STAGE INNER 1

 FC09-002222A MT82P-OP105A-PCB_BASE_2 1

 FC09-002221A BRACKET-PCB_BASE_1 1

 FC05-000225A MT82P-OP101A-BASE 1

 FC15-001293A MT82P-OP110A-PROFILE_1 2

 AM03-007709A ASSY,OPTICS-F45-60-ASSY 1

 PT02-900001 CCD CAMERA 1

 FC15-001290A COVER_1 1

 FC15-001292A COVER_COMP 1

 J706600087 T LINK1 SHAFT1 1

 FC15-001291A COVER_2 1

 FC29-900613 HEX SUPPORT 8

 AM03-015218A ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-007707B

AM03-015217A ASSY,OPTICS-SM482_STAGE_MEGA_45_ASSY 1 AM03-007727B OPTION

AM03-015220A ASSY,STAGE MODULE-SM482_NON_MEGA_35_ASSY 1 OPTION

AM03-015219A ASSY,STAGE MODULE-SM482_NON_MEGA_45_ASSY 1 OPTION

Cover Ass’y

FC15-001006A COVER-CONVEYOR_COVER 2

FC15-001786A COVER-CONVEYOR_COVER_S_TRAY;SPCC 2 LTS Tray OPTION

 J7070352A CONNECTOR BRACKET 1

 AM03-018696A FRONT_AREA_SENSOR_CABLE_ASSY 3 J90831139A/ J91731033A

 EP13-900134 TOWER_LAMP PTE-APV-302-RYG(510) 1

 FC29-004382A DOOR CUSHION 4 J73520001B

 FC15-000946B COVER-UPPER FL 1 FC15-000946A

 FC15-000947B UCOVER-UPPER RL 1 FC15-000947A

 FC09-000693B BRACKET-BARCODE_HANGER4;SPCC,3.2 1

 FC15-000955A COVER-TOP_CENTER 1

 J70521087A WINDOW_HINGE 2

 FC15-000953A COVER-UPPER_SIDE_R 2

 FC09-001707D BRACKET-WINDOWS_SIDE_GUIDE_L;SPCC 1

 FC09-001711A WINDOWS_SIDE_CLAMP 4

FC30-000881A PLATE-SM471_PC_FIXED_PLATE 1

 FC09-001706B BRACKET-WINDOWS_SIDE_GUIDE_R 1

 EP20-900156 DOOR KEY 1

 FC30-000908B PLATE-MAGNETIC_PLATE 2

 FC09-001709A HANDLE_PLATE 1

 FC09-001708B BRACKET-COVER_HANDLE_C 1

 FC09-000705A BRACKET-GAS_SPRING_BRACKET2 2

 FC15-001031D COVER-WINDOW_MAIN_PLATE 1

 CM01-000057B ACRYLIC,RESIN-SM471_PC_COVER ESD 1

 J90831759A REAR_AREA_SENSOR_CABLE_ASSY 2 OPTION

 J70521025A LOWER_IP_PANEL 2

FC15-000945B UPPER_FR_RR 1

 AM03-015041A ASSY,COVER-SM482_DOOR_NEW 2 AM03-007149A

PT03-000718A STICKER-SM482_MODEL_NAME;STICKER 1

J70521075D GAS_SPRING_BRACKET1 8

FC38-001011 GAS SPRING-YQ07-360N;YQ07-360N 4 FC38-000079/ FC38-000220

 FC09-001727B SENSOR_BKT3 2 FC09-001727A

 FC09-001726A DOOR_SWITCH_BKT3 2

 EP20-900137 DOOR_SWITCH 2

 EP20-900156 DOOR KEY 2

 AM03-005637B ASSY,ELECTRIC-DOOR_SWITCH_ASSY 1

 FC15-000998A COVER-LCD_HINGE_PLT 2

 CD06-001003 MONITOR-LED;SST6000L,15INCH,1024*768 1 CD06-000004/ CD06-001001

 FC15-000505B COVER-MONITOR_GUIDE_PL;SPCC,WHITE 2 FC30-000844A

 J7252061A PAD_BRACKET 4

 FC15-000997A LCD_BKT 2

 FC18-900485 HEX CAP SCREW[M8 X 55L] 1

 FC18-903482 FLAT WASHER [M8] 2

 FC18-903497 SPRING WASHER[M8 (SUS)] 2

 FC18-901051 NYLON NUT 1

 AM04-000063A ASSY,IT,COVER-LCD_SUPPORT_ASSY 1

 EP20-001013 SWITCH,PUSH-LBW6L-M1T14R_STOP 1 EP20-000167

EP20-001017 SWITCH,PUSH-LBW6L-M1T14S 1 EP20-000127

 EP20-001012 SWITCH,PUSH-LBW6L-M1T14G_START 1 EP20-000116

 EP20-001014 SWITCH,PUSH-LBW6L-M1T24PW 2 EP20-000115

 EP20-001016 SWITCH,PUSH-LBW6L-M1T14PW 1 EP20-000114

 EP20-001015 SWITCH,ETC-EMER_YW1B-V4E02R 1 EP20-900042

 FC30-000829B OP_PANEL 1 FC30-000829A

AM03-005237A ASSY,COVER-KEYBOARD_ASSY 1

 CD04-001004 COMPUTER MOUSE-20-1EI06S502;OPTICAL MOUS 1

 FC15-001005B COVER-KEYBOARD_BASE 1 FC15-001005A

 FC15-000957A COVER-KEYBOARD_BASE_BKT 2

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 1

 FC28-901100 TRIMS-3 J63081027A 1.19

 J9072146A BARCODE READER ASSY[SM321-IT-01] 2

EP07-901528 FAN_FILTER 120MM(NMB) 2

 EP07-901508 COOLING FAN[4715MS-22T-B50] 4

 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A

 FC15-000952A COVER-LOWER_SIDE_1 1

 FC15-000949B COVER-LOWER FL 1 FC15-000949A

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 FC15-000960A LOWER_OPEN_DOOR-A 1

 FC29-900144 DRAWER PULL [HD-108] 2

 FC15-003194A COVER-LFM_AL_COVER;4 2 FC15-001138A

 FC15-001341A COVER-FB SIDE COVER FL 1

 FC15-001344A COVER-FB COVER FRONT 1

 HP04-000075 FILTER,AIR-fan filter_ metal_120mm 2

 FC15-000948B COVER-LOWER FR 1 FC15-000948A

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 J70511018B CABLE_DUCT_S-V 2

 J70521049A SIDE_COVER_SUPPORT 1

 FC15-000944B LOWER_SIDE_2_R 1 FC15-000944A

 FC15-000949B COVER-LOWER FL 1 FC15-000949A

 FC15-000961A COVER-OPEN_DOOR_B 1

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 FC15-000961A COVER-OPEN_DOOR_B 1

 FC29-900217 SLIDE_LATCH A3-40-625-12 1

 FC15-000951B COVER-LOWER RR 1 FC15-000951A

 FC15-001340A COVER-FB SIDE COVER FR 1

 FC15-001342A COVER-FB SIDE COVER RR 1

 FC15-001345A COVER-FB COVER REAR 1

 FC15-001343A COVER-FB SIDE COVER RL 1

 FC15-001297A COVER-COVER LFM DC SM481 2

 FC15-001744A COVER-LOWER_SIDE_R2;SPCC 1

Control Rack Ass’y

EP06-901011 SM411F_POWER_SUPPLY_STW400-S STW400-S 4 400W

EP06-901039 SMPS_800W_DC24V US800D24 2

 EP06-000384 SUPPLY,POWER,AC-DC-STW350-ABDD-ATX;110~2 1

 CD05-001002 MOTHERBOARD,CPU-ADLINK;CPCI,6626 I3 1 CD05-000030 / CD05-000073

CD03-000060 HARD DRIVE-TS64GSSD630 1

 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A (IT FEEDER MASTER BOARD)

AM03-000138 (CPCI ADAPTOR BOARD)

AM03-011927C (DEVICENET MASTER

BOARD)

 EP06-000338 PROCESSOR BOARD-NT-A8 1 MEGA

EP06-000400 PROCESSOR BOARD-NT-A8-62 1 NON MEGA

 EP10-001013A 5SLOT BACKPLANE BOARD 1 EP10-001534

 AM03-014333A CABLE ASSY-CPU-BOX FAN 1

 AM06-000359C ASSY,PCB SMD-SM400_VISION_IF BD 1 AM06-000359A

 FC09-004608A BRACKET-DF2020_BKT;1.6 2

 FC30-004150A PLATE-RACK_BLANK_PANEL_4TYPE 1

 AM03-014633A ASSY,COVER-CPU_BOX_MAIN_FRAME 1

 FC11-000003 CARRIER-D160 16

 FC09-004580A BRACKET-RACK_CABLE_BKT;1.2 1

 FC09-004579A BRACKET-VISION_BD_BKT;SPCC,1.6 1

 AM03-014089A ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT_N 1

 FC28-000805A PANEL,OPERATION-RACK_BLANK_PANEL 4

Base Frame Ass’y

FC15-000983A COVER BOTTOM FR 1

 FC15-000984A COVER BOTTOM FL 1

 FC15-000985A COVER BOTTOM RR 1

 FC15-000986A COVER-BOTTOM RL 1

 J7051010D HOUSING-FOOT[J7051010D] 4

 FC28-000176 ASSY,MAIN FRAME-MFUR-98(M30-2.0P) 4 AM03-000098

 AM03-007220A ASSY,AIR-MAIN MANIFOLD SM481 1

 HP09-000007 MANIFOLD;ET1:ETC. 1

 FC14-900641 PLUG KQ2P10 1

 HP06-000226 FITTING-KQ2R10-12;STRAIGHT 5

 HP06-900282 STRAIGHT FITTING [KQ2R06-08] 4

 FC14-900644 PLUG KQ2P-08 5

 HP13-900085 AIR TUBE (POLYURETHANE) 3

 HP13-900083 AIR TUBE (POLYURETHANE) 1.5

 HP13-900082 AIR TUBE (POLYURETHANE) 3.8

 HP06-900199 UNION Y FITTING [KQ2U04-06] 2

X-Y Frame Ass’y

J70541124A CABLE_SPACER J70541124A 1

 J7054260A CABLE FIXER[J7054260A] 1

 J7354023A CABLE CUSHION X[J7354023A] 4

 J7054255A CUSHION BRACKET X[J7054255A] 4

 J7354024A CABLE CUSHION Y[J7354024A] 1

 J7054256A CUSHION BRACKET Y[J7054256A] 1

 J70541116A COVER_Y_CABLE_DUCT_BRK J70541116A 1

 FC30-000540A PLATE-K_DUCT_SPACER;SM45C 2

 EP19-900114 LIMIT SENSOR [EE-SX674] 2

 FC05-000293B BASE-HEAD_SM482_N 1 FC05-000293A

 J70541038A SENSOR_DOG_X J70541038A 1

 J70541129B SENSOR DOG-Y 1

 J70541126A CONNECTOR_BKT J70541126A 1

 EP08-001066 MOTOR,SERVO-MHMF082L1A2 1 EP08-900157

 MC13-900010 LM GUIDE 2

J72541011A CUSHION_X_REAR J72541011A 1

 MC04-000039A BRG_HOUSING-X J71541010A 1 J71541010A

 MC04-000041A BRG_SUPPORT-X J71541009A 1 J71541009A

 MC13-900171 X-BALL_SCREW 1

 MC04-900012 SUPPORT_UNIT FK12-MP5 1

 MC03-900008 BALL BEARING [6000ZZ] 1

 FC18-901667 C-RING [10mm (SHAFT)] 1

 FC18-901170 PIN DOWEL [MS5-10] 4

 FC14-900236 COUPLING[SFC 040DA 10B-19B (TYPE B)] 1

 EP08-001066 MOTOR,SERVO-MHMF082L1A2 1 EP08-900157

 FC29-004428A CUSHION_X_FRONT 1 J72541003A

 FC15-004588A COVER-X LOWER 482;STD 1

MC13-900173 BALL_SCREW SBK2030ZS-3.4GT+1230LC5 1

 EP08-900158 SERVO_MOTOR MSMA102G2C 1 EP08-000139

 FC14-900237 COUPLING[SFC 050DA 12B-19B(TYPE A)] 1

 J70541031A COVER_Y_MOTOR_BLOCK 1

 FC07-000386A Y_MOTOR_BLOCK 1 FC07-000386A

 MC04-900028 SUPPORT UNIT[FK-15] 1

 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 1 J72541006A

 FC29-004432A STOPPER_Y_BALL_SCREW 1 J72541012A

 J70541120C BS_REAR_SUPPORT 1

 J70541121B BRG_INNER_SPACER 3

 MC03-900060 ANGULAR_CONTACT_BALL_BEARING 7002CTYNDBM 2

 J70541119B BRG_SUPPORT_X 1

 J70541122B BRG OUTER SPACER 1

 FC18-900917 BEARING NUT[RN15] 1

 J70541123C BEARING COVER Y 1

 EP19-900114 LIMIT SENSOR [EE-SX674] 3

 MC13-900011 LM_GUIDE[SSR25XW2UU+1480LHY-II] 1

 J70541115A COVER_BKT J70541115A 2

J70541115A COVER_BKT J70541115A 1

 FC09-000980C BRACKET-Y_CABLE_DUCT;SS400 2 FC09-000980B

 FC09-001880B BRACKET-SM421_Y_CABLE_DUCT;SPCC 1 FC09-001880A

 J7354024A CABLE CUSHION Y[J7354024A] 1

 J7054256A CUSHION BRACKET Y[J7054256A] 1

 FC09-000671A BRACKET,CONNECTOR-CONNECTOR_PANEL_Y;SPCC 1

 HP09-000148 MANIFOLD-AIR_KM11;PC 1

 FC15-001496A COVER-Z_AMP_482;SPCC 1 FC15-001283A

 FC18-902639 SEMUS NABE SCREW_M4*16 6

 AM03-007228C ASSY,ELECTRIC-SM482_HDCB_ASSY 3 AM03-007228A / AM03-007228B

AM03-007226B Z-AXIS DRIVER(AMP, HDUB) 1 Upper side

AM03-007227A Z-AXIS DRIVER(AMP, HDLB) 1 Lower side

 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 1

 FC09-002205B BRACKET-Z_MOTOR_DRIVER_82;SPCC 1 FC09-002205A

 TO03-001042A GRIPPER-40P_CONNECTOR_CLIP 3

 HP06-000457 FITTING 1

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 Version 1.1

 AM03-015857E ASSY,BOARD-FEEDER IO VER 2.0 1 (AM03-000819A / AM03-000819B/

AM03-000819C/ AM03-000819C/ AM03-000819E: ~#5)

Old: Version 1.6

New: Version 2.0 (#6~)

 FC09-000877B BRACKET-FD_BOARD_BKT;STS304_CP 1

 J70510111C BOARD COVER 1

ANC Ass’y

FC05-000212A TOP_COVER 1

 FC18-000621A COVER_SPACE 9

 FC09-002208A TOP_COVER_L 1

 FC29-001527A SHUTTER 1

 HP14-900087 SPEED_CONTOL_VALVE 2

 AM03-004198A ANC SENSOR CABLE ASSY[SM-CV010] 1

 FC09-002171A SHUTTER_BKT 1

 FC05-000215A ANC_BASE 1

 FC38-000093A SPRING 1

 FC18-000619A SPACE_PIN 1

 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2

 J7153373A FIDUCIAL_DISK 2

 FC09-002173A REF_SHAFT 2

 FC09-002172A FID_SHAFT 2

 FC05-000214A ANC_PLATE 1

 AM03-017001A CABLE ASSY-ANC_OPEN_SNS 1 AM03-010022A

 AM03-017002A CABLE ASSY-ANC_CLOSE_SNS 1 AM03-010023A

Conveyor Ass’y

AM03-006854A ASSY,CONVEYOR-FIX_RAIL_P 1

 AM03-006855A ASSY,CONVEYOR-MOVE_RAIL_P 1

 AM03-006853A ASSY,CONVEYOR-RAIL_TRANSFER_R 2

 MC05-001022 TIMING BELT-792XL025;XL,2011.68,5.08,6.3 1

 FC29-900010 DUMP BOX[1/9 PAN] 1

 J70530693C DUMP BOX BKT 2 J70530693C 1

 FC09-001002A BRACKET-DUMP_BOX 1 OPTION

 FC09-001003A BRACKET-DUMP-BOX-BKT 1 OPTION

 AM03-015575A CABLE ASSY-CABLE ASSYWD_AXIS_SENSOR_EXT

 FC10-001036A RUBBER-L_DUMP_BOX_ABSORBER;SHEET 1 J73531004A

 FC10-001037A RUBBER-DUMP_BOX_ABSORBER;SHEET 1

J70530785B PCB GUIDE-FC J70530785B 1

FC30-004773A PLATE-PCB_GUIDE_FC_677 1 L660-W460 TYPE CONVEYOR

 J71531048B PCB_GUIDE_END 2

 J7253007A IDLER 2 8

 FC18-001478A IDLER SPACER-S 9 J7053047A

 J7053009A IDLER SHAFT-S2 9

 EP19-900099 PHOTO SENSOR[E3S-LS3N] 3 E3S-LS3N (OMRON)

EP19-001025 SENSOR,OPTIC-[CX-461],1,MIGRATION 3 CX-461A-C05 (PANASONIC)

 J70531088B WORK_SENSOR_BRACKET 2

 J7053184A SQUARE NUT 19

 J7253006A IDLER 1 4

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007403A / AM03-007403B L460-W400 TYPE CONVEYOR

J90831440B CONV_BELT2_STEP_MOTOR_ASSY 1 L610-W400 TYPE CONVEYOR

 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2

 J7153111A TEP MOTOR PULLEY [J7153111A] 3

 J70531084A BRACKET_BELT_MOTOR_B J70531084A 1

 J70531083A ALT_MOTOR_SUPPORT J70531083A 4

 J7053689A QUICK SENSOR KNOB[J7053689A] 1 BYD30-DDT (AUTONICS)

 FC09-002034A Q_SENSOR_BKT 1 BYD30-DDT (AUTONICS)

 J7153331A RAIL SENSOR[J7153331A] 1

 J70531086A BRACKET_RAIL J70531086A 2

 MC05-900068 BELT_410_1 2

 MC05-900069 BELT_410_F MAM-5P-1517-7W 1

 J71530399C CLAMP FRONT FRAME 1

 HP03-900036 AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1

 FC09-002808A BRACKET-CON_STOP_CYLINDER_SMC;SPCC 1 J70531089A

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 FC30-001359A PLATE-STOPPER_TOP_SMC-CYL;SS400 1 J70531050A

 J70531029B STOPPER_POST 1

 J7053770A IDLER SHAFT-M[J7053770A] 3

J7053048A IDLER SPACER-M 3

 FC29-004427A STOPPER 2 2 J7253009B

 J7153036A SLIDE-GUIDE 3

 FC29-004426A STOPPER 2 J7253008A

 FC01-000022A ADJUST SHAFT 2 J7153010B

 J7153034A CLAMP SHAFT 2

 FC18-901355 C-RING DIA11(HOLE) 2

 MC06-900006 BALL_BUSH LMU5 2

 FC18-001480A BUSH SPACER 2 J7153033A

 MC06-900006 BALL_BUSH LMU5 2

 J70531100B BRACKET_SENSOR_IN 1

 FC09-002127A BRACKET-SENSOR_OUT_P;SPCC 1 BYD30-DDT (AUTONICS)

J70531100B BRACKET_SENSOR_IN 1 CX-461A-C05 (PANASONIC)

 FC39-000975A FRAME-CONV_FRONT_P;A6N01S-T5 1

 EP19-900092 PHOTOELECTRIC SENSOR [BYD30-DDT] 2 BYD30-DDT (AUTONICS)

EP19-001025 SENSOR,OPTIC-[CX-461],1,MIGRATION 2 CX-461A-C05 (PANASONIC)

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007407A / AM03-007407B L460-W400 CONVEYOR

J90831441B WORK_BELT2_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR

 J90831439B_AS CABLE ASSY-CONV_BELT4_STEP_MOTOR 1 AM03-007405A / AM03-007405B L460-W400 CONVEYOR

J90831431B CONV_BELT4_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR

FC30-004478A PLATE-PCB_GUIDE-RC_P_FID;SM45C 1 FC30-001116A

FC30-004774A PLATE-PCB_GUIDE_RC_677 2 L610-W400 CONVEYOR

 J71531048B PCB_GUIDE_END 2

 FC29-004427A STOPPER 2 2 J7253009B

 FC39-000970A FRAME-CONV_REAR_P;A6N01S-T5 1

 J7253007A IDLER 2 8

 FC18-001478A IDLER SPACER-S 9 J7053047A

 J7253006A IDLER 1 4

 J7053184A SQUARE NUT M4 8

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007404A / AM03-007404B L460-W400 CONVEYOR

J90831430B CONV_BELT3_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR

 J7153111A TEP MOTOR PULLEY [J7153111A] 3

 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2

 FC29-004426A STOPPER 2 J7253008A

 FC01-000022A ADJUST SHAFT 2 J7153010B

 J7153034A CLAMP SHAFT 2

 FC18-901355 C-RING DIA11(HOLE) 2

 MC06-900006 BALL_BUSH LMU5 2

 FC18-001480A BUSH SPACER 2 J7153033A

 MC06-900006 BALL_BUSH LMU5 2

 J7053763A IDLER SPACER-M[J7053763A] 3

 MC05-900068 BELT_410_1 2

 MC05-900070 BELT_410_R 1

 J71530400C CLAMP REAR FRAME 1

 J70531085A BRACKET_BELT_MOTOR_M J70531085A 1

 J7053009A IDLER SHAFT-S2 [J7053009A] 9

 J7053770A IDLER SHAFT-M[J7053770A] 3

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007406A / AM03-007406B L460-W400 CONVEYOR

J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007402A / AM03-007402B L460-W400 CONVEYOR

J90831439B CONV_BELT1_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR

MC19-900014 PULLEY-WIDTH 20-XL-025 1

 MC03-900008 BALL BEARING [6000ZZ] 2

 MC13-000042A SCREW,LEAD-SM421_P;SCM435 1

 J7053194A BEARING NUT [J7053194A] 1

 J7153330A PULLEY SHAFT[J7153330A] 1

 MC05-001026 BELT,TIMING-276-3M-9;276,9,2.4 1 MC05-900026

 MC19-002217A PULLEY-P46-3M-9_SPB-250;CIRCLE,46,3,9,10 1 MC19-900015

 FC30-004421A PLATE-482_MOTOR_NMB 1 FC09-002134A

 EP08-002166A MOTOR,STEP-2S56Q-P01576S1 1 EP08-900121

 FC09-002125A BRACKET-SCREW_STAND_P;A6N01S-T5 1

 FC09-002126B BRACKET-MOVE_STAND_P;A6N01S-T5 1 FC09-002126A

 MC13-001026 LM GUIDE[SBG20-SL-1-575-N] 1 MC13-900029

 FC18-900870 LOW PROFILE MOUNTS[DALM5 (NYLON)] 2

 FC05-000207C BASE-WIDE_ADJUST_SM421_P;SS400 1 FC05-000207A/ FC05-000207B

 FC09-002124A BRACKET-FIX_STAND_P;A6N01S-T5 1

L1200 Conveyor Assembly- Option

FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 16

 AM03-014407A ASSY,CONVEYOR-MOVE_RAIL_SM168 1

 AM03-014405A ASSY,CONVEYOR-FIX_RAIL_SM168 1

 AM03-014406A ASSY,CONVEYOR-TRANSFER_RAIL_SM168 2

J71531028A CONV_REAR_FRAME 1

 FC39-001985A FRAME-EXTEND_R_100 1

 FC29-004184A GUIDE-PCB_EXTEND_R_100 1

 FC18-001478A IDLER_SPACER_S 9 J7053047A

 J7253007A IDLER 2 8

 J7053009A IDLER-SHAFT-S2 9

 J70531090A PLATE_LONG_IN 2

 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 12

 J7053184A SQUARE NUT M4 5

 J70531091A PLATE_LONG_OUT 2

 J71531050B PC_GUIDE_END_2 1

 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 12

 J70531106A BRACKET_BELT_MOTOR_S 2

 J90831439B_AS CABLE ASSY-CONV_BELT4_STEP_MOTOR 1 AM03-007405A / AM03-007405B

 FC18-902843 SOCKET SET SCREW [M3*5 (BL/ZN)] 6

 J7153111A TEP MOTOR PULLEY 3

 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 24

 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 14

 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 26

 J7253006A IDLER 1 4

 J7053770A IDLER SHAFT-M 3

 J7053763A IDLER SPACER-M[J7053763A] 3

 J71530400C CLAMP REAR FRAME 1

 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 4

 J7153034A CLAMP SHAFT 2

 MC06-900006 BALL_BUSH LMU5 4

 FC18-001480A BUSH SPACER 2 J7153033A

 FC18-901355 C-RING DIA11(HOLE) 2

 FC18-900900 HEX NUT 2

 FC01-000022A ADJUST SHAFT 22 J7153010B

 FC29-004426A STOPPER 2 J7253008A

FC18-902740 SOCKET HEAD CAP SCREW M4*8 (NI/ZN) 2

 MC05-000275 BELT-MAM-5P-1397-7W;MAM-5P,1397,7,1.2 2

 MC05-900070 BELT_410_R 1

 FC39-001984A FRAME-EXTEND_F_100 1

 FC29-004183A GUIDE-PCB_EXTEND_F_100 1

 J71531049B PCB_GUIDE_END_1 1

 J70530786B PCB GUIDE-RC 1

 FC29-004427A STOPPER 2 2 J7253009B

 HP03-900039 EDGE CYLINDER[CQ2B6-CJJC2948] 1

 HP06-900047 ELBOW FITTING 3

 FC18-902733 SOCKET HEAD CAP SCREW M3*20 (NI/ZN) 12

 HP09-900109 REGULATOR 1

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007407A / AM03-007407B

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007403A / AM03-007403B

FC39-001995A FRAME-CONV_FRONT_610 1

 FC39-001985A FRAME-EXTEND_R_100 1

 FC29-004184A GUIDE-PCB_EXTEND_R_100 1

 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 24

 FC09-004556A BRACKET-SENSOR 3

 J70531607A BD_OUT_SENSOR_GUIDE 2

 EP19-900099 PHOTO SENSOR[E3S-LS3N] 2 E3S-LS3N (OMRON)

EP19-001025 SENSOR,OPTIC-[CX-461],1,MIGRATION 2 CX-461A-C05 (PANASONIC)

 FC18-903475 FLAT WASHER [M3 (BL/ZN)] 14

 FC18-902732 SOCKET HEAD CAP SCREW M3*18 (NI/ZN) 6

 FC18-90321938 FLAT WASHER [M4 (BL/ZN)] 6

 FC18-902740 SOCKET HEAD CAP SCREW M4*8 (NI/ZN) 10

 J70531091A PLATE_LONG_OUT 2

 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 32

 J70531090A PLATE_LONG_IN 2

 FC18-903189 TIE_MOUNT M4(MB2) 6

 FC18-902819 FLAT HEAD CAP SCREW M4*8 (NI/ZN) 6

 J71531050B PCB_GUIDE_END_2 1

 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 15

 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 24

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007402A / AM03-007402B

 J70531106A BRACKET_BELT_MOTOR_S 2

 FC18-902843 SOCKET SET SCREW [M3*5 (BL/ZN)] 6

 J7153111A TEP MOTOR PULLEY 3

 FC18-901866 SOCKET HEAD CAP SCREW 12

 J7053184A SQUARE NUT M4 9

 J70531100B BRACKET_SENSOR_IN 1

 EP19-900099 PHOTO SENSOR[E3S-LS3N] 4 E3S-LS3N (OMRON)

EP19-001025 SENSOR,OPTIC-[CX-461],1,MIGRATION 4 CX-461A-C05 (PANASONIC)

 MC13-900013 LM SLIDE 2

 J7153036A SLIDE GUIDE 1

J7153034A CLAMP SHAFT 2

 MC06-900006 BALL_BUSH LMU5 2

 FC18-001480A BUSH SPACER 2 J7153033A

 FC18-901355 C-RING DIA11(HOLE) 2

 FC18-900900 HEX NUT 2

 FC01-000022A ADJUST SHAFT 22 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 J70531088B WORK_SENSOR_BRACKET 1

 J71530399C CLAMP FRONT FRAME 1

 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 14

 J70531084A BRACKET_BELT_MOTOR_B 1

 J70531083A ALT_MOTOR_SUPPORT 4

 HP06-900047 ELBOW FITTING 1

 HP06-900010 ELBOW FITTING [M-5HLH-4] 2

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 2

 HP03-000118 CYLINDER 2

 FC09-004555A BRACKET-STOPPER 2

 FC09-004556A BRACKET-SENSOR 2

 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 4

 FC39-001984A FRAME-EXTEND_F_100 1

 FC29-004183A GUIDE-PCB_EXTEND_F_100 1

 J70531076B BRACKET_BD_OUT_SENSOR 1

 J71531049B PCB_GUIDE_END_1 1

 FC29-004427A STOPPER 2 2 J7253009B

 J70530785B PCB GUIDE-FC 1

 FC18-001478A IDLER_SPACER_S 9 J7053047A

 J7253007A IDLER 2 8

 J7053009A IDLER-SHAFT-S2 9

 J7253006A IDLER 1 4

J7053770A IDLER SHAFT-M[J7053770A] 3

 FC09-004618A BRACKET-WORK_STOP_CYLINDER 1

 FC29-004329A STOPPER-WORK_H30_BAR 1

 HP03-900036 AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1

 FC18-903488 SPRING WASHER [M3 (BL/ZN)] 2

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007406A / AM03-007406B

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007404A / AM03-007404B

J7053725A SUPPORT-WIDE ADJUST 2

 MC13-900029 LM GUIDE[SBG20-SL-1-575-N] 2

 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 22

 J71530404B FIX STAND 2

 FC18-90321936 FLAT WASHER 12

 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 12

 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 12

 J70530748B STOPPER-FRONT 1

 FC18-902751 SOCKET HEAD CAP SCREW M4*35 (NI/ZN) 2

 J70530660B TENSION BKT 2

 FC18-903478 FLAT WASHER 12

 FC18-903492 SPRING WASHER [M5 (BL/ZN)] 16

 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 20

 J7053661B WIDTH TENSION SPACER 2

 MC03-900080 BALL BEARING[608ZZ] 2

 MC03-900121 BALL BEARING[F608ZZ] 2

 J7053662A TENSION BEARING PIN 2

 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 4

 FC18-902763 SOCKET HEAD CAP SCREW M5*25 (NI/ZN) 4

 J7053194A BEARING NUT 2

 J7153326A WIDTH PULLEY COLLAR 2

 MC19-900014 PULLEY-WIDTH [20-XL-025 2

 J70531109A MANUAL_HANDLE 1

 MC05-001022 TIMING BELT-792XL025;XL,2011.68,5.08,6.3 1

 MC03-900008 BALL BEARING [6000ZZ] 2

 MC13-900225 LEAD SCREW[DCM16 +648.5L 2

 MC05-001026 BELT,TIMING-276-3M-9;276,9,2.4 1 MC05-900026

 J7053677A MOVE STAND 2

 J7053695B STOPPER 1

 J7053128A SPACER NUT 8

 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 11

MC19-002217A PULLEY-P46-3M-9_SPB-250;CIRCLE,46,3,9,10 1 MC19-900015

 J7153330A PULLEY SHAFT 1

 FC30-004421A PLATE-482_MOTOR_NMB 1 J7053780A

 EP08-002166A MOTOR,STEP-2S56Q-P01576S1 1 EP08-900160

 J7053726A SCREW STAND 2

J7053216B DOG-SENSOR 1

 FC18-903488 SPRING WASHER [M3 (BL/ZN)] 2

 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 2

 EP19-900109 PHOTO SENSOR 1

 J70530749B DOG ADJUST 1

Head Ass’y

J71541086A HEAD_TOP_COVER J71541086A 1

 J70541125A HEAD_COVER_SUPPORT J70541125A 2

 AM03-006867D ASSY,BOARD-SM482 HEAD IF REV1.1 1 AM03-006867B/ AM03-006867C

 J70541124A CABLE_SPACER J70541124A 1

 J71541016B HARNESS SUPPORT 2

 J71541019A HEAD_BOARD_BRACKET J71541019A 1

 J71541018B CABLEVEYOR_BRACKET 1

 J70541015B CONNECTOR_PANNEL 1

 FC29-000216 HANLDE_GRAF8(MISUMI) 1

 FC09-002283A BRACKET-HARNESS_PLATE 1

 HP06-900183 FITTING_ELBOW KJL04-M5 1

 HP14-900064 SOL VALVE[SY3120-5LZ-M5-F2] SY3120-5LZ-M 1

 HP06-000074 FITTING-AS1211FM-M5-23;AS1211FM-M5-23 2 HP06-000084

 HP06-900183 FITTING_ELBOW KJL04-M5 2

 FC18-902837 SEMUS NABE SCREW M4*8 4

 FC29-900610 HEX SUPPORT 4

 FC18-902795 BUTTON_HEAD_CAP_SCREW M10*20 (NI/ZN) 1

AM03-015389A CABLE ASSY-Z_MOTOR_ASSY 6

 J7055656A Z-TENSION BRACKET 6

 AM03-014950B ASSY,BOARD-SM482 HOME SENSOR 1 AM03-014950A

 HP14-900097 SPEEDCONTROL AS1001F-04 2

 J7155552A MIRROR COVER -LEFT[J7155552A] 1

 J7055566B PCB SUPPORT 30[J7055566B] 2 J7055566A

 J7055657A MIRROR COVER BRACKET[J7055657A] 2

 J7155553A MIRROR COVER -RIGHT[J7155553A] 1

 AM06-000358B ASSY,PCB SMD-SM400_CAMERA_IO_BD 1 AM06-000358A

 FC09-004803A BRACKET-VACUUM_SNS_BD_BKT 2

 J90591009A_AS FLY_CAM_ONE_KIT_ASSY_MEGA-F25 1

AM03-017355A FLY_CAM_ASSY_MEGA-F16 1 AM03-013494A OPTION

AM03-004963A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F16 1 OPTION

AM03-015387A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F25 1 OPTION

 AM03-012075A ASSY,OPTICS-FID_CAM_SM482 1

 J7155537A CAMERA REAR COVER[J7155537A] 1

 J71551263A FIDUCIAL_CAMERA_BRK-2 J71551263A 1

 AM03-007719A ASSY,HEAD-SM482_FIDUCIAL_ILL_OUTER 1

 J71551140B FLY_CAMERA_BRACKET 1

 FC09-002429C BRACKET-CAMERA-COVER_01 1 FC09-002429A/ FC09-002429B

 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 6 AM03-001506A /AM03-001506B

 AM03-005250A ASSY,BOARD-SM482 CAMERA COVER ASSY 1

AM03-014729A CABLE ASSY-FLY_CAM_FG 1

AM03-015109A CABLE ASSY-HEAD_HOME_SENSOR 1

FC09-002274A BRACKET-OUT_ILL_BKT 2

 AM03-015254A ASSY,BOARD-SM482 VACUUM SENSOR 1 AM03-007104A

 FC09-002281A BRACKET-BKT_AIR_L 1

 AM03-015252A SM482_AIR_MODULE_SMC 1

 J9060357B HEAD OUTER LED BOARD ASSY[Rev 1.1] 1

 HP14-000163 VALVE,SOLENOID-MAC_solenoid valve 6

 FC09-002282A BRACKET-BKT_AIR_R 1

 FC07-000534A MT82P-HD203A-OUT_ILL_BLOCK 1

 FC07-001724A OUTER_ILL_BLOCK 1

 J7155515A LOWER COVER 2[J7155515A] 1

 HP14-000206 VALVE,ETC-BLOW_VALVE_VQ110-5LO;VQ110-5LO 6

 FC14-000381A PLUG-PLUG 6

 FC09-000665A BRACKET-Orifice_09 6

 HP06-900183 FITTING_ELBOW KJL04-M5 7

 HP04-900036 SUCTION_FILTER VYF44-M-50M 6

 HP06-000074 FITTING-STRAIGHT FITTING;KQ2S04-M5N,ONET 6

 HP09-001001 MANIFOLD-SMC 1

J7055143B CAM [J7055143B] 2

 J7155522A PULLEY (S-AXIS 1)[J7155522A] 1

 MC05-900048 TIMING BELT[255-3GT-6] 1

 J7055557A BEARING HOUSING[J7055557A] 1

 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1

 J7155524A MIRROR MOTOR BRACKET[J7155524A] 1

 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1

 AM03-015386A CABLE ASSY-SW MOTOR 1 AM03-001762C

J7055560A MIRROR SPRING BRACKET[J7055560A] 2

 J7455026A SPRING BUSH[J7455026A] 4

 J7055558A MIRROR PIN 1[J7055558A] 2

 J7055560A MIRROR SPRING BRACKET[J7055560A] 2

 FC30-000217A PLATE-MIRROR_ARM-LEFT;ALDC-14 1

 MC11-900055 CAM FOLLOWER [CF3UU-A] 2

 J7055204A ARM JOINT [J7055204A] 1

 MC03-900034 BALL BEARING [MR148ZZ] 2

 J7055205A MIRROR JOINT-LEFT [J7055205A] 1

 FC18-001484A MIRROR SCREW 1 J7055153A

 MC03-900033 BALL BEARING [695ZZ] 4

 J7055207B MIRROR SHAFT [J7055207B] 1

 J7055163A BEARING HOUSING [J7055163A] 1

 AM03-015583A CABLE ASSY-CABLE ASSY-SW_HOME_SENSOR 1

 J7055556B MIRROR SENSOR BRACKET[J7055556B] 1

 J7055559A MIRROR PIN 2[J7055559A] 1

 J7155197A MIRROR FIXED PLATE 2

 J6755002A FOLDING MIRROR [J6755002A] 1

J7155530A MIRROR SUPPORT[J7155530A] 1

 FC30-000216A PLATE-MIRROR ARM-RIGHT;ALDC-12 1

 J7155525A MIRROR SENSOR DOG[J7155525A] 1

 AM03-006939A CABLE ASSY-HEAD_SIDE_LED 1

 J7255085A SIDE ILLUM ISOLATOR[J7255085A] 1

J7055155A MIRROR JOINT-RIGHT [J7055155A] 1

 J72550084B SIDE REFLECTOR 6

 FC39-000517A BODY-SIDE ILLUM BODY;A6061P-T6 1

 J7055558 MIRROR PIN 1[J7055558A] 1

 AM03-007716A ASSY,HEAD-SM482_SIDE_ILL_ASSY 1

 FC18-901347 E-RING[DIA1.5(SUS)] 2

 J7055151A ARM JOINT [J7055151A] 1

 FC18-901043 HEX NUT 4

 J7155263A STOPPER [J7155263A] 2

 FC18-901390 O-RING [P5] 2

 J7155187D ILLUMINATOR GUIDE-LEFT[J7155187D] 2

 MC03-900025 BALL BUSH 2

 J7155188A BUSH CAP [J7155188A] 2

 MC19-000199A SHAFT-ILLUMINATOR SHAFT;STB2 2

AM03-006686A R12_MOTOR_CABLE_ASSY J90830190B

 J90831010B_AS R34_MOTOR_CABLE_ASSY J90831009B

 J90831010B_AS R56_MOTOR_CABLE_ASSY J90831010B

 J7055659A BEARING PLATE[J7055659A] 6

 J7055663A SENSOR BRACKET R-M[J7055663A] 1

 MC05-900075 TIMING_BELT 232-2GT-4 3

 AM03-006931A CABLE ASSY-R-AUX-SENSOR 1

 J7155521B PULLEY (R-AXIS 2)[J7155521B] 1

 J7155520A PULLEY (R-AXIS 1)[J7155520A] 6

 J7155518A PULLEY (Z-AXIS 1)[J7155518A] 6

 MC05-900079 TIMING_BELT 348-1.5GT-9 6

 MC13-900022 LM GUIDE [LWLG7C140BE351] 6

 J7055552A SENSOR BRACKET R-H[J7055552A] 3

 J7055658A PULLEY PIN[J7055658A] 6

 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 6

 MC03-900127 BALL BEARING[684ZZ] 12

 AM03-007198A ASSY,HEAD-R_JOINT ASSY 6

 MC03-900038 BALL BEARING [605ZZ] 12

 AM03-015582A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1

 J7055554A SPACER[J7055554A] 6

 FC09-002273A BRACKET-SLIDE_ALIGNER_CAP 6

 J7055545B SPLINE ALIGNER[J7055545B] 6

 FC06-000011A BED-SLIDE BODY;ALDC12,BLACK ANODIZING 6

 J70550548B SPRING 6

 J70551001B BELT_CLAMP1 J70551001B 6

 J70551002B BELT CLAMP 2 6

 FC29-004278A PIN 6 J7155541A

 J7155512A SENSOR DOG[J7155512A] 1

 MC13-000279 BALL_SPLINE 1 J70550542D

 FC30-000215A PLATE-SENSOR_DOG-R;ALDC-12 3

 FC18-903231 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0 1

J90550209B COMMON NOZZLE HOLDER ASSY 1

 FC09-002280A SPINDLE HOUSING 6

 MC03-900024 BALL BEARING 12

 J7055544A BEARING COLLAR[J7055544A] 6

 J7055555A BEARING NUT[J7055555A] 6

 J7255083A THETA MOTOR ISOLATOR[J7255083A] 3

 J7155531A THETA MOTOR PLATE 1

 FC39-001009C MAIN_BODY 1 FC39-001009A/ FC39-001009B

 HP13-900090 AIR_TUBE TU0425C 6

 FC09-007436A BRACKET-BEAM_F 1

 EP19-900105 TEACHING_BEAM LS55-05 2

 FC09-003851A BRACKET-BEAM_F 1

Electric Panel Ass’y

EP06-000540 SERVO CONTROL-DRIVE-EZS-SW-CMS 2 EP06-900172/ EP06-000445 / EP06-000492

 EP06-001076 SERVO CONTROL-DRIVE-MCDLN35SE 1 EP06-900170 / EP06-000389

 EP06-000393 SERVO_MOTOR_DRIVER_A5E MDDHT5540E 2 EP06-900171

 FC09-002147A BRACKET-DRIVER_BRACKET-LOWER;SPCC,t2 1

 FC09-002146A BRACKET-DRIVER_BRACKET-UPPER;SPCC,T2 1

 FC09-002143A BRACKET-DRIVER BRACKET-SIDE_SM482;SPCC 2

 J90831356C SERVO_FAN_FG_CABLE_ASSY 1

 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 3

 FC09-002148A BRACKET-SM482_RESISTOR_BKT;SPCC,t2 1

 FC09-002144A BRACKET-SM482_AXIS_BD_BKT;SPCC,T2 1

 FC09-002140A BRACKET-AXIS_BD_SUB_BKT;SPCC,t1 1

 AM03-007102B ASSY,BOARD-SM481 FIX ILL 1 AM03-007102A

 AM06-000943D ASSY,PCB-AP5_AXIS_IO_BOARD 1 AM06-000943A/ AM06-000943B/ AM06-000943C

 FC09-002139A BRACKET-AXIS_BD_COVER;SPCC,t1.6 1

 J7251007A BOARD COVER[J7251007A] 1

 AM03-001814C ASSY,BOARD-SAFETY_FROP_REV_3.0 1 AM03-001814A / AM03-001814B

 AM03-014859B ASSY,ELECTRIC-TERMINAL_BLOCK_SM48 1 AM03-014859A

EP21-001031 BLOCK,TERMINAL-2.5_QUATTRO_3209578;5.2/7 10

EP21-001033 ACCESSORY,TERMINAL BLOCK-FBS 5-5 2

EP21-001045 BLOCK,TERMINAL-FBS 2-5 (3030161);2-POSIT 5

EP21-001055 ACCESSORY,TERMINAL BLOCK-D-ST 2,5-QUATTR 1

EP21-001056 BLOCK,TERMINAL-PT 4-HESI (5X20)_3211861; 3

EP21-001058 ACCESSORY,TERMINAL BLOCK-CLIPFIX 35-5_30 2

EP21-001071 BLOCK,TERMINAL-PT 2.5-QUATTRO-TGB;5.2*92 2

EP21-001072 BLOCK,TERMINAL-P-FU 5X20-5;5.2*23.5 2

EP21-001073 BLOCK,TERMINAL-PTTB 2,5;5.2*68*47.5 2

EP21-001074 BLOCK,TERMINAL-D-PT 2,5-QUATTRO-MTB;2.2* 1

EP21-001075 BLOCK,TERMINAL-D-PTTB 2,5;2.2*68*47.5 1

EP21-001076 BLOCK,TERMINAL-PT 2,5-TWIN;5.2*60.5*35.2 10

EP21-001077 BLOCK,TERMINAL-D-ST 2,5-TWIN;2.2*60.5*29 2

EP21-001078 BLOCK,TERMINAL-PT 2,5;5.2*48.5.35.3

EP21-001079 BLOCK,TERMINAL-D-ST 2,5;2.2*48.6*29.1 1

EP21-001081 ACCESSORY,TERMINAL BLOCK-NS 35/ 7,5 PERF 1

 AM03-007204A AM03-007204A_SM48_MD037 12

 AM03-007205B CABLE ASSY-X_REGEN_RESISTOR 1

 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1

 J91741357A BOARD ASSY- AP5 AXIS SLAVE BOARD 1

 J7251012A WIRING DUCT-5[J7251012A] 1

 FC29-900555 HEX SUPPORT[M3*50 (BOLT-NUT)] 4

 FC29-900612 HEX SUPPORT 4

 J7251013A WIRING DUCT-6[J7251013A] 2

 EP03-000083 DUCT,CABLE-WIRING DUCT_60x60x910 1

 J7251015A WIRING DUCT-8[J7251015A] 1

 FC09-002145A BRACKET-SM482_DRIVER_BASE_BRACKET;SPCC 1

 FC09-007133A BRACKET-EZS_BRACKET 1

Electric Device Ass’y

AM03-019753A ASSY,AIR-SM471_FRONT AIR PANEL 1

 HP06-900043 JOINT KQ2F04-01 1

 TE07-900096 METER GZ46-K-01-C1 1

 FC09-006405A BRACKET-BKT AIR F 1

 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N 1

 HP04-001016 FILTER,AIR-AC30-03D-CJSZ2045 1

 HP09-001019 REGULATOR-ARP20-02BG-CJSZ1406;AIR,1.0MPA 1

AM03-007638A CABLE ASSY-AIR INDICATOR 1

EP05-900741 CONNECTOR[DF1B-3ES-2.5RC] 1

EP21-900127 TERMINAL[DF1B-2428SCF] 1

AM03-018437A ASSY,AIR-GAUGE-PANEL_NEW_SUB 1

 EP20-001028 SWITCH,ROTARY-MAIN_SWITCH[KG20B-T203] 1 AM03-900132/ AM03-013512A/ EP20-900105

 AM03-010079B CABLE ASSY-SAFEGUARD_OV_SW_KEY 1 J90831059C/ AM03-010079A

 FC09-001672B BRACKET-BKT F POWER 1 FC09-001672A

 EP07-901528 FAN_FILTER 120MM(NMB) 2

 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A

 J90833316A FAN_CABLE_ASSY SM-FAN00 2

AM03-003542A CABLE ASSY INLINE_IN_OUT 1

 EP07-900027 MAIN CIRCUIT BREAKER[GV2-ME20] 1

 EP21-900008 PANEL_GV2_AF 1

 J70521076B POWER_PANEL_R J70521076B 1

 AM03-003573A CABLE ASSY-LAN_EXT 1

 FC30-002551A GROUND TERMINAL [J7152027A] 1 J7152027A

 CD04-900026 MINI_KEYBOARD 5510UH 2

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2

 CD04-900012 OPTICAL_MOUSE 2

 J90601023B TEACHING_BOX 1

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 CD05-900126

AM03-015154B ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL) 1 AM03-000900A

 J91741076A CONV_SUB_IF_BOARD VER 1.0 1

 EP07-002062 FILTER,ELECTRIC-NOISE_TNS-5020;3P,20A 1 EP07-901542 / J91671267A / AM03-019057A

 EP23-001003A TRANSFORMER-3PHASE,3.5KVA;,,AL 1 EP23-000012A/ EP23-000028A

 J91741042A AXIS_SENSOR_BOARD_ASSY VER1.0 1

 EP06-901169 MONITOR_DISTRIBUTOR NM-V21 1

 AM06-000359A ASSY,PCB SMD-SM400_VISION_IF_BD 1

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 AM03-000819D ASSY,BOARD-FEEDER IO BOARD ASSY VER 1.6 1 AM03-000819B/ AM03-000819C

 FC09-002234B BRACKET-VAC_GEN_BKT;SPCC,t2 1 FC09-002234A

 HP11-000074 INJECTOR-P5010.00.AJ.01. (Pi48-3) 1

 HP06-900041 JOINT KQ2L04-01S 1

 HP14-000978 SOL-VAVLEVUVG_L18_M52 1

 HP06-000277 FITTING-KQ2L12-04S;FITTING,R1/2, Rc1/2 1 OPTION

 HP04-900011 FINGER_GUARD 109-019E 1 OPTION

 HP11-001019 PUMP-KHB200A-304A-G1;200W 1 HP11-000059 OPTION

 HP06-900104 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1 FC28-000105 OPTION

 HP06-900046 JOINT KQ2R04-08 1 OPTION

 HP06-001070 FITTING-FITTING KQ2VT12-03S;ELBOW 1 HP06-000250 OPTION

 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1 OPTION

 J90833316A FAN_CABLE_ASSY SM-FAN00 1 OPTION

 AM03-007648A ASSY,AIR-PUMP_SUB_ASSY 1

 EP07-901338 SD-Q11 DC24V1b 1

 EP07-901339 MSOD-Q11CX(KP)0.4kw(2.1A)200V DC24V 1

 HP13-900086 AIR TUBE(POLYYRETHANE)[U2-4-6*4(YELLOW)] .32

 HP13-900084 AIR TUBE (POLYURETHANE) 2.3

 AM03-007160A ASSY,AIR-VACUUM_ASSY 1

 AM03-019057A CABLE ASSY-SM471_NOISE_FILTER_MODULE 1

EP06-000282 SERVO CONTROL-DRIVE-BELT STEP DRIVER 1

 EP06-000283 SERVO CONTROL-DRIVE-BELT STEP DRIVER 1 EP06-000219

 J91741023A SM411_CONVEYOR_PWR_BOARD 1

 EP08-001055 MOTOR,DRIVE-MC-S0514-3L EP06-900107

 J90511022A HEAD_R_MOTOR_DRIVER_ASSY 1

 FC09-007132A BRACKET-482_R_STEP_DRIVER_BKT 1 J70511025A

Air Ass’y

HP03-900013 CYLINDER CM2C32-50-XC3BB 1

 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 HP06-000074 FITTING-STRAIGHT FITTING;KQ2S04-M5N,ONET 1

 HP03-900054 AIR_CYLINDER 1

 HP14-900088 SPEED CONTROLLER[AS1211F-M5-04] 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP06-900072 UNION Y FITTING PY4M 1

 HP14-900087 SPEED CONTROLLER(STRAIGHT)[AS1211F-M3-04 2

 HP06-900047 ELBOW FITTING 1

 HP03-000096 CYLINDER-CXSJM10-40-A93;CYLINDER,0.7MPA, 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 EP07-000858 SOLENOID-VUVG-S10-M52-RT-Q4(BM5)-1H2L 1

 HP03-900039 EDGE CYLINDER[CQ2B6-CJJC2948] 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 3

 HP09-900109 REGULATOR 1

 AM03-007338A ASSY,AIR-SOL_VALVE_EDGE_FIX-OPTION 1

 AM03-007232A ASSY,AIR-SM482_SOL_VALVE_MODULE 1

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 HP03-000118 CYLINDER-AQ2A12-35D-XST44;AIR CYLINDER,0 2

HP06-900263 HOSE NIPPLE [M-5H-4](D/C?) 1

 HP06-900010 ELBOW FITTING [M-5HLH-4] 2

 HP06-000278 FITTING-QS-E-M5-4-I-C;Straight Fitting 4

 HP06-000279 FITTING-QS-E-1./8-8-C;STRAIGHT FITTING 1

 HP09-000164 SILENCER-U-E-1/8-S 2

HP09-000157 MANIFOLD-VABM-L1-10S-G18-4 1

 AM03-000330 ASSY,AIR-SOL_VALVE_481L 1

 HP14-000431 VALVE,THROTTLE-GRLZ-M5-QS-4-D 2

 HP06-000278 FITTING-QS-E-M5-4-I-C;Straight Fitting 4

 HP14-000397 VALVE,SOLENOID-VUVG-L10-M52-RT-M5-1H2L 3

HP15-000010 ACCESSORY,VALVE-HAND-WHEEL_300D 1

 HP06-000279 FITTING-QS-E-1./8-8-C;STRAIGHT FITTING 1

 HP09-000164 SILENCER-U-E-1/8-S 2

 HP09-000157 MANIFOLD-VABM-L1-10S-G18-4 1

 HP06-000275 FITTING-DIN 908-G1/8-ST;Plug,Thread 3

FC14-900644 PLUG KQ2P-08 5

 HP09-000007 MANIFOLD;ET1:ETC. 1

 HP06-900282 STRAIGHT FITTING [KQ2R06-08] 3

 HP06-000226 FITTING-KQ2R10-12;STRAIGHT 1

 FC14-900641 PLUG KQ2P10 1

 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N-K1- 1

 HP06-900043 JOINT KQ2F04-01 1

 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 TE07-900096 METER GZ46-K-01-C1 1

 HP09-001019 REGULATOR-ARP20-02BG-CJSZ1406;AIR,1.0MPA 1

 HP04-001016 FILTER,AIR-AC30-03D-CJSZ2045 1

 HP06-900050 UNION Y FITTING 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

HP14-000978 VALVE,SOLENOID-VUVG_L18_M52 1

 HP06-900041 JOINT KQ2L04-01S 1

 HP06-000277 FITTING-KQ2L12-04S;FITTING,R1/2, Rc1/2 1

 HP11-000074 INJECTOR-P5010.00.AJ.01. (PI48-3) 1

 HP06-900104 FITTING KQ2L06-02S 1

 HP06-001070 FITTING-[KQ2VD12-02AS];ELBOW 1

 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1

 HP06-900046 JOINT KQ2R04-08 1

 HP11-001019 PUMP-KHB200A-304A-G1;200W 1

FC14-900724 PLUG [PT 1/8] 3

 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 2

 HP14-900092 CHECK VALVE[AKH06-00] 1

 HP06-900050 UNION Y FITTING 1

 HP06-900014 FITTING [KQ2L06-01/PL6-01] 5

 HP06-900018 FITTING [KQ2U06-00/PY6M] 1

 HP09-900162 SILENCER AN101-01 2

 HP06-900018 FITTING [KQ2U06-00/PY6M] 4

 HP03-900011 AIR CYLINDER 3

 HP06-900047 ELBOW FITTING 2

 HP06-900299 COUPLER[KD-M5-SA34697KR] 2

 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 HP06-000457 FITTING-QSY_12_8;Y_FITTING,12-8,12-8 1

 HP06-900089 STRAIGHT_FITTING KQ2H04-06 2

 HP09-000148 MANIFOLD-AIR_KM11;PC 1

 HP13-900089 MULTI TUBE[UML-408 BK8-3.5M 1

 HP09-900165 SILENCER[TAN120-M5] 2

 HP14-900064 SOL VALVE[SY3120-5LZ-M5-F2] SY3120-5LZ-M 1

 HP06-900183 FITTING_ELBOW KJL04-M5 1

 HP03-900016 AIR CYLINDER BDAS 6X15-CS11TA2 1

 HP06-900245 FITTING M-5HL-4 1

 HP14-900097 SPEEDCONTROL AS1001F-04 2

 HP06-000074 FITTING-STRAIGHT FITTING;KQ2S04-M5N,ONET 2

 AM03-015252A ASSY,AIR-SM482_AIR_MODULE_SMC 1

 HP14-000163 VALVE,SOLENOID-MAC_solenoid valve 6

 HP04-900036 SUCTION_FILTER VYF44-M-50M 10

AXIO B/D#1 Slave

AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-006924A CABLE ASSY-HD_VAC-BLOW 1 SM482_VI006

 AM03-006874A CABLE ASSY-AXIS1_FIX_ILL_CAN 1 SM48_CA001

 AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-006921C CABLE ASSY-AXIO_CN7_9 1 SM482_AX006

AM03-006907B CABLE ASSY-Y1-Y2_DRV_CMD_AXIO 1 AM03-006907A SM48_VM003

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48_PW020

 AM03-020612A CABLE ASSY-Y1 MOTOR PWR_90 1 AM03-006944A SM48_MD005

 AM03-020615A CABLE ASSY-Y1 MOTOR ENC_90 1 AM03-006945A / AM03-006945B SM471_MD106

 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1 SM48_MD036

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48_PW019

 AM03-020611A CABLE ASSY-Y2 MOTOR PWR_90 1 AM03-006946A SM48_MD007

 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 1 SM48_MD037

 AM03-020610A CABLE ASSY-Y2 MOTOR ENC_90 1 AM03-006947B / AM03-014704A SM48_MD008

AM03-014673A CABLE ASSY-X-S_DRV_CMD_AXIO 1 AM03-006908A/ AM03-006908B /AM03-006908C SM482_VM004

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48_PW019

 AM03-006948A CABLE ASSY-X_MOTOR_POWER 1 SM48_MD009

 AM03-006949C CABLE ASSY-X_MOTOR_ENC 1 AM03-006949A /AM03-006949B SM48-MD010

 AM03-007205B CABLE ASSY-X_REGEN_RESISTOR 1 SM48_MD038

 AM03-014671A CABLE ASSY-SW_WD_SERVO_POWER 1 AM03-006959A SM48_018

 AM03-014677A CABLE ASSY-SW_MOTOR_POWER 1 AM03-006950A SM48_MD020

 AM03-006951C CABLE ASSY-SW_MOTOR_ENC 1 AM03-006951A / AM03-006951B SM48_MD021

 AM03-001762C SW_MOTOR_ASSY SM41-MD032 1 AM03-001762B/ AM03-008342A SM41_MD032

AM03-019690A CABLE ASSY-WD CMD AXIO 1 AM03-006909B / AM03-014672A SM482_VM005

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48_PW019

 AM03-013587A CABLE ASSY-WD MOTOR POWER 1 AM03-006952A / AM03-014668A SM48_MD022

 AM03-006953B CABLE ASSY-WD_MOTOR_ENC 1 AM03-006953A SM48_MD023

AM03-006910A CABLE ASSY-R_DRV_CMD_AXIO 1 SM482_VM006

 AM03-006940B CABLE ASSY-R_STEP_MOT_PW_DRV 1 AM03-006940A SM482_MD012

 AM03-010670A R_STEP_MOTOR_PWR_CABLE_ASSY 1 J90831437C SM41_MD011

 J90830190B R12_MOTOR_CABLE_ASSY 1 SM21_MD038

 J90831009B R34_MOTOR_CABLE_ASSY 1 SM21_MD039

 J90831010B R56_MOTOR_CABLE_ASSY 1 SM21_MD040

AM03-006911A CABLE ASSY-Z12_DRV_COMD_AXIO 1 SM48_VM007-1

 AM03-012627A Z1_MOTOR_ASSY 1 J90831390B /AM03-010672B SM41_MD026

 AM03-012637A Z2_MOTOR_ASSY 1 J90831391B /AM03-010673B SM41_MD027

 AM03-006896A CABLE ASSY-Z_DRV_PW 1 SM48_PW027

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-006912A CABLE ASSY-Z34_DRV_COMD_AXIO 1 SM48_VM007-2

 AM03-012638A Z3_MOTOR_ASSY 1 J90831392B /AM03-010674B SM41_MD028

 AM03-012639A Z4_MOTOR_ASSY 1 J90831393B /AM03-010675B SM41_MD029

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-006913A CABLE ASSY-Z56_DRV_COMD_AXIO 1 SM48_VM007-3

 AM03-012640A Z5_MOTOR_ASSY 1 J90831394B /AM03-010676B SM41_MD030

 AM03-012641A Z6_MOTOR_ASSY 1 J90831395B /AM03-010677B SM41_MD031

 AM03-006896A CABLE ASSY-Z_DRV_PW 1 SM48_PW027

AM03-006914A CABLE ASSY-BS12_BW12_CMD_AXIO 1 SM48_VM008

 AM03-006915C CABLE ASSY-BS34_CMD_AXIO 1 AM03-006915A /AM03-006915B SM48_VM009

 AM03-009943A CONV-BELT-STEP-POWER-CABLE-ASSY 1 J90831341E SM41_SC012

 AM03-003578A CABLE ASSY-CONV_BELT1_MOTOR_PW 1 SM421_MD108

 AM03-003579A CABLE ASSY-CV_BELT1_MOTOR_PW_EXT 1 SM421_MD108-1

 AM03-003904A CABLE ASSY-CONV_BELT2_MOTOR_PW 1 SM421_MD208

 AM03-003905A CABLE ASSY-CV_BELT2_MOTOR_PW_EXT 1 SM421_MD208-1

 AM03-003582A CABLE ASSY-WORK_BELT1_MOT_PW 1 SM421_MD110

 AM03-003583A CABLE ASSY-WORK_BELT1_MOT_PW_EXT 1 SM421_MD110-1

 AM03-003908A CABLE ASSY-WORK_BELT2_MOT_PW 1 SM421_MD210

 AM03-003909A CABLE ASSY-WORK_BELT2_MOT_PW_EXT 1 SM421_MD210-1

 AM03-003580A CABLE ASSY-CV_BELT3_MOT_PW 1 SM421_MD109

 AM03-003581A CABLE ASSY-CV_BELT3_MOT_PW_EXT 1 SM421_MD109-1

Axis Sensor IF

AM03-010657A AXIS_SENSOR_BD_PW_CABLE_ASSY 1 J90831423C SM41_AX001

 AM03-015578A CABLE ASSY-Y_AXIS_SENSOR 1 AM03-003994A SM421_AX103

 AM03-003576A CABLE ASSY-WD_AXIS_SENSOR 1 SM421_AX104

 AM03-003577A CABLE ASSY-WD_AXIS_SENSOR_EXT 1 AM03-003577B SM421_AX104-1

 AM03-010660A CONVEYOR_SENSOR_IF_CABLE_ASSY 1 J90831428C SM41_AX006

 AM03-003868A CABLE ASSY-CONVEYOR SENSOR EXT 1 SM421_CV112

AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-006921C CABLE ASSY-AXIO_CN7_9 1 SM482_AX006

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-007444B CABLE ASSY-FEEDER_UNLOCK_SENSOR 1 AM03-007444A SM48_CV140

Camera IO B/D

AM03-005549B CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471_VIS007

 AM03-010667B FLY_CAM_PW_SYNC_EXT_CABLE_ASSY 1 J90831376B /AM03-010667A SM41_VIS006

 AM03-005552B CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471_VIS010

 AM03-006925A CABLE ASSY-FLY CAM SIG EXT 1 SM482_VIS009

Conveyor Sub IF B/D

J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

 AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003901A CABLE ASSY-FRONT_OP_SW 1 SM421_OP103

 AM03-003902A CABLE ASSY-REAR_OP_SW 1 SM421_OP104

 AM03-007055B CABLE ASSY-CONV_SUB_IF 1 AM03-007055A SM48_SC105

 AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 SM48_SC105-1

 AM03-006879A CABLE ASSY-AIR_INDICATOR 1 SM48_CV026

 AM03-007638A CABLE ASSY-AIR INDICATOR 1 SM48_CV026-1

Conveyor IF B/D

AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1 SM48_CA104

 AM03-006943B CABLE ASSY-CVIF_FFD_CAN-EXT 1 SM48_CA104-1

 AM03-010656A RFDR_CVIF_CAN_CABLE_ASSY 1 J90831326B SM41_CA003

 AM03-014614A CABLE ASSY-CONV_IF_R_FDR_PWR_J1R 1 AM03-006882A SM48_CV101

 AM03-014613A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 AM03-006967A SM48_SC201

 J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2

 AM03-006878A CABLE ASSY-TOWER LAMP EXT 1 SM48_CV004

 AM03-007691B CABLE ASSY-CONV_SOL 1 AM03-007691A SM48_CV102

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV028

 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV029

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

 AM03-003871A CABLE ASSY-PLACE STOPPER SENSOR 1 SM421_CV151

 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1 SM421_CV151-1

AM03-005427A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1 SM421_CV150

 AM03-003870B CABLE ASSY-AX_X2_F_AREA_SNS_J5R-J10L 1 SM421_CV150-1

 AM03-006964A CABLE ASSY-AX_BD_X2_MOT_SNS_J10L 1 SM48_PW147

 AM03-003595A X_AXIS_SENSOR_CABLE_ASSY 1 SM421_CV109

 J9080778B CABLE ASSY-AXIS_SNS_BD_CN7-8-EXT 1 SM_CV010

AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2

AM03-003597A CABLE ASSY-FRONT_AREA_SENSOR_EXT 1 SM421_CV115

 AM03-003598A CABLE ASSY-REAR_AREA_SENSOR_EXT 1 SM421_CV117

 AM03-006703A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019 1 SM471_CV019

 AM03-006704A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1 SM471_CV020

 AM03-014614A CABLE ASSY-T_BOX_HOST_J1R 1 AM03-006883A SM48_CV132

 AM03-014613A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 AM03-006967A SM48_SC201

 AM03-005705A CABLE ASSY-RS232_SERIAL-EXT 1 SM471_PC003-1

 AM03-005704B CABLE ASSY-RS232_SERIAL 1 SM471_PC003

Fix ILL B/D

AM03-006923A CABLE ASSY-FIX_ILL_POWER 1 SM48_SC008

 AM03-006874A CABLE ASSY-AXIS1_FIX_ILL_CAN 1 SM48_CA001

 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA00102-1

 AM03-006876A CABLE ASSY-FIX_ILL_RFD_CAN 1 SM48_CA102

 AM03-006994A CABLE ASSY-FIX_ILL_IF_EXT 1 SM48_VI102-1

Front Feeder IF B/D

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41_FD005

 AM03-007453C CABLE ASSY-FFD_HDIF_CAN 1 AM03-007453B SM48_CA105

 AM03-006943B CABLE ASSY-CVIF_FFD_CAN-EXT 1 SM48_CA104-1

 AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1 SM48_CA104

 AM03-006891A CABLE ASSY-FRONT FDR CTRL PWR 1 SM48_FD101

 AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

 J90800841C LEFT FDR SENSOR INPUT CABLE ASSY 1 SM_FD006

 J90800842C RIGHT FDR SENSOR INPUT CABLE ASSY 1 SM48_FD007

J90800838D CABLE ASSY-WS2_WW2_DRV_COMMAND 1 SM_FD003

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1 SM411N_FD001

 AM03-006884A CABLE ASSY-WS2_MOTOR_ENC_EXT 1 SM48_FD002

Head IF

AM03-006928C CABLE ASSY-FLAT 1 AM03-006928A /AM03-006928B SM482_FL001

 AM03-006930A CABLE ASSY-SIDE ILL UP_DN SOL 1 SM482_HD002

 AM03-006931A CABLE ASSY-R-AUX-SENSOR 1 SM482_HD005

 AM03-006933A CABLE ASSY-SIDE ILL UP_DN_SENSOR 1 SM482_HD007

 AM03-006934A CABLE ASSY-Z_HOME_SENSOR 1 SM482_HD008

 AM03-006937A CABLE ASSY-R_HOME_SENSOR 1 SM482_HD013

 AM03-006938A CABLE ASSY-SW_HOME_SENSOR 1 SM482_HD014

AM03-006932A CABLE ASSY-HEAD-VAC-SENSOR 1 SM482_HD006

 AM03-006928C CABLE ASSY-FLAT 1 AM03-006928A /AM03-006928B SM482_FL001

 AM03-006935A CABLE ASSY-HEAD VACUUM SOL 1 SM482_HD011

 AM03-006936A CABLE ASSY-HEAD BLOW SOL 1 SM482_HD012

AM03-006929A CABLE ASSY-HEAD OUTER ILL 1 SM482_HD001

 AM03-006939A CABLE ASSY-HEAD SIDE LED 1 SM482-HEAD-SIDE

 AM03-006927B FIDUCIAL OUTER LED 1 AM03-006927A SM482_FID-OUTER

 AM03-006926B CABLE ASSY-FIDUCIAL INNER LED 1 SM482_FID-INNER

Power Block Diagram

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1 SM33_PW001

 J90831253C MCCB_NF1_EARTH_CABLE_ASSY 1 SM411_PW003-2

 J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1 SM411_PW004

 AM03-013512C CABLE ASSY-MAIN SWITCH_TRANS 1 AM03-900132/ AM03-013512A/ EP20-001028 SM33_PW005

 AM03-006872A CABLE ASSY-CP1_TB1 1 SM48_PW007

 AM03-003859A CABLE ASSY-TRANS_CP1_2 1 SM421_PW106

 AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

AM03-006903A CABLE ASSY-CONTROL_RACK_PWR 1 SM48_PW145

 AM03-006904A CABLE ASSY-CONTROL_RACK_PWR-EXT 1 SM48_PW145-1

 AM03-017244B CABLE ASSY-FRONT_MONITOR_PW_12V 1 AM03-006894A / AM03-017244A SM48_PW021

 AM03-006895A CABLE ASSY-REAR_MONITOR_PW 1 SM48_PW022

 AM03-005488A CABLE ASSY-FAN_POWER 1 SM471_PW112

 A AM03-007057A CABLE ASSY-TB1_FS1_FS2 1 SM48_PW111-2

 AM03-006954A CABLE ASSY-AC_RELAY_ POWER 1 SM48N_PW005

 AM03-005702A CABLE ASSY-MON_DISTRIB_ADAPTOR 1 SM471_PW068

 AM03-005519A CABLE ASSY-USB_HUB_ADAPTOR 1 SM471_PW067

 AM03-006899A CABLE ASSY-PS1_2_AC_POWER_T1L 1 SM48_PW111

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006955A CABLE ASSY-PS3_4_AC_POWER_T2L 1 SM48N_PW112

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006901A CABLE ASSY-PS1_2_DC_POWER_T1L 1 SM48_PW120

 AM03-006896A CABLE ASSY-Z_DRV_PW 1 SM48_PW027

 AM03-006902A CABLE ASSY-PS3_4_DC_POWER_T2L 1 SM48N_PW103

M03-006900A CABLE ASSY-SERVO_FAN_POWER 1 SM48_PW113

AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

 AM03-006958A CABLE ASSY-MC1_TB1 1 SM48_PW009

 AM03-014671A CABLE ASSY-SW_WD_SERVO_POWER 1 AM03-006959A SM48_PW018

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1 SM48-PW019

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48_PW020

AM03-014909B CABLE ASSY-MC_INPUT_220V 1 AM03-006962A / AM03-014909A SM48_PW040

 AM03-014907B CABLE ASSY-PUMP_PWR_ALARM-EXT 1 AM03-005701A / AM03-014907A SM471_PW147-1

 AM03-005698A CABLE ASSY-VACUUM_PWR 1 SM471_PW146

 AM03-014851A CABLE ASSY-SK 1 AM03-005510A SM471-PW041

 AM03-014906B CABLE ASSY-VACUUM_PUMP_PWR_EXT 1 AM03-005767A / AM03-014906A SM471_PW42-1

 AM03-014905A CABLE ASSY-VACUUM_PUMP_220V 1 AM03-005511A/ AM03-005511B SM471_PW42

 AM03-006964A CABLE ASSY-PUMP_PWR_ALARM 1 SM471_PW147

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

AM03-006954A CABLE ASSY-AC_RELAY_ POWER 1 SM48N_PW005

 AM03-006889A CABLE ASSY-R RIGHT FEEDER BASE PWR 1 SM48_FD007

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006888A CABLE ASSY-R LEFT FEEDER BASE PWR 1 SM48_FD006

 AM03-006887A CABLE ASSY-F RIGHT FEEDER BASE PWR 1 SM48_FD005

 AM03-006886A CABLE ASSY-F LEFT FEEDER BASE PWR 1 SM48_FD004

 AM03-006893A CABLE ASSY-AC RELAY JUMPER 1 SM48_PW006

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006884A CABLE ASSY-F FDR PWR RELAY 1 SM48_FD002

 AM03-006905A CABLE ASSY-RELAY_PW_SUPPLY 1 SM48_PW135

 AM03-900148 RELAY_CONNECT_CABLE_ASSY SM41-PW034 1 SM41_PW034

 AM03-006890A CABLE ASSY-24V POWER EXT 1 SM48_FD008

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

 AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

Rear Feeder IF B/D

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41-FD005

J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM41_CA003

 AM03-006876A CABLE ASSY-FIX_ILL_RFD_CAN 1 SM48_CA102

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM48_CA102-1

 AM03-014614A CABLE ASSY-CONV_IF_R_FDR_PWR_J1R 1 AM03-006882A SM48_CV101

 AM03-014613A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 AM03-006967A SM48_SC201

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 J90800841C LEFT FDR SENSOR INPUT CABLE ASSY 1 SM_FD006

 J90800842C RIGHT FDR SENSOR INPUT CABLE ASSY 1 SM48_FD007

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

Safety Control B/D

AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006901A CABLE ASSY-PS1_2_DC_POWER_T1L 1 SM48_PW120

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

 AM03-006965A CABLE ASSY-F_OP_PANEL_IF 1 SM48_SC001

 AM03-006966A CABLE ASSY-R_OP_PANEL_IF 1 SM48_SC002

AM03-014613A CABLE ASSY-BD_PW_SC_J2R 1 AM03-006967A SM48_SC201

 AM03-014614A CABLE ASSY-CONV_IF_R_FDR_PWR_J1R 1 AM03-006882A SM48_CV101

 AM03-014614A CABLE ASSY-T_BOX_HOST_J1R 1 AM03-006883A SM48_CV132

 AM03-010659A F_OVERRIDE_KEY_EXT_CABLE_ASSY 1 J90831060E SM411_SC009

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 SM411_SC008

 AM03-006407A CABLE ASSY-LEFT_REAR_FAN_PW 1 SM471_PW020

 AM03-010666A R-STEP-DRIVER_POWER_CABLE-ASSY 1 J90831340B SM41_SC011

 AM03-009943A CONV-BELT-STEP-POWER-CABLE-ASSY 1 J90831341E /AM03-010657A SM41_SC012

 AM03-003686B CABLE ASSY-1_TRAY_FEEDER_EXT 2 AM03-003686A SM421_VM101-1

 AM03-003689B CABLE ASSY-2_TRAY_FEEDER_EXT 1 AM03-003689A SM421_VM102-1

AM03-010659A F_OVERRIDE_KEY_EXT_CABLE_ASSY 1 J90831060E SM411_SC009

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 SM411_SC008

 J90831340B R-STEP-DRIVER_POWER_CABLE-ASSY 1 SM41_SC011

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC012

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC006

AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

 AM03-006891A CABLE ASSY-FRONT FDR CTRL PWR 1 SM48_FD101

 AM03-010657A AXIS_SENSOR_BD_PW_CABLE_ASSY 1 J90831423C SM41_AX001

 AM03-006963A CABLE ASSY-SACO_+24V_RELAY 1 SM48_PW044

 AM03-012662A SCANNER_CABLE_ASSY SM421_IT003 1 J90833704A /AM03-010663A SM421_IT003

 AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006923A CABLE ASSY-FIX_ILL_POWER 1 SM48_SC008

 AM03-006880A CABLE ASSY-SACO_F_TBOX 1 SM48_CV034

 AM03-010654B CABLE ASSY-FRONT-TEACHING_BOX_EXT 1 AM03-010654A / AM03-010654C SM33_CV023-4

 AM03-006881A CABLE ASSY-SACO_R_TBOX 1 SM48_CV035

 AM03-010655C CABLE ASSY-REAR-TEACHING_BOX_EXT 1 J90831262D / AM03-010655A SM33_CV023-5

AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 SM48_SC105-1

 AM03-007055B CABLE ASSY-CONV_SUB_IF 1 AM03-007055A SM48_SC105

 J90831335C MC1-ENABLE-CABLE-ASSY 1 SM41_SC006

Vision IF B/D

AM03-005545C CABLE ASSY-HEAD2 FIDUCIAL CAMERA1 1 SM471_VIS003-1

 AM03-012626B CABLE ASSY-FLAT_FID_CAMERA_1 1 J90831375B /AM03-012626A SM41_VIS005

 AM03-006968B CABLE ASSY-FIX1-2_CAMERA 1 AM03-006968A SM48_VIS002

 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471_VIS000

 AM03-005549B CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471_VIS007

 AM03-010667B FLY_CAM_PW_SYNC_EXT_CABLE_ASSY 1 J90831376B /AM03-010667A SM41_VIS006

 AM03-005552B CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471_VIS010

 AM03-006925A CABLE ASSY-FLY CAM SIG EXT 1 SM482_VIS009

AM03-006985A CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 SM48_VIS012-1

Articles of Consumption

MC05-000275 BELT-MAM-5P-1397-7W;MAM-5P,1397,7,1.2

 MC05-900068 BELT_410_1

 MC05-900069 BELT_410_F MAM-5P-1517-7W

 MC05-900070 BELT_410_R

 MC05-900071 BELT_410_1_LONG

 MC05-900121 FLAT_BELT-END_ZONE MAM-5P-1641, 7W

 MC05-900122 FLAT_BELT-F_WORK_ZONE MAM-5P-1617-7W

 MC05-900123 FLAT_BELT-R_WORK_ZONE MAM-5P-1575-7W

 MC05-900129 FLAT_BELT_WORK_FIX_750 MAM-5P

 MC05-900130 FLAT_BELT_WORK_MOVE_750 MAM-5P

 MC05-900131 FLAT_BELT_END_750 MAM-5P

 HP04-001258A FILTER,AIR-ELENMENT[AF30P-060S]

 HP04-001259A FILTER,OIL-ELENMENT[AFM30P-060S]

 HP04-900036 SUCTION_FILTER VYF44-M-50M

 HP04-000018B FILTER,AIR-FILTER ELEMENT

 EP10-900438 FUSE[250V 5A]

 EP10-900439 FUSE[250V 10A]

 CM02-000059 GREASE-GADUS_S2 V220 2

 CM02-000083 GREASE-GREASE_AFE-CA+70_THK;SYNTHETIC,OL

 CM02-000092 GREASE-FLOIL G-146K

 J9099107A GREASE GUN

 J7069038A NIPPLE TIP(CP60L X-FRAME)[J7069038A]

 HP09-000258 SUPPLY,OIL-GREASE-GUN_MG70_THK

 CM01-900473 TRI-FLOW [59ML]

 J9055134C NOZZLE CN040 ASSY[J9055134C]

 AM03-900053 CLEANING KIT
