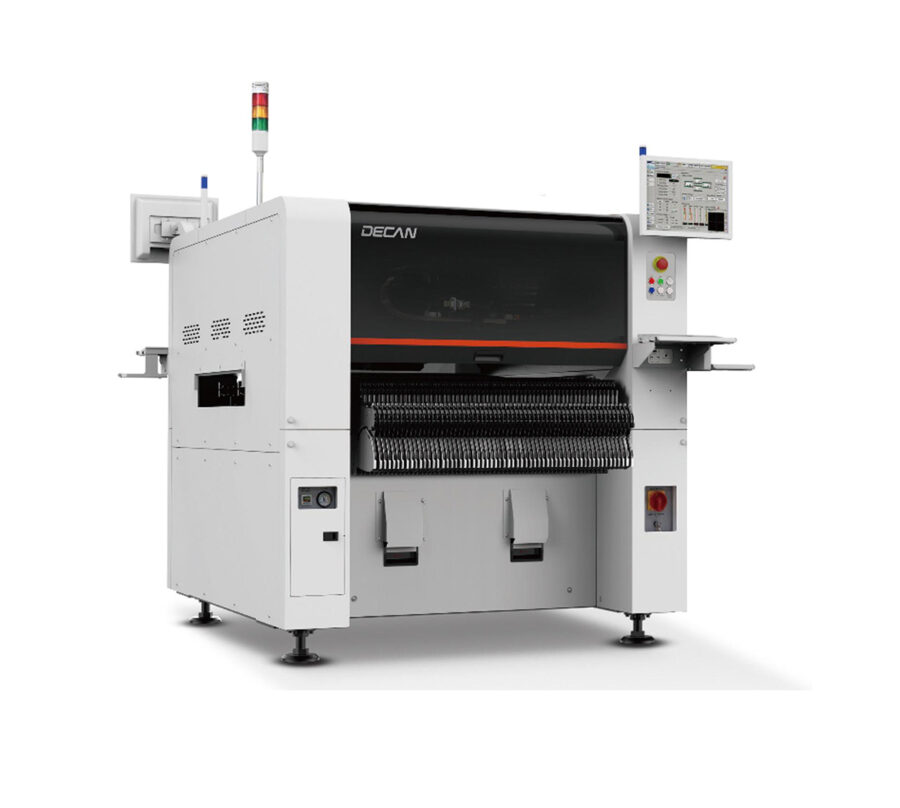

Fast & Flexible Chip Shooter Decan Series - Decan F2 Part

Fast & Flexible Chip Shooter Decan Series - Decan F2 Part

Feeder Base Front

J90571009A FEEDER_BASE_MODULEJ90571009A 1

AM03-014910A ASSY,FEEDER BASE-FEEDER_BASE_ST_DECAN 1 J90571018A Phantom Assy

AM03-004577A ASSY,FEEDER BASE-FEEDER_BASE_MODULE_S 1

 FC07-000033B VERTICAL_PLATE 1

 J70570262C M_90_CAP_TOP_PLATE 5

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 FC05-000122A FEEDER_BASE_BODY 1

 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000694A ASSY,BOARD-FBLN 1

 AM03-000693A ASSY,BOARD-FBRN 1

 FC09-000901C BRACKET-TOP_PLATE_S;STS304_CP 1

 FC09-001200C BRACKET-TOP-PLATE-BACK-HOLE;STS304_CP 1

 FC14-000876 COUPLER TCP1B10-15A-R8036 60 HP06-900169

Feeder Base ( Rear )

AM03-014087A FEEDER BASE STAGE TOTAL 1 AM03-012402A

 FC09-001200C TOP_PLATE_BACK_HOLE 1 FC09-001200A

 FC09-000901C TOP-PLATE-S 1 FC09-000901A

 FC07-000033B VERTICAL LOCATOR 1

 J70570262C M_90_CAP_TOP_PLATE 5

 AM03-014393A ASSY,COVER_FEEDER_T_SLOT_SUB 2 FC15-002403A STANDARD

 FC15-002954A COVER_NOCE_STAGE_C 1

 FC07-001595A BLOCK_GUIDE_B_NONE_STAGE 17

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2 HP06-900047

 FC05-000469A FEEDER_BASE_STAGE_SM511 1

 J7057213A SIDE CABLE COVER-FB 2

 FC18-901830 BUTTON HEAD CAP SCREW 6

 FC14-000876 COUPLER 60 HP06-900169

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A ASSY,BOARD-FBLN 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000693A ASSY,BOARD-FBRN 1

 AM03-014391A ASSY,COVER-RETROFIT_A_TYPE 1 WHEN 1 STAGE CAMERA

 FC15-002834A COVER_NONE_STAGE_SUB 1

 FC15-002832A COVER_NONE_STAGE 1

 FC07-001594A BLOCK_GUIDE_B_NONE_STAGE 9

AM03-014392A ASSY,COVER-RETROFIT_B_TYPE 1 WHEN NO STAGE CAMERA

 FC15-002833A COVER_NONE_STAGE-2 1

Stage CAM Ass’y

AM03-015218A ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-007707B

 AM03-015217A ASSY,OPTICS-SM482_STAGE_MEGA_45_ASSY 1 AM03-007727B

 J7153373A FIDUCIAL_DISK 1

 FC15-001295B LIGHT_COVER 1

 FC09-002220A LIGHT_G_1 1

 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1

 J90600075B STAGE SIDE LIGHT BOARD ASSY 1

 EP15-000010A REFLECT_SHEET 4

 FC09-002223A LIGHT GUIDE 4

 FC15-001294A PROFILE_2 1

 EP12-000044A GLASS 1

 J90600073C LED98-9 BOARD ASSY STAGE INNER 1

 PT02-000048A DIFFUSER 1

 FC15-002395B COVER-STAGE_CAM_BOARD 1 FC15-002395A

 FC09-002218A GLASS_STOP 2

 FC29-900610 HEX SUPPORT 4

 FC15-001293A PROFILE_1 1

 FC15-001291A COVER_2 1

 FC09-002222A PCB_BASE_2 1

 FC09-002221A PCB_BASE_1 1

 FC05-000225A BASE 1

 J7159120D CAMERA_STAND 1

 JS759001A CAMERA_HOLDER 1

 J90600074B STAGE OUTER LIGHT BOARD ASSY 4

 FC09-003893A BKT_S_CAM_BOARD 1

 FC15-001290A COVER_1 1

 FC15-001292A COVER_COMP 1

 J7066008D LINK_SHAFT_1 1

Docking Cart

J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1

 FC14-000876 COUPLER TCP1B10-15A-R8036 56 HP06-900169

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 AM03-0006345A ASSY,BOARD-FBLN 1

 AM03-0006346A ASSY,BOARD-FBRN 1

 FC30-001081A TOP PLATE S DCN 1

 J90571009A DC-FEEDER_BASE_MODULE 1

 FC09-002060A BRACKET-SME_DC_BKT 2

 FC30-001080A TOP PLATE B DCN 1

 J7257009A CUSHION-Y[J7257009A] 2

 FC29-900535 URETHANS[AZXS 20-23-M5-7] 2

 HP15-900008 BALL PLUNGERS[BSX12] 2

 J7257013A CUSHION-LOCATION PIN[J7257013A] 2

 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2

 J7057236A SLOT BUSH[J7057236A] 1

 MC06-900001 CIRCULAR BUSH[JBHM16-16] 1

 J7057237C ANTI-PITCH ARM[J7057237C] 2

 J7057238B ANTI-PITCH PIN[J7057238B] 2

 J7257014A PROBE HOLDER 1

 J7057239B CABLE HOLDER[J7057239B] 2

AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1 AM03-001731B

AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1

B AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1

 HP06-900093 STRAIGHT FITTING[KQ2H04-00/PU4] 1

 HP06-900299 COUPLER[KD-M5-SA34697KR] 1

 HP14-900089 SPEED CON[AS2201F-01-06S] 1

 HP14-900090 SPEED CON[ASP330F-01-06S] 1

 HP06-900293 ELBOW FITTING[PT18EF] 2

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 HP06-900050 UNION Y FITTING [KQ2U04-06] 1

 HP09-900162 SILENCER AN101-01 2

 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1

 J7057244B SENSOR BRACKET[J7057244B] 1

J7057247A POSITIONNING GUIDE[J7057247A] 2

 J70570250B BALL RAIL 2

 J7257010B CUSHION-X[J7257010B] 4

 EP19-900112 PHOTO SENSOR[EE-SY672] 2

 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1

 FC15-001137A COVER-FB COVER 1

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J91741070A FEEDER_IO_BOARD VER 1.2 1

 FC09-000977A FRONT SENSOR BKT2 1

 FC09-000976A FRONT SENSOR BKT1 1

 FC29-900144 DRAWER PULL [HD-108] 2

 J70540268C REAR SENSOR BKT1 1

 J70540269B REAR SENSOR BKT2 1

J70571021A NEW_BOARD_COVER J70571021A 1

 J74601002A FEEDER_IO_EXT_INSULATION_PCB J74601002A 1

 J74601001A FEEDER_IO_INSULATION_PCB J74601001A 1

 J70570252C CART GRIP 2

 J7257008B CUSHION-Z[J7257008B] 2

 EP18-000038 RELAY-LY2N-D2;POWER,DC24V, 36.9mA,10A 2

 MC14-900026 SWIVEL_CASTER-CMGNS100-N-MISUMI CMGNS100 2

 FC15-001209A COVER-LOWER COVER DCN 2

MC14-900027 SWIVEL_CASTER-CMGNS100-N-MISUMI CMGNS100 2

 J9057179A D/CART VERTICAL GUIDE[J9057179A] 2

AM03-001738C CABLE ASSY-D-CART INNER IF CABLE ASSY 1

AM03-006535B CABLE ASSY-ND-CART DSUB EXT CABLE ASSY 1 AM03-006535A

AM03-006455B CABLE ASSY-ND_CART RY1 EXT CABLE ASSY 1

AM03-003463B CABLE ASSY-FEEDER DC RELAY CABLE ASSY 1

AM03-001740B CABLE ASSY-RELAY PWR CABLE ASSY 1

AM03-001745C CABLE ASSY-D-CART PWR_CAN CABLE ASSY 1

AM03-001748C CABLE ASSY-D-CART DEVICENET CABLE ASSY 1

Shuttle Conveyor

AM03-010310A CONVEYOR_LR_ASSY 1

AM03-011692A ASSY,CONVEYOR-LR_EX_PT 1

AM03-010312A CONVEYOR_LR_EX_ASSY 1

AM03-011694A ASSY,CONVEYOR-RL_EX_PT 1

AM03-010313A CONVEYOR_RL_EX_ASSY 1

 AM03-011696A ASSY,CONVEYOR-ENTRY_ZONE_PT 1

AM03-010320A CONVEYOR-ENTRY_ZONE_LR_ASSY 1

AM03-011698A ASSY,CONVEYOR-ENTRY_ZONE_EX_PT 1

AM03-010324A CONVEYOR-ENTRY_ZONE_LR_EX_ASSY 1

 AM03-010588A SM511_WORK_ZONE_ASSY_LR_ASSY 1

AM03-011604A SM511_WORK_ZONE_ASSY_RL_ASSY 1

 AM03-011697A ASSY,CONVEYOR-EXIT_ZONE_PT 1

AM03-010321A CONVEYOR_EXIT_ZONE_LR_ASSY 1

AM03-011699A ASSY,CONVEYOR-EXIT_ZONE_EX_PT 1

AM03-010325A CONVEYOR_EXIT_ZONE_LR_EX_ASSY 1

Shuttle Conveyor –Entry

FC05-000324B BASE-SHUTTLE 1

 EP19-900109 PHOTO SENSOR 1

 J70531402A SHUTTLE_HOME_SENSOR_BKT 1

 FC29-000612B SUPPORT-HEX_M4_L44 4 FC29-000612A

 MC05-000151 TIMING_BELT-1491-3GT-20-UNITTA 1

 J71531190A PULLEY10_P21-20-33F 2

 EP08-000204 MOTOR,STEP-SPB56-2500P;SPB 1

 MC13-900069 LM_GUIDE_SHUTTLE_SBS15SL-2-K1-728L-N 2

 J70531570A SHUTTLE_BELT_TENSION_BKT 1

 FC05-000084A BASE-PULLEY 1

 FC29-004257A HEX_BAR_M4_L32_5_B 4 J70531400B

 MC03-900081 FLANGE BEARING 2

 J70531392A SHUTTLE_PULLEY_SHAFT 1

 FC18-903151 SPACER-SMKB10-5 1

 FC09-000764A BRACKET-PULLEY_FIX 1

 FC29-002510B DOG-HOME_SENSOR 1 FC29-002510A

 EP03-000034 CABLEVEYOR 2

 J70531101A COVER_LEFT 1

 HP14-000836 SOLENOID-SY3120-06-CJRZ0546 1

 FC15-002453A TOP_COVER_CV 1 J70531105A

 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A

 J70531102B COVER_RIGHT_PLATE 1

 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 1

 J6103005 PCB_SUPPORT 4 FC29-900611

 FC30-001653A PLATE-CONVEYOR_UNDER 1

 FC09-004416A BRACKET-SHUTTLE_FIX 2

FC18-903190 TIE_MOUNT 11

 FC07-001630A BLOCK_SHUTTLE 1 FC07-001053A

 EP19-900108 PHOTO SENSOR 1

 FC30-001630A PLATE_BELT_FIX 1

 FC09-003302A BRACKET_BELT_FIX 1

 FC39-001306A FRAME_SHUTTLE_B 1

 J70531039A IDLER_SPACER_45 8

 J72531001A IDLER_2 8

 MC19-001112A IDLER SHAFT-S 8 J2101818

 J7053184A SQUARE NUT M4 10

 J70531032B ST_SENSOR_BRACKET_2 2

 AM03-019721A CABLE ASSY-IN_CONV_F_PCB_SEN_IN_WAIT 2

 FC29-002593A GUIDE_SHUTTLE_PCB 2

 J7153373A FIDUCIAL_DISK 2

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 HP06-900010 ELBOW FITTING [M-5HLH-4] 1

 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A

 J70531505A 180RINK_MOVING_SIDE_BKT1 2

 J70531506A 180RINK_MOVING_SIDE_BKT2 2

 J70531072C CNT_PANEL_FRONT 2

 AM03-010821A STEP_MOTOR 2

 J70531038A MOTOR_BRACKET 2

 MC19-001136A PULLEY_B_M 2 J71531009A

 MC05-000068A BELT_SHUTTLE_945 2

 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009

 FC39-001305A FRAME_SHUTTLE_A 1

 FC29-002509B WIDTH_HOME_DOG 1 FC29-002509A

 FC07-001629A BLOCK_WIDTH 1 FC07-000976A

 J70531404A MOVING_IDLER_SHAFT 2

 MC03-900084 BEARING-B608ZZ 4

 J70531495A WASHER-12-8-4 2

FC09-003304A BRAKET_WIDTH_MOTOR 1

 MC19-000674A PULLEY_P14-20-33F 1

 EP08-000203 MOTOR,STEP-SPB42-2500P;SPB 1

 MC05-000234 BELT_SHUTTLE_1504 2

 FC30-001735A PLATE-EXTEND_FIX_2 2

 FC39-001379A FRAME-SHUTTLE_A_EXTEND 1

 FC30-001734A PLATE-EXTEND_FIX_1 2

 FC29-002676B GUIDE-SHUTTLE_A_EXTEND 1 FC29-002676A

 FC29-002677B GUIDE-SHUTTLE_B_EXTEND 1 FC29-002677A

 FC39-001380A FRAME-SHUTTLE_B_EXTEND 1

 FC29-004013A SHFAT_GUIDE 2 MC19-000934A

Shuttle Conveyor- Exit

FC05-000324B BASE-SHUTTLE 1

 EP19-900109 PHOTO SENSOR 1

 J70531402A SHUTTLE_HOME_SENSOR_BKT 1

 FC29-000612B SUPPORT-HEX_M4_L44 4 FC29-000612A

 MC05-000151 TIMING_BELT-1491-3GT-20-UNITTA 1

 J71531190A PULLEY10_P21-20-33F 2

 EP08-000204 MOTOR,STEP-SPB56-2500P;SPB 1

 MC13-900069 LM_GUIDE_SHUTTLE_SBS15SL-2-K1-728L-N 2

 J70531570A SHUTTLE_BELT_TENSION_BKT 1

 FC05-000084A BASE-PULLEY 1

 FC29-004257A HEX_BAR_M4_L32_5_B 4 J70531400B

 MC03-900081 FLANGE BEARING 2

 J70531392A SHUTTLE_PULLEY_SHAFT 1

 FC18-903151 SPACER-SMKB10-5 1

FC09-000764A BRACKET-PULLEY_FIX 1

 FC29-002510B DOG-HOME_SENSOR 1 FC29-002510A

 EP03-000034 CABLEVEYOR 2

 J70531102B COVER_RIGHT_PLATE 1

 HP14-000836 SOLENOID-SY3120-06-CJRZ0546 1

 FC15-002453A TOP_COVER_CV 1

 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A

 J70531101A COVER_LEFT 1

 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 1

 J6103005 PCB_SUPPORT 4 FC29-900611

 FC30-001653A PLATE-CONVEYOR_UNDER 1

 J74531005A SHUTTLE FIX JIG 1

 HP06-900049 STRAIGHT FITTING 2

FC18-903190 TIE_MOUNT 11

 FC07-001630A BLOCK_SHUTTLE 1 FC07-001053A

 EP19-900108 PHOTO SENSOR 1

 FC30-001630A PLATE_BELT_FIX 1

 FC09-003302A BRACKET_BELT_FIX 1

 FC39-001305A FRAME_SHUTTLE_A 1

 J70531039A IDLER_SPACER_45 8

 J72531001A IDLER_2 8

 MC19-001112A IDLER SHAFT-S 8 J2101818

 J7053184A SQUARE NUT M4 10

 J70531032B ST_SENSOR_BRACKET_2 2

 AM03-019721A CABLE ASSY-EXIT_CONV_PCB_SEN 3

 FC29-002593A GUIDE_SHUTTLE_PCB 2

 J7153373A FIDUCIAL_DISK 2

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 HP06-900010 ELBOW FITTING [M-5HLH-4] 1

 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A

 J70531505A 180RINK_MOVING_SIDE_BKT1 2

 J70531506A 180RINK_MOVING_SIDE_BKT2 2

 J70531072C CNT_PANEL_FRONT 2

 AM03-010821A STEP_MOTOR 2

 J70531038A MOTOR_BRACKET 2

 MC19-001136A PULLEY_B_M 2 J71531009A

 MC05-000068A BELT_SHUTTLE_945 2

 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009

 FC39-001306A FRAME_SHUTTLE_B 1

 FC29-002509B WIDTH_HOME_DOG 1 FC29-002509A

 FC07-001629A BLOCK_WIDTH 1 FC07-000976A

 J70531404A MOVING_IDLER_SHAFT 2

 MC03-900084 BEARING-B608ZZ 4

 J70531495A WASHER-12-8-4 2

FC09-003304A BRAKET_WIDTH_MOTOR 1

 MC19-000674A PULLEY_P14-20-33F 1

 EP08-000203 MOTOR,STEP-SPB42-2500P;SPB 1

 J70531076B BRACKET_BD_OUT_SENSOR 1

 FC30-002522A BD_OUT_SENSOR_GUIDE 1 J70531607A

 FC29-004013A SHFAT_GUIDE 2 MC19-000934A

Shuttle Conveyor

FC09-004582A BKT_TAIL 4 J70531024A

 J72531002A BUSH_TAIL 4

 FC09-004584A SUPPORT_BKT_L 4 J71531006B

J71531005B SUPPORT_BKT_S 4 FC09-004586A

 J71531010C LM_BASE_R 2

 MC13-900068 LM_GUIDE 2

 FC29-002694D SUPPORT-DUMPBOX_1 2 FC29-002694C

 EP20-900101 SW-D2HW_C243M-100 2

 J72531005C DUMP_BOX 2

A AM03-017756A AIR_SHOWER_ASSY J90531115A 1 J90531115A OPTION

FC09-006376A BRACKET-SUPPORT F D 1 Dual Conveyor type Bracket (Front)

FC09-006377A BRACKET-SUPPORT F S 1 Single Conveyor type Bracket (Front)

FC09-006378A BRACKET-SUPPORT R 1 Sharing Bracket (Rear)

J7153373A FIDUCIAL_DISK 3

 FC29-001514B GUIDE-PCB_GUIDE RC;SM45C 1 FC29-001514A

 J71531024A WIDTH_PULLEY 1

 J70531028A TENSION_BEARING_PIN 2

 MC03-900121 BALL BEARING[F608ZZ] 2

 MC03-900080 BALL BEARING[608ZZ] 2

 J70531025A WIDTH_TENSION_SPACER 2

 FC09-004587A TENSION_BRACKET 2 J70531027A

 FC29-002750A SUPPORT_FIX_RAIL_R 1

 FC29-900604 HEX SUPPORT 2 FC29-900611

 EP19-900108 PHOTO SENSOR 1

 FC18-900920 LOCK_NUT 2

 J70531177A BUSHING 2

 MC03-900008 BALL-BEARING-6000ZZ 2

 MC13-900226 LEAD_SCREW 2

 AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 2

 J70531644A BRACKET_WORK_SENSOR_H30 1

 FC29-004427A STOPPER 2 2 J7253009B

 FC39-001336A WORK_REAR_FRAME 1

 J7153034A CLAMP SHAFT 2

 MC06-900006 BALL_BUSH LMU5 4

 FC18-001480A BUSH SPACER 2 J7153033A

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 J71531046B CLAMP-REAR-FRAME 1

 MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 FC09-002430B WORK SNS BKT R 1 FC09-002430A

 MC19-001112A IDLER SHAFT-S 1 J7253008A

 J72531001A IDLER_2 5

 FC18-001478A IDLER SPACER-S 1 J7053047A

J7053184A SQUARE NUT M4 3

EP08-000203 MOTOR,STEP-SPB42-2500P;SPB 1

 J71531008A PULLEY_W_MOTOR 1

 MC05-900058 TIMMING_BELT 1

 J70531074A WORK_BELT_MOTOR_BRACKET 1

MC19-001136A PULLEY_B_M 1 J71531009A

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 J70531014B SUPPORT_FIX_RAIL_LEFT 1

 J70531021A IDLER_SHAFT_M 4

 J71531007A PULLEY_WIDTH_MOTOR 1

 MC05-900056 BELT_WIDTH_SYNC-1 1

 J70531019A IDLER_SPACER_13 3

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 J71531045B CLAMP_FRONT_FRAME 1

 J7153036A SLIDE GUIDE 1

 MC13-900013 LM SLIDE 2

 J70531017B PCB_GUIDE_FC 1

 J7153034A CLAMP SHAFT 2

 FC18-001480A BUSH SPACER 2 J7153033A

 MC06-900006 BALL_BUSH LMU5 4

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 FC30-001377A PLATE-STOPPER_TOP_SMC-CYL_LONG_LR 1

 HP03-000094 CYLINDER-CON_STOPPER_SMC 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 FC09-002822C STOPPER_WORK_REAR_SMC 1 FC09-002822A/ FC09-002822B

 MC19-001112A IDLER SHAFT-S 1 J2101818

 FC18-001478A IDLER SPACER-S 1 J7053047A

 J7053184A SQUARE NUT M4 3

 J70531021A IDLER_SHAFT_M 4

 J72531001A IDLER_2 5

 J70531020A IDLER_SPACER_11 4

 MC19-001136A PULLEY_B_M 1 J71531009A

 FC29-006463A CV_SUPPORT_M_RAIL 1 J70531103A

 EP03-000170 CABLE_VEYOR HSP0130-1B-18R-28LINK 1 EP03-900049

 J70531012C SUPPORT_MOVE_RAIL_II 1

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 FC39-001335A WORK_FRONT_FRAME 1

 J70531011A SUPPORT_MOVE_RAIL_TR 1

 FC29-004248A WORK_WIDTH_SENSOR_DOG 1 J70531066A

 FC29-004427A STOPPER 2 2 J7253009B

 J7153373A FIDUCIAL_DISK 3

J70531019A IDLER_SPACER_13 1

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1

FC29-001514B GUIDE-PCB_GUIDE RC;SM45C 1 FC29-001514A

 J7153373A FIDUCIAL_DISK 3

 FC29-006463A CV_SUPPORT_M_RAIL 1 J70531103A

 EP03-000170 CABLE_VEYOR HSP0130-1B-18R-28LINK 1 EP03-900049

AM03-011142B CABLE ASSY-BELT MOTOR 1

 MC19-001136A PULLEY_B_M 1 J71531009A

 J70531012C SUPPORT_MOVE_RAIL_II 1

 J70531020A IDLER_SPACER_11 4

 J72531001A IDLER_2 5

 J70531021A IDLER_SHAFT_M 4

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 FC29-004427A STOPPER 2 2 J7253009B

 J70531011A SUPPORT_MOVE_RAIL_TR 1

 FC29-004248A WORK_WIDTH_SENSOR_DOG 1 J70531066A

 J7053184A SQUARE NUT M4 1

 FC18-001478A IDLER SPACER-S 1 J7053047A

 MC19-001112A IDLER SHAFT-S 1 J2101818

 FC39-001336A WORK_REAR_FRAME 1

 J71531046B CLAMP-REAR-FRAME 1

 MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 J7153034A CLAMP SHAFT 1

 FC18-001480A BUSH SPACER 2 J7153033A

 MC06-900006 BALL_BUSH LMU5 4

 J70531019A IDLER_SPACER_13 3

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 J71531045B CLAMP_FRONT_FRAME 1

 FC30-001377A PLATE-STOPPER_TOP_SMC-CYL_LONG_LR 1

 MC13-900013 LM_SLIDE 2

 J7153036A SLIDE GUIDE 1

 J7153034A CLAMP SHAFT 2

 MC06-900006 BALL_BUSH LMU5 4

 FC18-001480A BUSH SPACER 2 J7153033A

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 FC09-002430B WORK SNS BKT R 1 FC09-002430A

 J7053184A SQUARE NUT M4 3

 EP19-900099 PHOTO SENSOR 2

 FC39-001335A WORK_FRONT_FRAME 1

 FC29-004427A STOPPER 2 2 J7253009B

 J70531017B PCB_GUIDE_FC 1

 J7153373A FIDUCIAL_DISK 3

 MC19-001112A IDLER SHAFT-S 1 J2101818

 J72531001A IDLER_2 5

 FC18-001478A IDLER SPACER-S 1 J7053047A

 J70531644A BRACKET_WORK_SENSOR_H30 1

 J71531024A WIDTH_PULLEY 1

 J70531021A IDLER_SHAFT_M 4

 J70531020A IDLER_SPACER_11 4

 EP08-000203 MOTOR,STEP-SPB42-2500P;SPB 1

 J70531074A WORK_BELT_MOTOR_BRACKET 1

 J70531014B SUPPORT_FIX_RAIL_LEFT 1

 MC19-001136A PULLEY_B_M 1 J71531009A

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 J71531008A PULLEY_W_MOTOR 1

 MC05-900058 TIMMING_BELT 1

J71531007A PULLEY_WIDTH_MOTOR 1

 MC05-900056 BELT_WIDTH_SYNC-1 1

 J70531028A TENSION_BEARING_PIN 2

 MC03-900121 BALL BEARING[F608ZZ] 2

 MC03-900080 BALL BEARING[608ZZ] 2

 J70531025A WIDTH_TENSION_SPACER 2

 FC09-004587A TENSION_BRACKET 2 J70531027A

 FC29-002750A SUPPORT_FIX_RAIL_R 1

 FC18-900920 LOCK_NUT 2

 J70531177A BUSHING 2

 MC03-900008 BALL-BEARING-6000ZZ 2

 MC13-900226 LEAD_SCREW 2

 FC29-900604 HEX SUPPORT 2 FC29-900611

 EP19-900108 PHOTO SENSOR 1

 FC09-003541B BRACKET-WORK_F_CYL 1 FC09-003541A

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP03-000094 CYLINDER-CON_STOPPER_SMC 1

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1

Full Dual Conveyor

AM03-011121A CONVEYOR-FD_LR_ASSY 1

AM03-011693A ASSY,CONVEYOR-FD_LR_EX_PT 1

AM03-011391A CONVEYOR-FD_LR_EX_ASSY 1

AM03-011695A ASSY,CONVEYOR-FD_RL_EX_PT 1

AM03-011397A CONVEYOR-FD_RL_EX_ASSY 1

 AM03-011700A ASSY,CONVEYOR-FD_ENTRY_ZONE_PT 1

AM03-011123A CONVEYOR-FD_ENTRY_ZONE_LR_ASSY 1

AM03-011702A ASSY,CONVEYOR-FD_ENTRY_ZONE_EX_PT 1

AM03-011393A CONVEYOR-FD_ENTRY_ZONE_LR_EX_ASSY 1

 AM03-010588A SM511_WORK_ZONE_ASSY_LR 1

AM03-011604A SM511_WORK_ZONE_ASSY_RL 1

 AM03-011701A ASSY,CONVEYOR-FD_EXIT_ZONE_PT 1

AM03-011122A CONVEYOR-FD_EXIT_ZONE_LR_ASSY 1

AM03-011703A ASSY,CONVEYOR-FD_EXIT_ZONE_EX_PT 1

AM03-011392A CONVEYOR-FD_EXIT_ZONE_LR_EX_ASSY 1

FC05-000339A BASE-SHUTTLE 1

 FC18-903190 TIE_MOUNT 2

 MC13-900069 LM_GUIDE_SHUTTLE SBS15SL-2-K1-728L-N 2

 EP03-000142 CABLEVEYOR 2

 HP06-900093 STRAIGHT FITTING 4

 J70531101A COVER_LEFT 1

 HP14-000836 SOLENOID-SY3120-06-CJRZ0546 1

 FC15-002453A TOP_COVER_CV 1

 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A

 J70531102B COVER_RIGHT_PLATE 1

 FC30-001653A PLATE-CONVEYOR_UNDER 1

 FC29-900611 PCB_SUPPORT 4

 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 1

MC05-000068A BELT_SHUTTLE_945 2

 MC19-001136A PULLEY_B_M 2 J71531009A

 FC09-003405A BRACKET-MOTOR_A 2

 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 2

 MC19-001112A IDLER SHAFT-S 8 J2101818

 J72531001A IDLER_2 8

 J70531039A IDLER_SPACER_45 8

 J70531032B ST_SENSOR_BRACKET_2 2

 AM03-019721A CABLE ASSY-IN_F_PCB_SEN_IN_WAIT_FULL 2

 J7053184A SQUARE NUT M4 10

 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A

 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009

 HP06-900010 ELBOW FITTING [M-5HLH-4] 1

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 FC09-003467D BRACKET-CABLE_FIX_2 1 FC09-003467C

 FC29-003587A GUIDE-EXTEND_BOARD 2 FC29-002775A

 FC29-002593A GUIDE_SHUTTLE_PCB 2

 FC39-001368A FRAME-FD_SHUTTLE_B 1

 FC18-903190 TIE_MOUNT 7

 FC29-002658A STAND-MOVE_RAIL 1

 FC39-001367A FRAME-FD_SHUTTLE_A 1

 FC29-002657A STAND-FIX_RAIL 1

FC29-003587A GUIDE-EXTEND_BOARD 2 FC29-002775A

 FC29-002593A GUIDE_SHUTTLE_PCB 2

 FC18-903190 TIE_MOUNT 7

 FC29-002658A STAND-MOVE_RAIL 1

 FC39-001367A FRAME-FD_SHUTTLE_A 1

 J7053184A SQUARE NUT M4 10

 J70531032B ST_SENSOR_BRACKET_2 2

 AM03-019721A CABLE ASSY-IN_F_PCB_SEN_IN_WAIT_FULL 2

 J70531039A IDLER_SPACER_45 8

 J72531001A IDLER_2 8

 MC19-001112A IDLER SHAFT-S 8 J2101818

 FC09-003405A BRACKET-MOTOR_A 2

 FC09-003632C BRACKET-CABLE_FIX_3 1

 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 2

 MC19-001136A PULLEY_B_M 2 J71531009A

 MC05-000068A BELT_SHUTTLE_945 2

 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A

 HP06-900010 ELBOW FITTING [M-5HLH-4] 1

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009

 FC39-001368A FRAME-FD_SHUTTLE_B 1

 FC29-002657A STAND-FIX_RAIL

FC05-000339A BASE-SHUTTLE 1

 FC18-903190 TIE_MOUNT 2

 MC13-900069 LM_GUIDE_SHUTTLE SBS15SL-2-K1-728L-N 2

 EP03-000142 CABLEVEYOR 2

 J70531102B COVER_RIGHT_PLATE 1

 FC09-003345B BRACKET-CONNECTOR_S 1 FC09-003345A

 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 1

 FC15-002453A TOP_COVER_CV 1 J70531105A

 HP14-000836 SOLENOID-SY3120-06-CJRZ0546 1

 J70531101A COVER_LEFT 1

 FC30-001653A PLATE-CONVEYOR_UNDER 1

 FC29-900611 PCB_SUPPORT 4

MC05-000068A BELT_SHUTTLE_945 2

 MC19-001136A PULLEY_B_M 2 J71531009A

 FC09-003405A BRACKET-MOTOR_A 2

 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 2

 MC19-001112A IDLER SHAFT-S 8 J2101818

 J72531001A IDLER_2 8

 J70531039A IDLER_SPACER_45 8

 J70531032B ST_SENSOR_BRACKET_2 2

 AM03-019721A CABLE ASSY-EX_CV_F_R_PCB_SEN_FULL 3

 J7053184A SQUARE NUT M4 10

 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A

 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009

 HP06-900010 ELBOW FITTING [M-5HLH-4] 1

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 FC09-003632C BRACKET-CABLE_FIX_3 1 FC09-003632A

 FC29-003587A GUIDE-EXTEND_BOARD 2 FC29-002775A

 FC29-002593A GUIDE_SHUTTLE_PCB 2

 FC39-001367A FRAME-FD_SHUTTLE_A 1

 FC18-903190 TIE_MOUNT 8

 FC29-002658A STAND-MOVE_RAIL 1

 FC39-001368A FRAME-FD_SHUTTLE_B 1

 FC29-002657A STAND-FIX_RAIL 1

 FC30-002522A BD_OUT_SENSOR_GUIDE 1 J70531607A

 J70531076B BRACKET_BD_OUT 1

FC29-003587A GUIDE-EXTEND_BOARD 2 FC29-002775A

 FC29-002593A GUIDE_SHUTTLE_PCB 2

 FC18-903190 TIE_MOUNT 8

 FC29-002658A STAND-MOVE_RAIL 1

 FC39-001368A FRAME-FD_SHUTTLE_B 1

 J7053184A SQUARE NUT M4 8

 J70531032B ST_SENSOR_BRACKET_2 2

 AM03-019721A CABLE ASSY-EX_CV_F_R_PCB_SEN_FULL 3

 J70531039A IDLER_SPACER_45 8

 J72531001A IDLER_2 8

 MC19-001112A IDLER SHAFT-S 8 J2101818

 FC09-003405A BRACKET-MOTOR_A 2

 FC09-003467D BRACKET-CABLE_FIX_2 1 FC09-003467A/ FC09-003467C

 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 2

 MC19-001136A PULLEY_B_M 2 J71531009A

 MC05-000068A BELT_SHUTTLE_945 2

 FC09-004598A BRACKET_SHUTTLE_STP 1 J70531043A

 HP06-900010 ELBOW FITTING [M-5HLH-4] 1

 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1

 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009

 FC39-001367A FRAME-FD_SHUTTLE_A 1

 FC29-002657A STAND-FIX_RAIL 1

 FC30-002522A BD_OUT_SENSOR_GUIDE 1 J70531607A

 FC09-003407A BRACKET-BD_OUT_2 1

FC09-004582A BKT_TAIL 4 J70531024A

 J72531002A BUSH_TAIL 4

 FC09-004584A SUPPORT_BKT_L 4 J71531006B

 J71531010C LM_BASE_R 2

 MC13-900068 LM_GUIDE 2

 FC29-002694D SUPPORT-DUMPBOX_1 2 FC29-002694B

 AM03-011145B CABLE ASSY-F_DUMP_BOX_SWITCH 2

 J72531005C DUMP_BOX 2

 AM03-017756A AIR_SHOWER_ASSY 1 J90531115A OPTION

 J70531016B PCB_GUIDE_RC 1 EDGE FIXER OPTION

J7153373A FIDUCIAL_DISK 3

 FC29-001514B GUIDE-PCB_GUIDE RC;SM45C 1 FC29-001514A

 J71531024A WIDTH_PULLEY 1

 J70531028A TENSION_BEARING_PIN 2

 MC03-900121 BALL BEARING[F608ZZ] 2

 MC03-900080 BALL BEARING[608ZZ] 2

 J70531025A WIDTH_TENSION_SPACER 2

 FC09-004587A TENSION_BRACKET 2 J70531027A

 FC29-002750A SUPPORT_FIX_RAIL_R 1

 FC29-900604 HEX SUPPORT 2 FC29-900611

 EP19-900108 PHOTO SENSOR 1

 FC18-900920 LOCK_NUT 2

 J70531177A BUSHING 2

 MC03-900008 BALL-BEARING-6000ZZ 2

 MC13-900226 LEAD_SCREW 2

 AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 2

 J70531644A BRACKET_WORK_SENSOR_H30 1

 FC29-004427A STOPPER 2 2 J7253009B

 FC39-001336A WORK_REAR_FRAME 1

 J7153034A CLAMP SHAFT 2

 MC06-900006 BALL_BUSH LMU5 4

 FC18-001480A BUSH SPACER 2 J7153033A

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 J71531046B CLAMP-REAR-FRAME 1

 MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 FC09-002430B WORK SNS BKT R 1 FC09-002430A

 MC19-001112A IDLER SHAFT-S 1 J2101818

 J72531001A IDLER_2 5

 FC18-001478A IDLER SPACER-S 1 J7053047A

 J7053184A SQUARE NUT M4 3

EP08-000203 MOTOR,STEP-SPB42-2500P;SPB 1

 J71531008A PULLEY_W_MOTOR 1

 MC05-900058 TIMMING_BELT 1

 J70531074A WORK_BELT_MOTOR_BRACKET 1

 MC19-001136A PULLEY_B_M 1 J71531009A

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 J70531014B SUPPORT_FIX_RAIL_LEFT 1

 J70531021A IDLER_SHAFT_M 4

 J71531007A PULLEY_WIDTH_MOTOR 1

 MC05-900056 BELT_WIDTH_SYNC-1 1

 J70531019A IDLER_SPACER_13 3

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 J71531045B CLAMP_FRONT_FRAME 1

 J7153036A SLIDE GUIDE 1

 MC13-900013 LM_SLIDE 2

 J70531017B PCB_GUIDE_FC 1

 J7153034A CLAMP SHAFT 2

 FC18-001480A BUSH SPACER 2 J7153033A

 MC06-900006 BALL_BUSH LMU5 4

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 FC30-001377A PLATE-STOPPER_TOP_SMC-CYL_LONG_LR 1

 HP03-000094 CYLINDER-CON_STOPPER_SMC 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 FC09-002822C STOPPER_WORK_REAR_SMC 1 FC09-002822A/ FC09-002822B

 MC19-001112A IDLER SHAFT-S 1 J2101818

 FC18-001478A IDLER SPACER-S 1 J7053047A

 J7053184A SQUARE NUT M4 3

 J70531021A IDLER_SHAFT_M 4

 J72531001A IDLER_2 5

 J70531020A IDLER_SPACER_11 4

 MC19-001136A PULLEY_B_M 1 J71531009A

 FC29-006463A CV_SUPPORT_M_RAIL 1 J70531103A

 EP03-000170 CABLE_VEYOR HSP0130-1B-18R-28LINK 1 EP03-900049

 J70531012C SUPPORT_MOVE_RAIL_II 1

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 FC39-001335A WORK_FRONT_FRAME 1

 J70531011A SUPPORT_MOVE_RAIL_TR 1

 FC29-004248A WORK_WIDTH_SENSOR_DOG 1 J70531066A

 FC29-004427A STOPPER 2 2 J7253009B

 J7153373A FIDUCIAL_DISK 3

J70531019A IDLER_SPACER 1

 FC09-003342A BLOCK-CONNECT 2

 FC07-001039A CONNECT_BKT 2

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1

FC29-001514B GUIDE-PCB_GUIDE RC;SM45C 1 FC29-001514A

 J7153373A FIDUCIAL_DISK 3

 FC29-006463A CV_SUPPORT_M_RAIL 1 J70531103A

 EP03-000170 CABLE_VEYOR HSP0130-1B-18R-28LINK 1 EP03-900049

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 MC19-001136A PULLEY_B_M 1 J71531009A

 J70531012C SUPPORT_MOVE_RAIL_II 1

 J70531020A IDLER_SPACER_11 4

 J72531001A IDLER_2 5

 J70531021A IDLER_SHAFT_M 4

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 FC29-004427A STOPPER 2 2 J7253009B

 J70531011A SUPPORT_MOVE_RAIL_TR 1

 FC29-004248A WORK_WIDTH_SENSOR_DOG 1 J70531066A

 J7053184A SQUARE NUT M4 1

 FC18-001478A IDLER SPACER-S 1 J7053047A

 MC19-001112A IDLER SHAFT-S 1 J2101818

 FC39-001336A WORK_REAR_FRAME 1

 J71531046B CLAMP-REAR-FRAME 1

 MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 J7153034A CLAMP SHAFT 1

 FC18-001480A BUSH SPACER 2 J7153033A

 MC06-900006 BALL_BUSH LMU5 4

 J70531019A IDLER_SPACER_13 3

 FC09-003342A BLOCK-CONNECT 2

 FC07-001039A CONNECT_BKT 2

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

MC05-900057 BELT_WORK MAM-5P-1550-6W 1

 J71531045B CLAMP_FRONT_FRAME 1

 FC30-001377A PLATE-STOPPER_TOP_SMC-CYL_LONG_LR 1

 MC13-900013 LM_SLIDE 2

 J7153036A SLIDE GUIDE 1

 J7153034A CLAMP SHAFT 2

 MC06-900006 BALL_BUSH LMU5 4

 FC18-001480A BUSH SPACER 2 J7153033A

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 FC09-002430B WORK SNS BKT R 1 FC09-002430A

 J7053184A SQUARE NUT M4 3

 AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 2

 FC39-001335A WORK_FRONT_FRAME 1

 FC29-004427A STOPPER 2 2 J7253009B

 J70531017B PCB_GUIDE_FC 1

 J7153373A FIDUCIAL_DISK 3

 MC19-001112A IDLER SHAFT-S 1 J2101818

 J72531001A IDLER_2 5

 FC18-001478A IDLER SPACER-S 1 J7053047A

 J70531644A BRACKET_WORK_SENSOR_H30 1

 J71531024A WIDTH_PULLEY 1

 J70531021A IDLER_SHAFT_M 4

 J70531020A IDLER_SPACER_11 4

EP08-000203 MOTOR,STEP-SPB42-2500P;SPB 1

 J70531074A WORK_BELT_MOTOR_BRACKET 1

 J70531014B SUPPORT_FIX_RAIL_LEFT 1

 MC19-001136A PULLEY_B_M 1 J71531009A

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 J71531008A PULLEY_W_MOTOR 1

 MC05-900058 TIMMING_BELT 1

J71531007A PULLEY_WIDTH_MOTOR 1

 MC05-900056 BELT_WIDTH_SYNC-1 1

 J70531028A TENSION_BEARING_PIN 2

 MC03-900121 BALL BEARING[F608ZZ] 2

 MC03-900080 BALL BEARING[608ZZ] 2

 J70531025A WIDTH_TENSION_SPACER 2

 FC09-004587A TENSION_BRACKET 2 J70531027A

 FC29-002750A SUPPORT_FIX_RAIL_R 1

 FC18-900920 LOCK_NUT 2

 J70531177A BUSHING 2

 MC03-900008 BALL-BEARING-6000ZZ 2

 MC13-900226 LEAD_SCREW 2

 FC29-900604 HEX SUPPORT 2 FC29-900611

 EP19-900108 PHOTO SENSOR 1

 FC09-003541B BRACKET-WORK_F_CYL 1 FC09-003541A

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP03-000094 CYLINDER-CON_STOPPER_SMC 1

 FC18-901355 C-RING 2

 FC18-900900 HEX NUT 2

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1

Single Conveyor

AM03-017756A AIR_SHOWER_ASSY J90531115A 1 J90531115A OPTION

 FC09-004238A BRACKET-SENSOR BKT 1

 J7051113A CABLE DUCT-U-F[J7051113A] 1

FC39-001579A FRAME-FRONT_CONVEYOR_S 1

 J70531210A PCB-GUIDE-FC 1

 J70531761A PCB_GUIDE_FC_S 1

 FC29-003067A GUIDE-PCB_END_S 1

 FC18-001478A IDLER SPACER-S 9 J7053047A

 J7253007A IDLER-2 8

 J7053009A IDLER-SHAFT-S2 9

 J70531100B BRACKET_SENSOR_IN 2

 J90831431B_AS CONV_BELT4_STEP_MOTOR_ASSY 1

 AM03-001513A WORK_BELT2_STEP_MOTOR_ASSY 1

 J90831440B CONV_BELT2_STEP_MOTOR_ASSY 1

 J70531106A BRACKET_BELT_MOTOR_S 2

 J7153111A PULLEY_B_M_7MM 3

 J7053770A IDLER-SHAFT-M 3

 J90831402C CONV_PCB_SENSOR_CABLE_ASSY_LONG 5

 J7053184A SQUARE NUT M4 16

 EP20-900101 SWITCH_CLAMP EP20-900101 1

 HP03-900036 CYLINDER 2

 J71531045B CLAMP_FRONT_FRAME 1

 MC05-000254 BELT-MAM-5P-860-7W 2

 MC05-900130 FLAT BELT-WORK_FIX_750 1

 J70531087A Q_SENSOR_BKT 1

 J7053689A QUICK-SENSOR-KNOB 1

 J7153373A FIDUCIAL_DISK 3

 RM01-001087A RAIL_SENSOR_S 1

 J70531086A BRACKET_RAIL 2

 HP14-900083 THROTTLE VALVE(ELBOW) 1

HP06-900010 ELBOW FITTING 1

 FC29-004427A STOPPER 2 2 J7253009B

 J70531765A WORK_SENSOR_BRAKET 1

 J70531088B WORK_SENSOR_BRACKET 1

MC13-900013 BLOCK 2

 FC29-004426A STOPPER 2 J7253008A

 FC18-001480A BUSH SPACER 2 J7153033A

 MC06-900006 BALL_BUSH LMU5 4

 J7153034A CLAMP SHAFT 2

 FC01-000022A ADJUST SHAFT 2 J7153010B

 J7153036A SLIDE GUIDE 1

 J7053048A IDLER-SPACER-M 3

 J7253006A IDLER-1 4

 J70531083A BELT_MOTOR_SUPPORT 4

 J70531763A BRACKET_BELT_MOTOR_B 1

 FC18-901355 C-RING 2

 FC09-004211A BRACKET-STOPPER_CYL 1

 FC09-004195B BRACKET-DUMPBOX 1 FC09-004195A

 J72531005C DUMP_BOX 1

 TE07-900010 CONV_WORK_BELT_2 MAM-5P-1065-7W 1 Option of Side Tray

 FC30-002214A PLATE-LONG_IN 1 Option of Side Tray

 FC39-001799A FRAME-EXTEND_F 1 Option of Side Tray

 J70531091A PLATE_LONG_OUT J70531091A 1 Option of Side Tray

 FC29-003693A GUIDE-PCB_LR_EX_F 1 Option of Side Tray

FC39-001581A FRAME-REAR_CONVEYOR_S 1

 FC29-003067A GUIDE-PCB_END_S 2

 J70531762A PCB_GUIDE_RC_S 2

 J70531211A PCB-GUIDE-R 1

 FC18-900870 LOW PROFILE MOUNTS 10

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2 HP06-900047

 HP09-900109 REGULATOR 1

 FC18-001478A IDLER SPACER-S 8 J7053047A

 J7253007A IDLER-2 8

 J7253006A IDLER-1 4

 J7053009A IDLER-SHAFT-S2 9

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1

 J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1

 J90831430B_AS CONV_BELT3_STEP_MOTOR_ASSY 1

 J70531106A BRACKET_BELT_MOTOR_S 2

 J7153111A PULLEY_B_M_7MM 3

 J7053770A IDLER-SHAFT-M 3

 J70531085A BRACKET_BELT_MOTOR_M 1

 MC05-000254 BELT-MAM-5P-860-7W 2

 MC05-000261 BELT-MAM-5P-1760-7W;MAM-5P,1760,7,1.2 1

 J71531269A CLAMP_REAR_FRAME J71531269A 1

 J7053763A IDLER-SPACER-M 3

 J7153034A CLAMP SHAFT 2

 FC01-000022A ADJUST SHAFT 2 J7153010B

 FC29-004426A STOPPER 2 J7253008A

 J7053184A SQUARE NUT M4 5

 J7153373A FIDUCIAL_DISK 3

 MC06-900006 BALL_BUSH LMU5 4

 FC18-001480A BUSH SPACER 2 J7153033A

 FC18-901355 C-RING 2

 HP03-900039 EDGE CYLINDER[CQ2B6-CJJC2948] 1

TE07-900010 CONV_WORK_BELT_2 MAM-5P-1065-7W 1 Option of Side Tray

 FC30-002214A PLATE-LONG_IN 1 Option of Side Tray

 FC39-001799A FRAME-EXTEND_F 1 Option of Side Tray

 J70531091A PLATE_LONG_OUT J70531091A 1 Option of Side Tray

 FC29-003693A GUIDE-PCB_LR_EX_F 1 Option of Side Tray

MC05-900044 WIDTH-BELT 1

 J70531109A MANUAL_HANDLE 1

 MC19-900014 PULLEY-WIDTH-20-XL-25 1

 J7153326A WIDTH-PULLEY-COLLAR 1

 J71530404B FIX-STAND 1

 MC03-900008 BALL_BEARING_6000ZZ 1

 J70530748B STOPPER-FRONT 1 J72531022A/ J72531022B

 MC13-900225 LEAD-SCREW 1

 J7053128A SPACER_NUT 4

 MC13-900225 NUT 1

 J7053677A MOVE STAND 1

 EP08-900160 SERVO_MOTOR_A5 MSMD012G1A 1

 MC19-900015 PULLEY-MOTOR_P32-3M-9 1

 J7053726A SCREW STAND 1

 J7053780A BRACKET-SERVO-MOTOR 1

 MC03-900008 BALL_BEARING_6000ZZ 1

 J7153330A PULLEY SHAFT 1

 MC05-900026 TIMING_BELT 1

 MC13-900029 LM-GUIDE 1

 J7053725A SUPPORT-WIDE ADJUST 1

 J7053660A TENSION BKT[J7053660A] 2

 J7053661B WIDTH TENSION SPACER[J7053661B] 2

 MC03-900080 BALL BEARING[608ZZ] 2

 MC03-900121 BALL BEARING[F608ZZ] 2

 J7053662A TENSION BEARING PIN[J7053662A] 2

 J7053216B DOG-SENSOR [J7053216B] 1

 J70530749B DOG ADJUST J70530749B 1

 EP19-900109 PHOTO SENSOR 1

 J7053695B STOPPER[J7053695B] 1

 J7053194A BEARING NUT [J7053194A] 2

 AM03-013063A ASSY,ETC,IMS-LONG_BACK_UP_PIN 4 Option of Single Conv. Extend

J7500003B BACK UP PIN[J7500003B] 4 Option of Single Conv. Extend

 FC30-002178B PLATE-LONG_BACK_UP_PIN_B 4 Option of Single Conv. Extend

 EP10-001990 MAGNET_C-106-2 4 Option of Single Conv. Extend

 FC29-003569A DOG-SENSOR_W370 1 Option of Single Conv. Extend

Backup Table

J70531052C LOWER_PLATE 1

 J70531051C BACK_UP_PLATE 1

 EP19-900108 PHOTO SENSOR 1

 FC18-901994 SHOULDER SCREW[MSB6-40] 2

 FC38-900013 SPRING[SWU26-70] 1

 FC29-900536 URETHAN CUSHION[AXNSK15-40] 1

 HP06-900056 ELBOW FITTING [KQ2L04-01] 2

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN[J7053792A] 4

 J7053793A LOWER LINK PIN[J7053793A] 2

 J7053796A LOWER LINK SHAFT[J7053796A] 1

 J90531008A LINK_END_ASSY 8

 MC03-900022 BALL BEARING 1

 J90531004A FREE_LINK_ASSY 2

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN 2

 J7053795A RING FIXER[J7053795A] 3

 FC14-900506 CYLINDER JOINT[Y-032B] 1

 HP03-900013 CYLINDER CM2C32-50-XC3BB 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER[J7053790A] 1

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER[J7053791A] 1

J7500003B BACKUPPIN

J9053333A BACKUPPIN

 J7053802A UP SENSOR BRACKET[J7053802A] 1

 J70621009A BUT_HOLD_PLATE2 J70621009A 4

 FC29-004259B DOG-BUT_SENSOR;STS304_CP 1

Base Frame ( Front )

CD03-000060 HARD DRIVE-TS64GSSD630 1

 EP06-000384 SUPPLY,POWER,AC-DC-STW350-ABDD-ATX 1

 CD05-000059 MOTHERBOARD,CPU-CPCI-6626;CPCI,HM65 1

 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A / AM03-011927C

 EP06-000338 PROCESSOR BOARD-NT-A8 2

 EP10-001013A BOARD,ETC-LKCB-53L32-ST 1

 AM03-014333A CABLE ASSY-CPU-BOX FAN 1

 AM06-000359C ASSY,PCB SMD-SM400_VISION_IF BD 1

 FC09-003434A INLET FAN BKT 2

 AM03-011162A ASSY,AIR-FRONT AIR PANEL DECAN 1

 HP06-900043 JOINT KQ2F04-01 1

 HP06-900026 ELBOW FITTING 2

 HP06-900191 ELBOW_MIN I_FITTING 1

 HP09-900108 REGULATOR 1

 HP06-900195 UNION_Y_FITTING 1

 FC09-003398A FRONT AIR PANEL 1

 HP09-900123 REGULATOR 1

 TE07-900096 GAUGE GZ46-K-01-C1 1

AM03-008872A ASSY,AIR-DIGITALGAUGEFLEX 1

 HP06-000278 FITTING QS-E-M5-4-I-C 1

 HP09-000150 DIGITAL GAUGE 1

 FC09-000043 BRACKET SAMHT-P4-F+G 1

 FC09-001657D BRACKET-BKT VAC_GEN;2.0 1 FC09-001657B/ FC09-001657C

 HP06-900204 FITTING 1

 AM03-005245A ASSY,AIR-VACUUM ASSY 1

 HP11-000058 VACUUM GENERATOR 1

 HP14-000978 SOL-VALVE 1 HP14-900045

 HP11-000193 PUMP KHF-14-V-01 1

 EP07-901508 COOLING FAN 5

 HP04-900011 FINGER_GUARD 3

 AM03-000173 ELBOW M3/4-F3/8 2

FC28-000105 STRAIGHT NIPPLE 1

 HP06-900046 FITTING KQ2R04-08 1

 HP06-000234 FITTING KQ2R08-12 1

 HP06-000250 FITTING KQ2VT12-03S 1

 AM03-005338B AXIS_SENSOR_BOARD 1 AM03-005338A

 EP20-900105 LOAD SWITCH[PI-25] 1

 J3409019A KEY_SWITCH 1

 FC09-003401A FRONT ELEC PANEL 1

 FC09-003509A FRONT CABLE BKT 1

 EP07-901339 MSOD-Q11CX(KP)0.4KW(2.1A)200V DC24V 1

 EP07-901345 UN-SA33 1

 RM01-000080 RAIL-DIN RAIL 35MM 1

 EP21-900002 STOPPER 2

 FC09-003446A RIGHT DC BKT 1

 J71520028E GROUND BASE(2) 1

 FC09-004599A OUTLET FAN BKT 2 FC09-003435A

 FC09-003430A BKT NOISE FILTER 1

 AM03-011573B ASSY,ELECTRIC-NOISE_FILTER_MODULE 1

 EP23-000012A TRANSFORMER 1

 FC09-003483A BKT SIDE COVER 2

 EP07-901528 FAN FILTER 120MM 2

 FC09-003480A BOTTOM FL 1

 FC09-003475A BOTTOM FR 1

 FC09-003436B DUCT HANGER 4 FC09-003436A

 FC10-000074A CUSHION,RUBBER-AIRPUMP 2

 HP13-900086 AIR TUBE(POLYYRETHANE)[U2-4-6*4(YELLOW)] 1

 HP13-900081 AIR TUBE (POLYURETHANE) 1

 FC05-000390A BASE PUMP KHF141 1

 EP06-901011 POWER_SUPPLY_STW400-S 6

Base Frame ( Rear )

AM03-011569A ASSY,ELECTRIC-REAR ELEC PANEL 1

 AM03-011179A ASSY,ELECTRIC-R ELEC PANEL BKT 1

 AM03-011015A ASSY,CONTROLLER-CONVEYORSTEPDRVV1_0 1

 FC09-001002 BRACKET-STEP DRIVER, EZS-CMS 1 FC09-000879A

 EP06-000540 SERVO CONTROL-DRIVE-EZS-SW-CMS 2 EP06-000390A

EP06-000540 SERVO CONTROL-DRIVE-EZS-SW-CMS 4 EP06-000391A

 EP06-000389 SERVO CONTROL-DRIVE-MCDKT3520E 2 EP06-900170

FC09-000381A BRACKET-S/W DRIVER UPPER BKT 2

FC09-000382A BRACKET-S/W DRIVER BOTTOM BKT 2

 EP06-000445 SERVO CONTROL-DRIVE-MADKT1505E 2 EP06-900172

FC09-000385A X-MOTOR DRIVER UPPER BKT 2

FC09-000386A X-MOTOR DRIVER BOTTOM BKT 2

 EP06-000316 SERVO CONTROL DRIVER MDDHT5540LA2 4

FC09-000387A Y-MOTOR DRIVER UPPER BKT 4

FC09-000388A BRACKET-Y-MOTOR DRIVER BOTTOM BKT 4

 EP07-901508 COOLING FAN 4

 AM03-001814C ASSY,BOARD-SAFETY_FROP_REV_3.0 1

 J7251007A BOARD_COVER 1

 AM03-005825B TERMINAL_BLOCK 1

EP18-900018 MAGNETIC CONTACTOR 1

EP07-000576 BREAKER,CIRCUIT-SH202-C16;MCBs,2P,440V 2

EP07-000731 BREAKER,CIRCUIT-SH203-C16;MCBs,3P,440V 1

J7051105B DIN RAIL 1

EP10-900438 FUSE[250V 5A] 3

EP10-900439 FUSE[250V 10A] 2

EP21-000093 BLOCK,TERMINAL-281-611 5

EP21-000094 BLOCK,TERMINAL-2002-1301 10

EP21-000095 BLOCK,TERMINAL-2002-1401 10

EP21-000096 BLOCK,TERMINAL-2002-2201 2

EP21-000097 ACCESSORY,TERMINAL BLOCK-JUMPER BAR 2

EP21-000098 ACCESSORY,TERMINAL BLOCK-JUMPER BAR 6

EP21-000099 ACCESSORY,TERMINAL BLOCK-END PLATE 1

EP21-000100 ACCESSORY,TERMINAL BLOCK-END PLATE 2

EP21-000101 ACCESSORY,TERMINAL BLOCK-END PLATE 1

EP21-000102 ACCESSORY,TERMINAL BLOCK-END PLATE 1

EP21-000103 ACCESSORY,TERMINAL BLOCK-END STOP 2

 FC15-002483A COVER-COVER R AXIS B 1

 AM06-000943D 16 AXIS BOARD 1 AM06-000943B/ AM06-000943C

 FC09-004058A BRACKET-BKT R AXIS B 1 FC09-001716A

 EP07-901528 FAN_FILTER 2

HP04-000075 FILTER,AIR-FAN FILTER METAL 120MM 2

 J91741023A CONVEYOR PWR BOARD 1

 EP07-901528 INLET FAN BKT 2

 EP07-900028 MAIN CIRCUIT BREAKER GV2ME22 1

 AM03-003542A CABLE ASSY-INLINE IN-OUT 1

AM03-010846A CABLE ASSY-INLINE NEXT PRE 1

 EP21-900008 PANEL 1

 J37041002A RELAY_HOLD_DOWN_CLIPS PYC-A1 22

 AM03-011179A REAR ELEC PANEL 1

 FC30-002551A GROUND TERMINAL 1 J7152027A

 AM03-011131A SERVO CONTROL-DRIVER-STEP DRIVER 1

 HP06-900211 ELBOW FITTING 2

 HP04-000178 AIR FILTER ASSY 1

 HP04-000103A FILTER-ELEMENT 1

 HP06-900187 FITTING SQH10-02S 2

 FC09-000054 T-BRACKET 1

 HP04-000179 OIL FILTER ASSY 1

 HP04-001045A FILTER-ELEMENT 1

 FC09-003400A REAR AIR PANEL 1

 FC09-003447A LEFT DC BKT 1

 HP09-000007 MANIFOLD KM11-08-12-10 1

 FC14-900641 PLUG 1

HP06-000226 FITTING KQ2R10-12 1

 HP06-900282 STRAIGHT FITTING [KQ2R06-08] 5

 FC14-900644 PLUG 3

 J7251012A WIRING DUCT-5[J7251012A] 1

 J7251015A WIRING DUCT-8[J7251015A] 1

 J7251013A WIRING DUCT-6[J7251013A] 1

 J7251008A WIRING DUCT-1[J7251008A] 1

 FC09-001714A BRACKET-DRIVER _BRACKET_SIDE 2

 FC09-003482A BOTTOM RL 1

 FC09-003481A BOTTOM RR 1

 FC09-001718A RELAY_SOCKET_BKT 1

 RM01-000080 RAIL-DIN RAIL 35MM;DIN RAIL 3

 EP18-900034 RELAY LY1N(AC200/220V) 6

 EP18-900016 RELAY[MY2N-D2 24VDC]] 1

 FC09-001724A BRACKET-DRIVER_BRACKET-1 1

 FC09-001725A BRACKET-DRIVER_BRACKET-2 1

 J72521004A ELEC_ACRYL 1

 EP18-000036 RELAY-LY1N-D2;1A1B,COIL : DC24V,15A 4

 J91741277A SCM_HEAD_IF_ASSY REV 1.0 1

 FC29-900611 HEX SUPPORT 4

 FC09-006124A BKT FIX ILL BD 1 FC09-003946A/ FC09-003946B

 HP13-900084 AIR TUBE (POLYURETHANE) 2

 HP13-900085 AIR TUBE (POLYURETHANE) 1

 HP13-900083 AIR TUBE (POLYURETHANE) 2

 HP13-900082 AIR TUBE (POLYURETHANE) 4

 AM03-000198 ASSY,AIR-SOL_VALVE_EDGE_FIX 1 Option of Single Conveyor

 J7051106A CAMERA SUPPORT[J7051106A] 1 Option of Single Conveyor

 FC09-004187B BRACKET-L DUMP BOX BKT 2 1

 FC09-004186B BRACKET-L DUMP BOX BKT 1 1

 FC09-004188B BRACKET-L DUMP BOX 1

 FC09-004184C BRACKET-S DUMP BOX BKT 1 FC09-004184B Option of Single Conveyor

FC09-004238B BRACKET-SENSOR BKT 1 FC09-004238A Option of Single Conveyor

 FC09-004185B BRACKET-S DUMP BOX 1 FC09-004185A Option of Single Conveyor

 J73531001A DUMP_BOX_ABSORBER J73531001A 1 Option of Single Conveyor

 J73531004A L_DUMP_BOX_ABSORBER J73531004A 1

 FC09-006123A BRACKET-BASE FIX ILL BD DECAN 1

Head

FC15-001388A HEAD TOP COVER 1

 FC09-001568A FLAT_CABLE_BKT 1

 FC09-001847A FITTING_BKT 1

 J1301070 STRAIGHT_CONNETOR_FITTING 6

 FC09-003535B HEAD_BKT_PANEL 1 FC09-001573A/ FC09-003535A

 AM03-005341B MOTOR_IF_BOARD 1 AM03-005341A

 FC36-000187A MOTOR_IF_BOARD_SHEET 1 FC30-000991A

 FC29-900610 HEX SUPPORT 8

 AM03-005337A HEAD IF BOARD 1

 FC36-000186A IF_BOARD_SHEET 1 FC30-000990A

 FC09-001574A HEAD_BOARD_BRACKET 1

 FC29-900148 HANDLE 1

 FC09-001575A HARNESS_PLATE 1

 FC18-902795 BUTTON_HEAD_CAP_SCREW 1

 FC09-001690A HEAD_BKT_FIX 1

 FC09-001576A MOTOR_IF_BOARD_BKT 2

 J70541016A 3-NIPPLE_BRACKET 1

 J71541016B HARNESS_SUPPORT 2

 FC28-900369 GREASE NIPPLE 5

 FC09-004665A 2-NIPPLE_BRACKET 1 J70541017A

 HP06-900079 ELBOW_UNION_FEMALE 5

AM08-004291A ASSY-FID7_LENS_ASSY 2 STADARD

AM03-021682A ASSY,OPTICS-FIDUCIAL CAMERA_BLUE 2 BLUE FILTER

AM03-022390A ASSY,OPTICS-PROGRESSIVE FID. CAMERA 2 S2 PROGRESSIVE

 AM03-011868A CABLE ASSY-Z1_MOTOR_AS 10

 FC09-004707A Z_SPRING_BKT 1 FC09-001505A

 AM03-015112A CABLE ASSY-HEAD_HOME_SENSOR 1

 FC38-000072A Z_SPRING 10

 HP14-000206 VALVE-BLOW_VALVE 10

 J7155572A CABLE_HOLDER 2

 HP14-002040 VALVE,SOLENOID-VQZ115R-5LO1-C1-PR 10

 FC14-900638 DUMY PLUG 1

 HP06-900021 BOB FITTING [M-5ALU-4] 11

 HP09-000129 HEAD_AIR_MODULE 1

 J91661026A FIDUCIAL_COAXIAL_PCB_ASS'Y 2

 J71591108A FID7_BLOCK 2

 HP13-900087 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] 1

 J71551840A Z_MOTOR_PULLEY 10

 FC29-900557 HEX SUPPORT 6

 FC09-001523A MANIFOLD_PLATE_2 1

 FC29-900610 HEX SUPPORT 6

 AM03-020609A FIDUCIAL_OUTER_PCB_ASSY 2 STADARD

AM06-005001A ASSY,PCB SMD-OUTER-LED_PCB ASS'Y_FID. CA 2 BLUE FILTER

AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 2 S2 PROGRESSIVE

 J72801017A FIDUCIAL_DIFFUSER 2

 FC29-900614 HEX SUPPORT 2

 AM03-014949B ASSY,BOARD-SM471 HOME SENSOR 1

FC36-001010A SHEET-Z_SENSOR_BOARD_SHEET,0.2 1

 FC18-903190 PROFILE MOUNT 2

 AM03-005340A PRESSURE SENSOR BOARD 1

 HP12-000002 O-RING 10

 HP04-900036 SUCTION_FILTER 10

HP06-000074 STRAIGHT FITTING 10

 HP09-000328A P_SENSOR_BLOCK 1

 HP06-900059 BOB ELBOW FITTING 10

 FC09-001522A MANIFOLD_PLATE_1 1

 HP14-000344 OVER BLOW VALVE 1

 HP06-900059 BOB ELBOW FITTING 2

 HP06-900194 ELBOW_FITTING 1

 FC14-900638 PLUG_FITTING 1

 HP13-900088 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(YELLOW 1

HP13-900081 AIR TUBE (POLYURETHANE) 3

FC09-002296A 481_FLY_SIDE_COVER 2

 FC09-001566A FLY_SIDE_COVER 2 ONLY FOR HS HEAD

 AM03-005092A ASSY,OPTICS-SM411_PLUS_SIDE_PCB_B_ASSY 1

 FC30-000975A FID_CAM2_COVER 2

 FC09-001518A MIRROR_CLAMP_1 1

 FC09-002300A FLY_OUTER_BRACKET_A 1

 FC09-001515A SM411_PLUS_FLY_OUTER_BRACKET_A 1 ONLY FOR HS HEAD

 FC30-001147A PLATE-SM481_REF_PLATE 1

 FC09-002293A FLY_SIDE_BRACKET 2 ONLY FOR HS HEAD

FC09-001513A SM411_PLUS_FLY_SIDE_BRACKET 2

 FC09-001519A MIRROR_CLAMP_2 1

 FC09-001521A MIRROR_CUSHION 2

 EP12-000030A FOLDING_MIRROR 1

 FC09-001517A MIRROR_PLATE 1

 FC15-001001A HD-MIRROR_COVER 1

AM03-005088A ASSY,OPTICS-SM411_PLUS_FLY_OUTER_B_ASSY 1

 AM03-005836A ASSY,HEAD-MIRROR_ASSY 1

 AM03-005925A ASSY,HEAD-SM471_FLY_OUTER_ASSY 1

 AM03-005925A ASSY,HEAD-SM471_FLY_OUTER_ASSY 1

 AM03-005923A ASSY,HEAD-SM471_SIDE_PCB_ASSY 1

 AM03-012571A ASSY,HEAD-FS SIDE ILL ASSY 1

 FC09-001516A SM411_PLUS_FLY_OUTER_BRACKET_B 1

FC09-002295A 481_TIE_MOUNT_1 2

1-1 FC09-003365A TIE MOUNT 2 ONLY FOR HS HEAD

A AM03-012549A ASSY,HEAD-MIRROR LINK L FS 1

AM03-010692A ASSY,HEAD-MIRROR LINK 2 1 ONLY FOR HS HEAD

 J7455026A SPRING_BUSH 4

 FC29-004275A SPRING_POST-MOVING 2 J70551042A

 FC30-002025A MIRROR LINK L 1

FC30-001677A MIRROR_LINK_2 1 ONLY FOR HS HEAD

 MC11-900055 CAM FOLLOWER 2

 MC11-000591A SM481_CAM 2

 MC11-000434A SM411PLUS_CAM 2 ONLY FOR HS HEAD

 J7055204A ARM_JOINT 2

 MC03-900034 BALL_BEARING 4

 J7055205A WC 2

 FC18-001484A MIRROR_SCREW 2 J7055153A

 FC18-901347 E-RING[DIA1.5(SUS)] 4

 AM03-006152A ASSY,HEAD-FID2_SUB_ASSY 1

 MC03-900033 BALL BEARING 695ZZ 4

 J7055163A BEARING_HOUSING 1

AM03-007750A RIGHT_SPRING_POST_ASSY 1

 FC09-002292A MIRROR_SPRING_BRACKET 2

 FC09-001553B MIRROR_PIN_3 2 FC09-001553A

 J7055559A MIRROR_PIN_2 2 ONLY FOR HS HEAD

 AM03-005841A ASSY,HEAD-LINK1_SPRING_POST_ASSY 1 ONLY FOR HS HEAD

 J7055560A MIRROR SPRING BRACKET[J7055560A] 2 ONLY FOR HS HEAD

 FC18-903190 PROFILE MOUNT 4

 FC38-900011 SPRING 2

 J7255081A MIRROR MOTOR ISOLATOR 1

 J7155523A PULLEY(S-AXIS) 1

 FC30-000805B PLATE-MIRROR_MOTOR_BKT;A6061-T6 1 FC30-000805A

 MC05-900048 TIMING BELT 1

AM03-007751A SM481_MIRROR_SHAFT_ASSY 1

 AM03-005837A ASSY,HEAD-MIRROR_SHAFT_ASSY 1 ONLY FOR HS HEAD

 J71551026A PULLEY-S_AXIS1 1

 J7055557A BEARING_HOUSING 1

 MC19-000345A MIRROR_SHAFT 1

 AM03-012548A MT511A-HD040A-MIRROR_LINK_R 1

 FC30-001164A PLATE-481_S_SENSOR_DOG 1

 FC30-002024A MIRROR LINK R 1

 AM03-010691A ASSY,HEAD-MIRROR LINK 1 1 ONLY FOR HS HEAD

 FC29-001100A S_SENSOR_DOG 1 ONLY FOR HS HEAD

 FC30-001676A MIRROR_LINK_1 1 ONLY FOR HS HEAD

 AM03-006153A ASSY,HEAD-FID1_SUB_ASSY 1

 EP19-900119 SENSOR_PM_L24 1

 FC09-001557A S_SENSOR_BKT 1

 FC09-001514A BRACKET-SM411_PLUS_MIRROR_BRACKET 2

FC09-002294B BRACKET-MIRROR_BRACKET 2 FC09-002294A ONLY FOR HS HEAD

 FC30-001147A SM481_REF_PLATE 1

FC30-001675A REF PLATE 1 ONLY FOR HS HEAD

 AM03-015237A CABLE ASSY-SWING MOTOR 1

 J7455026A SPRING_BUSH 2

FC30-000975A FID_CAM2_COVER 1

A AM03-006151A ASSY,HEAD-COAXIAL_SUB_ASSY 1

 FC09-001560A FLY_SIDE_PLATE2 1

 FC09-001561C FLY_CAM_COVER 1 FC09-001561A/ FC09-001561B

 FC09-001559A FLY_SIDE_PLATE1 1

 AM03-020421A ASSY,OPTICS-FLYING_CAMERA_ONE KIT_SM471 5

 FC10-000046 RUBBER 2

 FC09-001562A FLY_IO_TOP_COVER 1

 RM03-000022A SM411_PLUS_COAXIAL_DIFFUSEER 1

 AM03-005100C SM471_FLY_COAXIAL_PCB_ASSY 1 AM03-005100B

 FC36-000038A SM471_FLY_COAXIAL_INSULATION 1

 AM06-000358A SM400_CAMERA_IO_BD 1

 FC09-001848A COAXIAL_PLATE 1

 FC15-001311A LIGHT_COVER 1

FC09-001567A LIGHT_COVER 1 ONLY FOR HS HEAD

 FC30-000971A COAXIAL_COVER 1

 FC09-001563A FLY_IO_BOTTOM_COVER 1

 AM03-006110A FLY_IO_BOARD_ASSY 1

 FC10-000046 RUBBER 2

AM03-008031A CABLE ASSY-R_MOTOR 5

 FC30-000797A INSULATION_PLATE 5

 MC19-000340A T_MOTOR_PULLEY 5

 J71551021A TIME_MOUNTER_E 2

 FC30-000798A STEP_MOTOR_PLATE 5

 EP19-900134 PHOTO_SENSOR 5

 FC09-001501A T_M_PULLEY_CLAMP 5

 MC13-000268 LM_GUIDE 10

 FC30-001133A Z_STOP_PLATE_TOP 5

 FC39-001352A MAIN BODY 1

 FC09-001489A Z_TOP_HOUSING 10

 MC05-000120 TIMING_BELT 5

 AM03-005843A ASSY,HEAD-Z_IDLE_ASSY 10

 FC18-902001 PRECISION_S_PLUS_BOLT_M2X6 KN219-M2X6 80

 J71551848A Z_IDLER_PULLEY 10

 J66011095A BEARING 20

 MC05-000117 TIMING BELT 5

 MC05-000119 TIMING BELT 5

 FC09-001493A Z_SENSOR_DOG 10

 AM03-005845A ASSY,HEAD-Z CAP ASSY 10

 FC29-004278A PIN_Z 10 J7155541A

 FC09-001881A Z_CAP 10

 HP06-900059 BOB ELBOW FITTING 10

 HP12-000105 Y_PACKING 10

 HP13-000044 VACUUM_TUBE 10

 FC09-001490A LOCK_NUT_Z 10

 FC18-001724A WAVE WASHER 10 FC18-000960

 MC13-000172 BALL SPLINE ASSY 10

 FC29-000176 Z_SPACER 10

 MC03-900127 BALL_BEARING-684ZZ 10

 FC09-001492C Z_BELT_CLAMP 10 FC09-001492B ONLY FOR HS HEAD

FC29-001047B Z_ROD_HOUSING 10 ONLY FOR HS HEAD

 J90551225A_AS 431_NOZZLE_HOLDER_ASSY 10

 FC30-000927A PLATE-BEARING_P_PLATE;SPCC 10

 FC09-001494A S_PULLEY_CLAMP 10

 MC19-000339A SPINDLE_PULLEY 10

 J70551874A Z_IDLE_SHAFT 10

X Frame

EP08-001057 ACCESSORY,MOTOR-SERVO-MSME082G2A 2

 MC22-000092 COUPLING 1

 FC30-001671E PLATE-Y1 PROFILE;A6063S-T5 1 FC30-001671A/ FC30-001671B/ FC30-001671C/FC30-001671D

 FC09-004585A SERVO CONNECTOR BKT 1 J70530690B

 FC29-002614A DOG_CRASH_Y 1

 FC28-900369 GREASE NIPPLE 2

 J70541105A GREASE_NIPPLE_NUT 2

 HP06-900080 STRAIGHT_FITTING 2

 FC30-001829B CONNECT_PLT_L-T 1 FC30-001829A

 FC09-003189A BRACKET_SPACER 1

 FC15-003146A BKT_ENCODER_Y 4 FC09-003179A

 FC28-000196 LINEAR_SCALE_UNIT_SCANNING_HEAD_LIC219 4 LINEAR SCALE HEAD

FC28-000197 LINEAR_SCALE_UNIT_LIC2107_SCALE_1220MM 4 LINEAR SCALE

 MC13-000125 BALL SCREW 1

 FC36-000092A SHEET_B-SCREW_CV 1

 FC29-004428A CUSHION_X_FRONT 1 J72541003A

 MC04-900012 SUPPORT_UNIT 1

 FC29-004430A CUSHION X REAR 1 J72541005B

 MC03-900008 BALL BEARING 1

 FC18-901667 C-RING(SHAFT) 1

 MC04-000039A BRG_HOUSING-X 1 J71541010A

 FC29-001079C SUPPROT B SCREW X 1 FC29-001079B

 FC05-000514A BASE HEAD CARRIER 1 FC05-000336B DECAN L2 : FC05-000514A

 FC29-002632B DOG_SENSOR_X 1 FC29-002632A

 MC13-900032 LM GUIDE 2

 FC36-000074B SHEET_X-LOWER 1

 FC39-001351A X_FRAME 1

 J70541295A X_LIMIT_SENSOR_PLATE 2

 EP19-900114 PHOTO_SENSOR 2

 FC15-002046A COVER_CABLE_X 1

FC09-003388A CHAIN_Y_SUPPORT 1

 FC30-001674B CONNECT_PLT_R 1 FC30-001674A

 FC07-001225A BLOCK_B-SCREW_CV 1

 FC30-001672D PLATE-Y2 PROFILE;A6063S-T5 1 FC30-001672A/ FC30-001672B/ FC30-001672C

 FC09-001481B BKT CUSHION X 1

 PM02-000794A CUSHION CABLE X 1

 FC09-001771A BKT CABLE CHAIN X 1

 FC15-002178A COVER CHAIN Y 1

 FC09-003421C BKT CABLE CHAIN Y 1 FC09-003421A/ FC09-003421B

 FC09-001485A BKT CUSHION Y 1

 PM02-001450A CUSHION CABLE Y 1

 FC09-001662A BKT CABLE X 2

 FC18-001417A SPACER-X REAR SUB L2 DECAN L2

 FC10-000104A CUSHION RUBBER-X Front SUB L2 DECAN L2

 RM04-000171A TAPE-TEFLON_HEAD_CARRIER 1

EP08-001057 ACCESSORY,MOTOR-SERVO-MSME082G2A 2

 MC22-000092 COUPLING 1

 FC09-004585A SERVO CONNECTOR BKT 1 J70530690B

 FC30-001671E PLATE-Y1 PROFILE;A6063S-T5 1 FC30-001671A/ FC30-001671B/ FC30-001671C/

FC30-001671D

 FC29-002665B DOG2_SENSOR_Y 1 FC29-002665A

 FC09-003449B DOG2_BKT 1

 FC29-001212B CUSHION CRASH 1 FC29-001212A

 FC09-003189A BRACKET_SPACER 1

 FC09-003892A BRACKET-ENCODER_HH 4 FC09-003179A

 FC28-000196 LINEAR_SCALE_UNIT_SCANNING_HEAD_LIC219 4 LINEAR SCALE HEAD

FC28-000197 LINEAR_SCALE_UNIT_LIC2107_SCALE_1220MM 4 LINEAR SCALE

 FC30-001829B CONNECT_PLT_L-T 1 FC30-001829A

 FC36-000080A SHEET-COIL_SPACER 2

 EP08-000198 LINEAR-MOTOR 2

 EP19-900114 PHOTO_SENSOR 3

 J70541295A X_LIMIT_SENSOR_PLATE 2

 FC39-001351A X_FRAME 1

 FC15-002046A COVER_CABLE_X 1

 FC36-000074B SHEET_X-LOWER 1

 FC09-003388A CHAIN_Y_SUPPORT 1

 FC30-001674B CONNECT_PLT_R 1 FC30-001674A

 FC07-001225A BLOCK_B-SCREW_CV 1

 FC30-001672D PLATE-Y2 PROFILE;A6063S-T5 1 FC30-001672A/ FC30-001672B/ FC30-001672C

 FC36-000092A SHEET_B-SCREW_CV 1

 FC05-000336A BASE HEAD CARRIER 1

 FC29-002632B DOG_SENSOR_X 1 FC29-002632A

 MC13-900032 LM GUIDE 2

 MC04-900012 SUPPORT_UNIT 1

 FC29-004428A CUSHION_X_FRONT 1 J72541003A

 MC13-000125 BALL SCREW 1

FC29-004430A CUSHION X REAR 1 J72541005B

 MC03-900008 BALL BEARING 1

 FC18-901667 C-RING(SHAFT) 1

 MC04-000039A BRG_HOUSING-X 1 J71541010A

 FC29-001079C SUPPROT B SCREW X 1 FC29-001079B

 HP06-900080 STRAIGHT_FITTING 2

 J70541105A GREASE_NIPPLE_NUT 2

 FC28-900369 GREASE NIPPLE 2

 FC09-001481B BKT CUSHION X 1

 PM02-000794A CUSHION CABLE X 1

 FC09-001771A BKT CABLE CHAIN X 1

 FC09-001485A BKT CUSHION Y 1

 PM02-001450A CUSHION CABLE Y 1

 FC09-003421C BKT CABLE CHAIN Y 1 FC09-003421A/FC09-003421B

 FC09-001662A BKT CABLE X 2

 FC15-002178A COVER CHAIN Y 1

Y Frame Duct

AM03-011096A ASSY,ETC,IMS-Y CABLE DUCT TOTAL 1

 AM03-010753A DRIVER Y DUCT 2

 AM03-010697B ASSY,ELECTRIC-SM511 HDCB PANA ASSY 10 AM03-010697A

 FC15-002060C COVER-COVER DRIVER Y 2 FC15-002060B(~#98)

 FC18-903190 PROFILE MOUNT 4

 CS02-000006 COOLER FAN 2

 FC09-001983A BKT FAN 2

 FC09-003419A BKT AXIS B 2

 FC09-003417A PANLEL CON Y 2

 FC09-003420A BOTTOM DUCT 2

 HP09-000127 MANIFOLD KM11-04-08-10 2

 FC09-003410C Y CABLE DUCT 2 AM03-010752A/ FC09-003410B

 PM02-001450A CUSHION CABLE Y 2

 FC09-001485A BKT CUSHION Y 2

 FC09-001647A BKT SIDE SUB 2

 FC09-003414A BASE DRIVER Y 2

 EP06-000374 SERVO CONTROL-DRIVER 10 EP06-000182

 FC09-003416B BKT DRIVER T 2 FC09-003416A

 AM03-010695A ASSY,BOARD-SM511_HDUB_PANA_ASSY 5

 AM03-010696A ASSY,BOARD-SM511_HDLB_PANA_ASSY 5

 FC30-000801A PLATE AMP Z 5

 FC09-001648A BRACKET-CABLE FIXER 2

 PM02-000794A CUSHION CABLE X 2

 FC09-001481B BKT CUSHION X 2

 FC09-001577B BRACKET-FLAT CABLE CLAMP 2

 HP06-000457 FITTING 1

Y Frame

FC15-002053C COVER_SIDE_CABLE 4 FC15-002053A

 FC29-004382A STOPPER 4 FC10-000046

 FC09-003547B STOPPER_BKT 4 FC09-003547A

 FC39-001344C FRAME_Y1 1 FC39-001344B

 FC28-000196 LINEAR_SCALE_UNIT_SCANNING_HEAD_LIC219 4 LINEAR SCALE HEAD

FC28-000197 LINEAR_SCALE_UNIT_LIC2107_SCALE_1220MM 4 LINEAR SCALE

 FC09-003089A SENSOR_BKT_HOME_Y 2

 EP19-900114 PHOTO_SENSOR 6

 AM03-001073 ASSY,ETC,IMS-TCM-STW-124-T2-1539L-S 6

 FC15-003146A COVER-HH_SCALE_UPPER 2

 MC13-900031 LM_GUIDE-Y 2

 FC09-003088A SENSOR_BKT_HOME_Y_2 2

 FC18-903190 TIE_MOUNT_DIA4 8

 FC39-001345C FRAME_Y2 1 FC39-001345B

 FC09-000877B BRACKET-FD_BOARD_BKT 2 FC09-000877A

 FC29-900610 HEX SUPPORT 18 FC29-900611

 AM03-000819B ASSY,BOARD-FEEDER IO BOARD ASSY 2

 FC29-900609 HEX SUPPORT 8

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 2

 AM03-007102B ASSY,BOARD-SM481 FIX ILL 1 REV1.1

FC11-001001A CARRIER-LIC2107_LINEAR_SCALE_CARRIER 4

FC18-003252A CLAMP-LIC2107_LINEAR_SCALE_CLAMP 2

ANC

J7156087A SHUTTER BRACKET[J7156087A] 1

 HP03-900032 AIR CYLINDER BDAS 10X5-1A-ZC153A2 1

 J7156043B SHUTTER BRACKET[J7156043B] 1

 HP14-900085 SPEED CONTROLLER [SS4-M5MA] 2

 AM03-001543A CABLE ASSY-ANC_SENSOR_CABLE_ASSY 1

 FC09-004601A CYLINDER_BRACKET J70561001A 1 J70561001A

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 HP14-900088 SPEED CONTROLLER[AS1211F-M5-04] 1

 HP06-900255 STRAIGHT FITTING KQ2H04-M5 1

 HP03-900054 AIR_CYLINDER 1

 J71561001B ANC_PLATE 1 ST FRONT, ST REAR, DUAL FRONT

FC30-002002A PLATE-ANC_DECAN 1 DUAL REAR, SINGLE FRONT

 J71561002B ANC_NOZZLE_SHUTTER 1 ST FRONT, ST REAR, DUAL FRONT

FC14-000729A NOZZLE-SHUTTER_ANC_DECAN 1 DUAL REAR, SINGLE FRONT

J71561036A NOZZLE_SHUTTER_SMALL_PIN 1 SINGLE REAR

 J71561003B ANC_MAIN_BODY 1 ST FRONT, ST REAR, DUAL FRONT

FC39-001625A BODY-ANC_DECAN 1 DUAL REAR, SINGLE FRONT

J71561034A MAIN_BODY_SMALL_PIN 1 SINGLE REAR

Cover

AM03-010723A ASSY,COVER-COVER TOTAL SM511 1

 AM03-011036A ASSY,COVER-LOWER FL 511 1

 FC29-900217 SLIDE_LATCH 3

 FC15-002083A DOOR FRONT 1

 FC15-002082A LOWER FL 1

 FC15-002066A LOWER FR 1

 FC15-001147A FB SIDE COVER 4

 FC29-900144 DRAWER_PULL_HD 4

 FC15-002184B INLET FAN COVER 4

 FC15-002183B LFM COVER 2

 J70521088B FB COVER 2

 FC15-002062A SIDE LOWER L 1

 FC15-002061A SIDE LOWER R 1

 AM03-018772A ASSY,COVER-LOWER RR 511 1 AM03-011033A(~#197)

 FC15-002079B LOWER RR 1 FC15-002079A

 FC15-002080A DOOR REAR 2

 AM03-018773A ASSY,COVER-LOWER RL 511 1 AM03-011034A(~#197)

 FC15-002081B LOWER RL 1 FC15-002081A

 FC29-900019 SET_CAP CP-328-B-4-Ivory 4

 AM03-005366A ASSY,CONTROLLER-TEACHING BOX ASSY 2

AM03-018674B ASSY,COVER-KEYBOARD BKT DS 2 AM03-018674A(~#261)

 CD04-900026 MINI_KEYBOARD 2

 FC15-002286C COVER-UPPER R N 2 FC15-002286B

 J91741076A CONV_SUB_IF_BOARD VER 1.0 1

 FC12-900009 MAGNETIC_C-179 4

 J90831139A FRONT AREA SENSOR CABLE ASSY SM33-CV016 1

J90831759A REAR AREA SENSOR CABLE ASSY SM421-CV018 1

 FC09-003935B COVER INNER BKT F 2 FC09-003935A

 EP02-001746A HARNESS-V1+ BLUE TOWER LAMP CABLE ASSY 2

AM03-011039A ASSY,COVER-LCD BKT 1

 FC15-002089C LCD BASE 2

 FC15-002090B LCD HINGE 2 FC15-002090A

 FC15-000505B LCD_GUIDE_PL 2

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2

 J7070353A BARCODE_COVER 2

 FC09-003392B BRACKET-LOWER OP PANEL 2 FC09-003392A

 FC39-001575B COVER FRAME FR N 1 FC39-001575A

 J70700352B CONNECTOR BRACKET 2

 AM03-010905C CABLE ASSY-OP_PANEL_ASSY_DECAN 2 AM03-010905B #280~

 EP20-001015 SWITCH,ETC-EMER_YW1B-V4E02R 2 EP07-000581 #280~

 PT03-900161A EMERGENCY STICKER 2

 FC09-003393A BRACKET-OP PANEL 2

 EP20-001012 SWITCH,PUSH-LBW6L-M1T14G_START 2 EP20-000113 #280~

 EP20-001013 SWITCH,PUSH-LBW6L-M1T14R_STOP 2 EP20-000167 #280~

 EP20-001017 SWITCH,PUSH-LBW6L-M1T14S 2 EP20-000127 #280~

 EP20-001016 SWITCH,PUSH-LBW6L-M1T14PW 2 EP20-000114 #280~

EP20-001014 SWITCH,PUSH-LBW6L-M1T24PW 4 EP20-000115 #280~

 FC15-002287B UPPER L N 2 FC15-002287A

FC39-001576B COVER FRAME FL N 1 FC39-001576A

 AM03-011864A ASSY,COVER-ACRYL DOOR ESD N 2

 FC15-002624B COVER-SIDE UPPER T 1 FC15-002624A

 FC15-002282A FRAME TOP SIDE N 2

 FC15-002094A GAS SPRING BKT 4

 FC38-000168 GAS_SPRING_KS2-300-PS1-032 4

 FC29-004382A DOOR CUSHION 4 J73520001B

 FC18-901832 SHOULDER SCREW 4

 FC09-003491A DOOR SWITCH BKT 2

 FC09-003511A DOOR SWITCH BKT 2

 EP20-900137 SAFETY_DOOR_SWTICH 2

 FC15-002098A TOP CENTER 1

 FC15-002177A LOOF FAN UNDER 2

 EP02-001745B HARNESS-V1+ LOOF FAN CABLE ASSY 2

 FC28-000107 FINGER_GUARD_109-719 2

 FC15-002095A TOP SIDE L 1

 EP13-900134 TOWER_LAMP PTE-APV-302-RYG(510) 1

 FC15-002093A TOP SIDE R 1

 FC39-001577B FRAME RR N ASSY 1 FC39-001577A

 FC39-001578B COVER FRAME RL N 1 FC39-001578A

 FC15-002293C ACRYL ESD 2 FC15-002293A/ FC15-002293B

 FC29-900019 SET_CAP CP-328-B-4-Ivory 1

 EP20-900156 DOOR_KEY 2

 FC29-000007 CAP-PULL;AP-268-2-BLACK,PL15:ABS 2

 J70521087A WINDOW_HINGE 4

 AM03-012012A ACRYL DOOR STD 2

 FC15-002285B COVER-SIDE UPPER N 1 FC15-002285A

 FC15-002625A COVER-DOOR SIDE T 1

 FC18-901051 NYLON NUT[M8] 1

 FC18-900485 HEX CAP SCREW[M8 X 55L] 1

EP05-000463 ADAPTOR,CONNECTOR-IDEC SWITCH CONNECTOR 6

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 1

CD04-001004 COMPUTER MOUSE-20-1EI06S502;OPTICAL MOUSE 1

 FC15-002156A COVER-LCD BASE 45 1 SPECIAL OPTION

 FC15-002154A COVER-M SUB BKT 45 D 1 SPECIAL OPTION

 AM03-013511A ASSY,COVER-SAFETY EXT-CV 1

 FC29-900195 HINGE KH-65-4(SATELITE) 3

 FC15-002787A COVER-ACRYL DOOR EXT-CV 1

 FC29-900169 HANDLE_BOLT KA-188N-1 2

 FC10-000068 CUSHION,RUBBER-KD-80-F 4

 FC15-002794A COVER-SIDE R EXT-CV 1

 FC15-002796A COVER-MIDDLE EXT-CV 2

 FC15-002786A COVER-TOP EXT-CV 1

 FC15-002795A COVER-BOTTOM EXT-CV 1

 TO04-001377A JIG-DOOR CLAMPING 2

 FC15-002788A COVER-SIDE L EXT-CV 1

 FC09-003569B BRACKET-COVER INNER BKT 2 FC09-003569A

Air

AM03-010745A FILTER_ASSY 1

 HP04-000179 MIST SEPERATOR 1

 HP04-000178 FILTER 1

 HP06-900211 SQV12-03S 1

 HP06-900187 SQH10-02S 1

 HP06-900014 KQ2L06-01 1

 HP06-900018 KQ2U06-00 1

 FC14-900724 PT 1/8 1

 HP14-900026 K180-4E1-21-DC24V 1

 HP14-900092 AKH06-00 1

 HP06-900271 BUYD06-04 1

 HP09-900163 AN101-01 1

 HP14-900026 K180-4E1-21-DC24V 1

 HP06-900048 KQ2L06-M5 1

 HP06-900027 KQ2L04-M5 1

 HP06-900293 PT18EF 1

 HP06-900299 KD-M5-SA34697KR 1

 J9057172B DOCKING BLOCK ASSY(RIGHT) 1

 HP06-900300 KS-4-M5-SA34698KR 1

 J9057180A DOCKING CART ASSY 1

 HP14-900090 ASP330F-01-06S 1

 HP06-900027 KQ2L04-M5 1

 J9057168B DOCKING BLOCK ASSY(LEFT) 1

 HP14-900089 AS2201F-01-06S 1

 J6711019A KQ2U06-00 1

HP06-900282 KQ2R06-08 4

 FC14-900644 PLUG KQ2P-08 3

 HP06-000226 FITTING KQ2R10-12 1

 FC14-900641 PLUG KQ2P-10 1

HP09-000150 SPABT-P10-R18-2N-K1-SA 1

 HP06-900056 KQ2L04-01 1

 HP06-900026 KQ2L12-04 1

 HP06-000278 FITTING_QS-E-M5-4-I-C 1

 HP06-900043 FITTING KQ2F04-01 1

 TE07-900096 METER GZ46-K-01-C1 1

 HP09-900112 TAR4000-04 1

 HP06-900026 KQ2L12-04 1

 HP06-900195 SQU06-00-W 1

 HP09-900123 AR08-T2-DOMO-J346A 1

 HP06-900271 BUYD06-04 1

 HP06-900027 KQ2L04-M5 1

FC14-900725 PLUG 3/8 2

 HP06-900202 SQL10-03S 1

 HP14-900045 VP544-5DZ-03A 1

 HP06-900204 SQL10-02S 1

 HP11-000058 P6010-AK-01-LA52SG 1

 FC28-000105 STRAIGHT NIPPLE 1

 AM03-000173 ELBOW NIPPLE 1

 HP11-000193 VACUUM PUMP 1

 HP06-000250 KQ2VT12-03AS 1

 HP06-000234 KQ2R08-12 1

 HP06-900046 KQ2R04-08 1

 HP03-900044 CQ2B6-2-CJK2341 1

 HP09-900110 AR1000-M5BG 1

 FC14-900640 KPT18 1

 HP03-001008 AQ2A12-30D 1 HP03-900009

 HP06-900263 M-5H-4 1

 AM02-900001 M-5HLH-4 1

 HP14-000725 SY3120-5LZ-CJ1Z1876 1

 HP03-900015 WTS10*30-RS2 1

 HP14-900083 JNC4-M5 1

 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047

 J90561001A BDAS6X5-1A-ZC153A2 1

 HP14-900085 3-SS4-M5MA 1

 HP03-900053 TPC1B16-30 1

 HP03-900040 CM2C32-50 1

 2-HP06-900056 KQ2L04-01 1

 HP14-900088 AS1211F-M5-04 1

 HP06-900264 KQ2L08-01AS 1

 HP09-900158 AN101-01 1

HP06-000235 KQ2U12-00 1

 HP06-000234 KQ2R08-12 1

 HP09-000127 KM11-04-08-10 1

 HP13-000037A UML-412 1

 HP06-900089 KQ2H04-06 1

Electric Power

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1

 AM03-010913A CABLE ASSY-REAR_ELEC_PANEL_EARTH 1

 AM03-010914C CABLE ASSY-MCCB NF1 EARTH 1

 AM03-010916A CABLE ASSY-NF1_MAIN_SWITCH 1

 AM03-010915A CABLE ASSY-EARTH_HEAD1 1

 AM03-010912A CABLE ASSY-EARTH_HEAD2 1

 AM03-010917B CABLE ASSY-MAIN_SWITCH_TRANS 1

 AM03-010918B CABLE ASSY-TRANS_CP1,2,3 1

 AM03-005482A CABLE ASSY-CP1_TB1_MC1 1

 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 1

 AM03-010925A CABLE ASSY-CP3_MC2_INPUT_220V 1

 AM03-005483A CABLE ASSY-CP2_TB1_MC2_CABLE 1

AM03-005497A CABLE ASSY-TB1_MC1 1

 AM03-005496A CABLE ASSY-BELT_DRV_PW 1

 AM03-005499A CABLE ASSY-PS1_2_DC_POWER_BD 1

 AM03-010080A CABLE ASSY-SHUTTLE_WIDTH_PW 1

 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 1

 AM03-010931A CABLE ASSY-MC1_PS3_PS4_PW_T6L 1

 AM03-010935A CABLE ASSY-FZ1_FZ10_DC24V_PW 1

 AM03-010936A CABLE ASSY-RZ1_RZ10_DC24V_PW 1

AM03-005490A CABLE ASSY-MC1_TB1 1

 AM03-014723A CABLE ASSY-FX,FS SERVO POWER 1 AM03-005491A

 AM03-014724A CABLE ASSY-RX,RS SERVO POWER 1 AM03-005492A

 AM03-005493A CABLE ASSY-FY1_FY2_SERVO_POWER 1

 AM03-005494A CABLE ASSY-RY1_RY2_SERVO_POWER 1

AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 3

 AM03-011274A CABLE ASSY-RELAY_BRK_MODULE_AC_DC 3

 AM03-010921A CABLE ASSY-FRONT_MONITOR_PW 1

 AM03-010922A CABLE ASSY-REAR_MONITOR_PW 1

 AM03-011247A CABLE ASSY-FAN_POWER 1

 J90833316A FAN_CABLE_ASSY SM-FAN00 1

 J90831088B SERVO_FAN_FG_CABLE_ASSY 1

 AM03-011278A CABLE ASSY-SERVO_REAR_FAN_POWER 1

AM03-005487A CABLE ASSY-TB1_FS1_FS2 1

 AM03-010944A CABLE ASSY-PS1_PS2_PS5_PS6_PW_T5L 1

 AM03-010928A CABLE ASSY-PS5_PS6_PW_T5 1

 AM03-010929A CABLE ASSY-PS5_PS6_PW_T7 1

 AM03-010932A CABLE ASSY-TB1_PS1_PS2_PW_T5L 1

 AM03-010930A CABLE ASSY-PS5_PS6_DC24V_PWR 1

 AM03-010946A CABLE ASSY-RY3_RY5_T7L 2

 AM03-010938A CABLE ASSY-PS1_PS2_SACO_T6L 1

 AM03-010933A CABLE ASSY-PS1_1_DC_POWER_BD 1

 AM03-010934A CABLE ASSY-PS1_2_DC_POWER_BD 1

 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 1

AM03-014909A CABLE ASSY-MC_INPUT_220V 1 AM03-005509A

 AM03-014907A CABLE ASSY-PUMP_PWR_ALARM-EXT 1 AM03-005701A

 AM03-010940A CABLE ASSY-VACUUM_PWR 1

 AM03-014851A CABLE ASSY-SK 1 AM03-005510A

 AM03-014906A CABLE ASSY-VACUUM_PUMP_PWR_EXT 1 AM03-005767A

 AM03-014905A CABLE ASSY-VACUUM_PUMP_220V 1 AM03-005511A/ AM03-005511B

 AM03-005700A CABLE ASSY-PUMP_PWR_ALARM 1

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1

AM03-010930A CABLE ASSY-PS5_PS6_DC24V_PWR 2

 AM03-010946A CABLE ASSY-RY3_RY5_T7L 2

 AM03-010938A CABLE ASSY-PS1_PS2_SACO_T6L 2

 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 2

 AM03-011270A CABLE ASSY-GENERAL_PW_RELAY 1

 AM03-011272A CABLE ASSY-FEEDER_PW_RELAY 1

 AM03-011273A CABLE ASSY-RELAY_BRK_MODULE_DC 4

 AM03-005463A CABLE ASSY-24V POWER EXT 1

 AM03-900148 RELAY_CONNECT_CABLE_ASSY SM41-PW034 1

 AM03-011274A CABLE ASSY-RELAY_BRK_MODULE_AC_DC 2

 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 2

 AM03-005697A CABLE ASSY-AC RELAY JUMPER 1

 AM03-011267A CABLE ASSY-F_R_RIGHT_FEEDER_BASE_PWR 1

 AM03-011268A CABLE ASSY-F_R_LEFT_FEEDER_BASE_PWR 1

 AM03-011269A CABLE ASSY-F_R_FDR_PWR_RELAY 1

 EP02-000588A HARNESS,WIRING-FEEDER CN7 EXT CABLE ASSY 2

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 2

AM03-010930A CABLE ASSY-PS5_PS6_DC24V_PWR 2

 AM03-010946A CABLE ASSY-RY3_RY5_T7L 1

 AM03-011656A CABLE ASSY-RELAY BRK MODULE AC_DC-DC 3

 AM03-010938A CABLE ASSY-PS1_PS2_SACO_T6L 2

 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 2

 AM03-011270A CABLE ASSY-GENERAL_PW_RELAY 1

 AM03-011272A CABLE ASSY-FEEDER_PW_RELAY 1

 AM03-011657A CABLE ASSY-RELAY BRK MODULE DC-DC 1

 AM03-900148 RELAY_CONNECT_CABLE_ASSY SM41-PW034 1

 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 2

 AM03-011658A CABLE ASSY-F FDR BASE PWR DC 1

 AM03-011655A CABLE ASSY-RY7_RY9 T7L DC 1

 AM03-011659A CABLE ASSY-R FDR BASE PWR DC 1

AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 3

 AM03-011656A CABLE ASSY-RELAY BRK MODULE AC_DC-DC 2

Camera IO Board

AM03-010965B CABLE ASSY-VISION_IF_BD_POWER 1

 AM03-010975B CABLE ASSY-NEXTEYE_B/D_I/F_MAGA 1

 AM03-010976B CABLE ASSY-NEXTEYE_B/D2_ I/F_MAGA 1

AM03-010970A CABLE ASSY-HD1_FLY_CAM_PW_SYNC 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 2 AM03-010516C

 AM03-005548D CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A/ AM03-005548B/ AM03-005548C

 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 1 AM03-005553A

 AM03-010973A CABLE ASSY-HEAD1_FLY_CAM_SIG 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 2 AM03-010515C/ AM03-010515D

 AM03-005551B CABLE ASSY-FLY CAM SIG EXT 1 AM03-005551A

 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 1 AM03-005553A

 AM03-010966A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA1 1

 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B

 AM03-010967A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA2 1

 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B

AM03-013439A CABLE ASSY-SM511 FLAT 2 2 AM03-010516C

 AM03-005548B CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A

 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 2 AM03-005553A

 AM03-013438A CABLE ASSY-SM511 FLAT 1 2 AM03-010515C/ AM03-010515D

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1

 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 2 AM03-005543B

 AM03-010967A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA2 1

AM03-010966A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA1 1

 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B

 AM03-010967A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA2 1

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1

AM03-010971B CABLE ASSY-HEAD2_FLY_CAM_PWR/SYNC 1

 AM03-005548B CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A

 AM03-010974B CABLE ASSY-HEAD2_FLY_CAM_SIG 1

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1

 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 1 AM03-005553A

AM03-012901A CABLE ASSY-HEAD2_FIDUCIAL_CAMERA 1

 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1

Front Feeder Board Interface

AM03-010866B CABLE ASSY-FRONT FDR CTRL PWR_J1L 1

 AM03-010867A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1

 AM03-010789B CABLE ASSY-FFDR-CVIF_CAN_J9L 1

 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1

 AM03-010788B CABLE ASSY-FFDR-CVIF_CAN_J4R 1

 AM03-010786B CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L 1

 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1

 AM03-010785B CABLE ASSY-BD_2_FFD_CAN_J3R 1

J9080857B FDR INPUT EXT CABLE ASSY, D-CART[SM_FD01 1

 J9080854C LEFT FDR SENOR INPUT CABLE ASSY, D-CART[ 1

 J9080855B RIGHT FDR SENOR INPUT CABLE ASSY, D-CART 1

 AM03-000764A CABLE ASSY-SM-FD022 1

 AM03-010871A CABLE ASSY-DEVICE_NET 2

 AM03-000765A CABLE ASSY-SM-FD023 1

J9080852D LEFT FDR SOL OUTPUT CABLE ASSY, D-CART[S 1

 AM03-001739A CABLE ASSY-FEEDER CN7 EXT CABLE ASSY 1

 AM03-011269A CABLE ASSY-F_R_FDR_PWR_RELAY 1

 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 1

 J9080853B RIGHT FDR SOL OUTPUT CABLE ASSY, D-CART 1

Rear Feeder Board Interface

AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1

 AM03-011245A CABLE ASSY-CV_RDF_PWR_EXT 1

 AM03-010792B CABLE ASSY-RFDR-REAR_FLAT_CAN_J4R 1

 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1

 AM03-010793C CABLE ASSY-RFDR-REAR_FLAT_CAN_J9L 1 AM03-010793B

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010787B CABLE ASSY-AXIO_BD_3_RFD_CAN_J3R 1

 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1

 AM03-010790C CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L 1 AM03-010790B

J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 1

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1

 AM03-000698A CABLE ASSY-FEEDER BASE BOARD CABLE ASSY 1

 AM03-010871A CABLE ASSY-DEVICE_NET 2

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1

 AM03-000697A CABLE ASSY-FEEDER BASE BOARD CABLE ASSY 1

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1

 EP02-000588A HARNESS,WIRING-FEEDER CN7 EXT CABLE ASSY 1

 AM03-011269A CABLE ASSY-F_R_FDR_PWR_RELAY 1

 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1

Fix Camera Interface

AM03-012043A CABLE ASSY-HEAD2 FID CAMERA EXT 2

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515/ CAM03-010515D

 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B

 AM03-010969B CABLE ASSY-HEAD2_FIDUCIAL_CAMERA2 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-005544C CABLE ASSY-FLAT_FID_CAMERA_2 1 AM03-005544B

AM03-012487A CABLE ASSY-NEXTEYE BD2 IF MEGA 1

 AM03-012398B CABLE ASSY-FIX 1-2 CAMERA 1 AM03-012398A

AM03-012005A CABLE ASSY-FIX ILL POWER 1

 AM03-012471A CABLE ASSY-AXIO1 FIX_ILL CAN 1

 AM03-012007A CABLE ASSY-FIX ILL IF EXT 1

 AM03-012008A CABLE ASSY-FIX ILL IF 1

Conveyor Sensor Board

AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 1

 AM03-011607A CABLE ASSY-CONVEYOR_SOL 1

 AM03-011145B CABLE ASSY-F_DUMP_BOX_SWITCH 1

 AM03-011144B CABLE ASSY-STOPPER_SENSOR_EXT 1

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1

 J90831196C BUT_SENSOR_CABLE_ASSY 1

 AM03-010797A CABLE ASSY-WIDTH_WORK_1_2_HOME_SEN 1

 AM03-010801B CABLE ASSY-CONV_LEFT_IF_BD 1

 AM03-010802A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1

AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 1

 AM03-011607A CABLE ASSY-CONVEYOR_SOL 1

 AM03-011146B CABLE ASSY-R_DUMP_BOX_SWITCH 1

 AM03-011144B CABLE ASSY-STOPPER_SENSOR_EXT 1

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1

 J90831196C BUT_SENSOR_CABLE_ASSY 1

 AM03-010797A CABLE ASSY-WIDTH_WORK_1_2_HOME_SEN 1

 AM03-010813B CABLE ASSY-CONV_RIGHT_IF_BD 1

AM03-010816B CABLE ASSY-IN_CONV_32P_MODULE_A 1

 AM03-010817B CABLE ASSY-IN_CONV_32P_MODULE_B 1 AM03-010817A

 AM03-019721A CABLE ASSY-IN_CONV_F_PCB_SEN_IN_WAIT 1

AM03-010825B CABLE ASSY-EXIT_CONV_32P_MODULE_A 1

 AM03-010826A CABLE ASSY-EXIT_CONV_32P_MODULE_B 1

 AM03-019721A CABLE ASSY-EXIT_CONV_PCB_SEN 1

Conveyor IF Board

AM03-010844B CABLE ASSY-INLINE_IN-OUT_CVIF 1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1

 AM03-010845A CABLE ASSY-REAR_SMEMA_EXT 1

 AM03-010846A CABLE ASSY-INLINE_NEXT_PRE 1

 AM03-010842B CABLE ASSY-TOWER_LAMP_J4R 1

 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1

 AM03-010843B CABLE ASSY-TOWER_LAMP_J9L 1

AM03-010844B CABLE ASSY-INLINE_IN-OUT_CVIF 1

 AM03-010847A CABLE ASSY-ANC_SENSOR_FRONT_EXT 1

 AM03-010849B CABLE ASSY-ANC_SENSOR_REAR_EXT 1 AM03-010849A

 AM03-010856B CABLE ASSY-CRASH_SENSOR_I-F 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 J90831151C CRASH_SENSOR_CABLE_ASSY 1

 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1

AM03-010851B CABLE ASSY-F_AREA_SENSOR_J5R 1

 AM03-010805B CABLE ASSY-FR_ANC_SOL R_ERROR_LAMP 1

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1

 AM03-010858A CABLE ASSY-AX_X2_F_AREA_SNS_J5R-J10L 1

 AM03-010859A CABLE ASSY-R_AREA_AIR_SNS_SUB_J6R-J11L 1

 J90831141A REAR_AREA_SENSOR_CABLE_ASSY SM33-CV018 1

 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1

 AM03-011606A CABLE ASSY-R_ANC_SOL-EXT2 1

 AM03-010808B CABLE ASSY-EXIT_STOP_SOL2 1

 AM03-010852B CABLE ASSY-F_AREA_SENSOR_J10L 1

 AM03-010853B CABLE ASSY-REAR_AREA_SENSOR_J11R 1

 AM03-010806B CABLE ASSY-R_ANC_SOL-EXT1 1

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1

 J90831141A REAR_AREA_SENSOR_CABLE_ASSY SM33-CV018 1

 AM03-011605A CABLE ASSY-F_ANC_SOL-EXT 1

 AM03-010807B CABLE ASSY-IN_STOP_SOL2 1 AM03-010807A

AM03-010836B CABLE ASSY-CONV. S/W OUTPUT 1

 AM03-010788B CABLE ASSY-FFDR-CVIF_CAN_J4R 1

 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1

 AM03-010789B CABLE ASSY-FFDR-CVIF_CAN_J9L 1

 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1

 AM03-011245A CABLE ASSY-CV_RDF_PWR_EXT 1

 AM03-010791B CABLE ASSY-CVIF-FRONT_FLAT_CAN 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

AM03-010941A CABLE ASSY-VACUUM_EJECTOR_PWR 1

 AM03-010940A CABLE ASSY-VACUUM_PWR 1

 AM03-010943B CABLE ASSY-PUMP_PWR_ALARM_EXT 1

 AM03-010942C CABLE ASSY-PCB_SENSOR_PUMP_ALARM 1

 AM03-010822C CABLE ASSY-IN_CONV_30P_MODULE_A 1

 AM03-010829B CABLE ASSY-EXIT_CONV_30P_MODULE_A 1

 AM03-010812B CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1

 AM03-011151B CABLE ASSY-IN_CV_30P_MODULE_B_FULL 1

 AM03-011156A CABLE ASSY-EX_CV_30P_MODULE_B_FULL 1

 AM03-019721A CABLE ASSY-IN_F_PCB_SEN_IN_WAIT_FULL 1

 AM03-019721A CABLE ASSY-EX_CV_F_R_PCB_SEN_FULL 1

AM03-012632A CABLE ASSY-AX_CN4_STP_DUMP_BOX_SEN 1

 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1

 J90831401C CONVEYOR_PCB_SENSOR_ASSY 1

 AM03-011145B CABLE ASSY-F_DUMP_BOX_SWITCH 1

 AM03-013054A CABLE ASSY-R_DUMP_BOX_SWITCH 1

AM03-012634A CABLE ASSY-F_AREA_SENSOR_J5R 1

 AM03-012635A CABLE ASSY-R_AREA_SENSOR_J6R 1

 AM03-012631A CABLE ASSY-SINGLE_CONV_SOL 1

AM03-012636A CABLE ASSY-PUMP_ALARM_BUT_SENSOR 1

 AM03-003870B CABLE ASSY-BUT SENSOR EXT 1 AM03-003870A

 AM03-013055A CABLE ASSY-TOWER_LAMP_J4R 1

AM03-011608B CABLE ASSY-F_DOCKING_CART_SNS 1 AM03-011608A

 AM03-011610A CABLE ASSY-FRONT_D-CART_SOL 1

 AM03-011609B CABLE ASSY-R_DOCKING_CART_SNS 1 AM03-011609A

 AM03-011611B CABLE ASSY-REAR_D-CART_SOL 1 AM03-011611A

AM03-011612B CABLE ASSY-FRONT_D-CART_PWR 1 AM03-011612A

Conveyor Sub IF Board

AM03-010850A CABLE ASSY-CONV_SW_INPUT1_2 1

 AM03-010836B CABLE ASSY-CONV. S/W OUTPUT 1

AM03-010952B CABLE ASSY-CONV_SUB_IF 1

 AM03-010953B CABLE ASSY-CONV_SUB_IF_EXT 1

 AM03-010854B CABLE ASSY-AIR_INDICATOR_J6R 1

 AM03-010907B CABLE ASSY-REAR_OP_SW_J6R 1

 AM03-010859A CABLE ASSY-R_AREA_AIR_SNS_SUB_J6R-J11L 1

 AM03-010855B CABLE ASSY-AIR_INDICATOR_11R 1

 AM03-010908B CABLE ASSY-REAR_OP_SW_J11L 1

 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1

 AM03-007638A CABLE ASSY-AIR INDICATOR 1

AM03-010906B CABLE ASSY-FRONT_OP_SW 1

 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1

Head IF Board

AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010959A CABLE ASSY-HEAD1_PWR_EXT 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010791B CABLE ASSY-CVIF-FRONT_FLAT_CAN 1

 AM03-005593D CABLE ASSY-FLY_OUT_1 1 AM03-005593B /AM03-005593C

AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-005587B CABLE ASSY-HEAD_OVER_BLOW_SOL 1 AM03-005587A

 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1

 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1

AM03-005585A CABLE ASSY-HEAD_VACUUM_SOL 1

 AM03-005586A CABLE ASSY-HEAD_BLOW_SOL 1

AM03-005580A CABLE ASSY-Z1-Z5_HOME_SEN 1

 AM03-005581A CABLE ASSY-Z6-Z10_HOME_SEN 1

 AM03-005583A CABLE ASSY-SW_HOME_SENSOR 1

 AM03-005582D CABLE ASSY-R_HOME_SENSOR 1 AM03-005582B ONLY FOR HS HEAD

AM03-007499C CABLE ASSY-R_HOME_SENSOR ONLY FOR FS HEAD

AM03-005588B CABLE ASSY-FID1_COAX 1

 AM03-005589A CABLE ASSY-FID2_COAX 1

 AM03-005590B CABLE ASSY-FLY_SIDE_1 1

 AM03-005598A CABLE ASSY-FLY_COAXIAL 1

AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1

Axis Sensor Board

AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1

 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1

 AM03-010800A CABLE ASSY-AXIS_SNS_BD_CN9_10 1

AM03-010812B CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1

 AM03-010799B CABLE ASSY-AX_BD_X1_MOT_SNS 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-007246B CABLE ASSY-X AXIS SENSOR 2

 AM03-010814A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1

 AM03-010858A CABLE ASSY-AX_X2_F_AREA_SNS_J5R-J10L 1

 AM03-010815B CABLE ASSY-AX_BD_X2_MOT_SNS_J10L 1

AM03-010783A CABLE ASSY-CABLE ASSY-FY_AXIS_SENSOR_EXT 1

 AM03-010782C CABLE ASSY-FY_AXIS_SENSOR 1

 AM03-010784B CABLE ASSY-RY_AXIS_SENSOR 1

 AM03-010813B CABLE ASSY-CONV_RIGHT_IF_BD 1

 AM03-010802A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1

 AM03-010801B CABLE ASSY-CONV_LEFT_IF_BD 1

AM03-010810B CABLE ASSY-FDR_UNLOCK_SEN_J3R 1

 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1

 AM03-010811B CABLE ASSY-FDR_UNLOCK_SEN_J8L 1

 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1

 J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 1

AM03-012633A CABLE ASSY-AX_CN5_WD_HOME_SENSOR 1

 AM03-003868A CABLE ASSY-CONVEYOR SENSOR EXT 2

 J90831401C CONVEYOR_PCB_SENSOR_ASSY 2

 AM03-003577B CABLE ASSY-WD_AXIS_SENSOR_EXT 1

 AM03-012630A CABLE ASSY-CONV_PCB_WD_P_SEN 1

AM03-012628A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1

 AM03-012629A CABLE ASSY-AXIS_SNS_BD_CN9_10 1

Axis IO Board

AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 1

 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 2

 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1

 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1

 AM03-010964C CABLE ASSY-HD2_VAC-BLOW_CTRL 1 AM03-010964B

 AM03-013439A CABLE ASSY-SM511 FLAT 2 2 AM03-010516C

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 2

 AM03-010800A CABLE ASSY-AXIS_SNS_BD_CN9_10 1

AM03-010977A CABLE ASSY-FY1_FY2_DRV_COMMAND 1

 AM03-010903A CABLE ASSY-REGEN_RESISTOR_DRV_1 2

 AM03-010902C CABLE ASSY-REGEN_RESISTOR 2 AM03-010902A/AM03-010902B

 AM03-010879B CABLE ASSY-FY1_MOTOR_PWR 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 2 AM03-010515C/ AM03-010515D

 AM03-010880A CABLE ASSY-FY1_LINEAR_ENC 1

 AM03-010881B CABLE ASSY-FY2_MOTOR_PWR 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 2 AM03-010516C

 AM03-010882A CABLE ASSY-FY2_LINEAR_ENC 1

AM03-010979A CABLE ASSY-FX_FS_DRV_COMMAND 1

 AM03-010903A CABLE ASSY-REGEN_RESISTOR_DRV_1 1

 AM03-010902C CABLE ASSY-REGEN_RESISTOR 2 AM03-010902A/AM03-010902B

 AM03-010875B CABLE ASSY-FX_MOTOR_PWR 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 4 AM03-010515C/ AM03-010515D

 AM03-010876A CABLE ASSY-FX_MOTOR_ENC 1

 AM03-010904A CABLE ASSY-REGEN_RESISTOR_DRV_2 1

 AM03-010887B CABLE ASSY-RY2_LINEAR_ENC 1 AM03-010887A

 AM03-010878A CABLE ASSY-RX_MOTOR_ENC 1

AM03-010979A CABLE ASSY-FX_FS_DRV_COMMAND 1

 AM03-010903A CABLE ASSY-REGEN_RESISTOR_DRV_1 1

 AM03-010902C CABLE ASSY-REGEN_RESISTOR 2 AM03-010902A/AM03-010902B

 AM03-010875B CABLE ASSY-FX_MOTOR_PWR 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 4 AM03-010515C/ AM03-010515D

 AM03-010884B CABLE ASSY-RY1_LINEAR_ENC 1

 AM03-010904A CABLE ASSY-REGEN_RESISTOR_DRV_2 1

 AM03-010877A CABLE ASSY-RX_MOTOR_PWR 1

 AM03-010878A CABLE ASSY-RX_MOTOR_ENC 1

AM03-010983A CABLE ASSY-MS1_WS1_DRV_COMMAN 2

 AM03-010823B CABLE ASSY-IN_CONV_30P_MODULE_B 1

 AM03-010816B CABLE ASSY-IN_CONV_32P_MODULE_A 1

 AM03-010823A CABLE ASSY--IN_CONV_30P_MODULE_B 1

 AM03-010819B CABLE ASSY-IN_CONV_SHUTTLE_MOT_ENC 1

 AM03-010080A CABLE ASSY-SHUTTLE_WIDTH_PW 2

 AM03-010822C CABLE ASSY-IN_CONV_30P_MODULE_A 1

 AM03-010818A CABLE ASSY-IN_CONV_SHUTTLE_MOT_EXT 1

AM03-010984A CABLE ASSY-WW1_MS2_DRV_COMMAND 1

 AM03-010804B CABLE ASSY-WW1_MOT_PW_ENC 2 AM03-010804A

 AM03-011138B CABLE ASSY-WW1_SERVO_MOTOR 2 AM03-011138A

 AM03-010080A CABLE ASSY-SHUTTLE_WIDTH_PW 2

 AM03-011290B CABLE ASSY-WS2_ENC_MS2_WS2_BS2_PW_EXT 1 AM03-011290A

 AM03-010829B CABLE ASSY-EXIT_CONV_30P_MODULE_A 1 AM03-010829A

 AM03-010830B CABLE ASSY-EXIT_CONV_30P_MODULE_B 1 AM03-010830A

 AM03-011289A CABLE ASSY-MS2_ENC_BS2_PWR_EXT 1

 AM03-010825B CABLE ASSY-EXIT_CONV_32P_MODULE_A 1 AM03-010825A

 AM03-010826A CABLE ASSY-EXIT_CONV_32P_MODULE_B 1

 AM03-010827B CABLE ASSY-EXIT_CONV_SHUTTLE_MOT_ENC 1 AM03-010827A

AM03-010985A CABLE ASSY-WS2_WW2_DRV_COMMAND 1

 AM03-011290B CABLE ASSY-WS2_ENC_MS2_WS2_BS2_PW_EXT 1

 AM03-010829B CABLE ASSY-EXIT_CONV_30P_MODULE_A 1

 AM03-010830B CABLE ASSY-EXIT_CONV_30P_MODULE_B 1

 AM03-011290A CABLE ASSY-WS2_ENC_MS2_WS2_BS2_PW_EXT 1

 AM03-010080A CABLE ASSY-SHUTTLE_WIDTH_PW 2

 AM03-010803A CABLE ASSY-WW2_MOT_PW_ENC 2

 AM03-011139C CABLE ASSY-WW2_SERVO_MOTOR 2

AM03-011672A CABLE ASSY-BW12_BS12_DRV_COMMAND 1

 AM03-010816B CABLE ASSY-IN_CONV_32P_MODULE_A 1

 AM03-010817A CABLE ASSY-IN_CONV_32P_MODULE_B 1

 AM03-010821A CABLE ASSY-CONV_BELT_STEP_MOTOR 2

 AM03-010822C CABLE ASSY-IN_CONV_30P_MODULE_A 1

 AM03-010823B CABLE ASSY-IN_CONV_30P_MODULE_B 1

 AM03-005496A CABLE ASSY-BELT_DRV_PW 1

 AM03-010832B CABLE ASSY-BW1-1_MOTOR_EXT 1

 AM03-011140A CABLE ASSY-BELT MOTOR(BW1-1) 1

 AM03-010833B CABLE ASSY-BW1-2_MOT_EXT 1

 AM03-011141A CABLE ASSY-BELT MOTOR(BW1-2) 1

AM03-011673A CABLE ASSY-BW34_BS34_DRV_COMMAND 1

 AM03-011289A CABLE ASSY-MS2_ENC_BS2_PWR_EXT 1

 AM03-010825B CABLE ASSY-EXIT_CONV_32P_MODULE_A 1

 AM03-010826A CABLE ASSY-EXIT_CONV_32P_MODULE_B 1

 AM03-010821A CABLE ASSY-CONV_BELT_STEP_MOTOR 1

 AM03-011289A CABLE ASSY-MS2_ENC_BS2_PWR_EXT 1

 AM03-010829B CABLE ASSY-EXIT_CONV_30P_MODULE_A 1

 AM03-010830B CABLE ASSY-EXIT_CONV_30P_MODULE_B 1

 AM03-010821A CABLE ASSY-CONV_BELT_STEP_MOTOR 1

 AM03-005496A CABLE ASSY-BELT_DRV_PW 1

 AM03-010835B CABLE ASSY-BW2-1,BW2-2_MOT_EXT1 1

 AM03-010834B CABLE ASSY-BW2-1,BW2-1_MOT_EXT2 1

 AM03-011142B CABLE ASSY-BELT MOTOR 1

 AM03-011142B CABLE ASSY-BELT MOTOR 1

AM03-012624A CABLE ASSY-BS12_BW12_CMD_AXIO 1

AM03-012616A CABLE ASSY-CONV_BELT1_MOT_PW_EXT 1

 AM03-003578B CABLE ASSY-CONV_BELT1_MOTOR_PW 1

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1

 AM03-012619A CABLE ASSY-CV_BELT2_MOT_PW_EXT 1

 AM03-003904B CABLE ASSY-CONV_BELT2_MOTOR_PW 1

 J90831440B CONV_BELT2_STEP_MOTOR_ASSY 1

 AM03-012618A CABLE ASSY-WORK_BELT1_MOT_PW_EXT 1

 AM03-003582B CABLE ASSY-WORK_BELT1_MOT_PW 1

 J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1

 AM03-012621A CABLE ASSY-WORK_BELT2_MOT_PW_EXT 1

 AM03-003908B CABLE ASSY-WORK_BELT2_MOT_PW 1

 AM03-001513A WORK_BELT2_STEP_MOTOR_ASSY 1

AM03-012625A CABLE ASSY-BS34_CMD_AXIO 1

AM03-012617A CABLE ASSY-CV_BELT3_MOT_PW_EXT 1

 AM03-003580B WORK_BELT1_STEP_MOTOR_ASSY 1

 J90831430B_AS CONV_BELT3_STEP_MOTOR_ASSY 1

 AM03-012620A CABLE ASSY-CV_BELT4_MOT_PW_EXT 1

 AM03-003906B CABLE ASSY-CV_BELT4_MOT_PW 1

 J90831431B_AS WORK_BELT2_STEP_MOTOR_ASSY 1

AM03-012623A CABLE ASSY-WD_DRV_CMD_AXIO 1

 AM03-012622A CABLE ASSY-SW_WD_SERVO_POWER 1

 AM03-012614A CABLE ASSY-WD_MOTOR_POWER 1

 AM03-012615A CABLE ASSY-WD_MOTOR_ENC 1

AM03-011147B CABLE ASSY-IN_CONV_32P_MODULE_B_FULL 1

 AM03-011244A CABLE ASSY-EX_CV_FULL_DUAL_LONG 1

 AM03-019721A CABLE ASSY-IN_F_PCB_SEN_IN_WAIT_FULL 1

 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 1

AM03-011151B CABLE ASSY-IN_CV_30P_MODULE_B_FULL 1

 AM03-011244A CABLE ASSY-EX_CV_FULL_DUAL_LONG 1

 AM03-019721A CABLE ASSY-IN_F_PCB_SEN_IN_WAIT_FULL 1

 AM03-011150A CONV_BELT3_STEP_MOTOR_ASSY 1

AM03-011153A CABLE ASSY-EX_CV_32P_MODULE_B_FULL 1

 AM03-011244A CABLE ASSY-EX_CV_FULL_DUAL_LONG 1

 AM03-019721A CABLE ASSY-EX_CV_F_R_PCB_SEN_FULL 1

 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 1

AM03-011156B CABLE ASSY-EX_CV_30P_MODULE_B_FULL;1 1

 AM03-011244A CABLE ASSY-EX_CV_FULL_DUAL_LONG 1

 AM03-019721A CABLE ASSY-IN_F_PCB_SEN_IN_WAIT_FULL 1

 AM03-011150A CABLE ASSY-CV_BELT_STEP_MOTOR_FULL 1

Safety Control Board

AM03-010953B CABLE ASSY-CONV_SUB_IF_EXT 1

 AM03-010952B CABLE ASSY-CONV_SUB_IF 1

 AM03-011245A CABLE ASSY-CV_RDF_PWR_EXT 1

 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1

AM03-010961A CABLE ASSY-BD_PW_SC_J1R 1

 AM03-010857C CABLE ASSY-T_BOX_HOST_J1R 1

 AM03-010947B CABLE ASSY-F_OP_PANEL_IF 1

 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1

 AM03-010078A CABLE ASSY-FRONT_REAR_DOOR_SW 1

AM03-010948B CABLE ASSY-R_OP_PANEL_IF 1

 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1

 AM03-010078A CABLE ASSY-FRONT_REAR_DOOR_SW 1

 AM03-010839A CABLE ASSY-SACO_F_TBOX 1

 AM03-010837C CABLE ASSY-FRONT_TEACHING_BOX_EXT 1 AM03-010837B

 AM03-010840B CABLE ASSY-SACO_R_TBOX 1

 AM03-010838C CABLE ASSY-REAR_TEACHING_BOX_EXT 1 AM03-010838B

AM03-010957A CABLE ASSY-FR_STEP_DRV_PWR_EXT 1

 AM03-010954A CABLE ASSY-R_STEP_DRV_PWR 1

 AM03-010959A CABLE ASSY-HEAD1_PWR_EXT 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010949A CABLE ASSY-AXIO_BD_2_PWR 1

AM03-010958C CABLE ASSY-RR_STEP_DRV_PWR_EXT 1

 AM03-010954A CABLE ASSY-R_STEP_DRV_PWR 1

 AM03-010960B CABLE ASSY-HEAD2_PWR_EXT 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

AM03-010951A CABLE ASSY-FRONT_OVERRIDE_KEY_EXT 1

 AM03-010079A CABLE ASSY-SAFEGUARD_OV_SW_KEY 1

 AM03-010867A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1

 AM03-010866B CABLE ASSY-FRONT FDR CTRL PWR_J1L 1

 AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1

 AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 1

 J90831335C MC1-ENABLE-CABLE-ASSY 1

AM03-010950A CABLE ASSY-AXIO_BD_3_PWR 1

AM03-010951A CABLE ASSY-FRONT_OVERRIDE_KEY_EXT 1

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1

 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 1

 AM03-011274B CABLE ASSY-RELAY_BRK_MODULE_AC_DC 1

 AM03-010945A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 2

 AM03-010938A CABLE ASSY-PS1_PS2_SACO_T6L 2

 AM03-011272A CABLE ASSY-FEEDER_PW_RELAY 2

 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 2

 AM03-011270A CABLE ASSY-GENERAL_PW_RELAY 1

AM03-010919C CABLE ASSY-LEFT_REAR_FAN_PW 1

 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 1

 AM03-010920B CABLE ASSY-RIGHT_FRONT_FAN_PW 1

Motor IF Board

AM03-010949A CABLE ASSY-AXIO_BD_2_PWR 1

 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010892A CABLE ASSY-Z1_MOTOR 1

 AM03-010893A CABLE ASSY-Z2_MOTOR 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 1

AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010894A CABLE ASSY-Z3_MOTOR 1

 AM03-010895A CABLE ASSY-Z4_MOTOR 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 1

AM03-011248A CABLE ASSY-Z56_DRV_COMMAND 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010896A CABLE ASSY-Z5_MOTOR 1

 AM03-010897A CABLE ASSY-Z6_MOTOR 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 1

AM03-011249A CABLE ASSY-Z78_DRV_COMMAND 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010898A CABLE ASSY-Z7_MOTOR 1

 AM03-010899A CABLE ASSY-Z8_MOTOR 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 1

AM03-011250A CABLE ASSY-Z910_DRV_COMMAND 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010900A CABLE ASSY-Z9_MOTOR 1

 AM03-010901A CABLE ASSY-Z10_MOTOR 1

AM03-010982A CABLE ASSY-R1_R2_R3_DRV_COMMAND 5

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-005618A CABLE ASSY-R1_MOTOR 1

 AM03-005619A CABLE ASSY-R2_MOTOR 1

 AM03-005620A CABLE ASSY-R3_MOTOR 1

 AM03-005621A CABLE ASSY-R4_MOTOR 1

 AM03-005622A CABLE ASSY-R5_MOTOR 1

AM03-014691A CABLE ASSY-FSW_DRV_COMMAND 1 AM03-010980A

 AM03-014689A CABLE ASSY-FRON_MONITOR_PW 1 AM03-010888B

 AM03-010889A CABLE ASSY-FSW_MOTOR_ENC 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-005622A CABLE ASSY-R5_MOTOR 1

AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010785B CABLE ASSY-BD_2_FFD_CAN_J3R 1

 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1

 AM03-010786B CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L 1

AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1

 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1

AM03-010950A CABLE ASSY-AXIO_BD_3_PWR 1

 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010892A CABLE ASSY-Z1_MOTOR 1

 AM03-010893A CABLE ASSY-Z2_MOTOR 1

AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515/ CAM03-010515D

 AM03-010894A CABLE ASSY-Z3_MOTOR 1

 AM03-010895A CABLE ASSY-Z4_MOTOR 1

AM03-011248A CABLE ASSY-Z56_DRV_COMMAND 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010896A CABLE ASSY-Z5_MOTOR 1

 AM03-010897A CABLE ASSY-Z6_MOTOR 1

AM03-011249A CABLE ASSY-Z78_DRV_COMMAND 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010898A CABLE ASSY-Z7_MOTOR 1

 AM03-010899A CABLE ASSY-Z8_MOTOR 1

AM03-011250A CABLE ASSY-Z910_DRV_COMMAND 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010900A CABLE ASSY-Z9_MOTOR 1

 AM03-010901A CABLE ASSY-Z10_MOTOR 1

AM03-010982A CABLE ASSY-R1_R2_R3_DRV_COMMAND 5

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-005618A CABLE ASSY-R1_MOTOR 1

 AM03-005619A CABLE ASSY-R2_MOTOR 1

 AM03-005620A CABLE ASSY-R3_MOTOR 1

 AM03-005621A CABLE ASSY-R4_MOTOR 1

 AM03-005622A CABLE ASSY-R5_MOTOR 1

AM03-014690A CABLE ASSY-RSW_DRV_COMMAND 5 AM03-010981A

 AM03-014687A CABLE ASSY-RSW_MOTOR_PWR 1 AM03-010890B

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-005611A CABLE ASSY-SWING MOTOR 1

 AM03-010891A CABLE ASSY-RSW_MOTOR_ENC 1

AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010790C CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L 1 AM03-010790B

 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1

 AM03-010787B CABLE ASSY-AXIO_BD_3_RFD_CAN_J3R 1

AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1

 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D

 AM03-010964B CABLE ASSY-HD2_VAC-BLOW_CTRL 1

 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C

 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1

 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1

PC Rack Board

AM03-010873A CABLE ASSY-F_MONITOR 1

 AM03-010874A CABLE ASSY-R_MONITOR 1

 AM03-000084 CABLE ASSY-USB(M)toMINIUSB(M)1.8M(LV.PD 1

 AM03-005519A CABLE ASSY-USB_HUB_ADAPTOR 1

 AM03-010911A CABLE ASSY-FRONT_USB 1

 AM03-011257A CABLE ASSY-REAR_USB 1

AM03-010986B CABLE ASSY-LAN_RACK 1

 AM03-010987A CABLE ASSY-LAN_EXT 1

 AM03-010909A CABLE ASSY-RS232_SERIAL 1

 AM03-010910B CABLE ASSY-RS232_SERIAL-EXT 1

 AM03-011246B CABLE ASSY-SCANNER_RS232 1 AM03-011246A

 AM03-010868A CABLE ASSY-FRONT_REAR BARCODE 1

AM03-012484A CABLE ASSY-TRAY FEEDER COM 1

 AM03-003686A CABLE ASSY-1_TRAY_FEEDER_EXT 1

 AM03-003689A CABLE ASSY-2_TRAY_FEEDER_EXT 1

 AM03-012401A CABLE ASSY-RACK FAN ALARM 1

 AM03-010848C CABLE ASSY-ANC SNS_LOOF FAN_RACK FAN EXT 1

AM03-011613A CABLE ASSY-REAR_D-CART_PWR 1

 AM03-010872A CABLE ASSY-DEVICE_NET_POWER 1

Articles of Consumption

AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 3 Years

 HP04-000178 FILTER-PF3-03D 3 Years

HP04-000103A FILTER-ELEMENT [PF3-24-005-01] 3 Years

 HP04-000179 FILTER,OIL-PFH3-03D 3 Years

HP04-001045A FILTER,OIL-ELEMENT[PFH3000-005A-6081] 3 Years

 HP11-000193 PUMP-KHF-14-V-01 6 Month

 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years

 EP02-001745B HARNESS-V1+ LOOF FAN CABLE ASSY 3 Years

 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years

 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years

 EP10-900438 FUSE[250V 5A] Breakdown

 EP10-900439 FUSE[250V 10A] Breakdown

 MC05-000254 BELT-MAM-5P-860-7W Inspect and replace (6 Months)

 MC05-900130 FLAT BELT-WORK_FIX_750 Inspect and replace (6 Months)

 MC05-000261 BELT-MAM-5P-1760-7W;MAM-5P,1760,7,1.2 Inspect and replace (6 Months)

 TE07-900010 CONV_WORK_BELT_2 MAM-5P-1065-7W Inspect and replace (6 Months)

 MC05-000068A BELT_SHUTTLE_945 Inspect and replace (6 Months)

 MC05-000234 BELT_SHUTTLE_1504 Inspect and replace (6 Months)

 MC05-900057 BELT_WORK MAM-5P-1550-6W Inspect and replace (6 Months)

 J7055140A STEEL BALL [DIA2, SUS304] 1 Years

 J72550021C SILICON TUBE(BLACK) 1 Years

 HP04-900036 SUCTION_FILTER VYF44-M-50M 3 Month

 CM01-900473 TRI-FLOW [59ML] CLEANER-A/S;OIL,PLASTIC BOTTLE,59ML

 CM02-000092 GREASE-FLOIL G-145K

 HP09-000258 SUPPLY,OIL-GREASE-GUN_MG70_THK

 CM02-900022 GREASE ALVANIA_EP2

 CM02-000083 GREASE-GREASE_AFE-CA+70_THK;SYNTHETIC

 CM02-000084 GREASE-GREASE_AFE-CA+400_THK;OIL

J90551006A NOZZLE_CN020_ASSY 1

 J9055133C NOZZLE CN030 ASSY 1

 J9055134C NOZZLE CN040 ASSY 1

 J9055136C NOZZLE CN065 ASSY 1

 J9055159B NOZZLE CN140 ASSY 1

 J9055351A NOZZLE CN220 ASSY(CERAMIC) 1

 J90551072A NOZZLE_CN400_ASSY 1

 TO04-001051A SM511 HEAD PIN HEIGHT_MASTER JIG 1

 J90551240A CALIBRATION_PLATE_ASSY 1
