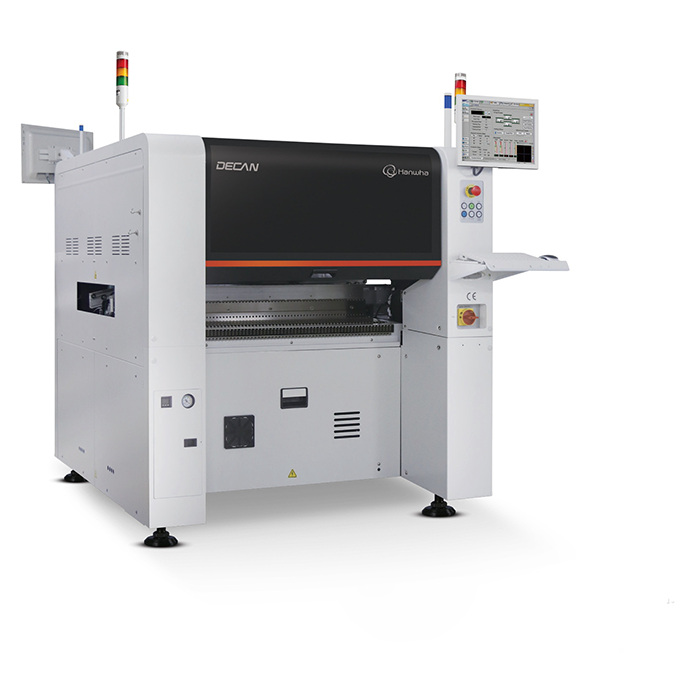

Multi-Functional Placer Decan S1 Part

Feeder Base – Standard

FC09-001200E BRACKET-TOP-PLATE-BACK-HOLE 1

 FC09-000901E BRACKET-TOP_PLATE_S 1

 FC15-003249A COVER-FB_COVER_FR 1

 FC05-000122C BASE-FEEDER_BASE_BODY2 1

 FC07-000033D BLOCK-VERTICAL LOCATOR 1

 J70570262C CAP-TOP PLATE 5

 AM03-004577B ASSY,FEEDER BASE-FEEDER_BASE_MODULE_S 1

 PT03-900217A HANDLE_NUMBER_STICKER 1

 HP06-900027 FITTING 6

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 FC15-003011A COVER-F-BASE_SIDE_CABLE 2

 FC18-902851 SOCKET SET SCREW [M8*10 (SUS)] 14

 FC14-002115 COUPLER-COUPLER_FEEDER BASE 60

 AM03-000694B ASSY,BOARD-FBLN 1

 AM03-000693B ASSY,BOARD-FBRN 1

 FC15-001147B COVER-FB SIDE COVER;COVER 4

Stage CAM Ass’y

AM03-027380A ASSY,OPTICS-STAGE_FOV45_2M_CAMERA 1

 FC05-000502A BASE-CAMERA_SUPPORT 1

 AM03-027512A CABLE ASSY-D-R_DUMP_BOX_SWITCH_1 1

 FC09-009581A BRACKET-BRACKET-DUMP_BKT 1

 FC09-009497A BRACKET-DUMP_BOX 1

 J73531004A L_DUMP_BOX_ABSORBER 1

Docking Cart – Option

AM03-006344A ASSY,FEEDER BASE-NEW_DOCKING_CART 1

 FC30-001080A PLATE-TOP PLATE B DCN 1

 PT03-900217A HANDLE_NUMBER_STICKER 1

 FC30-001081A PLATE-TOP PLATE S DCN 1

 J7257009A CUSHION-Y 2

 CM03-001014A POLYURETHANE-URETHAN 2

 J70570262C CAP-TOP PLATE 5

 FC09-002060A BRACKET-SME_DC_BKT 1

 HP15-900008 BALL PLUNGERS 2

 J7057237C ANTI-PITCH ARM 2

 J7057238B ANTI-PITCH PIN 2

 HP06-900027 FITTING 2

 J7057239B CABLE HOLDER 2

 J90600353B FEEDERBASE_LEFT_COVER_PCB 1

 J90571009A FEEDER_BASE_MODULE 1

 FC14-002115 COUPLER_FEEDER BASE 60

 AM03-006346A ASSY,BOARD-FBRD 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB 1

 AM03-006345A ASSY,BOARD-FBLD 1

J70571021A NEW_BOARD_COVER 1

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J74601002A FEEDER_IO_EXT_INSULATION_PCB 1

 FC29-900616 HEX_SUPPORT 10

 AM03-015857F ASSY,BOARD-FEEDER IO VER 2.0 1 AM03-000819E

 J74601001A FEEDER_IO_INSULATION_PCB 1

 MC14-900027 SWIVEL_CASTER 2

 PT03-002476A STICKER-DC_SOL_VALVE 1

 FC15-001209A COVER-LOWER COVER DCN 2

 J70571019B CASTER_HOUSING_PL 2

 MC14-900015 URETAN WHEEL 8

 FC18-004383A PIN,HINGE 8

 MC14-900026 SWIVEL_CASTER 2

 J7057255A SIDE CABLE COVER-R 1

 J70570252C CART GRIP 2

 J37041001A RELAY_SOCKET 2

 EP18-000038 RELAY 2

 J7057256A SIDE CABLE COVER-L 1

 J70571022A NEW_CROSS-FRAME 1

 FC30-005434A PLATE-SUPPORT_ARM-L 1 LEFT

FC30-005433A PLATE-SUPPORT_ARM-R 1 RIGHT

 J7057229A CABLE CLIP 2

 FC29-001286 GUIDE-D-CART_VERTICAL_GUIDE 2

 EP18-900002 RELAY SOCKET 1

 FC38-900012 COIL SPRING 2

 EP18-900015 RELAY 1

 J7257008B CUSHION-Z 2

 FC05-000206B BASE-BOARD PLANE DCN 1

 FC18-004380A NUT-V-LOCK-ADJUST_NUT 2

 FC29-001128 COLLAR 1

 FC39-000945B FRAME-SIDE FRAME DCN 2

AM03-001738E CABLE ASSY-D-CART INNER IF CABLE ASSY 1

AM03-006535B CABLE ASSY-ND-CART DSUB EXT CABLE ASSY 1 AM03-006535A

AM03-006455B CABLE ASSY-ND_CART RY1 EXT CABLE ASSY 1

AM03-003463B CABLE ASSY-FEEDER DC RELAY CABLE ASSY 1

AM03-001740B CABLE ASSY-RELAY PWR CABLE ASSY 1

AM03-001745C CABLE ASSY-D-CART PWR_CAN CABLE ASSY 1

AM03-001748D CABLE ASSY-D-CART DEVICENET CABLE ASSY 1

J37041002A RELAY_HOLD_DOWN_CLIPS 3

AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1

 HP06-900049 STRAIGHT FITTING 1

 HP06-900299 COUPLER 1

 HP14-900089 SPEED CON 1

 HP14-900090 SPEED CON 1

 HP06-900293 ELBOW FITTING 2

 EP19-900112 PHOTO SENSOR 1

 J7066025A COUPLER BKT2[SM1-MF08-091] 1

 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1

 J7057244B SENSOR BRACKET 1

 J7057246B COUPLER HOLDER MOUNT 1

 J7057251A PIN CABLE RETAINER 1

 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1

 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1

 J71570100C GUIDE BLOCK 2

 J7057247A POSITIONNING GUIDE 2

 HP03-900011 AIR CYLINDER 1

 J7257010B CUSHION-X 2

 J7257011A PIN CABLE CAP 1

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 Version 1.1

 AM03-015857F ASSY,BOARD-FEEDER IO VER 2.0 1

 AM03-027217A CABLE ASSY-FRONT FEEDER UNLOCK 1

 FC09-009675A BRACKET-FDL_R_COVER INNER BKT 1

 FC09-009665A BRACKET-REAR_R_SNS_BKT 1

 AM03-027219A CABLE ASSY-REAR FEEDER UNLOCK 1

 FC09-009674A BRACKET-FDL_F_COVER INNER BKT 1

 FC09-009663A BRACKET-FRONT_R_SNS_BKT 1

 FC09-009664A BRACKET-FRONT_L_SNS_BKT 1

 FC09-009666A BRACKET-REAR_L_SNS_BKT 1

FC14-900724 PLUG 2

 HP06-900027 FITTING 4

 HP06-900299 COUPLER 1

 HP14-900090 SPEED CON 1

 HP06-900048 ELBOW FITTING 1

 HP06-900293 ELBOW FITTING 2

 FC14-900724 PLUG 3

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1

 HP14-900092 CHECK VALVE 1

 HP06-900018 FITTING 5

 HP06-900014 FITTING 5

AM03-001729A CABLE ASSY-FRONT D-CART PWR CABLE ASSY 1

J9080852D LEFT FDR SOL OUTPUT CABLE ASSY 1

J9080853B RIGHT FDR SOL OUTPUT CABLE ASSY 1

J9080854C LEFT FDR SENOR INPUT CABLE ASSY 1

J9080855B RIGHT FDR SENOR INPUT CABLE ASSY 1

J9080857B FDR INPUT EXT CABLE ASSY, D-CART 1

AM03-001739A CABLE ASSY-FEEDER CN7 EXT CABLE ASSY 1

AM03-013728A CABLE ASSY-ND-CART RY1 EXT 2 1

AM03-001730A CABLE ASSY-REAR D-CART PWR CABLE ASSY 1

Single Conveyor

AM03-017756A AIR_SHOWER_ASSY 1 OPTION

 FC09-004238A BRACKET-SENSOR BKT 1

 J7051113A CABLE DUCT-U-F 1

 HP09-000164 SILENCER 2

 HP09-000157 MANIFOLD 1

 HP15-000010 ACCESSORY,VALVE 1

 HP14-002164 VALVE,SOLENOID 3

 HP14-000431 VALVE,THROTTLE 1

FC07-005039A BLOCK-PCB_GUIDE_E_L330 2

 J70531210A PCB_GUIDE_FC 1

 FC09-009637A BRACKET-BELT_MOTOR_B_LRL 1

 FC09-009115A BRACKET-SENSOR_15-25 4

 FC30-005753A PLATE-SENSOR_15-25 4

 AM03-024335A CABLE ASSY-CON_PCB_SENSOR_N_L 1

 MC19-002866A PULLEY-STEP_MOTOR 6

 J70531106A BRACKET_BELT_MOTOR_S 4

 EP08-900073 STEP_MOTOR 6 WITH CABLE

MC05-001167 BELT-L980 2

 J7053770A IDLER SHAFT-M 3

 J7253007A IDLER 2 8

 J7053048A IDLER SPACER-M 3

 MC05-001165 BELT-L1517 1

 J7053009A IDLER SHAFT-S2 9

 FC18-001478A SPACER-IDLER-S_CONV 9

 J7253006A IDLER 1 4

 J70531083A ALT_MOTOR_SUPPORT 4

 FC09-009657A BRACKET-CYL_BKT_S1 1

 J7153036A SLIDE GUIDE 3

 J70531086A BRACKET_RAIL 2

 FC07-005040A BLOCK-RAIL_SENSOR_L330 1

 FC09-006779A BRACKET-Q_SENSOR_BKT 1

 HP06-900047 ELBOW FITTING 1

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 HP03-000096 CYLINDER 1

 FC30-001377A PLATE-STOPPER_TOP_LONG_LR 1

FC07-005039A BLOCK-PCB_GUIDE_E_L330 2

 FC30-004478A PLATE-PCB_GUIDE-RC_P_FID 1

 FC18-001480A SPACER-BUSH_CONVEYOR 2

 EP08-900073 STEP_MOTOR 6 WITH CABLE

 J70531106A BRACKET_BELT_MOTOR_S 4

 MC19-002866A PULLEY-STEP_MOTOR 6

 MC05-001167 BELT-L980 2

 J70531085A BRACKET_BELT_MOTOR_M 1

 MC05-001166 BELT-L1475 1

 MC05-001167 BELT-L980 2

 FC29-004426A STOPPER-CLAMP_SHAFT_STOPPER 2

 FC01-000022A ADJUSTER-SHAFT_CONV 2

 FC18-900900 HEX NUT 2

 J7153034A CLAMP SHAFT 2

 FC18-901355 C-RING DIA11(HOLE) 2

 MC06-900006 BALL_BUSH 4

FC09-002125A BRACKET-SCREW_STAND_P 2

 J7053194A BEARING NUT 4

 MC03-900008 BALL BEARING 1

 FC09-002126B BRACKET-MOVE_STAND_P 2

 FC09-002133A BRACKET-DOG-SENSOR_P 1

 MC13-000042A SCREW,LEAD 2

 MC05-001022 TIMING BELT 1

 MC13-001026 LM GUIDE 2

 EP19-000485 SENSOR,OPTIC 2

 FC09-002128A BRACKET-DOG_ADJUST_P 1

 FC05-000207C BASE-WIDE_ADJUST_P 2

FC09-002124B BRACKET-FIX_STAND_P 2

 J70530660B TENSION BKT 1

 J70531025A WIDTH_TENSION_SPACER 1

 MC03-900080 BALL BEARING 1

 MC03-900121 BALL BEARING 1

 J70531028A TENSION_BEARING_PIN 1

 MC19-900014 PULLEY-WIDTH 2

Backup Table

FC30-002622A BACK_UP_PLATE 1

 J70531052C LOWER_PLATE 1

 FC30-002622A PLATE-BACK_UP 1

 EP19-900108 PHOTO SENSOR 1

 FC18-901994 SHOULDER SCREW 2

 FC38-900013 SPRING 1

 FC29-900536 URETHAN CUSHION 1

 HP06-900056 ELBOW FITTING 2

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN 4

 J7053793A LOWER LINK PIN 2

 J7053796A LOWER LINK SHAFT 1

 J90531008A LINK_END_ASSY 8

 MC03-900022 BALL BEARING 1

 J90531004A FREE_LINK_ASSY 2

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN 2

 J7053795A RING FIXER 3

 FC14-900506 CYLINDER JOINT 1

 HP03-900013 CYLINDER 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER 1

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER 1

J9053333A BACKUPPIN

 J7053802A UP SENSOR BRACKET 1

 J70621009A BUT_HOLD_PLATE2 4

 FC29-004259B DOG-BUT_SENSOR 1

 J70531080A PLATE_EXTENSION 2

Base Frame ( Front )

CD03-000060 HARD DRIVE 1

 EP06-000384 SUPPLY,POWER 1

 CD05-000059 MOTHERBOARD 1

 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A / AM03-011927C

 EP06-000338 PROCESSOR BOARD 2

 EP10-001105A BOARD,ETC-BACK PLANE 1

 AM03-014333A CABLE ASSY-CPU-BOX FAN 1

 AM06-000359C ASSY,PCB_VISION_IF BD 1

 FC09-003434A INLET FAN BKT 2

A AM03-011162A ASSY,AIR-FRONT AIR PANEL 1

 HP06-900043 JOINT 1

 HP06-900026 ELBOW FITTING 2

 HP06-900191 ELBOW_MIN I_FITTING 1

 HP09-900108 REGULATOR 1

 HP06-900195 UNION_Y_FITTING 1

 FC09-003398A FRONT AIR PANEL 1

 HP09-900123 REGULATOR 1

 TE07-900096 GAUGE 1

 AM03-008872A ASSY,AIR-DIGITALGAUGE 1

 HP06-000278 FITTING 1

 HP09-000150 DIGITAL GAUGE 1

 FC09-000043 BRACKET 1

 FC09-001657D BRACKET-BKT VAC_GEN 1 FC09-001657B/ FC09-001657C

 HP06-900204 FITTING 1

 AM03-005245A ASSY,AIR-VACUUM ASSY 1

 HP11-000058 VACUUM GENERATOR 1

 HP14-000978 SOL-VALVE 1 HP14-900045

 FC28-001349 PAD-RUBBER 3

 FC28-001350 PAD-RUBBER 1

 HP11-001019 PUMP 1

 HP06-900104 NIPPLE-STRAIGHT 1

HP06-900046 JOINT 1

 HP06-001070 FITTING 1

 HP06-000234 FITTING 1

 HP13-900086 AIR TUBE(POLYYRETHANE)[U2-4-6*4(YELLOW)] 0.32

 J91741042A AXIS_SENSOR_BOARD_ASSY VER1.0 1

 AM03-027373A CABLE ASSY-D-S1_MAIN_SW_TRANS 1

 EP06-002955A POWER_SUPPLY 6

 FC09-009435A BRACKET-FRONT_ELEC_PANEL 1

 FC09-003509A FRONT CABLE BKT 1

 EP07-901339 CONTACTOR 1

 EP07-901345 DEVICES,SAFETY 1

 RM01-000080 RAIL-DIN RAIL 35MM 1

 EP21-900002 STOPPER 2

 FC09-003446A RIGHT DC BKT 1

 J71520028E GROUND BASE(2) 1

 FC09-004599A OUTLET FAN BKT 2 FC09-003435A

 FC09-003430A BKT NOISE FILTER 1

 AM03-011573B ASSY,ELECTRIC-NOISE_FILTER_MODULE 1

 EP23-001003A TRANSFORMER 1

 FC09-003483A BKT SIDE COVER 2

 EP07-901528 FAN FILTER 2

 FC09-003480A BOTTOM FL 1

 FC09-003475A BOTTOM FR 1

 FC09-003436B DUCT HANGER 4 FC09-003436A

 HP13-900084 AIR TUBE (POLYURETHANE) 2.3

 HP13-900086 AIR TUBE(POLYYRETHANE)[U2-4-6*4(YELLOW)] 1

 HP13-900081 AIR TUBE (POLYURETHANE) 1

 FC09-009611A BRACKET-REAR_FB_REPLACEMENT 1

 J70571005A FB_REPLACEMENT_POST 6

Base Frame ( Rear )

EP21-900002 STOPPER 2

 EP07-000576 BREAKER,CIRCUIT 1

EP07-000731 BREAKER,CIRCUIT 1

EP18-900018 MAGNETIC CONTACTOR 2

EP18-001050 RELAY,DC 1

EP21-001080 BLOCK,TERMINAL 23

EP21-001050 BLOCK,TERMINAL 26

EP21-001081 ACCESSORY,TERMINAL BLOCK-NS 1

EP21-001058 ACCESSORY,TERMINAL BLOCK-CLIP 2

EP21-001045 BLOCK,TERMINAL 7

EP21-001033 ACCESSORY,TERMINAL BLOCK 2

EP21-001077 BLOCK,TERMINAL 2

EP21-001076 BLOCK,TERMINAL 10

EP21-001075 BLOCK,TERMINAL 1

EP21-001073 BLOCK,TERMINAL 2

EP10-900438 FUSE[250V 5A] 2

EP21-001056 BLOCK,TERMINAL 3

EP10-900439 FUSE[250V 10A] 2

EP21-001074 BLOCK,TERMINAL 1

EP21-001072 BLOCK,TERMINAL 2

EP21-001071 BLOCK,TERMINAL 2

EP21-001055 ACCESSORY,TERMINAL BLOCK 2

EP21-001031 BLOCK,TERMINAL 14

EP07-002301 CONTACTOR 2

 FC09-000066 BRACKET-HBLSS5 4

 EP06-000316 SERVO CONTROL-DRIVE 2

 EP06-000389 SERVO CONTROL-DRIVE 1

 J90833316A FAN_CABLE_ASSY SM-FAN00 1

 EP06-000492 SERVO CONTROL-DRIVE 2

 FC09-000067 BRACKET-PNP_BKT 4

 AM03-001814D ASSY,BOARD-SAFETY_FROP_REV_3.1 1

J7251007A BOARD COVER 1

 FC15-003053A COVER-AXIS_BD_COVER;MIGRATION 1

 FC09-002302A BRACKET-AXIS_BD_CABLE_BKT; 1

 EP07-901528 FAN_FILTER 2

HP04-000075 FILTER,AIR-FAN FILTER METAL 2

 J91741023A CONVEYOR PWR BOARD 1

 EP07-901528 INLET FAN BKT 2

 EP07-900027 MAIN CIRCUIT BREAKER 1

 AM03-003542A CABLE ASSY-INLINE IN-OUT 1

AM03-010846A CABLE ASSY-INLINE NEXT PRE 1

 EP21-900008 PANEL 1

 J37041002A RELAY_HOLD_DOWN_CLIPS 22

 AM03-011179A REAR ELEC PANEL 1

 FC30-002551A GROUND TERMINAL 1 J7152027A

 EP06-002643A SERVO CONTROL-DRIVE-2AXIS 1

EP06-002645A SERVO CONTROL-DRIVE-4AXIS 1

 AM03-025224A ASSY,BOARD-AXIS_IO_BOARD(8 AXIS) 1

 FC09-004628B BRACKET-AXIS_BD_BKT_NEW;EGI,2 1

 FC09-009484A BRACKET-DRIVER_BKT_DS1;EGI,1.6 1

 EP03-000184 DUCT,CABLE-60*40*868;PVC_DUCT,GRAY 1

 EP03-000166 DUCT,CABLE-60X40X176;PVC_DUCT,GRAY 2

 FC09-003447A LEFT DC BKT 1

 HP09-000007 MANIFOLD 1

 FC14-900641 PLUG 1

 HP06-000226 FITTING 1

 HP06-900282 STRAIGHT FITTING 5

 FC14-900644 PLUG 3

 EP03-000171 DUCT,CABLE-60*40*990;PVC_DUCT,GRAY 1

 EP03-000168 DUCT,CABLE-60X60X898;PVC_DUCT,GRAY 1

 J7251013A WIRING DUCT-6 1

J7251008A WIRING DUCT-1 1

 FC30-002552A PLATE-GROUND_BASE_2 1

 FC09-003482A BOTTOM RL 1

 FC09-003481A BOTTOM RR 1

 FC09-001718A RELAY_SOCKET_BKT 1

 RM01-000080 RAIL-DIN RAIL 35MM;DIN RAIL 3

EP18-900034 RELAY 6

 EP18-900016 RELAY 1

 FC09-004627C BRACKET-ELEC_PANEL_BKT1_NEW_C;EGI,2 1

 FC09-004797C BRACKET-ELEC_PANEL_BKT2_C;EGI 1

 J72521004A ELEC_ACRYL 1

 EP18-000036 RELAY 4

 J91741277A HEAD_IF_ASSY REV 1.0 1

 FC29-900611 HEX SUPPORT 4

 FC09-006124A BKT FIX ILL BD 1

 HP13-900084 AIR TUBE (POLYURETHANE) 2

 HP13-900085 AIR TUBE (POLYURETHANE) 1 FC09-003946A/ FC09-003946B

 HP13-900083 AIR TUBE (POLYURETHANE) 2

 HP13-900082 AIR TUBE (POLYURETHANE) 4

 AM03-000198 ASSY,AIR-SOL_VALVE_EDGE_FIX 1

 J7051098A DRIVER BRACKET-5 1

 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 1

 AM03-021389A CABLE ASSY-X REGEN RESISTOR 1

 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1

 EP21-001081 ACCESSORY,TERMINAL BLOCK 1

 J70511029A DRIVER_BRACKET-6 1

Head

FC15-005199B COVER-HEAD TOP COVER;STD 1

 FC09-001568A FLAT_CABLE_BKT 1

 FC09-001847A FITTING_BKT 1

 J1301070 STRAIGHT_CONNETOR_FITTING 6

 FC09-003535B HEAD_BKT_PANEL 1 FC09-001573A/ FC09-003535A

 AM03-005341B MOTOR_IF_BOARD 1 AM03-005341A

 FC36-000187A MOTOR_IF_BOARD_SHEET 1 FC30-000991A

 FC29-900610 HEX SUPPORT 8

 AM03-005337A HEAD IF BOARD 1

 FC36-000186A IF_BOARD_SHEET 1 FC30-000990A

 FC09-001574A HEAD_BOARD_BRACKET 1

 FC29-900148 HANDLE 1

 FC09-007734B BRACKET-HARNESS_PLATE_B 1

 FC18-902795 BUTTON_HEAD_CAP_SCREW 1

 FC09-001690A HEAD_BKT_FIX 1

 FC09-001576A MOTOR_IF_BOARD_BKT 2

 J70541016A 3-NIPPLE_BRACKET 1

 J71541016B HARNESS_SUPPORT 2

 FC28-900369 GREASE NIPPLE 5

 FC09-009679A BRACKET-2-NIPPLE 1

 HP06-900079 ELBOW_UNION_FEMALE 5

AM08-004291A ASSY-FID7_LENS_ASSY 2 STADARD

AM03-021682A ASSY,OPTICS-FIDUCIAL CAMERA_BLUE 2 BLUE FILTER

AM03-022390A ASSY,OPTICS-PROGRESSIVE FID. CAMERA 2 S2 PROGRESSIVE

 AM16-001459A ASSY,CABLE-Z AXIS MOTOR CABLE ASSY 1

 FC09-004707A Z_SPRING_BKT 1 FC09-001505A

 AM03-015112A CABLE ASSY-HEAD_HOME_SENSOR 1

 FC38-000072A Z_SPRING 10

 HP14-000206 VALVE-BLOW_VALVE 10

 J7155572A CABLE_HOLDER 2

 HP14-002040 VALVE,SOLENOID 10

 FC14-900638 DUMY PLUG 1

 HP06-900021 BOB FITTING 11

 HP09-000129 HEAD_AIR_MODULE 1

 J91661026A FIDUCIAL_COAXIAL_PCB_ASS'Y 2

 J71591108A FID7_BLOCK 2

 HP13-900087 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] 1

 J71551840A Z_MOTOR_PULLEY 10

 FC29-900557 HEX SUPPORT 6

 FC09-001523A MANIFOLD_PLATE_2 1

 FC29-900610 HEX SUPPORT 6

 AM03-020609A FIDUCIAL_OUTER_PCB_ASSY 2 STADARD

AM06-005001A ASSY,PCB SMD-OUTER-LED_PCB ASS'Y_FID. CA 2 BLUE FILTER

AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 2 S2 PROGRESSIVE

 J72801017A FIDUCIAL_DIFFUSER 2

 FC29-900614 HEX SUPPORT 2

 AM03-014949C ASSY,BOARD-HOME SENSOR 1

FC36-001010A SHEET-Z_SENSOR_BOARD_SHEET,0.2 1

 FC18-903190 PROFILE MOUNT 2

 AM03-005340A PRESSURE SENSOR BOARD 1

 HP12-000002 O-RING 10

 HP04-900036 SUCTION_FILTER 10Page

HP06-000074 STRAIGHT FITTING 10

 HP09-000328A P_SENSOR_BLOCK 1

 HP06-900059 BOB ELBOW FITTING 10

 FC09-001522A MANIFOLD_PLATE_1 1

 HP14-000344 OVER BLOW VALVE 1

 HP06-900059 BOB ELBOW FITTING 2

 HP06-900194 ELBOW_FITTING 1

 FC14-900638 PLUG_FITTING 1

 HP13-900088 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(YELLOW 1

 AM03-027383A ASSY,OPTICS-FIDUCIAL_FOV12_2M_CAMERA 2

 AM03-024975A ASSY,OPTICS-FID_12_COAX_ILL 1

 AM03-024978A ASSY,OPTICS-FID_12_OUTER_PCB 1

 FC09-009529A BRACKET-FID_CAM_COVER2 1

 FC09-009525A BRACKET-S1_FID_F7_5 2 1

 FC09-009524A BRACKET-S1_FID_F7_5 1 1

 FC09-009528A BRACKET-FID_CAM_COVER1 1

HP13-900081 AIR TUBE (POLYURETHANE) 3

FC09-002296A FLY_SIDE_COVER 2

 FC09-001566A FLY_SIDE_COVER 2 ONLY FOR HS HEAD

 AM03-005092A ASSY,OPTICS-PLUS_SIDE_PCB_B_ASSY 1

 FC30-000975A FID_CAM2_COVER 2

 FC09-001518A MIRROR_CLAMP_1 1

 FC09-002300A FLY_OUTER_BRACKET_A 1

 FC09-001515A PLUS_FLY_OUTER_BRACKET_A 1 ONLY FOR HS HEAD

 FC30-001147A PLATE-REF_PLATE 1

 FC09-002293A FLY_SIDE_BRACKET 2 ONLY FOR HS HEAD

FC09-001513A PLUS_FLY_SIDE_BRACKET 2

 FC09-001519A MIRROR_CLAMP_2 1

 FC09-001521A MIRROR_CUSHION 2

 EP12-000030A FOLDING_MIRROR 1

 FC09-001517A MIRROR_PLATE 1

FC15-001001A HD-MIRROR_COVER 1

 AM03-005088A ASSY,OPTICS-PLUS_FLY_OUTER_B_ASSY 1

 AM03-005836A ASSY,HEAD-MIRROR_ASSY 1

 AM03-005925A ASSY,HEAD-FLY_OUTER_ASSY 1

 AM03-005925A ASSY,HEAD-FLY_OUTER_ASSY 1

 AM03-005923A ASSY,HEAD-SIDE_PCB_ASSY 1

 AM03-012571A ASSY,HEAD-FS SIDE ILL ASSY 1

 FC09-001516A PLUS_FLY_OUTER_BRACKET_B 1

FC09-002295A TIE_MOUNT_1 2

1-1 FC09-003365A TIE MOUNT 2 ONLY FOR HS HEAD

A AM03-012549A ASSY,HEAD-MIRROR LINK L FS 1

AM03-010692A ASSY,HEAD-MIRROR LINK 2 1 ONLY FOR HS HEAD

 J7455026A SPRING_BUSH 4

 FC29-004275A SPRING_POST-MOVING 2 J70551042A

 FC30-002025A MIRROR LINK L 1

FC30-001677A MIRROR_LINK_2 1 ONLY FOR HS HEAD

 MC11-900055 CAM FOLLOWER 2

 MC11-000591A CAM 2

 MC11-000434A CAM 2 ONLY FOR HS HEAD

J7055204A ARM_JOINT 2

 MC03-900034 BALL_BEARING 4

 J7055205A WC 2

 FC18-001484A MIRROR_SCREW 2 J7055153A

 FC18-901347 E-RING[DIA1.5(SUS)] 4

 AM03-006152A ASSY,HEAD-FID2_SUB_ASSY 1

 MC03-900033 BALL BEARING 4

 J7055163A BEARING_HOUSING 1

AM03-007750A RIGHT_SPRING_POST_ASSY 1

 FC09-002292A MIRROR_SPRING_BRACKET 2

 FC09-001553B MIRROR_PIN_3 2 FC09-001553A

 J7055559A MIRROR_PIN_2 2 ONLY FOR HS HEAD

 AM03-005841A ASSY,HEAD-LINK1_SPRING_POST_ASSY 1 ONLY FOR HS HEAD

 J7055560A MIRROR SPRING BRACKET 2 ONLY FOR HS HEAD

 FC18-903190 PROFILE MOUNT 4

 FC38-900011 SPRING 2

 J7255081A MIRROR MOTOR ISOLATOR 1

 J7155523A PULLEY(S-AXIS) 1

 FC30-000805B PLATE-MIRROR_MOTOR_BKT 1 FC30-000805A

 MC05-900048 TIMING BELT 1

AM03-007751A MIRROR_SHAFT_ASSY 1

 AM03-005837A ASSY,HEAD-MIRROR_SHAFT_ASSY 1 ONLY FOR HS HEAD

 J71551026A PULLEY-S_AXIS1 1

 J7055557A BEARING_HOUSING 1

 MC19-000345A MIRROR_SHAFT 1

 AM03-012548A ASSY,HEAD-MIRROR LINK 1

 FC30-001164A PLATE-SENSOR_DOG 1

 FC30-002024A MIRROR LINK R 1

 AM03-010691A ASSY,HEAD-MIRROR LINK 1 1 ONLY FOR HS HEAD

 FC29-001100A S_SENSOR_DOG 1 ONLY FOR HS HEAD

 FC30-001676A MIRROR_LINK_1 1 ONLY FOR HS HEAD

 AM03-006153A ASSY,HEAD-FID1_SUB_ASSY 1

 EP19-900119 SENSOR_PM_L24 1

 FC09-001557A S_SENSOR_BKT 1

 FC09-001514A BRACKET-PLUS_MIRROR_BRACKET 2

FC09-002294B BRACKET-MIRROR_BRACKET 2 FC09-002294A ONLY FOR HS HEAD

 FC30-001147A REF_PLATE 1

FC30-001675A REF PLATE 1 ONLY FOR HS HEAD

 AM03-015237A CABLE ASSY-SWING MOTOR 1

 J7455026A SPRING_BUSH 2

FC30-000975A FID_CAM2_COVER 1

 AM03-006151A ASSY,HEAD-COAXIAL_SUB_ASSY 1

 FC09-001560A FLY_SIDE_PLATE2 1

 FC09-001561C FLY_CAM_COVER 1 FC09-001561A/ FC09-001561B

 FC09-001559A FLY_SIDE_PLATE1 1

 AM03-027382A ASSY,HEAD-FLY CAM KIT S1 5

 FC10-000046 RUBBER 2

 FC09-001562A FLY_IO_TOP_COVER 1

 RM03-000022A COAXIAL_DIFFUSEER 1

 AM03-005100C FLY_COAXIAL_PCB_ASSY 1 AM03-005100B

 FC36-000038A FLY_COAXIAL_INSULATION 1

 AM06-000358A CAMERA_IO_BD 1

 FC09-001848A COAXIAL_PLATE 1

 FC15-001311A LIGHT_COVER 1

FC09-001567A LIGHT_COVER 1 ONLY FOR HS HEAD

 FC30-000971A COAXIAL_COVER 1

 FC09-001563A FLY_IO_BOTTOM_COVER 1

AM03-006110A FLY_IO_BOARD_ASSY 1

 FC10-000046 RUBBER 2

AM03-008031A CABLE ASSY-R1_MOTOR_MD038 1

 FC30-000797A INSULATION_PLATE 5

 MC19-000340A T_MOTOR_PULLEY 5

 J71551021A TIME_MOUNTER_E 2

 FC30-000798A STEP_MOTOR_PLATE 5

 AM03-015718A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1

 FC09-001501A T_M_PULLEY_CLAMP 5

 MC13-000268 LM_GUIDE 10

 FC30-001133A Z_STOP_PLATE_TOP 5

 FC39-001352A MAIN BODY 1

 FC09-001489A Z_TOP_HOUSING 10

 MC05-000120 TIMING_BELT 5

 AM03-005843A ASSY,HEAD-Z_IDLE_ASSY 10

 FC18-902001 PRECISION_S_PLUS_BOLT 80

J71551848A Z_IDLER_PULLEY 10

 MC03-900127 BEARING 20

 MC05-000117 TIMING BELT 5

 MC05-000119 TIMING BELT 5

 FC09-001493A Z_SENSOR_DOG 10

 AM03-005845A ASSY,HEAD-Z CAP ASSY 10

 FC29-004278A PIN_Z 10 J7155541A

 FC09-001881A Z_CAP 10

 HP06-900059 BOB ELBOW FITTING 10

 HP12-000105 Y_PACKING 10

 HP13-000044 VACUUM_TUBE 10

 FC09-001490A LOCK_NUT_Z 10

 FC18-001724A WAVE WASHER 10 FC18-000960

 MC13-000172 BALL SPLINE ASSY 10

 FC29-000176 Z_SPACER 10

 MC03-900127 BALL_BEARING 10

 FC09-001492C Z_BELT_CLAMP 10 FC09-001492B ONLY FOR HS HEAD

FC29-001047B Z_ROD_HOUSING 10 ONLY FOR HS HEAD

 J90551225A_AS NOZZLE_HOLDER_ASSY 10

 FC30-000927A PLATE-BEARING_P_PLATE 10

 FC09-001494A S_PULLEY_CLAMP 10

 MC19-000339A SPINDLE_PULLEY 10

 J70551874A Z_IDLE_SHAFT 10

X Frame

EP08-001057 MOTOR-SERVO 2

 MC22-000092 COUPLING 1

 FC30-001671E PLATE-Y1 PROFILE 1 FC30-001671A/ FC30-001671B/ FC30-001671C/

FC30-001671D

 FC09-004585A SERVO CONNECTOR BKT 1 J70530690B

 FC29-002614A DOG_CRASH_Y 1

 FC28-900369 GREASE NIPPLE 2

 J70541105A GREASE_NIPPLE_NUT 2

 HP06-900080 STRAIGHT_FITTING 2

 FC30-001829B CONNECT_PLT_L-T 1 FC30-001829A

 FC09-003189A BRACKET_SPACER 1

 FC09-009431A BRACKET-ENCODER_BKT_R_S1 1

 FC28-001094 LINEAR_SCALE_UNIT_SCANNING_HEAD 4 LINEAR SCALE HEAD

FC28-001093 LINEAR_SCALE_UNIT_SCALE 4 LINEAR SCALE

 MC13-000125 BALL SCREW 1

 FC36-000092A SHEET_B-SCREW_CV 1

 FC29-004428A CUSHION_X_FRONT 1 J72541003A

 MC04-900012 SUPPORT_UNIT 1

 FC29-004430A CUSHION X REAR 1 J72541005B

 MC03-900008 BALL BEARING 1

 FC18-901667 C-RING(SHAFT) 1

 MC04-000039A BRG_HOUSING-X 1 J71541010A

 FC29-001079C SUPPROT B SCREW X 1 FC29-001079B

 FC05-000514A BASE HEAD CARRIER 1 FC05-000336B

 FC29-010196A DOG-X_SENSOR_DOG-S1 1

 MC13-900032 LM GUIDE 2

 FC36-000074B SHEET_X-LOWER 1

 FC39-001351A X_FRAME 1

 J70541295A X_LIMIT_SENSOR_PLATE 2

 EP19-900114 PHOTO_SENSOR 2

 FC15-002046A COVER_CABLE_X 1

FC09-003388A CHAIN_Y_SUPPORT 1

 FC30-001674B CONNECT_PLT_R 1 FC30-001674A

 FC07-001225A BLOCK_B-SCREW_CV 1

 FC30-001672D PLATE-Y2 PROFILE 1 FC30-001672A/ FC30-001672B/ FC30-001672C

 FC09-001481B BKT CUSHION X 1

 PM02-000794A CUSHION CABLE X 1

 FC09-001771A BKT CABLE CHAIN X 1

 FC15-002178A COVER CHAIN Y 1

 FC09-009433A BRACKET-CABLE_CHAIN_Y-S1 1

 FC09-001485A BKT CUSHION Y 1

 PM02-001450A CUSHION CABLE Y 1

 FC09-001662A BKT CABLE X 2

 FC18-001417A SPACER-X REAR SUB L2

 FC10-000104A CUSHION RUBBER-X Front SUB L2

 RM04-000171A TAPE-TEFLON_HEAD_CARRIER 1

 FC09-009432A BRACKET-ENCODER_BKT_L_S1 1

Y Frame Duct

AM03-027345A ASSY,ETC,IMS-Y CABLE DUCT TOTAL 1

 AM03-010697B ASSY,ELECTRIC-HDCB PANA ASSY 10 AM03-010697A

 FC15-002060C COVER-COVER DRIVER Y 2 FC15-002060B(~#98)

 FC18-903190 PROFILE MOUNT 4

 FC09-007265A BRACKET-AXIS B PROTECT UPPER BKT 1

 FC09-009434A BRACKET-Y2_CABLE_DUCT-S1 1

 FC09-003419A BKT AXIS B 2

 FC09-003417A PANLEL CON Y 2

 FC09-003420A BOTTOM DUCT 2

 HP09-000127 MANIFOLD 2

 FC09-003410C Y CABLE DUCT 2 AM03-010752A/ FC09-003410B

 PM02-001450A CUSHION CABLE Y 2

 FC09-001485A BKT CUSHION Y 2

 FC09-001647A BKT SIDE SUB 2

 FC09-003414A BASE DRIVER Y 2

 EP06-000374 SERVO CONTROL-DRIVER 10 EP06-000182

 FC09-003416B BKT DRIVER T 2 FC09-003416A

 AM03-010695A ASSY,BOARD-HDUB 5

 AM03-010696A ASSY,BOARD-HDLB 5

 FC30-000801A PLATE AMP Z 5

 FC29-010595A GUIDE-GUIDE_MAT_75X890 2

Y Frame

FC15-002053C COVER_SIDE_CABLE 4 FC15-002053A

 FC29-004382A STOPPER 4 FC10-000046

 FC09-003547B STOPPER_BKT 4 FC09-003547A

 FC39-001344C FRAME_Y1 1 FC39-001344B

 FC28-001094 LINEAR_SCALE_UNIT_SCANNING_HEAD 4 LINEAR SCALE HEAD

FC28-001093 LINEAR_SCALE_UNIT_SCALE 4 LINEAR SCALE

 FC09-009272A BRACKET-Y_SENSOR_BKT 1

 EP19-001269 SENSOR,OPTIC 3

 AM03-001073 ASSY,ETC,IMS-TCM-STW 6

 FC15-003146A COVER-HH_SCALE_UPPER 2

 MC13-900011 LM_GUIDE 1

 FC09-003088A SENSOR_BKT_HOME_Y_2 2

 FC18-903190 TIE_MOUNT 8

 FC39-001345C FRAME_Y2 1 FC39-001345B

 FC09-000877B BRACKET-FD_BOARD_BKT 2 FC09-000877A

 FC29-900610 HEX SUPPORT 18 FC29-900611

 AM03-000819B ASSY,BOARD-FEEDER IO BOARD ASSY 2

 FC29-900609 HEX SUPPORT 8

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 2

 AM03-015154E ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL) 1 REV1.1

 FC29-010197A STOPPER-Y_STROKE_STOPPER 1

 J91741042A AXIS_SENSOR_BOARD_ASSY VER1.0 1

FC11-001001A LINEAR_SCALE_CARRIER 4

FC18-003252A LINEAR_SCALE_CLAMP 2

ANC

J7156087A SHUTTER BRACKET 1

 HP03-900032 AIR CYLINDER 1

 J7156043B SHUTTER BRACKET 1

 HP14-900085 SPEED CONTROLLER 2

 AM03-001543A ANC_SENSOR_CABLE_ASSY 1

 FC09-004601A CYLINDER_BRACKET 1 J70561001A

 HP06-900027 FITTING 1

 HP14-900088 SPEED CONTROLLER 1

 HP06-900255 STRAIGHT FITTING 1

 HP03-900054 AIR_CYLINDER 1

 J71561001B ANC_PLATE 1 ST FRONT, ST REAR, DUAL FRONT

FC30-002002A PLATE-ANC_DECAN 1 DUAL REAR, SINGLE FRONT

 J71561002B ANC_NOZZLE_SHUTTER 1 ST FRONT, ST REAR, DUAL FRONT

FC14-000729A NOZZLE-SHUTTER_ANC_DECAN 1 DUAL REAR, SINGLE FRONT

J71561036A NOZZLE_SHUTTER_SMALL_PIN 1 SINGLE REAR

 J71561003B ANC_MAIN_BODY 1 ST FRONT, ST REAR, DUAL FRONT

FC39-001625A BODY-ANC_DECAN 1 DUAL REAR, SINGLE FRONT

J71561034A MAIN_BODY_SMALL_PIN 1 SINGLE REAR

 Cover

AM03-011036A ASSY,COVER-LOWER FL 1

 FC29-900217 SLIDE_LATCH 3

 FC15-002083A DOOR FRONT 1

 FC15-002082A LOWER FL 1

 FC15-006424A COVER-LOWER_FR 1

 FC15-001147A FB SIDE COVER 4

 FC29-900144 DRAWER_PULL_HD 4

 FC15-002184B INLET FAN COVER 4

 FC15-002183B LFM COVER 2

 J70521088B FB COVER 2

 FC15-004384B COVER-SIDE LOWER L S 1

 FC15-002061A SIDE LOWER R 1

 AM03-018772A ASSY,COVER-LOWER RR 1

 FC15-002079B LOWER RR 1 FC15-002079A

 FC15-002080A DOOR REAR 2

 AM03-018773A ASSY,COVER-LOWER RL 1

 FC15-002081B LOWER RL 1 FC15-002081A

 FC29-900019 SET_CAP 4

 AM03-022731A ASSY,CONTROLLER-TEACHING BOX ASSY 2

 FC15-004434B COVER-SIDE LOWER L2 S;STANDARD 1

 FC15-004383B COVER-SIDE LOWER R S;STANDARD 1

 FC15-004435B COVER-SIDE LOWER R2 S;STANDARD 1

 FC28-001115 FINGER,GUARD 1

 J90833316A FAN_CABLE_ASSY SM-FAN00 1

AM03-018674B ASSY,COVER-KEYBOARD BKT DS 2 AM03-018674A(~#261)

 CD04-900026 KEYBOARD 2

 FC15-006516A COVER-UPPER_COVER_FR 1

 J91741076A CONV_SUB_IF_BOARD VER 1.0 1

 FC12-900009 MAGNETIC 4

 J90831139A FRONT AREA SENSOR CABLE ASSY SM33-CV016 1

J90831759A REAR AREA SENSOR CABLE ASSY SM421-CV018 1

 FC09-003935B COVER INNER BKT F 2 FC09-003935A

 EP02-001746A HARNESSBLUE TOWER LAMP CABLE ASSY 2

 AM03-011039A ASSY,COVER-LCD BKT 1

 FC15-002089C LCD BASE 2

 FC15-002090B LCD HINGE 2 FC15-002090A

 FC15-000505B LCD_GUIDE_PL 2

 CD06-000004 MONITOR 2

 J7070353A BARCODE_COVER 2

 FC09-003392B BRACKET-LOWER OP PANEL 2 FC09-003392A

 FC39-001575B COVER FRAME FR N 1 FC39-001575A

 FC09-009521A BRACKET-OP_CONNECT_BKT 1

 AM03-027418A CABLE ASSY-OP_PANEL 1

 EP20-001055 SWITCH,PUSH-EMERGENCY S/W 1

 PT03-900161A STICKER-EMERGENCY 1

 FC09-003393A BRACKET-OP PANEL 2

 EP20-001012 SWITCH,PUSH-START 2 EP20-000113

 EP20-001057 SWITCH,PUSH-STOP 1

 EP20-001136 SWITCH,PUSH 2 EP20-000127

 EP20-001016 SWITCH,PUSH 2 EP20-000114

 FC15-002287B UPPER L N 2 FC15-002287A

 FC39-001576B COVER FRAME FL N 1 FC39-001576A

AM03-011864A ASSY,COVER-ACRYL DOOR ESD N 2

 FC15-004385D COVER-SIDE UPPER R S;STD 1

 FC15-002788A COVER-SIDE L EXT-CV 1

 FC15-002282A FRAME TOP SIDE N 2

 FC15-002094A GAS SPRING BKT 4

 FC38-001047 GAS_SPRING 4

 FC29-004382A DOOR CUSHION 4 J73520001B

 FC18-901832 SHOULDER SCREW 4

 FC09-009609A BRACKET-DOOR_SWITCH_SAFE 2

 FC09-006594A BRACKET-IDEC_DOOR_SWITCH_BKT 1

 AM03-027342B CABLE ASSY-DOOR SWITCH 2

 FC15-002098A TOP CENTER 1

 FC15-002177A LOOF FAN UNDER 2

 EP02-001745B HARNESS-LOOF FAN CABLE ASSY 2

 FC28-000107 FINGER_GUARD 2

 FC15-002095A TOP SIDE L 1

 EP13-900134 TOWER_LAMP 1

 FC15-002093A TOP SIDE R 1

 FC39-001577B FRAME RR N ASSY 1 FC39-001577A

 FC39-001578B COVER FRAME RL N 1 FC39-001578A

 FC15-002293C ACRYL ESD 2 FC15-002293A/ FC15-002293B

 FC29-900019 SET_CAP 1

 FC09-003569B BRACKET-COVER INNER BKT 2

 FC29-000007 CAP-PULL 2

 J70521087A WINDOW_HINGE 4

 AM03-012012A ACRYL DOOR STD 2

 FC15-004386D COVER-SIDE UPPER L S;STD 1

 FC15-002625A COVER-DOOR SIDE T 1

 FC18-901051 NYLON NUT[M8] 1

 FC18-900485 HEX CAP SCREW[M8 X 55L] 1

 EP05-000463 ADAPTOR,CONNECTOR-IDEC SWITCH CONNECTOR 6

J7452038A MOUSE PAD - OPTICAL 1

 CD04-001004 COMPUTER MOUSE 1

FC15-002156A COVER-LCD BASE 45 1 SPECIAL OPTION

 FC15-002154A COVER-M SUB BKT 45 D 1 SPECIAL OPTION

 AM03-013511A ASSY,COVER-SAFETY EXT-CV 1

 FC29-900195 HINGE 3

 FC15-002787A COVER-ACRYL DOOR EXT-CV 1

 FC29-900169 HANDLE_BOLT 2

 FC10-000068 CUSHION,RUBBER 4

 FC15-002794A COVER-SIDE R EXT-CV 1

 FC15-002796A COVER-MIDDLE EXT-CV 2

 FC15-002786A COVER-TOP EXT-CV 1

 FC15-002795A COVER-BOTTOM EXT-CV 1

 TO04-001377A JIG-DOOR CLAMPING 2

 FC15-004436D COVER-SIDE UPPER R2 S;STD 1

 FC15-004437C COVER-SIDE UPPER L2 S;STD 1

 FC15-006429A COVER-UPPER_RR-D1 1

Air

AM03-010745A FILTER_ASSY 1

 HP04-000179 MIST SEPERATOR 1

 HP04-000178 FILTER 1

 HP06-900211 FITTING 1

 HP06-900187 FITTING 1

 HP06-900014 FITTING 1

 HP06-900018 FITTING 1

 FC14-900724 PLUG 1

 HP14-900026 SOLENOID VALVE 1

 HP14-900092 CHECK VALVE 1

 HP06-900271 UNION Y FITTING 1

 HP09-900163 SILENCER 1

 HP14-900026 SOLENOID VALVE 1

 HP06-900048 ELBOW FITTING 1

 HP06-900027 FITTING 1

 HP06-900293 ELBOW FITTING 1

 HP06-900299 COUPLER 1

 J9057172B DOCKING BLOCK ASSY(RIGHT) 1

 HP06-900300 PLUG 1

 J9057180A DOCKING CART ASSY 1

 HP14-900090 SPEED CON 1

 HP06-900027 FITTING 1

 J9057168B DOCKING BLOCK ASSY(LEFT) 1

 HP14-900089 SPEED CON 1

 HP06-900018 FITTING 1

HP09-000150 COMPONENTS,ELECTRIC 1

 HP06-900056 FITTING 1

 HP06-900026 ELBOW FITTING 1

 HP06-000278 FITTING 1

 HP06-900043 FITTING 1

 TE07-900096 METER 1

 HP09-900112 REGULATOR 1

 HP06-900026 ELBOW FITTING 1

 HP06-900195 UNION_Y_FITTING 1

 HP09-900123 REGULATOR 1

 HP06-900271 UNION Y FITTING 1

 HP06-900027 FITTING 1

FC14-900725 PLUG 2

 HP06-900202 FITTING 1

 HP14-900045 VALVE,SOLENOID 1

 HP06-900204 FITTING 1

 HP11-000058 PUMP 1

 FC28-000105 STRAIGHT NIPPLE 1

 AM03-000173 ELBOW NIPPLE 1

 HP11-000193 VACUUM PUMP 1

 HP06-000250 FITTING 1

 HP06-000234 FITTING 1

 HP06-900046 FITTING 1

 HP03-900044 CYLINDER 1

 HP09-900110 REGULATOR 1

 FC14-900640 PLUG 1

 HP03-001008 CYLINDER-STOPPER 1 HP03-900009

 HP06-900263 HOSE NIPPLE 1

 AM02-900001 ELBOW FITTING 1

 HP14-000725 VALVE,SOLENOID 1

 HP03-900015 STOPPER CYLINDER 1

 HP14-900083 THROTTLE VALVE 1

 HP06-900027 FITTING 1 HP06-900047

 J90561001A ANC_ASSY 1

 HP14-900085 SPEED CONTROLLER 1

 HP03-900053 AIR_CYLINDER 1

 HP03-900040 CYLINDER 1

 HP06-900056 ELBOW FITTING 1

 HP14-900088 SPEED CONTROLLER 1

 HP06-900264 ELBOW FITTING 1

 HP09-900158 SILENCER 1

HP06-000235 FITTING 1

 HP06-000234 FITTING 1

 HP09-000127 MANIFOLD 1

 HP13-000037A TUBE,PNEUMATIC 1

 HP06-900089 FITTING 1

Electric Power

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1

 AM03-010913A CABLE ASSY-REAR_ELEC_PANEL_EARTH 1

 AM03-027371A CABLE ASSY-D-S1_MCCB_NF1_EARTH 1

 AM03-027372A CABLE ASSY-D-S1_NF1-MAIN SW 1

 AM03-027373A CABLE ASSY-D-S1_MAIN_SW_TRANS 1

 AM03-003859A CABLE ASSY-TRANS_CP1_2 1

 AM03-027391B CABLE ASSY-D-S1_TB WIRE MODULE 1

AM03-014706A CABLE ASSY-CONTROL_RACK_PWR 1

 AM03-014705A CABLE ASSY-SACO_+24V_RELAY 1

 EP18-000020 RELAY 1

 AM03-014707B CABLE ASSY-CONTROL_RACK_PWR-EXT 1

 AM03-020571A CABLE ASSY-REAR_MONITOR_PW_12V 1

 AM03-020572A CABLE ASSY-F_MONITOR_PW_12V 1

 AM03-011247B CABLE ASSY-FAN_POWER 1

 AM03-011278B CABLE ASSY-SERVO_REAR_FAN_POWER 1

 J90833316A FAN_CABLE_ASSY SM-FAN00 1

AM03-007057A CABLE ASSY-TB1_FS1_FS2 1

 AM03-027102A CABLE ASSY-PS1_PS4_AC_PW_T5L 1

 AM03-027094A CABLE ASSY-PS1_PS4_AC_PW_T5L 1

 AM03-014712B CABLE ASSY-PS1_PS4_DC_PW_T6L 1

 AM03-014501A #N/A #N/A

 AM03-014713A CABLE ASSY-F LEFT FEEDER BASE PWR 1

 AM03-014714A CABLE ASSY-F RIGHT FEEDER BASE PWR 1

 AM03-014716A CABLE ASSY-R LEFT FEEDER BASE PWR 1

 AM03-014717A CABLE ASSY-R RIGHT FEEDER BASE PWR 1

 AM03-014720A CABLE ASSY-AC_RELAY_ POWER 1

 EP18-900034 RELAY 6

 AM03-014721B CABLE ASSY-F FDR PWR RELAY 1

 AM03-014722B CABLE ASSY-R FDR PWR RELAY 1

AM03-027391B CABLE ASSY-D-S1_TB WIRE MODULE 1

 AM03-026877B CABLE ASSY-PS1_TB_DC24 1

 AM03-026997B CABLE ASSY-Z1-Z10 DC24V PW 1

 AM03-027508A CABLE ASSY-SAFETY_MONITOR_OUT 1

 AM03-027505A CABLE ASSY-SAFETY_PLC_DC_PWR 1

 AM03-014671A CABLE ASSY-SW_WD_SERVO_POWER 1

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1

 AM03-006961B CABLE ASSY-Y1_SERVO_POWER;B 1

AM03-014909B CABLE ASSY-MC_INPUT_220V 1

 AM03-014907A CABLE ASSY-PUMP_PWR_ALARM-EXT 1

 AM03-014851A CABLE ASSY-SPARK_KILLER 1

 AM03-027769A CABLE ASSY-VACUUM_PUMP_PWR_EXT 1

 AM03-019377A CABLE ASSY-VACUUM_PUMP_220V 1

 AM03-014851A CABLE ASSY-SPARK_KILLER 1

AM03-014706A CABLE ASSY-CONTROL_RACK_PWR 1

 AM03-014705A CABLE ASSY-SACO_+24V_RELAY 1

 EP18-000020 RELAY 1

 AM03-014707B CABLE ASSY-CONTROL_RACK_PWR-EXT 1

 AM03-020572A CABLE ASSY-F_MONITOR_PW_12V 1

 AM03-011247B CABLE ASSY-FAN_POWER 1

 AM03-011278B CABLE ASSY-SERVO_REAR_FAN_POWER 1

 J90833316A FAN_CABLE_ASSY SM-FAN00 1

AM03-007057A CABLE ASSY-TB1_FS1_FS2 1

 AM03-027417A CABLE ASSY-PS1_PS3 AC PW T5L 1

 AM03-027416A CABLE ASSY-PS1_PS3 AC PW T5L 1

 AM03-027415A CABLE ASSY-PS1_PS3 DC PW T6L 1

 AM03-014501A #N/A #N/A

 AM03-014713A CABLE ASSY-F LEFT FEEDER BASE PWR 1

 AM03-014714A CABLE ASSY-F RIGHT FEEDER BASE PWR 1

 AM03-014720A CABLE ASSY-AC_RELAY_ POWER 1

 EP18-900034 RELAY 6

 AM03-014721B CABLE ASSY-F FDR PWR RELAY 1

Front Feeder Board Interface

AM03-027093A CABLE ASSY-FFD_HD_CAN 1

 AM03-026603B CABLE ASSY-FLAT 2 1

 AM03-027092A CABLE ASSY-CVIF_FFD_CAN_EXT 1

 AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1

 AM03-010866C CABLE ASSY-FRONT FDR CTRL PWR_J1L 1

 AM03-010867B CABLE ASSY-FRONT FDR CTRL PWR-EXT 1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1

 AM03-014721B CABLE ASSY-F FDR PWR RELAY 1

 J90800841C LEFT FDR SENSOR INPUT CABLE ASSY 1

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1

Rear Feeder Board Interface

AM03-010656A CABLE ASSY-RFDR_CVIF_CAN 1

 AM03-027090A CABLE ASSY-FIX_ILL_RFD_CAN 1

 AM03-025118A CABLE ASSY-AXIS1_RFD_CAN_EXT 1

 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1

 AM03-011245C CABLE ASSY-CV_RDF_PWR_EXT 1

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1

AM03-014722B CABLE ASSY-R FDR PWR RELAY 1

Conveyor Sensor Board

AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR 1

 AM03-011607A CABLE ASSY-CONVEYOR_SOL 1

 AM03-027512A CABLE ASSY-D-S1_R_DUMP_BOX_SWITCH_1 1

 AM03-011144B CABLE ASSY-STOPPER_SENSOR_EXT 1

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR 1

 J90831196C BUT_SENSOR_CABLE_ASSY 1

 AM03-010797A CABLE ASSY-WIDTH_WORK_1_2_HOME_SEN 1

 AM03-010801B CABLE ASSY-CONV_LEFT_IF_BD 1

 AM03-010802A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1

AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 1

 AM03-011607A CABLE ASSY-CONVEYOR_SOL 1

 AM03-011146B CABLE ASSY-R_DUMP_BOX_SWITCH 1

 AM03-011144B CABLE ASSY-STOPPER_SENSOR_EXT 1

 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1

 J90831196C BUT_SENSOR_CABLE_ASSY 1

 AM03-010797A CABLE ASSY-WIDTH_WORK_1_2_HOME_SEN 1

 AM03-010813B CABLE ASSY-CONV_RIGHT_IF_BD 1

AM03-010816B CABLE ASSY-IN_CONV_32P_MODULE_A 1

 AM03-010817B CABLE ASSY-IN_CONV_32P_MODULE_B 1 AM03-010817A

 AM03-019721A CABLE ASSY-IN_CONV_F_PCB_SEN_IN_WAIT 1

AM03-010825B CABLE ASSY-EXIT_CONV_32P_MODULE_A 1

 AM03-010826A CABLE ASSY-EXIT_CONV_32P_MODULE_B 1

 AM03-019721A CABLE ASSY-EXIT_CONV_PCB_SEN 1

Conveyor IF Board

AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1

 AM03-027092A CABLE ASSY-CVIF_FFD_CAN_EXT 1

 AM03-010656A CABLE ASSY-RFDR_CVIF_CAN 1

 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1

 AM03-011245C CABLE ASSY-CV_RDF_PWR_EXT 1

 AM03-010836C CABLE ASSY-CONV. S/W OUTPUT 1

AM03-010844C CABLE ASSY-INLINE_IN-OUT_CVIF 1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1

 AM03-025092A CABLE ASSY-DECAN_PUMP_BUT_AIR_SENSOR 1

 AM03-014907A CABLE ASSY-PUMP_PWR_ALARM-EXT 1

 AM03-014977B CABLE ASSY-RS232_SERIAL-EXT 1

 AM03-014387A CABLE ASSY-RS32_SERIAL 1

 AM03-027521A CABLE ASSY-STP_DUMP BOX SEN 1

 AM03-027523A CABLE ASSY-CONV_SENSOR_IF 1

 AM03-027512A CABLE ASSY-D-S1_R_DUMP_BOX_SWITCH_1 1

 AM03-012631B CABLE ASSY-SINGLE_CONV_SOL 1

AM03-010848E CABLE ASSY-ANC SNS_LOOF FAN_RACK FAN EXT 1

 AM03-010849B CABLE ASSY-ANC_SENSOR_REAR_EXT 1

 J90831135A #N/A #N/A

 AM03-027510A CABLE ASSY-SAFETY_MONITOR_IO 1

 AM03-012634A CABLE ASSY-F_AREA_SENSOR_J5R 1

 AM03-021648A CABLE ASSY-AXIO_CAN_SEN_J3-6R_J8-11L 1

 AM03-010852B CABLE ASSY-F_AREA_SENSOR_J10L 1

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1

 AM03-012635B CABLE ASSY-R_AREA_SENSOR_J6R 1

 AM03-021648A CABLE ASSY-AXIO_CAN_SEN_J3-6R_J8-11L 1

 AM03-010853B CABLE ASSY-REAR_AREA_SENSOR_J11R 1

 J90831759A REAR_AREA_SENSOR_CABLE_ASSY SM421-CV018 1

AM03-010850A CABLE ASSY-CONV_SW_INPUT1_2 1

AM03-011610A CABLE ASSY-FRONT_D-CART_SOL 1

 AM03-011611B CABLE ASSY-REAR_D-CART_SOL 1

 AM03-011608B CABLE ASSY-F_DOCKING_CART_SNS 1

 AM03-011609B CABLE ASSY-R_DOCKING_CART_SNS 1

 AM03-010857C CABLE ASSY-T_BOX_HOST_J1R 1

 AM03-010961A CABLE ASSY-BD_PW_SC_J1R 1

Conveyor Sub IF Board

AM03-010836C CABLE ASSY-CONV. S/W OUTPUT 1

 AM03-010850A CABLE ASSY-CONV_SW_INPUT1_2 1

 AM03-010906B CABLE ASSY-FRONT_OP_SW 1

 AM03-021644A CABLE ASSY-AIR_SEN_R_OP_CONV_SUB_J6R 1

 AM03-021648A CABLE ASSY-AXIO_CAN_SEN_J3-6R_J8-11L 1

 AM03-010908B CABLE ASSY-REAR_OP_SW_J11L 1

 AM03-010855C CABLE ASSY-AIR_INDICATOR_11R 1

 AM03-021754A CABLE ASSY-AIR INDICATOR 1

 AM03-010953B CABLE ASSY-CONV_SUB_IF_EXT 1

Head IF Board

AM03-007080C CABLE ASSY-CABLE_ASSY-X_LIMIT_& HD_PWR 1

 AM03-006922B CABLE ASSY-AXIS1_HD_POWER;B 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-027093A CABLE ASSY-FFD_HD_CAN 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-007484B CABLE ASSY-CABLE ASSY-HD_VAC-BLOW_H3-H10 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

AM03-005590C CABLE ASSY-FLY_SIDE_1 1

 AM03-005593D CABLE ASSY-FLY_OUT_1 1

AM03-007500B #N/A #N/A

 AM03-015567A CABLE ASSY-CABLE ASSY-SW_HOME_SENSOR 1

 AM03-015718A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1

 AM03-015112A CABLE ASSY-HEAD_HOME_SENSOR 1

 AM03-005587C CABLE ASSY-HEAD_OVER_BLOW_SOL 1

 AM03-007496B CABLE ASSY-CABLE ASSY-HEAD_BLOW_SOL 1

 AM03-007495C CABLE ASSY-CABLE ASSY-HEAD_VACUUM_SOL 1

 AM03-007503A CABLE ASSY-CABLE ASSY-HEAD_VAC_SENSOR 1

 AM03-007501A #N/A #N/A

 AM03-007502B CABLE ASSY-CABLE ASSY-FLY_COAXIAL 1

Axis Sensor Board

AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1

 AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1

 AM03-015575B CABLE ASSY-WD_AXIS_SENSOR_EXT 1

 AM03-027523A CABLE ASSY-CONV_SENSOR_IF 1

 AM03-024323A CABLE ASSY-SM48_CONV_SENSOR_EXT;A 1

 AM03-025088A #N/A #N/A

AM03-020589C CABLE ASSY-AXIS_SNS_BD_CN9;B 1

 AM03-007046B CABLE ASSY-CABLE_ASSY-AXIO_CN7_9 1

 AM03-027048A CABLE ASSY-FDR UNLOCK SEN J3R 1

 AM03-021648A CABLE ASSY-AXIO_CAN_SEN_J3-6R_J8-11L 1

 AM03-010811C CABLE ASSY-FDR_UNLOCK_SEN_J8L 1

 J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 2

Axis IO Board

J91672739A PCIE_CABLE_2M 74576-0002 1

 AM03-006922B CABLE ASSY-AXIS1_HD_POWER;B 1

 AM03-020589C CABLE ASSY-AXIS_SNS_BD_CN9;B 1

 AM03-007046B CABLE ASSY-CABLE_ASSY-AXIO_CN7_9 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-007080C CABLE ASSY-CABLE_ASSY-X_LIMIT_& HD_PWR 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-015580A CABLE ASSY-X AXIS SENSOR CABLE ASSY 1

 AM03-025118A CABLE ASSY-AXIS1_RFD_CAN_EXT 1

 AM03-027090A CABLE ASSY-FIX_ILL_RFD_CAN 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-007482B CABLE ASSY-CABLE ASSY-HD_VAC-BLOW_CTRL 1

 AM03-007484B CABLE ASSY-CABLE ASSY-HD_VAC-BLOW_H3-H10 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-006961B CABLE ASSY-Y1_SERVO_POWER;B 1

 AM03-027031A CABLE ASSY-Y1 MOTOR PWR 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-027033A CABLE ASSY-Y1 LINEAR ENC 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-019778B CABLE ASSY-FY2 DRV COMMAND 1

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1

 AM03-027030A CABLE ASSY-Y2 MOTOR PWR 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-027035A CABLE ASSY-Y2 LINEAR ENC 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

AM03-026998A CABLE ASSY-X_W DRV CMD AXIO 1

 AM03-006960A CABLE ASSY-X_Y2_SERVO_POWER 1

 AM03-027029A CABLE ASSY-X MOTOR PWR 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-019874B CABLE ASSY-X MOTOR EXT 1

 AM03-021389A CABLE ASSY-X REGEN RESISTOR 1

 AM03-027032A CABLE ASSY-X MOTOR ENC 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-014671A CABLE ASSY-SW_WD_SERVO_POWER 1

 AM03-027034A CABLE ASSY-WD MOTOR POWER 1

 AM03-012615B CABLE ASSY-WD_MOTOR_ENC 1

AM03-007050B CABLE ASSY-CABLE_ASSY-CB12_BW12_CMD_AXIO 1

 AM03-026829A CABLE ASSY-CONV_BELT_MOT 1

 AM03-024336A CABLE ASSY-CONV_R_BELT_MOT_PW;A 1

 AM03-010657A CABLE ASSY-CONV-BELT-STEP-POWER 1

AM03-007050B CABLE ASSY-CABLE_ASSY-CB12_BW12_CMD_AXIO 1

 AM03-026829A CABLE ASSY-CONV_BELT_MOT 1

 AM03-024336A CABLE ASSY-CONV_R_BELT_MOT_PW;A 1

 AM03-010657A CABLE ASSY-CONV-BELT-STEP-POWER 1

AM03-000054 CABLE ASSY-PCIE_CABLE_3M CB-CE-3 1

 AM03-007045A CABLE ASSY-CABLE_ASSY-AXIO_BD_2_PWR 1

 AM03-007526B #N/A #N/A

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026997B CABLE ASSY-Z1-Z10 DC24V PW 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 4

AM03-007527B #N/A #N/A

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 4

 AM03-007528B #N/A #N/A

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 4

AM03-007529B #N/A #N/A

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-026997B CABLE ASSY-Z1-Z10 DC24V PW 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 4

 AM03-007530B #N/A #N/A

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-010924A CABLE ASSY-Z_DRIVER_PW_JUMPER 4

AM03-007484B CABLE ASSY-CABLE ASSY-HD_VAC-BLOW_H3-H10 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

AM03-010982B CABLE ASSY-R1_R2_R3_DRV_COMMAND 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

AM03-026964A CABLE ASSY-SW DRV COMMAND 1

 AM03-014671A CABLE ASSY-SW_WD_SERVO_POWER 1

 AM03-027524A CABLE ASSY-SW MOTOR PWR 1

 AM03-014686B CABLE ASSY-RSW_MOTOR_ENC 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-005611D CABLE ASSY-SWING MOTOR 1

Safety Control Board

AM03-021650A CABLE ASSY-F_OP_PANEL_IF_F_TBOX 1

 AM03-010837D CABLE ASSY-FRONT_TEACHING_BOX_EXT 1

 AM03-014710B CABLE ASSY-PS1_PS4_DC_PW_T2L 1

 AM03-014712B CABLE ASSY-PS1_PS4_DC_PW_T6L 1

AM03-026876A CABLE ASSY-R_OP_PANEL_IF_R_TBOX 1

 AM03-010838D CABLE ASSY-REAR_TEACHING_BOX_EXT 1

AM03-011245C CABLE ASSY-CV_RDF_PWR_EXT 1

 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1

 AM03-010857C CABLE ASSY-T_BOX_HOST_J1R 1

 AM03-010961A CABLE ASSY-BD_PW_SC_J1R 1

 AM03-010951A CABLE ASSY-FRONT_OVERRIDE_KEY_EXT 1

 AM03-017549A #N/A #N/A

 AM03-010919C CABLE ASSY-LEFT_REAR_FAN_PW 1

 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 1

 AM03-007044B CABLE ASSY-CABLE_ASSY-R_STEP_DRV_PWR 1

 AM03-005723C #N/A #N/A

 AM03-010657A CABLE ASSY-CONV-BELT-STEP-POWER 1

 AM03-003686A CABLE ASSY-1_TRAY_FEEDER_EXT 1

 AM03-003689A CABLE ASSY-2_TRAY_FEEDER_EXT 1

AM03-010867B CABLE ASSY-FRONT FDR CTRL PWR-EXT 1

AM03-010866C CABLE ASSY-FRONT FDR CTRL PWR_J1L 1

 AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1

 AM03-014705A CABLE ASSY-SACO_+24V_RELAY 1

 AM03-012662A #N/A #N/A

AM03-006922B CABLE ASSY-AXIS1_HD_POWER;B 1

 AM03-007045A CABLE ASSY-CABLE_ASSY-AXIO_BD_2_PWR 1

AM03-010953B CABLE ASSY-CONV_SUB_IF_EXT 1

 AM03-021644A CABLE ASSY-AIR_SEN_R_OP_CONV_SUB_J6R 1

 AM03-027509A CABLE ASSY-SACO_CN18_MC 1

 AM03-027507A CABLE ASSY-MC_FEEDBACK 1

 AM03-008065A #N/A #N/A

Motor IF Board

 AM16-001459A CABLE ASSY-Z1_MOTOR 1

 AM16-001459A CABLE ASSY-Z2_MOTOR 1

 AM16-001459A CABLE ASSY-Z3_MOTOR 1

 AM16-001459A CABLE ASSY-Z4_MOTOR 1

 AM16-001459A CABLE ASSY-Z5_MOTOR 1

 AM16-001459A CABLE ASSY-Z6_MOTOR 1

 AM16-001459A CABLE ASSY-Z7_MOTOR 1

 AM16-001459A CABLE ASSY-Z8_MOTOR 1

 AM16-001459A CABLE ASSY-Z9_MOTOR 1

 AM16-001459A CABLE ASSY-Z10_MOTOR 1

AM03-008031A CABLE ASSY-R1_MOTOR 1

 AM03-008031A CABLE ASSY-R2_MOTOR 1 AM03-010515C/ AM03-010515D

 AM03-008031A CABLE ASSY-R3_MOTOR 1

 AM03-008031A CABLE ASSY-R4_MOTOR 1

 AM03-008031A CABLE ASSY-R5_MOTOR 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026604B CABLE ASSY-DECAN_S1 FLAT 1 1

 AM03-026603B CABLE ASSY-DECAN_S1 FLAT 2 1

Vision IF Board

AM03-019914B CABLE ASSY-HEAD2 FIDUCIAL CAMERA 1

 AM03-024026A CABLE ASSY-P4-FID_CAMERA_1 1

 AM03-027525A CABLE ASSY-FIX1 CAMERA 1

 AM03-024027A CABLE ASSY-P4-FID_CAMERA_2 1

 AM03-014384A CABLE ASSY-VISION_IF_BD_POWER 1

 AM03-014765A CABLE ASSY-NEXTEYE BD2 IF MEGA 1

AM03-014768B CABLE ASSY-HEAD2_FLY_CAM_PWR/SYNC 1

 AM03-026603B CABLE ASSY-FLAT 2 1

 AM03-005548G CABLE ASSY-FLY_CAM_PWR_SYNC_EXT 1

 AM03_014769B #N/A #N/A

 AM03-026604B CABLE ASSY-FLAT 1 1

 AM03-005551E CABLE ASSY-FLY CAM SIG_EXT 1

 AM03-005553B #N/A #N/A

Articles of Consumption

AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 3 Years

 HP04-000178 FILTER 3 Years

HP04-000103A FILTER-ELEMENT 3 Years

 HP04-000179 FILTER,OIL 3 Years

HP04-001045A FILTER,OIL-ELEMENT 3 Years

 HP11-000193 PUMP 6 Month

 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years

 EP02-001745B HARNESS-LOOF FAN CABLE ASSY 3 Years

 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years

 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years

 EP10-900438 FUSE[250V 5A] Breakdown

 EP10-900439 FUSE[250V 10A] Breakdown

 MC05-000254 BELT-860 Inspect and replace (6 Months)

 MC05-900130 FLAT BELT-WORK_FIX_750 Inspect and replace (6 Months)

 MC05-000261 BELT-1760 Inspect and replace (6 Months)

 TE07-900010 CONV_WORK_BELT-1065 Inspect and replace (6 Months)

 MC05-000068A BELT_SHUTTLE_945 Inspect and replace (6 Months)

 MC05-000234 BELT_SHUTTLE_1504 Inspect and replace (6 Months)

 MC05-900057 BELT_WORK-1550 Inspect and replace (6 Months)

 J7055140A STEEL BALL 1 Years

 J72550021C SILICON TUBE(BLACK) 1 Years

 HP04-900036 SUCTION_FILTER 3 Month

 CM01-900473 TRI-FLOW CLEANER-A/S;OIL,PLASTIC BOTTLE,59ML

 CM02-000092 GREASE-FLOIL G-145K

 HP09-000258 SUPPLY,OIL-GREASE-GUN_MG70_THK

 CM02-900022 GREASE ALVANIA_EP2

 CM02-000083 GREASE-GREASE_AFE-CA+70_THK;SYNTHETIC

 CM02-000084 GREASE-GREASE_AFE-CA+400_THK;OIL

PT03-900261A STICKER_PWR_DISCONNECT

PT03-003014A STICKER-LIFT;STICKER

J90551006A NOZZLE CN020 ASSY 1

 J9055133C NOZZLE CN030 ASSY 1

 J9055134C NOZZLE CN040 ASSY 1

 J9055136C NOZZLE CN065 ASSY 1

J9055159B NOZZLE CN140 ASSY 1

 J9055351A NOZZLE CN220 ASSY(CERAMIC) 1

 J90551072A NOZZLE_CN400_ASSY 1

 TO04-001051A HEAD PIN HEIGHT_MASTER JIG 1

 J90551240A CALIBRATION_PLATE_ASSY
