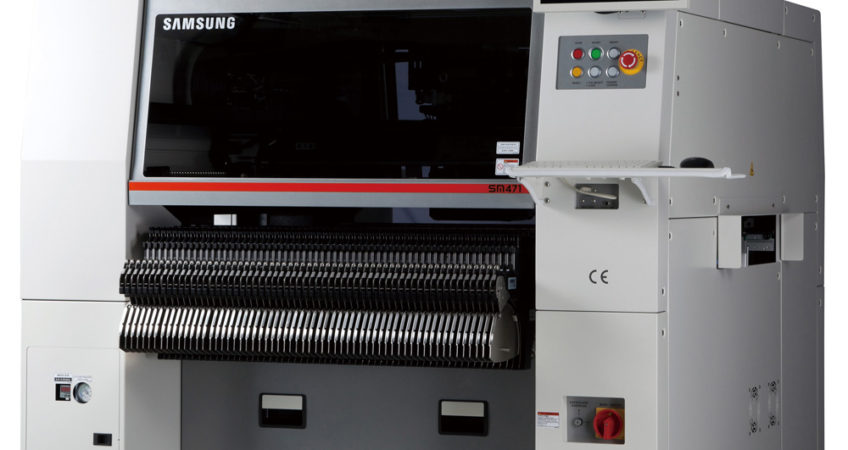

Advanced High Speed Flexible Mounter SM481 Part

Advanced High Speed Flexible Mounter SM481 Part

Feeder Base Ass’y- ST

FC07-000033B VERTICAL_PLATE 1

 J70570262C M_90_CAP_TOP_PLATE 5

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 FC05-000122A FEEDER_BASE_BODY 1

 J7057213A SIDE CABLE COVER-FB[J7057213A] 2

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A F_BASE_LEFT_BOARD 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000693A F_BASE_RIGHT_BOARD 1

Feeder Base Ass’y- DC

J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060354A

 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1 J9060353A

 J6711256A COUPLER[KD-M5-SA34697KR] 56

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 AM03-000696A ASSY,BOARD-FBLD 1 J9060349D

 AM03-000695A ASSY,BOARD-FBRD 1 J9060350D

 FC30-001081A TOP PLATE S DCN 1

 J90571009A DC-FEEDER_BASE_MODULE 1

 FC09-002060A SME DC BKT 1

 FC30-001080A TOP PLATE B DCN 1

J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6711001A ELBOW FITTING 1

 J67110119B UNION Y FITTING [KQ2U04-06] 1

 J67050004B SILENCER AN101-01 2

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

 FC09-002061A DC SME SENSOR BKT 1

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J91741070A FEEDER_IO_BOARD VER 1.2 1

 FC09-000977A FRONT SENSOR BKT2 1 J70540267B

 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C

 J1300101 DRAWER PULL [HD-108] 2

 J70540268C REAR SENSOR BKT1 1

 J70540269B REAR SENSOR BKT2 1

J6712008A PLUG 2

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711009A ELBOW FITTING [KQ2L06-M5] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6712008A PLUG [PT 1/8] 3

 J67110119B UNION Y FITTING [KQ2U04-06] 1

 J6703037A CHECK VALVE[AKH06-00] 1

 J1300284 FITTING [KQ2U06-00/PY6M] 5

 J1300276 FITTING [KQ2L06-01/PL6-01] 5

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

Backup Table Ass’y

J9053342A BACK UP TABLE ASSY[J9053342A] 1

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN[J7053792A] 4

 J7053793A LOWER LINK PIN[J7053793A] 2

 J7053796A LOWER LINK SHAFT[J7053796A] 1

 J71530419B UPPER DRIVING LINK[J7153419A] 1

 J90531008A LINK_END_ASSY 2

 J70530797B LOWER LINK END 1 J7053797A

 J6601005A BALL BEARING 1

 J90531004A FREE_LINK_ASSY 2

 J71530418B UPPER FREE LINK 1 J7153418A

 J70530799C UPPER PLATE 1

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN[J7053794A] 2

 J7053795A RING FIXER[J7053795A] 3

 J6619062A CYLINDER JOINT[Y-032B] 1

 J67010088B CYLINDER CM2C32-50-XC3BB 1

 J6711028A ELBOW FITTING [KQ2L04-01] 2

 J70530800C LOWER PLATE 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER[J7053790A] 1

 J70530801D BACK UP PLATE 1 J70530801C

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER[J7053791A] 1

 J6308003A URETHAN CUSHION[AXNSK15-40] 2

 J7053803A UP SENSOR DOG[J7053803A] 1

 J6107047A SPRING[SWU26-70] 1

J6015064000 SHOULDER SCREW[MSB6-40] 2

 J3212002A PHOTO SENSOR 1

 J7053802A UP SENSOR BRACKET[J7053802A] 1

 J9053343A BACK UP TABLE ASSY(LARGE)[J9053343A] 1

 J90531035A BACK_UP_TABLE_ASSY-EXL J90531035A 1

Stage CAM Ass’y

J70590095C CAMERA BOARD COVER 1

 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1

 FC15-001295A LIGHT_COVER 1

 FC09-002220A LIGHT_G_1 1

 J90600075B STAGE SIDE ?? BOARD ASSY 1

 J90600074B STAGE OUTER ?? BOARD ASSY 1

 FC09-002219A LIGHT_G_2 1

 EP15-000010A REFLECT_SHEET 4

 FC09-002223A LIGHT GUIDE 4

 FC15-001294A PROFILE_2 1

 FC09-002218A GLASS_STOP 2

 EP12-000044A GLASS 1

 PT02-000048A DIFFUSER 1

 J6103003A HEX SUPPORT 4

J90600073C LED98-9 BOARD ASSY STAGE INNER 1

 FC09-002222A PCB_BASE_2 1

 FC09-002221A PCB_BASE_1 1

 FC05-000225A BASE 1

 FC15-001293A PROFILE_1 1

 J9059118A LENS_F45_60 1

 J67510015B CCD CAMERA 1

 FC15-001290A COVER_1 1

 FC15-001292A COVER_COMP 1

 J7066008D LINK_SHAFT_1 1

 FC15-001291A COVER_2 1

 J7153373A FIDUCIAL_DISK 1

Cover Ass’y

FC15-001006A CONVEYOR_COVER 2

 FC15-000959A TOP_SIDE_L 1

 FC15-000956B COVER_FRAME_FRONT-L 1 FC15-000956A

 FC39-000757B COVER_FRAME_REAR-R 1 FC39-000757A

 J47131010A TOWER_LANP 1

 J73520001B DOOR CUSHION 4

 FC15-000946B UPPER_FL 1 FC15-000946A

 J64091005A MAGNETIC 4

 FC09-000693B BARCODE_HANGER3 1

 FC15-000955A TOP_CENTER 1

 J70521087A WINDOW_HINGE 2

 FC15-000953A UPPER_SIDE_R 2

 FC09-001707A SM471_WINDOWS_SIDE_GUIDE_L 1

 FC09-001711A SM471_WINDOWS_SIDE_CLAMP 4

 FC30-000881A SM471_PC_FIXED_PLATE 1

 FC09-001706A SM471_WINDOWS_SIDE_GUIDE_R 1

 FC18-001043 FRSNUT_M4 15

 FC30-000908A SM471_MAGNETIC_PLATE 2

 FC09-001709A SM471_HANDLE_PLATE 1

 FC09-001708A SM471_COVER_HANDLE_C 1

 J70521081A GAS_SPING_BRACKET2 2

 FC15-001006A CONVEYOR_COVER 2

 J6404001A DOOR KEY 1

 FC15-001031A SM471_WINDOW_MAIN_PLATE 1

 CM01-000057B SM471_PC_COVER_ESD 1

 J3212049A AREA_SENSOR_BWP20-12 2 OPTION

 FC15-000947B UPPER_RL 1 FC15-000947A

FC15-000958A TOP_SIDE_R 1

 FC39-000755B COVER_FRAME_REAR-L 1 FC39-000755A

 J7070352A CONNECTOR BRACKET 1

 FC39-000756A COVER_FRAME_FRONT-R 1

 J70521025A lower_op_panel 2

 FC15-000945B UPPER_FR_RR 2 FC15-000945A

 J91731033A AREA_SENSOR_ASSY 2 J91731014A

J70521075D GAS_SPRING_BRACKET1 4

 FC38-000079 GAS_SPRING_KS2-300-PS1-032 8

 J34091002A DOOR_SWITCH 2

 FC09-001727A DOOR_SENSOR_BKT3 2

 FC09-001726A DOOR_SWITCH_BKT3 2

 FC15-000998A HINGE_PLT 2

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2

 FC15-000505B COVER-MONITOR_GUIDE_PL;SPCC,WHITE 2 FC30-000844A

 J7252061A PAD_BRACKET 4

 FC15-000997A LCD_BKT 2

 J6739088A SWITCH_1B_LED_RED 2

 J6739089A SWITCH_1B_LED_YELLOW 2

 J6739090A SWITCH_1B_LED_GREEN 2

 J3403047A SWITCH_2B_LED_WHITE 2

 J6739087A SWITCH_1B_LED_WHITE 2

 J3403082A EMS SW 2

 FC30-000829A OP_PANEL 1

 FC15-001005A KEYBOARD_BASE 1

 FC15-000957B KEYBOARD_BASE_BKT 2 FC15-000957A

J31091015A FAN_FILTER 2

 J3105010A FAN_4715MS-SST-B50 4

 FC15-000943B LOWER_SIDE_2_L 1 FC15-000943A

 FC15-000952A LOWER_SIDE_1_COVER 2

 FC15-000949B LOWER_FL 1 FC15-000949A

 J64091022A SLIDE_LATCH 1

 FC15-000960A LOWER_OPEN_DOOR-A 1

 J1300101 DRAWER_PULL_HD 4

 FC15-001138A MT481P-CV002A-COVER_LFM_DC 2

 FC15-001341A FB SIDE COVER FL 4

 FC15-001344A FB COVER FRONT 2

 HP04-000075 FAN FILTER METAL 120MM 2

 FC15-000948B LOWER_FR 1 FC15-000948A

 J64091022A SLIDE_LATCH 1

 J70511018B cable_duct_s-v 6

 J70521049A side_cover_support 1

 FC15-000944B LOWER_SIDE_2_R 1 FC15-000944A

 FC15-000949B LOWER_FL 1 FC15-000949A

 FC15-000961A LOWER_OPEN_DOOR-B 1

 J64091022A SLIDE_LATCH 1

 FC15-000961A LOWER_OPEN_DOOR-B 1

 J64091022A SLIDE_LATCH 1

 FC15-000951B LOWER_RR_COVER 1 FC15-000951A

 FC15-001340A FB SIDE COVER FR 1

 FC15-001342A FB SIDE COVER RR 1

 FC15-001345A FB COVER REAR 1

 FC15-001343A FB SIDE COVER RL 1

FC15-001297A MT481P-CV002A-COVER_LFM_DC 2

Control Rack Ass’y

J48091106A PCIE_HOST_ADAPTER_JMI PCIE_HOST_CARD 2

 CD05-000030 MOTHERBOARD,CPU-NuPRO-E340;SBC,Q67 1

 CD05-000028 CPU-I5-2400;Quad Core,3.1HGz 1

 J9060364A IT FEEDER MASTER BOARD ASSY[J9060364A] 1

 J91741002B SAMC-ME 6CH 2

 CD05-000031 MODULE,MEMORY-DDR3 4G PC3-10600;Dimm 1

 CD03-000036 HARD DRIVE-OCZ AGILITY 3 SSD;60GB 1 J51011017A

 J6102017A PC SLIDE RAIL[3832B-18] 2

 FC15-000076A AP5_PC_STOPER 2

 FC09-001665B BKT RIGHT BASE 1

 FC09-001669A SUB BRACKET B 1

 FC09-001667A POWER S HANGER 1

 AM03-006323A IPC_RACK-SM471 CASE 1

 FC09-001664B BKT LEFT BASE 1

 FC09-001668A SUB BRACKET 1

 EP10-001018 PCIE_BACKPLANE 1 J48091108A

 FC09-001666B POWER S DUCT 1

 J44021015A SMPS 3

 FC09-001670A POWER S BKT 3

 J44021043A PWR_SUPPLY 1

 J31051024A FAN 4710KL-04W-B49 2

 FC15-001085A COVER P SUPPLY 1

 FC29-000042 CAP-DUST CAP;PA10:rubber 3

 EP10-000749 MR-100 2

 CD05-000029 COOLER,CENTRAL PROCESSING-DP6-9EDSA-0L- 1

 FC15-001085A COVER P SUPPLY 1

Base Frame Ass’y

FC15-000983A COVER BOTTOM FR 2

 FC15-000985A COVER BOTTOM RR 1

 FC15-000986A COVER BOTTOM RL 1

 J7051010D HOUSING-FOOT 4

 J2100018 NUT-FOOT 4

 J70511014A BOLT_FOOT 4

 J7051008C BASE-FOOT 4

 J7351001A CUSHION FOOT 4

X-Y Frame Ass’y

FC09-001577A FLAT_CABLE_CLAMP 1

 FC09-001648A CABLE FIXER 2

 PM02-000794A CUSHION CABLE X 2

 FC09-001481A BKT CUSHION X 1

 FC09-001662A BKT CABLE X 2

 FC15-001260A COVER CHAIN Y 1

 FC09-001771A BKT CABLE CHAIN X 1

 PM02-000795A CUSHION CABLE Y 1

 FC09-001485A BKT CUSHION Y 1

 J3212022A PHOTO_SENSOR 2

 J66070076B LM GUIDE 2

 FC29-001532A SENSOR DOG X 2

 FC05-000148B BASE HEAD 411PS 1

 FC29-001531A SNS DOG Y 1

 J70541126A CONNECTOR BKT 1

 J31081055A SERVO MOTOR 1

MC13-000125 BALL SCREW 1

 FC29-001079A SUPPROT B SCREW X 1

 J71541010A BRG_HOUSING-X J71541010A 1

 J1300517 C-RING(SHAFT) 1

 J1300509 BALL BEARING 1

 FC10-000055A CUSHION X REAR 1

 J72541003A CUSHION_X_FRONT 1

J66011017A SUPPORT_UNIT 1

 J6612035A COUPLING 1

 FC15-001259A COVER CABLE X 1

J70541115A COVER BKT 1

 FC09-002206A BKT SIDE COVER 1 1

 J66061021A BALL SCREW 1

 EP08-000139 SERVO MOTOR 1

 J6612036A COUPLING 1

 FC07-000386A SQ80 Y MOTOR BLOCK 1

 J6601124A SUPPORT UNIT 1

 FC29-001533A STOPPER Y BS F 1

 J72541012A STOPPER Y B SCREW 1

 FC07-000528A BLOCK Y BS EXT 1

 J71541087B STOPPER EXT Y BS 1

 J70541120C BS REAR SUPPORT 1

 J67191018A OIL SEAL 2

 J70541121B BRG INNER SPACER 2

 J66011036A ANGULAR BEARING 1

 J70541122B BRG OUTER SPACER 1

 J70541119B BRG SUPPORT X 1

 J70541123C BEARING COVER Y 1

 J6608003A BEARING NUT 1

FC15-000922A COVER-COVER DRIVER Y 1

 FC09-001485A BRACKET-CUSHION Y 411PS 2

 PM02-000795A CUSHION-CABLE Y 411PS 2

 FC29-001084B SUPPORT-Y CABLE DUCT 1

 J66071013A LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1

 HP09-000127 MANIFOLD-MANIFOLD KM11-04-08-10 1

 J6103005A HEX SUPPORT 6

 FC09-001511A PANLEL CON Y 1

 J91741337A AXIS BOARD 1

 AM03-005372A HEAD Z AXIS DRIVER 5

 FC09-001509B BRACKET-BKT AXIS B 2 1

 FC09-001486A BRACKET-DIRVER T 1

 FC09-001663A BRACKET-BKT CABLE R 1

 EP06-000182 SERVO CONTROL-DRIVE-STEP DRV 5

 FC09-001647A BRACKET-BKT SIDE SUB 1

 J1300191 SEMUS NABE SCREW [M4*16] 10

 FC05-000149A BASE-DRIVER Y DUCT 1

 FC09-001984A BRACKET-BKT FAN SUB SM471 1

 FC09-001983A BRACKET-BKT FAN SM471 1

 AM03-006409A CABLE ASSY LR ZR DRV FAN 1

 FC09-002206A BKT SIDE COVER 1 1

 J70541115A COVER BKT 1

ANC Ass’y

FC05-000212A TOP_COVER 1

 FC18-000621A COVER_SPACE 9

 FC09-002208A TOP_COVER_L 1

 FC29-001527A SHUTTER 1

 J6703029A SPEED_CONTOL_VALVE 2

 HP03-000083 CYLINDER 1

 FC09-002171A SHUTTER_BKT 1

 FC05-000215A ANC_BASE 1

 FC38-000093A SPRING 1

 FC18-000619A SPACE_PIN 1

 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2

 J7153373A FIDUCIAL_DISK 2

 FC09-002173A REF_SHAFT 2

 FC09-002172A FID_SHAFT 2

 FC05-000214A ANC_PLATE 1

Conveyor Ass’y

J70530785B PCB GUIDE-FC 1

 J71531048B PCB_GUIDE_END 2

 J7253007A IDLER 2 8

 J7053047A IDLER SPACER-S 9

 J7053009A IDLER SHAFT-S2 9

 J3211048A PHOTO SENSOR 3

 J70531088B WORK_SENSOR_BRACKET 2

 J7053184A SQUARE NUT 19

 J7253006A IDLER 1 4

 J31041014A STEP_MOTOR 3

 J70531106A BRACKET_BELT_MOTOR_S 2

 J7153111A STEP_MOTOR_PULLEY 3

 J70531084A BRACKET_BELT_MOTOR_B 1

 J70531083A ALT_MOTOR_SUPPORT 4

 J7053689A SENSOR_KNOB 1

 FC09-002034A Q_SENSOR_BKT_BYD 1

 J7153331A RAIL_SENSOR 1

 J70531086A BRACKET_RAIL 2

 J66021017A BELT_410_1 2

 J66021018A BELT_410_F 1

 J71530399C CLAMP FRONT FRAME 1

 J90831401C CONVEYOR_PCB_SENSOR_ASSY 1

 FC09-002808A BRACKET-CON_STOP_CYLINDER_SMC 1 J70531089A

 J6711001A ELBOW FITTING 1

 J6703007A THROTTLE VALVE(ELBOW) 1

 FC30-001359A PLATE-STOPPER_TOP_SMC-CYL 1 J70531050A

 J70531029B STOPPER_POST 1

J7053770A IDLER SHAFT-M 4

 J7053048A IDLER SPACER-M 4

 J6607016A LM SLIDE 2

 J7253009B STOPPER 2 2

 J7153036A SLIDE GUIDE 1

 J7253008A STOPPER 2

 J7153010B ADJUST SHAFT 2

 J7153034A CLAMP SHAFT 2

 J6073010136H C-RING 2

 J66011035A BALL_BUSH 2

 J7153033A BUSH SPACER 2

 J66011035A BALL_BUSH 2

 J70531100B BRACKET_SENSOR_IN 1

 FC09-002127A BRACKET-SENSOR_OUT_P 1

 FC39-000975A FRAME-CONV_FRONT_P 1

 J3211032A PHOTOELECTRIC SENSOR 1

FC30-001116A PLATE-PCB_GUIDE_RC_P 1

 J71531048B PCB_GUIDE_END 2

 J7253009B STOPPER 2 2

 FC39-000970A FRAME-CONV_REAR_P 1

 J7253007A IDLER 2 8

 J7053047A IDLER SPACER-S 9

 J7253006A IDLER 1 4

 J7053184A SQUARE NUT 8

 J31041014A STEP_MOTOR 3

 J70531106A BRACKET_BELT_MOTOR_S 2

 J7153111A STEP_MOTOR_PULLEY 3

 J7253008A STOPPER 2

J7153010B ADJUST SHAFT 2

J7153034A CLAMP SHAFT 2

 J6073010136H C-RING 2

 J66011035A BALL_BUSH 2

 J7153033A BUSH SPACER 2

 J66011035A BALL_BUSH 2

 J7053763A IDLER SPACER-M 3

 J66021017A BELT_410_1 2

 J66021019A BELT_410_R 1

 J71530400C CLAMP REAR FRAME 1

 J70531085A BRACKET_BELT_MOTOR_M 1

 J7053009A IDLER SHAFT-S2 9

 J7053770A IDLER SHAFT-M 3

J6609012A PULLEY-WIDTH 1

 J1300509 BALL BEARING 2

 MC13-000042A SCREW,LEAD-SM421_P 1

 J7053194A BEARING NUT 1

 J7153330A PULLEY SHAFT 1

 J6602030A TIMING BELT 1

 J6609015B PULLEY-MOTOR 1

 FC09-002134A BRACKET-SERVO_MOTOR_P 1

 J3108062A SERVO MOTOR 1

 FC09-002125A BRACKET-SCREW_STAND_P 1

 FC09-002126A BRACKET-MOVE_STAND_P 1

 J6607083A LM GUIDE 1

 J6502008A LOW PROFILE MOUNTS 2

 FC05-000207A BASE-WIDE_ADJUST_SM421_P 1

 FC09-002124A BRACKET-FIX_STAND_P 1

Head Ass’y

FC15-000963A HEAD_TOP_COVER 1

 AM03-005337A HEAD IF BOARD 1

 FC30-000990A IF_BOARD_SHEET 1

 J6103003A HEX SUPPORT 8

 FC09-001574A HEAD_BOARD_BRACKET 1

 FC09-001573A HEAD_BKT_PANEL 1

 FC09-001568A FLAT_CABLE_BKT 1

 FC09-001847A FITTING_BKT 1

 J1301070 STRAIGHT_CONNETOR_FITTING 6

 AM03-005341A MOTOR_IF_BOARD 1

 FC30-000991A MOTOR_IF_BOARD_SHEET 1

 FC09-001576A MOTOR_IF_BOARD_BKT 2

 J6119056A HANDLE 1

 FC09-001690A HEAD_BKT_FIX 1

FC30-001147A SM481_REF_PLATE 1

 J71541016A HARNESS_SUPPORT 2

J31081047A SERVO MOTOR 10

 FC09-001505A Z_SPRING_BKT 1

 J7155541A PIN_Z 10

 J71551021A TIME_MOUNTER_E 2

 FC09-002295A 41_TIE_MOUNT_1 2

 J91851019A FIDUCIAL_CAMERA_ASSY 2

 FC09-001554A FID_BRACKET_2 1

 FC09-001524A S_STOPPER 2

 FC09-001555A FID_BRACKET_1 1

 FC09-001562A FLY_IO_TOP_COVER 1

 FC09-001561A FLY_CAM_COVER 1

 FC09-001563A FLY_IO_BOTTOM_COVER 1

 J6103003A HEX SUPPORT 10

 AM06-000358A SM400_CAMERA_IO_BD 1

 FC30-000971A COAXIAL_COVER 1

 FC15-001311A LIGHT_COVER 1

 EP12-000029A SM411_PLUS_BEAM_SPLITTER 1

RM03-000022A SM411_PLUS_COAXIAL_DIFFUSEER 1

 AM03-005100A SM471_FLY_COAXIAL_PCB_ASSY 1

 FC36-000038A SM471_FLY_COAXIAL_INSULATION 1

 FC09-001849A COAXIAL_SPACE 4

 FC09-001848A COAXIAL_PLATE 1

 FC09-001565A BS_CLAMP 2

 FC09-001559A FLY_SIDE_PLATE1 1

 FC09-002296A 481_FLY_SIDE_COVER 2

 FC30-000976A FID_CAM1_COVER 1

 FC09-001560A FLY_SIDE_PLATE2 1

FC30-000975A FID_CAM2_COVER 1

 FC09-001516A SM411_PLUS_FLY_OUTER_BRACKET_B 1

 FC36-000036A SM471_FLY_OUTER_INSULATION_A 2

 AM03-005097A SM411_PLUS_OUTER_PCB_ASSY_BB 1

 FC36-000037A SM471_FLY_OUTER_INSULATION_B 2

 AM03-005095A SM411_PLUS_OUTER_PCB_ASSY_AB 1

 AM03-005089A SM411_PLUS_OUTER_PCB_ASSY_AA 1

 AM03-005090A SM411_PLUS_OUTER_PCB_ASSY_BA 1

 FC03-0073424 FLY_OUTER_BRACKET_A 1

 J3212027A SENSOR_PM_L24 10

 FC09-001506A Z_SENSOR_BKT 1

 J6103023A HEX SUPPORT 2

AM03-005340A PRESSURE SENSOR BOARD 1

 J67081017A SUCTION FILTER 10

 HP06-000074 STRAIGHT FITTING 10

 HP09-000328A P_SENSOR_BLOCK 1

 J6711046A BOB ELBOW FITTING 10

 FC09-001523A MANIFOLD_PLATE_2 1

 HP09-000129 HEAD_AIR_MODULE 1

 FC09-001522A MANIFOLD_PLATE_1 1

 HP14-000344 OVER BLOW VALVE 1

 J6712015A PLUG_FITTING 1

 J67111192A ELBOW_FITTING 1

J91851018A SM431_FLY_CAMERA_ASSY 5

 J31081057A SERVO_MOTOR 1

 J7255081A MIRROR MOTOR ISOLATOR 1

 FC30-000805A FC30-000805A 1

 FC09-001553A MIRROR_PIN_3 1

 FC09-002292A MIRROR_SPRING_BRACKET 2

 7055163A BEARING_HOUSING 1

 J7055204A ARM_JOINT 2

 J7055205A WC 2

 J6601080A BALL_BEARING 4

 J7055153A MIRROR_SCREW 2

 MC19-000345A MIRROR_SHAFT 1

 J6601079A BALL BEARING 695ZZ 4

 J6107044A SPRING 2

 J6601081A CAM FOLLOWER 2

 FC30-001142A MIRROR_LINK_LEFT 2

 FC15-001001A HD-MIRROR_COVER 1

 FC09-001517A MIRROR_PLATE 1

 EP12-000030A FOLDING_MIRROR 1

 FC09-001521A MIRROR_CUSHION 2

 FC09-001519A MIRROR_CLAMP_2 1

 FC09-001518A MIRROR_CLAMP_1 1

 FC09-001557A S_SENSOR_BKT 1

 J3212027A SENSOR_PM_L24 1

 FC30-001141A MIRROR_LINK_RIGHT 1

 J70551042A SPRING_POST_MOVING 3

 J7455026A SPRING_BUSH 4

J7055557A BEARING_HOUSING 1

 J7155523A PULLEY(S-AXIS) 1

 J71551026A PULLEY-S_AXIS1 1

 J6602078A TIMING BELT 1

 MC7-00057A SM481_CAM 2

 FC30-001164A 481_S_SENSOR_DOG 1

EP08-000007 STEP_MOTOR 5

 FC09-001513A SM411_PLUS_Fly_Side_Bracket 2

 FC09-002292A MIRROR_BRAKET 2

 FC30-001147A SM481_REF_PLATE 1

 AM03-005087A SM411_PLUS_SIDE_PCB_A_ASSY 2

 FC36-000035A SM471_FLY_SIDE_INSULATION 2

 FC30-000797A INSULATION_PLATE 1

 FC30-000798A STEP_MOTOR_PLATE 1

 AM03-005846A R1_MOTOR-ASSY 1

 J32121021A PHOTO_SENSOR 1

 FC09-001501A T_M_PULLEY_CLAMP 1

 MC13-000116 LM_GUIDE 1

 J7155541A PIN_Z 1

 FC09-001881B Z_CAP 1

 J6711046A BOB ELBOW FITTING 1

 FC29-001047B Z_ROD_HOUSING 1

 FC09-001492B Z_BELT_CLAMP 1

 MC05-000117 TIMING BELT 1

 FC09-001502B Z_IDLE_BODY 1

 J66011095A BEARING 2

 J71551848A Z_IDLER_PULLEY 1

 J70551874A Z_IDLE_SHAFT 1

 HP07-000094A Y_PACKING 1

 FC09-001490A LOCK_NUT_Z 1

 FC18-000960 WAVE WASHER 1

 J6601140A BALL_BEARING-684ZZ 2

 FC09-001489A Z_TOP_HOUSING 1

MC13-000124 BALL SPLINE ASSY 1

 FC30-000927A BEARING_P_PLATE 1

 FC09-001494B S_PULLEY_CLAMP 1

 FC18-000967 TRUSS_SCREW 1

 MC19-000339A SPINDLE_PULLEY 1

 J66021183A TIMING_BELT 1

 J90551225A 431_NOZZLE_HOLDER_ASSY 1

 FC09-001493A Z_SENSOR_DOG 10

Electric Panel Ass’y

J3153054A SM_DIRIVER_50W 2

 J3153056A SM_DIRIVER_750W 1

 J3153057A SM_DIRIVER_1KW 2

 FC09-002142A CONNECTER_BKT_R 1

 FC09-002147A DRIVER_BRACKET-LOWER 1

 FC09-002146A DRIVER_BRACKET-UPPER 1

 FC09-002143A DRIVER BRACKET-SIDE_SM482 2

 J3105010A COOLING FAN 1

 FC09-002141A CONNECTER_BKT_L 1

 J2029010A REGENERATIVE_RESISTOR 3

 J70511021A RESISOTR_BRACKET 1

 FC09-002144A SM482_AXIS_BD_BKT 1

 FC09-002140A AXIS_BD_SUB_BKT 1

 AM03-007102A FIX_ILL_BORAD 1

 AM06-000943A 8AXIX_BORARD 1

 FC09-002139A AXIS_BD_COVER 1

 J251007A BD_COVER 1

 J9060342B SAFTY_CONTROL_BD 1

 AM03-006976A REAR_TERMINAL_BLOCK 1

Electric Device Ass’y

J67091014A REGULATOR AR08-T2-D0M0-J346A 1

 J6712008A PLUG [PT 1/8] 1

 AM03-007638A AIR_INDICATOR_CABLE_ASSY 1

 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 FC09-001465A BRACKET-AIR F SMU 1

 J67111183A ELBOW_MINI_FITTING SCL04-01 1

 J61191172A METER GZ46-K-01-C1 1

 J61191167A JOINT KQ2F04-01 1

 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 2

 J67090012B REGULATOR 1

 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY 1

 J90831059C KEY_SWITCH 1

 FC09-001672A BRACKET-BKT F POWER 1

 J6309025 FAN[PFC120(FOR 120? FAN)] 2

 FC15-000943B COVER-LOWER_SIDE_2_B 1 FC15-000943A

 J3105010A COOLING FAN[4715MS-22T-B50] 2

AM03-003542A CABLE ASSY INLINE_IN_OUT 1

 J36031004A MAIN_SW_CANCLE 1

 J3716070A GV2_AF 1

 J70521076B POWER_PANEL 1

 AM03-003573A LAN_PORT 1

 J7152027A GROUND TERMINAL [J7152027A] 1

 J52011002A MINI_KEYBOARD 5510UH 2

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2

 J52021011A OPTICAL_MOUSE 2

 J90601023B TEACHING_BOX 1

 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 J53011032A

J91741042A SM421_AXIS_SENSOR_BOARD_ASSY VER1.0 1

 J91741076A CONV_SUB_IF_BOARD 1

 J29011001A NOISE_FILTER UF20TBH 1

 J26051012A TRANSFORMER 3PHASE, 5.5KVA 1

 AM03-005338A AXIS SENSOR 1

 J80001112A MONITOR_DISTRIBUTOR NM-V21 1

 AM06-00359A VISION IF BD 1

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J90601030B FR_OPERATE_BOARD 1

 FC09-001657B BKT VAC GEN 1

 HP11-000058 VACUUM GENERATOR 1

 J67111205A FITTING 1

 J67111203A FITTING 1

 J1301213 PLUG 1

 J67021025A AIR-VALVE 1

 J6712008A PLUG 1

 J1300067 SILENSER 1

 FC15-000967A COVER PUMP 1 OPTION

 HP11-000059 VACUUM_PUMP KHA400A-301-G1 1 OPTION

 FC28-000105 STRAIGHT NIPPLE 1 OPTION

 J61191171A FITTING KQ2R04-08 1 OPTION

 HP06-000250 FITTING KQ2VT12-03S 1 OPTION

 HP06-000234 FITTING KQ2R08-12 1 OPTION

 HP11-000058 FITTING 1

 FC28-000103 ADAPTER 1

AM03-006356A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1

 EP06-000283 SERVO CONTROL-DRIVE-BELT STEP DRIVER 2 EP06-000219

 J91741023A SM411_CONVEYOR_PWR_BOARD 1

Air Ass’y

J67081006A MIST_SEPARATOR_ASSY TAC4020-04D-R3643 1

 J67111032A MIST_FITTING SQV12-04S 1

 J67010088B CYLINDER CM2C32-50-XC3BB 1

 J6711028A ELBOW FITTING KQ2L04-01/SQL04-01S-W 1

 J6703028A SPEED CONTROLLER [SS4-M5MA] 1

 HP03-000096 CYLINDER-CXSJM10-40-A93 1 J6701018B

 J1301354 AS1201F-M5-04-X214 1

 J9080778B ANC SENSOR CABLE ASSY[SM-CV010] 1

 J67090018B REGULATOR 1

 J6701087A EDGE CYLINDER[CQ2B6-CJJC2948] 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 HP14-000398 VALVE,THROTTLE-GRLA-E-M5-QS-4C 1

 HP06-000275 FITTING-DIN 908-G1/8-ST;Plug,Thread 1

 HP09-000157 MANIFOLD-VABM-L1-10S-G18-4 1

 J67031002A DOUBLE_SPEED_CONTROLLER ASD230F-M5-04 1

 HP14-000397 VALVE,SOLENOID-VUVG-S10-M52-RT-M5-1H2L 1

 HP09-000156 ACCESSORY,PNEUMATICS-B-M5-B 1

 HP15-000010 ACCESSORY,VALVE-VABB-L1-10-S 1

 HP06-000279 FITTING-QS-E-1./8-8-C;STRAIGHT FITTING 1

 HP09-000164 SILENCER-U-E-1/8-S 2

J67121009A PLUG KQ2P-08 5

 J6711183A STRAIGHT FITTING [KQ2R06-08] 4

 HP06-000226 FITTING-KQ2R10-12;STRAIGHT 1

 J67121002A PLUG KQ2P10 1

 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N-K1- 1

 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 J61191167A JOINT KQ2F04-01 1

J61191172A METER GZ46-K-01-C1 1

 J6711028A ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 1

 J67090012B REGULATOR 1

 J67091014A REGULATOR AR08-T2-D0M0-J346A 1

 J6711168A UNION Y FITTING 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

J1301213 PLUG [PT 3/8] 1

 J67021025A AIR-VALVE VP544-5D-03-A 1

 J6712008A PLUG [PT 1/8] 1

 J67111203A FITTING SQL10-03S(WHITE) 2

 J67111205A FITTING SQL10-02S(WHITE) 1

 HP11-000075 PUMP-P6010-AJ-01-LA52SG 1

 FC28-000105 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1

 HP13-000042 TUBE-NYLON TUBE N2-4-12x9-MW;12,OD12/ID9 1

 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 2

 J61191171A JOINT KQ2R04-08 1

 HP06-000250 FITTING-FITTING KQ2VT12-03S;ELBOW 1

 HP06-000124 FITTING-FITTING;PLUG,12,12 1

 HP11-000059 PUMP-PUMP KHA400A-301-G1 1

J6712008A PLUG [PT 1/8] 1

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 2

 J6703037A CHECK VALVE[AKH06-00] 1

 J6711168A UNION Y FITTING 1

 JJ67050004B SILENCER AN101-01 1

 J6711009A ELBOW FITTING [KQ2L06-M5] 1

 J6711247A ELBOW FITTING[PT18EF] 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J6711256A COUPLER[KD-M5-SA34697KR] 1

J6711257A PLUG[KS-4-M5-SA34698KR] 2

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J1300284 FITTING [KQ2U06-00/PY6M] 5

 J1300276 FITTING [KQ2L06-01/PL6-01] 1

 J1300284 FITTING [KQ2U06-00/PY6M] 5

 HP06-000235 FITTING-KQ2U12-00;Y-SHAPE,ONETOUCH 1

 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1

 J67111035A STRAIGHT_FITTING KQ2H04-06 2

 HP09-000127 MANIFOLD-MANIFOLD KM11-04-08-10 1

 HP13-000037A TUBE-M-TUBE UML-412 3.7M;12x4 1

AXIO BD#1

AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-007484A CABLE ASSY-HD_VAC-BLOW_H3-H10 1 SM481_VI006

 AM03-007482A CABLE ASSY-HD_VAC-BLOW_CTRL 1 SM481_AX008-1

 AM03-007047A CABLE_ASSY-AXIO_CN5 1 SM481_AX008

 AM03-007151A FLAT_CABLE_ASSY 1 SM481 FL002

 AM03-007046A CABLE_ASSY-AXIO_CN7_9 1 SM481_AX006

 AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-007080A CABLE_ASSY_LIMIT_&_HD_PWR_EXT 1 SM481_AX006-1

 AM03-007483A X AXIS SENSOR CABLE ASSY 1 SM481_AX002

AM03-006907A CABLE ASSY-Y1-Y2_DRV_CMD_AXIO 1 SM48_VM003

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48-PW020

 AM03-006944A CABLE ASSY-Y1_MOTOR_POWER 1 SM48-MD005

 AM03-006945A CABLE ASSY-Y1_MOTOR_ENC 1 SM48-MD006

 AM03-007203A Y1_REGEN_RESISTOR_CABLE_ASSY SM41-MD036 1 SM48_MD036

 AM03-006960A CABLE ASSY-X-Y2_SERVO_POWER 1 SM48-PW019

 AM03-006946A CABLE ASSY-Y2_MOTOR_POWER 1 SM48-MD007

 AM03-006947A CABLE ASSY-Y2_MOTOR_ENC 1 SM48-MD008

 AM03-007204A Y2_REGEN_RESISTOR_CABLE_ASSY SM41-MD037 1 SM48_MD037

AM03-007049A CABLE_ASSY-X_W_DRV_CMD_AXIO 1 SM481_VM004

 AM03-006960A CABLE ASSY-X-Y2_SERVO_POWER 1 SM48-PW019

 AM03-006948A CABLE ASSY-X_MOTOR_POWER 1 SM48-MD009

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-006949A CABLE ASSY-X_MOTOR_ENC 1 SM48-MD010

 AM03-007205A X_REGEN_RESISTOR_CABLE_ASSY SM41-MD038 1 SM48_MD038

 AM03-006959A CABLE ASSY-SW-WD_SERVO_POWER 1 SM48-PW018

 AM03-006952A CABLE ASSY-WD_MOTOR_POWER 1 SM48-MD022

 AM03-006953A CABLE ASSY-WD_MOTOR_ENC 1 SM48-MD023

AM03-007050A CABLE_ASSY-CB12_BW12_CMD_AXIO 1 SM481_VM008

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC012

 AM03-003578B CABLE ASSY-CONV_BELT1_MOTOR_PW 1 SM421_MD108

 AM03-003579A CABLE ASSY-CV_BELT1_MOTOR_PW_EXT 1 SM421_MD108-1

 J90831439B CONV_BELT1_STEP_MOTOR_ASSY 1 SM41_MD013

 AM03-003904B CABLE ASSY-CONV_BELT2_MOTOR_PW 1 SM421_MD208

 AM03-003905A CABLE ASSY-CV_BELT2_MOTOR_PW_EXT 1 SM421_MD208-1

 J90831440B CONV_BELT2_STEP_MOTOR_ASSY 1 SM41_MD014

 AM03-003582B CABLE ASSY-WORK_BELT1_MOT_PW 1 SM421_MD110

 AM03-003583A CABLE ASSY-WORK_BELT1_MOT_PW_EXT 1 SM421_MD110-1

 J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1 SM41_MD017

 AM03-003908B CABLE ASSY-WORK_BELT2_MOT_PW 1 SM421_MD210

 AM03-003909A CABLE ASSY-WORK_BELT2_MOT_PW_EXT 1 SM421_MD210-1

 J90831441B WORK_BELT2_STEP_MOTOR_ASSY 1 SM41_MD018

 AM03-007051A CABLE_ASSY-CB34_CMD_AXIO 1 SM481_VM009

 AM03-003580B CABLE ASSY-CV_BELT3_MOT_PW 1 SM421_MD109

 AM03-003581A CABLE ASSY-CV_BELT3_MOT_PW_EXT 1 SM421_MD109-1

 J90831430B CONV_BELT3_STEP_MOTOR_ASSY 1 SM41_MD015

 J90831431B CONV_BELT4_STEP_MOTOR_ASSY 1 SM41_MD016

AXIO BD#2

AM03-007045A CABLE_ASSY-AXIO_BD_2_PWR 1 SM481_SC009

 AM03-007526A CABLE ASSY-Z10/Z9_DRV_COMMAND 1 SM481_VM009-1

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-007527A CABLE ASSY-Z8/Z7_DRV_COMMAND 1 SM481_VM009-2

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-005503A CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471_PW124-1

 AM03-007054A CABLE_ASSY-Z_DRV_PW 1 SM481_PW027

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

 AM03-007528A CABLE ASSY-Z6/Z5_DRV_COMMAND 1 SM481_VM009-3

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-007529A CABLE ASSY-Z4/Z3_DRV_COMMAND 1 SM481_VM009-4

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

 AM03-007530A CABLE ASSY-Z2/Z1_DRV_COMMAND 1 SM481_VM009-5

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

 AM03-005503A CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471_PW124-1

 AM03-007054A CABLE_ASSY-Z_DRV_PW 1 SM481_PW027

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 1 SM471_PW031

AM03-007484A CABLE ASSY-HD_VAC-BLOW_H3-H10 1 SM481_VI006

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

AM03-007531A CABLE ASSY-R5/R4/R3 DRV COMMAND 1 SM481_VM011

 AM03-007532A CABLE ASSY-R2/R1 DRV COMMAND 1 SM481_VM011-1

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

AM03-007052A CABLE_ASSY-SW_DRV_CMD 1 SM481_VM106

 AM03-006950A CABLE ASSY-SW_MOTOR_POWER 1 SM48_MD020

 AM03-006951A CABLE ASSY-SW_MOTOR_ENC 1 SM48_MD021

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

 AM03-005611A CABLE ASSY-SWING MOTOR 1 SM471_MD025

Axis Sensor B/D

J90831423C AXIS_SENSOR_BD_PW_CABLE_ASSY 1 SM41_AX001

 AM03-003994A CABLE ASSY-Y_AXIS_SENSOR 1 SM421_AX103

 AM03-003576A CABLE ASSY-WD_AXIS_SENSOR 1 SM421_AX104

 AM03-003577B CABLE ASSY-WD_AXIS_SENSOR_EXT 1 SM421_AX104-1

 J90831428C CONVEYOR_SENSOR_IF_CABLE_ASSY 1 SM41_AX006

 J90831401C CONVEYOR_PCB_SENSOR_ASSY 1 SM41_CV007

AM03-007046A CABLE_ASSY-AXIO_CN7_9 1 SM481_AX006

 AM03-006919A CABLE ASSY-AXIS_SNS_BD_CN9 1 SM48_AX005

 AM03-006920A CABLE ASSY-AXIS_SNS_BD_CN10 1 SM48_AX005-1

 AM03-007444A CABLE ASSY-FEEDER_UNLOCK_SENSOR 1 SM48-CV140

 J91672425A FDR UNLOCK FRONT CABLE ASSY 1 SM41_CV043

 J91672426A FDR UNLOCK REAR CABLE ASSY 1 SM41_CV044

Conveyor Sub IF B/D

J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

 AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003901A CABLE ASSY-FRONT_OP_SW 1 SM421_OP103

 AM03-003902A CABLE ASSY-REAR_OP_SW 1 SM421_OP104

 AM03-007055A CABLE ASSY-CONV_SUB_IF 1 SM48_SC105

 AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 SM48_SC105-1

 AM03-006879A CABLE ASSY-AIR_INDICATOR 1 SM48_CV026

 J90831313C AIR INDICATOR CABLE ASSY 1 SM33-_V026-1

Conveyor IF B/D

AM03-006942A CABLE ASSY-CVIF_FFD_CAN 1 SM48_CA104

 AM03-006943A CABLE ASSY-CVIF_FFD_CAN-EXT 1 SM48_CA104-1

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM41_CA003

 AM03-006882A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM48_CV101

 AM03-006967A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM48_SC201

 J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33_CV003

AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421-CV106-2

 AM03-006878A CABLE ASSY-TOWER LAMP EXT 1 SM48_CV004

 AM03-003903A CABLE ASSY-CONV_SOL 1 SM421_CV102

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV028

 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY 1 SM33_CV029

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

 AM03-003871A CABLE ASSY-PLACE STOPPER SENSOR 1 SM421_CV151

 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1 SM421_CV151-1

AM03-006964A CABLE ASSY-PUMP_PWR_ALARM 1 SM48_PW147

 AM03-003870B CABLE ASSY-BUT SENSOR EXT 1 SM421_CV150-1

 AM03-005701A CABLE ASSY-PUMP_PWR_ALARM-EXT 1 SM471_PW147-1

 AM03-003595A CABLE ASSY-ANC_SENSOR_EXT 1 SM421_CV109

 AM03-007059A CABLE ASSY-ANC_CLOSE_SNS 1 SM48_CV010-1

 AM03-007058A CABLE ASSY-ANC_OPEN_SNS 1 SM48_CV010

AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AMAM03-003597A CABLE ASSY-FRONT_AREA_SENSOR_EXT 1 SM421_CV115

 AM03-003598A CABLE ASSY-REAR_AREA_SENSOR_EXT 1 SM421_CV117

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1 SM33_CV016

 J90831759A REAR_AREA_SENSOR_CABLE_ASSY SM421-CV018 1 SM421_CV018

 J90831142A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019 1 SM33_CV019

 J90831143A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1 SM33_CV020

 AM03-006883A CABLE ASSY-T_BOX_HOST_J1R 1 SM48_CV132

 AM03-006967A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM48_SC201

 AM03-005705A CABLE ASSY-RS232_SERIAL-EXT 1 SM471_PC003-1

 AM03-005704A CABLE ASSY-RS232_SERIAL 1 SM471_PC003

Front Feeder IF B/D

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41_FD005

 J90800841C CABLE ASSY-LEFT FDR SENSOR INPUT CABLE ASSY 1 SM_FD006

 J90800842C CABLE ASSY-RIGHT FDR SENSOR INPUT CABLE ASSY 1 SM_FD007

 AM03-007053A CABLE_ASSY-FFD_HD_CAN 1 SM481_CA104

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA102

 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA102-1

 J90800839D CABLE ASSY-RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

 AM03-006891A CABLE ASSY-FRONT FDR CTRL PWR 1 SM48_FD101

 AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

J90800838D CABLE ASSY-LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006884A CABLE ASSY-F FDR PWR RELAY 1 SM48_FD002

Head IF B/D

AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-007080A CABLE_ASSY_LIMIT_&_HD_PWR_EXT 1 SM481_AX006-1

 AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

 AM03-007053A CABLE_ASSY-FFD_HD_CAN 1 SM481_CA104

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

AM03-007636A 481_FLY_SIDE_CABLE_ASSY 1 SM481_HD010-3

 AM03-007637A 481_CABLE ASSY-FLY_OUT 1 SM481_HD010-6

AM03-007500A CABLE ASSY-FID2_COAX 1 SM481_HD010-1

 AM03-007499A CABLE ASSY-R_HOME_SENSOR 1 SM481_HD007

 AM03-007498A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM481_HD003-1

 AM03-007497A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM481_HD003

 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009

 AM03-007496A CABLE ASSY-HEAD_BLOW_SOL 1 SM481_HD006

 AM03-007495A CABLE ASSY-HEAD_VACUUM_SOL 1 SM481_HD005

 AM03-007503A CABLE ASSY-HEAD_VAC_SENSOR 1 SM481_HD004

 AM03-007501A CABLE ASSY-FID1_COAX 1 SM481_HD010-2

 AM03-007502A CABLE ASSY-FLY_COAXIAL 1 SM481_HD010-11

Motor IF B/D

AM03-007485A CABLE ASSY-Z1_MOTOR_SYRO 1 SM481_MD019_SYRO

 AM03-007486A CABLE ASSY-Z2_MOTOR_SYRO 1 SM481_MD020_SYRO

 AM03-007487A CABLE ASSY-Z3_MOTOR_SYRO 1 SM481_MD021_SYRO

 AM03-007488A CABLE ASSY-Z4_MOTOR_SYRO 1 SM481_MD022_SYRO

 AM03-007489A CABLE ASSY-Z5_MOTOR_SYRO 1 SM481_MD023_SYRO

 AM03-007490A CABLE ASSY-Z6_MOTOR_SYRO 1 SM481_MD024_SYRO

 AM03-007491A CABLE ASSY-Z7_MOTOR_SYRO 1 SM481_MD024-1_SYRO

 AM03-007492A CABLE ASSY-Z8_MOTOR_SYRO 1 SM481_MD024-2_SYRO

 AM03-007493A CABLE ASSY-Z9_MOTOR_SYRO 1 SM481_MD024-3_SYRO

 AM03-007494A CABLE ASSY-Z10_MOTOR_SYRO 1 SM481_MD024-4_SYRO

AM03-007636A 481_FLY_SIDE_CABLE_ASSY 1 SM481_HD010-3

 AM03-007637A 481_CABLE ASSY-FLY_OUT 1 SM481_HD010-6

AM03-007500A CABLE ASSY-FID2_COAX 1 SM481_HD010-1

 AM03-007499A CABLE ASSY-R_HOME_SENSOR 1 SM481_HD007

 AM03-007498A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM481_HD003-1

 AM03-007497A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM481_HD003

 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009

 AM03-007496A CABLE ASSY-HEAD_BLOW_SOL 1 SM481_HD006

 AM03-007495A CABLE ASSY-HEAD_VACUUM_SOL 1 SM481_HD005

 AM03-007503A CABLE ASSY-HEAD_VAC_SENSOR 1 SM481_HD004

 AM03-007501A CABLE ASSY-FID1_COAX 1 SM481_HD010-2

 AM03-007502A CABLE ASSY-FLY_COAXIAL 1 SM481_HD010-11

Power Block Diagram

AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

 AM03-006959A CABLE ASSY-SW-WD_SERVO_POWER 1 SM48_PW018

 AM03-006960A CABLE ASSY-X-Y2_SERVO_POWER 1 SM48_PW019

 AM03-006961A CABLE ASSY-Y1_SERVO_POWER 1 SM48_PW020

AM03-006962A CABLE ASSY-MC_INPUT_220V 1 SM48_PW040

 AM03-005510A CABLE ASSY-SK 1 SM471-PW041

 AM03-005767A CABLE ASSY-VACUUM PUMP PWR EXT 1 SM471_PW042-1

 AM03-005511A CABLE ASSY-VACUUM_PUMP_220V 1 SM471_PW042

 AM03-005701A CABLE ASSY-PUMP_PWR_ALARM-EXT 1 SM471_PW147-1

 AM03-005698A CABLE ASSY-VACUUM_PWR 1 SM471_PW146

 AM03-006964A CABLE ASSY-PUMP_PWR_ALARM 1 SM48_PW147

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471_PW146-1

AM03-006954A CABLE ASSY-AC RELAY POWER 1 SM48N_PW005

 AM03-006889A CABLE ASSY-R RIGHT FEEDER BASE PWR 1 SM48_FD007

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006888A CABLE ASSY-R LEFT FEEDER BASE PWR 1 SM48_FD006

 AM03-006887A CABLE ASSY-F RIGHT FEEDER BASE PWR 1 SM48_FD005

 AM03-006886A CABLE ASSY-F LEFT FEEDER BASE PWR 1 SM48_FD004

 AM03-006893A CABLE ASSY-AC RELAY JUMPER 1 SM482_PW006

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006884A CABLE ASSY-F FDR PWR RELAY 1 SM48_FD002

 AM03-006905A CABLE ASSY-RELAY_PW_SUPPLY 1 SM48_PW135

 J90834654A RELAY_CONNECT_CABLE_ASSY SM41-PW034 1 SM41_PW034

 AM03-006890A CABLE ASSY-24V POWER EXT 1 SM48_FD008

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1 SM41_PW001

 J90831344B MCCB_NF1-CABLE-ASSY 1 SM41_PW003

 J90831345A NF1_MAIN SWITCH CABLE ASS'Y 1 SM41_PW004

 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY 1 SM33_PW005

 AM03-006872A CABLE ASSY-CP1_TB1 1 SM482_PW007

 AM03-003859A CABLE ASSY-TRANS_CP1_2 1 SM421_PW106

 AM03-006873A CABLE ASSY-CP2_TB1-MC1 1 SM48_PW008

AM03-006903A CABLE ASSY-CONTROL_RACK_PWR 1 SM48_PW145

 AM03-006963A CABLE ASSY-SACO_+24V_RELAY 1 SM48_PW044

AM03-006904A CABLE ASSY-CONTROL_RACK_PWR-EXT 1 SM48_PW145-1

 AM03-006894A CABLE ASSY-FRONT_MONITOR_PW 1 SM48_PW021

 AM03-006895A CABLE ASSY-REAR_MONITOR_PW 1 SM48_PW022

 AM03-005488A CABLE ASSY-FAN_POWER 1 SM471_PW112

 AM03-006900A CABLE ASSY-SERVO_FAN_POWER 1 SM48_PW113

AM03-007057A CABLE ASSY-TB1_FS1_FS2 1 SM48_PW111-2

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006899A CABLE ASSY-PS1_2_AC_POWER_T1L 1 SM48_PW111

 AM03-006901A CABLE ASSY-PS1_2_DC_POWER_T1L 1 SM48_PW120

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-007054A CABLE_ASSY-Z_DRV_PW 1 SM481_PW027

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

 AM03-006955A CABLE ASSY-PS1_2_AC_POWER_T1L 1 SM48_PW112

 AM03-006902A CABLE ASSY-PS3_4_DC_POWER_T1L 1 SM48N_PW103

 AM03-006956A CABLE ASSY-PS3_PS4_PW_T2L 1 SM48N_PW202

AM03-006954A CABLE ASSY-AC RELAY POWER 1 SM48N_PW005

 AM03-005702A CABLE ASSY-MON_DISTRIB_ADAPTOR 1 SM471_PW068

 AM03-005519A CABLE ASSY-USB_HUB_ADAPTOR 1 SM471_PW067

Rear Feeder IF B/D

 J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1 SM41_FD005

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1 SM41_CA003

 AM03-006876A CABLE ASSY-FIX_ILL_RFD_CAN 1 SM48_CA102

 AM03-006875A CABLE ASSY-FIX_ILL_RFD_CAN-EXT 1 SM48_CA102-1

 AM03-006882A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM48_CV101

 AM03-006967A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM48_SC201

 J90800838D CABLE ASSY-LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SMS11N_FD001

 J90800841C CABLE ASSY-LEFT FDR SENSOR INPUT CABLE ASSY 1 SM_FD006

 J90800842C CABLE ASSY-RIGHT FDR SENSOR INPUT CABLE ASSY 1 SM_FD007

 J90800839D CABLE ASSY-RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

J90800838D CABLE ASSY-LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N_FD001

 AM03-006885A CABLE ASSY-R FDR PWR RELAY 1 SM48_FD003

Safety Control B/D

AM03-006897A CABLE ASSY-GENERAL_PW_RELAY 1 SM48_PW032

 AM03-006906A CABLE ASSY-PS1_PS2_PW_T1L 1 SM48_PW201

 AM03-006898A CABLE ASSY-FEEDER_PW_RELAY 1 SM48_PW033

 AM03-006965A CABLE ASSY-F_OP_PANEL_IF 1 SM48_SC001

 SM482_SC002

AM03-006967A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM48_SC201

 AM03-006882A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM48_CV101

 AM03-006883A CABLE ASSY-T_BOX_HOST_J1R 1 SM48_CV132

 J90831060E F_OVERRIDE_KEY_EXT_CABLE_ASSY 1 SM33_SC009

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 SM33_SC008

 AM03-006407A CABLE ASSY-LEFT_REAR_FAN_PW 1 SM471_PW020

 AM03-006409A CABLE ASSY-LR_ZR_DRV_FAN 1 SM471_PW022

 AM03-007044A CABLE_ASSY-R_STEP_DRV_PWR 1 SM481_SC011

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1 SM41_SC012

 AM03-003686A CABLE ASSY-1_TRAY_FEEDER_EXT 1 SM421_VM101-1

 AM03-003689A CABLE ASSY-2_TRAY_FEEDER_EXT 1 SM421_VM102-1

AM03-006892A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM48_FD101-1

 AM03-006891A CABLE ASSY-FRONT FDR CTRL PWR 1 SM48_FD101

 J90831423C AXIS_SENSOR_BD_PW_CABLE_ASSY 1 SM41_AX001

 AM03-006963A CABLE ASSY-SACO_+24V_RELAY 1 SM48_PW044

 J90833703A PCB_BARCODE_SCANNER_CABLE_ASSY SM411_IT0 1 SM41_IT003

 AM03-006922A CABLE ASSY-AXIS1_HD_POWER 1 SM48_SC007

 AM03-006923A CABLE ASSY-FIX_ILL_POWER 1 SM48_SC008

 AM03-007046A CABLE_ASSY-AXIO_CN7_9 1 SM481_AX006

 AM03-006880A CABLE ASSY-SC_F_TBOX 1 SM48_CV034

 J90831261D FRONT_TEACHING_BOX_EXT_CABLE 1 SM33_CV023-4

 AM03-006881A CABLE ASSY-SC_R_TBOX 1 SM48_CV035

 J90831262D REAR_TEACHING_BOX_EXT_CABLE_ASSY 1 SM33_CV023-5

 AM03-007045A CABLE_ASSY-AXIO_BD_2_PWR 1 SM481_SC009

AM03-007056A CABLE ASSY-CONV_SUB_IF-EXT 1 SM48_SC105-1

 AM03-007055A CABLE ASSY-CONV_SUB_IF 1 SM48_SC105

 J90831335C MC1-ENABLE-CABLE-ASSY 1 SM41_SC006

Vision IF B/D

AM03-007048A CABLE_ASSY-HD_FID_CAM 1 SM481_VIS001

 AM03-005543A CABLE ASSY-FLAT_FID_CAMERA_1 1 SM471_VIS002-1

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-005544A CABLE ASSY-FLAT_FID_CAMERA_2 1 SM471_VIS002-2

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

 AM03-006968A FIX1-2_CAMERA_CABLE_ASSY 1 SM48_VIS002

 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471_VIS000

 AM03-006985A CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 SM48_VIS012-1

AM03-005549A CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471_VIS007

 AM03-007151A FLAT_CABLE_ASSY 1 SM481_FL002

 AM03-005548A CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 SM471_VIS006

 AM03-005552A CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471_VIS010

 AM03-007150A FLAT_CABLE_ASSY 1 SM481_FL001

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1 SM471_VIS009

 AM03-007048A CABLE_ASSY-HD_FID_CAM 1 SM481_VIS001

Articles of Consumption

J3601018A FUSE[250V 5A] 2

 J3601019A FUSE[250V 10A] 2

 J7055140A STEEL BALL [DIA2, SUS304] 60

 J7255021B SILICON TUBE(BLACK) [J7255021B] 20

 J67081017A SUETION FILTER [VYF44-M-50M] 10

 HP04-000018A FILTER,AIR-FILTER ELEMENT 6

 J67081003A ELEMENT_AIR TAF4000-05-6000 1

 J67081002A ELEMENT_SEPARATOR PFH4000-0005A-6083 1

 HP11-000059 PUMP-PUMP KHA400A-301-G1 1

 J66021019A BELT_410_R 2

 J66021017A BELT_410_1 2

 J66021018A BELT_410_F MAM-5P-1517-7W 2

 J66021020A BELT_410_1_LONG 2

 EP12-000044A GLASS 1
