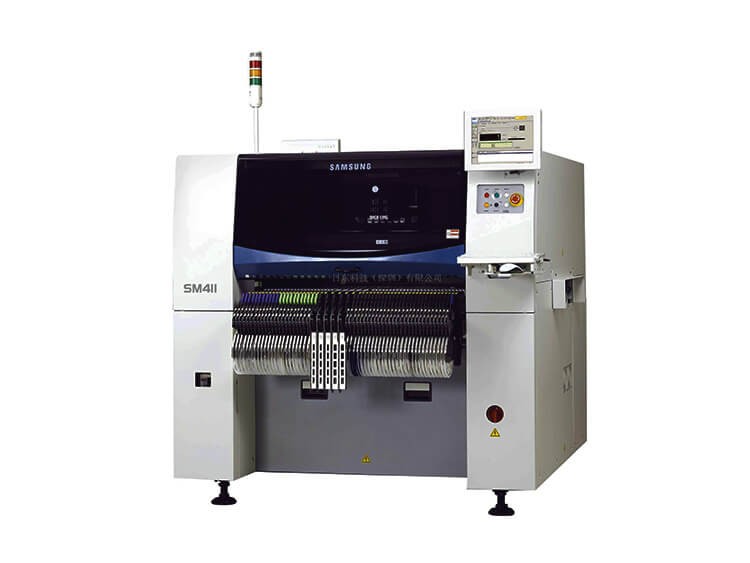

Fast & Flexible Chip Shooter SM-Series SM411/SM411N

FEEDER BASE ASS’Y-ST(1/2)

A-1 J90571010A FEEDER_BASE_ASSY-ST J90571010A 1 SM 411

AM03-001667A FEEDER_BASE_ASSY-ST_SM411N 1 SM 411N

 J7057213A SIDE CABLE COVER-FB[J7057213A] 2

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A ASSY,BOARD-FBLN 1 J9060347B /J90600351A

 J67111148A COUPLER TCP1B10-15A-R8036 60 J6711245A

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060352A

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 AM03-000693A ASSY,BOARD-FBRN 1 J9060348B

 J67110119B UNION Y FITTING 2 J6711119A

 J90571010A FEEDER_BASE_ASSY-ST J90571010A 1

 FC09-000901A TOP-PLATE-S 1

 FC09-001200A TOP-PLATE-BACK-HOLE 1

A-2 J90721011A IT_OPTION_ASSY J90721011A 1 SM411

AM03-001661A IT_OPTION_ASSY_SM411N SM411N

FEEDER BASE ASS’Y-ST(2/2)

J91741071A FEEDER_INPUT_EXT_BOARD 2

 J91741070A FEEDER_IO_BOARD 2

 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1

J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 1

 J70541103A FRONT_SENSOR_BKT2 J70541103A 2

Feeder Base Ass'y - DC (1/4)

A-1 J90571011A FEEDER_BASE_ASSY-DC J90571011A 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J67111148A COUPLER TCP1B10-15A-R8036 60 J6711245A

 AM03-000695A ASSY,BOARD-FBRD 1 J9060350D

 J9060354B FEEDERBASE_RIGHT_COVER_PCB 1 J9060354A

 AM03-000696A ASSY,BOARD-FBLD 1 J9060349D

 J9060353B FEEDERBASE_LEFT_COVER_PCB 1 J9060353A

Feeder Base Ass'y - DC (2/4)

J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6711001A ELBOW FITTING 1

 J67050004B SILENCER [AN101-01] 4

 J67110119B UNION Y FITTING 2 J6711119A

Feeder Base Ass'y - DC (3/4)

J91741071A FEEDER_INPUT_EXT_BOARD 1

 J91741070A FEEDER_IO_BOARD 1

 J6061601000 DOWEL PIN [MS6-10] 8

Feeder Base Ass'y - DC (4/4)

J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711009A ELBOW FITTING [KQ2L06-M5] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6711001A ELBOW FITTING 1

 J91741071A FEEDER_INPUT_EXT_BOARD 1

 J91741070A FEEDER_IO_BOARD 1

 J6711257A PLUG[KS-4-M5-SA34698KR] 2

 J67111148A COUPLER TCP1B10-15A-R8036 60 J6711245A

 J6712008A PLUG [PT 1/8] 6

 J67110119B UNION Y FITTING 2 J6711119A

 J67050004B SILENCER [AN101-01] 4

 J6703037A CHECK VALVE[AKH06-00] 2

 J6061601000 DOWEL PIN [MS6-10] 8

 J1300276 FITTING [KQ2L06-01/PL6-01] 10 J6711007A

 J1300284 FITTING [KQ2U06-00/PY6M] 10

Conveyor Ass'y (1/6)

A-1 J90531068A SM420_LR_CONVEYOR_ASSY J90531068A 1

 J66191022A IDLER_ASSY_195 A-1_19.5 6 J72531001A / IDLER_2 J72531001A

 J3212002A PHOTO SENSOR 4

 J3212004A PHOTO SENSOR 2

 J6601008A BALL BEARING 4

 J6601109A BALL BEARING[608ZZ] 4

 J7053049A IDLER_SHAFT_45 6 J2101818

 J7053184A SQUARE NUT M4 8

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J1300517 C-RING [10mm (SHAFT)] 1

 J66011019A BEARING 6908ZZ 2

 J66071088A LM_GUIDE_SHUTTLE 2

 J6601134A BEARING[694ZZ] 2

 J66021008A BELT_SHUTTLE_1650 MAM-5P-1169-6W 2

 J66021009A TIMMING_BELT_SW 327-3GT-12 2

 J66021010A TIMMING_BELT_SM 444-3GT-12 1

 J66061005A CYLINDER AQ2A12-30D 1

 J6619031A SUPPORT UNIT[FK-10] 1

 J1300121 ELBOW FITTING [M-5HLH-4] 1

 J6711156A HOSE NIPPLE [M-5H-4](D/C?) 1

 J70531030A SUPPORT_ST_MOTOR J70531030A 1

 J70531031A SM_HOME_SENSOR_DOG J70531031A 1

 J70531032A ST_SENSOR_BRACKET_2 J70531032A 1

 J70531033A ST_SENSOR_BRACKET_1 J70531033A 1

 J70531036A NUT_HOUSING J70531036A 1

 J70531037A MOTOR-BRACKET-SHUTTLE J70531037A 1

J70531038A MOTOR_BRACKET J70531038A 2

 J70531039A ILDER_SPACER_45 8 J66191024A

 J70531043A BRACKET_SHUTTLE_STP J70531043A 1

 J70531044A WD_NUT_BEARING_STOPPER J70531044A 1

 J70531045A W_TENSION_TUBE J70531045A 1

 J70531047A W_TENSION_SCREW J70531047A 1

 J70531048A W_TENSION_PLATE J70531048A 1

 J70531055A SM_R_DOG J70531055A 1

 J70531071A CNT_COVER

 J70531072B CNT_PANEL_FRONT J70531072A 1 J70531072A

 J70531073B CNT_PANEL_REAR J70531073A 1 J70531073A

 J71531015A SUPPORT_UNIT_ST_TAIL J71531015A 1

 J71531016A PULLEY_SHUTTLE_WIDTH J71531016A 1

 J71531017A PULLEY_S_W_NUT J71531017A 1

 J71531018A ENTRY_PCB_GUIDE_1650 J71531018A 2

 J71531020A ENTRY_FRAME_00_1650 J71531020A 1

 J71531019A ENTRY_FRAME_01_1650 J71531019A 1

 J71531021B BLOCK_SHUTTLE_REAR_LEFT 1

 J71531022A BLOCK_SHUTTLE_FRONT J71531022A 1

 J71531025A PULLEY_SHUTTLE_MOTOR J71531025A 1

 J72531003A SM_S_BUMPER J72531003A 1

 J72531006A SM_M_BUMPER J72531006A 1

 J72531004A SM_WR_BUMPER J72531004A 2

 J31081005A SERVO_MOTOR_PB PBM565DXC26 1

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J65041002B CABLE_VEYOR HSP0180_2B_28R_21LINK 2 J65041002A

J32111003A PHOTOELECTRIC_SENSOR 5

 J66061004A BALL_SCREW 2BTK1405-2.6ZZ+721.5LC7T 1

 J71531009A PULLEY_B_M J71531009A 2

Conveyor Ass'y (2/6)

J66191022A IDLER_ASSY_195 A-1_19.5 6 J72531001A / IDLER_2 J72531001A

 J3212002A PHOTO SENSOR 4

 J3212004A PHOTO SENSOR 2

 J6601008A BALL BEARING 4

 J6601109A BALL BEARING[608ZZ] 4

 J7053049A IDLER_SHAFT_45 6 J2101818

 J7053184A SQUARE NUT M4 8

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J71531004B WORK_REAR_FRAME J71531004A 2

 J72531005B DUMP_BOX 2 J72531005A

 J1300517 C-RING [10mm (SHAFT)] 1

 J66011019A BEARING 6908ZZ 2

 J66071088A LM_GUIDE_SHUTTLE 2

 J6601134A BEARING[694ZZ] 2

 J66021008A BELT_SHUTTLE_1650 MAM-5P-1169-6W 2

 J66021009A TIMMING_BELT_SW 327-3GT-12 2

 J66021010A TIMMING_BELT_SM 444-3GT-12 1

 J66061005A CYLINDER AQ2A12-30D 1

 J6619031A SUPPORT UNIT[FK-10] 1

 J1300121 ELBOW FITTING [M-5HLH-4] 1

 J6711156A HOSE NIPPLE [M-5H-4](D/C?) 1

 J70531031A SM_HOME_SENSOR_DOG J70531031A 1

 J70531032A ST_SENSOR_BRACKET_2 J70531032A 1

 J70531033A ST_SENSOR_BRACKET_1 J70531033A 1

 J70531036A NUT_HOUSING J70531036A 1

 J70531037A MOTOR-BRACKET-SHUTTLE J70531037A 1

J70531038A MOTOR_BRACKET J70531038A 2

 J7053049A IDLER_SHAFT_45 6 J66191024A

 J70531043A BRACKET_SHUTTLE_STP J70531043A 1

 J70531044A WD_NUT_BEARING_STOPPER J70531044A 1

 J70531045A W_TENSION_TUBE J70531045A 1

 J70531047A W_TENSION_SCREW J70531047A 1

 J70531048A W_TENSION_PLATE J70531048A 1

 J70531055A SM_R_DOG J70531055A 1

 J70531071A CNT_COVER

 J70531072B CNT_PANEL_FRONT J70531072A 1 J70531072A

 J70531073B CNT_PANEL_REAR J70531073A 1 J70531073A

 J71531015A SUPPORT_UNIT_ST_TAIL J71531015A 1

 J71531016A PULLEY_SHUTTLE_WIDTH J71531016A 1

 J71531017A PULLEY_S_W_NUT J71531017A 1

 J71531018A ENTRY_PCB_GUIDE_1650 J71531018A 2

 J71531020A ENTRY_FRAME_00_1650 J71531020A 1

 J71531019A ENTRY_FRAME_01_1650 J71531019A 1

 J71531021B BLOCK_SHUTTLE_REAR_LEFT 1

 J71531022A BLOCK_SHUTTLE_FRONT J71531022A 1

 J71531025A PULLEY_SHUTTLE_MOTOR J71531025A 1

 J72531003A SM_S_BUMPER J72531003A 1

 J72531006A SM_M_BUMPER J72531006A 1

 J72531004A SM_WR_BUMPER J72531004A 2

 J70531062A SUPPORT_ST_MOTOR_2 J70531062A 1

 J70531076B BRACKET_BD_OUT_SENSOR 1 J70531076A

 J31081005A SERVO_MOTOR_PB PBM565DXC26 1

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J65041002B CABLE_VEYOR HSP0180_2B_28R_21LINK 2

 J32111003A PHOTOELECTRIC_SENSOR 5

 J66061004A BALL_SCREW 2BTK1405-2.6ZZ+721.5LC7T 1

 J71531009A PULLEY_B_M J71531009A 2

Conveyor Ass'y (3/6)

J70531024A BRACKET_TAIL J70531024A 4

 J72531002A BUSH_TAIL J72531002A 4

 J71531010B LM_BASE 2

 J71531006A SUPPORT_BRACKET_L J71531006A 2

 J71531005A SUPPORT_BRACKET_S J71531005A 2

 J66071087A LM_GUIDE_WORK 2

Conveyor Ass'y (4/6)

J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2

 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 2

 J71531046B CLAMP_REAR_FRAME 2

 J66141001C LEAD_SCREW 4 J66141001B

 J67011007B CYLINDER CQ2B6-2-CJK2341 2

 J72531001A IDLER_2 5

 J70531021A IDLER_SHAFT_M 4

 J3212002A PHOTO SENSOR 4

 J6601008A BALL BEARING 4

 J66011035A BALL_BUSH LMU5 16

 J6601109A BALL BEARING[608ZZ] 4

 J6703007A THROTTLE VALVE(ELBOW) 2

 J6711001A ELBOW FITTING 4

 J70531039A IDLER_SPACER_45 1

 J70531019A IDLER_SPACER_13 3 J7053048A

 J2101818 IDLER_2 2

 J7053184A SQUARE NUT M4 8

 J7153010B ADJUST SHAFT [J7153010B] 8

 J7153033A BUSH SPACER 8

 J7153034A CLAMP SHAFT 8

 J7153373A FIDUCIAL DISK[J7153373A] 12

 J7253008A STOPPER 8

 J7253009B STOPPER 2 [J7253009B] 8

 J7053047A IDLER_SPACER_S 1

 J70531016B PCB_GUIDE_RC J70531016A 2

 J71531007A PULLEY_WIDTH_MOTOR J71531007A 2

 J70531015A STOPPER_BRACKET_WORK J70531015A 2

J70531050A STOPPER_TOP_PLATE J70531050A 2

 J70531029B STOPPER_POST 2 J70531029A

 J70531014B SUPPORT_FIX_RAIL_LEFT 2 J70531014A

 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 2

 J70531012C SUPPORT_MOVE_RAIL_TL 2 J70531012B

 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 2

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J70531027A TENSION_BRACKET J70531027A 4

 J66021007A TIMMING_BELT_WIDTH 180-3GT-9 2

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J71531024A WIDTH_PULLEY J71531024A 2

 J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 2

 J66021006A BELT_WORK MAM-5P-1550-6W 4

 J71531004B WORK_REAR_FRAME J71531004A 2

 J65041004A CABLE_VEYOR HSP0130-1B-18R-28LINK 2

 J6073010136H C-RING DIA11(HOLE) 8 J6073000036H

 J70531103A CV_SUPPORT_M_RAIL J70531103A 2

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J3211048A PHOTO SENSOR[E3S-LS3N] 4

 J6701018B STOPPER CYLINDER 1 [WTS10*30-RS2] 2

 J71531009A PULLEY_B_M J71531009A 2

 J70531020A IDLER_SPACER_11 5

Conveyor Ass'y (5/6)

J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2

 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 2

 J71531045B CLAMP_FRONT_FRAME 2

 J66141001C LEAD_SCREW 4 J66141001B

 J72531001A IDLER 2 6

 J70531021A IDLER_SHAFT_M

 J3212002A PHOTO SENSOR 4

 J6601008A BALL BEARING 4

 J66011035A BALL_BUSH LMU5 16

 J6601109A BALL BEARING[608ZZ] 4

 J6607016A LM SLIDE 4

 J6703007A THROTTLE VALVE(ELBOW) 2

 J6711001A ELBOW FITTING 4

 J66191025A IDLER_ASSY_95 A-4_9.5 4 J7053047A

 J70531019A IDLER_SPACER_13 J7053048A

 J2101818 IDLER_SHAFT_S

 J7053184A SQUARE NUT M4 8

 J7153010B ADJUST SHAFT [J7153010B] 8

 J7153033A BUSH SPACER 8

 J7153034A CLAMP SHAFT 8

 J7153036A SLIDE GUIDE 2

 J7153373A FIDUCIAL DISK[J7153373A] 12

 J7253008A STOPPER 8

 J7253009B STOPPER 2 [J7253009B] 8

 J70531017B PCB_GUIDE_FC J70531017A 2

 J71531007A PULLEY_WIDTH_MOTOR J71531007A 2

 J70531015A STOPPER_BRACKET_WORK J70531015A 2

J70531050A STOPPER_TOP_PLATE J70531050A 2

 J70531029B STOPPER_POST 2 J70531029A

 J70531014B SUPPORT_FIX_RAIL_LEFT 2 J70531014A

 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 2

 J70531012C SUPPORT_MOVE_RAIL_TL 2 J70531012B

 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 2

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J70531027A TENSION_BRACKET J70531027A 4

 J66021007A TIMMING_BELT_WIDTH 180-3GT-9 2

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J71531024A WIDTH_PULLEY J71531024A 2

 J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 2

 J66021006A BELT_WORK MAM-5P-1550-6W 4

 J71531013B WORK_FRONT_FRAME J71531013A 2

 J65041004A CABLE_VEYOR HSP0130-1B-18R-28LINK 2

 J6073010136H C-RING DIA11(HOLE) 8 J6073000036H

 J70531103A CV_SUPPORT_M_RAIL J70531103A 2

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J3211048A PHOTO SENSOR[E3S-LS3N] 4

 J6701018B STOPPER CYLINDER 1 [WTS10*30-RS2] 2

 J71531009A PULLEY_B_M J71531009A 2

Conveyor Ass'y (6/6)

J72531005B DUMP_BOX 2 J72531005A

 J70531059A DUMP_BOX_SUPPORT J70531059A 2

 J67090018B REGULATOR 2 J6709004A

 J67021005A SOLENOID_VALVE DV1120-00-R3642-3 2

Backup Table Ass’y

A-1 J90531080A SM420_BUT_ASSY J90531080A 2

 J70531054A BUT_SENSOR_DOG J70531054A 1

 J70531052C LOWER_PLATE 1 J70531052B

 J70531051C BACK_UP_PLATE 1 J70531051B

 J70531053C UPPER_PLATE 1 J70531053B

 J3212002A PHOTO SENSOR 1

 J6015064000 SHOULDER SCREW[MSB6-40] 2

 J6107047A SPRING[SWU26-70] 1

 J6308003A URETHAN CUSHION[AXNSK15-40] 1

 J6711028A ELBOW FITTING [KQ2L04-01] 2

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN[J7053792A] 4

 J7053793A LOWER LINK PIN[J7053793A] 2

 J7053796A LOWER LINK SHAFT[J7053796A] 1

 J70530797B LOWER LINK END 1 J7053797A

 J6601005A BALL BEARING 1

 J90531004A FREE_LINK_ASSY 2

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN 2

 J7053795A RING FIXER[J7053795A] 3

 J6619062A CYLINDER JOINT[Y-032B] 1

 J67010088B CYLINDER CM2C32-50-XC3BB 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER[J7053790A] 1

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER[J7053791A] 1

BASE FRAME ASS’Y

A-1 J91831007A SM411_BASE_FRAME_ASSY-H900 1

1 J2100018 NUT FOOT [0131-611026] 4

2 J7351001A CUSHION FOOT 4

3 J7051008C BASE-FOOT[J7051008C] 4

4 J70511014A BOLT_FOOT J70511014A 4 J7051009C

5 J7051010D HOUSING-FOOT[J7051010D] 4

6 J6079000236S C-RING(SHAFT) 4

7 J70521386A LOWER_CABLE_DUCT-R-2 1 J70511027A

8 J70521387A LOWER_CABLE_DUCT-L-2 1 J70511028B

A-2 J91831008A SM411_BASE_FRAME_ASSY-H950 1

Head Ass’y (1/5)

A-1 J90551101A HEAD_VISION_ASSY J90551101A 1

 J70551039A INNER_COVER_SUPPORT J70551039A 3

 J71551015A INNER_LIGHT_COVER J71551015A 1

 J90551079A CAMERA_COVER_BOARD_ASSY J90551079A 1 J90551079A_AS

 J91741025B MEGA_CAMERA_IO_BOARD 1

 AM03-001809A ASSY,OPTICS-FLY_CAM_ONE_KIT_F16 6 J90551080A

 PT02-000003 VCC-G20E20BST 1 J6751014A

 J90591012A SM140165_LENS_ASSY J90591012A 1

 FC09-00490A BRACKET-CAMERA_HOLDER 1 J71551125B

 J70551044A AIR_BRACKET_1 J70551044A 1

 J70551045A AIR_BRACKET_2 J70551045A 1

 J70571023A LOWER_FRAME-2_COVER 1 J71551109A

 J90551081A FLY_CAM_ONE_KIT_ASSY_MEGA-F16 J90551081A 6

 J67510015B CCD CAMERA 1 J6751015A

Head Ass’y (2/5)

J90551007A SPLINE_HOUSING_ASSY 6

 J90550209B COMMON NOZZLE HOLDER ASSY 6

 J7055140A STEEL BALL [DIA2, SUS304] 3

 J70550431C NOZZLE HOLDER 1

 J7255021B SILICON TUBE(BLACK) [J7255021B] J7255076A

 J9055357A PULLEY ASSY (Z-AXIS 2) 6

 J7055658A PULLEY PIN[J7055658A] 1 J7055550A

 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 1 J7155519A

 J6601140A BALL BEARING[MR684ZZ] 2 J6601128A

 J3212048A MICRO PHOTO SENSOR[PM-U24] 3

 J3212027A MICRO PHOTO SENSOR[PM-L24] 3

 J6049000250 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0 6

 J6601088A BALL BEARING [605ZZ] 12

 J6602076A TIMING BELT[384-1.5GT-9] 6 J66021036A

 J66071031A LM_GUIDE 6 J6607055A

 J67110180C ROTARY JOINT 6

 J70551001B BELT_CLAMP1 6 J70551001A

 J70551002B BELT_CLAMP2 6 J70551002A

 J70550542D BALL_SPLINE 6

 J7055545B SPLINE ALIGNER[J7055545B] 6

 J70550548B SPRING 6 J70550548A

 J7055552A SENSOR BRACKET R-H[J7055552A] 3

 J7055554A SPACER[J7055554A] 6

 J7055656A Z-TENSION BRACKET[J7055656A] 6

 J7055659A BEARING PLATE[J7055659A] 6

 FC06-000011A BAD - SLIDE BODY 6 J71550508C

 F J71551020A TIE_MOUNT_1 J71551020A 1

 J71551021A TIE_MOUNT_2 J71551021A 2

 J71550509B SPLINE_ALIGNER_CAP 6

 J71550510B JOINT 6

J71550511B STOPPER J7155511A 14

 J7155512A SENSOR DOG[J7155512A] 6

 J7155518A PULLEY (Z-AXIS 1)[J7155518A] 6

 J7155520A PULLEY (R-AXIS 1)[J7155520A] 6

 J7155541A PIN[J7155541A] 12

 J7155572A CAMERA CABLE HOLDER[J7155572A] 1 J7155542A

 J71551010B FIDUCIAL_CAMERA_BRACKET 1

 J67511006A EIA_CCD_CAMERA MV-BE 1 J6751014A

 J90591004A F-MOVING_12058_LENS_ASSY 1

 J90591005A FIDUCIAL_ILL_OUTER_ASSY 1

 J90831175B Z1_MOTOR_CABLE_ASSY SM33-MD019 1 J90831175A [23] at 97 page J90831180A_AS

 J90831176B Z2_MOTOR_CABLE_ASSY SM33-MD020 1 J90831176A [24] at 97 page J90831180A_AS

 J90831177B Z3_MOTOR_CABLE_ASSY SM33-MD021 1 J90831177A [25] at 97 page J90831180A_AS

 J90831178B Z4_MOTOR_CABLE_ASSY SM33-MD022 1 J90831178A [26] at 98 page J90831180A_AS

 J90831179B Z5_MOTOR_CABLE_ASSY SM33-MD023 1 J90831179A [27] at 98 page J90831180A_AS

 J90831180B Z6_MOTOR_CABLE_ASSY SM33-MD024 1 J90831180A [28] at 98 page J90831180A_AS

J90831009B R34_MOTOR_CABLE_ASSY 1 [30] at 101 page

 J90831010B R56_MOTOR_CABLE_ASSY 1 [31] at 101 pageC30-000215A PLATE - SENSOR DOG-R 3 J71550513C

J90831479B TEACHING_BEAM_CABLE_ASSY

Head Ass’y (3/5)

AM16-000013A ASSY,CABLE-SWING MOTOR CABLE ASS'Y 1 J31081013A /J90831181A J90831181A_AS

 J71551017A MIRROR_MOTOR_BRACKET J71551017A 1

 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1

 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1

 J3212048A MICRO PHOTO SENSOR[PM-U24] 3

 J66021004A TIMING_BETL 267-3GT-6 1

 J70551040A SENSOR_BRACKET_R-M J70551040A 1

 J7055655A THETA MOTOR PLATE[J7055655A] 3

 J71551025A PULLEY-R_AXIS2 J71551025A 3

 J7255083A THETA MOTOR ISOLATOR[J7255083A] 3

 J66021024A TIMING_BELT 232-2GT-4 1

 J90831010B R56_MOTOR_CABLE_ASSY 1 J90831179A J90831010B_AS

 J90831009B R34_MOTOR_CABLE_ASSY 1 J90831180A J90831009B_AS

 J90830190B R12_MOTOR_CABLE_ASSY 1

 J90831034A R_AUX_SENSOR_CABLE_ASSY SM33-HD002 1

Head Ass’y (4/5)

J70551118A MIRROR_SHAFT J70551118A 1

 J7055557A BEARING HOUSING[J7055557A] 1

 J71551026A PULLEY-S_AXIS1 J71551026A 1

 J70551046B MIRROR_CAM 1 J70551046A

 J6601079A BALL BEARING [695ZZ] 2

 J7055204A ARM JOINT [J7055204A] 1

 J70551037A MIRROR_JOINT J70551037A 1

 J7055153A MIRROR SCREW [J7055153A] 1

 J6601080A BALL BEARING [MR148ZZ] 2

 J70551042A SPRING_POST-MOVING J70551042A 1

 J7455026A SPRING BUSH[J7455026A] 1

 J6601081A CAM FOLLOWER [CF3UU-A] 1

 J6071150050 E-RING[DIA1.5(SUS)] 1

 J6025300036 HEX NUT 1

 J71551013A MIRROR_ARM-CAMERA J71551013A 1

 J71551043A MIRROR_SENSOR_DOG J71551043A 1

 J90551077A_AS HEAD_ILLUM_ASSY J90551077A 1 J90551077A

 J71551019A SIDE_ILLUM_BODY J71551019A 1

 J71551022A OUTER_ILLUM_BODY J71551022A 1

 J70551047A ILLUM_BRACKET J70551047A 2

 J72550084B SIDE REFLECTOR J72550084B 6

 J90601013A SM411_HEAD_SIDE_LED_BOARD-ASSY 1

 J91741024A SM411_OUTER_LED_BOARD 1

 J70551041A SPRING_POST-FIXED J70551041A 1

 J3212048A MICRO PHOTO SENSOR[PM-U24] 3

 J61071010A TENSION_SPRING AWU6-45 2

 J70551038A MIRROR_SPRING_BRACKET J70551038A 2

J70551059A MIRROR_SENSOR_BRACKET J70551059A 1

 J71551018A FIDUCIAL_BLOCK J71551018A 1

 J71550511B STOPPER J7155511A 14

 J90831035A Z_HOME_SENSOR_CABLE_ASSY SM33-HD003 1

Head Ass’y (5/5)

J6713022B COIL TUBE(POLYURETHANE) [J6713022B] 6

 J71541077A HEAD_COVER_BRACKET J71541077A 1

 J71541019A HEAD_BOARD_BRACKET J71541019A 1

 J71541018B CABLEVEYOR_BRACKET 1

 J71541017A HARNESS_PLATE J71541017A 1

 J71541016B HARNESS_SUPPORT 2 J71541016A

 J70541100A CABLE_SPACER J70541100A 1

 J70541017A 2-NIPPLE_BRACKET J70541017A 1

 J70541016A 3-NIPPLE_BRACKET J70541016A 1

 J70541015B CONNECTOR_PANNEL J70541015A 1 J70541015A

 J6719025A GREASE NIPPLE [M6*1.0-STRAIGHT] 5

 J67111015A ELBOW_UNION_FEMALE KQ2LF04-M6 5

 J6119056A HANDLE BG-10 1

 J6103003A HEX SUPPORT 4

 J6004002038 BUTTON_HEAD_CAP_SCREW M10*20L 1

 J90551067A AIR_MODULE J90551067A 1

 J7155546A INSERT[J7155546A] 6

 HP06-000104 FITTING[KJL04-M5] 8 J6711260A

 HP14-000163 MAC_SOLENOID VALVE 6 J6702048A / J67020048B Consumables (Replacement: 2 years)

 HP14-000206 BLOW_VALVE 7

 J6711262A MINI FITTING[BC-03-M5] 6

 J9058090A FILTER ASSY[J9058090A] 6

 J67131001A TUBE LF-M5-60-Z 1

 J7055662A VACUUM SENSOR BRACKET[J7055662A] 2

 J1201033 HEX SUPPORT [M3*15 (BOLT-NUT)] 4

 J91741085A SM321_HEAD_VACUUM_SENSOR_BOARD 1 J9060412A

 J3204002A AIR PRESSURE SENSOR [MPX5100AP] 6

J71551117A MANIFOLD J71551117A 1

 J91741084A SM321_HEAD_ILL_BOARD 1 J90600408C

 J91741083B SM321_HEAD_IO_BOARD 1 J90600409B

 J67551001A FOLDING_MIRROR J67551001A 1

 J71551011B MIRROR_FRAME 1 J71551011A

 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6 J81001856A Consumables (Replacement: 6 months)

 FC14-000121A BLOW_FILTER_CAP 6

 HP04-000018A FILTER_ELEMENT 6

 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6

 J67031001A CHECK_VALVE[AKH04-00] 1

 J6713016A AIR TUBE(POLYURETHANE) 1

 J1300213 PLUG[M-5P] 1

 FC09-000664A INSERT 6

 J63041001A O_RING[3.6x1.5] 6

Air Ass’y (1/5)

Air Ass’y (2/5)

A-1 J90581002A AIR_ASSY J90581002A 1

 J67071009A VACUUM_GENERATOR VKMH07A-S448S2-B06 2

 J90581001A SM330_MANIFOLD_ASSY J90581001A 1

 J67111017A DOUBLE_UNIVERSAL_ELBOW_06 KQ2VD06-02S 1

 J67111018A DOUBLE_UNIVERSAL_ELBOW_08 KQ2VD08-02S 2

 J1301189 ELBOW FITTING [KQ2L06-02/PL6-02] 2

 J1301213 PLUG [PT 3/8] 1

 J6711244A MALE ELBOW[KQ2L12-03] 1

 J2100009 MANIFOLD [0131-611008] 1

 J6712013A PLUG[PT 1/4 (SUS)](bio) 1

 J6711147A STRAIGHT FITTING KQ2H04-M5 1

 J67090012B REGULATOR 1 J6709012A

 J90831313C AIR_INDICATOR_CABLE_ASSY 1 J90831313C/ J67101002A/ J32041001A

 J1301187 ELBOW FITTING [KQ2L12/PL12-04] 2 J6711170A

 J6711028A ELBOW FITTING [KQ2L04-01] 1

 J67081006A MIST_SEPARATOR_ASSY 1

 J67111032A MIST_FITTING SQV12-04S 2

 J67081003A ELEMENT_AIR TAF4000-05-6000 1

 J67081002A ELEMENT_SEPARATOR PFH4000-0005A-6083 1

Air Ass’y (3/5)

J67071009A VACUUM_GENERATOR VKMH07A-S448S2-B06 2

 J6711140A STRAIGHT FITTING [SS8-1/8] 2

 J67110157B ELBOW FITTING 2 J6711157A

 J67110119B UNION Y FITTING 2 J6711119A

 J6712008A PLUG [PT 1/8] 6

 J6713048A MULTI TUBE[UML-408 (BL-BK6-BL)] 7

 J67091007A REGULATOR J67091007A 2 J6709004A

 J90581001A SM330_MANIFOLD_ASSY J90581001A 1

 J67111017A DOUBLE_UNIVERSAL_ELBOW_06 KQ2VD06-02S 1

 J67111018A DOUBLE_UNIVERSAL_ELBOW_08 KQ2VD08-02S 2

 J1301189 ELBOW FITTING [KQ2L06-02/PL6-02] 2

 J1301213 PLUG [PT 3/8] 1

 J6711244A MALE ELBOW[KQ2L12-03] 1

 J2100009 MANIFOLD [0131-611008] 1

 J6712013A PLUG[PT 1/4 (SUS)](bio) 1

 J6711147A STRAIGHT FITTING KQ2H04-M5 1

 67090012B REGULATOR 1 J6709012A/ J67090012B

 J90831313C AIR_INDICATOR_CABLE_ASSY 1 J90831313C/ J67101002A/ J32041001A

 J1301187 ELBOW FITTING [KQ2L12/PL12-04] 2 J6711170A

 J6711028A ELBOW FITTING [KQ2L04-01] 1

 J67081004B MIST_SEPARATOR_ASSY 1 J67081006A

Air Ass’y (4/5)

J9053341A EDGE FIXER ASSY

 J6709004A REGULATOR

 J67011007A CYLINDER

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5]

 J66061005A CYLINDER AQ2A12-30D

 J6711156A HOSE NIPPLE [M-5H-4](D/C?)

 J6711005A

 J6701018B STOPPER CYLINDER 1 [WTS10*30-RS2]

 J6703007A THROTTLE VALVE(ELBOW)

 J6711001A ELBOW FITTING

 J90561001A ANC_ASSY J6701029A

J6703028A SPEED CONTROLLER [SS4-M5MA]

 J67011016B AIR_CYLINDER J67011016A

 J6701088A CYLINDER[CM2C32-50]

 J6711028A ELBOW FITTING KQ2L04-01/SQL04-01S-W

 J6712017A PLUG FITTING KPT18

 J1300279 FITTING [KQ2S04-M5/POC4-M5M]

 J6704006A MANIFOLD[SY3120-20-KRW0098]

 J6703031A SPE

ED CONTROLLER[AS1211F-M5-04]

 J67021005A SOLENOID_VALVE DV1120-00-R3642-3

 J6711157A ELBOW FITTING [KQ2L08-01S]

 J1300067 SILENCER [AN101-01]

 J6702050A SOL VALVE MODULE

Air Ass’y (5/5)

J67071009A VACUUM_GENERATOR VKMH07A-S448S2-B06 2

 J6711140A STRAIGHT FITTING [SS8-1/8] 2

 J67110157B ELBOW FITTING 2 J6711157A

 J67110119B UNION Y FITTING 2 J6711119A

 J6712008A PLUG [PT 1/8] 6

 J6713048A MULTI TUBE[UML-408 (BL-BK6-BL)] 7

 J67091007A REGULATOR J67091007A 2 J6709004A

 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 2

 J90831263E HEAD1_AIR_SOL_PWR_CABLE_ASSY 1 J90831263B FRONT

J90831264C HEAD2_AIR_SOL_PWR_CABLE_ASSY 1 J90831264B REAR

X-Y Frame Ass’y (1/5)

A-1 J90541011A X-Y_ASSY J90541011A 1

 J7354024A CABLE CUSHION Y[J7354024A] 1

 J7354023A CABLE CUSHION X[J7354023A] 4

 J71541020B HEAD_BASE 1

 J7054256A CUSHION BRACKET Y[J7054256A] 1

 J7054255B CUSHION BRACKET X[J7054255A] 4 J70540255A

 J70541105A GREASE_NIPPLE_NUT J70541105A 4

 J70541355A Y_NIPPLE_PLATE 2 J70541099A

 J70541038A SENSOR_DOG_X J70541038A 2

 J70541008A SENSOR_DOG-Y J70541008A 1

 J70541007A BRACKET_CABLE_CHAIN-Y J70541007A 1

 J6719025A GREASE NIPPLE [M6*1.0-STRAIGHT] 4

 J66071014A LM_GUIDE-X SSR15XW2UUC1+940LHY-2 2

 J6061601000 DOWEL PIN [MS6-10] 4

 J72541002A CUSHION_CRASH J72541002A 2

 J72540016E INNER GUIDE-MAT J72540016E 6 J72540016D

 J71541079B HEAD_TOP_COVER 2

 J71541078A HEAD_FRONT_COVER J71541078A 2

 J67111016A STRAIGHT_FITTING KQ2H04-M6 1

X-Y Frame Ass’y (2/5)

J66061003A X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1

 J6601008A BALL BEARING 1

 J71541009A BRG_SUPPORT-X J71541009A 1

 J71541010A BRG_HOUSING-X J71541010A 1

 J1300517 C-RING [10mm (SHAFT)] 1

 J1300502 PIN DOWEL [MS5-10] 4 J6061501036

 J66011017A SUPPORT_UNIT FK12-MP5 1

 J6612035A COUPLING 2 J66121006A

 J3108063A SERVO MOTOR[MSMA082P1A01] 2

 J72541005B CUSHION_X_REAR 1 J72541005A

 J72541003A CUSHION_X_FRONT J72541003A 1

X-Y Frame Ass’y (3/5)

J66071013A LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1

 J3212022A LIMIT SENSOR [EE-SX674] 3

 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1

J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 1

X-Y Frame Ass’y (4/5)

J70541005C Y_MOTOR_BLOCK 1 J70541005B

 J6601124A SUPPORT UNIT[FK-15] 1

 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1

 J66061002A Y-BALL_SCREW J66061002A 1

 J72541004A STOPPER_Y_BALL_SCREW J72541004A 1

 J70541006B BS_REAR_SUPPORT 1 J70541006A

 J70541030A BRG_HOUSING_Y J70541030A 1

 J6601020A BALL BEARING 1

 J3108064A SERVO MOTOR[MSMA102P1C01] 4

 J6612036A COUPLING

X-Y Frame Ass’y (5/5)

J7354024A CABLE CUSHION Y[J7354024A] 1

 J7054256A CUSHION BRACKET Y[J7054256A] 1

 J66071013A LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1

 J70541104B VACUMM_GEN_BKT J70541104A 1 J70541104A

 J70541101D CONNECTOR_PANEL-Y 1 J70541101A

 J70541367B Y_CABLE_DUCT_SUPPORT-2 1 J70541012B

 J67071009A VACUUM GENERATOR 1 J67070018B

 J6708020A VACUUM PART[VKM-SET] 1

Fixed ANC Ass’y

A-1 J90561003A ANC_FRONT_REAR_ASSY J90561003A 1

1 J90561001A ANC_ASSY J90561001A 1

 J71561004A ANC_SUPPORT J71561004A 1

 J7156043B SHUTTER BRACKET[J7156043B] 1

 J6703028A SPEED CONTROLLER [SS4-M5MA] 2

 J6701029A AIR CYLINDER [BDAS6*5-1A-ZC153A2] 1

 J70561001A CYLINDER_BRACKET J70561001A 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J6703031A SPEED CONTROLLER[AS1211F-M5-04] 1

 J6711147A STRAIGHT FITTING KQ2H04-M5 1

 J67011016B AIR_CYLINDER 1

 J71561001B ANC_PLATE_1 1

 J71561002B ANC_NOZZLE_SHUTTER 1

 J71561003B ANC_MAIN_BODY 1

 J90561002A ANC_ASSY_REAR J90561002A 1

Windows Ass’y

A-1 J90521018A ACRYL DOOR ASSY-STD 1

A-2 J90521019A ACRYL DOOR ASSY-ESD 1

 J90521002B ACRYL DOOR ASSY 2 J90521015B / J90521002A

 J72521005B ACRYL COVER 1

 J70521087A WINDOW HINGE 3

 J70521050D ACRYL_COVER_HANDLE 1 J70521050A / J70521050C

 J70521081B GAS SPRING BRACKET2 2

 J6119051A HANDLE[AP-2 BLACK] 1

Cover Ass’y (1/3)

A-1 J90521003A COVER_ASSY J90521003A 1

 J70521026F UPPER COVER FR 2 J70521026A / J70521026D

 J91651041A COVER FRAME TOP 1 ASSY 2

 J70521039C TOP SIDE COVER R 1 J70521039A

 J3212049A AREA SENSOR 4

 J70521040C TOP SIDE COVER L 1 J70521040A

 J70521027B UPPER COVER FL 2 J70521027A

 J91651046A COVER_FRAME_SUB_R-ASSY 1 J91651048A

 J70521376C COVER FRAME REAR R 1 J70521376B

 J70521379C COVER FRAME FRONT L 1 J70521379B

 J91651047A COVER FRAME SUB L ASSY 1

 J70521378B TOP COVER-2 1 J70521378A

 J7070297A MONITOR CABLE COVER 1

 J73520001B DOOR CUSHION 4 J7352001A

 J70521053B CONVEYOR COVER 2 J70521053A

 J70521038B UPPER SIDE COVER 2 J70521038A

 J70521025B SM330 LOWER OP PANEL 2

 J47131010A TOWER_LAMP 1 J47131007B / J47131007C

 J90601023A TEACHING_BOX J90601023A 2

A-2 J90721014A NON_SCANNER_ASSY J90721014A 1

A-3 J90721015A LT_SCANNER_ASSY_LR J90721015A 1

A-4 J90721015A LT_SCANNER_ASSY_LR J90721015A 1

A-5 J91731014A AREA_SENSOR_ASSY J91731014A 1

Cover Ass’y (2/3)

J67191061A GAS SPRING 4

 J70521075D GAS SPRING BRACKET1 4

 J70521158A LCD HINGE PLATE 1

 J70521059A LCD BRACKET 1

 J7252061A PAD BRACKET 2

 J53011032A LCD MONITOR 15 1 J53011015A

 J70521373A MONITOR GUIDE PL 1

 J70521112C KEYBOARD BASE 1

 J70521113C KEYBOARD BASE BRACKET 1

 J90511018B DOOR SWITCH ASSY 1

 J52011002A MINI_KEYBOARD 5510UH J5201009A

 J52021011A OPTICAL_MOUSE J52021011A J5202023A / J52021006A

Cover Ass’y (3/3)

J1300101 DRAWER PULL 4

 J70521033B COVER LFM 2 J70521033A

 J70521390A LOWER OPEN DOOR A 1

 J70521386A LOWER CABLE DUCT R-2 1

 J70521387A LOWER CABLE DUCT L-2 1

 J70521391A LOWER OPEN DOOR B 2

 J70521383B LOWER COVER L-2 2

 J70521382B LOWER COVER R-2 1

 J70521388A CATCH BRACKET F-2 4

 J70521389A CATCH BRACKET R-2 4

 J70521392A INNER SIDE COVER R-2 2

 J70521393A INNER SIDE COVER L-2 2

 J70521385B LOWER COVER RL-2 1

 J70521049B SIDE COVER SUPPORT 2 J70521049A

 J70521045B BOTTOM COVER FR 1 J70521045A

 J70521046B BOTTOM COVER FR 1 J70521046A

 J70521047B BOTTOM COVER FR 1

 J70521048B BOTTOM COVER FR 1 J70521048A

 FC15-000461A COVER-LOWER_SIDE_COVER-R 1 J70521034A

 FC15-000462A COVER-LOWER_SIDE_COVER-L 1 J70521035A

 J70521036D LOWER SIDE COVER 2 J70521036A

J64091022A SLIDE_LATCH 3

Control Rack Ass’y

A-1 AM03-001607A PC_VME_RACK_MODULE_ASSY J91731013A 1 J91731013A

A-1 AM03-001606A PC_VME_RACK_MODULE_ASSY_MEGA 1 J90601026A

 J91741013B SM411_CAN_MASTER_BOARD 1 J91741013A

 J91741081A SM321_VISION_IF_BOARD 2

 J91741012A SM411_TWIN_SERVO_BOARD 1

 J91741016B SM411_VME_IO_BOARD 1 J91741016A

 J91741014B X7043_SEDES_BOARD VER1.0 2 J91741014A

 J91741015A X7043_STEP_CONTROL_BOARD VER1.0 2

 J61111003A SM451_PC_VME_DUO_RACK SM451_DUO_RACK 1 J61110006B

 J48091067A VME_BACKPLANE KVMEB-12J1 1 J4809054A

 J6102017A PC SLIDE RAIL[3832B-18] 1

 J90990193B VME RACK ASSY 1 J9099193A

 J3105022A DC FAN(VME)[EC8015L12B(15mm)] 3

 J3105024A CASE FAN 3 J3105023A

 J44021035A PC_POWER_SUPPLY 1 J44021024A

 J48011017A SBC NuPRO-935A/DV 1 J48011002A

 J54011017A HDD_RACK SKG-2400 SATA 1 J54011003A

 CD03-000025 HARD_DRIVE WD2500BPVT 1 J51011005A / J51011015A

 J91741034A_AS MVME3100_SM4XX 1 Including a DDR_SDRAM_1GB

 J51031009A DVD-ROM SH-D163C 1 J51031008A

 J49011015A CPU CORE 2 DUO E7500 (2.93GHZ) 1 J49011012A

 J31051003A CPU_COOLER CRUX P5M2 1

 J50011006A SDRAM M378T2863-CF7 1 J50011005A

 J91741002B SAMC-ME 6CH 2 Mega

J91741037B SAMC-62 2 Non-Mega

 AM03-000971A ASSY,BOARD-SM411_SM421_PCI_IO_BOARD 1

 EP10-000753 HPCI-6S4-076um 1 J48091062A

J91741063A PMC_NVRAM_BOARD 1

 HP04-000074 FAN_FILTER_ METAL_80mm 1

 EP10-000749 MR-100 2

 FC29-000042 DUST_CAP_PA10_RUBBER 5

Electric Panel Ass’y (1/2)

A-1 J90781004A REAR_ELECTRIC_PANEL_ASSY 1

AM03-001671A SM411N_R_ELECTRIC_PANEL_ASSY

 J3501040A MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 2

 J3603015A CIRCUIT PROTECTOR[C60a-2P-C16(23812)] 2

 J3603016A CIRCUIT PROTECTOR[C60a-3P-C16(23825)] 1

 J3601018A FUSE[250V 5A] 3

 J3601019A FUSE[250V 10A] 2

 J3716042A STOPPER[UA-51] 2

 J3716044A TEMINAL BLOCK[WDU 2.5] 63

 J3716046A END PLATE[WAP2.5-10] 11

 J3716047A CROSS CONNECTION[ZQV2.5] 6

 J3716067A FUSE TERMINAL BLOCK[ASK 1] 5

 J91741087A SAFETY_CONTROL_DC_POWER_BOARD 1 J90600400B

 J7251007A BOARD COVER[J7251007A] 1

 J3105010A COOLING FAN[4715MS-22T-B50] 2

Electric Panel Ass’y (2/2)

J3153055A SERVO MOTOR DRIVER(100W) 2 J3153054A

 J3153056A SERVO MOTOR DRIVER(750W)[MCDDT3520] 2

 J3153057A SERVO MOTOR DRIVER(1KW)[MDDDT5540] 4

 J3153059B SERVO MOTOR DRIVER-PB[PB1D003P101] 2 J3153059A

 J3153060B SERVO MOTOR DRIVER-PB[PB1D002P101] 4 J3153060A

AM10-000107A RELAY 1

Electric Device Ass’y (1/4)

A-1 J91681006A ELECTRIC_DEVICE_ASSY 1 SM411

AM03-001244A SM411N_ELECTRIC_DEVICE_ASSY SM411N

 J34060005B LOAD SWITCH 1 J3406005A

 J90831048G OP_PANEL_ASSY 2 J90831048E

 J34031049A ULTRA BRIGHT LED WHITE 3

 J34031050A ULTRA BRIGHT LED GREEN 1

 J34031051A ULTRA BRIGHT LED RED 1

 J34031052A ULTRA BRIGHT LED YELLOW 1

 J3403082A EMS SW(EAO) 2

 J34031049A ULTRA BRIGHT LED WHITE 3

 J70521024B SM411_OP_PANEL 1

 J52011002A MINI_KEYBOARD 5510UH 2 J5201009A

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2

 J47131010A TOWER_LAMP 1 J47131007C

 J90601023B TEACHING_BOX 1 J90601023A

 J52021011A OPTICAL_MOUSE 2 J52021006A

 J53011032A LCD_MONITOR_15 2 J53011015A

 J71521015B BUTTON_CAP 1 J71521015A

 J34031042A PUSHBUTTON HEAD 6

 J34031047A CONTACT BLOCK CTL2 6

 J31091015A FAN FILTER 120MM(NMB) 2

 HP04-000075 FAN FILTER_ METAL_120MM 2

Electric Device Ass’y (2/4)

J7152027A GROUND TERMINAL [J7152027A] 1

 J36031004A MAIN_CIRCUIT_BREAKER GV2ME22 1

 J3716070A PANEL[GV2-AF02] 1

 J3713061A CONNECTOR[555376-1] 1

 J70521091A TRAY_CABLE_COVER

 J52011002A MINI_KEYBOARD 5510UH 2 J5201009A

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2

 J90601023B TEACHING_BOX 1 J90601023A

J52021011A OPTICAL_MOUSE 2 J52021006A

 J53011032A LCD_MONITOR_15 2 J53011015A

 J6404001A DOOR KEY 2

 J70521381B DOOR_SWITCH_BRACKET-2 2 J70521054A

 J7070218C SENSOR BRACKET 2[J7070218C] 2

 J7070341A WASHER-M4[J7070341A] 4

 J34091002A SAFETY_DOOR_SWTICH 2

Electric Device Ass’y (3/4)

J44011001C POWER_SUPPLY 4 J44011001B

 J91741026B SM411_AXIS_SENSOR_BOARD 1

 J91741076A CONV_SUB_IF_BOARD 1

 AM03-000900A CAN_CONVEYOR_BOARD 1 J9060063E / J91741049A/ J91741049B

 J31531003A SERVO MOTOR DRIVER 6

 J90541010A DRIVER_BOX_ASSY J90541010A 1

 J70541034B DRIVER_BOX_BASE 1

 J70541035B DRIVER_BOX_COVER 1

 J70541036A DRIVER_BOX_PLATE J70541036A 1

 J70541037A SEDES_SLAVE_BOARD_BK J70541037A 1

 J6103013A HEX SUPPORT[M3*50 (BOLT-NUT)] 4

 J6103023A HEX SUPPORT [M3*20 (BOLT-NUT)] 4

 J91741017C X7043_SEDES_SLAVE_BOARD VER1.0 1 J91741017A / J91741017B

 J26051001A TRANSFOMER 5KVA, 3PHASE 1

 J29011001A NOISE_FILTER UF20TBH 1

 J44011001C POWER_SUPPLY 2 SM411N

 J70511006A POWER_SUPPLY_BRACKET 2 SM411N

 FC09-000371A SM400N_POWER_SUPPLY_STAND 1 SM411N

J44021015A SMPS 2 SM411N

 FC09-000372A sm400n_smps_base_2 2 SM411N

 FC09-000371A sm400n_smps_base_1 1 SM411N

 FC09-000373A SM400N_SMPS_BASE_FIXER 4 SM411N

 AM03-000819A ASSY,BOARD-FEEDER IO BOARD ASSY 1 J9060338A/ J91741070B/ J91741165A

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 J9060339A

 J90601030B FR_OPERATE_BOARD 1

Electric Device Assy (4/4)

J90511012A CONVEYOR_STEP_MOTOR_DRIVER_ASSY J9051101 1

 J31521002B STEP_MOTOR_DRIVER LB340-2AXIS 4

 J31521016A R_AXIS_DRIVER_MD5_HD14_3X 2 J31521011A

 J91741023A SM411_CONVEYOR_PWR_BOARD 2

VME IO Board Interface

J90831096B HEAD1_VAC-BLOW_CTRL_CABLE_ASSY SM33-VI00 1 J90831096A

 J90831097B HEAD2_VAC-BLOW_CTRL_CABLE_ASSY SM33-VI00 1 J90831097A

 J90831093C VME_IO_BD_POWER_CABLE_ASSY 1 J90831093B

 J90831288A AXIS_SENSOR_BD_DATA_CABLE_ASSY SM33-CS03 1

 J90831289C AXIS_SENSOR_BD_STP-BUT_CABLE 1 J90831289B

Front Feeder Board Interface

J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 2

 J90831027C FFDR-CVIF_CAN_CABLE_ASSY SM33-CA002 1 J90831027A

 J90831026B .ASTER_CPU1-FFDR_CAN_CABLE_ASSY SM33-CA0 1 J90831026A

 J90830198C FRONT FDR CTRL PWR CABLE ASSY 1

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 J9080838A

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 J9080839A

 J90800841C LEFT FDR SENSOR INPUT CABLE ASSY 1 J9080841A

 J90800842C RIGHT FDR SENSOR INPUT CABLE ASSY 1 J9080842A

Rear Feeder Board Interface

J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 2

 J90831030C RFDR-REAR_FLAT_CAN_CABLE_ASSY SM33-CA005 1 J90831030A

 J90831028C MASTER_CPU2-RFDR_CAN_CABLE_ASSY SM33-CA0 1 J90831028A

 J90830199C REAR FDR CTRL PWR CABLE ASSY 1

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 J9080838A

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 J9080839A

 J90800841C LEFT FDR SENSOR INPUT CABLE ASSY 1 J9080841A

 J90800842C RIGHT FDR SENSOR INPUT CABLE ASSY 1 J9080842A

Conveyor Board Interface (1/5)

J90831029D CVIF-FRONT_FLAT_CAN_CABLE_ASSY 1 J90831029B

 J90831028C MASTER_CPU2-RFDR_CAN_CABLE_ASSY SM33-CA0 1 J90831028A

 J90831130B CONV_I-F_BD_POWER_CABLE_ASSY SM33-CV001 1 J90831130A

 J90831131B CONV_SW_OUTPUT_CABLE_ASSY SM33-CV003 1 J90831131A

Conveyor Board Interface (2/5)

J90831132C TOWER_LAMP_EXT_CABLE_ASSY 1 J90831132B

 J90831133C INLINE_IN-OUT_CABLE_ASSY 1 J90831133B

 J90831146B SMEMA_CABLE_ASSY SM33-CV024 1 J90831146A

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY SM33-CV028 1 J90831149A

 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY SM33-CV 1 J90831150A

 J90831288A AXIS_SENSOR_BD_DATA_CABLE_ASSY SM33-CS03 1

 J90831289C AXIS_SENSOR_BD_STP-BUT_CABLE 1 J90831289B

Conveyor Board Interface (3/5)

J90831136B CONV_SW_INPUT1_CABLE_ASSY SM33-CV013 1 J90831136A

 J90831137B CONV_SW_INPUT2_CABLE_ASSY SM33-CV014 1 J90831137A

 J90831152C CRASH_SENSOR_I-F_CABLE_ASSY SM33-CV031 1 J90831152A

Conveyor Board Interface (4/5)

J90831146B SMEMA_CABLE_ASSY SM33-CV024 1 J90831146A

 J90831133C INLINE_IN-OUT_CABLE_ASSY 1 J90831133B

 J90831138C FRONT_AREA_SENSOR_EXT_CABLE_ASSY SM33-CV 1 J90831138A

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1

 J90831140B REAR_AREA_SENSOR_EXT_CABLE_ASSY SM33-CV0 1 J90831140A

 J90831141A REAR_AREA_SENSOR_CABLE_ASSY SM33-CV018 1

 J90831142A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019 1

 J90831143A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1

 J90831144C SERIAL_COMM_CABLE_ASSY 1 J90831144B

 J90831263E HEAD1_AIR_SOL_PWR_CABLE_ASSY SM411-CV027-1 1

 J90831264C HEAD2_AIR_SOL_PWR_CABLE_ASSY SM411-CV027-2 1

Conveyor Board Interface (5/5)

J90831256A ANC_SENSOR_FRONT_EXT_CABLE_ASSY SM33-CV0 1

 J90831257A ANC_SENSOR_REAR_EXT_CABLE_ASSY SM33-CV00 1

 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1

Head illumination Board Interface

J90831033D HEAD_IO-ILL_POWER_CABLE_ASSY 1 J90831033B

 J90831031C HDIO-HILL_CAN_CABLE_ASSY 1 J90831031B

 J90831041B FLY_OUTER_LED_BD_CABLE_ASSY SM33-HI001 1 J90831041A

 J9060404A HEAD SIDE LED ASSY

 J9060402A FIDUCIAL INNER LED ASSY

 J9060403A FIDUCIAL OUTER LED ASSY

Head IO Board Interface (1/2)

J90831031C HDIO-HILL_CAN_CABLE_ASSY 1 J90831031B

 J90831032D FLAT_CABLE_ASSY 2 J90831032B

 J90831033D HEAD_IO-ILL_POWER_CABLE_ASSY 1 J90831033B

 J90831034A R_AUX_SENSOR_CABLE_ASSY SM33-HD002 1

 J90831035A Z_HOME_SENSOR_CABLE_ASSY SM33-HD003 1

 J90831039A R_HOME_SENSOR_CABLE_ASSY SM33-HD007 1

 J90831040A SW_HOME_SENSOR_CABLE_ASSY SM33-HD008 1

Head IO Board Interface (2/2)

J90831032D FLAT_CABLE_ASSY 2 J90831032B

 J90831036D HEAD_VAC_SENSOR_CABLE_ASSY SM411-HD004 1 J90831036A

 J90831037B HEAD_VACUUM_SOL_CABLE_ASSY 1 J90831037A

 J90831038B HEAD_BLOW_SOL_CABLE_ASSY 1 J90831038A

Axis Sensor Board Interface (1/2)

J90831153B AXIS_SENSOR_BD_PW_CABLE_ASSY SM33-AX001 1 J90831153A

2 J90831155C FY_AXIS_SENSOR_CABLE_ASSY 1 J90831155B

 J90831156D RY_AXIS_SENSOR_CABLE_ASSY SM33-AX004 1 J90831156B

 J90831288A AXIS_SENSOR_BD_DATA_CABLE_ASSY SM33-CS03 1

 J90831289C AXIS_SENSOR_BD_STP-BUT_CABLE 1 J90831289B

 J90831290B CONVEYOR_LEFT_IF_BD_CABLE_ASSY 1 J90831216B

 J90831291B CONVEYOR_RIGHT_IF_BD_CABLE_ASSY SM33-CS0 1 J90831291A/ J90831218B

Axis Sensor Board Interface (2/2)

J90831288A AXIS_SENSOR_BD_DATA_CABLE_ASSY SM33-CS03 1

 J90831287D FEEDER_UNLOCK_SENSOR_CABLE_ASSY 1 J90831287B

 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1

 J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 1

Servo Interface (Y1,Y2)

J90831113D FY1_FY2_DRV_COMMAND_CABLE_ASSY SM411-VM003 1

 J90831114D RY1_RY2_DRV_COMMAND_CABLE_ASSY SM411-VM004 1

 J90831080B FY1_FY2_SERVO_POWER_CABLE_ASSY SM33-PW01 1 J90831080A

 J90831081B RY1_RY2_SERVO_POWER_CABLE_ASSY SM33-PW01 1 J90831081A

 J90831162C FY1_MOTOR_ENC_CABLE_ASSY 1 J90831162A

 J90831166C RY1_MOTOR_ENC_CABLE_ASSY SM33-MD010 1 J90831166B

 AM03-001871B CABLE ASSY-FY1_MOTOR_PWR 1 AM03-001871A

 AM03-001869B CABLE ASSY-RY1_MOTOR_PWR 1 AM03-001869A

 J90831184A FY1_REGEN_RESISTOR_CABLE_ASSY SM33-MD028 1

 J90831187C RY1_REGEN_RESISTOR_CABLE_ASSY SM33-MD031 1

 J90831164D FY2_MOTOR_ENC_CABLE_ASSY SM33-MD008 1 J90831164B

 J90831168C RY2_MOTOR_ENC_CABLE_ASSY 1 J90831168A

 AM03-001870B CABLE ASSY-FY2_MOTOR_PWR 1 AM03-001870A

 AM03-001872B CABLE ASSY-RY2_MOTOR_PWR 1 AM03-001872A

 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY SM33-MD029 1

 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY SM33-MD032 1

Servo Interface (X, SW)

J90831115D FX_FS_DRV_COMMAND_CABLE_ASSY 1

 J90831116E RX_RS_DRV_COMMAND_CABLE_ASSY 1

 AM16-000014A FX_FS_SERVO_POWER_CABLE_ASSY SM33-PW016 1 J90831078A / J90831078B

 AM16-000015A RX_RS_SERVO_POWER_CABLE_ASSY 1 J90831079B / J90831079C

 J90831158D FX_MOTOR_ENC_EXT_CABLE_ASSY SM33-MD002 1 J90831158B

 J90831160C RX_MOTOR_ENC_EXT_CABLE_ASSY 1 J90831160A

 AM03-001905A FX_MOTOR_PWR_CABLE_ASSY 1 J90831157A / J90831157C

 AM03-001907A RX_MOTOR_PWR_CABLE_ASSY 1 J90831159A / J90831159B

 J90831183A FX_REGEN_RESISTOR_CABLE_ASSY SM33-MD027 1

 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY SM33-MD030 1

 J90831170D FS_MOTOR_ENC_CABLE_ASSY SM33-MD014 1 J90831170B

 J90831172C RS_MOTOR_ENC_CABLE_ASSY SM33-MD016 1 J90831172A

 J90831169D FS_MOTOR_PWR_CABLE_ASSY 1 J90831169B

 J90831171B RS_MOTOR_PWR_CABLE_ASSY 1 J90831171A

Servo Interface ( Z1, Z2, Z3 )

J90831117C HEAD1_NETWORK_SERIAL_CABLE_ASSY 1

 J90831118C HEAD2_NETWORK_SERIAL_CABLE_ASSY 1

 AM03-003122A Z1-Z6_DRV_COMMAND_CABLE_ASSY 6 J90831119E

 J90831175B Z1_MOTOR_CABLE_ASSY SM33-MD019 1 J90831175A

 J90831176B Z2_MOTOR_CABLE_ASSY SM33-MD020 1 J90831176A

 J90831177B Z3_MOTOR_CABLE_ASSY SM33-MD021 1 J90831177A

Servo Interface ( Z4, Z5, Z6 )

J90831117C HEAD1_NETWORK_SERIAL_CABLE_ASSY

 J90831118C HEAD2_NETWORK_SERIAL_CABLE_ASSY J90831118C

 J90831119E Z1-Z6_DRV_COMMAND_CABLE_ASSY 6 J90831119B

 J90831178B Z4_MOTOR_CABLE_ASSY SM33-MD022 1 J90831178A

 J90831179B Z5_MOTOR_CABLE_ASSY SM33-MD023 1 J90831179A

 J90831180B Z6_MOTOR_CABLE_ASSY SM33-MD024 1 J90831180A

Servo Interface (WD)-1/2

J90831122A MS1_WS1_DRV_COMMAND_CABLE_ASSY SM33-VM01 1

 J90831123B WW1_DRV_COMMAND_CABLE_ASSY 1

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1

 J90831271C MS1_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 J90831271A

 J90831265B MS1_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831265A

 J90831272D WW1_SERVO_MTR_ENC_EXT_CABLE_ASSY 1 J90831272B

 J90831266C WW1_SERVO_MTR_PWR_EXT_CABLE_ASSY 1 J90831266B

 J90831273C WS1_SERVO_MTR_ENC_EXT_CABLE_ASSY 1 J90831273A

 J90831267B WS1_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831267A

 J90831199A_AS MS1_SERVO_MOTOR_CABLE_ASSY SM33-CS012 1 J90831199A

 AM03-001349A WS1_SERVO_MOTOR_CABLE_ASSY SM33-CS013 1 J90831200A

 J90831201A_AS WW1_SERVO_MOTOR_CABLE_ASSY SM33-CS014 1 J90831201A

Servo Interface (WD )-2/2

J90831122A MS1_WS1_DRV_COMMAND_CABLE_ASSY SM33-VM01 1

 J90831123B WW1_DRV_COMMAND_CABLE_ASSY 1

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1

 J90831274C MS2_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 J90831274B

 J90831275C WW2_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 J90831275B

 J90831269B WW2_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1

 J90831276C WS2_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 J90831276B

 J90831270B WS2_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831270B

 J90831202A_AS WW2_SERVO_MOTOR_CABLE_ASSY SM33-CS015 1 J90831202A

 J90831203A_AS MS2_SERVO_MOTOR_CABLE_ASSY SM33-CS016 1 J90831203A

 AM03-001000A WS2_SERVO_MOTOR_CABLE_ASSY SM33-CS017 1 J90831204A/ J90831204A_AS

Step Motor Interface ( R1-2, R3-4, R5-6 )

J90831120B FR1_FR3_FR5_DRV_CMD_CABLE_ASSY SM33-VM01 1 J90831120A

 J90831121B RR1_RR3_RR5_DRV_CMD_CABLE_ASSY SM33-VM01 1 J90831121A

 J90831062E FR_RR_STEP_DRV_PW_CABLE_ASSY 1 J90831062B

 J90831173C FR_STEP_MOTOR_POWER_CABLE_ASSY 1 J90831173B

 J90831174C RR_STEP_MOTOR_POWER_CABLE_ASSY 1 J90831174B

 J90831182D R_STEP_MOTOR_PWR_EXT_CABLE_ASSY 1

 J90830190B R12_MOTOR_CABLE_ASSY 1

 J90831009B R34_MOTOR_CABLE_ASSY 1

 J90831010B R56_MOTOR_CABLE_ASSY 1

Step Motor Interface ( Conveyor Belt )

J90831126B BW12_BS12_DRV_COMMAND_CABLE_ASSY 1

 J90831127B BW34_BS34_DRV_COMMAND_CABLE_ASSY 1

 J90831090B CONV_BELT_STEP_PW_CABLE_ASSY SM33-PW028 1 J90831090A

 J90831277B BS1-1_MOTOR_EXT_CABLE_ASSY 1

 J90831278B BS1-2_MOTOR_EXT_CABLE_ASSY 1

 J90831279B BW1-1_MOTOR_EXT_CABLE_ASSY 1

 J90831280A BW1-2_MOTOR_EXT_CABLE_ASSY SM33-CS028-4 1

 J90831281A BW2-1_MOTOR_EXT_CABLE_ASSY SM33-CS028-5 1

 J90831282C BW2-2_MOTOR_EXT_CABLE_ASSY 1

 J90831283C BS2-1_MOTOR_EXT_CABLE_ASSY 1 J90831283A

 J90831284C BS2-2_MOTOR_EXT_CABLE_ASSY 1

 J90831207B BELT_MOTOR_BS1-1_CABLE_ASSY 1

 J90831208B BELT_MOTOR_BS1-2_CABLE_ASSY 1

 J90831209B BELT_MOTOR_BW1-1_CABLE_ASSY 1

 J90831210C BELT_MOTOR_BW1-2_CABLE_ASSY 1

 J90831211C BELT_MOTOR_BW2-1_CABLE_ASSY 1

 J90831212B BELT_MOTOR_BW2-2_CABLE_ASSY 1

 J90831213B BELT_MOTOR_BS2-1_CABLE_ASSY 1

 J90831214B BELT_MOTOR_BS2-2_CABLE_ASSY 1

Vision Board Interface

J90831098A HEAD1_FIDUCIAL_CAMERA_CABLE_ASSY SM33-VI 1 J90831103A

 J90831100B HEAD2_FIDUCIAL_CAMERA_CABLE_ASSY SM33-VI 1 J90831100A

 J90831104B HD2_FLY_CAM_PW-SYNC_CABLE_ASSY SM33-VIS0 1 J90831104A

 J90831105D HEAD1_FLY_CAM_SIG_CABLE_ASSY 1 J90831105B

 J90831107D HEAD2_FLY_CAM_SIG_CABLE_ASSY 1 J90831107B

 J90831101B NEXTEYE_BD_I-F_CABLE_ASSY_HR70 SM33-VIS0 2 J90831101A

J90831109A NEXTEYE_BD_I-F_CABLE_ASSY_MEGA SM33-VIS0 2

 J90831099B FLAT_FID_CAMERA_CABLE_ASSY SM33-VIS002 1 J90831099A

 J90831103B FLY_CAM_PWR-SYNC_EXT_CABLE_ASSY SM33-VIS 1 J90831103A

 J90831106G FLY_CAM_SIG_EXT_CABLE_ASSY 1 J90831106B

 J90830161B FLYING CAMERA I/F CABLE ASSY 6 J90831108B/ J90831108A

Safety Control Board Interface (1/4)

J90831089C PS1_PS2_SAFETY_CTRL_CABLE_ASSY 1

 J90831052D FRONT_EM_DOOR_RDY_SW_CABLE_ASSY 1

 J90831053B REAR_EM_DOOR_RDY_SW_CABLE_ASSY

Safety Control Board Interface (2/4)

J90831130B CONV_I-F_BD_POWER_CABLE_ASSY 1

 J90830198C FRONT FDR CTRL PWR CABLE ASSY 1

 J90830202B FRONT D-CART PWR CABLE ASSY, D-C 1

 J90830199C REAR FDR CTRL PWR CABLE ASSY 1

 J90830203B REAR D-CART PWR CABLE ASSY, D-CA 1

 J90831153B AXIS_SENSOR_BD_PW_CABLE_ASSY 1

 J90831226B DEVICE_NET_CABLE_ASSY 1 J90831226A

 J90831093C VME_IO_BD_POWER_CABLE_ASSY 1

 J90831056E CONVEYOR_SUB_CONN_CABLE_ASSY 1

Safety Control Board Interface (3/4)

J90831453F FRONT_FDR_BASE_PWR_CABLE_ASSY 1 J90831453A

 J90830202B FRONT D-CART PWR CABLE ASSY, D-C SM21_FD010

 J90831454D REAR_FDR_BASE_PWR_CABLE_ASSY 1 J90831454A

 J90830203B REAR D-CART PWR CABLE ASSY, D-CA SM21_FD011

 J90831060E F_OVERRIDE_KEY_EXT_CABLE_ASSY 1

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1

 J90831335C MC1-ENABLE-CABLE-ASSY

Safety Control Board Interface (4/4)

AM16-000011A ASSY,CABLE-FRONT OP I/F CABLE ASSY 1

 AM16-000012A ASSY,CABLE-REAR OP I/F CABLE ASSY 1

 AM16-000009A ASSY,CABLE-SACO-CONV I/F CABLE ASSY 1

 AM16-000004A ASSY,CABLE-FRONT_T_BOX_HOST_CABLE 1

 AM16-000006A ASSY,CABLE-SAFETY-FRONT_TEACHING_BOX_CA 1

 AM16-000005A ASSY,CABLE-REAR_T_BOX_HOST_CABLE 1

 AM16-000007A ASSY,CABLE-SAFETY-REAR_TEACHING_BOX_CAB 1

Electric Circuit  Diagram

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1

 J90831252A REAR_ELEC_PANEL_EARTH_CABLE_ASSY SM33-PW 1

 J90831253C MCCB_NF1_EARTH_CABLE_ASSY

 J90831254A EARTH_HEAD1_CABLE_ASSY SM33-PW003-3 1

 J90831255C EARTH_HEAD2_CABLE_ASSY 1 J90831255B

 J90831456A X_AXIS_HEAD_EARTH_CABLE_ASSY SM33-PW003- 2

 J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1

 J90831092B TRANSFORMER_INPUT_EXT_CABLE_ASSY 1 J90831092A

 J90831067A MAIN_SWITCH_TB2_CABLE_ASSY SM33-PW005 1

 AM03-001211A TRANS_CP1_2_CABLE_ASSY SM33-PW006 1 J90831068A

 J90831069C CP1_TB1_MC1_CABLE_ASSY 1 J90831069B

 J90831070C CP2_TB1_MC2_CABLE_ASSY 1 J90831070B

J90831072D CONTROL_RACK_POWER_CABLE_ASSY 1 J90831072B

 J90831073B TB1_PS1_PS2_POWER_CABLE_ASSY SM33-PW011 1 J90831073A

 J90831074C FAN_POWER_CABLE_ASSY 1 J90831074B

 J90831075D SERVO_FAN_POWER_CABLE_ASSY 1 J90831075B

 J90831458C FRONT_MONITOR_POWER_CABLE_ASSY 1 J90831458B

 J90831089C PS1_PS2_SAFETY_CTRL_CABLE_ASSY 1 J90831089A

 J90831088B SERVO_FAN_CABLE_ASSY SM33-PW026 1 J90831088A

J90831069C CP1_TB1_MC1_CABLE_ASSY 1 J90831069B

 J90831071C MC1_PS3_PS4_CABLE_ASSY SM33-PW009 1 J90831071B

 J90831082C PS1_1_DC_POWER_BD_CABLE_ASSY 1 J90831082B

 J90831083D PS1_2_DC_POWER_BD_CABLE_ASSY 1 J90831083C

 J90831085B FZ1-FZ6_DC24V_POWER_CABLE_ASSY SM33-PW02 1 J90831085A

 J90831086A RZ1-RZ6_DC24V_POWER_CABLE_ASSY SM33-PW02 1

 J90831090B CONV_BELT_STEP_PW_CABLE_ASSY SM33-PW028 1 J90831090A

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1

J90831077C MC2_TB1_CABLE_ASSY 1 J90831077B

 AM16-000014A FX_FS_SERVO_POWER_CABLE_ASSY SM33-PW016 1 J90831078A / J90831078B

 AM16-000015A RX_RS_SERVO_POWER_CABLE_ASSY 1 J90831079B / J90831079C

 J90831080B FY1_FY2_SERVO_POWER_CABLE_ASSY 1 J90831080A

 J90831081B RY1_RY2_SERVO_POWER_CABLE_ASSY 1 J90831081A

Electric Circuit Diagram- SM411N

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1

 SM33_PW002

 J90831252A REAR_ELEC_PANEL_EARTH_CABLE_ASSY SM33-PW 1

 J90831253C MCCB_NF1_EARTH_CABLE_ASSY

 J90831254A EARTH_HEAD1_CABLE_ASSY SM33-PW003-3 1

 J90831255C EARTH_HEAD2_CABLE_ASSY 1 J90831255B

 J90831456A X_AXIS_HEAD_EARTH_CABLE_ASSY SM33-PW003- 2

 J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1

 J90831092B TRANSFORMER_INPUT_EXT_CABLE_ASSY 1 J90831092A

 J90831067A MAIN_SWITCH_TB2_CABLE_ASSY SM33-PW005 1

 AM03-001211A TRANS_CP1_2_CABLE_ASSY SM33-PW006 1 J90831068A

 J90831069C CP1_TB1_MC1_CABLE_ASSY 1 J90831069B

 J90831070C CP2_TB1_MC2_CABLE_ASSY 1 J90831070B

J90831072D CONTROL_RACK_POWER_CABLE_ASSY 1 J90831072B

 J90831073B TB1_PS1_PS2_POWER_CABLE_ASSY SM33-PW011 1 J90831073A

 J90831074C FAN_POWER_CABLE_ASSY 1 J90831074B

 J90831075D SERVO_FAN_POWER_CABLE_ASSY 1 J90831075B

 J90831458C FRONT_MONITOR_POWER_CABLE_ASSY 1 J90831458B

 SM33_PW025-2

 J90831089C PS1_PS2_SAFETY_CTRL_CABLE_ASSY 1 J90831089A

 SM33_PW014

 J90 J90831069C CP1_TB1_MC1_CABLE_ASSY 1 J90831069B

 J90831071C MC1_PS3_PS4_CABLE_ASSY SM33-PW009 1 J90831071B

 J90831082C PS1_1_DC_POWER_BD_CABLE_ASSY 1 J90831082B

 J90831083D PS1_2_DC_POWER_BD_CABLE_ASSY 1 J90831083C

 J90831085B FZ1-FZ6_DC24V_POWER_CABLE_ASSY SM33-PW02 1 J90831085A

 J90831086A RZ1-RZ6_DC24V_POWER_CABLE_ASSY SM33-PW02 1

 J90831090B CONV_BELT_STEP_PW_CABLE_ASSY SM33-PW028 1 J90831090A

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1

J90831077C MC2_TB1_CABLE_ASSY 1 J90831077B

 AM16-000014A FX_FS_SERVO_POWER_CABLE_ASSY SM33-PW016 1 J90831078A / J90831078B

 AM16-000015A RX_RS_SERVO_POWER_CABLE_ASSY 1 J90831079B / J90831079C

 J90831080B FY1_FY2_SERVO_POWER_CABLE_ASSY 1 J90831080A

 J90831081B RY1_RY2_SERVO_POWER_CABLE_ASSY 1 J90831081A

Articles of Consumption

A-1 J90641031A PACKING_BOX_ASSY J90641031A 1

 J3601018A FUSE[250V 5A] 2

 J3601019A FUSE[250V 10A] 2

 J7055140A STEEL BALL [DIA2, SUS304] 40

 J7255021B SILICON TUBE(BLACK) [J7255021B] 12 J7255076A

 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 12 Consumables (Replacement: 6 months)

 J6702048A SOLENOID VALVE[VA01PEP34-1U-F] 6 Consumables (Replacement: 2 years)

 J6702049A SOLENOID VALVE[RCS242-M3-D24NP] 1 Consumables (Replacement: 2 years)

A-2 J90551110A NOZZLE_ASSY J90551110A 1

 J9055134C NOZZLE CN040 ASSY[J9055134C] 12

 J9055136C NOZZLE CN065 ASSY[J9055136C] 6

 J9055256A NOZZLE CN140 ASSY[J9055256A] 2

 J9055351A NOZZLE CN220 ASSY(CERAMIC)[J9055351A] 2

 J90551072A NOZZLE_CN400_ASSY J90551072A 2

 J90551006A CN020

 J9055133C CN020

 J7459062A CALIBRATION NOZZLE[J7459062A]
