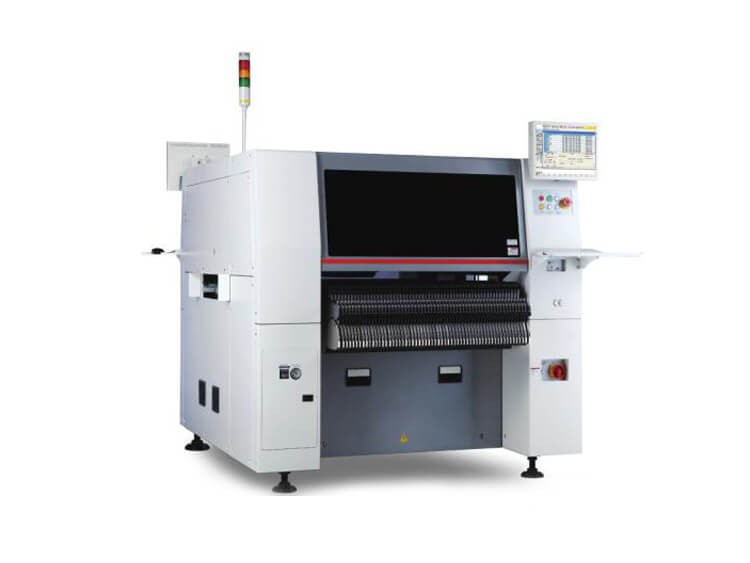

Fast Chip Shooter SM471 Plus part

Fast Chip Shooter SM471 Plus part

Feeder Base Ass’y-ST

J90571018A FEEDER_BASE_ST J90571018A 1

 FC07-000033C BLOCK-VERTICAL LOCATOR 1 FC07-000033B

 J70570262C CAP-TOP PLATE 5

 HP06-900027 FITTING 2

 FC05-000122A BASE-SM411_FEEDER_BASE_BODY2;GCD 450-10 1

 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A ASSY,BOARD-FBLN 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000693A ASSY,BOARD-FBRN 1

 FC18-901830 BUTTON HEAD SOCKET SCREW M3*6 (SUS) 6

 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 32

 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 24

 FC14-000876 COUPLER 60 HP06-900169

 FC18-902787 SOCKET HEAD CAP SCREW M8*20 (NI/ZN) 7

 FC09-000901D BRACKET-TOP_PLATE_S;STS304_CP 1 FC09-000901A / FC09-000901C

 FC09-001200D BRACKET-TOP-PLATE-BACK-HOLE;STS304_CP 1 FC09-001200A / FC09-001200C

 AM03-004577B ASSY,FEEDER BASE-FEEDER_BASE_MODULE_S 1 AM03-004577A

Feeder Base Ass’y- DC

J90571015A FEEDER_BASE_ASSY_FRONT-DC 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB 1 J9060354A

 J90600353B FEEDERBASE_LEFT_COVER_PCB 1 J9060353A

 FC14-000876 COUPLER 56 HP06-900169

 HP06-900027 FITTING 4

 AM03-006345A ASSY,BOARD-FBLD 1 J9060349D

 AM03-006346A ASSY,BOARD-FBRD 1 J9060350D

 FC09-000901C BRACKET-TOP_PLATE_S 1

 J90571009A FEEDER_BASE_MODULE J90571009A 1

 FC09-002060A BRACKET-SME_DC_BKT 1

 FC09-001200C BRACKET-TOP-PLATE-BACK-HOLE 1

 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 28

 J7057239B CABLE HOLDER 2

 J7057238B ANTI-PITCH PIN 2

 J7057237C ANTI-PITCH ARM[J7057237C] 16

 AM03-001738C CABLE ASSY-D-CART INNER IF 1

 HP06-900300 PLUG 2

 J7257013A CUSHION-LOCATION PIN 2

 HP15-900008 BALL PLUNGERS 2

 FC29-900535 URETHANS 2

 MC14-900015 URETAN WHEEL 2

 AM03-006344A ASSY,FEEDER BASE-NEW_DOCKING_CART 1

AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1

 HP06-900049 STRAIGHT FITTING 1

 HP06-900299 COUPLER 1

 HP14-900089 SPEED CON 1

 HP14-900090 SPEED CON 1

 HP06-900293 ELBOW FITTING 2

 EP19-900112 PHOTO SENSOR 1

 HP14-900026 SOLENOID VALVE 1

 HP06-900027 FITTING 1 HP06-900047

 HP06-900050 UNION Y FITTING 1

 HP09-900162 SILENCER 2

 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1

 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1

J71570100C GUIDE BLOCK 2

 J7057247A POSITIONNING GUIDE 2

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 Version 1.1

 AM03-015857E ASSY,BOARD-FEEDER IO VER 2.0 1 (AM03-000819A / AM03-000819B/

AM03-000819C/ AM03-000819C/ AM03-000819E: ~2016.12)

Old: Version 1.6

New: Version 2.0 (2017.01~)

 FC09-000977A BRACKET-FRONT SENSOR BKT2;SPCC 1 J70540267B

 FC09-000976A BRACKET-FRONT SENSOR BKT1;SPCC 1 J70540266B/ J70540266C

 FC29-900144 DRAWER PULL 2

 FC15-001297A COVER-COVER LFM DC 1

FC14-900724 PLUG 2

 HP06-900027 FITTING 4

 HP06-900299 COUPLER 1

 HP14-900090 SPEED CON 1

 HP06-900048 ELBOW FITTING 1

 HP06-900293 ELBOW FITTING 2

 FC14-900724 PLUG 3

 HP06-900050 UNION Y FITTING 1

 HP14-900092 CHECK VALVE 1

 HP06-900018 FITTING 5

 HP06-900014 FITTING 5

 HP14-900026 SOLENOID VALVE 1

Entry Shuttle Conveyor

EP08-003194A MOTOR,STEP-CONV SHUTTLE MOTOR+PULLEY 1 EP08-000204(Old No.: J71531009A)

+ J71531190A

 MC05-000151 TIMING BELT 1

 J70531402A SHUTTLE_HOME_SENSOR_BKT 1

 EP19-900109 PHOTO SENSOR 1

 MC13-900069 LM_GUIDE 2 J2101818

 FC05-000084A BASE-PULLEY 1

 MC03-900081 BEARING 2

 J70531570A SHUTTLE_BELT_TENSION_BKT 1

 J71531190A PULLEY 1

 J70531392A SHUTTLE_PULLEY_SHAFT 1

 FC18-903151 SPACER 1

 MC03-900081 BEARING 2

 FC09-000764A BRACKET-PULLEY_FIX 1

FC07-001630A BLOCK-BLOCK_SHUTTLE 1

 FC09-003302A BRACKET-BELT_FIX 1

 FC30-001630A PLATE-BELT_FIX 1

 EP19-900108 PHOTO SENSOR 2

 J71531018A ENTRY_PCB_GUIDE_1650 2

 FC09-007126A BRACKET-CONV_ST_SENSOR_BKT2;SPCC 2

 AM03-021739A CABLE ASSY-PCB SENSOR 1

 AM03-021962A CABLE ASSY-BELT MOTOR(BW2-1) 1

 J70531038A MOTOR_BRACKET 2

 MC19-001136A PULLEY-WORK_W_BELT 4

 J70531505A 180RINK_MOVING_SIDE_BKT1 2

 J70531506A 180RINK_MOVING_SIDE_BKT2 2

 J70531072C CNT_PANEL_FRONT 2

 AM03-021742A CABLE ASSY-PCB SENSOR 1

 FC09-004598A BRACKET-SHUTTLE_STP;STS304_CP 1

 HP03-001008 CYLINDER-STOPPER 1

 HP06-900010 ELBOW FITTING 1

 HP06-900263 HOSE NIPPLE 1

 MC05-900059 BELT_SHUTTLE_1650 2

 J7053184A SQUARE NUT M4 10

 J70531039A IDLER_SPACER_45 8

 J72531001A IDLER_2 J72531001A 4

 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 4

 J70531032A ST_SENSOR_BRACKET_2 1

 J70531033A ST_SENSOR_BRACKET_1 1

 J70531036A NUT_HOUSING 1

 J70531037B MOTOR-BRACKET-SHUTTLE 1

 J70531038A MOTOR_BRACKET 2

 J70531039A IDLER_SPACER 6

 FC09-004598A BRACKET_SHUTTLE_STP 1

 J70531044A WD_NUT_BEARING_STOPPER 1

EP08-003135A MOTOR,STEP-CONV WIDTH MOTOR+PULLEY[SM] 1 EP08-000203 + MC19-000674A

 FC09-003304A BRACKET-WIDTH_MOTOR 1

 J70531495A WASHER 2

 FC29-004013A GUIDE-BEARING 2

 MC03-900084 BEARING 4

 J70531404A MOVING_IDLER_SHAFT 2

 J71531018A ENTRY_PCB_GUIDE_1650 2

 FC29-002509B DOG-WIDTH_HOME;STS304_CP 1

 J70531072C CNT_PANEL_FRONT 2

 J70531505A 180RINK_MOVING_SIDE_BKT1 J70531505A 2

 J70531506A 180RINK_MOVING_SIDE_BKT2 J70531506A 2

 J90831207B BELT_MOTOR_BS1-1_CABLE_ASSY 1

 J70531038A MOTOR_BRACKET 2

 MC19-001136A PULLEY-WORK_W_BELT,MIGRATION 4

 MC05-900059 BELT_SHUTTLE 2

 J7053184A SQUARE NUT 10

 J70531039A IDLER_SPACER_45 8

 J72531001A IDLER_2 20

 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 4

Work zone Conveyor

FC09-004582A BRACKET-TAIL_DECAN_CONV;STS304_CP 4

 J72531002A BUSH_TAIL 4

 MC13-900068 LM_GUIDE_WORK 2

 FC09-004584A BRACKET-SUPPORT_L_DECAN_CON;STS304_CP 2

 FC09-004586A BRACKET-SUPPORT_S_DECAN_CON;STS304_CP 2

FC09-007206A BRACKET-CONV_WORK_SENSOR_1;1.8 2

 FC09-002430C BRACKET-WORK SNS BKT R;STS304_CP 2

 MC03-900121 BALL BEARING 4

 MC13-900226 LEAD_SCREW 4

 J70531025A WIDTH_TENSION_SPACER 4

 J72531001A IDLER_2 J72531001A 20

 J70531021A IDLER_SHAFT_M 16

 EP19-900108 PHOTO SENSOR 2

 MC03-900008 BALL BEARING 4

 MC06-900006 BALL_BUSH 16

 MC03-900121 BALL BEARING 4

 MC05-001040 TIMING BELT 2

 J7053048A IDLER SPACER-M 2

 J70531039A IDLER_SPACER_45 8

 J70531020A IDLER_SPACER_11 16

 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 4

 J7053184A SQUARE NUT M4 10

 FC01-000022A ADJUSTER-SHAFT_CONV;STS304_CP 8

 FC18-001480A SPACER-BUSH_CONVEYOR 8

 J7153034A CLAMP SHAFT 8

 MC19-001136A PULLEY-WORK_W_BELT 4

 AM03-020159A CABLE ASSY-PCB SENSOR 1

 FC29-004427A STOPPER-CONV_DOWN_STOPPER 8

 FC18-001478A SPACER-IDLER-S_CONV;STS303_CB 4

 FC29-001514B GUIDE-PCB_GUIDE RC;SM45C 2

J71531007A PULLEY_WIDTH_MOTOR J71531007A 2

 J90831210C BELT_MOTOR_BW1-2_CABLE_ASSY

 J90831212B BELT_MOTOR_BW2-2_CABLE_ASSY 1

 FC29-006463A SUPPORT-CV_M_RAIL-2 2

 FC18-901355 C-RING DIA11(HOLE) 8

 EP03-000170 CABLEVEYOR 2

MC05-900057 BELT_WORK 4

 FC29-002509B DOG-WIDTH_HOME;STS304_CP 1

 J70531028A TENSION_BEARING_PIN 4

 FC09-004587A BRACKET-TENSION_CONV;A6061-T6 4

 MC05-900058 TIMMING_BELT_WIDTH 2

 J71531008A PULLEY_W_MOTOR 2

 J71531024A WIDTH_PULLEY 2

 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 4

 FC29-004426A STOPPER-CLAMP_SHAFT_STOPPER 8

FC09-002430C BRACKET-WORK SNS BKT R;STS304_CP 2

 FC09-007206A BRACKET-CONV_WORK_SENSOR 2

 FC09-002822C BRACKET-STOPPER_WORK_REAR 1

 MC13-900226 LEAD_SCREW 4

 J72531001A IDLER_2 20

 J70531021A IDLER_SHAFT_M 16

 EP19-900108 PHOTO SENSOR 2

 MC03-900008 BALL BEARING 4

 MC06-900006 BALL_BUSH 16

 MC03-900121 BALL BEARING 4

 MC05-001040 TIMING BELT 2

 J70531029B STOPPER_POST 1

 FC30-001359A PLATE-STOPPER_TOP 1

 MC19-001136A PULLEY-WORK_W_BELT 4

 J70531020A IDLER_SPACER_11 16

 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 4

 J7053184A SQUARE NUT M4 10

 FC01-000022A ADJUSTER-SHAFT_CONV;STS304_CP 8

 FC18-001480A SPACER-BUSH_CONVEYOR 8

 J7153034A CLAMP SHAFT 8

 J7153036A SLIDE GUIDE 6

 HP14-900083 THROTTLE VALVE(ELBOW) 1

 FC29-004426A STOPPER-CLAMP_SHAFT_STOPPER 8

 FC29-004427A STOPPER-CONV_DOWN_STOPPER 8

 J70531017B PCB_GUIDE_FC 2

 J71531007A PULLEY_WIDTH_MOTOR 2

 HP06-900047 ELBOW FITTING 1

 AM03-021745A CABLE ASSY-STOPPER_WORK_SENSOR_ST 1

 J90831211C BELT_MOTOR_BW2-1_CABLE_ASSY 1

 MC03-900121 BALL BEARING 4

 J70531025A WIDTH_TENSION_SPACER 4

J7053047A IDLER SPACER-S 4

 AM03-020159A CABLE ASSY-PCB SENSOR 1

 J70531028A TENSION_BEARING_PIN 4

 FC09-004587A BRACKET-TENSION_CONV 4

 MC05-900058 TIMMING_BELT_WIDTH 2

 J71531008A PULLEY_W_MOTOR 2

 J71531024A WIDTH_PULLEY 2

 FC29-002509B DOG-WIDTH_HOME;STS304_CP 1

 MC05-900057 BELT_WORK 4

 J90831209B BELT_MOTOR_BW1-1_CABLE_ASSY 1

 EP03-000170 CABLEVEYOR 2

 FC18-901355 C-RING DIA11(HOLE) 8

 FC29-006463A SUPPORT-CV_M_RAIL-2 2

 EP08-000203 MOTOR,STEP 2

J72531005C DUMP_BOX 2

 FC09-004095B BRACKET-DUMP_BOX_SUPPORT_2;2.0 2

 J63091001A LOW_ELASTIC_RUBBER_SHEET UNSET 1 2

 HP14-900033 SOLENOID VALVE 1

 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 2

HP13-900081 AIR TUBE (POLYURETHANE) 3

HP13-900087 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] 3

HP13-900088 AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(YELLOW 3

 FC30-001289A PLATE-LEFT_2;SPCC 2

 AM03-013061A DUMPBOX_FLOATDETECT_SENSOR 2

 J70531105A TOP_COVER_CV J70531105A 2

Exit Shuttle Conveyor

MC13-900069 LM_GUIDE_SHUTTLE 2

 FC09-000764A BRACKET-PULLEY_FIX 1

 MC03-900081 BEARING 2

 FC18-903151 SPACER 1

 J70531392A SHUTTLE_PULLEY_SHAFT 1

 J71531190A PULLEY 1

 FC29-004257A SUPPORT-BAR 4

 MC05-000151 TIMING BELT 1

 J70531570A SHUTTLE_BELT_TENSION_BKT 1

 MC03-900081 BEARING 2

 FC05-000084A BASE-PULLEY 1

 EP08-003194A MOTOR,STEP-CONV SHUTTLE MOTOR+PULLEY 1 EP08-000204 + J71531190A

 EP03-000034 CABLEVEYOR 2

 FC29-000612B SUPPORT-HEX 4

 EP19-900109 PHOTO SENSOR 1

 J70531402A SHUTTLE_HOME_SENSOR_BKT 1

EP08-003135A MOTOR,STEP-CONV WIDTH MOTOR+PULLEY[SM] 1 EP08-000203 + MC19-000674A

 FC09-003304A BRACKET-WIDTH_MOTOR 1

 J70531495A WASHER 2

 FC29-004013A GUIDE-BEARING 2

 MC03-900084 BEARING 4

 J70531404A MOVING_IDLER_SHAFT 2

 J71531018A ENTRY_PCB_GUIDE_1650 2

 J70531072C CNT_PANEL_FRONT 2

 J70531505A 180RINK_MOVING_SIDE_BKT1 2

 J70531506A 180RINK_MOVING_SIDE_BKT2 2

 J90831207B BELT_MOTOR_BS1-1_CABLE_ASSY 1

 J70531038A MOTOR_BRACKET 2

 MC19-001136A PULLEY-WORK_W 4

 FC29-002509B DOG-WIDTH_HOME 1

 MC05-900059 BELT_SHUTTLE_1650 2

 MC19-001112A SHAFT-S_IDLER_CONV 4

 J72531001A IDLER_2 20

 J70531039A IDLER_SPACER_45 8

AM03-020159A CABLE ASSY-PCB SENSOR 1

 J70531076B BRACKET_BD_OUT_SENSOR 1

 J70531607A #N/A #N/A

 J71531018A ENTRY_PCB_GUIDE_1650 2

 FC09-004598A BRACKET-SHUTTLE_STP 1

 HP03-001008 CYLINDER-STOPPER 1

 HP06-900010 ELBOW FITTING 1

 FC09-003302A BRACKET-BELT_FIX 1

 FC30-001630A PLATE-BELT_FIX 1

 EP19-900108 PHOTO SENSOR 2

 J70531505A 180RINK_MOVING_SIDE_BKT1 2

 J70531506A 180RINK_MOVING_SIDE_BKT2 2

 J70531072C CNT_PANEL_FRONT 2

 J90831208B BELT_MOTOR_BS1-2_CABLE_ASSY 1

 J70531038A MOTOR_BRACKET 2

 MC19-001136A PULLEY-WORK_W_BELT 4

 MC19-001112A SHAFT-S_IDLER_CONV 4

 J72531001A IDLER_2 20

 J70531039A IDLER_SPACER_45 8

 AM03-020159A CABLE ASSY-PCB SENSOR 1 SM411-CS001 [SS1-2]

 MC05-900059 BELT_SHUTTLE_1650 2

Backup Table Ass’y

FC29-004259B DOG-BUT_SENSOR;STS304_CP 1

 J70531052C LOWER_PLATE 1 J70531052B

 J70531051C BACK_UP_PLATE 1 J70531051B

 J70531053C UPPER_PLATE 1 J70531053B

 EP19-900108 PHOTO SENSOR 1

 FC18-901994 SHOULDER SCREW 2

 FC38-900013 SPRING 1

 FC29-900536 URETHAN CUSHION 1

 HP06-900056 ELBOW FITTING 2

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN 4

 J7053793A LOWER LINK PIN 2

 J7053796A LOWER LINK SHAFT 1

 J70530797B LOWER LINK END 1 J7053797A

 MC03-900098 BALL_BEARING 1 MC03-900022

 J90531004A FREE_LINK_ASSY 2

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN 2

 J7053795A RING FIXER 3

 FC14-900506 CYLINDER JOINT 1

 HP03-900013 CYLINDER 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER 1

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER 1

 FC18-902761 SHC [M5 x 20] 16

 FC18-902835 FHCS [M4 x 15] 8

 FC18-902761 SHCS [M5 x 20] 16

FC18-902730 SHCS [M3 x 15] 4

 FC18-902756 SHCS [M5 x 12] 8

Base Frame Ass’y

PT03-002322A STICKER-FOOT_LOCK_NUT;STD 1

 FC15-000983A COVER BOTTOM FR 2

 FC15-001391A COVER BOTTOM RL 1 FC15-000986A

 FC15-000985A COVER BOTTOM RR 1

 J7051010D HOUSING-FOOT 4

 AM03-011300A ASSY,ETC,IMS-FOOT 4

 FC18-903496 SPRING WASHER 16

Head Ass’y

FC15-005199A COVER-HEAD TOP COVER UNIV;STD 1

 AM03-018404B ASSY,BOARD-HEAD_IF_BD_ARM 1

 FC09-001574B BRACKET-HEAD_BOARD_BRACKET 1 FC09-001574A

 FC29-900610 HEX SUPPORT 8

 AM03-005341B ASSY,BOARD-MOTOR IF BOARD VER1.1 1 AM03-005341A

 FC09-001568A BRACKET-FLAT_CABLE_BKT 1

 FC09-003535B BRACKET-HEAD_BKT_PANEL 1 FC09-001573A

 FC29-900148 HANDLE BG-10 1

 FC09-001575A BRACKET-HARNESS_PLATE 1

 FC09-001690A BRACKET-HEAD_BKT_FIX 1

 FC09-001576B MOTOR_IF_BOARD_BKT 2 FC09-001576A

 AM03-022591A ASSY,HEAD-FITTING_SUB 1

 FC28-900369 GREASE NIPPLE 5

 HP06-900079 ELBOW_UNION_FEMALE 5

 J71541016B HARNESS_SUPPORT 2

 FC09-004659 BRACKET-3-NIPPLE 1

 FC09-004665A 2-NIPPLE_BRACKET 1 J70541017A

 FC30-000990A PLATE-IO_BOARD_SHEET 1

 FC30-000991A PLATE-MOTOR_IF_BOARD_SHEET 1

 FC18-902795 BUTTON_HEAD_CAP_SCREW M10*20 (NI/ZN) 1

FC09-004707A BRACKET-Z_SPRING_BKT 1 FC09-001505A

 FC38-000072A SPRING-Z_SPRING 10

 AM03-014949A ASSY,BOARD-SM471 HOME SENSOR 1

AM03-015112A CABLE ASSY-HEAD_HOME_SENSOR 1

FC36-001010A SHEET-Z_SENSOR_BOARD_SHEET,0.2 1

 FC09-001506A BRACKET-Z_SENSOR_BKT 1

 FC29-900614 HEX SUPPORT [M3*20 (BOLT-NUT)] 2

 AM03-011868A CABLE ASSY-Z1_MOTOR_AS 10

 FC09-004661A BRACKET-TIE_MOUNT_2 2

 FC09-001558A BRACKET-TIE_MOUNT_1 2

 FC09-001562A BRACKET-FLY_IO_TOP_COVER 1

 FC09-001561C BRACKET-FLY_CAM_COVER 1 FC09-001561A

 FC29-900610 HEX SUPPORT 6

 AM06-000358B ASSY,PCB SMD-SM400_CAMERA_IO_BD 1 AM06-000358A

 FC09-001563A BRACKET-FLY_IO_BOTTOM_COVER 1

 J71551840A Z_MOTOR_PULLEY 10

 FC09-004159A BRACKET-FID_BRACKET_1 1 FC09-001555A

 AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 1 STANDARD

AM06-005001A ASSY,PCB SMD-OUTER-LED_PCB ASS'Y_FID. CA 1 BLUE FILTER OPTION

 FC09-001567A BRACKET-LIGHT_COVER 1

 EP12-000029B MIRROR,OPTICS-SM411_PLUS_BEAM_SPLITTER 1 EP12-000029A

 RM03-000022A PLASTICS-SM411_PLUS_COAXIAL_DIFFUSEER 1 EP12-000030A

 AM03-005100C ASSY,OPTICS-SM411_PLUS__FLY_COAXIAL_PCB 1 AM03-005100B

 FC09-001566A BRACKET-FLY_SIDE_COVER 2

 FC09-001560A BRACKET-FLY_SIDE_PLATE2 1

 FC09-001559A BRACKET-FLY_SIDE_PLATE1 1

 FC09-001516A BRACKET-SM411_PLUS_FLY_OUTER_BRACKET_B 1

 FC09-001848A BRACKET-COAXIAL_PLATE 1

 FC09-001565B BRACKET-BS_CLAMP 2 FC09-001565A

 FC36-001069A SHEET-FLY_IO_TOP_COVER 1

 FC36-001068A SHEET-FLY_IO_BOTTOM_COVER 1

AM08-004291A ASSY-FID7_LENS_ASSY 1 STANDARD

AM03-021682A ASSY,OPTICS-FIDUCIAL CAMERA_BLUE 1 BLUE FILTER OPTION

 AM03-005925A ASSY,HEAD-FLY_OUTER_ASSY 1

 FC30-000976A PLATE-FID_CAM1_COVER 1

 FC30-000971A COVER-COVER CHAIN Y 1

 FC09-001515A BRACKET-SM411_PLUS_FLY_OUTER_BRACKET_A 1

 FC09-004160A BRACKET-FID_BRACKET_2 1 FC09-001554A

 FC30-000975A PLATE-FID_CAM2_COVER 1

 EP12-001025F MIRROR,OPTICS-COAXIAL_MIRROR_LEFT-F 1

 EP12-001026F MIRROR,OPTICS-COAXIAL_MIRROR_RIGHT-F 1

AM03-005340A ASSY,BOARD-SM471 VACUUM SENSOR BD VER1.0 1

 HP04-900036 SUCTION_FILTER 10

 HP06-000074 FITTING-STRAIGHT 10

 HP09-000328A MANIFOLD-P_SENSOR_BLOCK 1

 HP06-900059 BOB ELBOW FITTING 12

 FC09-001523A BRACKET-MANIFOLD_PLATE_2 1

 FC18-902704 SOCKET HEAD CAP SCREW [M2*5 (BL/ZN)] 14

 FC09-001522A BRACKET-MANIFOLD_PLATE_1 1

 HP14-000344 VALVE-OVER_BLOW_VALVE 1

 FC14-900638 PLUG FITTING 1

 HP06-900194 ELBOW_FITTING 1

 HP09-000129 MANIFOLD-HEAD_AIR_MODULE 1

 HP06-900021 BOB FITTING 11

 FC14-900638 DUMY PLUG 1

 HP14-000173 VALVE,SOLENOID-SOLENOID_VALVE 10

 HP14-000206 VALVE-BLOW_VALVE 10

AM03-020421A ASSY,OPTICS-FLYING_CAMERA_ONE KIT 5

 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 5 AM03-005553A

 FC18-901044 HEX NUT [M3 (BL/ZN) ] 2

 FC30-000805A PLATE-MIRROR_MOTOR_BKT 1

 J7255081A MIRROR MOTOR ISOLATOR 1

 AM03-015237A CABLE ASSY-SWING MOTOR_AS 1

 FC09-001553B BRACKET-MIRROR_PIN_3 1 FC09-001553A

 J7055560A MIRROR SPRING BRACKET 1

 J7055205A MIRROR JOINT-LEFT 1

 J7055204A ARM JOINT 2

 J7055205A MIRROR JOINT-LEFT 1

 MC03-900034 BALL BEARING 4

 FC18-001484A MIRROR SCREW 2 J7055153A

 MC19-000345A HEAD,SPINDLE-MIRROR_SHAFT 1

 MC03-900033 BALL BEARING 4

 FC38-900011 SPRING 2

 MC11-900055 CAM FOLLOWER 2

 FC30-000804A PLATE-MIRROR_LINK_2 1

 FC09-001519A BRACKET-MIRROR_CLAMP_2 1

 FC09-001521A BRACKET-MIRROR_CUSHION 1

 EP12-000030A MIRROR,OPTICS-FOLDING_MIRR 1

 FC09-001518A BRACKET-MIRROR_CLAMP_1 1

 FC15-001001A COVER-MIRROR_COVER 1

 FC09-001517A BRACKET-MIRROR_PLATE 1

 J7055559A MIRROR PIN 2 2

 J7455026A SPRING BUSH 2

 FC29-004275A SPRING_POST-MOVING 2 J70551042A

 J71551026A PULLEY-S_AXIS1 1

 J7155523A PULLEY (S-AXIS 2) 1

 MC05-900048 TIMING BELT 1

 MC11-000434A CAM-SM411PLUS_CAM 2

AM03-015567A CABLE ASSY-CABLE ASSY-SW_HOME_SENSOR 1

 FC09-001557A BRACKET-S_SENSOR_BKT 1

 FC29-001100A DOG-S_SENSOR_DOG 1

 FC30-000803A PLATE-MIRROR_LINK_1 1

 FC18-902841 SOCKET SET SCREW [M3*4 (BL/ZN)] 2

 J7055557A BEARING HOUSING 2

 FC18-901347 E-RING 2

AM03-008031A CABLE ASSY-R1_MOTOR_MD038 5

 FC09-001493A BRACKET-Z_SENSOR_DOG 1

 FC29-004278A PIN 1 J7155541A

 FC09-001491A Z_CAP 1

 HP06-900059 BOB ELBOW FITTING 1

 MC13-000268 LM GUIDE 1 MC13-000116

 FC29-001047C HOUSING-Z_ROD_HOUSING 1 FC29-001047A/ FC29-001047B

 FC09-001492B BRACKET-Z_BELT_CLAMP 1 FC09-001492A

 FC09-001504A BRACKET-REF_PLATE 1

 FC30-000797A PLATE-INSULATION_PLATE 1

 FC30-000798A PLATE-STEP_MOTOR_PLATE 5 FC30-000927A

 MC19-000340A PULLEY-R_MOTOR_PULLEY 1

 AM03-015566A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1 EP19-900134 / AM03-005582

 MC05-000117 TIMING BELT 1 FC09-001501A Z1.3.5.7.9

 MC05-000119 TIMING BELT 1 MC05-000117 Z2.4.6.8.10

 FC09-001502B BRACKET-Z_IDLE_BODY 1 FC09-001502A

 J6601140 BALL BEARING 2 J66011095A

 J71551848A Z_IDLER_PULLEY 1 MC19-000341A

 J70551874A Z_IDLE_SHAFT 1

 HP07-000094A Y_PACKING 1

 FC09-001490A BRACKET-LOCK_NUT_Z 1

 FC18-001724A COVER-OPEN_DOOR_A 1 FC18-000960

 MC03-900127 BALL BEARING 2

 FC09-001489A BRACKET-Z_TOP_HOUSING 1

 MC13-000172 SPLINE,BALL 1 MC13-000124

 FC30-000927A PLATE-BEARING_P_PLATE 1

 FC09-001494A BRACKET-S_PULLEY_CLAMP 1

 FC18-000967 SCREW-T_SPINDLE_SCREW 1

 MC19-000339A PULLEY-SPINDLE_PULLEY 1

 MC05-000120 TIMING BELT 1 MC05-900171

 J90551225A_AS NOZZLE_HOLDER_ASSY 10

C29-000176 SHIM-SHIM_RING 1

 AM03-005923A ASSY,HEAD-SIDE_PCB_ASSY 1

 FC09-001513A BRACKET-FLY_SIDE_BRACKET 2

 FC09-001514A BRACKET-MIRROR_BRACKET 2

 AM03-014140A HEAD_BALL_SPLINE_SUB_ASSY 1

 AM03-006142A ASSY,HEAD-SIDE_ILL_ASSY 1

Air Ass’y

FC14-900724 PLUG 3

 HP06-900014 FITTING 5

 HP14-900026 SOLENOID VALVE 2

 HP14-900092 CHECK VALVE 1

 HP06-900300 PLUG 2

 HP06-900050 UNION Y FITTING 1

 HP06-900018 FITTING 1

 HP09-900162 SILENCER 2

 HP06-900018 FITTING 4

 HP03-900011 AIR CYLINDER 3

 HP06-900047 ELBOW FITTING 2

 HP06-900299 COUPLER 2

 HP06-900027 FITTING 4

HP06-900282 STRAIGHT FITTING 5

 HP06-900282 PLUG 3

 HP06-000234 FITTING-STRAIGHT 1

 HP06-000226 PLUG 1

HP09-000150 DIGITAL GAUGE 1

 HP06-900043 JOINT 1

 HP06-900255 STRAIGHT FITTING 1

 TE07-900096 ANALOG GAUGE 1

 HP06-900195 UNION_Y_FITTING 1

 HP09-001019 REGULATOR 1

 HP04-001016 FILTER,AIR 1

 HP06-900050 UNION Y FITTING 1

 HP06-900027 FITTING 2

HP14-000978 VALVE,SOLENOID 1

 HP06-900204 FITTING 1

 HP11-000058 PUMP 1

 HP13-000042 TUBE-NYLON TUBE 1

 FC28-000105 NIPPLE-STRAIGHT 1

 J67191083A HOSE_BAND 1",W8 1

HP11-000059 PUMP 1

 HP06-000234 FITTING 1

 HP06-900046 JOINT 1

 HP06-000250 FITTING-ELBOW 1

 HP03-001008 CYLINDER-STOPPER 1

 HP06-900263 HOSE NIPPLE 1

 HP06-900010 ELBOW FITTING 1

 HP03-900015 STOPPER CYLINDER 1 1

 HP06-900255 STRAIGHT FITTING 1

 HP06-900047 ELBOW FITTING 1

 HP03-900017 AIR CYLINDER 1

 HP14-900085 SPEED CONTROLLER 2

 HP03-900054 AIR_CYLINDER 1

 HP14-900088 SPEED CONTROLLER 1

 HP06-900054 UNION Y FITTING 1

 HP06-900027 FITTING 1

 HP03-900013 CYLINDER 1

 HP06-900056 ELBOW FITTING 2

 HP09-900109 REGULATOR 1

 HP06-900027 FITTING 3

 HP14-000725 VALVE,SOLENOID 1

 HP03-900044 CYLINDER 1

 HP14-000718 VALVE,SOLENOID 1

HP06-000457 FITTING 1

 HP06-900089 STRAIGHT_FITTING 2

 HP09-000127 MANIFOLD 1

 HP13-000037A TUBE,PNEUMATIC 1

 J1301070 STRAIGHT_CONNETOR_FITTING 6

 HP14-002040 VALVE,SOLENOID 1

 HP09-000129 MANIFOLD-HEAD_AIR_MODULE 1

 HP06-000074 FITTING-STRAIGHT 10

 HP06-900059 BOB ELBOW FITTING 10

 HP04-900036 SUCTION_FILTER 10

X-Y Frame Ass’y

FC09-001648A BRACKET-CABLE FIXER 1

 PM02-000794A CUSHION-CABLE X 2

 FC09-001481B BRACKET-CUSHION X 2 FC09-001481A

 FC09-001577B BRACKET-FLAT_CABLE_CLAMP 1

 FC09-001662B BRACKET-BKT CABLE X 2 FC09-001662A

 PM02-000795A CUSHION-CABLE Y 2

 FC09-001485A BRACKET-CUSHION Y 2

 FC15-000971A COVER-COVER CHAIN Y 1

 FC09-001771B BRACKET-BKT CABLE CHAIN X 1 FC09-001771A

 EP19-900114 LIMIT SENSOR 3

 FC28-900369 GREASE NIPPLE 4

 FC18-001477A GREASE_NIPPLE_NUT 4 J70541105A

 HP06-900080 STRAIGHT_FITTING 4

 MC13-900032 LM_GUIDE-X 2

 J70541038A SENSOR_DOG_X 2

 FC05-000148E BASE-HEAD 1 FC05-000148B/ FC05-000148D

 FC29-001213A DOG-DOG CRASH 1

 FC09-007486A BRACKET-SERVO CONNECTOR BKT A6 1 J70530690B / FC09-004585A

 J70541008A SENSOR_DOG-Y 1

 EP08-001066 MOTOR,SERVO 1 EP08-900157

 FC29-001212B STOPPER-CRASH CUSHION 2 FC29-001212A

MC13-000125 SCREW,BALL 2

 FC29-001079A SUPPORT-B SCREW X 1

 J71541010A BRG_HOUSING-X 1

 FC18-901667 C-RING [10mm (SHAFT)] 1

 MC03-900008 BALL BEARING 1

 FC29-004430A CUSHION_X_REAR 1 J72541005B

 FC29-004428A CUSHION_X_FRONT 1 J72541003A

 MC04-900012 SUPPORT_UNIT 1

 FC14-900236 COUPLING 1

 FC09-001308A BRACKET-CABLE_CHAIN-Y_SUPPORT 1

 FC15-000972B COVER CABLE X 1

 EP08-001066 MOTOR,SERVO 1 EP08-900157

 HP06-900078 ELBOW_UNION 1

 AM03-004968A ASSY,X-Y FRAME-X BALL SCREW

MC13-900160 Y-BALL_SCREW 2

 J70541006C BS_REAR_SUPPORT 2

 J70541030A BRG_HOUSING_Y 2

 MC03-900027 BALL BEARING 2

 FC29-001076B STOPPER-STOPPER Y BS REAR 2 FC29-001076A

 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 2 J72541006A

 MC04-900028 SUPPORT UNIT 2

 J70541005C Y_MOTOR_BLOCK 2 FC07-000386A

 FC14-900237 COUPLING 4

 EP08-900158 SERVO_MOTOR 4 EP08-900158 / EP08-000139

 J70541366A SIDE_COVER_BKT-2 1

 FC09-001720A BRACKET-SIDE COVER 1 1

 FC18-901665 C-RING (SHAFT) 1

 J70541009A SENSOR_BKT_HOME-Y 1

 EP19-900114 LIMIT SENSOR 3

 FC09-001507A BRACKET-BKT SNS Y 1

AM03-021810A ASSY,ETC,IMS-COVER DRIVER SM 1

 FC09-001485A BRACKET-CUSHION Y 2

 PM02-000795A CUSHION-CABLE Y 2

 FC29-001084B SUPPORT-Y CABLE DUCT 1

 MC13-900031 LM_GUIDE-Y 1

 HP09-000127 MANIFOLD-MANIFOLD 1

 AM03-025223A ASSY,BOARD-AXIS_IO_BOARD(16 AXIS) 1

 FC09-001511A BRACKET-PANEL CON Y 1

 AM06-000943H ASSY,PCB-AP5_AXIS_IO_BOARD 1 AM06-000943B/ AM06-000943C/ AM06-000943D

 FC36-001273A SHEET-AXIO PROTECT COVER 1

 FC09-001509D BRACKET-BKT AXIS BOARD 1

 FC09-001486A BRACKET-DIRVER T 1

 FC09-001663A BRACKET-BKT CABLE R 1

 EP06-000374 SERVO CONTROL-DRIVE 5 EP06-000182

 FC09-001647A BRACKET-BKT SIDE SUB 1

 FC09-007544B BRACKET-FAN_FLOW_GUIDE 1

 FC05-000149A BASE-DRIVER Y DUCT 1

 FC09-001984A BRACKET-BKT FAN SUB OLD PART

 FC09-001983A BRACKET-BKT FAN 1 OLD PART

 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN OLD PART

 FC29-900610 HEX SUPPORT 4 FC29-900611

 HP06-000457 FITTING

 HP11-900095 VACUUM_GENERATOR 1 Option

 AM03-022810C ASSY,BOARD-THAB 5

 AM03-022120B ASSY,BOARD-THPB 5

 AM03-024766A ASSY,BOARD-THCB 5

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 Used together: AM03-000819E

 AM03-000819E ASSY,BOARD-FEEDER IO BOARD ASSY VER 1.6 1 ~2016.12 Used together: J91741071A

AM03-015857E ASSY,BOARD-FEEDER IO VER 2.0 1 2017.01~ Not Used: J91741071A

 AM03-021808A ASSY,ETC,IMS-FAN FILTER SM 1

 FC09-006580C BRACKET-AXIO BOARD CONNECTOR PROTECT C 2

FC09-007265A BRACKET-AXIS B PROTECT UPPER BKT 2

 TO03-001042A GRIPPER-40P_CONNECTOR_CLIP 8

 AM03-015154E ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL 1

Fixed ANC Ass’y

J90561001A ANC_ASSY_FRONT 1

 J71561004A ANC_SUPPORT 1

 J7156043B SHUTTER BRACKET 1

 HP14-900085 SPEED CONTROLLER 2

 HP03-900017 AIR CYLINDER 1

 FC09-004601A CYLINDER_BRACKET 1 J70561001A

 HP06-900027 FITTING 1

HP14-900088 SPEED CONTROLLER 1

 HP06-900255 STRAIGHT FITTING 1

 HP03-900054 AIR_CYLINDER 1

 J71561001B ANC_PLATE_1 1 FC30-000241A

 J71561002B ANC_NOZZLE_SHUTTER 1 FC30-000242A

 J71561003B ANC_MAIN_BODY 1 FC03-000014A

 J90561002A ANC_ASSY_REAR 1

 FC18-900900 HEX NUT 1

 FC18-902660 SOCKET HEAD SCREW M4*15 8

 FC18-902687 SOCKET HEAD SCREW M2.5*15 20

Cover Ass’y

FC15-001006A COVER-CONVEYOR_COVER 2

FC15-001786A CONVEYOR_COVER 2 LST Tray Option

 EP13-900134 TOWER_LAMP 1

 FC29-004382A DOOR CUSHION 4 J73520001B

 FC15-000946B COVER-UPPER FL 1 FC15-000946A

 FC12-900009 MAGNETIC 4

 FC09-000693B BRACKET-BARCODE_HANGER 1

 FC15-000955A COVER-TOP_CENTER 1

 J70521087A WINDOW_HINGE J70521087A 2

 FC15-000953A COVER-UPPER_SIDE_R 2

 AM03-015041A ASSY,COVER-_DOOR_NEW 1 ESD

 PT03-002335A STICKER-MODEL NAME 1

 FC09-000705A BRACKET-GAS_SPRING_BRACKET2 2 J70521081A

 FC15-000947B COVER-UPPER RL 1 FC15-000947A

 J7070352A CONNECTOR BRACKET 1

 J70521025A LOWER_OP_PANEL 2

 FC15-000945B UPPER_FR_RR 2 FC15-000945A

 J90831139A FRONT AREA SENSOR CABLE ASSY 1 OPTION (Left, Right 1 set)

 J90831759A REAR AREA SENSOR CABLE ASSY 1 OPTION (Left, Right 1 set)

J70521075D GAS_SPRING_BRACKET1 4

 FC38-000079 GAS SPRING-GAS SPRING 8

B

 EP20-900137 SAFETY_DOOR_SWTICH 2

 FC09-001727A BRACKET-SENSOR_BKT3 2

 FC09-001726A BRACKET-DOOR_SWITCH_BKT3 2

C

 AM03-022716A ASSY,COVER-LCD BRACKET 2

 CD06-001011 MONITOR 2

D

 EP20-001013 SWITCH,PUSH-STOP 2 EP20-000167

 EP20-001017 SWITCH,PUSH 2 EP20-000127

 EP20-001012 SWITCH,PUSH-START 2 EP20-000116

 EP20-001014 SWITCH,PUSH 2 EP20-000114

 EP20-001016 SWITCH,PUSH 2 EP20-000115

 EP20-001015 SWITCH,ETC-EMER 2 EP20-900042

 FC30-000829D PLATE-OP_PANEL_1 1 FC30-004530A

E

 CD04-001044 KEYBOARD 2 CD04-001022

 CD04-001045 MOUSE 2 CD04-001024

 FC28-002578A MOUSE PAD 2 J7452038A

 AM03-023553B ASSY,COVER-KEYBOARD BKT ASSY 2 AM03-023553A

 CD07-001029 USB HUB 2

EP07-901528 FAN_FILTER 2

 J90833316A FAN_CABLE_ASSY SM-FAN00 4

 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A

 FC15-000952A COVER-LOWER_SIDE_1 2

 FC15-000949B COVER-LOWER FL 1 FC15-000949A

 FC29-900217 SLIDE_LATCH 1

 FC15-000960A COVER-OPEN_DOOR_A 1

 FC29-900144 DRAWER PULL 4

 FC15-003194A COVER-LFM_AL_COVER 2 J70521033B

 FC15-001147B COVER-FB SIDE COVER 4

 J70521088B FB-COVER 2

 FC15-000948B COVER-LOWER FR 1 FC15-000948A

 FC29-900217 SLIDE_LATCH 1

 J70511018B CABLE_DUCT_S-V 6

 J70521049B SIDE_COVER_SUPPORT 1 J70521049A

 FC15-000944B COVER-LOWER_SIDE_2_R 1 FC15-000944A

 FC15-000949B COVER-LOWER FL 1 FC15-000949A

 FC15-000961A COVER-OPEN_DOOR_B 1

 FC29-900217 SLIDE_LATCH 1

 FC15-000961A COVER-OPEN_DOOR_B 1

 FC29-900217 SLIDE_LATCH 1

 FC15-000951B COVER-LOWER RR 1 FC15-000951A

 PT03-000206A STICKER-STICKER-MAIN_PRESSURE 1

Control Rack Ass’y

EP06-901011 POWER_SUPPLY 6

 EP06-000384 SUPPLY,POWER 1

 CD05-000052 MOTHERBOARD 1 CD05-000059/CD05-001002

 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A / AM03-011927C

 AM03-017389A PROCESSOR BOARD 2 EP06-000338

 EP10-001105A BACK PLANE BOARD 1 AM03-014089A / EP10-001534

 AM03-014333A CABLE ASSY-CPU-BOX FAN 1

 AM06-000359C VISION_IF_BD 1 AM06-000359A

Electric Panel Ass’y

EP07-901508 SERVO_FAN_FG_CABLE_ASSY 2 EP07-901508

 EP06-001076 SERVO CONTROL-DRIVE 2 EP06-900170 / EP06-000389 750W, X Axis

 EP06-000492 SERVO CONTROL-DRIVE 2 EP06-900172 / EP06-000445 100W, Width/Swing Axis

 EP06-000393 SERVO CONTROL-DRIVE 4 EP06-900171 1KW, Y Axis

 J7251012A WIRING DUCT-5 1

 FC09-000879B BRACKET-STEP_DRIVER_BRACKET;SPCC,1.6 1

EP06-000390A SERVO CONTROL-DRIVE 2

EP06-000391A SERVO CONTROL-DRIVE 4

 AM06-000943D ASSY,PCB-AP5_AXIS_IO_BOARD 1 FC09-001716A/ AM06-000943B/ AM06-

000943C

 J7251007A BOARD COVER 1

 AM03-001814C ASSY,BOARD-SAFETY_FROP_REV_3.0 1 AM03-001814A / AM03-001814B

 J7251015A WIRING DUCT-8 1

 FC15-002483A COVER-COVER R AXIS B 1

 ELECTRIC ASSY DC

J37041002A RELAY_HOLD_DOWN_CLIPS 2

EP18-900016 RELAY 1

EP05-901144 RELAY SOCKET 1

EP18-000127 RELAY 1

EP18-000128 ACCESSORY,RELAY-SOCKET 1

EP07-000576 BREAKER,CIRCUIT 2

EP07-000731 BREAKER,CIRCUIT 1

EP21-000093 BLOCK,TERMINAL-281-611 3

EP21-000094 BLOCK,TERMINAL-2002-1301 10

EP21-000095 BLOCK,TERMINAL-2002-1401 10

EP21-000096 BLOCK,TERMINAL-2002-2201 2

EP21-000118 BLOCK,TERMINAL-281-511 2

EP21-000120 BLOCK,TERMINAL-281-656 2

Electric Device Ass’y

AM03-019753A ASSY,AIR-FRONT AIR PANEL 1

 HP06-900043 JOINT 1

 TE07-900096 METER 1

 FC09-006405A BRACKET-BKT AIR F 1

 HP06-900255 STRAIGHT FITTING 1

 HP09-000150 COMPONENTS,ELECTRIC 1

 HP04-001016 FILTER,AIR 1

 HP09-001019 REGULATOR 1

AM03-007638A CABLE ASSY-AIR INDICATOR 1

EP05-900741 CONNECTOR 1

EP21-900127 TERMINAL 1

AM03-018437A ASSY,AIR-GAUGE-PANEL_NEW_SUB 1

HP06-900195 UNION_Y_FITTING 1

 EP20-001028 SWITCH,ROTARY-MAIN_SWITCH 1

 AM03-010079B CABLE ASSY-SAFEGUARD_OV_SW_KEY 1 J90831059C/ AM03-010079A

 FC09-001672B BRACKET-BKT F POWER 1 FC09-001672A

 EP07-901528 FAN_FILTER 2

 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A

 J90833316A FAN_CABLE_ASSY SM-FAN00 2

AM03-003542A CABLE ASSY INLINE_IN_OUT 1

 EP07-900028 MAIN_CIRCUIT_BREAKER 1

 EP21-900008 PANEL 1

 J70521076B POWER_PANEL_R 1

 AM03-003573A CABLE ASSY-LAN_EXT 1

 FC30-002551A GROUND TERMINAL 1 J7152027A

 CD04-900026 MINI_KEYBOARD 2

 J7452038A MOUSE PAD - OPTICAL 2

 CD04-001004 COMPUTER MOUSE 2 CD04-000013

 J90601023B TEACHING_BOX 1

 CD06-001011 MONITOR 2 CD05-900119

AM03-018991C ASSY,BOARD-CAN CONVEYOR IF_V3.0(NO ILL) 1 AM03-000900A

 J91741076A CONV_SUB_IF_BOARD VER 1.0 1

 AM03-019057A CABLE ASSY-SM471_NOISE_FILTER_MODULE 1 EP07-901542 / J91671267A

 EP23-000012A TRANSFORMER 1 EP23-900012

 AM03-005338B ASSY,BOARD-AXIS SENSOR BD VER1.0 1 AM03-005338A

 AM06-000359B ASSY,PCB SMD-SM400_VISION_IF_BD 1 AM06-000359A

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

AM03-015857C ASSY,BOARD-FEEDER IO VER 2.0 1 AM03-015857B

 FC09-001657B BRACKET-BKT VAC_GEN 1

 HP11-000058 PUMP 1

 HP06-900204 FITTING 1

 HP14-000978 SOL-VAVLE 1 HP14-900045

 HP09-900158 SILENCER 1

 HP11-000059 PUMP 1 OPTION

 FC28-000105 NIPPLE-STRAIGHT 1 OPTION

 FC29-900005 HOSE_BAND 1 OPTION

 EP07-901508 COOLING FAN 1 OPTION

 HP06-000250 FITTING-ELBOW 1 OPTION

 HP06-000234 FITTING-STRAIGHT 1 OPTION

 HP06-900046 JOINT 1 OPTION

 FC15-000967B COVER-COVER PUMP 1 FC15-000967A OPTION

AM03-005831A ASSY,ELECTRIC-ELECTRIC DEVICE ASSY 1 AM03-006356A

 EP06-000283 SERVO CONTROL-DRIVE-BELT STEP DRIVER 2 EP06-000219

 J91741023A CONVEYOR_PWR_BOARD 1

 AM03-014556A MIST_SEPARATOR_ASSY 1

 HP04-900020 FILTER ELEMENT 1

 HP04-900031 FILTER_ELEMENT 1

Camera IO Board

AM03-005547A CABLE ASSY-HD1_FLY_CAM_PW_SYNC 1 SM471-VIS005

 AM03-005549B CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471-VIS007

 AM03-005548D CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A/ AM03-005548B/AM03-005548C SM471-VIS006

 AM03-005550A CABLE ASSY-HEAD1 FLY CAM SIG 1 SM471-VIS008

 AM03-005552B CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471-VIS010

 AM03-005551B CABLE ASSY-FLY CAM SIG EXT 1 AM03-005551A SM471-VIS009

Front Feeder Board Interface

J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 1 SM_FD005

 AM03-020646A CABLE ASSY-FRONT FDR CTRL PWR_J1L_CAN_J8L_J9L 1 AM03-005398A SM471_CA102-1

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005400A SM471_CA202

 AM03-020637A CABLE ASSY-FFDR-CVIF_CAN_J3R 1 AM03-005397A SM471_CA102

 AM03-020646A CABLE ASSY-FRONT FDR CTRL PWR_J1L_CAN_J8L_J9L 1 AM03-005393A SM471-CA101-2

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005396A SM471_CA201

 AM03-005392B CABLE ASSY-AXIO_BD_2_FFD_CAN_J3R 1 SM471_CA101-1

 AM03-020646A CABLE ASSY-FRONT FDR CTRL PWR_J1L_CAN_J8L_J9L 1 AM03-005455B SM471_FD101

 AM03-008733A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1 SM471_FD101-1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1 SM_FD006

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1 SM_FD007

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 AM03-020646A CABLE ASSY-FRONT FDR CTRL PWR_J1L_CAN_J8L_J9L 1 AM03-005455B SM471-FD101

 AM03-005456A CABLE ASSY-F FDR PWR RELAY 1 SM471-FD002

Rear Feeder Board Interface

J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 1 SM_FD005

 AM03-020642A CABLE ASSY-RFDR-REAR_FLAT_CAN_J4R 1 AM03-005401A SM471_CA105

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005400A SM471_CA202

 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005402B/ AM03-005402C SM471_CA105-1

 AM03-020642A CABLE ASSY-RFDR-REAR_FLAT_CAN_J4R 1 AM03-005394B SM471_CA101-3

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005396A SM471_CA201

 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005395B SM471_CA102-4

 AM03-005432A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM471_CV101

 AM03-020657A CABLE ASSY-BD_PW_SC_J1R_CONV_SUB_IF-EXT 1 AM03-008726A SM471_SC204

 AM03-005458B CABLE ASSY-R FDR PWR RELAY CABLE ASSY 2 SM471_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 2 SM411N-FD001

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1 SM_FD007

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

Conveyor Board Interface

AM03-020645A CABLE ASSY-CVIF-FRONT_FLAT_CAN 1 AM03-004345B/ AM03-004345C SM33_CA104

 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005395B SM471_CA102-4

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005400A SM471_CA202

 AM03-020646A CABLE ASSY-FRONT FDR CTRL PWR_J1L_CAN_J8L_J9L 1 AM03-005398A SM471_CA102-1

 AM03-005432A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM471_CV101

 AM03-020657A CABLE ASSY-BD_PW_SC_J1R_CONV_SUB_IF-EXT 1 AM03-008726A SM471_SC204

 AM03-020639A C/S/W/O CABLE 1 J90831131B/ AM03-010081A SM33-CV003

AM03-020632A CABLE ASSY-F_ANC_SOL 1 AM03-005685A SM471-CS111-1

 AM03-020637A CABLE ASSY-FFDR-CVIF_CAN_J3R 1 AM03-005684A SM471_CS111

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005430A SM471_CV201

 AM03-020632A CABLE ASSY-F_ANC_SOL 1 AM03-005686A SM471_CS111-2

 AM03-005687A CABLE ASSY-R_ANC_SOL-EXT2 1 SM471_CS111-3

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421-CV106-1-2

 AM03-020637A CABLE ASSY-FFDR-CVIF_CAN_J3R 1 AM03-005436B/ AM03-005435A SM471_CV104-1

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005400A SM471_CA202

 AM03-020640A CABLE ASSY-PUMP_PWR_ALARM 1 AM03-005699A SM471-PW146-1

 AM03-004348C CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1 AM03-004348B SM411_CS135

AM03-004382A CABLE ASSY-ANC_SENSOR_FRONT_EXT 1 SM411_CV109

 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1 SM33-CV010

 AM03-015500B CABLE ASSY-FR_ANC_SNS_FAN_ALARM 1 AM03-004385A / AM03-015500A SM411_CV109-1

 AM03-004565A CABLE ASSY-ANC-SENSOR REAR EXT 1 SM411_CV109-2

AM03-020639A C/S/W/O CABLE 2 AM03-003543A SM421_CV113

 AM03-020645A CABLE ASSY-CVIF-FRONT_FLAT_CAN 1 AM03-004411B SM411_CV131

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2

AM03-005438B CABLE ASSY-F_AREA_SENSOR_J5R 1 SM471_CV115

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005447A SM471_CV202

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1 SM33-CV016

 AM03-005440A CABLE ASSY-F_AREA_SENSOR_J10L 1 SM471_CV115-1

 AM03-005444B CABLE ASSY-REAR_AREA_SENSOR_J11R 1 SM471_CV117-1

 J90831759A REAR_AREA_SENSOR_CABLE_ASSY SM421-CV018 1 SM33-CV018

 AM03-005442B CABLE ASSY-REAR_AREA_SENSOR_J6R 1 SM471_CV117

 AM03-020637A CABLE ASSY-FFDR-CVIF_CAN_J3R 1 AM03-005450A SM471_CV132

 AM03-020657A CABLE ASSY-BD_PW_SC_J1R_CONV_SUB_IF-EXT 1 AM03-008726A SM471_SC204

 AM03-005705A CABLE ASSY-RS232_SERIAL-EXT 1 SM471-PC003-1

 AM03-005704B CABLE ASSY-RS232_SERIAL 1 SM471-PC003

Conveyor Sensor IF Board

AM03-005422A CABLE ASSY-CONV_LEFT_IF_BD 1 SM471_SC151

 AM03-005424A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1 SM471_SC151-1

 AM03-010088B CABLE ASSY-CONVEYOR-SOL 1 SM471_CS111-4

 AM03-004349A CABLE ASSY-CONV_RIGHT_IF_BD 1 SM471_SC136

Conveyor Sub IF Board

AM03-020639A C/S/W/O CABLE 1 J90831131B/ AM03-010081A SM33-CV003

 AM03-020639A C/S/W/O CABLE 1 AM03-003543A SM421_CV113

 AM03-004476B CABLE ASSY-FRONT_OP_SW 1 SM411_OP103

 AM03-020641A CABLE ASSY-AIR_INDICATOR_J6R 1 AM03-005474A SM471_OP104

 AM03-005475B CABLE ASSY-REAR_OP_SW_J11L 1 SM471_OP104-1

 AM03-020641A CABLE ASSY-AIR_INDICATOR_J6R 1 AM03-005526A SM471-SC105

 AM03-020657A CABLE ASSY-BD_PW_SC_J1R_CONV_SUB_IF-EXT 1 AM03-005527A SM471-SC105-1

 AM03-020641A CABLE ASSY-AIR_INDICATOR_J6R 1 AM03-005448A SM471-CV126

 AM03-005449A CABLE ASSY-AIR_INDICATOR_11R 1 AM03-005449A SM471-CV126-1

Head IF Board

AM03-005524A CABLE ASSY-HEAD1_PWR_J2R 1 SM471_SC103-1

 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

 AM03-005590C CABLE ASSY-FLY_SIDE_1 1 AM03-005590A /AM03-005590B SM471_HD010-3

 AM03-005593D CABLE ASSY-FLY_OUT_1 1 AM03-005593B /AM03-005593C SM471_HD010-6

AM03-005598B CABLE ASSY-FLY_COAXIAL 1 AM03-005598A SM471_HD010-11

 AM03-005582D CABLE ASSY-R_HOME_SENSOR 1 AM03-005582B /AM03-005582C SM471-HD007

 AM03-005580A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM471-HD003

 AM03-005581A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM471-HD003-1

 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009

 AM03-005586A CABLE ASSY-HEAD_BLOW_SOL 1 SM471-HD006

 AM03-005585A CABLE ASSY-HEAD_VACUUM_SOL 1 SM471-HD005

 AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1 SM471-HD004

 AM03-005589A CABLE ASSY-FID2_COAX 1 SM471_HD010-2

 AM03-005598B CABLE ASSY-FLY_COAXIAL 1 AM03-005598A SM471_HD010-11

Axis Sensor Board Interface

AM03-008734A CABLE ASSY-AXIS_SENSOR_BD_PW 1 SM471_AX001

 AM03-004349A CABLE ASSY-CONV_RIGHT_IF_BD 1 SM411_CS136

 AM03-005391A CABLE ASSY-FY_AXIS_SENSOR-EXT 1 SM471_AX103-1

 AM03-005390A CABLE ASSY-FY_AXIS_SENSOR 1 SM471_AX103

 AM03-004337B CABLE ASSY-RY_AXIS_SENSOR 1 AM03-004337A SM411_AX104

 AM03-004348C CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1 AM03-004348B SM411_CS135

 AM03-005424A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1 SM411_CS151-1

 AM03-005422A CABLE ASSY-CONV_LEFT_IF_BD 1 SM471_CS151

AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008918A SM471-CS050

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005396A SM471_CA201

 AM03-005691A CABLE ASSY-AX_BD_X1_MOT_SNS 1 SM471-CS041

 AM03-007246B CABLE ASSY-X AXIS SENSOR 1 SM33_AX002

 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1 SM33-CS034-1

 AM03-020643A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1 AM03-005413B/ AM03-005413C SM471_CS134

 AM03-005414B CABLE ASSY-FDR_UNLOCK_SEN_J8L 1 SM471_CS134-1

AM03-020643A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1 AM03-005427B SM471_CS142

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005430A SM471_CV201

 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005429B SM471_CS142-1

 AM03-007246B CABLE ASSY-X AXIS SENSOR 1 SM33_AX002

 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008917A SM471_CS035

 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008918A SM471_CS050

 AM03-005538B CABLE ASSY-HD_VAC-BLOW_CTRL 1 AM03-005538A SM471-VI104

 AM03-005539B CABLE ASSY-HD1_VAC-BLOW_CTRL 1 SM471-VI104-1

 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005540B/ AM03-005540C SM471-VI104-2

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

Axis IO Board

AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 1 SM471-SC007-1

 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008917A SM471-CS035

 AM03-005538B CABLE ASSY-HD_VAC-BLOW_CTRL 1 AM03-005538A SM471-VI104

 AM03-005539B CABLE ASSY-HD1_VAC-BLOW_CTRL 1 SM471-VI104-1

 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005540B/ AM03-005540C SM471-VI104-2

 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008918A SM471-CS050

AM03-005557B CABLE ASSY-FY1_FY2_DRV_COMMAND 2 SM471-VM003

 AM03-020620A CABLE ASSY-FY1 MOTOR PWR_90 1 AM03-008735A SM471-MD005_80

 AM03-020616A CABLE ASSY-FY1 MOTOR ENC_90 1 AM03-008736A SM471-MD006_80

 AM03-020616A CABLE ASSY-FY1 MOTOR ENC_90 1 AM03-008736A SM471_MD028

 AM03-005493B CABLE ASSY-FY1_FY2_SERVO_POWER 2 AM03-005493A SM471_PW018

 AM03-020618A CABLE ASSY-FY2 MOTOR PWR_90 1 AM03-008744A SM471-MD007_80

 AM03-020617A CABLE ASSY-FY2 MOTOR ENC_90 1 AM03-008739A SM471-MD008_80

 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD029

 AM03-020621A CABLE ASSY-RY1 MOTOR PWR_90 1 AM03-008745A SM471-MD009_80

 AM03-020613A CABLE ASSY-RY1_MOTOR_ENC_90 1 AM03-008746A SM471-MD010_80

 AM03-020619A CABLE ASSY-RY2 MOTOR PWR_90 1 AM03-008747A SM471-MD011_80

 AM03-020614A CABLE ASSY-RY2 MOTOR ENC_90 1 AM03-008748A SM471-MD012_80

 AM03-005558B CABLE ASSY-RY1_RY2_DRV_COMMAND 2 SM471-VM004

 AM03-005494B CABLE ASSY-RY1_RY2_SERVO_POWER 2 AM03-005494A SM471_PW019

 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD032

 AM03-020613A CABLE ASSY-RY1_MOTOR_ENC_90 1 AM03-008746A SM471-MD031

AM03-005559B CABLE ASSY-FX_RX_DRV_COMMAND 2 SM471-VM005

 AM03-014723 CABLE ASSY-FX,FS SERVO POWER 1 AM03-005491A SM471_PW016

 AM03-008741A CABLE ASSY-FX_MOTOR_PWR 1 SM471_MD001

 AM03-008740A CABLE ASSY-FX_MOTOR_ENC 1 SM471_MD002

 J90831183A FX_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD027

 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD030

 AM03-008742A CABLE ASSY-RX_MOTOR_PWR 1 SM471_MD003

 AM03-015477B CABLE ASSY-RX_MOTOR_ENC 1 AM03-008743A SM471_MD004

 AM03-014724B CABLE ASSY-RX,RS SERVO POWER 1 AM03-005492A SM471_PW017

AM03-005573B CABLE ASSY-MS1_WS1_DRV_COMMAN 2 SM471_VM013

 AM03-010080A SHUTTLE_WIDTH_PW_CABLE_ASSY 4 J90831091C SM471_PW029

 AM03-008897A CABLE ASSY-MS1_MOTOR_ENC 1 SM471_CS021

 AM03-008896A CABLE ASSY-MS1_WW1_MOT_PW 1 SM471_CS054

 AM03-002180A CABLE ASSY-MS2_SERVO_MOTOR 1 SM33-CS016

 AM03-008899A CABLE ASSY-WW1_MOTOR_ENC 1 SM471_CS022

 AM03-008023A CABLE ASSY-MS1_SERVO_MOTOR 1 SM33-CS012

 AM03-008900A CABLE ASSY-WS1_MOTOR_ENC 1 SM471_CS023

 AM03-008898A CABLE ASSY-WS1_MOTOR_PW 1 SM471_CS020

 AM03-006636A CABLE ASSY-WS1_SERVO_MOTOR 1 SM33_CS013

 AM03-014696B CABLE ASSY-WW1_MS2_DRV_COMMAND 2 AM03-005574B SM471_VM014

 AM03-008024A CABLE ASSY-WW1_SERVO_MOTOR 1 SM33-CS014

AM03-014697B CABLE ASSY-WS2_WW2_DRV_COMMAND 2 AM03-005575B SM471-VM015

 AM03-010080A SHUTTLE_WIDTH_PW_CABLE_ASSY 1 J90831091C SM33-PW029

 AM03-017245A CABLE ASSY-REAR_MONITOR_PW_12V 1 AM03-008753A / AM03-006895A SM471_CS026

 AM03-008905A CABLE ASSY-WS2_WW2_MOT_PW 1 SM471_CS052

 AM03-017244A CABLE ASSY-FRONT_MONITOR_PW_12V 1 AM03-008930A / AM03-006894A SM471_CS025

 AM03-015092A CABLE ASSY-WS2_SERVO_MOTOR 1 SM33_CS017

 AM03-015095A CABLE ASSY-WW2_SERVO_MOTOR 1 SM33-CS015

 AM03-005576A CABLE ASSY-BW12_BS12_DRV_COMMAND 13 SM471_VM017

 AM03-005577A CABLE ASSY-BW34_BS34_DRV_COMMAND 1 SM471_VM018

AM03-020644A CABLE ASSY-FR_STEP_DRV_PWR-EXT1 1 AM03-008731A SM471-SC007

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

 AM03-005392B CABLE ASSY-AXIO_BD_2_FFD_CAN_J3R 3 SM471_CA101-1

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005396A SM471_CA201

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1 SM471-VM009-1

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1 SM471-VM009-2

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 3 SM471-PW031

 AM03-005566A CABLE ASSY-Z56_DRV_COMMAND 1 SM471-VM009-3

AM03-005567A CABLE ASSY-Z78_DRV_COMMAND 1 SM471-VM009-4

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 2 SM471-PW031

 AM03-005568A CABLE ASSY-Z910_DRV_COMMAND 1 SM471-VM009-5

AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1

 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1

 AM03-008913A CABLE ASSY-FSW_DRV_COMMAND 1 SM471-VM006

 AM03-008749A CABLE ASSY-FSW_MOTOR_PWR 1 SM471-MD013

 AM03-014723 CABLE ASSY-FX,FS SERVO POWER 1 AM03-005491A SM471_PW016

 AM03-008750A CABLE ASSY-FSW_MOTOR_ENC 1 SM471-MD014

AM03-020638A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 AM03-008732A SM471_SC007-3

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005395B SM471_CA102-4

 AM03-020680A CABLE ASSY-AXIO_CAN_FDR_UL_J3R_J8L 1 AM03-005396A SM471_CA201

 AM03-020642A CABLE ASSY-RFDR-REAR_FLAT_CAN_J4R 1 AM03-005394B SM471_CA101-3

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1 SM471-VM009-1

 AM03-005503B CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471-PW124-1

 AM03-005502A CABLE ASSY-RZ1-RZ10 DC24V PW 1 SM471-PW124

AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1 SM471-VM009-2

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

 AM03-005566A CABLE ASSY-Z56_DRV_COMMAND 1 SM471-VM009-3

AM03-005567A CABLE ASSY-Z78_DRV_COMMAND 1 SM471-VM009-4

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

 AM03-005568A CABLE ASSY-Z910_DRV_COMMAND 1 SM471-VM009-5

AM03-005569C CABLE ASSY-R1_R2_R3 DRV COMMAND 1 AM03-005569A/ AM03-005569B SM471-VM011

 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1

 AM03-008914A CABLE ASSY-RSW_DRV_COMMAND 1 SM471-VM007

 AM03-008751A CABLE ASSY-RSW_MOTOR_PWR 1 SM471-MD015

 AM03-014724B CABLE ASSY-RX,RS SERVO POWER 1 AM03-005492A SM471_PW017

 AM03-015485B CABLE ASSY-RSW_MOTOR_ENC 1 AM03-008752A SM471-MD016

FR Motor IF Board

AM03-005601B CABLE ASSY-Z1_MOTOR 1 AM03-005601A SM471_MD019

 AM03-005602A CABLE ASSY-Z2_MOTOR 1 SM471_MD020

 AM03-005603A CABLE ASSY-Z3_MOTOR 1 SM471_MD021

 AM03-005604A CABLE ASSY-Z4_MOTOR 1 SM471_MD022

 AM03-005605A CABLE ASSY-Z5_MOTOR 1 SM471_MD023

 AM03-005606A CABLE ASSY-Z6_MOTOR 1 SM471_MD024

 AM03-005607A CABLE ASSY-Z7_MOTOR 1 SM471_MD024-1

 AM03-005608A CABLE ASSY-Z8_MOTOR 1 SM471_MD024-2

 AM03-005609A CABLE ASSY-Z9_MOTOR 1 SM471_MD024-3

 AM03-005610A CABLE ASSY-Z10_MOTOR 1 SM471_MD024-4

AM03-005618A CABLE ASSY-R1_MOTOR 1 SM471_MD038

 AM03-005619A CABLE ASSY-R2_MOTOR 1 SM471_MD039

 AM03-005620A CABLE ASSY-R3_MOTOR 1 SM471_MD040

 AM03-005621A CABLE ASSY-R4_MOTOR 1 SM471_MD040-1

 AM03-005622B CABLE ASSY-R5_MOTOR 1 AM03-005622A SM471_MD040-2

Vision IF Board

AM03-005541B CABLE ASSY-HEAD1 FIDUCIAL CAMERA1 1 SM471-VIS001-1

 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543A /AM03-005543B SM471-VIS002-1

 AM03-005542B CABLE ASSY-HEAD1 FIDUCIAL CAMERA2 1 SM471-VIS001-2

 AM03-005544C CABLE ASSY-FLAT_FID_CAMERA_2 1 AM03-005544A /AM03-005544B SM471-VIS002-2

 AM03-005545C CABLE ASSY-HEAD2 FIDUCIAL CAMERA1 1 SM471-VIS003-1

 AM03-015494B CABLE ASSY-HEAD2_FIDUCIAL_CAMERA2 1 AM03-005546C SM471-VIS003-2

 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471-VIS000

 AM03-005554B CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 AM03-005554A SM471-VIS012

 AM03-005555B CABLE ASSY-NEXTEYE B/D2 I/F_MAGA 1 AM03-005555A SM471-VIS012-1

AM03-005547A CABLE ASSY-HD1_FLY_CAM_PW_SYNC 1 SM471-VIS005

 AM03-005548B CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A SM471-VIS006

 AM03-005550A CABLE ASSY-HEAD1 FLY CAM SIG 1 SM471-VIS008

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1 SM471-VIS009

 AM03-005549B CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471-VIS007

 AM03-005552B CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471-VIS010

Safety Control Board Interface

AM03-005506A CABLE ASSY-GENERAL_PW_RELAY 1 SM471-PW032

 AM03-005504A CABLE ASSY-PS1_PS2_SACO_T6L 1 SM471-PW127

 AM03-005507A CABLE ASSY-FEEDER_PW_RELAY 1 SM471-PW033

 AM03-020654A CABLE ASSY-F_OP_PANEL_IF_SACO_F_TBOX 1 AM03-006965A SM48-SC001

 AM03-020656A CABLE ASSY-R_SACO_R_TBOX_OP_PANEL_IF 1 AM03-006966A SM471-SC102-1

AM03-009943A CABLE ASSY-F_OVERRIDE_KEY_EXT 1 SM471_SC009

 AM03-008734A CABLE ASSY-AXIS_SENSOR_BD_PW 1 SM471-AX001

 AM03-010079A SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 J90831059C SM411-SC008

 AM03-020657A CABLE ASSY-BD_PW_SC_J1R_CONV_SUB_IF-EXT 2 AM03-008726A SM471_SC204

 AM03-020637A CABLE ASSY-FFDR-CVIF_CAN_J3R 1 AM03-005450A SM471_CV132

 AM03-005432A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM471_CV101

 AM03-005723C CABLE ASSY-FR_STEP_DRV_PWR_J2R_EXT 1 AM03-005723A/ AM03-005723B SM471-SC111-2

 AM03-020644A CABLE ASSY-FR_STEP_DRV_PWR-EXT1 1 AM03-008727A SM471_SC120

 AM03-020644A CABLE ASSY-FR_STEP_DRV_PWR-EXT1 1 AM03-008729A SM471_SC122

 AM03-020644A CABLE ASSY-FR_STEP_DRV_PWR-EXT1 1 AM03-008731A SM471_SC007-2

J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1 SM33-PW004

 AM03-005454A CABLE ASSY-BD_PW_SC_T-BOX_J7L 1 SM471_SC203

 AM03-020646A CABLE ASSY-FRONT FDR CTRL PWR_J1L_CAN_J8L_J9L 1 AM03-005455B SM471_FD101

 AM03-020656A CABLE ASSY-R_SACO_R_TBOX_OP_PANEL_IF 1 AM03-006881A SM48_CV035

 AM03-010655B CABLE ASSY-REAR-TEACHING_BOX_EXT 1 SM33-CV023-5

 AM03-020638A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 AM03-008732A SM471_SC007-3

 AM03-020638A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 AM03-008730A SM471_SC123

 AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 1 SM471-SC007-1

 AM03-020638A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 AM03-008728A

 AM03-020638A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 AM03-008728A

 AM03-010090A MC1-ENABLE-CABLE-ASSY 1 J90831335C SM41-SC006

 AM03-006407A CABLE ASSY-LEFT_REAR_FAN_PW 1 SM471-PW020

 AM03-006408A CABLE ASSY-RIGHT_FRONT_FAN_PW 1 SM471-PW021

AM03-020657A CABLE ASSY-BD_PW_SC_J1R_CONV_SUB_IF-EXT 1 AM03-005527A SM471-SC105-1

 AM03-020641A CABLE ASSY-AIR_INDICATOR_J6R 1 AM03-005526A SM471-SC105

 AM03-020654A CABLE ASSY-F_OP_PANEL_IF_SACO_F_TBOX 1 AM03-006880A SM48-CV034

 AM03-020654A CABLE ASSY-F_OP_PANEL_IF_SACO_F_TBOX 1 AM03-006965A SM33-CV023-4

 AM03-010654B CABLE ASSY-FRONT-TEACHING_BOX_EXT 1 SM471-CV134-1

Electric Circuit Diagram

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1 SM33-PW001

 AM03-020646A CABLE ASSY-FRONT FDR CTRL PWR_J1L_CAN_J8L_J9L 1 AM03-005393A SM471_CA101-2

 J90831252A REAR_ELEC_PANEL_EARTH_CABLE_ASSY SM33-PW 1 SM33-PW003-1

 J90831253C MCCB_NF1_EARTH_CABLE_ASSY 1 SM33-PW003-2

 J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1 SM33-PW004

 AM03-013512C CABLE ASSY-MAIN SWITCH_TRANS 1 AM03-900132/ AM03-013512A/ EP20-900105 SM33-PW005

 AM03-005697A CABLE ASSY-AC RELAY JUMPER 1 SM471_PW006

 AM03-005482A CABLE ASSY-CP1_TB1_MC1 1 SM471_PW007

 AM03-005483A CABLE ASSY-CP2_TB1_MC2_CABLE 1 SM471_PW008

AM03-005497A CABLE ASSY-TB1_MC1 1 SM471_PW120-3

 AM03-005496A CABLE ASSY-BELT_DRV_PW 1 SM471_PW120-2

 AM03-005499B CABLE ASSY-PS1_2_DC_POWER_BD 1 AM03-005499A SM471-PW121-2

 AM03-010080A SHUTTLE_WIDTH_PW_CABLE_ASSY 1 J90831091C SM411-PW029

 AM03-005485A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 1 SM471_PW202

 AM03-005484A CABLE ASSY-MC1_PS3_PS4_PW_T6L 1 SM471_PW109

 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

 AM03-005502A CABLE ASSY-RZ1-RZ10 DC24V PW 1 SM471-PW124

 AM03-005503B CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471-PW124-1

AM03-005490A CABLE ASSY-MC2_TB1 1 SM471_PW115

 AM03-014723 CABLE ASSY-FX,FS SERVO POWER 1 AM03-005491A SM471_PW016

 AM03-014724B CABLE ASSY-RX,RS SERVO POWER 1 AM03-005492A SM471_PW017

 AM03-005493B CABLE ASSY-FY1_FY2_SERVO_POWER 1 AM03-005493A SM471_PW018

 AM03-005494B CABLE ASSY-RY1_RY2_SERVO_POWER 1 AM03-005494A SM471_PW019

AM03-005514A CABLE ASSY-CONTROL_RACK_PWR 1 SM471-PW145

 AM03-005513A CABLE ASSY-SACO_+24V_RELAY 1 SM471-PW044

 AM03-005515B CABLE ASSY-CONTROL_RACK_PWR-EXT 1 AM03-005515A SM471-PW145-1

 AM03-005516B CABLE ASSY-RELAY 11 1 AM03-005516A SM471-PW145-2

 AM03-005417A CABLE ASSY-FX_MOTOR_PWR_T1R 1 SM471_PW125

 AM03-017245A CABLE ASSY-REAR_MONITOR_PW_12V 1 AM03-008753A / AM03-006895A SM471_PW126

 AM03-005488A CABLE ASSY-FAN_POWER 1 SM471_PW112

 J90833316A FAN_CABLE_ASSY SM-FAN00 4 SM-FAN00

 J90831088B SERVO_FAN_FG_CABLE_ASSY 1 SM33-PW026

 AM03-005489A CABLE ASSY-SERVO_FAN_POWER 1 SM471_PW113

AM03-005487A CABLE ASSY-TB1_FS1_FS2 1 SM471_PW111-2

 AM03-005486A CABLE ASSY-TB1_PS1_PS2_PW_T5L 1 SM471_PW111

 AM03-005478A CABLE ASSY-PS1_PS2_PS5_PS6_PW_T5L 1 SM471_PW201

 AM03-005476A CABLE ASSY-PS5_PS6_PW_T5 1 SM471_PW101

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

 AM03-005495A CABLE ASSY-PS1_1_DC_POWER_BD 1 SM471_PW120

 AM03-005504A CABLE ASSY-PS1_PS2_SACO_T6L 1 SM471-PW127

 AM03-005485A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 1 SM471_PW202

 AM03-005480A CABLE ASSY-PS5_PS6__DC24V_PWR 1 SM471_PW103

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

AM03-014909A CABLE ASSY-MC_INPUT_220V 1 AM03-005509A SM471-PW040

 AM03-014907A CABLE ASSY-PUMP_PWR_ALARM-EXT 1 AM03-005701A SM471-PW147-1

 AM03-010940A CABLE ASSY-VACUUM_PWR 1 SM471-PW146

 AM03-014851A CABLE ASSY-SK 1 AM03-005510A SM471-PW041

 AM03-014906A CABLE ASSY-VACUUM_PUMP_PWR_EXT 1 AM03-005767A SM471-PW042-1

 AM03-014905A CABLE ASSY-VACUUM_PUMP_220V AM03-005511A/ AM03-005511B SM471-PW042

 AM03-020640A CABLE ASSY-PUMP_PWR_ALARM 1 AM03-005700A SM471-PW147

 AM03-020640A CABLE ASSY-PUMP_PWR_ALARM 1 AM03-005699A SM471-PW146-1

AM03-005721A CABLE ASSY-AC RELAY POWER 1 SM471_PW105

 AM03-005462B CABLE ASSY-R RIGHT FEEDER BASE PWR 2 SM471_FD007

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

 AM03-005461B CABLE ASSY-R LEFT FEEDER BASE PWR 2 SM471_FD006

 AM03-005460B CABLE ASSY-F RIGHT FEEDER BASE PWR 2 SM471_FD005

 AM03-005459B CABLE ASSY-F LEFT FEEDER BASE PWR 2 SM471_FD004

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

 AM03-005506A CABLE ASSY-GENERAL_PW_RELAY 1 SM471-PW032

 AM03-005507A CABLE ASSY-FEEDER_PW_RELAY 1 SM471-PW033

 AM03-005458B CABLE ASSY-R FDR PWR RELAY CABLE ASSY 2 SM471_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N-FD001

 AM03-005456A CABLE ASSY-F FDR PWR RELAY CABLE ASSY 2 SM471_FD002

 AM03-005508A CABLE ASSY-RELAY_PW_SUPPLY 1 SM471-PW135

 AM03-900148 RELAY_CONNECT_CABLE_ASSY SM41-PW034 1 SM41-PW034

 AM03-005463A CABLE ASSY-24V POWER EXT 2 SM471_FD008

Articles of Consumption

MC05-900057 BELT_WORK

 MC05-900059 BELT_SHUTTLE_1650

 MC05-900074 BELT_SHUTTLE_LONG

 HP04-001258A FILTER,AIR-ELENMENT

 HP04-001259A FILTER,OIL-ELENMENT

 HP04-900036 SUCTION_FILTER

 EP10-900438 FUSE[250V 5A]

 EP10-900439 FUSE[250V 10A]

 CM02-000059 GREASE-GADUS_S2 V220 2

 CM02-000083 GREASE-GREASE_AFE-CA+70_THK;SYNTHETIC,OL

 CM02-000092 GREASE-FLOIL G-146K

 J9099107A GREASE GUN

 HP09-000258 SUPPLY,OIL-GREASE-GUN_MG70_THK

 CM01-900473 TRI-FLOW [59ML]

 J90551072A NOZZLE_CN400_ASSY

 J9055134C NOZZLE CN040 ASSY

 FC08-001021A ACCESSORY-CLEANING KIT
