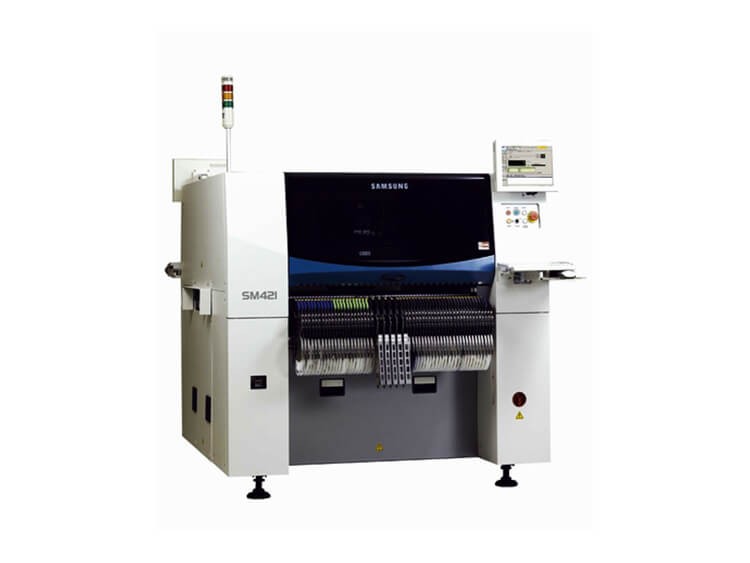

Fast & Flexible Chip Shooter SM-Series SM421/421F/421S/SM421N part

Fast & Flexible Chip Shooter SM-Series SM421/421F/421S/SM421N part

Fixed Camera Ass’y

A-1 J90591015A STAGE_VISION_ASSY_MEGA_F35 1

 J70590095C CAMERA BOARD COVER 1 J70590095B

 J67510015B CCD CAMERA 1

 J6754004B COVER GLASS 1

 J7159160C GLASS PRESS 2

 J9059117A F35-50-ASSY 1

 J90600073C LED98-9 BOARD ASSY 1 J9060073B

 J90600074B STAGE OUTER ILL BOARD ASS'Y 1 J9060074A

 J90600075B STAGE SIDE ILL BOARD ASS'Y 1 J9060075A

 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1

 J9059118A F45-60-ASSY 1

A-2 J90591013A STAGE_VISION_ASY_MEGA_F45 1

Feeder Base Ass’y - ST (1/2)

A-1 AM03-001657A FEEDER_BASE_ASSY-F-ST-SM421N 1 SM 421N

J90571013B FEEDER_BASE_ASSY_FRONT-ST 1 J90571013A SM 421

 J7057213A SIDE CABLE COVER-FB[J7057213A] 2

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A ASSY,BOARD-FBLN 1 J9060347B /J90600351A

 J67111148A COUPLER TCP1B10-15A-R8036 60 J6711245A

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060352A

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 AM03-000693A ASSY,BOARD-FBRN 1 J9060348B

 J67110119B UNION Y FITTING 2 J6711119A

 FC09-000901A TOP-PLATE-S 1 J70570260C

 FC09-001200A TOP-PLATE-BACK-HOLE 1

A-2 AM03-001659A FEEDER_BASE_ASSY-R-ST-SM421N 1 SM 421N

J90571014B FEEDER_BASE_ASSY_REAR-ST 1 J90571014A SM 421

Feeder Base Ass’y - ST (2/2)

J91741071A FEEDER_INPUT_EXT_BOARD 1

 J91741070A FEEDER IO BOARD 1

 FC09-000977A FRONT SENSOR BKT2 1 J70540267B

 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C

 J70540268C REAR SENSOR BKT1 1

 J70540269B REAR SENSOR BKT2 1

 J70521033B COVER_LFM 1

 J1300101 DRAWER PULL 2 J6402005A

Feeder Base Ass’y- DC

A-1 J90571015A FEEDER_BASE_ASSY_FRONT-DC J90571015A 1

 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060354A

 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1 J9060353A

 J6711256A COUPLER[KD-M5-SA34697KR] 56

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 AM03-000696A ASSY,BOARD-FBLD 1 J9060349D

 AM03-000695A ASSY,BOARD-FBRD 1 J9060350D

 J70570261C TOP PLATE-DC 1

J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6711001A ELBOW FITTING 1

 J67110119B UNION Y FITTING [KQ2U04-06] 1

 J67050004B SILENCER AN101-01 2

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J91741070A FEEDER_IO_BOARD VER 1.2 1

 FC09-000977A FRONT SENSOR BKT2 1 J70540267B

 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C

 J1300101 DRAWER PULL [HD-108] 2

 J70540268C REAR SENSOR BKT1 1

 J70540269B REAR SENSOR BKT2 1

J6712008A PLUG 2

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J6711009A ELBOW FITTING [KQ2L06-M5] 1

 J6711247A ELBOW FITTING[PT18EF] 2

 J6712008A PLUG [PT 1/8] 3

 J67110119B UNION Y FITTING [KQ2U04-06] 1

 J6703037A CHECK VALVE[AKH06-00] 1

 J1300284 FITTING [KQ2U06-00/PY6M] 5

 J1300276 FITTING [KQ2L06-01/PL6-01] 5

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

Conveyor Ass’y

A-1 J90531083A CONV_ASSY_LR J90531083A 1

 J70531109A MANUAL_HANDLE J70531109A 1

 J3212004A PHOTO SENSOR 1

 J1300509 BALL BEARING 4 J6601008A

 J6601109A BALL BEARING[608ZZ] 2

 J6601126A BALL BEARING[F608ZZ] 2

 J6602074A TIMING BELT[025-XL-396-AJ] 1

 J6609012A PULLEY-WIDTH [20-XL-025] 2

 J7053194A BEARING NUT [J7053194A] 2

 J7053725A SUPPORT-WIDE ADJUST[J7053725A] 2

 J7053726A SCREW STAND[J7053726A] 2

 J70530749B DOG ADJUST J70530749B 1

 J7053661B WIDTH TENSION SPACER[J7053661B] 2

 J7053662A TENSION BEARING PIN[J7053662A] 2

 J71530404B FIX STAND 2

 J7053695B STOPPER[J7053695B] 1

 J7153326A WIDTH PULLEY COLLAR[J7153326A] 2

 J7053660A TENSION BKT[J7053660A] 2

 J6614007A LEAD SCREW[DCM16 + 648.5L] 2

 J7053787A CONVEYOR CHIP COVER-L[J7053787A] 1

J31081058A SERVO MOTOR[MSMA012P1A01] 1 J3108062A

 J1300509 BALL BEARING 4 J6601008A

 J6601109A BALL BEARING[608ZZ] 2

 J6601126A BALL BEARING[F608ZZ] 2

 J6602030A TIMING BELT [258-3M-9] 1

 J6609012A PULLEY-WIDTH [20-XL-025] 2

 J6609015B PULLEY-MOTOR [P32-3M-9] 1

 J7053194A BEARING NUT [J7053194A] 2

 J7053725A SUPPORT-WIDE ADJUST[J7053725A] 2

 J7053726A SCREW STAND[J7053726A] 2

 J7053661B WIDTH TENSION SPACER[J7053661B] 2

 J7053662A TENSION BEARING PIN[J7053662A] 2

 J71530404B FIX STAND 2

 J7053780A BRACKET-SERVO MOTOR[J7053780A] 1

 J70530748B STOPPER-FRONT 2 J7053748A

 J7153326A WIDTH PULLEY COLLAR[J7153326A] 2

 J7153330A PULLEY SHAFT[J7153330A] 1

 J7053660A TENSION BKT[J7053660A] 2

 J6614007A LEAD SCREW[DCM16 + 648.5L] 2

 J7053781A CV CHIP COVER-R[J7053781A] 1

 J7053731A CONVEYOR CHIP COVER-R[J7053731A] 1

J3211048A PHOTO SENSOR[E3S-LS3N] 5

 J67011058A STOPPER CYLINDER 2 1 J6701018B

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J66021017A BELT_410_1 MAM-5P-1235-7W 4

 J66021018A BELT_410_F MAM-5P-1517-7W 1

 J70531083A BELT_MOTOR_SUPPORT J70531083A 4

 J70531084A BRACKET_BELT_MOTOR_B J70531084A 1

 J70531106A BRACKET_BELT_MOTOR_S J70531106A 4

 J70531086A BRACKET_RAIL J70531086A 2

 J7153111A TEP MOTOR PULLEY [J7153111A] 6

 J70531087A Q_SENSOR_BKT J70531087A 1

 J70531088B WORK_SENSOR_BRACKET 2

 J71531027A CONV_FRONT_FRAME J71531027A 1

 J70531089B STOPPER_CYLINDER_BRACKET 1

 J70531100A BRACKET_SENSOR_IN J70531100A 2

 J66011035A BALL_BUSH LMU5 8

 J1300121 ELBOW FITTING [M-5HLH-4] 4 J6711001A

 J6607016A LM SLIDE 2

 J6703007A THROTTLE VALVE(ELBOW) 1

 J7053047A IDLER SPACER-S 18

 J7053048A IDLER SPACER-M 3

 J2101818 IDLER SHAFT-S2 [J7053009A] 18 J7053009A

 J7053184A SQUARE NUT M4 55

 J70531050A STOPPER_TOP_PLATE J70531050A 1

 J70531029B STOPPER_POST 1

 J7053689A QUICK SENSOR KNOB[J7053689A] 1

 J7053770A IDLER SHAFT-M[J7053770A] 6

J7153010B ADJUST SHAFT [J7153010B] 4

 J7153033A BUSH SPACER 4

 J7153034A CLAMP SHAFT 4

 J7153036A SLIDE GUIDE 1

 J7153331A RAIL SENSOR[J7153331A] 1

 J7253006A IDLER 1 8

 J7253007A IDLER 2 16

 J7253008A STOPPER 4

 J7253009B STOPPER 2 [J7253009B] 4

 J6073010136H C-RING DIA11(HOLE) 4

J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J66021017A BELT_410_1 MAM-5P-1235-7W 4

 J66021019A BELT_410_R MAM-5P-1482-7W 1

 J70531085A BRACKET_BELT_MOTOR_M J70531085A 1

 J70531106A BRACKET_BELT_MOTOR_S J70531106A 4

 J7153111A TEP MOTOR PULLEY [J7153111A] 6

 J71531028A CONV_REAR_FRAME J71531028A 1

 J66011035A BALL_BUSH LMU5 8

 J6711001A ELBOW FITTING 4

 J6607083A LM GUIDE[SBG20-SL-1-575-N] 2

 J6701087A EDGE CYLINDER[CQ2B6-CJJC2948] 1

 J7053047A IDLER SPACER-S 18

 J7053009A IDLER SHAFT-S2 [J7053009A] 18

 J7053184A SQUARE NUT M4 55

 J7053216B DOG-SENSOR [J7053216B] 1

 J7053677A MOVE STAND[J7053677A] 2

 J7053763A IDLER SPACER-M[J7053763A] 3

 J7053770A IDLER SHAFT-M[J7053770A] 6

 J7153010B ADJUST SHAFT [J7153010B] 4

 J7153033A BUSH SPACER 4

 J7153034A CLAMP SHAFT 4

 J7253006A IDLER 1 8

 J7253007A IDLER 2 16

 J7253008A STOPPER 4

 J7253009B STOPPER 2 [J7253009B] 4

 J7051113A CABLE DUCT-U-F[J7051113A] 1

 J67090018B REGULATOR 1

J6073010136H C-RING DIA11(HOLE) 4

FC09-001002A DUMP-BOX 1 J7153290A / J70531002A

 FC09-001003A DUMP_BOX-BKT 1 J7053688B / J70531008A

 J6409011A DUMP BOX[1/9 PAN] 1

 J70530693C DUMP BOX BKT 2 J70530693C 1

 J70510125D CAMERA SUPPORT 1

Backup Table Ass’y

A-1 J9053342A BACK UP TABLE ASSY[J9053342A] 1

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN[J7053792A] 4

 J7053793A LOWER LINK PIN[J7053793A] 2

 J7053796A LOWER LINK SHAFT[J7053796A] 1

 J71530419B UPPER DRIVING LINK[J7153419A] 1

 J90531008A LINK_END_ASSY 2

 J70530797B LOWER LINK END 1 J7053797A

 J6601005A BALL BEARING 1

 J90531004A FREE_LINK_ASSY 2

 J71530418B UPPER FREE LINK 1 J7153418A

 J70530799C UPPER PLATE 1

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN[J7053794A] 2

 J7053795A RING FIXER[J7053795A] 3

 J6619062A CYLINDER JOINT[Y-032B] 1

 J67010088B CYLINDER CM2C32-50-XC3BB 1

 J6711028A ELBOW FITTING [KQ2L04-01] 2

 J70530800C LOWER PLATE 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER[J7053790A] 1

 J70530801D BACK UP PLATE 1 J70530801C

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER[J7053791A] 1

 J6308003A URETHAN CUSHION[AXNSK15-40] 2

 J7053803A UP SENSOR DOG[J7053803A] 1

 J6107047A SPRING[SWU26-70] 1

J6015064000 SHOULDER SCREW[MSB6-40] 2

 J3212002A PHOTO SENSOR 1

 J7053802A UP SENSOR BRACKET[J7053802A] 1 Only Indication

A-2 J9053343A BACK UP TABLE ASSY(LARGE)[J9053343A] 1

A-3 J90531035A BACK_UP_TABLE_ASSY-EXL J90531035A 1

Base Frame Ass’y

A-1 J91831004A SM421_BASE_FRAME_ASSY_H900 1

 J2100018 NUT FOOT [0131-611026] 4

 J7351001A CUSHION FOOT 4

 J7051008C BASE-FOOT[J7051008C] 4

 J70511014A BOLT_FOOT J70511014A 4

 J7051010D HOUSING-FOOT[J7051010D] 4

 J6079000236S C-RING(SHAFT) 4

 J70521386A LOWER_CABLE_DUCT-R-2 1

 J70521387A LOWER_CABLE_DUCT-L-2 1

 J70521388A CATCH_BRACKET_F-2 4

 J70521389A CATCH_BRACKET_R-2 4

 J70510108B SPACER FOOT 4

 FC09-001027A BRACKET_CABLE_DUCT_S-V 2 J70511018B

A-2 J91831005A SM421_BASE_FRAME_ASSY_H950 1

Fly Camera Ass’y

A-1 J90551154A FLY_VISION_ASSY_MEGA-F16 J90551154A 1

J91851086A FLY_VISION_ASSY_MEGA-F16_4 1 SM421F

 J90551156A FLY_CAMERA_ASSY_MEGA-F16 J90551156A 1

J90591075A FLY_CAM_ASSY_NON-MEGA-F16 J90591075A 1

 J90551081A FLY_CAM_ONE_KIT_ASSY_MEGA-F16 J90551081A 6 SM421F Q'TY : 4EA

AM03-001810A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F16 1

 J67510015B CCD CAMERA 1

 J90591012A SM140165_LENS_ASSY J90591012A 1

 FC09-000490A CAMERA_HOLDER J71551125A 1 J71551125B

 J90551016A CAMERA_COVER_BOARD_ASSY 1

 J7155536A CAMERA COVER[J7155536A] 1

 J91741025A MEGA_CAMERA_IO_BOARDD VER1.0 1

 J6103003A HEX SUPPORT 10

 J6025300036 HEX NUT 8

 J7159265A COVER JOINT[J7159265A] 3

 J7155537A CAMERA REAR COVER[J7155537A] 1

 AM03-001506A FLYING CAMERA I/F CABLE ASSY SM21-VIS011 6 J90830161B SM421F Q'TY : 4EA

 J90551157A FLY_CAMERA_ASSY_MEGA-F25 J90551157A 1

J90591076A FLY_CAM_ASSY_NON-MEGA-F25 J90591076A 1

 J90591009A_AS FLY_CAM_ONE_KIT_ASSY_MEGA-F25 6 J90591009A SM421F Q'TY : 4EA

AM03-001811A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F25 1

 J9059208A FOV25 LENS ASSY[J9059208A] 1

A-2 J90551155A FLY_VISION_ASSY_MEGA-F25 J90551155A 1

J91851084A FLY_VISION_ASSY_MEGA-F25_4 1 SM421F

Fly Camera Ass’y –SM421F

A-1 J90551154A FLY_VISION_ASSY_MEGA-F16 J90551154A 1

J91851086A FLY_VISION_ASSY_MEGA-F16_4 1 SM421F

 J90551156A FLY_CAMERA_ASSY_MEGA-F16 J90551156A 1

J90591075A FLY_CAM_ASSY_NON-MEGA-F16 J90591075A 1

 J90551081A FLY_CAM_ONE_KIT_ASSY_MEGA-F16 J90551081A 6 SM421F Q'TY : 4EA

AM03-001810A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F16 1

 J67510015B CCD CAMERA 1 J67510015B

 J90591012A SM140165_LENS_ASSY J90591012A 1

 FC09-000490A CAMERA_HOLDER J71551125A 1 J71551125B

 J90551016A CAMERA_COVER_BOARD_ASSY 1

 J7155536A CAMERA COVER[J7155536A] 1

 J91741025A MEGA_CAMERA_IO_BOARDD VER1.0 1

 J6103003A HEX SUPPORT 10

 J6025300036 HEX NUT 8

 J7159265A COVER JOINT[J7159265A] 3

 J7155537A CAMERA REAR COVER[J7155537A] 1

 AM03-001506A FLYING CAMERA I/F CABLE ASSY SM21-VIS011 6 J90830161B SM421F Q'TY : 4EA

 J90551157A FLY_CAMERA_ASSY_MEGA-F25 J90551157A 1

J90591076A FLY_CAM_ASSY_NON-MEGA-F25 J90591076A 1

 J90591009A_AS FLY_CAM_ONE_KIT_ASSY_MEGA-F25 6 J90591009A SM421F Q'TY : 4EA

AM03-001811A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F25 1

 J9059208A FOV25 LENS ASSY[J9059208A] 1

A-2 J90551155A FLY_VISION_ASSY_MEGA-F25 J90551155A 1

J91851084A FLY_VISION_ASSY_MEGA-F25_4 1 SM421F

Operation Ass’y

A-1 J91731020A FRONT REAR OPERATING ASSY 1

 J90831048G OP_PANEL_ASSY 2 J90831048E

 J34031042A PUSHBUTTON HEAD 6

 J34031049A ULTRA BRIGHT LED WHITE 3

 J34031050A ULTRA BRIGHT LED GREEN 1

 J34031051A ULTRA BRIGHT LED RED 1

 J34031052A ULTRA BRIGHT LED YELLOW 1

 J3403082A EMS SW(EAO) 2

 J34031049A ULTRA BRIGHT LED WHITE 3

 J70521024B SM411_OP_PANEL 1

 J71521015B BUTTON_CAP 1 J71521015A

 J34031047A CONTACT BLOCK CTL2 6

 J70521373A MONITOR GUIDE PL 1

 J70521059A LCD BRACKET 1

 J7252061A PAD BRACKET 2

 J70521158A LCD HINGE PLATE 1

 J7070297A MONITOR CABLE COVER 1

 J53011032A LCD_MONITOR_15 1 J53011015A

 J52021011A OPTICAL_MOUSE 1 J52021006A

 J7452038A MOUSE PAD-OPTICAL 1

 J70521113C KEYBOARD BASE BRACKET 1

 J70521112C KEYBOARD BASE 1

 J52011002A MINI KEYBOARD 1

Head Ass’y

A-1 J90551151A HEAD_ASSY_TOTAL J90551151A 1

 J7155553A MIRROR COVER -RIGHT[J7155553A] 1

 J7155552A MIRROR COVER -LEFT[J7155552A] 1

 J7055657A MIRROR COVER BRACKET[J7055657A] 2

 J7055566B PCB SUPPORT 30[J7055566B] 2

J3212027A MICRO PHOTO SENSOR[PM-L24] 1

 J3212048A MICRO PHOTO SENSOR[PM-U24] 6

 J71550560C LED HOUSING-F[J7155560A] 1

 J90591004A F-MOVING_12058_LENS_ASSY 1

 J9055357A PULLEY ASSY (Z-AXIS 2) 6

 J7055658A PULLEY PIN[J7055658A] 1

 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 1

 J6601140A BALL BEARING[MR684ZZ] 2

 J90831393B Z4_MOTOR_ASSY 1 J90831393A

 AM03-003692A CABLE ASSY-Z3 MOTOR ASSY [SM41-MD028] 1 J90831392A /J90831392B

 J90831391B Z2_MOTOR_ASSY 1 J90831391A

 J90831390B Z1_MOTOR_ASSY 1 J90831390A

 J90551007A SPLINE_HOUSING_ASSY 6

 J7055543A SPLINE HOUSING[J7055543A] 1

 J7055544A BEARING COLLAR[J7055544A] 1

 J7055555A BEARING NUT[J7055555A] 1

 J7155572A CAMERA CABLE HOLDER[J7155572A] 1

 J7155566A SIDE TIE MOUNT[J7155566A] 1

 J7155541A PIN[J7155541A] 12

 J7155520A PULLEY (R-AXIS 1)[J7155520A] 6

 J7155518A PULLEY (Z-AXIS 1)[J7155518A] 6

 J71551263A FIDUCIAL_CAMERA_BRK-2 1

 FC30-000215A PLATE-SENSOR DOG-R J71550513C 3 J71550513C

 J7155512A SENSOR DOG[J7155512A] 6

 J71550511B STOPPER J7155511A 12

 J71550510B JONT[J7155510A] 6

 J71550509B SPLINE ALIGNER CAP[J7155509A] 6

FC06-000011A SLIDE BODY J71550508B 6 J71550508C

 J7055659A BEARING PLATE[J7055659A] 6

 J7055656A Z-TENSION BRACKET[J7055656A] 6

 J7055554A SPACER[J7055554A] 6

 J7055552A SENSOR BRACKET R-H[J7055552A] 3

 J70550548B SPRING[J7055548A] 6

 J7055545B SPLINE ALIGNER[J7055545B] 6

 J90551171A BALL_SPLINE_ASSY 6

 J9060040B FIDUCIAL OUTER LED ASSY 1

 J70551002B BELT_CLAMP2 6

 J70551001B BELT_CLAMP1 6

 J67510015B CCD CAMERA 1 J6751014A

 J67110180C ROTARY JOINT 6

 J6607055A LM GUIDE [LWLG7C1R140BT1H] 6

 J66021036A SIMING BELT[384-1.5GT-9] 6

 J6601088A BALL BEARING [605ZZ] 12

 J6049000250 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0 6

 J90831395B Z6_MOTOR_ASSY 1 J90831395A

 J90831394B Z5_MOTOR_ASSY 1 J90831394A

J3212027A MICRO PHOTO SENSOR[PM-L24] 1

 J31081057A SERVO_MOTOR MSMA5AZP2A 1 J31081013A

 J7255083A THETA MOTOR ISOLATOR[J7255083A] 3

 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1

 J7155524A MIRROR MOTOR BRACKET[J7155524A] 1

 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1

 J7155521B PULLEY (R-AXIS 2)[J7155521B] 3

 J7055663A SENSOR BRACKET R-M[J7055663A] 1

 J7055655A THETA MOTOR PLATE[J7055655A] 3

 J6602078A TIMING BELT[255-3GT-6] 1

 J66021024A TIMING_BELT 232-2GT-4 3

 J90831010B_AS R56_MOTOR_CABLE_ASSY 1 J90831010B

 J90831009B R34_MOTOR_CABLE_ASSY 1

 J90830190B R12_MOTOR_CABLE_ASSY 1

J3212027A MICRO PHOTO SENSOR[PM-L24] 1

 J6701028A AIR CYLINDER [BDAS6*15-CS11T-A2] 1

 J7055207B MIRROR SHAFT [J7055207B] 1

 J7055557A BEARING HOUSING[J7055557A] 1

 J7155522A PULLEY (S-AXIS 1)[J7155522A] 1

 J7055143B CAM [J7055143B] 1

 J6601079A BALL BEARING [695ZZ] 2

 J7155530A MIRROR SUPPORT[J7155530A] 1

 J6755002A FOLDING MIRROR [J6755002A] 1

 J7155197A MIRROR FIXED PLATE [J7155197A] 2

 J71550538B OUTER ILL BRACKET [J71550538B] 1

 J7155539A OUTER ILL SIDE BRACKET[J7155539A] 1

 J7155540A OUTER ILL SIDE BRACKET 1[J7155540A] 1

 J9060357B HEAD OUTER LED BOARD ASSY[Rev 1.1] 1

 J71550570B SIDE ILLUM BODY [J71550570B] 1

 J72550084B SIDE REFLECTOR J72550084B 6

 J7255085A SIDE ILLUM ISOLATOR[J7255085A] 1

 J90551011A SIDE_ILLUM_GUIDE 2

 J7155263A STOPPER [J7155263A] 1

 J6304009A O-RING [P5] 1

 J7055483B ILLUMINATOR SHAFT[J7055483A] 1 J7055483A

 J6601016A BALL BUSH 1

 J7155187D ILLUMINATOR GUIDE-LEFT[J7155187D] 1

 J7155188A BUSH CAP [J7155188A] 1

 J90551009A MIRROR_ARM-R_ASSY 1

 FC30-000216A PLATE - MIRROR ARM-RIGHT 1 J71550527B

 J7055151A ARM JOINT [J7055151A] 1

J7055155A MIRROR JOINT-RIGHT [J7055155A] 1

 J7055153A MIRROR SCREW [J7055153A] 1

 J7055559A MIRROR PIN 2[J7055559A] 1

 J7155525A MIRROR SENSOR DOG[J7155525A] 1

 J7455026A SPRING BUSH[J7455026A] 1

 J6601080A BALL BEARING [MR148ZZ] 2

 J6601081A CAM FOLLOWER [CF3UU-A] 1

 J6071150050 E-RING[DIA1.5(SUS)] 1

 J6025300036 HEX NUT 1

 J90551008A MIRROR_ARM-L_ASSY 1

 FC30-000217A PLATE - MIRROR ARM-LEFT 1 J71550526B

 J7055204A ARM JOINT [J7055204A] 1

 J7055205A MIRROR JOINT-LEFT [J7055205A] 1

 J7055558A MIRROR PIN 1[J7055558A] 1

 J7455026A SPRING BUSH[J7455026A] 1

 J7455026A SPRING BUSH[J7455026A] 2

 J7155515A LOWER COVER 2[J7155515A] 1

 J7055560A MIRROR SPRING BRACKET[J7055560A] 2

 J7055556B MIRROR SENSOR BRACKET[J7055556B] 1

 J7055163A BEARING HOUSING [J7055163A] 1

 J6711156A HOSE NIPPLE [M-5H-4](D/C) 1

 J6711132A FITTING 1

 J6107044A SPRING[AWY 6-50] 2

 J9060404A HEAD SIDE LED ASSY[SM21-HEAD-SIDE] 1

J6713022B COIL TUBE(POLYURETHANE) [J6713022B] 6

 J71541085A HARNESS_PLATE J71541085A 1

 J71541019A HEAD_BOARD_BRACKET J71541019A 1

 J71541018B CABLEVEYOR_BRACKET 1

 J71541016B HARNESS_SUPPORT 2

 J70541125A HEAD_COVER_SUPPORT J70541125A 2

 J70541124A CABLE_SPACER J70541124A 1

 J70541015B CONNECTOR_PANNEL 1 J70541015A

 J7054255A CUSHION BRACKET X[J7054255A] 1

 J7054260A CABLE FIXER[J7054260A] 1

 J7354023A CABLE CUSHION X[J7354023A] 1

 J6119056A HANDLE BG-10 1

 J6103003A HEX SUPPORT 4

 J91741083C SM321_HEAD_IO_BOARD 1 J91741083B

 J91741084B SM321_HEAD_ILL_BOARD 1 J91741084A

 J91741085A SM321_HEAD_VACUUM_SENSOR_BOARD 1

 J3204002A AIR PRESSURE SENSOR [MPX5100AP] 6

 J90550246F AIR MODULE 1 J90550246E

 FC07-000185A SM421_AIR_MODULE_MANIFOLD 1 J71551001B

 FC09-000823A MANIFOLD_BKT_L 1 J7155544A

 FC09-000824A MANIFOLD_BKT_R 1 J7155545A

 J63041001A O_RING 6

 HP14-000206 SOLENOID VALVE[VA01PEP34-1U-F] 6 J6702048A / J67020048B

 HP14-000163 SOLENOID VALVE 6 J67081010A

 J6702049A SOLENOID VALVE 1

 J67031006A SPEED CONTROLLER 2 J6703039A

 J6711262A MINI FITTING[BC-03-M5] 6

J67111068A MINIATURE FITTING 2 J6711263A

 HP06-000104 ONE TOUCH FITTING[FSE04-M5C] 2 J6711260A

 HP06-000074 STRAIGHT FITTING 6 J6711261A

 J6705009A SILENCER 1

 J6712016A PLUG[N220 1900J] 1

 J9058090A FILTER ASSY[J9058090A] 6

 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6

 J7055662A VACUUM SENSOR BRACKET[J7055662A] 2

 J1201033 HEX SUPPORT [M3*15 (BOLT-NUT)] 4

 J67131004A TUBE 6

 FC09-000664A INSERT 6

 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6

 FC14-000121A BLOW_FILTER_CAP 6

 HP04-000018A FILTER_ELEMENT 6

 J67111151A FITTING 6

 J6711141A FITTING 6

 J6004002038 BUTTON_HEAD_CAP_SCREW M10*20L 1

 J67131001A TUBE LF-M5-60-Z 1

Head Ass’y- SM421F

J7155553A MIRROR COVER -RIGHT[J7155553A] 1

 J7155552A MIRROR COVER -LEFT[J7155552A] 1

 J7055657A MIRROR COVER BRACKET[J7055657A] 2

 J7055566B PCB SUPPORT 30[J7055566B] 2

J3212027A MICRO PHOTO SENSOR[PM-L24] 1

 J3212048A MICRO PHOTO SENSOR[PM-U24] 4

 J71550560C LED HOUSING-F[J7155560A] 1

 J90591004A F-MOVING_12058_LENS_ASSY 1

 J9055357A PULLEY ASSY (Z-AXIS 2) 4

 J7055658A PULLEY PIN[J7055658A] 1

 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 1

 J6601140A BALL BEARING[MR684ZZ] 2

 J90831394B Z5_MOTOR_ASSY 1 J90831394A

 J90831391B Z2_MOTOR_ASSY 1 J90831391A

 J90831390B Z1_MOTOR_ASSY 1 J90831390A

 J90551007A SPLINE_HOUSING_ASSY 4

 J7055543A SPLINE HOUSING[J7055543A] 1

 J7055544A BEARING COLLAR[J7055544A] 1

 J7055555A BEARING NUT[J7055555A] 1

 J7155572A CAMERA CABLE HOLDER[J7155572A] 1

 J7155566A SIDE TIE MOUNT[J7155566A] 1

 J7155541A PIN[J7155541A] 8

 J7155520A PULLEY (R-AXIS 1)[J7155520A] 4

 J7155518A PULLEY (Z-AXIS 1)[J7155518A] 4

 J71551263A FIDUCIAL_CAMERA_BRK-2 1

 FC30-000215A PLATE-SENSOR DOG-R J71550513C 2 J71550513C

 J7155512A SENSOR DOG[J7155512A] 4

 J71550511B STOPPER J7155511A 11

 J71550510B JONT[J7155510A] 4

 J71550509B SPLINE ALIGNER CAP[J7155509A] 4

 FC06-000011A SLIDE BODY J71550508B 4 J71550508C

J7055659A BEARING PLATE[J7055659A] 4

 J7055656A Z-TENSION BRACKET[J7055656A] 4

 J7055554A SPACER[J7055554A] 4

 J7055552A SENSOR BRACKET R-H[J7055552A] 2

 J70550548B SPRING[J7055548A] 4

 J7055545B SPLINE ALIGNER[J7055545B] 4

 J90551171A BALL_SPLINE_ASSY 4

 J9060040B FIDUCIAL OUTER LED ASSY 1

 J70551002B BELT_CLAMP2 4

 J70551001B BELT_CLAMP1 4

 J67510015B CCD CAMERA 1 J6751014A

 J67110180C ROTARY JOINT 4 J6711180B

 J6607055A LM GUIDE [LWLG7C1R140BT1H] 4

 J66021036A SIMING BELT[384-1.5GT-9] 4

 J6601088A BALL BEARING [605ZZ] 8

 J6049000250 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0 4

 J90831395B Z6_MOTOR_ASSY 1 J90831395A

J3212027A MICRO PHOTO SENSOR[PM-L24] 1

 J31081057A SERVO_MOTOR MSMA5AZP2A 1 J31081013A

 J7255083A THETA MOTOR ISOLATOR[J7255083A] 2

 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1

 J7155524A MIRROR MOTOR BRACKET[J7155524A] 1

 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1

 J7155521B PULLEY (R-AXIS 2)[J7155521B] 2

 J7055663A SENSOR BRACKET R-M[J7055663A] 1

 J7055655A THETA MOTOR PLATE[J7055655A] 2

 J6602078A TIMING BELT[255-3GT-6] 1

 J66021024A TIMING_BELT 232-2GT-4 2

 J90831010B_AS R56_MOTOR_CABLE_ASSY 1 J90831010B

J90830190B R12_MOTOR_CABLE_ASSY 1

J3212027A MICRO PHOTO SENSOR[PM-L24] 1

 J6701028A AIR CYLINDER [BDAS6*15-CS11T-A2] 1

 J7055207B MIRROR SHAFT [J7055207B] 1

 J7055557A BEARING HOUSING[J7055557A] 1

 J7155522A PULLEY (S-AXIS 1)[J7155522A] 1

 J7055143B CAM [J7055143B] 1

 J6601079A BALL BEARING [695ZZ] 2

 J7155530A MIRROR SUPPORT[J7155530A] 1

 J6755002A FOLDING MIRROR [J6755002A] 1

 J7155197A MIRROR FIXED PLATE [J7155197A] 2

 J71550538B OUTER ILL BRACKET [J71550538B] 1

 J7155539A OUTER ILL SIDE BRACKET[J7155539A] 1

 J7155540A OUTER ILL SIDE BRACKET 1[J7155540A] 1

 J9060357B HEAD OUTER LED BOARD ASSY[Rev 1.1] 1

 J71550570B SIDE ILLUM BODY [J71550570B] 1

 J72550084B SIDE REFLECTOR J72550084B 4

 J7255085A SIDE ILLUM ISOLATOR[J7255085A] 1

 J90551011A SIDE_ILLUM_GUIDE 2

 J7155263A STOPPER [J7155263A] 1

 J6304009A O-RING [P5] 1

 J7055483A ILLUMINATOR SHAFT[J7055483A] 1

 J6601016A BALL BUSH 1

 J7155187D ILLUMINATOR GUIDE-LEFT[J7155187D] 1

 J7155188A BUSH CAP [J7155188A] 1

 J90551009A MIRROR_ARM-R_ASSY 1

 FC30-000216A PLATE - MIRROR ARM-RIGHT 1 J71550527B

 J7055151A ARM JOINT [J7055151A] 1

J7055155A MIRROR JOINT-RIGHT [J7055155A] 1

 J7055153A MIRROR SCREW [J7055153A] 1

 J7055559A MIRROR PIN 2[J7055559A] 1

 J7155525A MIRROR SENSOR DOG[J7155525A] 1

 J7455026A SPRING BUSH[J7455026A] 1

 J6601080A BALL BEARING [MR148ZZ] 2

 J6601081A CAM FOLLOWER [CF3UU-A] 1

 J6071150050 E-RING[DIA1.5(SUS)] 1

 J6025300036 HEX NUT 1

 J90551008A MIRROR_ARM-L_ASSY 1

 FC30-000217A PLATE - MIRROR ARM-LEFT 1 J71550526B

 J7055204A ARM JOINT [J7055204A] 1

 J7055205A MIRROR JOINT-LEFT [J7055205A] 1

 J7055558A MIRROR PIN 1[J7055558A] 1

 J7455026A SPRING BUSH[J7455026A] 1

 J7455026A SPRING BUSH[J7455026A] 2

 J7155515A LOWER COVER 2[J7155515A] 1

 J7055560A MIRROR SPRING BRACKET[J7055560A] 2

 J7055556B MIRROR SENSOR BRACKET[J7055556B] 1

 J7055163A BEARING HOUSING [J7055163A] 1

 J6711156A HOSE NIPPLE [M-5H-4](D/C) 1

 J6711132A FITTING 1

 J6107044A SPRING[AWY 6-50] 2

 J9060404A HEAD SIDE LED ASSY[SM21-HEAD-SIDE] 1

J6713022B COIL TUBE(POLYURETHANE) [J6713022B] 4

 J71541085A HARNESS_PLATE J71541085A 1

 J71541019A HEAD_BOARD_BRACKET J71541019A 1

 J71541018B CABLEVEYOR_BRACKET 1

 J71541016B HARNESS_SUPPORT 2

 J70541125A HEAD_COVER_SUPPORT J70541125A 2

 J70541124A CABLE_SPACER J70541124A 1

 J70541015A CONNECTOR_PANNEL 1

 J7054255A CUSHION BRACKET X[J7054255A] 1

 J7054260A CABLE FIXER[J7054260A] 1

 J7354023A CABLE CUSHION X[J7354023A] 1

 J6119056A HANDLE BG-10 1

 J6103003A HEX SUPPORT 4

 J91741083C SM321_HEAD_IO_BOARD 1 J91741083B

 J91741084B SM321_HEAD_ILL_BOARD 1 J91741084A

 J91741085A SM321_HEAD_VACUUM_SENSOR_BOARD 1

 J3204002A AIR PRESSURE SENSOR [MPX5100AP] 4

 J90550246F AIR MODULE 1 J90550246E

 J71551001B MANIFOLD J71551001B 1

 J7155544A FOOT BRACKET-L[J7155544A] 1

 J7155545A FOOT BRACKET-R[J7155545A] 1

 J63041001A O_RING 4

 HP14-000206 SOLENOID VALVE[VA01PEP34-1U-F] 6 J6702048A / J67020048B Consumables Replacement: 2 years)

 J67081010A ATMOSPHERIC_FILTER LF-M3-Z07-021 4

 J6702049A SOLENOID VALVE[RCS242-M3-D24NP] 1 Consumables (Replacement: 2 years)

 J6703039A SPEED CONTROLLER[SPR-Z-M3N] 2

 J6711262A MINI FITTING[BC-03-M5] 4

J6711263A MINI FITTING[BE-04-M3] 2

 J6711260A ONE TOUCH FITTING[FSE04-M5C] 2

 HP06-000074 STRAIGHT FITTING 4 J6711261A

 J6705009A SILENCER[AS-5] 1

 J1300213 PLUG[N220 1900J] 1 J6712016A

 J9058090A FILTER ASSY[J9058090A] 4

 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6 Consumables (Replacement: 6 months)

 J7055662A VACUUM SENSOR BRACKET[J7055662A] 2

 J1201033 HEX SUPPORT [M3*15 (BOLT-NUT)] 4

 J67131004A TUBE 6

 FC09-000664A INSERT 6

 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6

 FC14-000121A BLOW_FILTER_CAP 6

 HP04-000018A FILTER_ELEMENT 6

 J67111151A FITTING 6

 J6711141A FITTING 6

 J6004002038 BUTTON_HEAD_CAP_SCREW M10*20L 1

 J67131001A TUBE LF-M5-60-Z 1

Air Ass’y

A-1 J90581009A AIR_ASSY J90581009A 1

J90581045A SM421F_AIR_ASSY J90581045A 1 J90581052A SM421F

 J6711147A STRAIGHT FITTING KQ2H04-M5 1

 J67090012B REGULATOR 1

 J32041001A PRESS URE SENSOR PSA-1(RC1/8) 1

 J1301187 ELBOW FITTING [KQ2L12/PL12-04] 2 J6711170A

 J6711028A ELBOW FITTING [KQ2L04-01] 1

 J67081006A MIST_SEPARATOR_ASSY TAC4020-04D-R3643 1

 J67081003A ELEMENT_AIR TAF4000-05-6000 1

J67111032A MIST_FITTING SQV12-04S 2

J67081002A ELEMENT_SEPARATOR PFH4000-0005A-6083 1

 J67081002A SM1 MANIFOLD ASSY[J9058086A] 1

 J1301189 ELBOW FITTING [KQ2L06-02/PL6-02] 3

 J1301213 PLUG [PT 3/8] 1

 J1301339 STRAIGHT FITTING [KQ2H06-02/PC6-02] 1

 J2100009 MANIFOLD [0131-611008] 1

 J6711135A STRAIGHT FITTING [PC8-02] 2

 J6711244A MALE ELBOW[KQ2L12-03] 1

 J67091007A REGULATOR J67091007A 1 J6709019A

 J67110119B UNION Y FITTING 1

 J6711140A STRAIGHT FITTING [SS8-1/8] 1

 J67110157B ELBOW FITTING 1

 J6712008A PLUG [PT 1/8] 3

 J6713048A MULTI TUBE[UML-408 (BL-BK6-BL)] 3.5

 J67070018B VACUUM GENERATOR[VKME10A-0418S-3] 1

 J90831313C AIR_INDICATOR_CABLE_ASSY 1

 J6713016A AIR TUBE (POLYURETHANE) 7 Only Indication

J6713017A AIR TUBE (POLYURETHANE) 5 Only Indication

 J6713018A AIR TUBE (POLYURETHANE) 5 Only Indication

J6711018A UNION Y FITTING[KQ2U04-00] J6711168A

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5]

 J1300276 FITTING [KQ2L06-01/PL6-01] 5

 J67110119B UNION Y FITTING J6711019A

 J6703033A SPEED CON[AS2201F-01-06S] 1

 J90571005A DOCKING_BLOCK_ASSY_LEFT 1 J9057168B

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J6703034A SPEED CON[ASP330F-01-06S] 1

 J90830204C DOCKING CART I/F CABLE ASSY J9057180A

 J6711257A PLUG[KS-4-M5-SA34698KR] 2

 J9057172B DOCKING BLOCK ASSY(RIGHT)[J9057172B] 1

 J6711256A COUPLER[KD-M5-SA34697KR] 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

 J6711247A ELBOW FITTING[PT18EF] 2

 J6711009A ELBOW FITTING [KQ2L06-M5] 1

 J67050004B SILENCER AN101-01 1 J6705004A

 J1300284 FITTING [KQ2U06-00/PY6M] 5

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 2

 J6703037A CHECK VALVE[AKH06-00] 1

 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 2

 J6712008A PLUG [PT 1/8] 3

J67090018B REGULATOR[AR10-M5BG] 1 J6709018A

 J6711009A ELBOW FITTING [KQ2L06-M5] J1300277

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J6701087A EDGE CYLINDER[CQ2B6-CJJC2948] J6701037B

 J67011064A AIR CYLINDER BDAS 10X5-1A-ZC153A2 1 J90807788

 J6703028A SPEED CONTROLLER [SS4-M5MA] 2

 J67011058A STOPPER CYLINDER 2 WTSA10X40-1004WS 1 J6701018B

 J6703007A THROTTLE VALVE(ELBOW) 1 J1301354

 J67010088B CYLINDER CM2C32-50-XC3BB 1 J6701088A

 J6711028A ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

 J67020050C SOL VALVE MODULE J6702050A

 J1300279 FITTING [KQ2S04-M5/POC4-M5M ]

J6701028A, AIR CYLINDER BDAS 6X15-CS11TA2 1 J9080762A

J6711156A HOSE NIPPLE [M-5H-4](D/C) 1

 J6711132A, FITTING [M-5HL-4] J1300120

 J67031006A SPEEDCONTROL AS1001F-04

 J67111068A BARB_FITTING M-3ALU-4

 J671110180C ROTARY JOINT RC3-M5M-STN J6711180B

 HP04-000018A FILTER,AIR-FILTER ELEMENT 1

 J6711141A STRAIGHT FITTING [M-5AU-4] 1

 HP14-000163 VALVE,SOLENOID-MAC_solenoid valve 1

 J67111151A M_FITTING M-3AU-4 1

 HP14-000206 VALVE-BLOW_VALVE 6

 HP06-000104 FITTING-FITTING;ELBOW,ONE TOUCH M5,4 2

 J3204002A AIR PRESSURE SENSOR [MPX5100AP] 6

Air Ass’y SM421F

J6701028A AIR CYLINDER BDAS 6X15-CS11TA2 J9083179A

 J6711156A HOSE NIPPLE [M-5H-4](D/C) 1

 J6711132A FITTING [M-5HL-4] J1300120

 J9060412A SM321 VACUUM SENSOR BD J9060337A

 J67110180C ROTARY JOINT J67111808

 J3204002A AIR PRESSURE SENSOR [MPX5100AP] 6

 AM03-003693A ASSY AIR SM421F AIR MODLUE MAC_SMC J904426E

X-Y Frame Ass’y

A-1 J90541020A X-Y_ASSY J90541020A 1

 J7054256A CUSHION BRACKET Y[J7054256A] 1

 J7354024A CABLE CUSHION Y[J7354024A] 1

 J3212022A LIMIT SENSOR [EE-SX674] 3

 J7354023A CABLE CUSHION X[J7354023A] 3

 J71541083B GUIDE_CABLE_CHAIN_X 1

 FC11-000005A Y2_PLATE 1 J71541082B

 J71541081A Y1_PLATE 1 J71541081B

 J7154268A HEAD_BASE 1 J71541020B

 J7054255A CUSHION BRACKET X[J7054255A] 3

 J70541129B SENSOR_DOG_Y 1

 J70541116A COVER_Y_CABLE_DUCT_BRK J70541116A 1

 FC09-001021A BKT_CABLE_CHAIN_Y J70541114A 1 J70541114A

 J70541038A SENSOR_DOG_X J70541038A 2

 J66070076A LM_GUIDE [SSR15X2W2UUC1+940LHY-II] 2 J66070076B

 J72540016E INNER GUIDE-MAT 3

 J71541086A HEAD_TOP_COVER J71541086A 1

J73541001A CUSHION_X_REAR J72541011A 1 J72541011A

 J71541010A BRG_HOUSING-X J71541010A 1

 J71541009A BRG_SUPPORT-X J71541009A 1

 J66061014B X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1

 J6601138A SUPPORT_UNIT FK12-MP5 1 J66011017A

 J6601008A BALL BEARING 1 J1300509

 J1300517 C-RING [10mm (SHAFT)] 1

 J1300502 PIN DOWEL [MS5-10] 4

 J6612035A COUPLING 1

 J3108063A SERVO MOTOR[MSMA082P1A01] 1 J31081055A

 J73541002A CUSHION_X_FRONT J72541003A 1 J72541003A

J3212022A LIMIT SENSOR [EE-SX674] 3

J70541120C BS_REAR_SUPPORT 1

 J70541119B BRG_SUPPORT_X 1

 J70541121B BRG_INNER_SPACER 3

 J70541122B BRG_OUTER_SPACER 1

 J70541123C BEARING_COVER_Y 1 J70541123B

 J6608003A BEARING NUT[RN15] 1

 J66011036A ANGULAR_CONTACT_BALL_BEARING 7002CTYNDBM 2

 J72541012A STOPPER_Y_BALL_SCREW J72541012A 1

 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1

 J71541087B STOPPER_EXT_Y_BALL_SCREW 1

 J70541005C Y_MOTOR_BLOCK 1

 J66061021A BALL_SCREW SBK2030ZS-3.4GT+1230LC5 1

 J6601124A SUPPORT UNIT[FK-15] 1

 J70541115A COVER_BKT J70541115A 2

 J6061601000 DOWEL PIN [MS6-10] 5

 J6612036A COUPLING 2

 J31081056A SERVO MOTOR[MSMA102P1C01] 2 J3108064A

J70541012E Y_CABLE_DUCT_SUPPORT 1 J70541012B

 J70541101E CONNECTOR_PANEL-Y 1 J70541101D

 J7054256A CUSHION BRACKET Y[J7054256A] 1

 J7354024A CABLE CUSHION Y[J7354024A] 1

 J70541104B VACUMM_GEN_BKT 1

 J66070077B LM_GUIDE[SSR25XW2UU+1480LHY-II] 1

 J67071009A VACUUM GENERATOR 1

 J6708020A VACUUM PART 1

Fixed ANC Assy

A-1 AM03-001536A ANC ASSY[J9056038A] 1 J9056038A

 J6703028A SPEED CONTROLLER [SS4-M5MA] 2

 J7156053B ANC SUPPORT [J7156053A] 1 J7156053A

 J7156087A SHUTTER BRACKET[J7156087A] 1

 J71561016A ANC PLATE 1 J7156093A

 J71561036A NOZZLE_SHUTTER_SMALL_PIN J71561036A 1 J7156094A

 J71550564F MAIN BODY[J7156095A] 1 J7156095A

 J6701064A AIR CYLINDER[BDAS10*5-1A-ZC153A2] 1

 J9080778B ANC SENSOR CABLE ASSY 1

Window Ass’y

A-1 J90521018A ACRYL_DOOR_ASSY_STD J90521018A 1

 J90521002B ACRYL_DOOR_ASSY 2

 J72521005B ACRYL_COVER J72521005A 1

 J70521087A WINDOW_HINGE J70521087A 3

 J70521050D ACRYL_COVER_HANDLE 1 J70521050C

 J70521081B GAS_SPRING_BRACKET2 2

 J64021035A HANDLE A-2 1 J6119051A

A-2 J90521019A ACRYL_DOOR_ASSY_ESD J90521019A 1

Cover Ass’y

A-1 J90521032A COVER_ASSY-SM421 J90521032A 1

 J70521026F UPPER_COVER_FR 2

 J91651041A COVER FRAME TOP 1 ASSY 2

 J70521039C TOP SIDE COVER R 1 J70521039B

 J3212049A AREA SENSOR 4

 J70521040C TOP SIDE COVER L 1 J70521040B

 J70521027B UPPER COVER FL 2

 J91651046A COVER FRAME SUB R ASSY 1

 J70521376C COVER FRAME REAR R 1 J70521376B

 J70521379C COVER FRAME FRONT L 1 J70521379B

 J91651047A COVER FRAME SUB L ASSY 1

 J70521378B TOP COVER-2 1

 J7070297A MONITOR CABLE COVER 1

 J73520001B DOOR CUSHION 4

 J70521053B CONVEYOR COVER 2

 J70521038B UPPER SIDE COVER 2

A-2 J90721029A NON SCANNER ASSY 1 OPTION

A-3 J91731033A AREA SENSOR ASSY 1

 J67191061A GAS SPRING 4

 J70521075D GAS SPRING BRACKET1 4

 J70521158A LCD HINGE PLATE 1

 J70521059A LCD BRACKET 1

 J7252061A PAD BRACKET 2

 J53011032A LCD_MONITOR_15 1 J53011015A

 J70521373A MONITOR GUIDE PL 1

 J70521112C KEYOARD BASE 1

 J70521113C KEYBOARD BASE BRACKET 1

 J90511018B DOOR SWITCH ASSY 2

 J52011002A MINI_KEYBOARD 5510UH 1 J5201009A

 J52021011A OPTICAL_MOUSE J52021011A 1 J5202023A / J52021006A

 J6404001A DOOR KEY 2

J1300101 DRAWER PULL 4

 J70521033B COVER LFM 2

 J70521390A LOWER OPEN DOOR A 1

 J70521386A LOWER CABLE DUCT R-2 1

 J70521387A LOWER CABLE DUCT L-2 1

 J70521391A LOWER OPEN DOOR B 2

 J70521383B LOWER COVER L-2 2

 J70521382B LOWER COVER R-2 1

 J70521388A CATCH BRACKET F-2 4

 J70521389A CATCH BRACKET R-2 4

 J70521392A INNER SIDE COVER R-2 2

 J70521393A INNER SIDE COVER L-2 2

 J70521385B LOWER COVER RL-2 1

 J70521049B SIDE COVER SUPPORT 2

 J70521045B BOTTOM COVER FR 1

 J70521046B BOTTOM COVER FL 1

 J70521047B BOTTOM COVER FR 1

 J70521048B BOTTOM COVER RL 1

 FC15-000461A COVER-LOWER_SIDE_COVER-R 1 J70521034D

 FC15-000462A COVER-LOWER_SIDE_COVER-L 1 J70521035D

 J70521036D LOWER SIDE COVER 2

 J64091022A SLIDE_LATCH 3

Control Rack Ass’y

A-1 AM03-000971A SM421_PC_VME_RACK_MODULE_ASSY J91731018A 1 J91731018A

 J91741034A_AS MVME3100_SM4XX 1 J90600418B / J81001858A / EP06-000090 Including a DDR_SDRAM_1GB

 J91741063A PMC NVRAM BOARD 1

 J61110006B PC/VME DUO RACK 1

 J48091057A VME BACKPLANE 1

 J6102017A PC SLIDE RAIL[3832B-18] 1

 J90990193B VME RACK ASSY 1

 J70601002A RACK_DUCT RACK_DUCT 1

 J3105022A DC FAN(VME)[EC8015L12B(15mm)] 3

 J3105024A CASE FAN 4 J3105023A

 J44021035A Q_PWR_SUPPLY 1 J44021024A

 J48011002A_AS SBC NuPRO-935A/DV 1 J48011002A

 CD03-000025 HARD_DRIVE WD2500BPVT 1 J51011014A / J51011015A

 J54011017A HDD_RACK SKG-2400 SATA 1

 J91741032A SM421_TWIN_SERVO_BOARD VER1.0 1

 J91741044B SM421VME_IO_ILL_BOARD_ASSY VER1.0 1 J91741044A

 J91741043A MEGA_VISION_IF_BOARD_ASSY VER1.0 1

 J91741011B SM321_CAN_MASTER_BOARD VER1.0 1 J91741011A

 AM03-000971A SM411_SM421_PCI_IO_BOARD VER2.0 1 J9060193B /J91741094A

 J31051003A CPU_COOLER CRUX P5M2 1

 J91741014B X7043_SEDES_BOARD VER1.0 1 J91741014A

 J91741017C X7043_SEDES_SLAVE_BOARD VER1.0 1 J91741017B

 J91741041A STEP_AXIS_BOARD_ASSY VER1.0 1

 J9080922A BARCODE READER POWER CABLE ASSY[SM-IT001 1 Only Indication

 J90831109A NEXTEYE_BD_I-F_CABLE_ASSY_MEGA SM33-VIS0 1

 J49011015A CPU CORE 2 DUO E7500 (2.93GHZ)

 J50011006A SDRAM M378T2863-CF7

J91741002B SAMC-ME 6CH 2 Mega

J91741037B SAMC-62 2 Non-Mega

 EP10-000753 HPCI-6S4-076um 1 J48091062A

 HP04-000074 FAN_FILTER_ METAL_80mm 1

 EP10-000749 MR-100 2

 FC29-000042 DUST_CAP_PA10_RUBBER 5

Electric Panel Ass’y

A-1 J90781005A REAR_ELECTRIC_PANEL_ASSY J90781005A 1

 J3501040A MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 1

 J3603015A CIRCUIT PROTECTOR[C60a-2P-C16(23812)] 1

 J3603016A CIRCUIT PROTECTOR[C60a-3P-C16(23825)] 1

 J3601018A FUSE[250V 5A] 3

 J3601019A FUSE[250V 10A] 2

 J3716042A STOPPER[UA-51] 2

 J3716044A TEMINAL BLOCK[WDU 2.5] 63

 J3716046A END PLATE[WAP2.5-10] 13

 J3716047A CROSS CONNECTION[ZQV2.5] 5

 J3716067A FUSE TERMINAL BLOCK[ASK 1] 5

 J91741087A SAFETY_CONTROL_DC_POWER_BOARD 1

 J7251007A BOARD COVER[J7251007A] 1

 J3105010A COOLING FAN[4715MS-22T-B50] 2

J90511022A HEAD R MOTOR DRIVER ASSY 1

 J31531049A SERVO MOTOR DRIVER(750W)[MCDDT3520] 1 J3153056A

 J31531050A SERVO MOTOR DRIVER(1KW)[MDDDT5540] 2 J3153057A

 J31531051A SERVO MOTOR DRIVER(100W)[MADDT1205] 1 J3153055A

AM10-000107A RELAY 1

Electric Device Ass’y

A-1 J91681007A ELECTRIC_DEVICE_ASSY J91681007A 1

AM03-001243A SM421N_ELECTRIC_DEVICE_ASSY 1 SM421N

J91681020A SM421F_ELECTRIC_DEVICE_ASSY 1 SM421F

 J52011002A MINI_KEYBOARD 5510UH 1

 J53011032A LCD_MONITOR_15 1 J53011015A

 J31091015A FAN FILTER 120MM(NMB) 2 J6309025A

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 1

 J47131010A TOWER_LAMP PTE-APV-302-RYG(510) 1

 J90601023B TEACHING_BOX 1

 J52021011A OPTICAL MOUSE 1 J52021006A

 J3406005A LOAD SWITCH 1 J34060005B

 J3409029A KEYLOCK SWITCH[AS6M-2KT2PB] 1

 HP04-000075 FAN FILTER_ METAL_120MM 2

J7152027A GROUND TERMINAL [J7152027A] 1

 J3603020A MAIN CIRCUIT BREAKER[GV2-ME20] 1

 J3716070A PANEL[GV2-AF02] 1

 J3713061A CONNECTOR[555376-1] 1

 J52011002A MINI_KEYBOARD 5510UH 1

 J53011032A LCD_MONITOR_15 1 J53011015A

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 1

 J47131010A TOWER_LAMP PTE-APV-302-RYG(510) 1

 J52021011A OPTICAL MOUSE 1 J52021006A

 J3406005A LOAD SWITCH 1 J34060005B

J91741042A SM421_AXIS_SENSOR_BOARD_ASSY VER1.0 1

 J91741076A CONV_SUB_IF_BOARD 1

 AM03-000900A CAN_CONVEYOR_BOARD 1 J91741049A/ J91741049B

 J26051012A TRANSFOMER 5KVA, 3PHASE 1 J26051001A

 J29011001A NOISE_FILTER UF20TBH 1

 J44011001C POWER_SUPPLY 2

 J31531003A SERVO MOTOR DRIVER 6 SM421F Q'TY : 4EA

 J90541010A DRIVER_BOX_ASSY J90541010A 1

 J70541034B DRIVER_BOX_BASE 1

 J70541035B DRIVER_BOX_COVER 1

 J70541036A DRIVER_BOX_PLATE J70541036A 1

 J70541037A SEDES_SLAVE_BOARD_BK J70541037A 1

 J6103013A HEX SUPPORT[M3*50 (BOLT-NUT)] 4

 J6103023A HEX SUPPORT [M3*20 (BOLT-NUT)] 4

 AM03-000819A ASSY,BOARD-FEEDER IO BOARD ASSY 1 J9060338A/ J91741070B/ J91741165A

J90601060A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1 J90511020A

 J31521022A STEP_MOTOR_DRIVER_2AXIS 3 J31521002B

 J90511022A HEAD_R_MOTOR_DRIVER_ASSY J90511022A 1

 J31521016A R_AXIS_DRIVER_MD5_HD14_3X MD5_HD14_3X 1

Cable Ass’y

J67020050C SOL VALVE MODULE 1

J70521025B SM330_LOWER_OP_PANEL 1

 J32110015B PHOTOELECTRIC SWITCH 2

 FC09-000977A FRONT SENSOR BKT2 2 J70540267B

VME IO Board Interface

 AM03-003704A VME_IO_BD_POWER_CABLE_ASSY 1

 AM03-003910A CABLE ASSY-FIX ILL IF 1

 AM03-003617A CABLE ASSY-BD_PW_SC_J4 1

 AM03-003561A CABLE ASSY-FIX_ILL_IF_EXT 1

 AM03-003562A CABLE ASSY-HD_VAC_BLOW_CONT 1

 AM03-003563A CABLE ASSY-HD_VAC-BLOW_CONT_EXT 1

 J90831427C AXIS_VME_IF_CABLE_ASSY 1

Front Feeder Board Interface

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1

 AM03-003557A CABLE ASSY-FFDR_RFDR_CAN 1

 AM03-003558A CABLE ASSY-FFDR_RFDR_CAN_EXT 1

 AM03-003555A CABLE ASSY-MASTER_FFDR_CAN_EXT 1

 AM03-003554A CABLE ASSY-MASTER_FFDR_CAN 1

 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1

 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1

 J90831336C FRONT_FDR_IO_BD_PWR_CABLE_ASSY 1

AM03-003607A CABLE ASSY-F_FDR_BASE_PW_J6 1

Front Feeder Board Interface SM421S

J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1

 AM03-004909A CABLE ASSY-FFDR_CVIF_CAN_5 1

 AM03-003555A CABLE ASSY-MASTER_FFDR_CAN_EXT 1

 AM03-003554A CABLE ASSY-MASTER_FFDR_CAN 1

 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1

 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1

 J90831336C FRONT_FDR_IO_BD_PWR_CABLE_ASSY 1

AM03-003607A CABLE ASSY-F_FDR_BASE_PW_J6 1

Rear Feeder Board Interface

J90833700A FDR_SOL_OUTPUT_CABLE_ASSY SM421FC_FD001 1

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1

 AM03-003554A CABLE ASSY-MASTER_FFDR_CAN 1

 AM03-003555A CABLE ASSY-MASTER_FFDR_CAN_EXT 1

 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1

 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1

J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1

AM03-003608A CABLE ASSY-R_FDR_BASE_PW_J4 1

Conveyor Board Interface

AM03-003620A CABLE ASSY-FL_CAN_HD_SOL_PW_J7 1

 AM03-003601 CABLE ASSY-CVIF_FL_CAN_J7 1

 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1

 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1

 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 J90831316B CONV_SW_OUTPUT_CABLE_ASSY 1

AM03-003620A CABLE ASSY-FL_CAN_HD_SOL_PW_J7 1

 AM03-003540A CABLE ASSY-TOWER_LAMP_EXT 1

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1

 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY 1

 AM03-003871A CABLE ASSY-PLACE STOPPER SENSOR 1

 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1

AM03-003869A CABLE ASSY-BUT SENSOR 1

 AM03-003870A CABLE ASSY-BUT SENSOR EXT 1

 AM03-003595A CABLE ASSY-ANC_SENSOR_EXT 1

 J9080778B ANC SENSOR CABLE ASSY[SM-CV010] 1

AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1

AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1

 AM03-003597A CABLE ASSY-FRONT_ARPC_SENSOR_EXT 1

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1

 AM03-003598A CABLE ASSY-RPCR_ARPC_SENSOR_EXT 1

 J90831141A REAR_AREA_SENSOR_CABLE_ASSY SM33-CV018 1

 J90831142A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019

 J90831143A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1

 AM03-003611A CABLE ASSY-T_BOX_HOST_J2 1

 AM03-003615A CABLE ASSY-F_T_BOX_HOST_J2 1

 AM03-003545A CABLE ASSY-SERIAL_COMM_EXT 1

 AM03-003544A CABLE ASSY-SERIAL_COMM_RACK 1

 AM03-003620A CABLE ASSY-FL_CAN_HD_SOL_PW_J7 1

 AM03-003606A CABLE ASSY-HD_AIR_SOL_PW_J7 1

Conveyor Board Interface SM421S

AM03-003620A CABLE ASSY-FL_CAN_HD_SOL_PW_J7 1

 AM03-003601 CABLE ASSY-CVIF_FL_CAN_J7 1

 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1

 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 J90831316B CONV_SW_OUTPUT_CABLE_ASSY 1

 AM03-004909A CABLE ASSY-FFDR_CVIF_CAN_5 1

AM03-003620A CABLE ASSY-FL_CAN_HD_SOL_PW_J7 1

 AM03-003540A CABLE ASSY-TOWER_LAMP_EXT 1

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1

 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY 1

 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY 1

 AM03-003871A CABLE ASSY-PLACE STOPPER SENSOR 1

 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1

AM03-003869A CABLE ASSY-BUT SENSOR 1

 AM03-003870A CABLE ASSY-BUT SENSOR EXT 1

 AM03-003595A CABLE ASSY-ANC_SENSOR_EXT 1

 J9080778B ANC SENSOR CABLE ASSY[SM-CV010] 1

AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1

AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1

 AM03-003597A CABLE ASSY-FRONT_ARPC_SENSOR_EXT 1

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1

 AM03-003598A CABLE ASSY-RPCR_ARPC_SENSOR_EXT 1

 J90831141A REAR_AREA_SENSOR_CABLE_ASSY SM33-CV018 1

 J90831142A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019

 J90831143A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1

 AM03-004914A CABLE ASSY-CVIF_TBOX 1

 AM03-003545A CABLE ASSY-SERIAL_COMM_EXT 1

 AM03-003544A CABLE ASSY-SERIAL_COMM_RACK 1

 AM03-003620A CABLE ASSY-FL_CAN_HD_SOL_PW_J7 1

 AM03-003606A CABLE ASSY-HD_AIR_SOL_PW_J7 1

Head illumination Board Interface

J9060404A HEAD SIDE LED ASSY[SM21-HEAD-SIDE] 1

 J90600403C FIDUCIAL OUTER LED ASSY SM21-FIDU-OUTER 1 J90600403B

 J90600402B FIDUCIAL INNER LED ASSY 1 J9060402A

 J90830173B HEAD SIDE/OUTER ILL CABEL ASSY 1

 J90831031C HDIO-HILL_CAN_CABLE_ASSY 1

 J90831033C HEAD_IO-ILL_POWER_CABLE_ASSY 1

Head IO Board Interface

J9083185A SW HOME SENSOR CABLE ASSY[SM21-HD014] 1

 J9083184A R HOME SENSOR CABLE ASSY[SM21-HD013] 1

 J9083180A Z HOME SENSOR CABLE ASSY[SM21-HD008] 1

 J90830179B CONNECTOR_PANNEL 1 J9083179A

 J90831307A R-AUX-SENSOR-CABLE-ASSY SM41-HD005 1

 J90830177B SIDE ILL UP/DN SOL CABLE ASSY SM21-HD002 1

 J90831031C HDIO-HILL_CAN_CABLE_ASSY 1

 J90831033C HEAD_IO-ILL_POWER_CABLE_ASSY 1

 J90831308B HEAD-VAC-SENSOR-CABLE-ASSY 1

 J90830179B CONNECTOR_PANNEL 1 J9083179A

 J90830182C HEAD VAC SENSOR CABLE ASSY 1

 J90831300E FLAT-CABLE-ASSY 1 J91672891A

J90831300E FLAT-CABLE-ASSY 1

Axis Sensor Board Interface

AM03-003506A CABLE ASSY-AXIS_SENSOR_BD_PW_J1 1

 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 J90831425D Y_AXIS_SENSOR_CABLE_ASSY 1

 AM03-003576A CABLE ASSY-WD_AXIS_SENSOR 1

 AM03-003577A CABLE ASSY-WD_AXIS_SENSOR_EXT 1

 J90831428C CONVEYOR_SENSOR_IF_CABLE_ASSY 1

J90831427C AXIS_VME_IF_CABLE_ASSY 1

 AM03-003594A CABLE ASSY-FEEDER_UNLOCK_SENSOR 1

Axis Sensor Board Interface SM421S

AM03-003506A CABLE ASSY-AXIS_SENSOR_BD_PW_J1 1

 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 J90831425D Y_AXIS_SENSOR_CABLE_ASSY 1

 AM03-003576A CABLE ASSY-WD_AXIS_SENSOR 1

 AM03-003577A CABLE ASSY-WD_AXIS_SENSOR_EXT 1

 J90831428C CONVEYOR_SENSOR_IF_CABLE_ASSY 1

J90831427C AXIS_VME_IF_CABLE_ASSY 1

 AM03-003594A CABLE ASSY-FEEDER_UNLOCK_SENSOR 1

Servo Interface (Y1,Y2 )

AM03-003564A CABLE ASSY-Y1-Y2_DRV_CMD_RACK 1

 AM03-003565A CABLE ASSY-Y1-Y2_DRV_CMD_EXT 1

 J90831361B Y1_SERVO_POWER_CABLE_ASSY 1

 AM03-003559A CABLE ASSY-Y1_MOTOR_ENC 1

 AM03-003560A CABLE ASSY-Y1_MOTOR_ENC_EXT 1

 AM03-003497A CABLE ASSY-Y1_MOT_PW_T1 1

 AM03-003484A CABLE ASSY-XY1_MOT_R_MON_PW_T1 1

 J90831445A Y1_REGEN_RESISTOR_CABLE_ASSY SM41-MD036 1

 J90831360B X-Y2_SERVO_POWER_CABLE_ASSY 1

 AM03-003586A CABLE ASSY-Y2_MOTOR_ENC 1

 AM03-003587A CABLE ASSY-Y2_MOTOR_ENC_EXT 1

 AM03-003507A CABLE ASSY-Y2_MOT_PW_T4 1

 AM03-003487A CABLE ASSY-Y2_WD_MOT_F_MON_PW_T4 1

 J90831446A Y2_REGEN_RESISTOR_CABLE_ASSY SM41-MD037 1

Servo Interface ( X, SW)

AM03-003570A CABLE ASSY-X-S_DRV_CMD_RACK 1

 AM03-003571A CABLE ASSY-X-S_DRV_CMD_EXT 1

 J90831360B X-Y2_SERVO_POWER_CABLE_ASSY 1

 AM03-003549A CABLE ASSY-X_MOT_ENC 1

 AM03-003550A CABLE ASSY-X_MOT_ENCEXT 1

 AM03-003496A CABLE ASSY-X_MOT_PW_T1 1

 AM03-003484A CABLE ASSY-XY1_MOT_R_MON_PW_T1 1

 J90831359B SW-WD_SERVO_POWER_CABLE_ASSY 1

 AM03-003574A CABLE ASSY-SW_MOTOR_ENC 1

 AM03-003575A CABLE ASSY-SW_MOTOR_ENC_EXT 1

 AM03-003508A CABLE ASSY-SW_MOT_PW_T2 1

 AM03-003485A CABLE ASSY-PS12_SW_MOT_PW_T2 1

Servo Interface (Z1, Z2, Z3 )

J90831392B Z3_MOTOR_ASSY 1 J90831392A

 J90831391B Z2_MOTOR_ASSY 1

 J90831390B Z1_MOTOR_ASSY 1

 J90831297B R1R3R5_DRV_COMMAND_CABLE_ASSY 1

 J90831387C HEAD_NETWORK_SERIAL_CABLE_ASSY 1

Servo Interface (Z4, Z5, Z6 )

J90831395B Z6_MOTOR_ASSY 1

 J90831394B Z5_MOTOR_ASSY 1

 J90831393B Z4_MOTOR_ASSY 1

 J90831297B R1R3R5_DRV_COMMAND_CABLE_ASSY 1

 J90831387C HEAD_NETWORK_SERIAL_CABLE_ASSY 1

Servo Interface WD

J90831383E WD_DRV_COMMAND_CABLE_ASSY 1

 J90831296E X_MOTOR_ENC_CABLE_ASSY 1

 J90831452E WD_MOTOR_ENC_CABLE-ASSY 1

 J90831359B, SW-WD_SERVO_POWER_CABLE_ASSY 1

Step motor Interface ( R1-2, R3-4, R5-6 )

AM03-003551A CABLE ASSY-R1R3R5_DRV_CMD_RACK 1

 AM03-003552A CABLE ASSY-R1R3R5_DRV_CMD_EXT 1

 J90831340B R-STEP-DRIVER_POWER_CABLE-ASSY 1

 AM03-003584A CABLE ASSY-R_STEP_MOT_PW_DRV 1

 AM03-003585A CABLE ASSY-R_STEP_MOT_PW_EXT 1

 J90831437C R_STEP_MOTOR_PWR_CABLE_ASSY 1

 J90830190B R12_MOTOR_CABLE_ASSY 1

 J90831009B R34_MOTOR_CABLE_ASSY 1

 J90831010B R56_MOTOR_CABLE_ASSY 1

Step Motor Interface ( Conveyor Belt )

AM03-003568A CABLE ASSY-CONV_BELT_CMD_RACK 1

 AM03-003569A CABLE ASSY-CONV_BELT_CMD_EXT 1

 J90831341E CONV-BELT-STEP-POWER-CABLE-ASSY 1

 AM03-003578A CABLE ASSY-CONV_BELT12_MOTOR_PW 1

 AM03-003579A CABLE ASSY-CV_BELT12_MOTOR_PW_EXT 1

 AM03-003904A CABLE ASSY-CONV_BELT2_MOT_PW 1

 AM03-003905A CABLE ASSY-CV-BELT2_MOT_PW_EXT 1

 AM03-003582A CABLE ASSY-WORK_BELT12_MOTOR_PW 1

 AM03-003583A CABLE ASSY-WORK_BELT12_MOTOR_PW_EXT 1

 AM03-003908A CABLE ASSY-WORK_BELT2_MOT_PW 1

 AM03-003909A CABLE ASSY-WORK_BELT2_MOT_PW_EXT 1

 AM03-003580A CABLE ASSY-CV_BELT34_MOTOR_PW 1

 AM03-003581A CABLE ASSY-CV_BELT34_MOTOR_PW_EXT 1

 AM03-003906A CABLE ASSY-CV_BELT4_MOT_MOT_PW 1

 AM03-003907A CABLE ASSY-CV_BELT4_MOT_MOT_PW_EXT 1

 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 J90831439B

 J90831440B_AS CONV_BELT2_STEP_MOTOR_ASSY 1 J90831440B

 J90831432B WORK_BELT1_STEP_MOTOR_ASSY 1

 AM03-001513A ASSY,ETC,IMS-STEP_MOTOR_ASSY[SM41-MD018] 1 J90831441B

 J90831430B_AS CONV_BELT3_STEP_MOTOR_ASSY 1 J90831430B

 J90831431B_AS CONV_BELT4_STEP_MOTOR_ASSY 1 J90831431B

Vision Board Interface

AM03-001506A CABLE ASSY-FLYING CAMERA IF CABL 1

 J90831378F FLY_CAM_SIG_EXT_CABLE_ASSY[SM41-VIS009] 1

 J90831109A NEXTEYE_BD_I-F_CABLE_ASSY_MEGA SM33-VIS0 1

 J90831370D FIDUCIAL_CAMERA_CABLE_ASSY 1 J90831370B / J90831370C

 J90831371C FIX1-2_CAMERA_CABLE_ASSY 1 J90831371A / J90831371B

 J90831377C FLY_CAM_PWR_SYNC_CABLE_ASSY 1

 J90831379D FLY_CAM_SIG_CABLE_ASSY 1

 J90831376B FLY_CAM_PW_SYNC_EXT_CABLE_ASSY 1

 J90831375B FLAT_FIDUCIAL_CAM_CABLE_ASSY 1

 J90831101B NEXTEYE_BD_I-F_CABLE_ASSY_HR70 SM33-VIS0 2 J90831101A

Safety Control Board Interface

AM03-003486A CABLE ASSY-PS1_SC_Z_DRV_PW_T3 1

 AM03-003500A CABLE ASSY-SC_BD_PW_T3 1

 AM03-003638A CABLE ASSY-F_EMDOOR_RPCDY_SW 1

 AM03-003639A CABLE ASSY-F_EMDOOR_RPCDY_SW_EXT 1

 AM03-003862A CABLE ASSY- R_EMDOOR_RPCDY_SW 1

 AM03-003863A CABLE ASSY- R_EMDOOR_RPCDY_SW_EXT 1

AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 AM03-003488A CABLE ASSY-F_OVERRIDE_KEY_EXT_J1 1

 AM03-003506A CABLE ASSY-AXIS_SENSOR_BD_PW_J1 1

 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1

 J90833704A SCANNER_CABLE_ASSY SM421_IT003 1

 AM03-003602B CABLE ASSY-SE_SLAVE_FFDR_PW_J6 1 AM03-003602A

 AM03-003604B CABLE ASSY-F_FDR_IO_BD_PW_J6 1 AM03-003604A

 AM03-003618A CABLE ASSY-FFDB_PW_OP_IF_TBOX_J5 1

 AM03-003607A CABLE ASSY-F_FDR_BASE_PW_J6 1

AM03-003617A CABLE ASSY-BD_PW_SC_J4 1

 AM03-003704A CABLE ASSY-VME_IO_BD_PW_J4 1

 AM03-003605A CABLE ASSY-SE_VME_IO_BD_PW_J4 1

 AM03-003608A CABLE ASSY-R_FDR_BASE_PW_J4 1

 J90831335C MC1-ENABLE-CABLE-ASSY 1

 J90831340B R-STEP-DRIVER_POWER_CABLE-ASSY 1

 AM16-000011A ASSY,CABLE-FRONT OP I/F CABLE ASSY 1

 J90831380C 1_TRAY_FEEDER_CABLE_ASSY 1

 J90831381C 2_TRAY_FEEDER_CABLE_ASSY 1

AM03-003616A CABLE ASSY-OP_IF_SC_J3 1

 AM03-003860A CABLE ASSY- F-OP_IF 1

 AM03-003603A CABLE ASSY-CV_SUB_CONN_J3 1

 AM03-003619A CABLE ASSY-R_OP_IF_TBOX_J5 1

 AM03-003613A CABLE ASSY-SC-RPCR_TBOX_J5 1

 AM03-003609A CABLE ASSY-R_OP_IF_J5 1

 AM03-003612A CABLE ASSY-SC_F_TBOX_J2 1

 AM03-003611A CABLE ASSY-T_BOX_HOST_J2 1

 AM03-003868A CABLE ASSY-CONVEYOR SENSOR EXT 1

 AM03-003861A CABLE ASSY- F-OP_IF_EXT 1

Safety Control Board Interface SM421S

AM03-003486A CABLE ASSY-PS1_SC_Z_DRV_PW_T3 1

 AM03-003500A CABLE ASSY-SC_BD_PW_T3 1

 AM03-003638A CABLE ASSY-F_EMDOOR_RPCDY_SW 1

 AM03-003639A CABLE ASSY-F_EMDOOR_RPCDY_SW_EXT 1

 AM03-003862A CABLE ASSY- R_EMDOOR_RPCDY_SW 1

 AM03-003863A CABLE ASSY- R_EMDOOR_RPCDY_SW_EXT 1

AM03-003614A CABLE ASSY-BD_PW_SC_J1 1

 AM03-003488A CABLE ASSY-F_OVERRIDE_KEY_EXT_J1 1

 AM03-003506A CABLE ASSY-AXIS_SENSOR_BD_PW_J1 1

 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1

 J90833704A SCANNER_CABLE_ASSY SM421_IT003 1

AM03-003602B CABLE ASSY-SE_SLAVE_FFDR_PW_J6 1 AM03-003602A

 AM03-003604B CABLE ASSY-F_FDR_IO_BD_PW_J6 1 AM03-003604A

 AM03-003618A CABLE ASSY-FFDB_PW_OP_IF_TBOX_J5 1

 AM03-003607A CABLE ASSY-F_FDR_BASE_PW_J6 1

AM03-003617A CABLE ASSY-BD_PW_SC_J4 1

 AM03-003704A CABLE ASSY-VME_IO_BD_PW_J4 1

 AM03-003605A CABLE ASSY-SE_VME_IO_BD_PW_J4 1

 J90831335C MC1-ENABLE-CABLE-ASSY 1

 J90831340B R-STEP-DRIVER_POWER_CABLE-ASSY 1

 AM16-000011A ASSY,CABLE-FRONT OP I/F CABLE ASSY 1

 J90831380C 1_TRAY_FEEDER_CABLE_ASSY 1

 J90831381C 2_TRAY_FEEDER_CABLE_ASSY 1

AM03-003616A CABLE ASSY-OP_IF_SC_J3 1

 AM03-003860A CABLE ASSY- F-OP_IF 1

Electric Circuit Diagram

J90831343A MAIN-POWER-CABLE-ASSY SM41-PW001 1

 J90831344B MCCB_NF1-CABLE-ASSY 1

 J90831345A NF1_MAIN_SWITCH_CABLE_ASSY SM41-PW004 1

 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY 1

 J90831347A TRANS_CP1-2_CABLE_ASSY SM41-PW006 1

 J90831348A CP1_TB1_CABLE_ASSY SM41-PW007 1

 J90831349A CP2_TB1-MC1_CABLE_ASSY SM41-PW008

AM03-004120A CABLE ASSY-CONTROL_RACK_PW_EXT 1

 AM03-004119A CABLE ASSY-CONTROL_RACK_PW 1

 AM03-003487A CABLE ASSY-Y2_WD_MOT_F_MON_PW_T4 1

 AM03-003503A CABLE ASSY-F_MON_PW_T4 1

 AM03-003484A CABLE ASSY-XY1_MOT_R_MON_PW_T1 1

 AM03-003504A CABLE ASSY-F_MON_PW_T1 1

AM03-003592A CABLE ASSY-TB1_FUSE 1

 AM03-003485A CABLE ASSY-PS12_SW_MOT_PW_T2 1

 AM03-003499A CABLE ASSY-PS12_PW_T2 1

 AM03-003502A CABLE ASSY-PS2_24V_T3 1

 AM03-003500A CABLE ASSY-SC_BD_PW_T3 1

 AM03-003490A CABLE ASSY-HD_FG_FL_T3 1

 AM03-003501A CABLE ASSY-Z_DRV_PW_T3 1

 AM03-003486A CABLE ASSY-PS1_SC_Z_DRV_PW_T3 1

 J90831353B COVER_FAN_POWER_CABLE_ASSY 1

 J90831354D SERVO_FAN_POWER_CABLE_ASSY 1

 J90831356C SERVO_FAN_FG_CABLE_ASSY 1

 J90831356C SERVO_FAN_FG_CABLE_ASSY 1

J90831359B SW-WD_SERVO_POWER_CABLE_ASSY 1

 J90831360B Y2_SERVO_POWER_CABLE_ASSY 1

 J90831361B Y1_SERVO_POWER_CABLE_ASSY 1

Electric Circuit Diagram SM421N

J90831365A TRANSFORMER_INPUT_EXT_CABLE_ASSY SM41-PW 1

J90831345A NF1_MAIN_SWITCH_CABLE_ASSY SM41-PW004 1

 J90831347A TRANS_CP1-2_CABLE_ASSY SM41-PW006 1

 J90831348A CP1_TB1_CABLE_ASSY SM41-PW007 1

 J90831349A CP2_TB1-MC1_CABLE_ASSY SM41-PW008 1

 J90831344B MCCB_NF1-CABLE-ASSY 1

 J90831343A MAIN-POWER-CABLE-ASSY SM41-PW001 1

J90831362C FRONT_MONITOR_POWER_CABLE_ASSY 1

 J90831363B REAR_MONITOR_POWER_CABLE_ASSY 1

 J90831351B CONTROL_RACK_POWER_CABLE_ASSY 1

J90831352C TB1_PS1-PS2_POWER_CABLE_ASSY 1

 J90831357B PS1_SAFETY_BD_CABLE_ASSY 1

 J90831358C PS2_Z_AMP_DC_POWER_CABLE_ASSY 1

 J90831353B COVER_FAN_POWER_CABLE_ASSY 1

 J90831354D SERVO_FAN_POWER_CABLE_ASSY 1

 J90831356C SERVO_FAN_FG_CABLE_ASSY 1

 J90831228B Z_DRIVER_PW_JUMPER_CABLE_ASSY 1

 J90831356C SERVO_FAN_FG_CABLE_ASSY 1

J90831343A MAIN-POWER-CABLE-ASSY SM41-PW001 1

 J90831344B MCCB_NF1-CABLE-ASSY 1

 J90831345A NF1_MAIN_SWITCH_CABLE_ASSY SM41-PW004 1

J90831350B MC1_TB1_CABLE_ASSY 1

 J90831359B SW-WD_SERVO_POWER_CABLE_ASSY 1

 J90831360B Y2_SERVO_POWER_CABLE_ASSY 1

 J90831361B Y1_SERVO_POWER_CABLE_ASSY 1

Articles of Consumption

A-1 J9055354A NOZZLE ASSY[J9055354A] 1

 J9055134C NOZZLE CN040 ASSY[J9055134C] 6 Only Indication

 J9055136C NOZZLE CN065 ASSY[J9055136C] 6 Only Indication

 J9055256A NOZZLE CN140 ASSY[J9055256A] 2 Only Indication

 J9055351A NOZZLE CN220 ASSY(CERAMIC)[J9055351A] 2 J9055257A Only Indication

 J9068024A CALIBRATION PLATE[J9068024A] 1 Only Indication

A-2 J90641038A SM421_PACKING_BOX_ASSY J90641038A 1

 J3601018A FUSE[250V 5A] 2 Only Indication

 J3601019A FUSE[250V 10A] 2 Only Indication

 J7055140A STEEL BALL [DIA2, SUS304] 20 Only Indication

 J72550021C SILICON TUBE(BLACK 무광) J72550021C 6 J7255076A /J7255021B Only Indication

 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6 Consumables (Replacement: 6 months)

 J7500003B BACK UP PIN[J7500003B] 6 Only Indication

 J8001072A STICKER REMOVER SPRAY [450ML] 1 Only Indication

 J8001073A TRI-FLOW [59ML] 1 Only Indication

 J81000118C CLEANING KIT 1 Only Indication

 J9064035B TOOL SET [J9064035B] 1 Only Indication

 J8001065A DRIVER (+,-) [KL 207(6), 150mm] 1 Only Indication

 J5104001A CD-R (RECORDABLE) [MMI BACKUP CD] 1 Only Indication

 J9055249A LIGHT MAPPING TOOL ASSY[J9055249A] 1 Only Indication

 J9055250A LIGHT MAPPING TOOL ASSY[J9055250A] 1 Only Indication

 J67020048B SOLENOID VALVE VA01PEP34A-1U-F 6 J6702048A Consumables (Replacement: 2 years)

 J6702049A SOLENOID VALVE[RCS242-M3-D24NP] 1 Consumables (Replacement: 2 years)

 J7459062A CALIBRATION NOZZLE[J7459062A]
