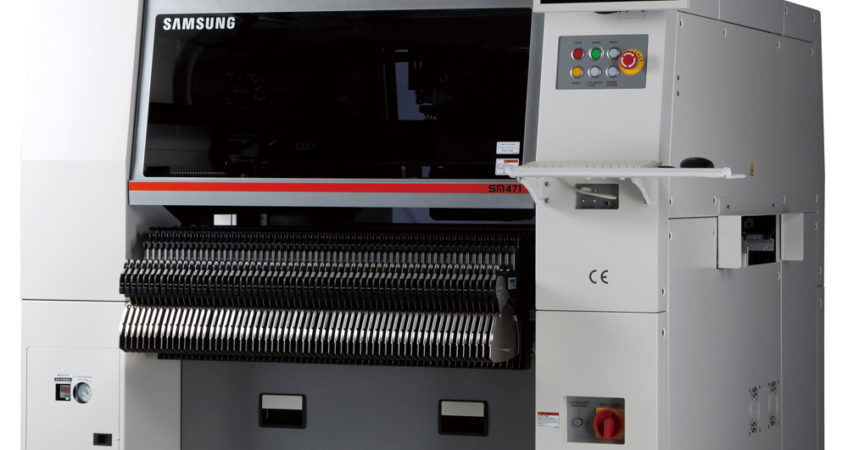

Fast & Flexible Chip Shooter SM471 part

Fast & Flexible Chip Shooter SM471 part

Feeder Base Ass’y-ST

FC07-000033B VERTICAL_PLATE 1

 J70570262C M_90_CAP_TOP_PLATE 5

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2

 FC05-000122A FEEDER_BASE_BODY 1

 J7057213A SIDE CABLE COVER-FB[J7057213A] 2

 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1

 AM03-000694A F_BASE_LEFT_BOARD 1

 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1

 AM03-000693A F_BASE_RIGHT_BOARD 1

Conveyor Ass’y

J71531009A PULLEY_B_M J71531009A 2

J3212002A PHOTO SENSOR 4

 J3212004A PHOTO SENSOR 2

 J1300509 BALL BEARING 4

 J6601109A BALL BEARING[608ZZ] 4

 J2101818 IDLER SHAFT-S 0135-641105 6

 J7053184A SQUARE NUT M4 8

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J1300517 C-RING [10mm (SHAFT)] 1

 J66011019A BEARING 6908ZZ 2

 J66071088A LM_GUIDE_SHUTTLE 2

 J6601134A BEARING[694ZZ] 2

 J66021008A BELT_SHUTTLE_1650 MAM-5P-1169-6W 2

 J66021009A TIMMING_BELT_SW 327-3GT-12 2

 J66021010A TIMMING_BELT_SM 444-3GT-12 1

 J66061005A CYLINDER AQ2A12-30D 1

 J6619031A SUPPORT UNIT[FK-10] 1

 J1300121 ELBOW FITTING [M-5HLH-4] 1

 J6711156A HOSE NIPPLE [M-5H-4](D/C?) 1

 J70531030A SUPPORT_ST_MOTOR J70531030A 1

 J70531031A SM_HOME_SENSOR_DOG J70531031A 1

 J70531032A ST_SENSOR_BRACKET_2 J70531032A 1

 J70531033A ST_SENSOR_BRACKET_1 J70531033A 1

 J70531036A NUT_HOUSING J70531036A 1

 J70531037B MOTOR-BRACKET-SHUTTLE J70531037B 1

 J70531038A MOTOR_BRACKET J70531038A 2

J70531039A ILDER_SPACER_45 8 J66191024A

 J70531043A BRACKET_SHUTTLE_STP J70531043A 1

 J70531044A WD_NUT_BEARING_STOPPER J70531044A 1

 J70531045A W_TENSION_TUBE J70531045A 1

 J70531047A W_TENSION_SCREW J70531047A 1

 J70531048A W_TENSION_PLATE J70531048A 1

 J70531055A SM_R_DOG J70531055A 1

 J66061004A BALL_SCREW 2BTK1405-2.6ZZ+721.5LC7T 1

 J70531072C CNT_PANEL 1

 J32111003A PHOTOELECTRIC_SENSOR 5

 J71531015B SUPPORT_UNIT_ST_TAIL J71531015B 1

 J71531016A PULLEY_SHUTTLE_WIDTH J71531016A 1

 J71531017A PULLEY_S_W_NUT J71531017A 1

 J71531018A ENTRY_PCB_GUIDE_1650 J71531018A 2

 J71531020A ENTRY_FRAME_00_1650 J71531020A 1

 J71531019A ENTRY_FRAME_01_1650 J71531019A 1

 J71531021C BLOCK_SHUTTLE_REAR_LEFT 1

 J71531022A BLOCK_SHUTTLE_FRONT J71531022A 1

 J71531025A PULLEY_SHUTTLE_MOTOR J71531025A 1

 J65041002B CABLE_VEYOR HSP0180_2B_28R_21LINK 2 J65041002A

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

 J31081005A SERVO_MOTOR_PB PBM565DXC26 1

J66191022A IDLER_ASSY_195 A-1_19.5 6 J72531001A / IDLER_2 J72531001A

 J3212002A PHOTO SENSOR 4

 J3212004A PHOTO SENSOR 2

 J1300509 BALL BEARING 4

 J6601109A BALL BEARING[608ZZ] 4

 J2101818 IDLER SHAFT-S 0135-641105 6

 J7053184A SQUARE NUT M4 8

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J71531004B WORK_REAR_FRAME J71531004A 2

 J72531005C DUMP_BOX 2 J72531005A

 J1300517 C-RING [10mm (SHAFT)] 1

 J66011019A BEARING 6908ZZ 2

 J66071088A LM_GUIDE_SHUTTLE 2

 J6601134A BEARING[694ZZ] 2

 J66021008A BELT_SHUTTLE_1650 MAM-5P-1169-6W 2

 J66021009A TIMMING_BELT_SW 327-3GT-12 2

 J66021010A TIMMING_BELT_SM 444-3GT-12 1

 J66061005A CYLINDER AQ2A12-30D 1

 J6619031A SUPPORT UNIT[FK-10] 1

 J1300121 ELBOW FITTING [M-5HLH-4] 1

 J6711156A HOSE NIPPLE [M-5H-4](D/C?) 1

 J70531031A SM_HOME_SENSOR_DOG J70531031A 1

 J70531032A ST_SENSOR_BRACKET_2 J70531032A 1

 J70531033A ST_SENSOR_BRACKET_1 J70531033A 1

 J70531036A NUT_HOUSING J70531036A 1

 J70531037B MOTOR-BRACKET-SHUTTLE J70531037B 1

J70531038A MOTOR_BRACKET J70531038A 2

 J2101818 IDLER SHAFT-S 0135-641105 6

 J70531043A BRACKET_SHUTTLE_STP J70531043A 1

 J70531044A WD_NUT_BEARING_STOPPER J70531044A 1

 J70531045A W_TENSION_TUBE J70531045A 1

 J70531047A W_TENSION_SCREW J70531047A 1

 J70531048A W_TENSION_PLATE J70531048A 1

 J70531055A SM_R_DOG J70531055A 1

 J71531009A PULLEY_B_M J71531009A 2

 J70531072C CNT_PANEL 1 J70531072A

 J66061004A BALL_SCREW 2BTK1405-2.6ZZ+721.5LC7T 1

 J71531015B SUPPORT_UNIT_ST_TAIL J71531015B 1

 J71531016A PULLEY_SHUTTLE_WIDTH J71531016A 1

 J71531017A PULLEY_S_W_NUT J71531017A 1

 J71531018A ENTRY_PCB_GUIDE_1650 J71531018A 2

 J71531020A ENTRY_FRAME_00_1650 J71531020A 1

 J71531019A ENTRY_FRAME_01_1650 J71531019A 1

 J71531021C BLOCK_SHUTTLE_REAR_LEFT 1

 J71531022A BLOCK_SHUTTLE_FRONT J71531022A 1

 J71531025A PULLEY_SHUTTLE_MOTOR J71531025A 1

 J32111003A PHOTOELECTRIC_SENSOR 5

 J65041002B CABLE_VEYOR HSP0180_2B_28R_21LINK 2

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J70531062A SUPPORT_ST_MOTOR_2 J70531062A 1

 J70531076B BRACKET_BD_OUT_SENSOR 1 J70531076A

 J31081005A SERVO_MOTOR_PB PBM565DXC26 1

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

J70531024A BRACKET_TAIL J70531024A 4

 J72531002A BUSH_TAIL J72531002A 4

 J71531010C LM_BASE 2

 J71531006B SUPPORT_BRACKET_L J71531006B 2

 J71531005B SUPPORT_BRACKET_S J71531005B 2

 J66071087A LM_GUIDE_WORK 2

J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2

 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 2

 J71531046B CLAMP_REAR_FRAME 2

 J66141001C LEAD_SCREW 4 J66141001B

 J67011007B CYLINDER CQ2B6-2-CJK2341 2

 J72531001A IDLER_2 5

 J70531021A IDLER_SHAFT_M 4

 J3212002A PHOTO SENSOR 4

 J1300509 BALL BEARING 4

 J66011035A BALL_BUSH LMU5 16

 J6601109A BALL BEARING[608ZZ] 4

 J6703007A THROTTLE VALVE(ELBOW) 2

 J6711001A ELBOW FITTING 4

 J70531039A IDLER_SPACER_45 1

 J70531019A IDLER_SPACER_13 3 J7053048A

 J2101818 IDLER_2 2

 J7053184A SQUARE NUT M4 8

 J7153010B ADJUST SHAFT [J7153010B] 8

 J7153033A BUSH SPACER 8

 J7153034A CLAMP SHAFT 8

 J7153373A FIDUCIAL DISK[J7153373A] 12

 J7253008A STOPPER 8

 J7253009B STOPPER 2 [J7253009B] 8

 J7053047A IDLER_SPACER_S 1

 J70531016B PCB_GUIDE_RC J70531016A 2

 J71531007A PULLEY_WIDTH_MOTOR J71531007A 2

 J70531015A STOPPER_BRACKET_WORK J70531015A 2

J70531050A STOPPER_TOP_PLATE J70531050A 2

 J70531029B STOPPER_POST 2 J70531029A

 J70531014B SUPPORT_FIX_RAIL_LEFT 2 J70531014A

 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 2

 J70531012C SUPPORT_MOVE_RAIL_TL 2 J70531012B

 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 2

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J70531027A TENSION_BRACKET J70531027A 4

 J66021007A TIMMING_BELT_WIDTH 180-3GT-9 2

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J71531024A WIDTH_PULLEY J71531024A 2

 J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 2

 J66021006A BELT_WORK MAM-5P-1550-6W 4

 J71531004B WORK_REAR_FRAME J71531004A 2

 J65041004A CABLE_VEYOR HSP0130-1B-18R-28LINK 2

 J6073010136H C-RING DIA11(HOLE) 8 J6073000036H

 J70531103A CV_SUPPORT_M_RAIL J70531103A 2

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J3211048A PHOTO SENSOR[E3S-LS3N] 4

 J6701018B STOPPER CYLINDER 1 [WTS10*30-RS2] 2

 J71531009A PULLEY_B_M J71531009A 2

 J70531020A IDLER_SPACER_11 5

J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2

 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 2

 J71531045B CLAMP_FRONT_FRAME 2

 J66141001C LEAD_SCREW 4 J66141001B

 J72531001A IDLER 2 6

 J70531021A IDLER_SHAFT_M

 J3212002A PHOTO SENSOR 4

 J1300509 BALL BEARING 4

 J66011035A BALL_BUSH LMU5 16

 J6601109A BALL BEARING[608ZZ] 4

 J6607016A LM SLIDE 4

 J6703007A THROTTLE VALVE(ELBOW) 2

 J6711001A ELBOW FITTING 4

 J71531009A PULLEY_B_M J71531009A 2

 J70531019A IDLER_SPACER_13 6 J7053048A

 J2101818 IDLER_SHAFT_S 8

 J7053184A SQUARE NUT M4 8

 J7153010B ADJUST SHAFT [J7153010B] 8

 J7153033A BUSH SPACER 8

 J7153034A CLAMP SHAFT 8

 J7153036A SLIDE GUIDE 2

 J7153373A FIDUCIAL DISK[J7153373A] 12

 J7253008A STOPPER 8

 J7253009B STOPPER 2 [J7253009B] 8

 J70531017B PCB_GUIDE_FC J70531017A 2

 J71531007A PULLEY_WIDTH_MOTOR J71531007A 2

 J70531015A STOPPER_BRACKET_WORK J70531015A 2

J70531050A STOPPER_TOP_PLATE J70531050A 2

 J70531029B STOPPER_POST 2 J70531029A

 J70531014B SUPPORT_FIX_RAIL_LEFT 2 J70531014A

 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 2

 J70531012C SUPPORT_MOVE_RAIL_TL 2 J70531012B

 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 2

 J70531028A TENSION_BEARING_PIN J70531028A 4

 J70531027A TENSION_BRACKET J70531027A 4

 J66021007A TIMMING_BELT_WIDTH 180-3GT-9 2

 J71531008A PULLEY_W_MOTOR J71531008A 2

 J71531024A WIDTH_PULLEY J71531024A 2

J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 2

 J66021006A BELT_WORK MAM-5P-1550-6W 4

 J71531013B WORK_FRONT_FRAME J71531013A 2

 J65041004A CABLE_VEYOR HSP0130-1B-18R-28LINK 2

 J6073010136H C-RING DIA11(HOLE) 8 J6073000036H

 J70531103A CV_SUPPORT_M_RAIL J70531103A 2

 J31081004A SERVO_MOTOR_PB PBM423DXC24 1

 J31041014A STEP_MOTOR 2S56Q-01842SR2 1

 J3211048A PHOTO SENSOR[E3S-LS3N] 4

 J6701018B STOPPER CYLINDER 1 [WTS10*30-RS2] 2

J72531005C DUMP_BOX 2 J72531005A

 J70531059C DUMP_BOX_SUPPORT J70531059C 2

 J67090018B REGULATOR 2 J6709004A

 J67021005A SOLENOID_VALVE DV1120-00-R3642-3 2

 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 2

Backup Table Ass’y

J70531054A BUT_SENSOR_DOG J70531054A 1

 J70531052C LOWER_PLATE 1 J70531052B

 J70531051C BACK_UP_PLATE 1 J70531051B

 J70531053C UPPER_PLATE 1 J70531053B

 J3212002A PHOTO SENSOR 1

 J6015064000 SHOULDER SCREW[MSB6-40] 2

 J6107047A SPRING[SWU26-70] 1

 J6308003A URETHAN CUSHION[AXNSK15-40] 1

 J6711028A ELBOW FITTING [KQ2L04-01] 2

 J90531003A DRIVING_LINK_ASSY 2

 J7053792A UPPER LINK PIN[J7053792A] 4

 J7053793A LOWER LINK PIN[J7053793A] 2

 J7053796A LOWER LINK SHAFT[J7053796A] 1

 J70530797B LOWER LINK END 1 J7053797A

 J6601005A BALL BEARING 1

 J90531004A FREE_LINK_ASSY 2

 J90531005A BUT_CYLINDER_ASSY 1

 J70530794B CYLINDER JOINT PIN 2

 J7053795A RING FIXER[J7053795A] 3

 J6619062A CYLINDER JOINT[Y-032B] 1

 J67010088B CYLINDER CM2C32-50-XC3BB 1

 J90531006A LOWER_BEARING_ASSY 8

 J7053790A LOWER BEARING HOLDER[J7053790A] 1

 J90531007A UPPER_BEARING_ASSY 8

 J7053791A UPPER BEARING HOLDER[J7053791A] 1

Base Frame Ass’y

J7452019B BRASS PLATE 4

 J7070245A LOWER DOOR BRACKET 4

 J70511046A VIDEO_SPLITER_BKT 1

 FC15-000983A COVER BOTTOM FR 2

 FC15-000985A COVER BOTTOM RR 1

 FC15-000986A COVER BOTTOM RL 1

 J7051010D HOUSING-FOOT 4

 J2100018 NUT-FOOT 4

 J70511014A BOLT_FOOT 4

 J7051008C BASE-FOOT 4

 J7351001A CUSHION FOOT 4

Head Ass’y

FC15-000963A HEAD_TOP_COVER 1

 AM03-005337A HEAD IF BOARD 1

 FC09-001574A HEAD_BOARD_BRACKET 1

 J6103003A HEX SUPPORT 8

 AM03-005341A MOTOR_IF_BOARD 1

 FC09-001568A FLAT_CABLE_BKT 1

 FC09-001573A HEAD_BKT_PANEL 1

 J6119056A HANDLE 1

 FC09-001575A HARNESS_PLATE 1

 FC09-001690A HEAD_BKT_FIX 1

 FC09-001576A MOTOR_IF_BOARD_BKT 2

 J1301070 STRAIGHT_CONNETOR_FITTING 6

 J6719025A GREASE NIPPLE 5

 J67111015A ELBOW_UNION_FEMALE 5

 J71541016A HARNESS_SUPPORT 2

 J70541016A 3-NIPPLE_BRACKET 1

 J70541017A 2-NIPPLE_BRACKET 1

 FC30-000990A IF_BOARD_SHEET 1

 FC30-000991A MOTOR_IF_BOARD_SHEET 1

FC09-001505A Z_SPRING_BKT 1

 FC38-000072A Z_SPRING 10

 J7155541A PIN_Z 10

 J3212027A SENSOR_PM_L24 5

 FC09-001506A Z_SENSOR_BKT 1

 J6103023A HEX SUPPORT 2

 J31081047A SERVO MOTOR 1

J71551021A TIME_MOUNTER_E 2

 FC09-001558A TIE_MOUNT_1 2

 FC09-001562A FLY_IO_TOP_COVER 1

 FC09-001561A FLY_CAM_COVER 1

 J6103003A HEX SUPPORT 8

 AM06-000358A SM400_CAMERA_IO_BD 1

 FC09-001563A FLY_IO_BOTTOM_COVER 1

 FC09-001524A S_STOPPER 2

 FC09-001555A FID_BRACKET_1 1

 J91851019A FIDUCIAL_CAMERA_ASSY 1

 FC09-001567A LIGHT_COVER 1

 EP12-000029A SM411_PLUS_BEAM_SPLITTER 1

 EP12-000030A FOLDING_MIRROR 1

 AM03-005100A SM471_FLY_COAXIAL_PCB_ASSY 1

 FC09-001566A FLY_SIDE_COVER 2

 FC09-001560A FLY_SIDE_PLATE2 1

 FC09-001559A FLY_SIDE_PLATE1 1

 FC09-001516A SM411_PLUS_FLY_OUTER_BRACKET_B 1

 FC09-001848A COAXIAL_PLATE 1

 FC09-001565A BS_CLAMP 2

AM03-005097A SM411_PLUS_OUTER_PCB_ASSY_BB 1

 FC36-000036A SM471_FLY_OUTER_INSULATION_A 1

 EP16-000282A SM411_PLUS_OUTER_PCB_AB 1

 AM03-005095A SM411_PLUS_OUTER_PCB_ASSY_AB 1

 AM03-005089A SM411_PLUS_OUTER_PCB_ASSY_AA 1

 AM03-005090A SM411_PLUS_OUTER_PCB_ASSY_BA 1

 FC09-001515A SM411_PLUS_FLY_OUTER_BRACKET_A 1

 FC09-001554A FID_BRACKET_2 1

 FC30-000975A FID_CAM2_COVER 1

 FC30-000971A COAXIAL_COVER 1

AM03-005340A PRESSURE SENSOR BOARD 1

 J67081017A SUCTION FILTER 10

 HP06-000074 STRAIGHT FITTING 10

 HP09-000328A P_SENSOR_BLOCK 1

 J6711046A BOB ELBOW FITTING 10

 FC09-001523A MANIFOLD_PLATE_2 1

 HP09-000129 HEAD_AIR_MODULE 1

 FC09-001522A MANIFOLD_PLATE_1 1

 HP14-000344 OVER BLOW VALVE 1

 J6712015A PLUG_FITTING 1

 J67111192A ELBOW_FITTING 1

FC09-000490A BRACKET-CAMERA_HOLDER;ALDC12 5

 J67511010A CCD_MEGA_CAMERA CIS_G20S20ASTW 5

 J90591053A FLYING_LENS_ASSY_M J90591053A 5

 FC30-000805A PLATE-MIRROR_MOTOR_BKT 1

 J7255081A MIRROR MOTOR ISOLATOR 1

 J31081057A SERVO_MOTOR 1

 FC09-001553A MIRROR_PIN_3 1

 J7055560A MIRROR SPRING BRACKET[J7055560A] 1

 J7055205A MIRROR_JOINT 1

 J7055204A ARM_JOINT 2

 J7055205A MIRROR_JOINT 1

 J6601080A BALL_BEARING 4

 J7055153A MIRROR_SCREW 2

 MC19-000345A MIRROR_SHAFT 1

 J6601079A BALL BEARING [695ZZ] 4

 J6107044A SPRING 2

 J6601081A CAM FOLLOWER 2

 FC30-000804A MIRROR_LINK_2 2

 FC09-001519A MIRROR_CLAMP_2 1

 FC09-001521A MIRROR_CUSHION 1

 EP12-000030A MIRROR,OPTICS-MTSMUP-HD022A-FOLDING_MIRR 1

 FC09-001518A MIRROR_CLAMP_1 1

 FC15-001001A COVER-MIRROR_COVER 1

 FC09-001517A MIRROR_PLATE 1

 J7055559A MIRROR PIN 2[J7055559A] 2

 J7455026A SPRING BUSH[J7455026A] 2

 J7055557A BEARING HOUSING[J7055557A] 1

J71551026A PULLEY-S_AXIS1 J71551026A 1

 J7155523A PULLEY(S-AXIS) 1

 J6602078A TIMING BELT[255-3GT-6] 1

 MC11-000434A SM411PLUS_CAM 1

 J3212027A MICRO PHOTO SENSOR[PM-L24] 1

 FC09-001557A S_SENSOR_BKT 1

 FC30-000803A MIRROR_LINK_1 1

 FC29-001100A S_SENSOR_DOG 1

EP08-000007 STEP_MOTOR 1

 FC09-001493A Z_SENSOR_DOG 1

 J7155541A PIN_Z 1

 FC09-001491A Z_CAP 1

 J6711046A BOB ELBOW FITTING 1

 MC13-000116 LM_GUIDE 1

 FC29-001047A Z_ROD_HOUSING 1

 FC09-001492A Z_BELT_CLAMP 1

 FC09-001504A REF_PLATE 1

 FC30-000797A INSULATION_PLATE 1

 FC30-000927A BEARING_P_PLATE 1

 MC19-000340A T_MOTOR_PULLEY 1

 J32121021A PHOTO_SENSOR 1

 FC09-001501A T_M_PULLEY_CLAMP 1

 MC05-000117 TIMING BELT 1

 FC09-001502A Z_IDLE_BODY 1

 J66011095A 684ZZ 1

 MC19-000341A Z IDELER PULLEY 1

 J70551874A Z IDLE SHAFT 1

 HP07-000094A Y_PACKING 1

 FC09-001490A LOCK_NUT_Z 1

 FC18-000960 WAVE WASHER 1

 J6601140A BALL_BEARING-684ZZ 2

 FC09-001489A Z_TOP_HOUSING 1

 MC13-000124 BALL SPLINE ASSY 1

 FC30-000927A BEARING_P_PLATE 10

 FC09-001494A S_PULLEY_CLAMP 1

FC18-000967 TRUSS_SCREW 1

 MC19-000339A SPINDLE_PULLEY 1

 J66021183A TIMING_BELT 1

 J90551225A 431_NOZZLE_HOLDER_ASSY 1

Air Ass’y

J67081006B MIST_SEPARATOR_ASSY 1

 J6702021A K180-4E1-21-DC24V 1

 J6703037A AKH06-00 1

 J6712008A TP 1/8 1

 J1300276 KQ2L06-01 1

 J1300284 KQ2U06-00 1

 J6711168A BUYDO06-04 1

 J6702021A K180-4E1-21-DC24V 1

 J6705004A AN101-01 1

 J6711019A KQ2U06-00 1

 J6703033A AS2201F-01-06S 1

 J6711009A KQ2L06-M5 1

 J6711247A PT18EF 1

 J1301188 KQ2L04-M5 1

 J6711256A KD-M5-SA34697KR 1

 J6703034A ASP330F-01-06S 1

 J6711257A KS-4-M5-SA34698KR 1

 J67111032A MIST_FITTING SQV12-04S 2

 J6711243A STRAIGHT UNION[KQ2H06-00] 2

 J67111149A FITTING KQ2H08-00 1

HP09-000007 KM11-08-12010 1

 J6711183A KQ2R06-08 1

 HP06-000234 PLUG KQ2P-08 1

 HP06-000226 FITTING KQ2R10-12 1

 J67121002A PLUG KQ2P-10 1

J67101002A PS30-103R-N 1

 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 2

 J6711028A ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 J6709012A TAR4000-04 1

 J61191167A JOINT KQ2F04-01 1

 J61191172A METER GZ46-K-01-C1 1

 J67091014A REGULATOR AR08-T2-D0M0-J346A 2

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J6711168A BUYD06-04 1

J6712014A PLUG 3/8 1

 J67021025A VP544-5DZ-03A 1

 J67111203A SQL10-03S 1

 J67111205A SQL10-02S 1

 HP11-000058 P6010-AK-01-LA52SG 1

 FC28-000105 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1

 HP11-00059 VACUUM PUMP KHA-400A-301-G1 1

 HP06-000234 KQ2R08-12 1

 HP06-000250 KQ2VT12-03S 1

 J67011007A CQ2B6-2-CJK2341 1

 J1301188 KQ2L04-M5 1

 J6711156A M-5H-4 1

 J66061005A AQ2A12-30D 1

 J6711005 M-5HLH-4 1

 J6703007A JNC4-M5 1

 J6701018B WTS10*30-RS2 1

 J6711001A KQ2L04-M5 1

 J1301188 KQ2L04-M5 1

 J90561001A B DAS6X5-1A-ZC153A2 1

 J6703028A SS4-M5MA 1

 J67011016A TPC1B16-30 1

 J6701088A CM2C32-50 1

 J6711028A KQ2L04-01 1

 J6712017 KPT18 1

 J1300279 KQ2S04-M5 1

 J6704006A SY3120-20-KRW0098 1

J6703031A AS1211F-M5-04 1

J67021005A DV1120-00-R3642-3 1

 J6711157A KQ2L08-01S 1

 J1300067 AN101-01 1

 HP13-000042 TUBE-NYLON TUBE N2-4-12x9-MW;12,OD12/ID9 32

 J6709004A AR1000-M5BG 1

HP06-000235 KQ2U12-00 1

 HP06-000234 KQ2R08-12 1

 HP09-000127 KM11-04-08-10 1

 HP13-000037A UML-412 BU1-YL1-BK1 03.7 1

 J67111035A KQ2H04-06 1

X-Y Frame Ass’y

FC09-001648A BRACKET-CABLE FIXER 1

 PM02-000794A CUSHION CABLE X 2

 FC09-001481A BKT CUSHION X 2

 FC09-001577B BRACKET-FLAT_CABLE_CLAMP 1

 FC09-001662A BRACKET-BKT CABLE X 2

 PM02-000795A CUSHION-CABLE Y 411PS 2

 FC09-001485A BRACKET-CUSHION Y 411PS 2

 FC15-000971A COVER-COVER CHAIN Y 1

 FC09-001771A BRACKET-BKT CABLE CHAIN X 1

 J3212022A LIMIT SENSOR [EE-SX674] 3

 J6719025A GREASE NIPPLE [M6*1.0-STRAIGHT] 4

 J70541105A GREASE_NIPPLE_NUT J70541105A 4

 J67111016A STRAIGHT_FITTING KQ2H04-M6 4

 J66071014A LM_GUIDE-X SSR15XW2UUC1+940LHY-2 2

 J70541038A SENSOR_DOG_X J70541038A 2

 FC05-000148B BASE-HEAD 411PS 1

 FC29-001213A DOG-DOG CRASH 1

 J70530690B SERVO CONNECTOR BKT 1

 J70541008A SENSOR_DOG-Y J70541008A 1

 J31081055A SERVO_MOTOR MHMD082G1A 1

 FC29-001212A CUSHION CRASH 2

MC13-000125 BALL SCREW 2

 FC29-001079A SUPPORT-B SCREW X 411PS 1

 J71541010A BRG_HOUSING-X J71541010A 1

 J1300517 C-RING [10mm (SHAFT)] 1

 J1300509 BALL BEARING [6000ZZ] 1

 J72541005B CUSHION_X_REAR 1

 J72541003A CUSHION_X_FRONT J72541003A 1

 J66011017A SUPPORT_UNIT FK12-MP5 1

 J6612035A COUPLING[SFC 040DA 10B-19B (TYPE B)] 1

 FC09-001308A CABLE_CHAIN-Y_SUPPORT 1

 FC15-000972B COVER CABLE X 1

J66061002A Y-BALL_SCREW SBK2030ZS-3.4GT+956LC5-B 2

 J70541006C BS_REAR_SUPPORT 2

 J70541030A BRG_HOUSING_Y J70541030A 2

 J6601020A BALL BEARING 2

 FC29-001076A STOPPER-STOPPER Y BS REAR 411PS 2

 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 2

 J6601124A SUPPORT UNIT[FK-15] 2

 J70541005C Y_MOTOR_BLOCK 2

 J6612036A COUPLING[SFC 050DA 12B-19B(TYPE A)] 4

 J31081056A SERVO_MOTOR MSMA102G2C 4

 J70541366A SIDE_COVER_BKT-2 J70541366A 1

 FC09-001720A BRACKET-SIDE COVER 1 1

 J1300419 C-RING (SHAFT) [DIA15] 1

FC15-000922A COVER-COVER DRIVER Y 1

 FC09-001485A BRACKET-CUSHION Y 411PS 2

 PM02-000795A CUSHION-CABLE Y 411PS 2

 FC29-001084B SUPPORT-Y CABLE DUCT 1

 J66071013A LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1

 HP09-000127 MANIFOLD-MANIFOLD KM11-04-08-10 1

 J6103005A HEX SUPPORT 6

 FC09-001511A PANLEL CON Y 1

 J91741337A AXIS BOARD 1

 AM03-005372A HEAD Z AXIS DRIVER 5

 FC09-001509B BRACKET-BKT AXIS B 2 1

 FC09-001486A BRACKET-DIRVER T 1

 FC09-001663A BRACKET-BKT CABLE R 1

 EP06-000182 SERVO CONTROL-DRIVE-STEP DRV 5

 FC09-001647A BRACKET-BKT SIDE SUB 1

 J1300191 SEMUS NABE SCREW [M4*16] 10

 FC05-000149A BASE-DRIVER Y DUCT 1

Fixed ANC Ass’y

AM03-001510A ANC_ASSY J90561001A 1

 J71561004A ANC_SUPPORT J71561004A 1

 J7156043B SHUTTER BRACKET[J7156043B] 1

 J6703028A SPEED CONTROLLER [SS4-M5MA] 2

 J6701029A AIR CYLINDER [BDAS6*5-1A-ZC153A2] 1

 J70561001A CYLINDER_BRACKET J70561001A 1

 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1

 J6703031A SPEED CONTROLLER[AS1211F-M5-04] 1

 J6711147A STRAIGHT FITTING KQ2H04-M5 1

 J67011016B AIR_CYLINDER 1

 FC30-000241A ANC_PLATE_1 1

 FC30-000242A ANC_NOZZLE_SHUTTER 1

 FC03-000014A ANC_MAIN_BODY 1

 AM03-001511A ANC_ASSY_REAR J90561002A 1

Cover Ass’y

FC15-001006A CONVEYOR_COVER 2

 FC15-000959A TOP_SIDE_L 1

 FC15-000956A COVER_FRAME_FRONT-L 1

 FC39-000757A COVER_FRAME_REAR-R 1

 J47131010A TOWER_LANP 1

 J73520001B DOOR CUSHION 4

 FC15-000946A UPPER_FL 1

 J64091005A MAGNETIC 4

 FC09-000693B BARCODE_HANGER3 1

 FC15-000955A TOP_CENTER 1

 J70521087A WINDOW_HINGE 2

 FC15-000953A UPPER_SIDE_R 2

 FC09-001707A SM471_WINDOWS_SIDE_GUIDE_L 1

 FC09-001711A SM471_WINDOWS_SIDE_CLAMP 4

 FC30-000881A SM471_PC_FIXED_PLATE 1

 FC09-001706A SM471_WINDOWS_SIDE_GUIDE_R 1

 FC18-001043 FRSNUT_M4 15

 FC30-000908A SM471_MAGNETIC_PLATE 2

 FC09-001709A SM471_HANDLE_PLATE 1

 FC09-001708A SM471_COVER_HANDLE_C 1

 J70521081A GAS_SPING_BRACKET2 2

 FC15-001006A CONVEYOR_COVER 2

 J6404001A DOOR KEY 1

 FC15-001031A SM471_WINDOW_MAIN_PLATE 1

 CM01-000057A SM471_PC_COVER_ESD 1

 J3212049A AREA_SENSOR_BWP20-12 4 OPTION

 FC15-000947A UPPER_RL 1

FC15-000958A TOP_SIDE_R 1

 FC39-000755A COVER_FRAME_REAR-L 1

 J7070352A CONNECTOR BRACKET 1

 FC39-000756A COVER_FRAME_FRONT-R 1

 J70521025A lower_op_panel 2

 FC15-000945A UPPER_FR_RR 2

J70521075D GAS_SPRING_BRACKET1 4

 FC38-000079 GAS_SPRING_KS2-300-PS1-032 8

 J34091002A DOOR_SWITCH 2

 FC09-001727A DOOR_SENSOR_BKT3 2

 FC09-001726A DOOR_SWITCH_BKT3 2

 FC15-000998A HINGE_PLT 2

 J53011015A LCDMONITOR 15 ST 150 2

 FC30-000844A LCD_GUIDE_PL 2

 J7252061A PAD_BRACKET 4

 FC15-000997A LCD_BKT 2

 J6739088A SWITCH_1B_LED_RED 2

 J6739089A SWITCH_1B_LED_YELLOW 2

 J6739090A SWITCH_1B_LED_GREEN 2

 J3403047A SWITCH_2B_LED_WHITE 2

 J6739087A SWITCH_1B_LED_WHITE 2

 J3403082A EMS SW 2

 FC30-000829A OP_PANEL 1

 FC15-001005A KEYBOARD_BASE 1

 FC15-000957A KEYBOARD_BASE_BKT 2

J31091015A FAN_FILTER 2

 J3105010A FAN_4715MS-SST-B50 4

 FC15-000943A LOWER_SIDE_2_L 1

 FC15-000952A LOWER_SIDE_1_COVER 2

 FC15-000949A LOWER_FL 1

 J64091022A SLIDE_LATCH 1

 FC15-000960A LOWER_OPEN_DOOR-A 1

 J1300101 DRAWER_PULL_HD 4

 J70521033B COVER_LFM 2

 FC15-001020A SIDE-COVER-L 2

 J70521088B FB-COVER 2

 FC15-001021A SIDE-COVER-R 2

 FC15-000948A LOWER_FR 1

 J64091022A SLIDE_LATCH 1

 J70511018B cable_duct_s-v 6

 J70521049A side_cover_support 1

 FC15-000944A LOWER_SIDE_2_R 1

 FC15-000949A LOWER_FL 1

 FC15-000961A LOWER_OPEN_DOOR-B 1

 J64091022A SLIDE_LATCH 1

 FC15-000961A LOWER_OPEN_DOOR-B 1

 J64091022A SLIDE_LATCH 1

 FC15-000951A LOWER_RR_COVER 1

Control Rack Ass’y

J48091106A PCIE_HOST_ADAPTER_JMI PCIE_HOST_CARD 3

 CD05-000030 MOTHERBOARD,CPU-NuPRO-E340;SBC,Q67 1

 CD05-000028 CPU-I5-2400;Quad Core,3.1HGz 1

 J9060364A IT FEEDER MASTER BOARD ASSY[J9060364A] 1

 J91741002B SAMC-ME 6CH 2

 CD05-000031 MODULE,MEMORY-DDR3 4G PC3-10600;Dimm 1

 J51011017A Hard_Disk_Drive 1

 J6102017A PC SLIDE RAIL[3832B-18] 2

 FC15-000076A AP5_PC_STOPER 2

 FC09-001665B BKT RIGHT BASE 1

 FC09-001669A SUB BRACKET B 1

 FC09-001667A POWER S HANGER 1

 AM03-006323A IPC_RACK-SM471 CASE 1

 FC09-001664B BKT LEFT BASE 1

 FC09-001668A SUB BRACKET 1

 J48091108A PCIE_BACKPLANE 1

 FC09-001666B POWER S DUCT 1

 J44021015A SMPS 3

 FC09-001670A POWER S BKT 3

 J44021043A PWR_SUPPLY 1

 J31051024A FAN 4710KL-04W-B49 2

 FC15-001085A COVER P SUPPLY 1

 FC29-000042 CAP-DUST CAP;PA10:rubber 3

 EP10-000749 MR-100 2

 CD05-000029 COOLER,CENTRAL PROCESSING-DP6-9EDSA-0L- 1

Electric Panel Ass’y

J3105010A COOLING FAN[4715MS-22T-B50] 1

 J31531049A SERVO_MOTOR_DRIVER 2

 J31531051A SERVO_MOTOR_DRIVER 2

 J31531050A SERVO_MOTOR_DRIVER 4

 J7251012A WIRING DUCT-5[J7251012A] 1

 FC09000879A STEP DRIVER BRACKET 1

 J3153060B SERVO MOTOR DRIVER-PB PB1D002P101 4

 J3153059B SERVO MOTOR DRIVER-PB PB1D003P101 2

 J7251007A BOARD COVER[J7251007A] 1

 AM03-001814A SAFTY CONTROL BD 1

 AM03-005825A TERMINAL BLOCK ASSY 1

 AM06-000943A 16AXIS BOARD 1

 FC09-001716A AXIS_BD_COVER 1

 J7251015A WIRING DUCT-8[J7251015A] 1

Electric Device Ass’y

J67091014A REGULATOR AR08-T2-D0M0-J346A 2

 J6712008A PLUG [PT 1/8] 1

 J32041001A PRESSURE_SENSOR PSA-1(RC1/8) 1

 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1

 FC09-001465A BRACKET-AIR F SMU 1

 J67111183A ELBOW_MINI_FITTING SCL04-01 1

 J61191172A METER GZ46-K-01-C1 1

 J61191167A JOINT KQ2F04-01 1

 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 2

 J67090012B REGULATOR 1

 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY 1

 J90831059C KEY_SWITCH 1

 FC09-001672A BRACKET-BKT F POWER 1

 J6309025 FAN[PFC120(FOR 120? FAN)] 2

 FC15-000943A COVER-LOWER_SIDE_2_B 1

 J3105010A COOLING FAN[4715MS-22T-B50] 2

AM03-003542A CABLE ASSY INLINE_IN_OUT 1

 J36031004A MAIN_SW_CANCLE 1

 J3716070A GV2_AF 1

 J70521076B POWER_PANEL 1

 AM03-003573A LAN_PORT 1

 J7152027A GROUND TERMINAL [J7152027A] 1

 J52011002A MINI_KEYBOARD 5510UH 2

 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2

 J52021011A OPTICAL_MOUSE 2

 J90601023B TEACHING_BOX 1

 J53011032A LCD_MONITOR_15 2

AM03-000900A CAN_CONVEYOR_BOARD 1

 J91741076A CONV_SUB_IF_BOARD 1

 J29011001A NOISE_FILTER UF20TBH 1

 J26051012A TRANSFORMER 3PHASE, 5.5KVA 1

 AM03-005338A AXIS SENSOR 1

 J80001112A MONITOR_DISTRIBUTOR NM-V21 1

 AM06-00359A VISION IF BD 1

 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1

 J90601030B FR_OPERATE_BOARD 1

 FC09-001657B BKT VAC GEN 1

 HP11-000058 VACUUM GENERATOR 1

 J67111205A FITTING 1

 J67111203A FITTING 1

 J1301213 PLUG 1

 J67021025A AIR-VALVE 1

 J6712008A PLUG 1

 FC15-000967A COVER PUMP 1 OPTION

 HP11-000059 VACUUM_PUMP KHA400A-301-G1 1 OPTION

 FC28-000105 STRAIGHT NIPPLE 1 OPTION

 J67191083A HOSE_BAND 1 OPTION

 J3105010A COOLING FAN 1 OPTION

 HP06-000250 FITTING KQ2VT12-03S 1 OPTION

 HP06-000234 FITTING KQ2R08-12 1 OPTION

 J61191171A FITTING KQ2R04-08 1 OPTION

J90511012A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1

 J31521002B STEP_MOTOR_DRIVER LB340-2AXIS 4

 J91741023A SM411_CONVEYOR_PWR_BOARD 2

Camera IO Board

AM03-005547A CABLE ASSY-HD1_FLY_CAM_PW_SYNC 1 SM471-VIS005

 AM03-005549A CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471-VIS007

 AM03-005548A CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 SM471-VIS006

 AM03-005550A CABLE ASSY-HEAD1 FLY CAM SIG 1 SM471-VIS008

 AM03-005552A CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471-VIS010

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1 SM471-VIS009

Front Feeder Board Interface

J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 1 SM_FD005

 AM03-005398A CABLE ASSY-FFDR-CVIF_CAN_J9L 1 SM471_CA102-1

 AM03-005400A CABLE ASSY-CAN_TW_J4R-J9L 1 SM471_CA202

 AM03-005397A CABLE ASSY-FFDR-CVIF_CAN_J4R 1 SM471_CA102

 AM03-005393A CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L SM471-CA101-2

 AM03-005396A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1 SM471_CA201

 AM03-005392A CABLE ASSY-AXIO_BD_2_FFD_CAN_J3R 1 SM471_CA101-1

 AM03-005455A CABLE ASSY-FRONT FDR CTRL PWR_J7L 1 SM471_FD101

 AM03-005454A CABLE ASSY-BD_PW_SC_T-BOX_J7L 1 SM471_SC203

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1 SM_FD006

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1 SM_FD007

J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1 SM_FD003

 AM03-005455A CABLE ASSY-FRONT FDR CTRL PWR_J1L 1 SM471-FD101

 AM03-005456A CABLE ASSY-F FDR PWR RELAY 1 SM471-FD002

Rear Feeder Board Interface

J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 1 SM_FD005

 AM03-005401A CABLE ASSY-RFDR-REAR_FLAT_CAN_J4R 1 SM471_CA105

 AM03-005400A CABLE ASSY-CAN_TW_J4R-J9L 1 SM471_CA202

 AM03-005402A CABLE ASSY-RFDR-REAR_FLAT_CAN_J9L 1 SM471_CA105-1

 AM03-005394A CABLE ASSY-AXIO_BD_3_RFD_CAN_J3R 1 SM471_CA101-3

 AM03-005396A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1 SM471_CA201

 AM03-005395A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L 1 SM471_CA102-4

 AM03-005432A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM471_CV101

 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 AM03-005458A CABLE ASSY-R FDR PWR RELAY CABLE ASSY 2 SM471_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 2 SM411N-FD001

 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1 SM_FD007

 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1 SM_FD004

Conveyor Board Interface

AM03-004345A CABLE ASSY-CVIF-FRONT_FLAT_CAN 1 SM33_CA104

 AM03-005395A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L 1 SM471_CA102-4

 AM03-005400A CABLE ASSY-CAN_TW_J4R-J9L 1 SM471_CA202

 AM03-005398A CABLE ASSY-FFDR-CVIF_CAN_J9L 1 SM471_CA102-1

 AM03-005432A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM471_CV101

 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33-CV003

AM03-005685A CABLE ASSY-F_ANC_SOL-EXT 1 SM471-CS111-1

 AM03-005684A CABLE ASSY-FR_ANC_SOL 1 SM471_CS111

 AM03-005430A CABLE ASSY-AX_X2_F_AREA_SNS_J5R-J10L 1 SM471_CV201

 AM03-005686A CABLE ASSY-R_ANC_SOL-EXT1 1 SM471_CS111-2

 AM03-005687A CABLE ASSY-R_ANC_SOL-EXT2 1 SM471_CS111-3

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421-CV106-1-2

 AM03-005436A CABLE ASSY-TOWER_LAMP_J9L 1 SM471_CV104-1

 AM03-005400A CABLE ASSY-CAN_TW_J4R-J9L 1 SM471_CA202

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471-PW146-1

 AM03-004348A CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1 SM411_CS135

AM03-004382A CABLE ASSY-ANC_SENSOR_FRONT_EXT 1 SM411_CV109

 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1 SM33-CV010

 AM03-004385A CABLE ASSY-ANC_SENSOR_FRONT_EXT1 1 SM411_CV109-1

 AM03-004565A CABLE ASSY-ANC-SENSOR REAR EXT 1 SM411_CV109-2

AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 2 SM421_CV113

 AM03-004411A CABLE ASSY-CRASH_SENSOR_IF 1 SM411_CV131

 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1

 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2

AM03-005438A CABLE ASSY-F_AREA_SENSOR_J5R 1 SM471_CV115

 AM03-005447A CABLE ASSY-R_AREA_AIR_SNS_SUB_J6R-J11R 1 SM471_CV202

 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1 SM33-CV016

 AM03-005440A CABLE ASSY-F_AREA_SENSOR_J10L 1 SM471_CV115-1

 AM03-005444A CABLE ASSY-REAR_AREA_SENSOR_J11R 1 SM471_CV117-1

 J90831141A REAR_AREA_SENSOR_CABLE_ASSY SM33-CV018 1 SM33-CV018

 AM03-005442A CABLE ASSY-REAR_AREA_SENSOR_J6R 1 SM471_CV117

 AM03-005450A CABLE ASSY-T_BOX_HOST_J1R 1 SM471_CV132

 AM03-005389A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM471_SC201

 AM03-005705A CABLE ASSY-RS232_SERIAL-EXT 1 SM471-PC003-1

 AM03-005704A CABLE ASSY-RS232_SERIAL 1 SM471-PC003

Conveyor Sensor IF Board

AM03-005422A CABLE ASSY-CONV_LEFT_IF_BD 1 SM471_SC151

 AM03-005424A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1 SM471_SC151-1

 AM03-005719A CABLE ASSY-CONVEYOR_SOL 1 SM471_CS111-4

 AM03-004349A CABLE ASSY-CONV_RIGHT_IF_BD 1 SM471_SC136

Conveyor Sub IF Board

J90831131B CONV_SW_OUTPUT_CABLE_ASSY 1 SM33-CV003

 AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 1 SM421_CV113

 AM03-004476A CABLE ASSY-FRONT_OP_SW 1 SM411_OP103

 AM03-005474A CABLE ASSY-REAR_OP_SW_J6R 1 SM471_OP104

 AM03-005475A CABLE ASSY-REAR_OP_SW_J11L 1 SM471_OP104-1

 AM03-005526A CABLE ASSY-CONV_SUB_IF 1 SM471-SC105

 AM03-005527A CABLE ASSY-CONV_SUB_IF-EXT 1 SM471-SC105-1

 AM03-005448A CABLE ASSY-AIR_INDICATOR_J6R 1 SM471-CV126

 AM03-005449A CABLE ASSY-AIR_INDICATOR_11R 1 SM471-CV126-1

Head IF Board

AM03-005524A CABLE ASSY-HEAD1_PWR_J2R 1 SM471_SC103-1

AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

 AM03-005590A CABLE ASSY-FLY_SIDE_1 1 SM471_HD010-3

 AM03-005593A CABLE ASSY-FLY_OUT_1 1 SM471_HD010-6

AM03-005598A CABLE ASSY-FLY_COAXIAL 1 SM471_HD010-11

 AM03-005582A CABLE ASSY-R_HOME_SENSOR 1 SM471-HD007

 AM03-005580A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM471-HD003

 AM03-005581A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM471-HD003-1

 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009

 AM03-005586A CABLE ASSY-HEAD_BLOW_SOL 1 SM471-HD006

 AM03-005585A CABLE ASSY-HEAD_VACUUM_SOL 1 SM471-HD005

 AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1 SM471-HD004

 AM03-005589A CABLE ASSY-FID2_COAX 1 SM471_HD010-2

 AM03-005598A CABLE ASSY-FLY_COAXIAL 1 SM471_HD010-11

Axis Sensor Board Interface

AM03-005388A CABLE ASSY-AXIS_SENSOR_BD_PW_EXT_J1R 1 SM471_AX101

 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 AM03-005391A CABLE ASSY-FY_AXIS_SENSOR-EXT 1 SM471_AX103-1

 AM03-005390A CABLE ASSY-FY_AXIS_SENSOR 1 SM471_AX103

 AM03-004337A CABLE ASSY-RY_AXIS_SENSOR 1 SM411_AX104

 AM03-004348A CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1 SM411_CS135

 AM03-005424A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1 SM411_CS151-1

 AM03-005422A CABLE ASSY-CONV_LEFT_IF_BD 1 SM471_CS151

 AM03-004349A CABLE ASSY-CONV_RIGHT_IF_BD 1 SM411_CS136

AM03-005418A CABLE ASSY-AXIS_SNS_BD_CN9_10 1 SM471-CS150

 AM03-005420A CABLE ASSY-AXIS_SNS_BD_CN9_10-EXT 1 SM471-CS150-1

 AM03-005691A CABLE ASSY-AX_BD_X1_MOT_SNS 1 SM471-CS041

 J90831154D X_AXIS_SENSOR_CABLE_ASSY 1 SM33_AX002

 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1 SM33-CS034-1

 AM03-005413A CABLE ASSY-FDR_UNLOCK_SEN_J3R 1 SM471_CS134

 AM03-005414A CABLE ASSY-FDR_UNLOCK_SEN_J8L 1 SM471_CS134-1

 AM03-005396A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1 SM471_CA201

AM03-005427A CABLE ASSY-AX_BD_X2_MOT_SNS_J5R 1 SM471_CS142

 AM03-005430A CABLE ASSY-AX_X2_F_AREA_SNS_J5R-J10L 1 SM471_CV201

 AM03-005429A CABLE ASSY-AX_BD_X2_MOT_SNS_J10L 1 SM471_CS142-1

 J90831154D X_AXIS_SENSOR_CABLE_ASSY 1 SM33_AX002

 AM03-005416A CABLE ASSY-AXIS_SNS_BD_CN7-8-EXT 1 SM471-CS135-1

 AM03-005415A CABLE ASSY-AXIS_SNS_BD_CN7-8 1 SM471-CS135

 AM03-005538A CABLE ASSY-HD_VAC-BLOW_CTRL 1 SM471-VI104

 AM03-005539A CABLE ASSY-HD1_VAC-BLOW_CTRL 1 SM471-VI104-1

 AM03-005540A CABLE ASSY-HD2_VAC-BLOW_CTRL 1 SM471-VI104-2

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

Axis IO Board

AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 3 SM471-SC007-1

 AM03-005538A CABLE ASSY-HD_VAC-BLOW_CTRL 1 SM471-VI104

 AM03-005539A CABLE ASSY-HD1_VAC-BLOW_CTRL 1 SM471-VI104-1

 AM03-005540A CABLE ASSY-HD2_VAC-BLOW_CTRL 1 SM471-VI104-2

 AM03-005420A CABLE ASSY-AXIS_SNS_BD_CN9_10-EXT 1 SM471-CS150-1

 AM03-005418A CABLE ASSY-AXIS_SNS_BD_CN9_10 1 SM471-CS150

AM03-005557A CABLE ASSY-FY1_FY2_DRV_COMMAND 1 SM471-VM003

 AM03-005606A CABLE ASSY-Z6_MOTOR 1 SM471_MD024

 AM03-005428A CABLE ASSY-FY1_MOTOR_PWR 1 SM471_MD105

 AM03-005763A CABLE ASSY-FY1_MOTOR_ENC_EXT 1 SM471_MD028

 AM03-005763A CABLE ASSY-FY1_MOTOR_ENC_EXT 1 SM471_MD106-1

 AM03-005762A CABLE ASSY-FY1_MOTOR_ENC 1 SM471_MD106

 AM03-005493A CABLE ASSY-FY1_FY2_SERVO_POWER 1 SM471_PW018

 AM03-005764A CABLE ASSY-FY2_RY1_HD1_FG_T2R 2 SM471_MD202

 AM03-004448A CABLE ASSY-FY2_MOTOR_PWR_T2R 1 SM411_MD107

 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY SM33_MD029

 AM03-005421A CABLE ASSY-FX_S_Y2 MOT_ENC 1 SM471_MD102

 AM03-005423A CABLE ASSY-FX_S_Y2 MOT_ENC_EXT 1 SM471_MD102-1

 AM03-005558A CABLE ASSY-RY1_RY2_DRV_COMMAND 1 SM471-VM004

 AM03-005494A CABLE ASSY-RY1_RY2_SERVO_POWER 1 SM471_PW019

 AM03-004450A CABLE ASSY-RY1_MOTOR_PWR_T2R SM411_MD109

 AM03-005473A CABLE ASSY-RY1_MOTOR_ENC_EXT 1 SM471-MD031

 AM03-005473A CABLE ASSY-RY1_MOTOR_ENC_EXT 1 SM471_MD110-1

 AM03-005457A CABLE ASSY-RY1_MOTOR_ENC 1 SM471_MD110

 AM03-005761A CABLE ASSY-FY1_RY2_R_MOT_PW_T4 1 SM471_MD204

 AM03-005760A CABLE ASSY-RY2_R_MOT_PW_T4L 1 SM471_MD111

 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD032

 AM03-005425A CABLE ASSY-RX_S_Y2 MOT_ENC 1 SM471_MD104

 AM03-005426A CABLE ASSY-RX_S_Y2 MOT_ENC_EXT 1 SM471_MD104-1

AM03-005559A CABLE ASSY-FX_RX_DRV_COMMAND 2 SM471-VM005

 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1 SM471_PW016

 AM03-005419A CABLE ASSY-FX_FS_F_MOT_PW_T1R 1 SM471_MD201

 AM03-005720A CABLE ASSY-FX_MOTOR_PWR_T1R 1 SM471_MD101

 J90831183A FX_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD027

 AM03-005421A CABLE ASSY-FX_S_Y2 MOT_ENC 1 SM471_MD102

 AM03-005423A CABLE ASSY-FX_S_Y2 MOT_ENC_EXT 1 SM471_MD102-1

 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1 SM471_PW017

 AM03-005624A CABLE ASSY-RX_RS_HD2_FG_T3L 1 SM471_MD203

 AM03-005695A CABLE ASSY-RX_MOTOR_PWR_T3L 1 SM471_MD103

 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD030

 AM03-005425A CABLE ASSY-RX_S_Y2 MOT_ENC 1 SM471_MD104

 AM03-005426A CABLE ASSY-RX_S_Y2 MOT_ENC_EXT 1 SM471_MD104-1

AM03-005573A CABLE ASSY-MS1_WS1_DRV_COMMAN 1 SM471_VM013

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 4 SM33_PW029

 AM03-005408A CABLE ASSY-MS1_MOTOR_ENC_EXT 1 SM471_CS221-1

 AM03-005407A CABLE ASSY-MS1_MOTOR_ENC 1 SM471_CS221

 AM03-005404A CABLE ASSY-MS1_WW1_MOT_PW_EXT 1 SM471_CS254-1

 AM03-005403A CABLE ASSY-MS1_WW1_MOT_PW 1 SM471_CS254

 J90831199A CABLE ASSY-MS1_SERVO_MOTOR 1 SM33-CS012

 AM03-005411A CABLE ASSY-WS1_MOTOR_ENC 1 SM471_CS223

 AM03-005412A CABLE ASSY-WS1_MOTOR_ENC_EXT 1 SM471_CS223-1

 AM03-001349A CABLE ASSY-WS1_SERVO_MOTOR 1 SM33-CS013

 AM03-005574A CABLE ASSY-WW1_MS2_DRV_COMMAND 2 SM471_VM014

AM03-005410A CABLE ASSY-WW1_MOTOR_ENC_EXT 1 SM471_CS222-1

 AM03-005409A CABLE ASSY-WW1_MOTOR_ENC 1 SM471_CS222

 AM03-005405A CABLE ASSY-WS1_MOTOR_PW 1 SM471_CS220

 AM03-005406A CABLE ASSY-WS1_MOTOR_PW_EXT 1 SM471_CS220-1

 J90831201A CABLE ASSY-WW1_SERVO_MOTOR 1 SM33-CS014

 AM03-004370A CABLE ASSY-MS2_MOTOR_ENC_EXT 1 SM411_CS224-1

 AM03-004369A CABLE ASSY-MS2_MOTOR_ENC 1 SM411_CS224

 AM03-004537A CABLE ASSY-MS2_MOTOR_PW 1 SM411_CS253

 AM03-005688A CABLE ASSY-MS2_MOTOR_PW_EXT 1 SM471-CS253-1

 J90831203A CABLE ASSY-MS2_SERVO_MOTOR 1 SM33-CS016

AM03-005575A CABLE ASSY-WS2_WW2_DRV_COMMAND 1 SM471-VM015

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1 SM33-PW029

 AM03-004380A CABLE ASSY-WS2_MOTOR_ENC_EXT 1 SM411_CS226-1

 AM03-004376A CABLE ASSY-WS2_MOTOR_ENC 1 SM411_CS226

 AM03-004540A CABLE ASSY-WS2_WW2_MOT_PW_EXT 1 SM411_CS252-1

 AM03-004539A CABLE ASSY-WS2_WW2_MOT_PW 1 SM411_CS252

 J90831204A CABLE ASSY-WS2_SERVO_MOTOR 1 SM33_CS017

 AM03-005689A CABLE ASSY-WW2_MOTOR_ENC_EXT 1 SM471_CS225-1

 AM03-004372A CABLE ASSY-WW2_MOTOR_ENC 1 SM411_CS225

 J90831202A CABLE ASSY-WW2_SERVO_MOTOR 1 SM33-CS015

 AM03-005576A CABLE ASSY-BW12_BS12_DRV_COMMAND 1 SM471_VM017

 AM03-005577A CABLE ASSY-BW34_BS34_DRV_COMMAND 1 SM471_VM018

AM03-005529A CABLE ASSY-AXIO_BD_2_PWR_J2R 1 SM471-SC107-2

 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 AM03-005392A CABLE ASSY-AXIO_BD_2_FFD_CAN_J3R 3 SM471_CA101-1

 AM03-005396A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1 SM471_CA201

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1 SM471-VM009-1

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1 SM471-VM009-2

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 3 SM471-PW031

 AM03-005566A CABLE ASSY-Z56_DRV_COMMAND 1 SM471-VM009-3

AM03-005567A CABLE ASSY-Z78_DRV_COMMAND 1 SM471-VM009-4

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 2 SM471-PW031

 AM03-005568A CABLE ASSY-Z910_DRV_COMMAND 1 SM471-VM009-5

AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1

 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1

 AM03-005560A CABLE ASSY-FSW_DRV_COMMAND 1 SM471-VM106

 AM03-005561A CABLE ASSY-FSW_DRV_COMMAND-EXT 1 SM471-VM106-1

 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1 SM471_PW016

 AM03-005419A CABLE ASSY-FX_FS_F_MOT_PW_T1R 1 SM471_MD201

 AM03-005421A CABLE ASSY-FX_S_Y2 MOT_ENC 1 SM471_MD102

 AM03-005423A CABLE ASSY-FX_S_Y2 MOT_ENC_EXT 1 SM471_MD102-1

 AM03-005694A CABLE ASSY-FS_MOTOR_PWR_T1R 1 SM471_MD113

AM03-005530A CABLE ASSY-AXIO_BD_3_PWR_J7L 1 SM471_SC107-3

 AM03-005454A CABLE ASSY-BD_PW_SC_T-BOX_J7L 1 SM471_SC203

 AM03-005395A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L 1 SM471_CA102-4

 AM03-005396A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1 SM471_CA201

 AM03-005394A CABLE ASSY-AXIO_BD_3_RFD_CAN_J3R 1 SM471_CA101-3

 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006

 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1 SM471-VM009-1

 AM03-005503A CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471-PW124-1

 AM03-005502A CABLE ASSY-RZ1-RZ10 DC24V PW 1 SM471-PW124

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1 SM471-VM009-2

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

 AM03-005566A CABLE ASSY-Z56_DRV_COMMAND 1 SM471-VM009-3

AM03-005567A CABLE ASSY-Z78_DRV_COMMAND 1 SM471-VM009-4

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031

 AM03-005568A CABLE ASSY-Z910_DRV_COMMAND 1 SM471-VM009-5

AM03-005569A CABLE ASSY-R1_R2_R3 DRV COMMAND 1 SM471-VM011

 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1

 AM03-005562A CABLE ASSY-RSW_DRV_COMMAND 1 SM471-VM107

 AM03-005563A CABLE ASSY-RSW_DRV_COMMAND-EXT 1 SM471-VM107-1

 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1 SM471_PW017

 AM03-005624A CABLE ASSY-RX_RS_HD2_FG_T3L 1 SM471_MD203

 AM03-005696A CABLE ASSY-RS_MOTOR_PWR_T3L 1 SM471_MD115

 AM03-005425A CABLE ASSY-RX_S_Y2 MOT_ENC 1 SM471_MD104

 AM03-005426A CABLE ASSY-RX_S_Y2 MOT_ENC_EXT 1 SM471_MD104-1

FR Motor IF Board

AM03-005601A CABLE ASSY-Z1_MOTOR 1 SM471_MD019

 AM03-005602A CABLE ASSY-Z2_MOTOR 1 SM471_MD020

 AM03-005603A CABLE ASSY-Z3_MOTOR 1 SM471_MD021

 AM03-005604A CABLE ASSY-Z4_MOTOR 1 SM471_MD022

 AM03-005605A CABLE ASSY-Z5_MOTOR 1 SM471_MD023

 AM03-005606A CABLE ASSY-Z6_MOTOR 1 SM471_MD024

 AM03-005607A CABLE ASSY-Z7_MOTOR 1 SM471_MD024-1

 AM03-005608A CABLE ASSY-Z8_MOTOR 1 SM471_MD024-2

 AM03-005609A CABLE ASSY-Z9_MOTOR 1 SM471_MD024-3

 AM03-005610A CABLE ASSY-Z10_MOTOR 1 SM471_MD024-4

AM03-005618A CABLE ASSY-R1_MOTOR 1 SM471_MD038

 AM03-005619A CABLE ASSY-R2_MOTOR 1 SM471_MD039

 AM03-005620A CABLE ASSY-R3_MOTOR 1 SM471_MD040

 AM03-005621A CABLE ASSY-R4_MOTOR 1 SM471_MD040-1

 AM03-005622A CABLE ASSY-R5_MOTOR 1 SM471_MD040-2

Vision IF Board

AM03-005541A CABLE ASSY-HEAD1 FIDUCIAL CAMERA1 1 SM471-VIS001-1

 AM03-005543A CABLE ASSY-FLAT_FID_CAMERA_1 1 SM471-VIS002-1

 AM03-005542A CABLE ASSY-HEAD1 FIDUCIAL CAMERA2 1 SM471-VIS001-2

 AM03-005544A CABLE ASSY-FLAT_FID_CAMERA_2 1 SM471-VIS002-2

 AM03-005545A CABLE ASSY-HEAD2 FIDUCIAL CAMERA1 1 SM471-VIS003-1

 AM03-005546A CABLE ASSY-HEAD2 FIDUCIAL CAMERA2 1 SM471-VIS003-2

 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471-VIS000

 AM03-005554A CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 SM471-VIS012

 AM03-005555A CABLE ASSY-NEXTEYE B/D2 I/F_MAGA 1 SM471-VIS012-1

AM03-005547A CABLE ASSY-HD1_FLY_CAM_PW_SYNC 1 SM471-VIS005

 AM03-005548A CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 SM471-VIS006

 AM03-005550A CABLE ASSY-HEAD1 FLY CAM SIG 1 SM471-VIS008

 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1 SM471-VIS009

 AM03-005549A CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471-VIS007

 AM03-005552A CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471-VIS010

Safety Control Board Interface

AM03-005506A CABLE ASSY-GENERAL_PW_RELAY 1 SM471-PW032

 AM03-005504A CABLE ASSY-PS1_PS2_SACO_T6L 1 SM471-PW127

 AM03-005507A CABLE ASSY-FEEDER_PW_RELAY 1 SM471-PW033

 AM03-005520A CABLE ASSY-F_OP_PANEL_IF 1 SM471-SC101

 AM03-005521A CABLE ASSY-F_OP_PANEL_IF-EXT 1 SM471-SC101-1

 AM03-005523A CABLE ASSY-R_OP_PANEL_IF-EXT 1 SM471-SC102-1

 AM03-005522A CABLE ASSY-R_OP_PANEL_IF 1 SM471-SC102

AM03-005389A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM471_SC201

 AM03-005531A CABLE ASSY-F_OVERRIDE_KEY_EXT_J1R 1 SM471-SC109

 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 SM411-SC008

AM03-005388A CABLE ASSY-AXIS_SENSOR_BD_PW_EXT_J1R 1 SM471_AX101

 AM03-005450A CABLE ASSY-T_BOX_HOST_J1R 1 SM471_CV132

 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202

 AM03-005432A CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1 SM471_CV101

 AM03-005532A CABLE ASSY-FR_STEP_DRV_PWR_J2R 1 SM471-SC111-1

 AM03-005723A CABLE ASSY-FR_STEP_DRV_PWR_J2R_EXT SM471-SC111-2

 AM03-005524A CABLE ASSY-HEAD1_PWR_J2R 1 SM471_SC103-1

 AM03-005529A CABLE ASSY-AXIO_BD_2_PWR_J2R 1 SM471-SC107-2

J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1 SM33-PW004

 AM03-005454A CABLE ASSY-BD_PW_SC_T-BOX_J7L 1 SM471_SC203

 AM03-005455A CABLE ASSY-FRONT FDR CTRL PWR_J7L 1 SM471_FD101

 AM03-005453A CABLE ASSY-SAFETY-REAR_T_BOX_J7L 1 SM471_CV135

 J90831262D REAR_TEACHING_BOX_EXT_CABLE_ASSY 1 SM33-CV023-5

 AM03-005530A CABLE ASSY-AXIO_BD_3_PWR_J7L 1 SM471_SC107-3

 AM03-005525A CABLE ASSY-HEAD2_PWR_J7L 1 SM471_SC103-2

 AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 1 SM471-SC007-1

 AM03-005537A CABLE ASSY-RR_STEP_DRV_PWR-EXT2 1 SM471-SC112-2

 AM03-005535A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 SM471-SC112-1

 AM03-005533A CABLE ASSY-RR_STEP_DRV_PWR-EXT1 1 SM471-SC112

 J90831335C MC1-ENABLE-CABLE-ASSY 1 SM41-SC006

AM03-005527A CABLE ASSY-CONV_SUB_IF-EXT 1 SM471-SC105-1

 AM03-005526A CABLE ASSY-CONV_SUB_IF 1 SM471-SC105

 AM03-005451A CABLE ASSY-SAFETY-FRONT_T_BOX 1 SM471-CV134

 AM03-005452A CABLE ASSY-SAFETY-FRONT_T_BOX_EXT 1 SM471-CV134-1

 AM03-005521A CABLE ASSY-F_OP_PANEL_IF-EXT 1 SM33-CV023-4

Electric Circuit Diagram

J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1 SM33-PW001

 AM03-005393A CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L 1 SM471_CA101-2

 J90831252A REAR_ELEC_PANEL_EARTH_CABLE_ASSY SM33-PW 1 SM33-PW003-1

 J90831253C MCCB_NF1_EARTH_CABLE_ASSY 1 SM33-PW003-2

 J90831066D NF1_MAIN_SWITCH_CABLE_ASSY 1 SM33-PW004

 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY SM33-PW005

 AM03-005697A CABLE ASSY-AC RELAY JUMPER 1 SM471_PW006

 AM03-005482A CABLE ASSY-CP1_TB1_MC1 1 SM471_PW007

 AM03-005483A CABLE ASSY-CP2_TB1_MC2_CABLE 1 SM471_PW008

AM03-005497A CABLE ASSY-TB1_MC1 1 SM471_PW120-3

 AM03-005496A CABLE ASSY-BELT_DRV_PW 1 SM471_PW120-2

 AM03-005499A CABLE ASSY-PS1_2_DC_POWER_BD 1 SM471-PW121-2

 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1 SM411-PW029

 AM03-005485A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 1 SM471_PW202

 AM03-005484A CABLE ASSY-MC1_PS3_PS4_PW_T6L 1 SM471_PW109

 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123

 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1

 AM03-005502A CABLE ASSY-RZ1-RZ10 DC24V PW 1 SM471-PW124

 AM03-005503A CABLE ASSY-RZ1-RZ10_DC24V_PW-EXT 1 SM471-PW124-1

AM03-005490A CABLE ASSY-MC2_TB1 1 SM471_PW115

 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1 SM471_PW016

 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1 SM471_PW017

 AM03-005493A CABLE ASSY-FY1_FY2_SERVO_POWER 1 SM471_PW018

 AM03-005494A CABLE ASSY-RY1_RY2_SERVO_POWER 1 SM471_PW019

AM03-005514A CABLE ASSY-CONTROL_RACK_PWR 1 SM471-PW145

 AM03-005513A CABLE ASSY-SACO_+24V_RELAY 1 SM471-PW044

 AM03-005515A CABLE ASSY-CONTROL_RACK_PWR-EXT 1 SM471-PW145-1

 AM03-005516A CABLE ASSY-RELAY 11 1 SM471-PW145-2

 AM03-005417A CABLE ASSY-FX_MOTOR_PWR_T1R 1 SM471_PW125

 AM03-005765A CABLE ASSY-REAR_MONITOR_PW_T4L 1 SM471_PW126

 AM03-005488A CABLE ASSY-FAN_POWER 1 SM471_PW112

 J90833316A FAN_CABLE_ASSY SM-FAN00 4 SM-FAN00

 J90831088B SERVO_FAN_FG_CABLE_ASSY 1 SM33-PW026

 AM03-005489A CABLE ASSY-SERVO_FAN_POWER 1 SM471_PW113

AM03-005487A CABLE ASSY-TB1_FS1_FS2 1 SM471_PW111-2

 AM03-005486A CABLE ASSY-TB1_PS1_PS2_PW_T5L 1 SM471_PW111

 AM03-005478A CABLE ASSY-PS1_PS2_PS5_PS6_PW_T5L 1 SM471_PW201

 AM03-005476A CABLE ASSY-PS5_PS6_PW_T5 1 SM471_PW101

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

 AM03-005495A CABLE ASSY-PS1_1_DC_POWER_BD 1 SM471_PW120

 AM03-005504A CABLE ASSY-PS1_PS2_SACO_T6L 1 SM471-PW127

 AM03-005485A CABLE ASSY-PS34_AC_PS12_DC_PW_T6L 1 SM471_PW202

 AM03-005480A CABLE ASSY-PS5_PS6__DC24V_PWR 1 SM471_PW103

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

AM03-005509A CABLE ASSY-MC_INPUT_220V 1 SM471-PW040

 AM03-005701A CABLE ASSY-PUMP_PWR_ALARM-EXT 1 SM471-PW147-1

 AM03-005698A CABLE ASSY-VACUUM_PWR 1 SM471-PW146

 AM03-005510A CABLE ASSY-SK 1 SM471-PW041

 AM03-005767A CABLE ASSY-VACUUM_PUMP_PWR_EXT 1 SM471-PW042-1

 AM03-005511A CABLE ASSY-VACUUM_PUMP_220V SM471-PW042

 AM03-005700A CABLE ASSY-PUMP_PWR_ALARM 1 SM471-PW147

 AM03-005699A CABLE ASSY-VACUUM_EJECTOR_PWR 1 SM471-PW146-1

AM03-005721A CABLE ASSY-AC RELAY POWER 1 SM471_PW105

 AM03-005462A CABLE ASSY-R RIGHT FEEDER BASE PWR 2 SM471_FD007

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

 AM03-005461A CABLE ASSY-R LEFT FEEDER BASE PWR 2 SM471_FD006

 AM03-005460A CABLE ASSY-F RIGHT FEEDER BASE PWR 2 SM471_FD005

 AM03-005459A CABLE ASSY-F LEFT FEEDER BASE PWR 2 SM471_FD004

 AM03-005479A CABLE ASSY-RY3_RY5_T7L 1 SM471_PW207

 AM03-005506A CABLE ASSY-GENERAL_PW_RELAY 1 SM471-PW032

 AM03-005507A CABLE ASSY-FEEDER_PW_RELAY 1 SM471-PW033

 AM03-005458A CABLE ASSY-R FDR PWR RELAY CABLE ASSY 2 SM471_FD003

 EP02-000588A FEEDER CN7 EXT CABLE ASSY 1 SM411N-FD001

 AM03-005456A CABLE ASSY-F FDR PWR RELAY CABLE ASSY 2 SM471_FD002

 AM03-005508A CABLE ASSY-RELAY_PW_SUPPLY 1 SM471-PW135

 J90834654A RELAY_CONNECT_CABLE_ASSY SM41-PW034 1 SM41-PW034

 AM03-005463A CABLE ASSY-24V POWER EXT 2 SM471_FD008

Articles of Consumption

J3601018A FUSE[250V 5A] 2

 J3601019A FUSE[250V 10A] 2

 J7055140A STEEL BALL [DIA2, SUS304] 60

 J7255021B SILICON TUBE(BLACK) [J7255021B] 20

 J67081017A SUETION FILTER [VYF44-M-50M] 10
